GemTek Technology WLTMS11041 Users manual

LTE CPE

Quick installation Guide

WLTMS-110_384041

Connection Guide

Copyright

This DOCUMENT is copyrighted with all rights reserved. No part of

this publication may be reproduced, transmitted, transcribed, stored in

a retrieval system, or translated into any language in any form by any

means without the written permission of Gemtek Technology Co. Ltd.

Notice

Gemtek reserves the right to change specifications without prior

notice.

While the information in this document has been compiled with

great care, it may not be deemed an assurance of product

characteristics. Gemtek shall be liable only to the degree specified in

the terms of sale and delivery.

The reproduction and distribution of the documentation and

software supplied with this product and the use of its contents is

subject to written authorization from Gemtek.

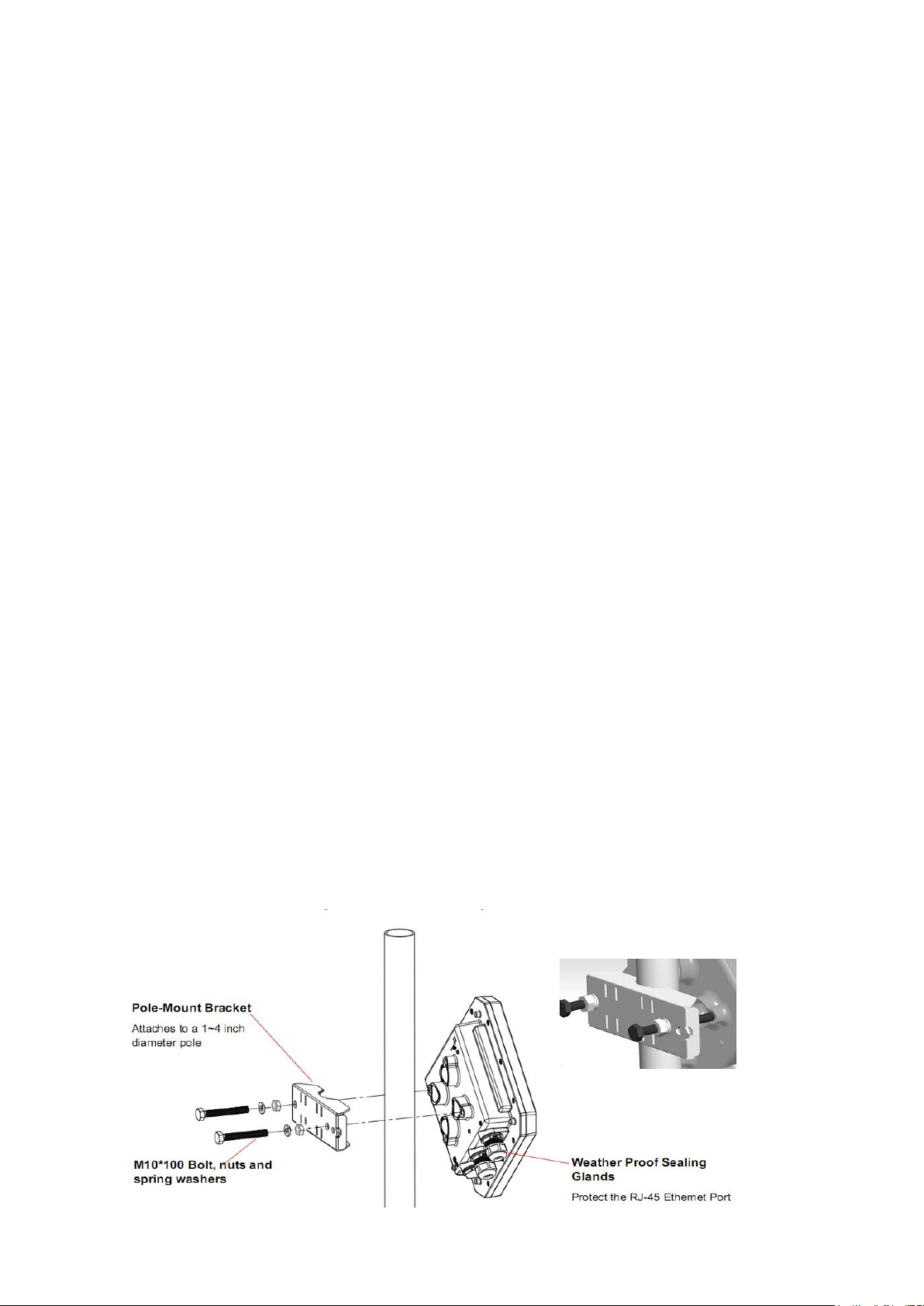

Connectors

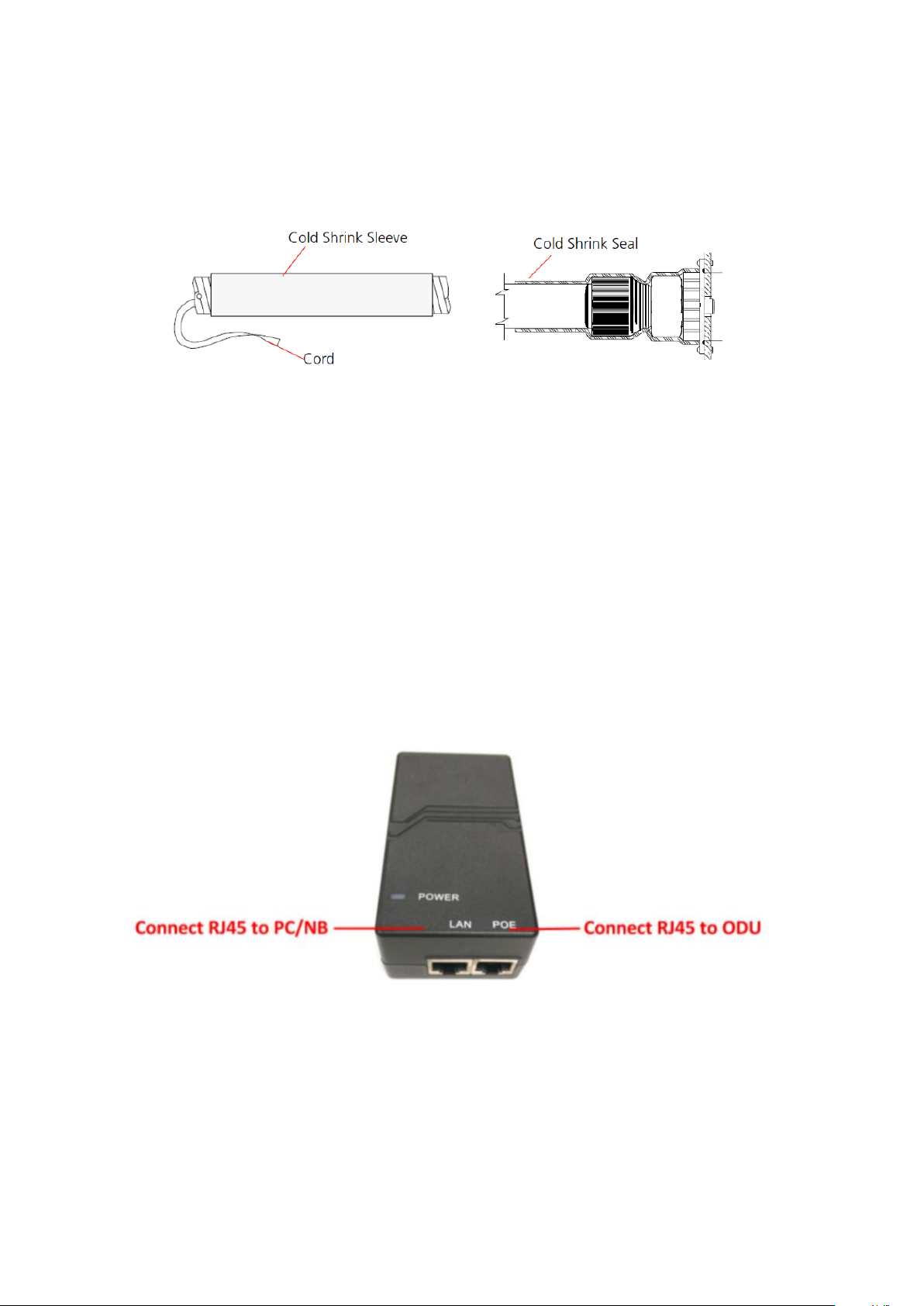

1. One RJ-45 connector for connecting to the PoE adaptor.

2. LED indicator inside and SIM card slot for inserting SIM card.

3. A grounding screw on the rear panel.

LED Indicators _ODU

LED name

Location

Color

LED Behavior

Status Indication

LED List

●●●

●●●

MAIN power

●○○

○○○

Blue

ON

Power On

OFF

Power Off

Ethernet
status

○●○
○○○

Yellow

Steady ON

Ethernet Connected

Blinking

Data Transmission

OFF

No Ethernet action

SIM status

○○●
○○○

Green

Steady ON

SIM Detected

Blinking when
On-hook

PUK / PIN Code

OFF

No SIM Detected

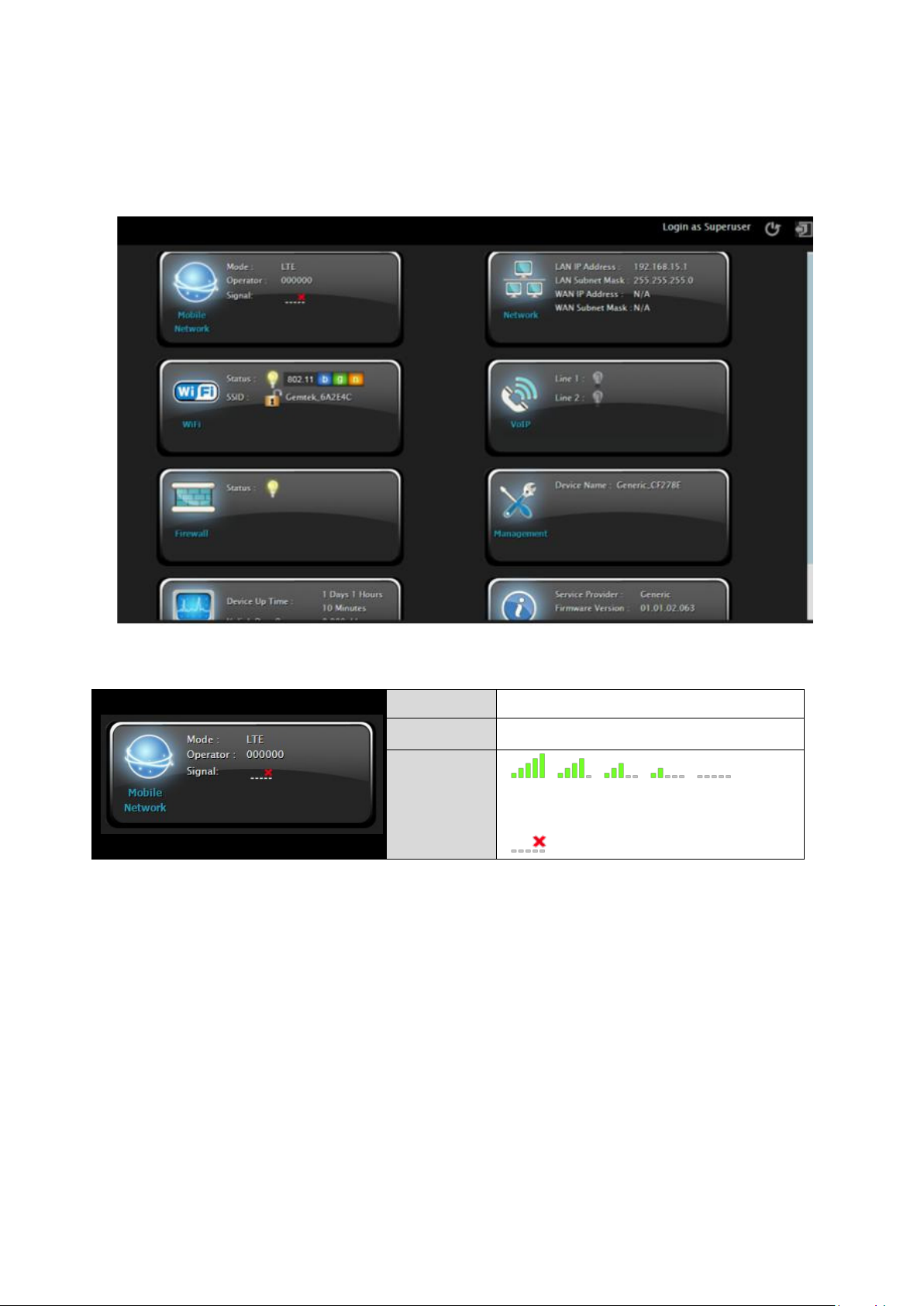

LTE Status LED : Link Status

When CPE is power on, each LED
indicates each link status

LTE 1

○○○

●○○

Red

Steady ON

CINR < 8dB

LTE 2

○○○

●●○

Red/

Yellow

Steady ON

8dB < CINR <
15dB

LTE 3

○○○

●●●

Red/

Yellow/

Green

Steady ON

15dB < CINR
