GemTek Technology WIXS 165 User Manual

Gemtek WiMAX Modem

User Manual

Manual Version: 1.1
Manual Date: Feb. 20 2009

Software Version: R4.6.0.0-17743-v5.7.0

Software Date: Feb. 20 2009

CONTENTS

Chapter 1 Overview..................................................................1-1

1.1. Indoor CPE............................................................................................. 1-1

1.2. Outdoor CPE.......................................................................................... 1-2

Chapter 2 WEB-GUI.................................................................2-3

2.1. System Configuration Login.................................................................. 2-3

2.2. System Logout....................................................................................... 2-6

2.3. Account.................................................................................................. 2-7

2.4. Date........................................................................................................ 2-8

2.5. Language................................................................................................ 2-9

2.6. Scanner................................................................................................. 2-10

2.7. Authentication...................................................................................... 2-12

2.8. Bridge Mode ........................................................................................ 2-14

2.9. NAT Mode ........................................................................................... 2-15

2.10. Firewall................................................................................................ 2-16

2.11. DHCP Server........................................................................................ 2-18

2.12. NAT ALG............................................................................................. 2-20

2.13. Port Forwarding................................................................................... 2-21

2.14. Port Trigger.......................................................................................... 2-22

2.15. DDNS................................................................................................... 2-23

2.16. TR-069................................................................................................. 2-25

2.17. SNMP................................................................................................... 2-27

2.18. Log....................................................................................................... 2-28

2.19. Upgrade................................................................................................ 2-29

2.20. Recovery.............................................................................................. 2-31

2.21. Reboot.................................................................................................. 2-32

i

FIGURES

Figure 1-1 Indoor CPE Front Panel LED ............................................... 1-1

Figure 1-2 Outdoor CPE installation ...................................................... 1-2

Figure 2-1 Login Page ............................................................................ 2-3

Figure 2-2 WiMAX Status...................................................................... 2-4

Figure 2-3 WiMAX Status-Service Flow ............................................... 2-4

Figure 2-4 Network Status...................................................................... 2-5

Figure 2-5 Device Status......................................................................... 2-5

Figure 2-6 Logout ................................................................................... 2-6

Figure 2-7 Account ................................................................................. 2-7

Figure 2-8 Date ....................................................................................... 2-8

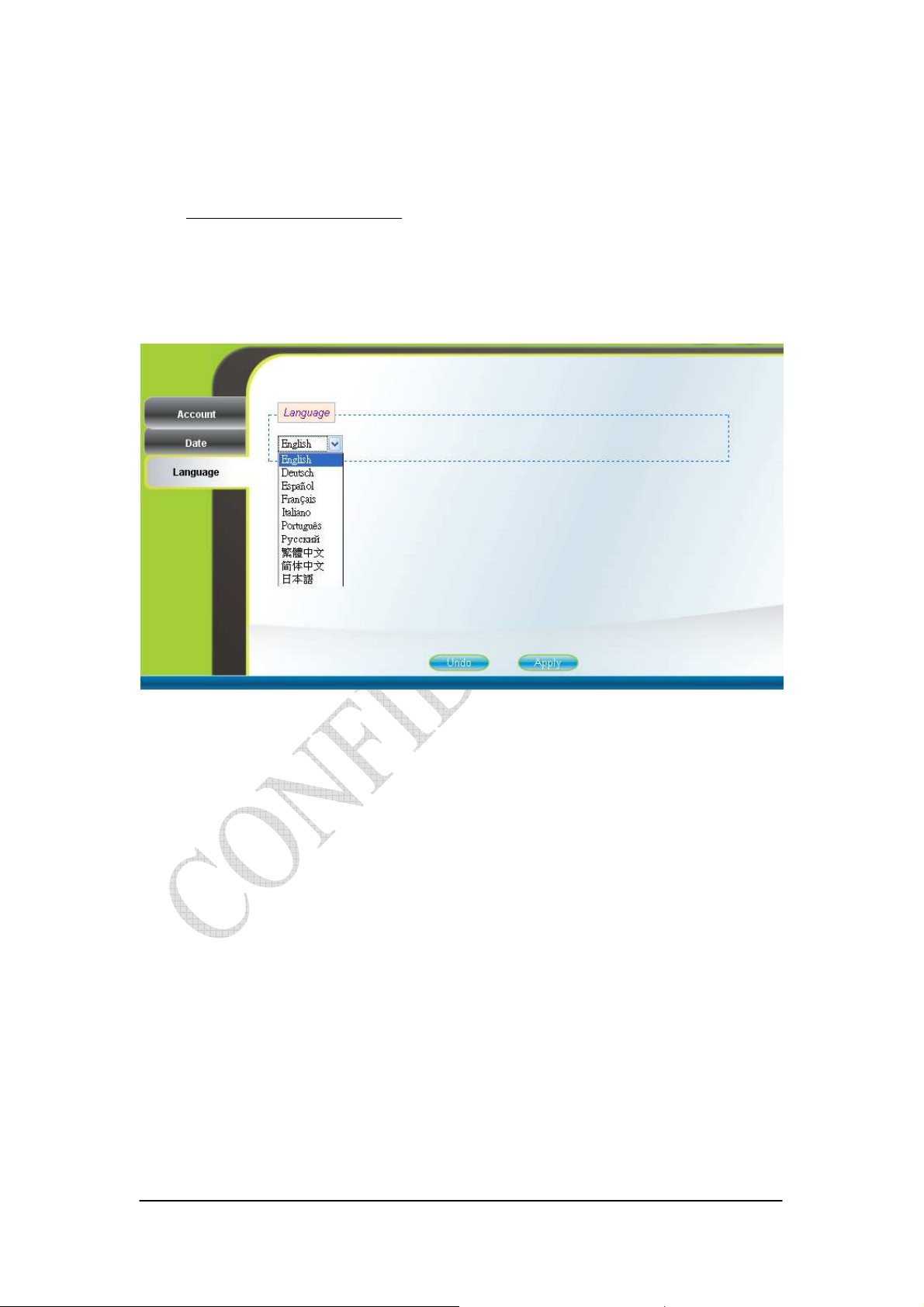

Figure 2-9 Language............................................................................... 2-9

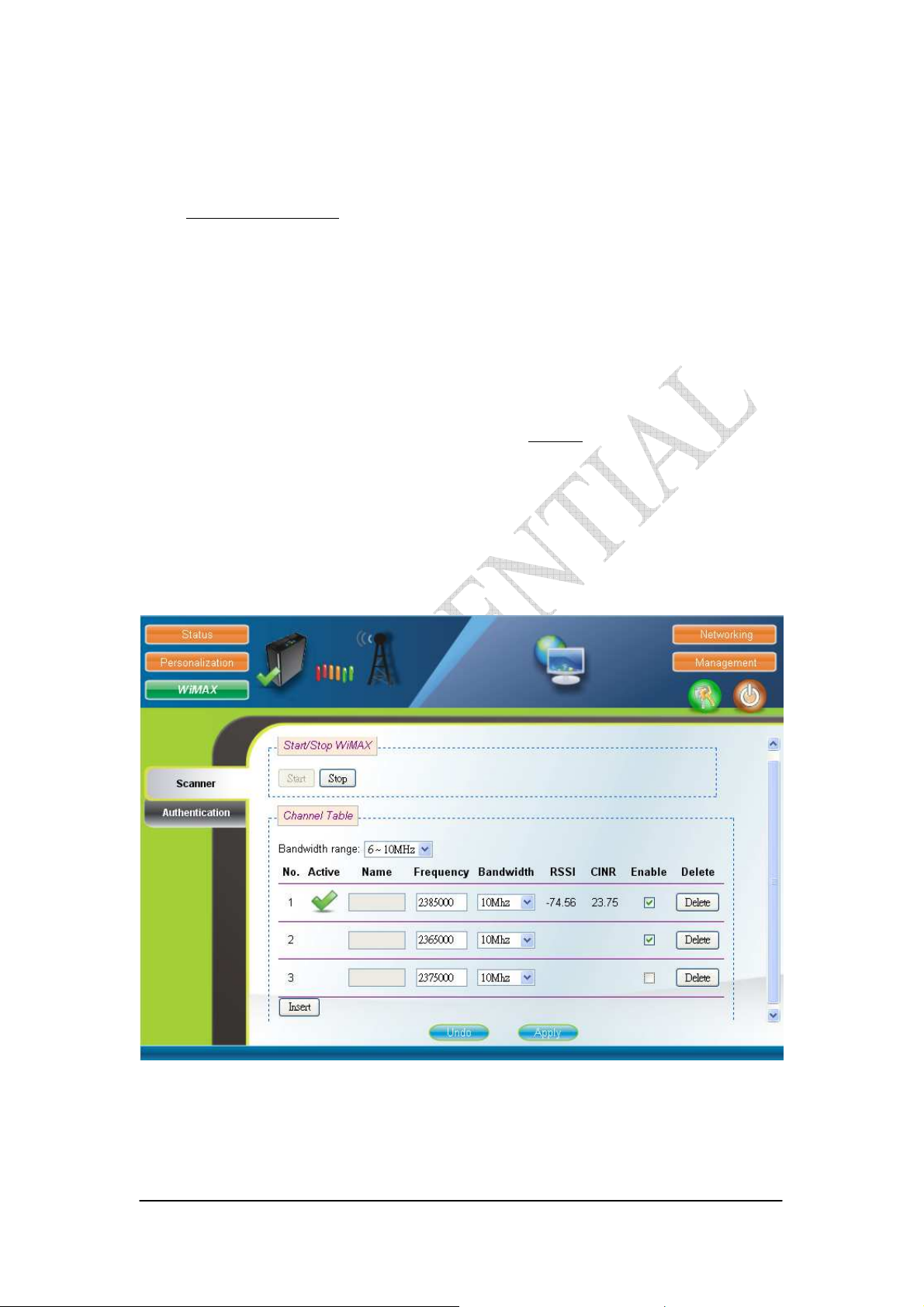

Figure 2-10 Scanner with Bandwidth range 6~10MHz........................ 2-10

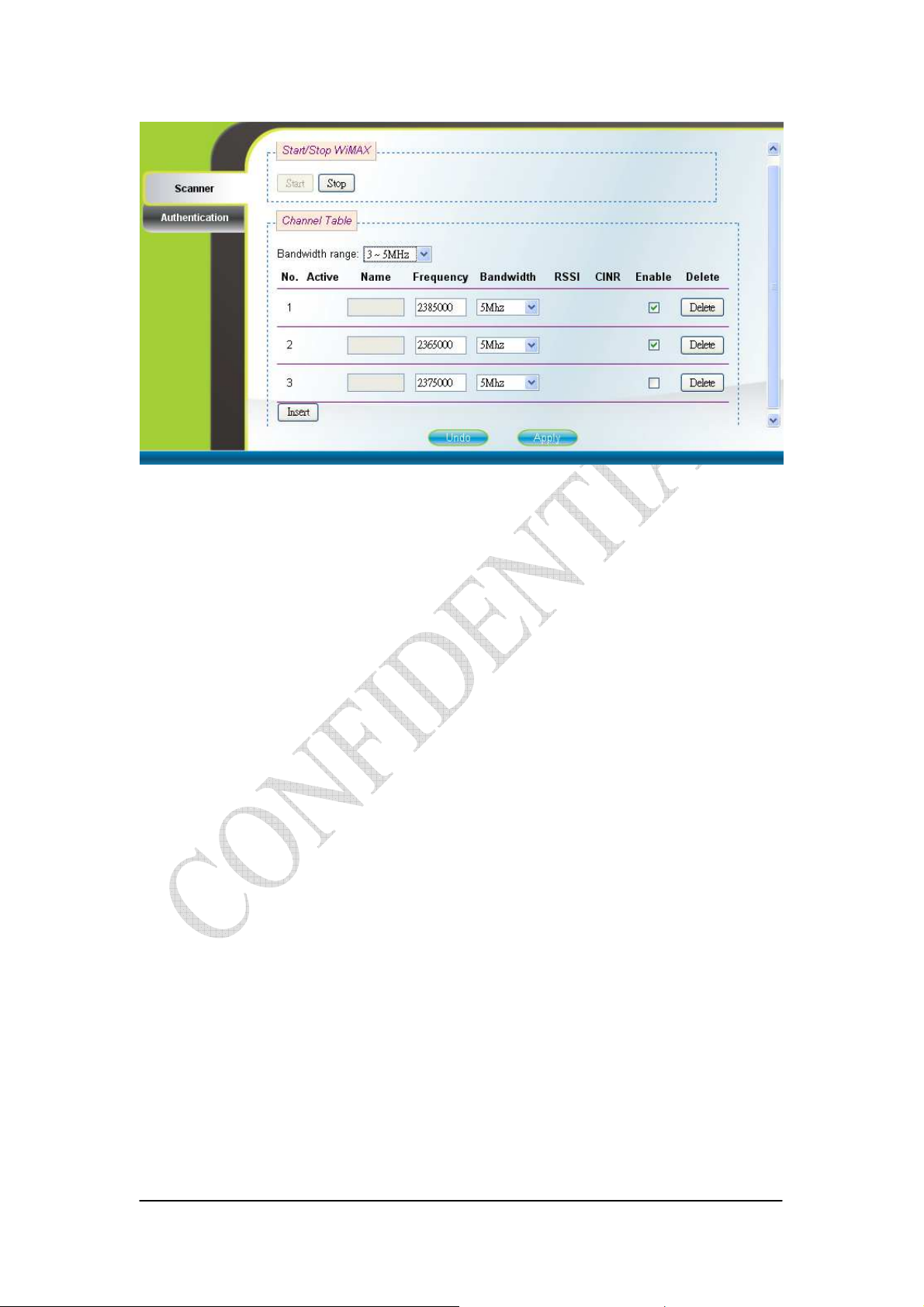

Figure 2-11 Scanner with Bandwidth range 3~5MHz...........................2-11

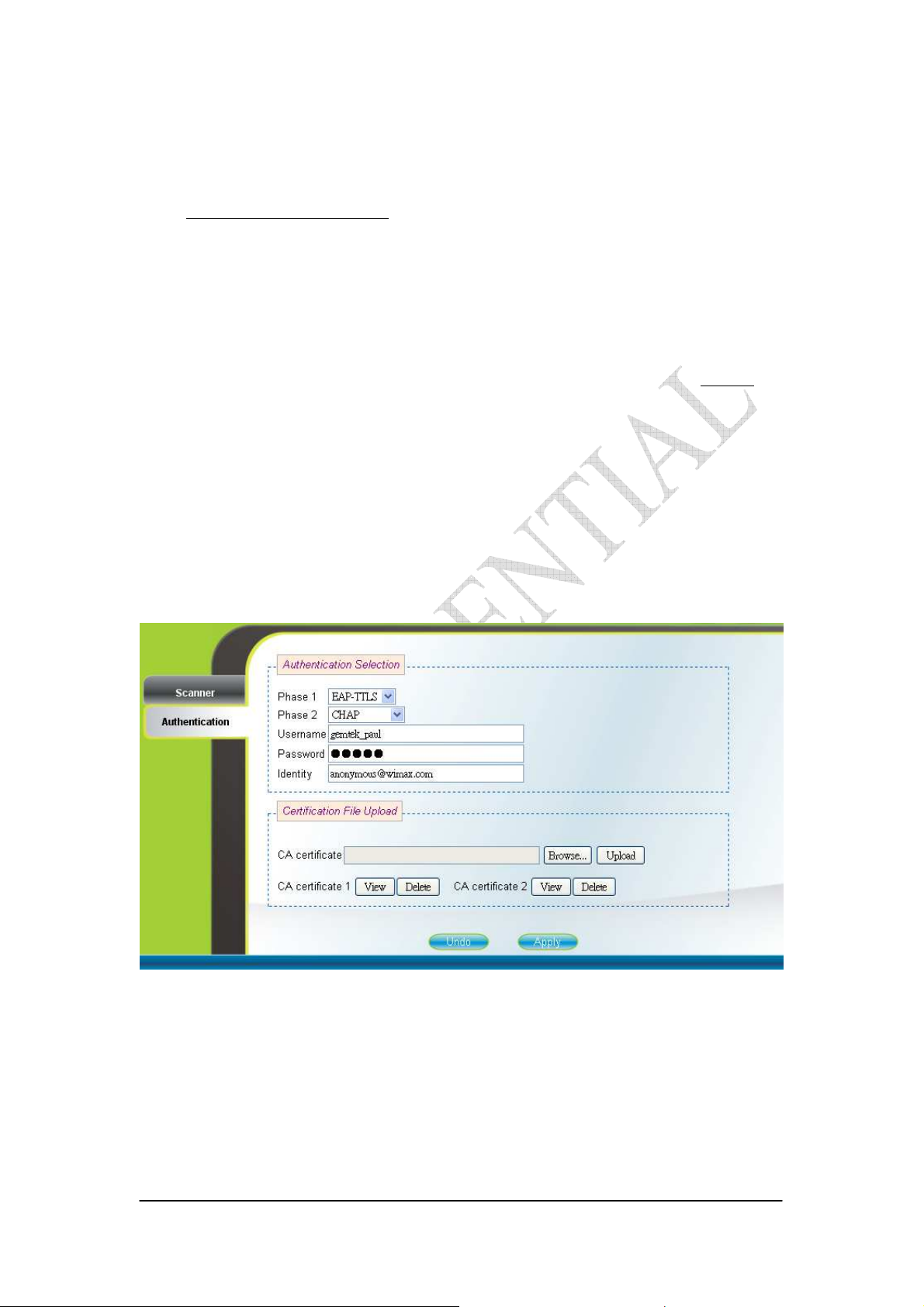

Figure 2-12 Authentication................................................................... 2-12

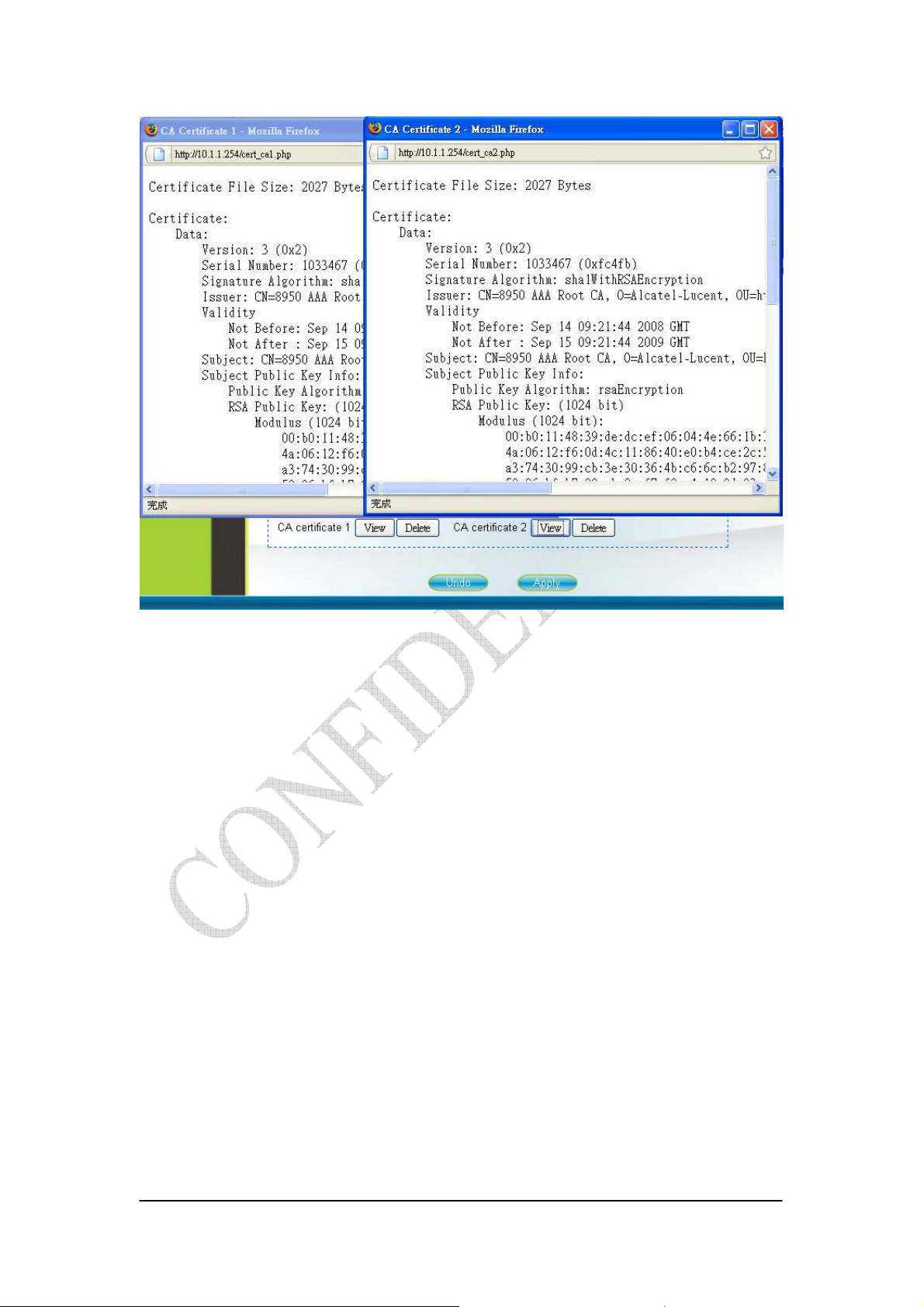

Figure 2-13 Authentication-View Certificates...................................... 2-13

Figure 2-14 Bridge Mode...................................................................... 2-14

Figure 2-15 NAT Mode......................................................................... 2-15

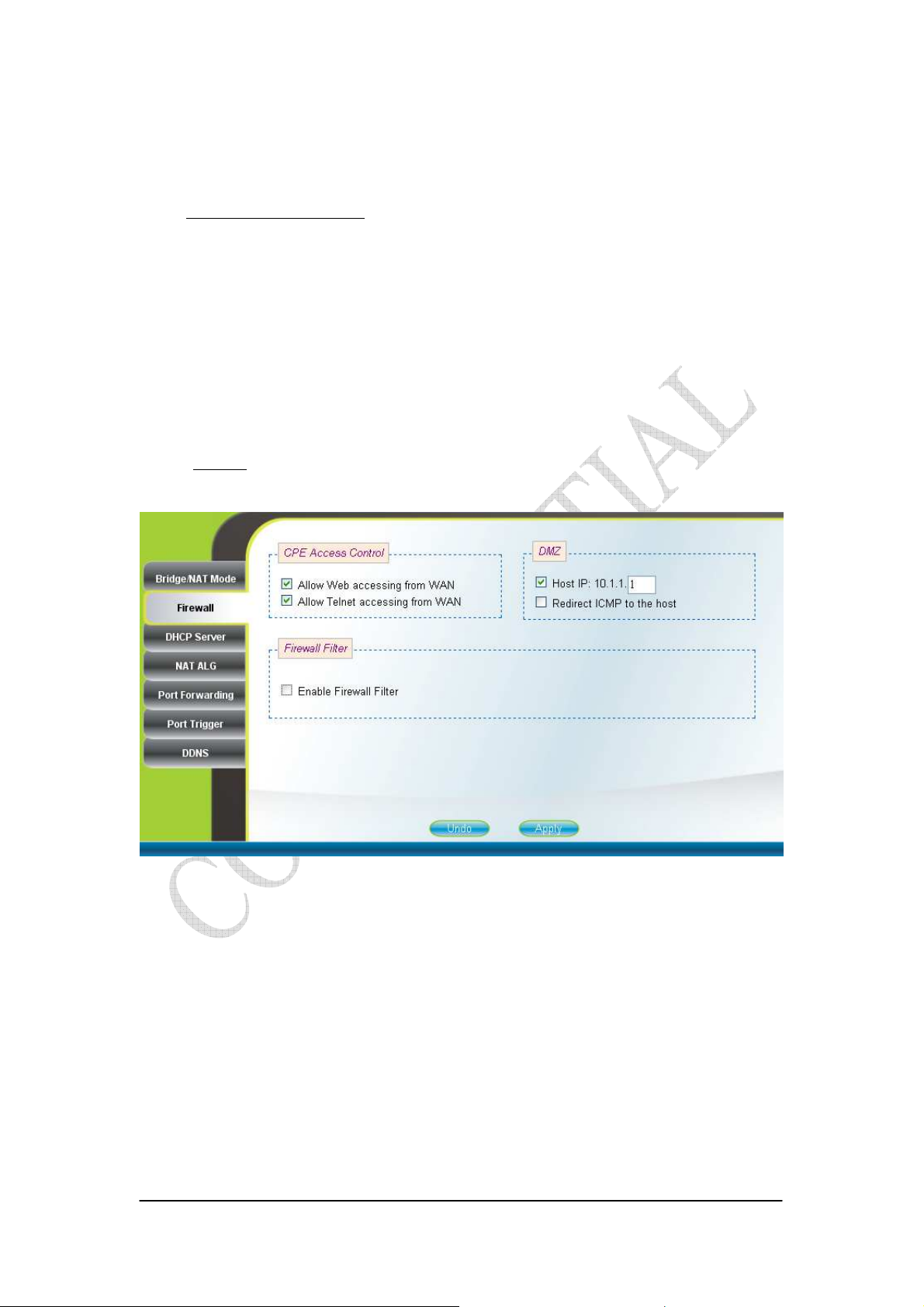

Figure 2-16 Firewall ............................................................................. 2-16

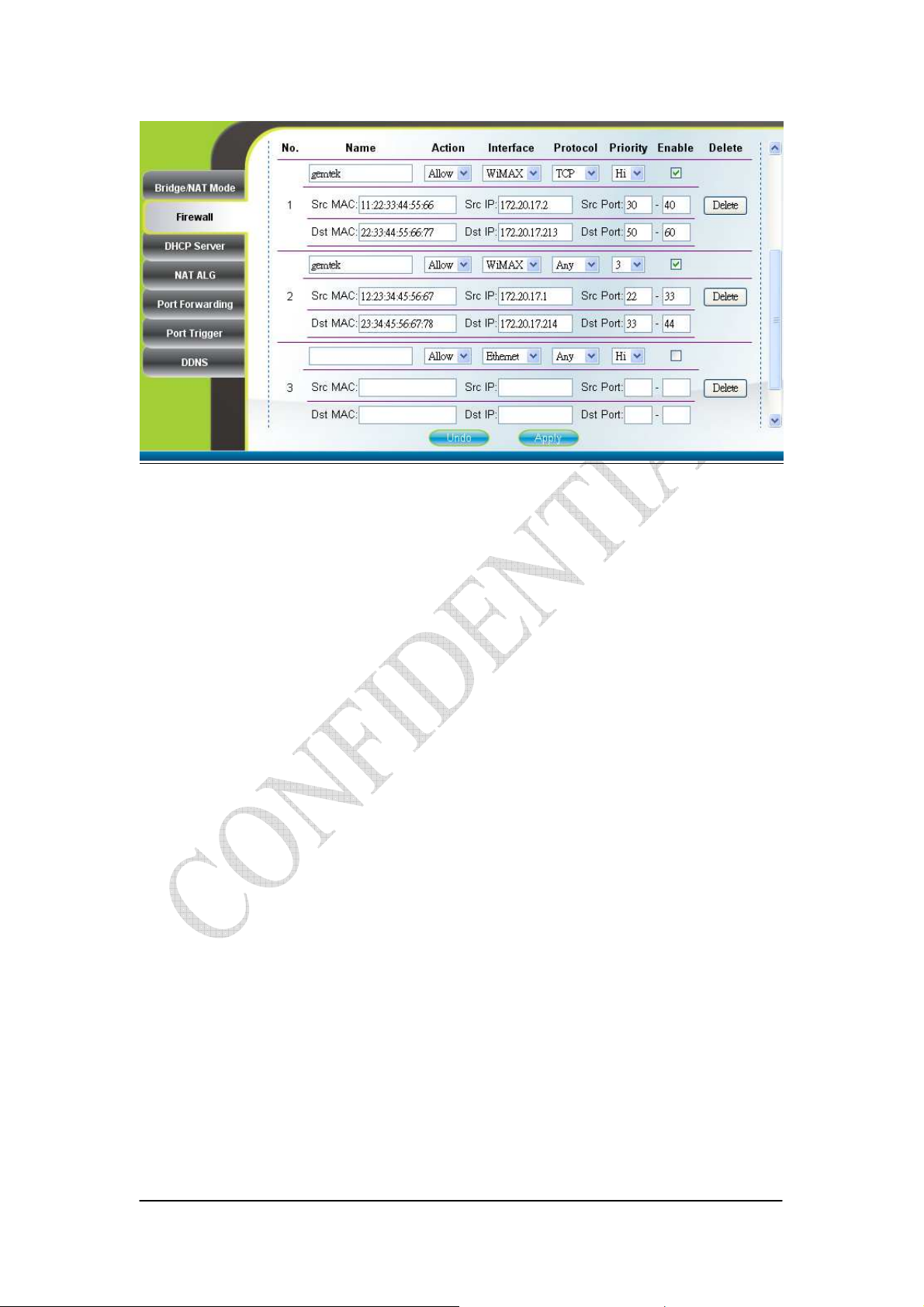

Figure 2-17 Firewall Filter.................................................................... 2-17

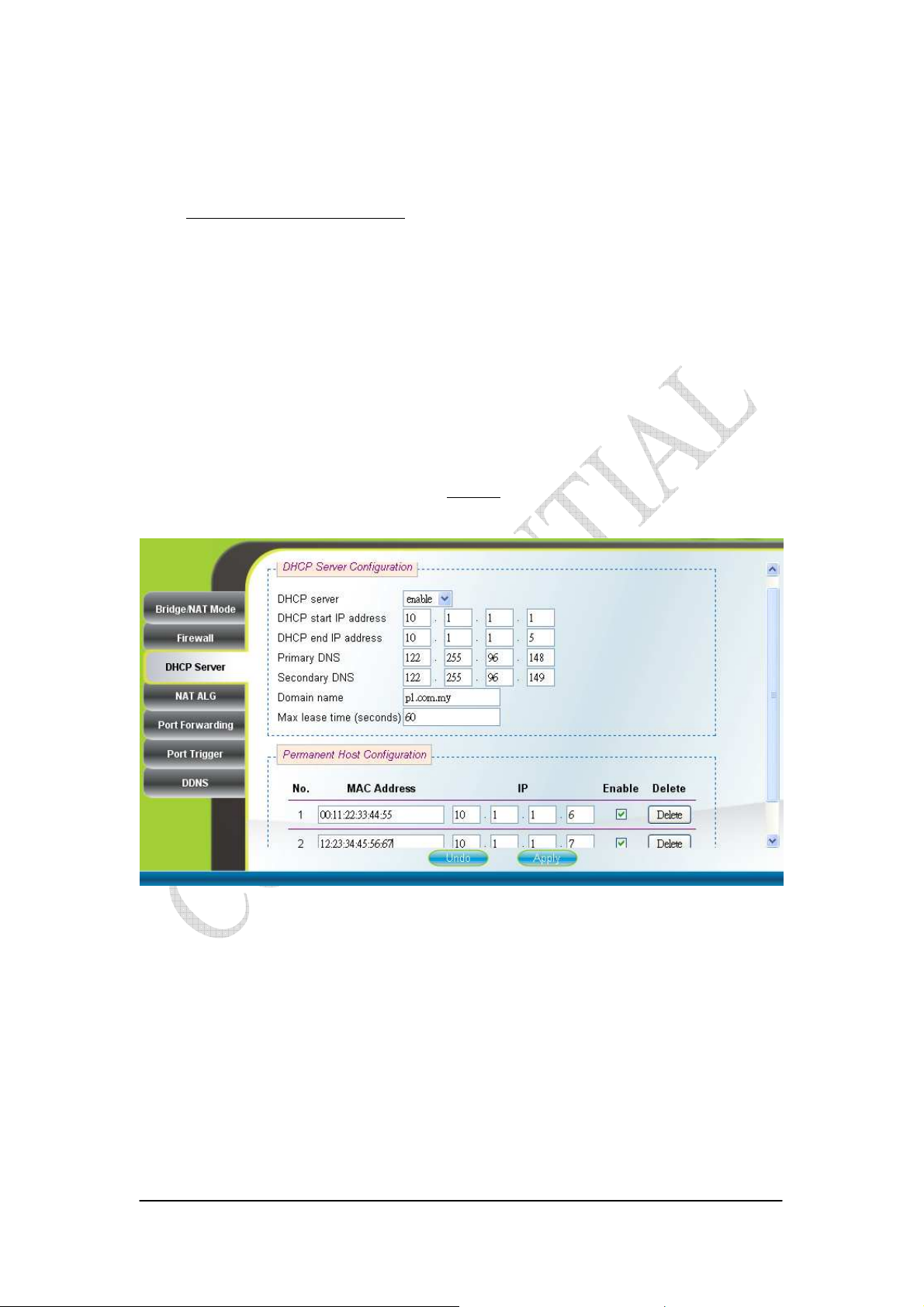

Figure 2-18 DHCP Server Enabled....................................................... 2-18

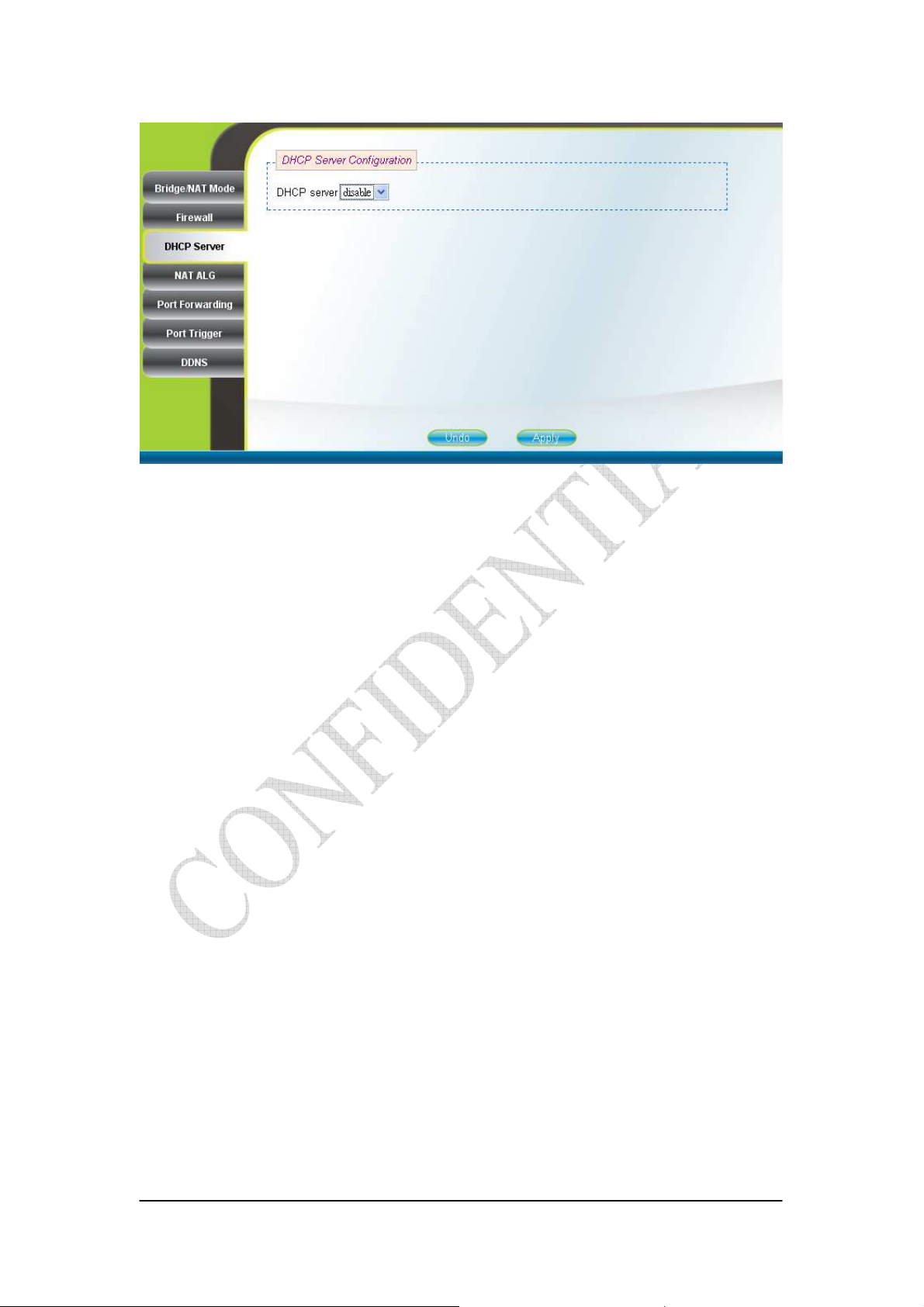

Figure 2-19 DHCP Server Disabled...................................................... 2-19

Figure 2-20 NAT ALG.......................................................................... 2-20

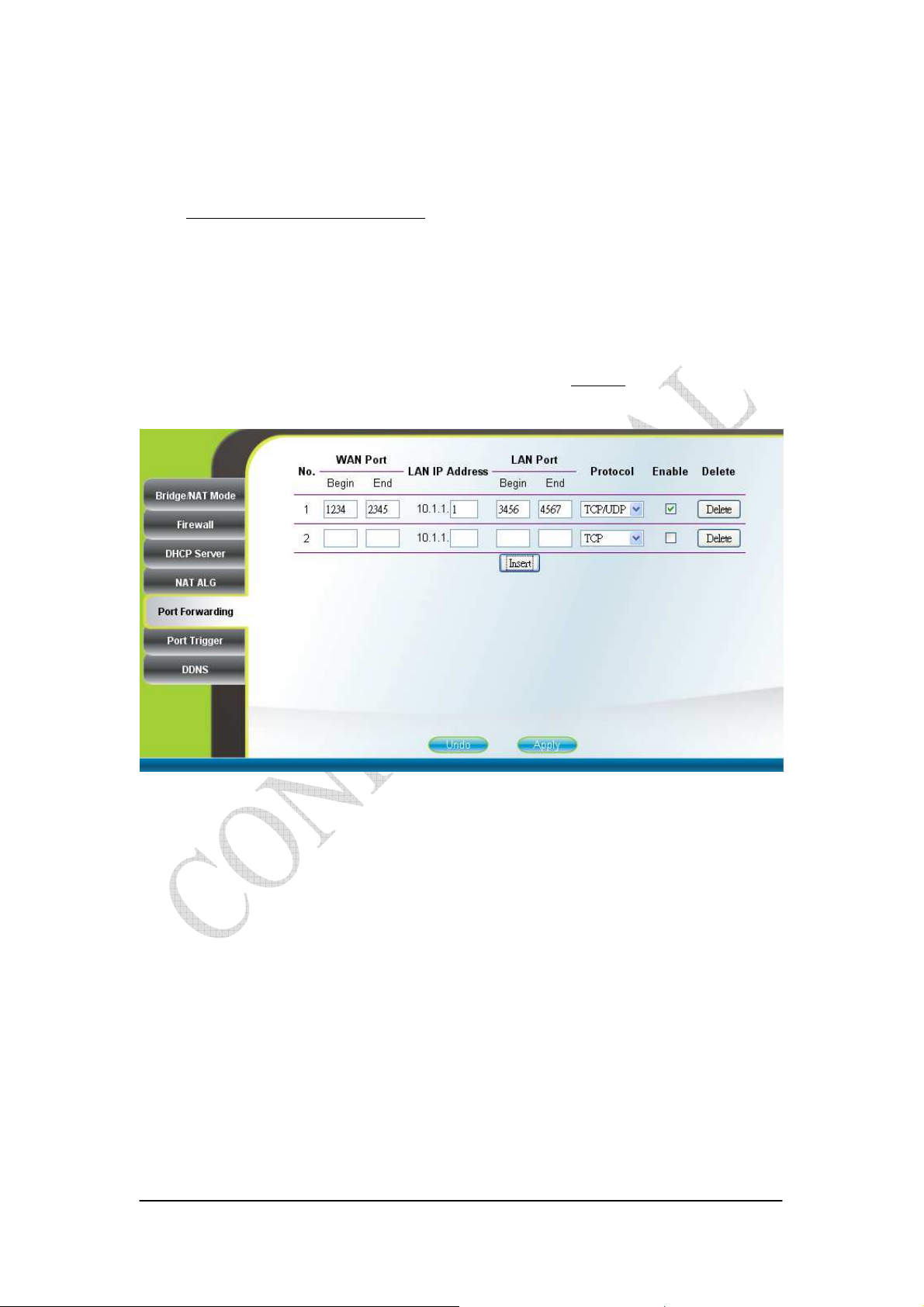

Figure 2-21 Port Forwarding ................................................................ 2-21

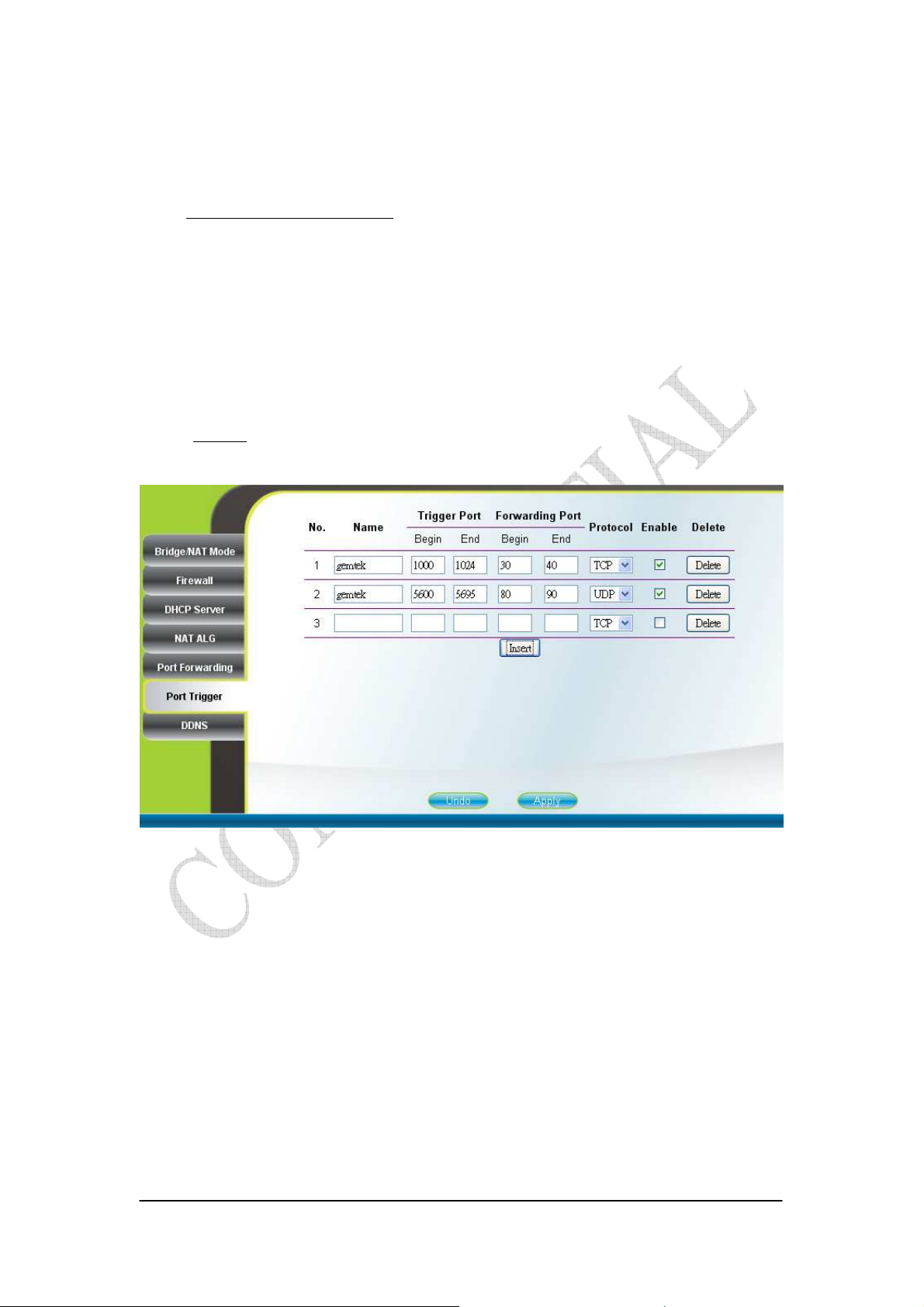

Figure 2-22 Port Trigger....................................................................... 2-22

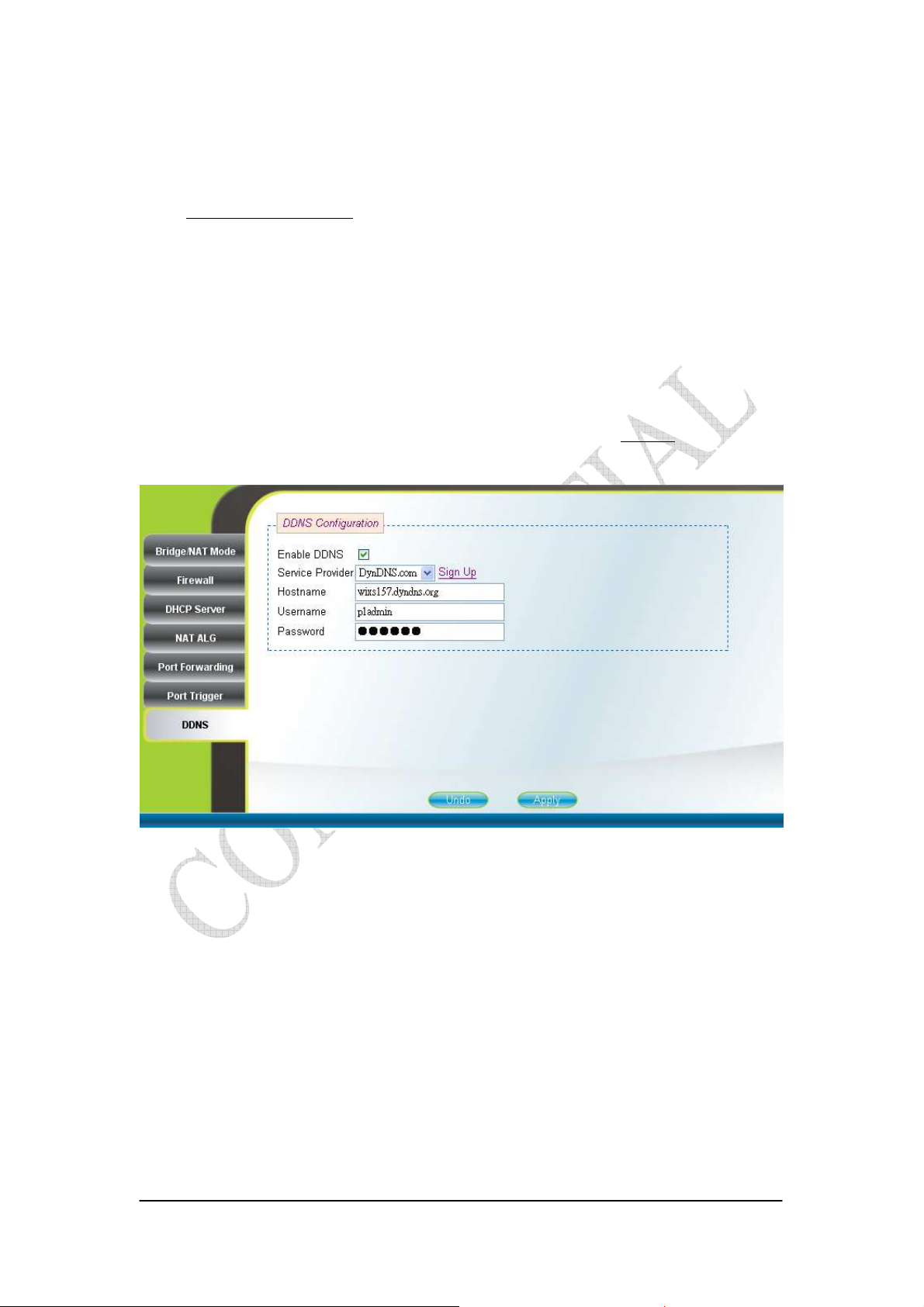

Figure 2-23 DDNS Enabled.................................................................. 2-23

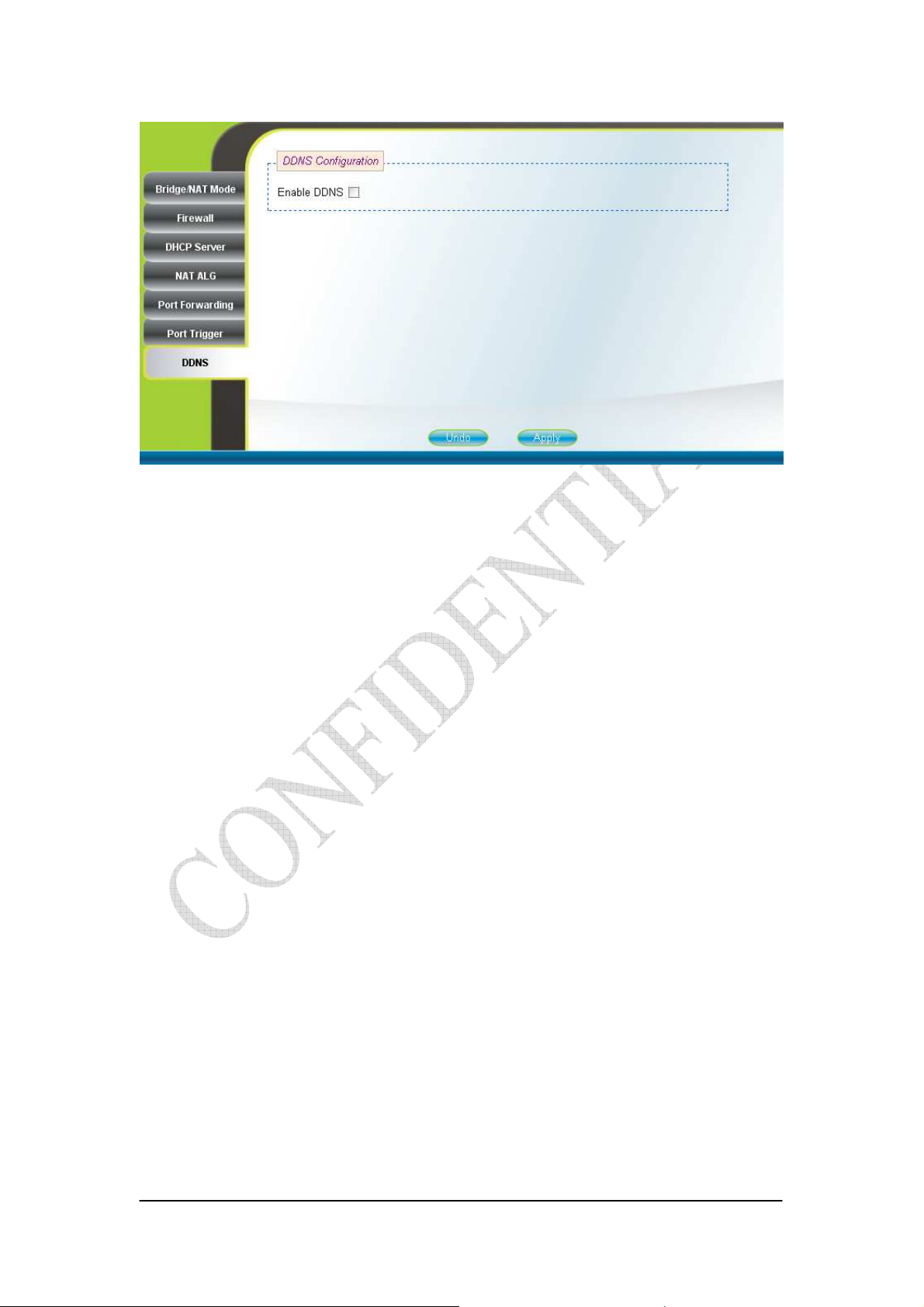

Figure 2-24 DDNS Disabled................................................................. 2-24

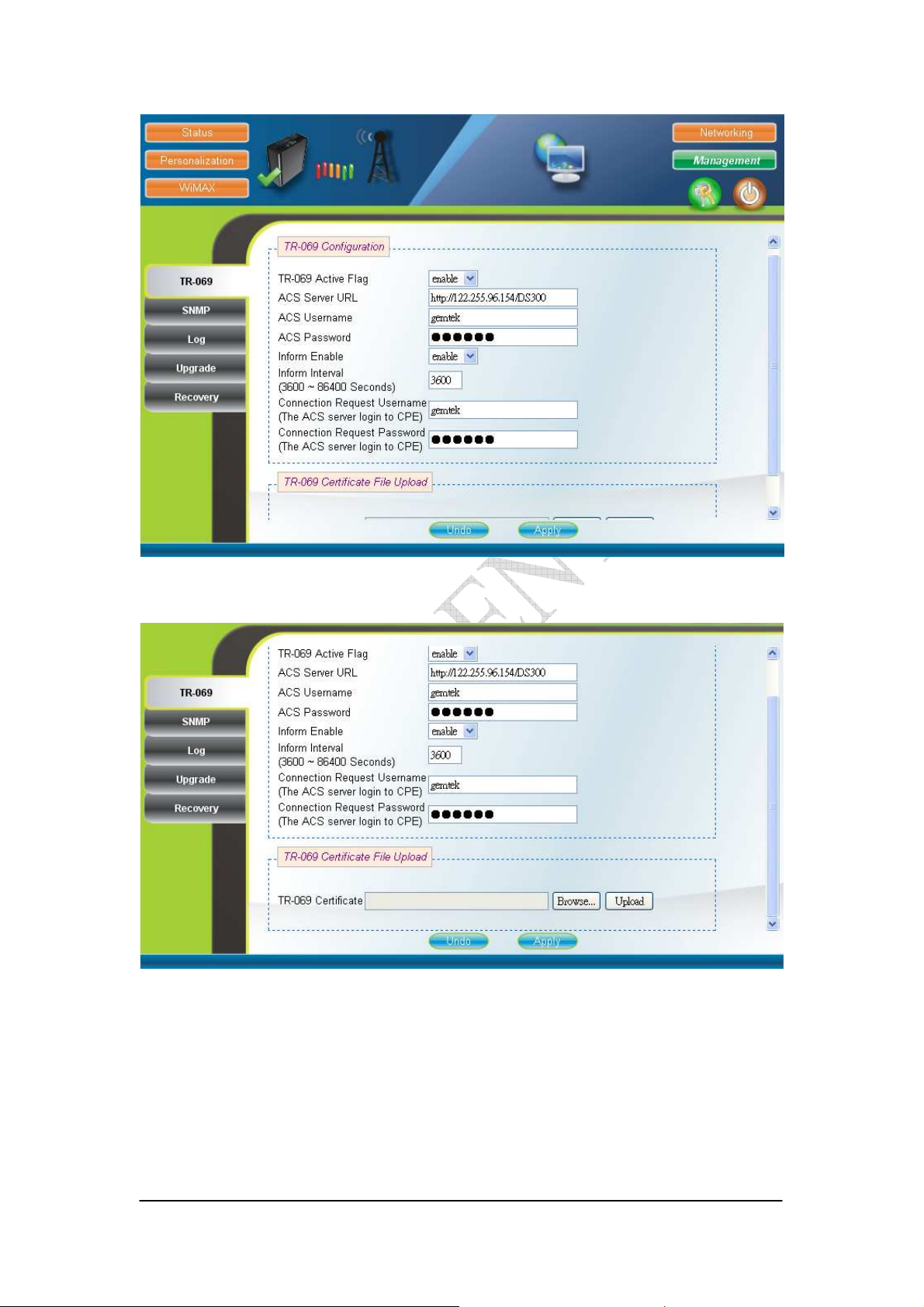

Figure 2-25 TR-069 .............................................................................. 2-26

Figure 2-26 TR-069-Certificate File Upload........................................ 2-26

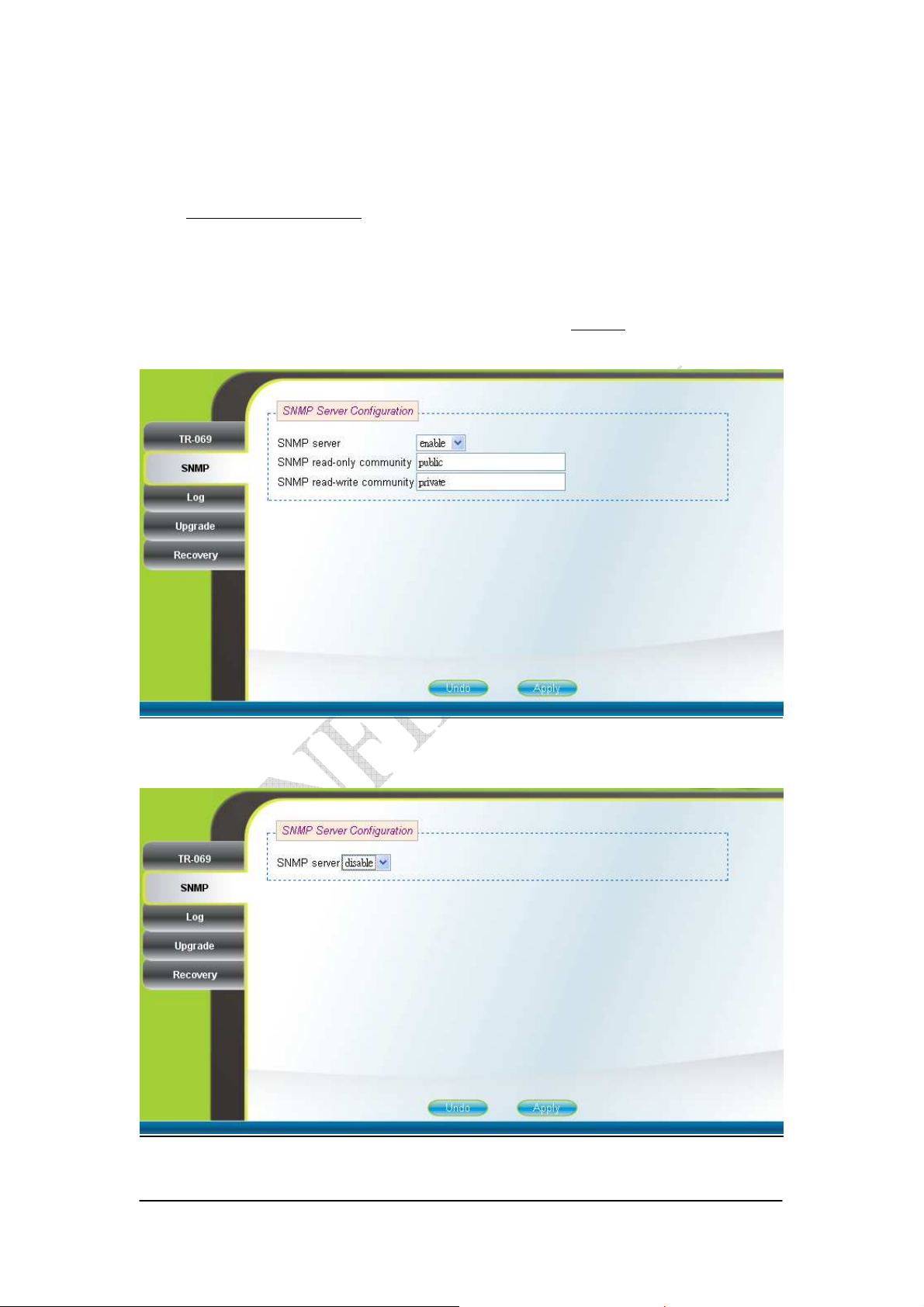

Figure 2-27 SNMP enabled................................................................... 2-27

Figure 2-28 SNMP disabled.................................................................. 2-27

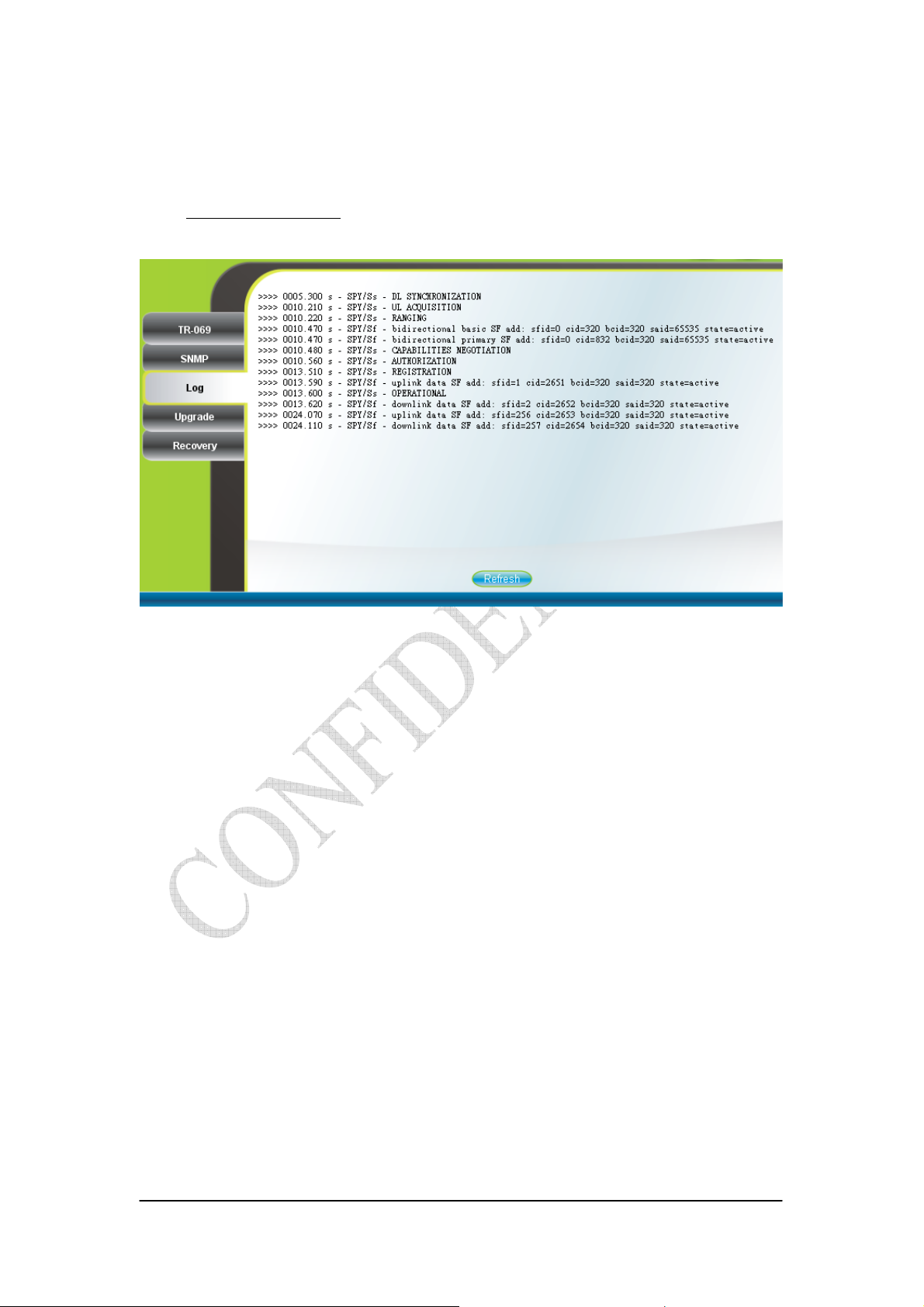

Figure 2-29 Log .................................................................................... 2-28

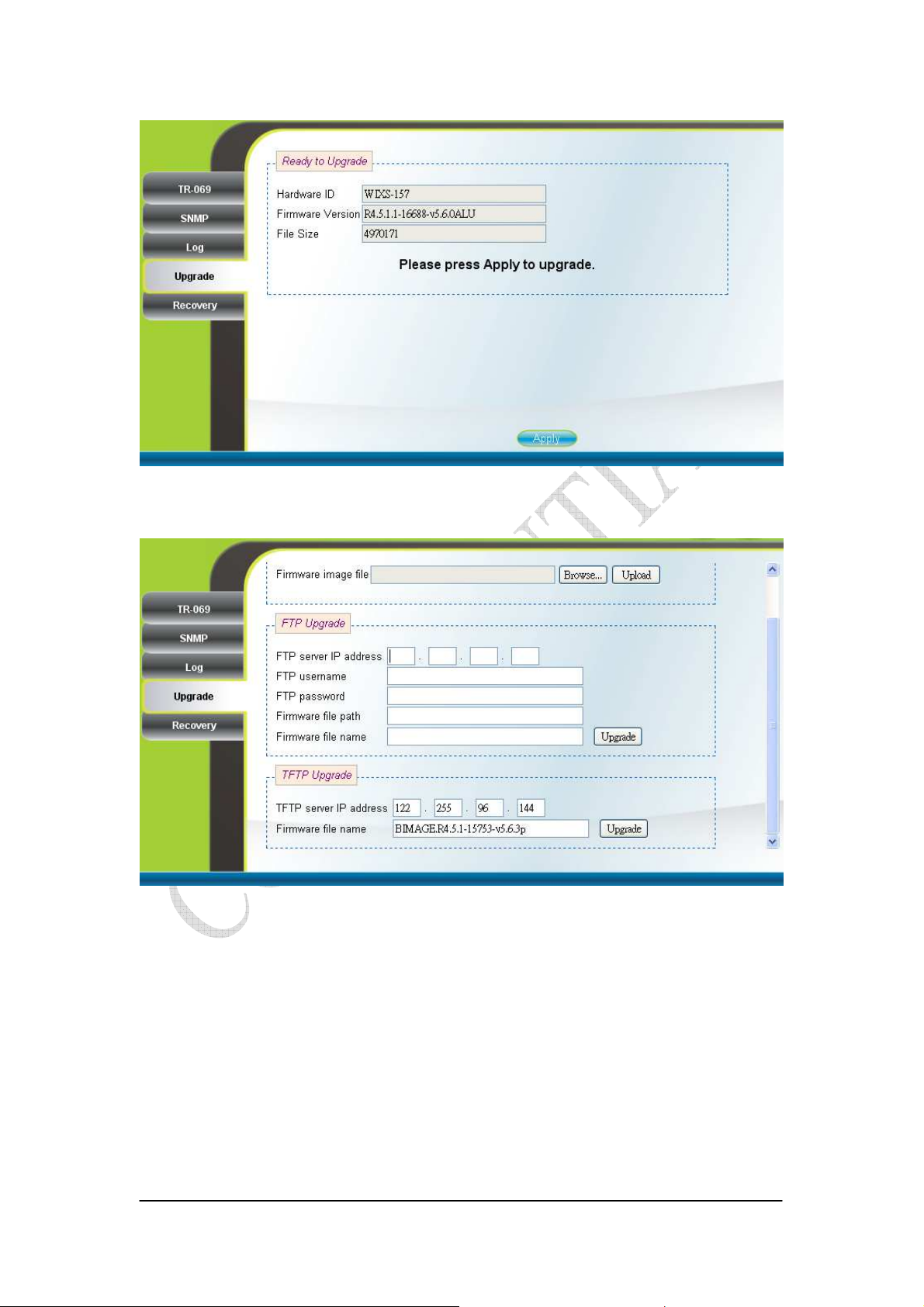

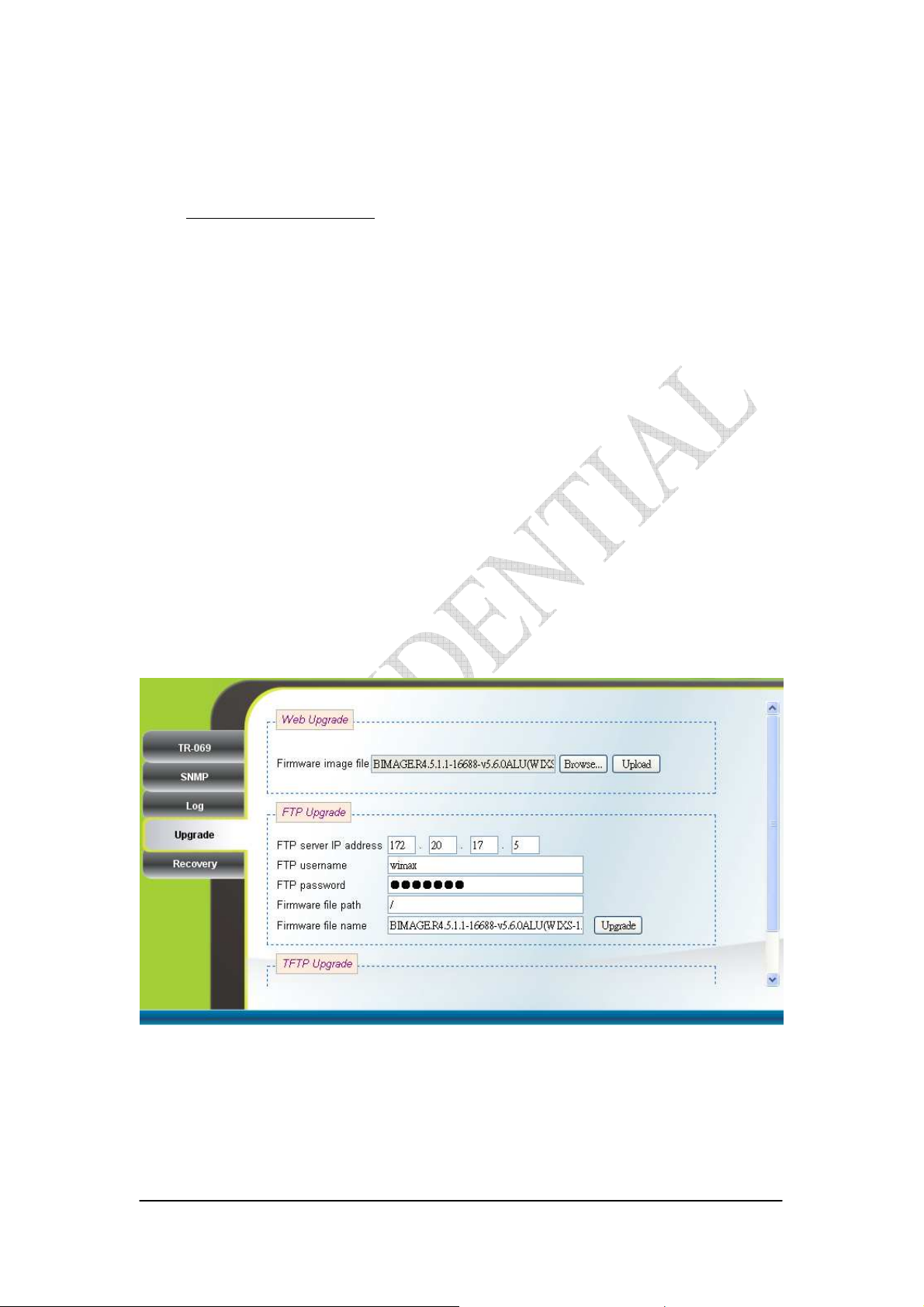

Figure 2-30 Web/FTP Upgrade............................................................. 2-29

Figure 2-31 Web Upgrade Summary.................................................... 2-30

Figure 2-32 TFTP Upgrade................................................................... 2-30

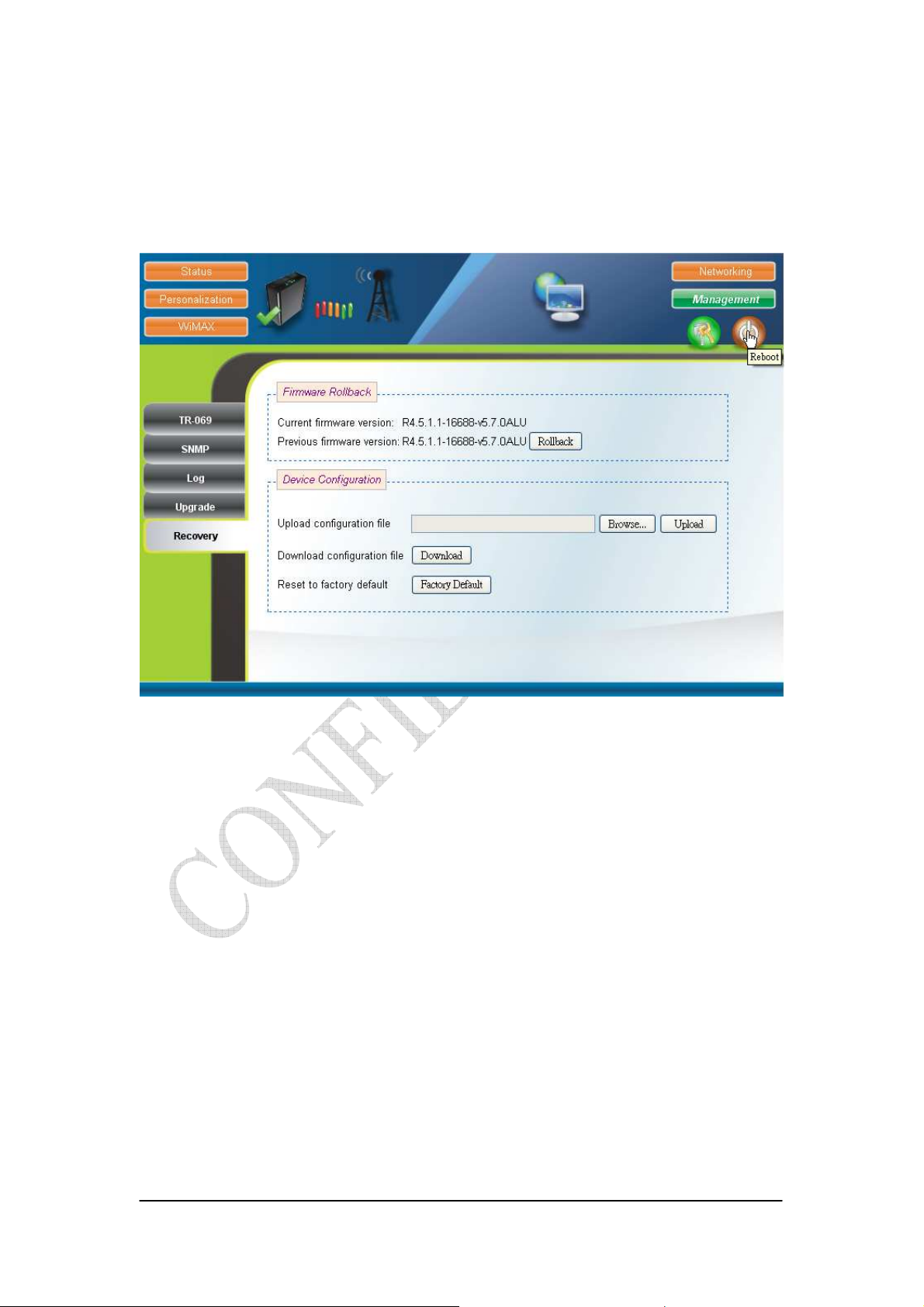

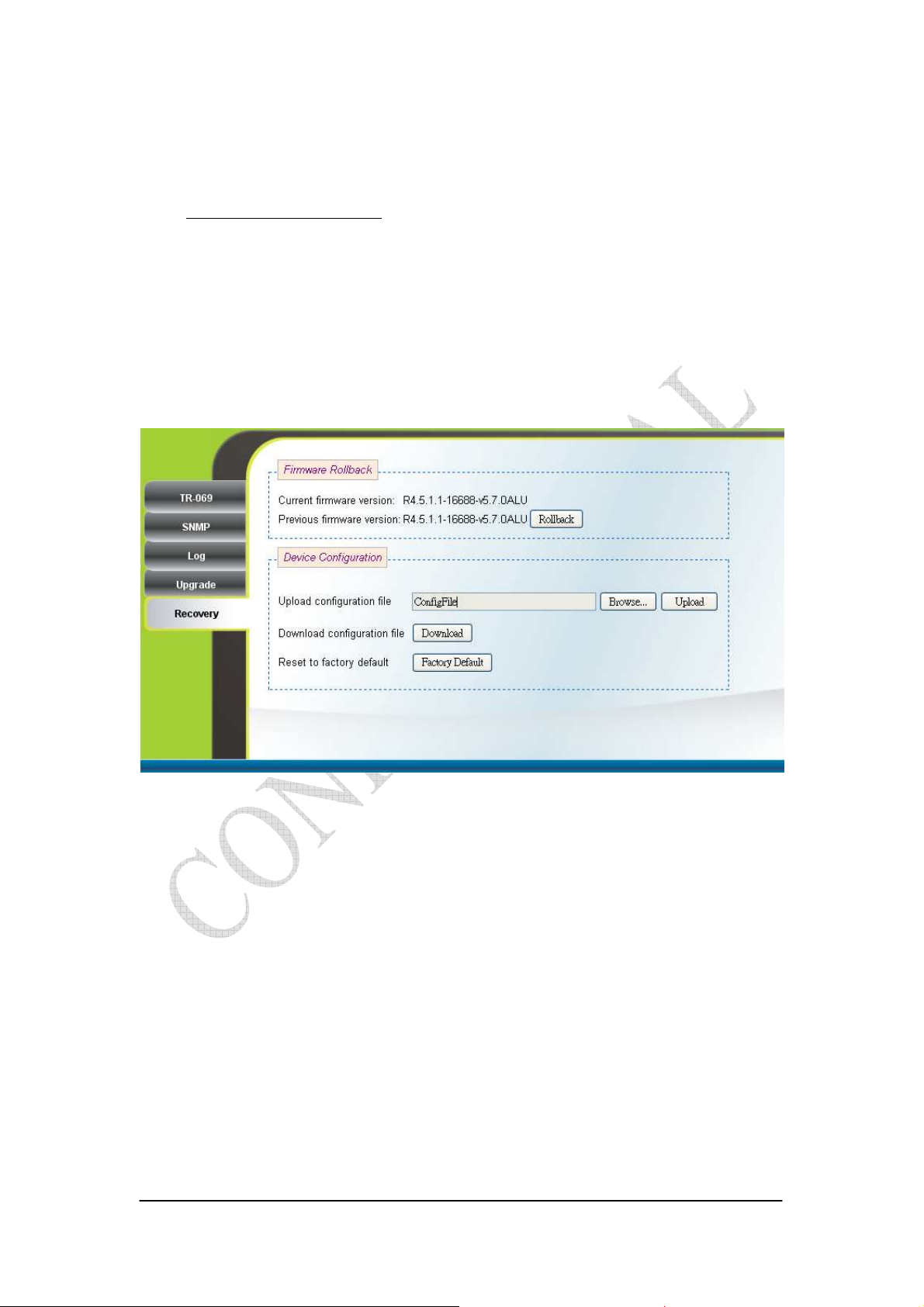

Figure 2-33 Recovery ........................................................................... 2-31

ii

Figure 2-34 Reboot Button ................................................................... 2-32

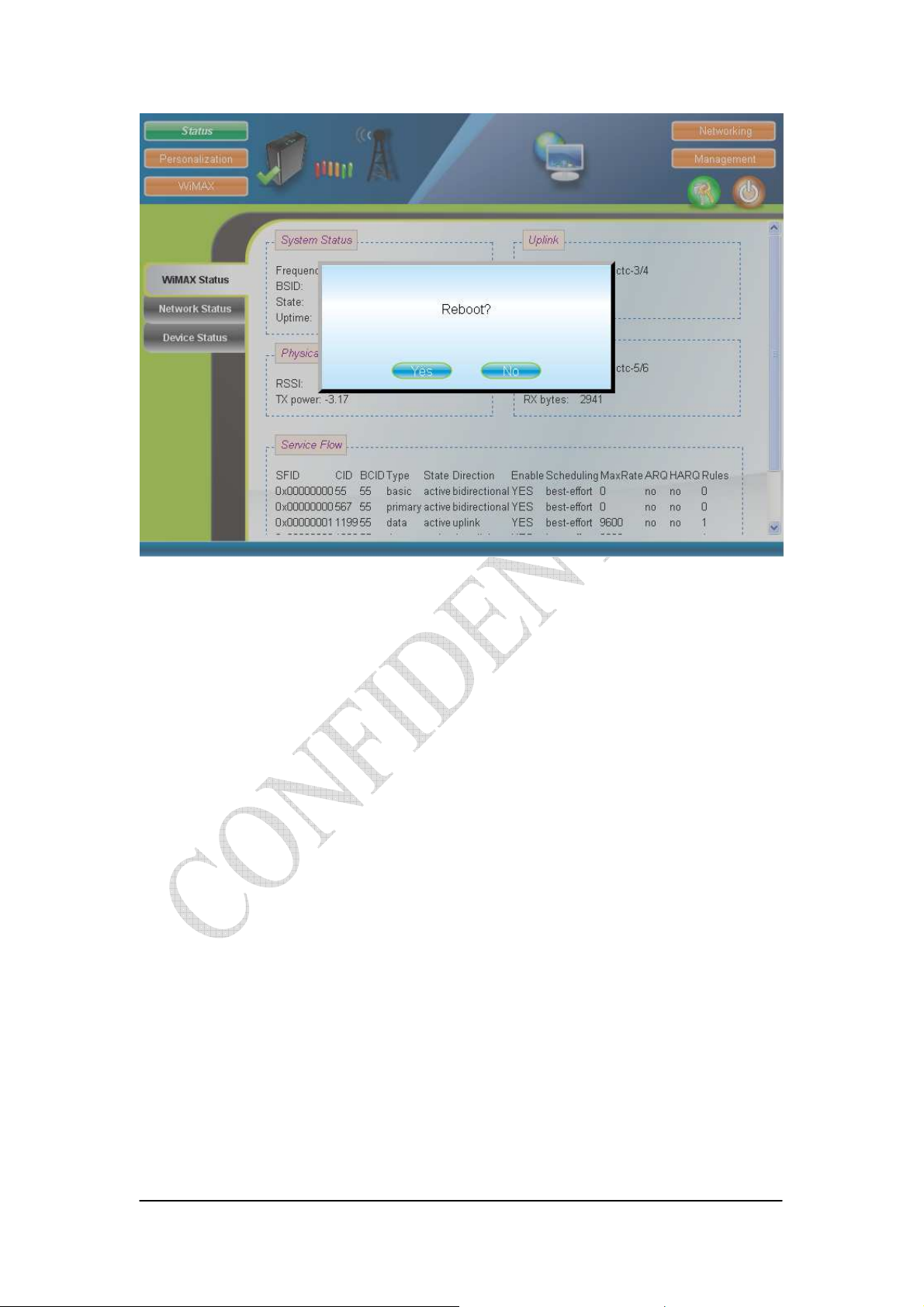

Figure 2-35 Reboot Confirmation......................................................... 2-33

iii

Chapter 1 Overview

This chapter describes the panel function and installation procedure for the

CPE.

1.1. Indoor CPE

Front Panel LED

Power LED: ON: power on OFF: power fail
LAN LED: ON: connect OFF: disconnect Blinking: data transmit

When the CPE powers on, the LED indicates the CPE states as follow.
Only Red LED is Blinking: synchronization
Only Yellow LED is Blinking: authentication
Only Green LED is Blinking: DHCP client negotiation

After the CPE has connected to the base station, the signal strength LED are
defined as follow.
Only Red LED is ON: the signal is weak. (CINR<8dB)
Yellow LED is ON: the signal strength is medium. (8dB≤CINR<15dB)
Green LED is ON: the signal strength is good. (15dB≤CINR)

Figure 1-1 Indoor CPE Front Panel LED

1-1

Rear Panel

Power jack: DC 12V / 1.5A
LAN port: 10/100Base-TX
Reset button: To reboot the CPE

1.2. Outdoor CPE

Power Injector – Power Over Ethernet 802.3af compliant
LAN port: 10/100Base-TX

Figure 1-2 Outdoor CPE installation

1-2

Chapter 2 WEB-GUI

This chapter describes how to configure the CPE in order to connect to the base
station.

2.1. System Configuration Login

The CPE will enable a DHCP server by default. Computers or network devices
connected to its LAN side can get IP address automatically from CPE. If you disable
CPE’s DHCP server by yourself, set the IP address, netmask, and gateway as
following.
IP address: 10.1.1.x, 1 ≤ x ≤ 253
Netmask: 255.255.255.0
Gateway: 10.1.1.254

Connect to http://10.1.1.254/ with a browser, and you will see a webpage such as the
one shown in Figure 2-1. The administrator username and password are as shown
below:
Username: admin
Password: admin

Gemtek CPE also support multi-level user login. Please contact with Gemtek to
define multi-user features.

Figure 2-1 Login Page

2-3

If there is no error, the user can login into the Status Page, and WiMAX Status,
Network Status, and Device Status are as shown in Figure 2-2, Figure 2-3, Figure 2-4,
and Figure 2-5.

Figure 2-2 WiMAX Status

Figure 2-3 WiMAX Status-Service Flow

2-4

Figure 2-4 Network Status

Figure 2-5 Device Status

2-5

2.2. System Logout

Press the “Logout” button as shown in Figure 2-6 to logout of the system and
go back to the “Login” page as shown in Figure 2-1.

Figure 2-6 Logout

2-6

2.3. Account

Personalization  Account

The Account page is used for changing the password of the WEB-UI account as
shown in Figure 2-7. After setting the configurations of these fields, press the “Apply”
button to write the new configurations into the CPE and the new configurations will
take effect.

Figure 2-7 Account

2-7

2.4. Date

Personalization  Date

If the system date is not in the valid duration of the uploaded certificate file, the
CPE will not pass the authentication from the base station. The system date of a CPE
can be synchronized with the PC that is connected to its LAN side by clicking the
“Synchronize with PC” button. The system date of a CPE can also be automatically
updated by synchronizing time with an NTP server assigned manually by the user or
from the DHCP server. The selection of different time zone and daylight saving option
are available as well for different regions. Please refer to Figure 2-8 for more detail.
After setting the configurations of these fields, press the “Apply” button to write the
new configurations into the CPE and press “Reboot” as shown in Figure 2-35, to
reboot the system in order for the new configurations to take effect.

Figure 2-8 Date

2-8
