GemTek Technology WIXFMM 121 User Manual
Gemtek 4G Wi-Fi Spot
User Manual
Gemtek 4G Wi-Fi Spot
Copyright
Copyright
CopyrightCopyright
This DOCUMENT is copyrighted with all rights reserved. No part of this publication may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any language in any form by any means without the written permission of Gemtek
Technology Co. Ltd.
Notice
Notice
NoticeNotice
Gemtek reserves the right to change specifications without prior notice.
While the information in this document has been compiled with great care, it may not be deemed an assurance of product
characteristics. Gemtek shall be liable only to the degree specified in the terms of sale and delivery.
The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject
to written authorization from Gemtek.
1
Gemtek 4G Wi-Fi Spot
Contents
Contents
ContentsContents
Copyright.......................................................................................................................................................................................................... 1
Notice...............................................................................................................................................................................................................1
Contents ..............................................................................................................................................................................................................2
About this Manual................................................................................................................................................................................................ 6
Purpose............................................................................................................................................................................................................ 6
Conventions Used in this Document................................................................................................................................................................. 6
Chapter 1 – Introduction.......................................................................................................................................................................................7
Product Overview............................................................................................................................................................................................. 7
Product Package.............................................................................................................................................................................................. 7
Connector and Buttons.....................................................................................................................................................................................8
LCD Display ................................................................................................................................................................................................... 11
Chapter 2 – Installation......................................................................................................................................................................................14
Install through USB Cable & Connect to Service............................................................................................................................................14
Connect to service with Wi-Fi.........................................................................................................................................................................17
2
Gemtek 4G Wi-Fi Spot
How to Setup Wireless Security......................................................................................................................................................................21
Chapter 3 – Reference Manual ..........................................................................................................................................................................22
Personalize.....................................................................................................................................................................................................24
Personalize | Password...............................................................................................................................................................................24
Personalize | Device Time........................................................................................................................................................................... 26
Personalize | Device Name......................................................................................................................................................................... 27
Personalize | Restore To Factory................................................................................................................................................................28
Internet...........................................................................................................................................................................................................29
Internet | WiMAX Security........................................................................................................................................................................... 29

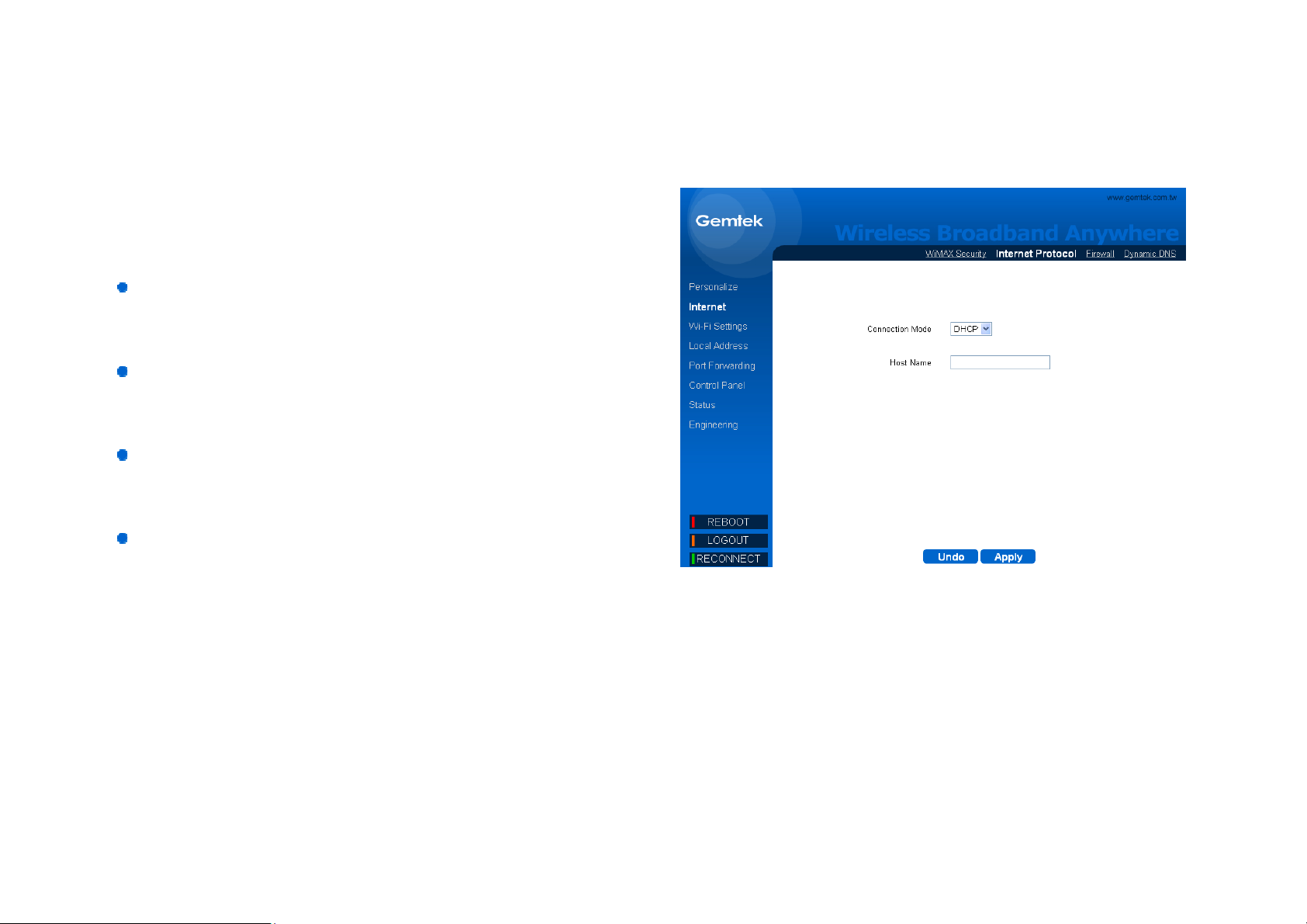

Internet | Internet Protocol...........................................................................................................................................................................31

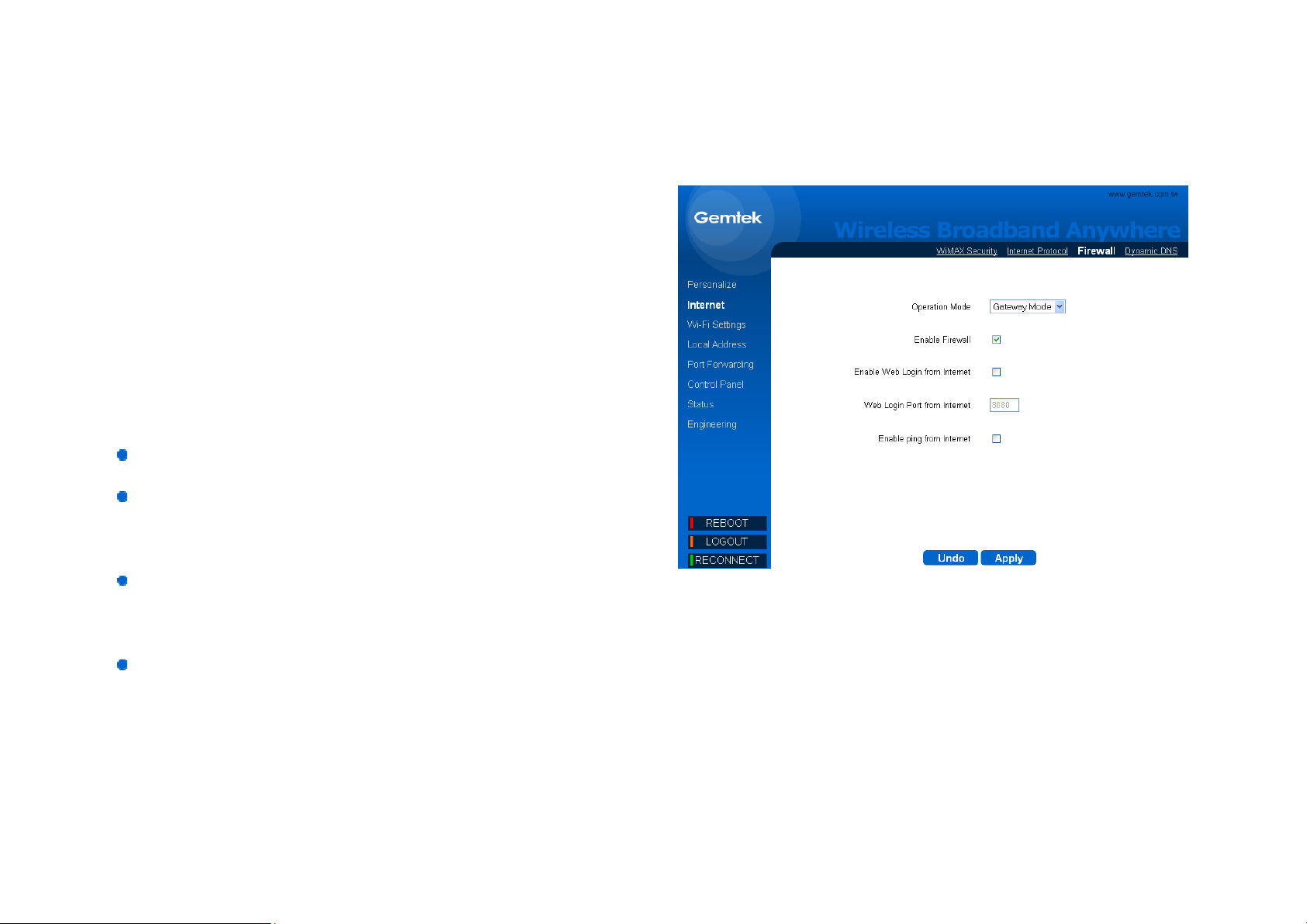

Internet | Firewall ........................................................................................................................................................................................32
Internet | Dynamic DNS .............................................................................................................................................................................. 34
Wi-Fi Settings................................................................................................................................................................................................. 36

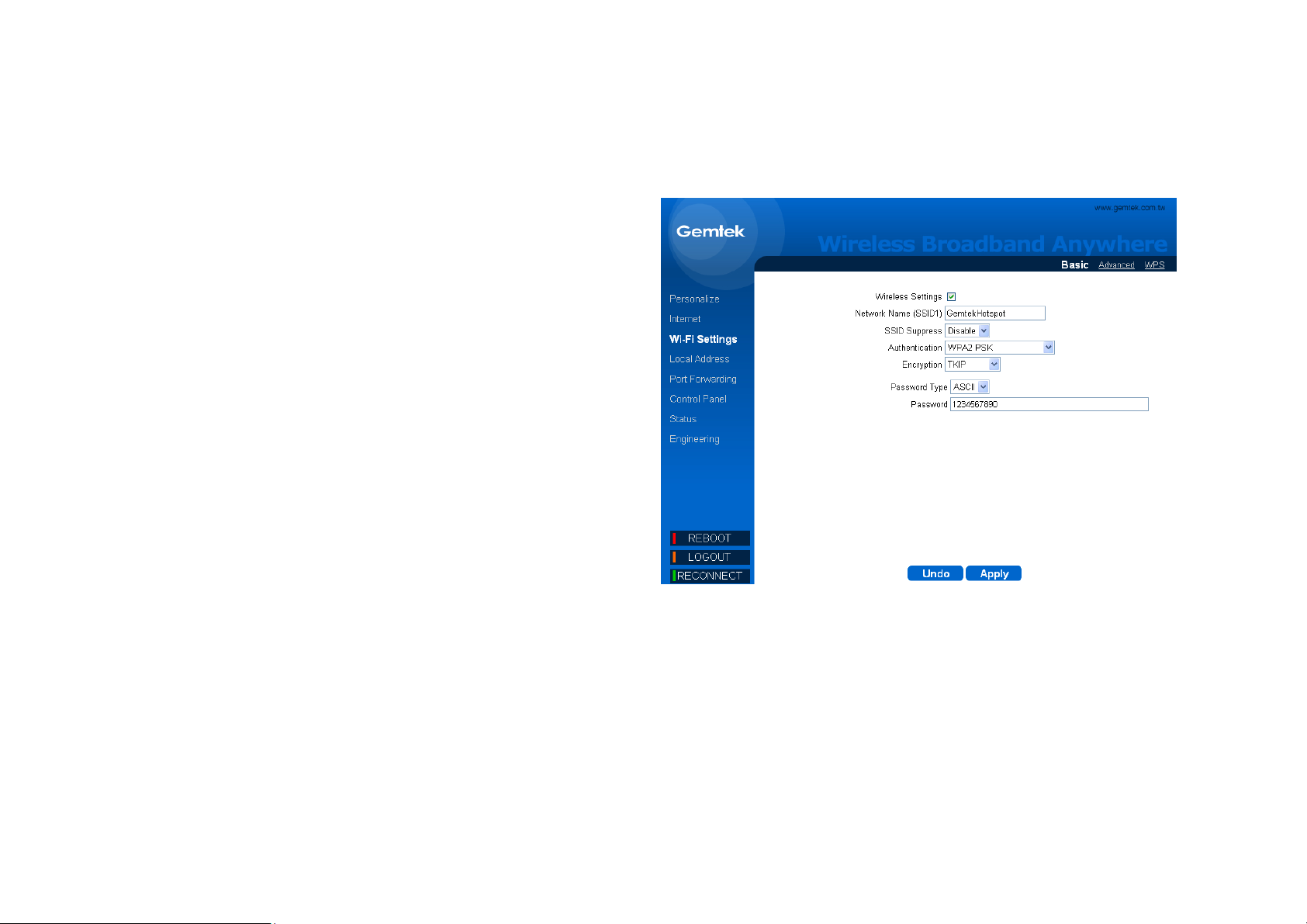

Wi-Fi Settings | Basic.................................................................................................................................................................................. 36
3
Gemtek 4G Wi-Fi Spot

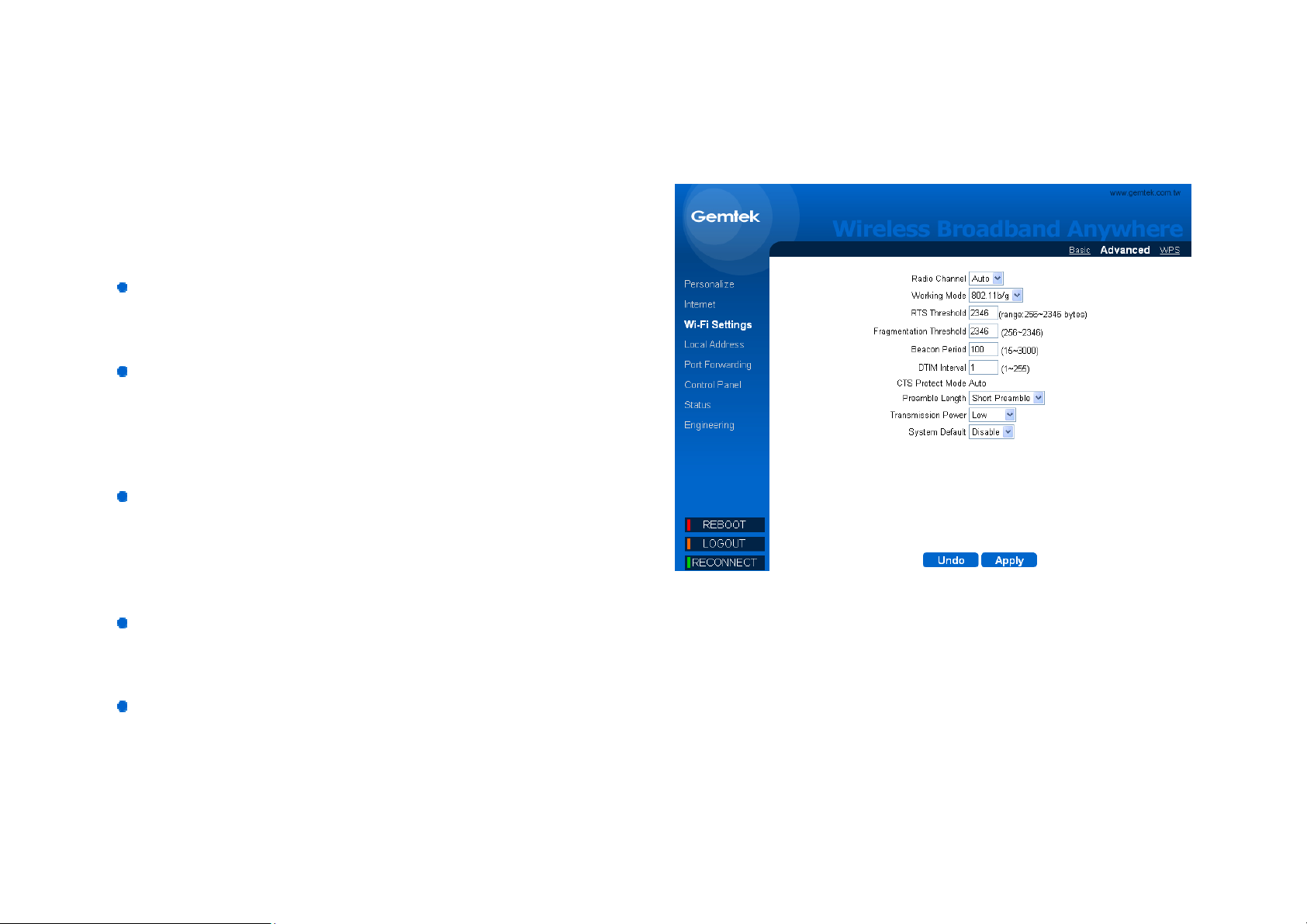

Wi-Fi Settings | Advanced........................................................................................................................................................................... 38
Wi-Fi Settings | WPS...................................................................................................................................................................................42
Local Address.................................................................................................................................................................................................43
Local Address | DHCP Server.....................................................................................................................................................................43
Local Address | Lease Status......................................................................................................................................................................45
Local Address | Lease Reservation.............................................................................................................................................................46
Port Forwarding.............................................................................................................................................................................................. 47

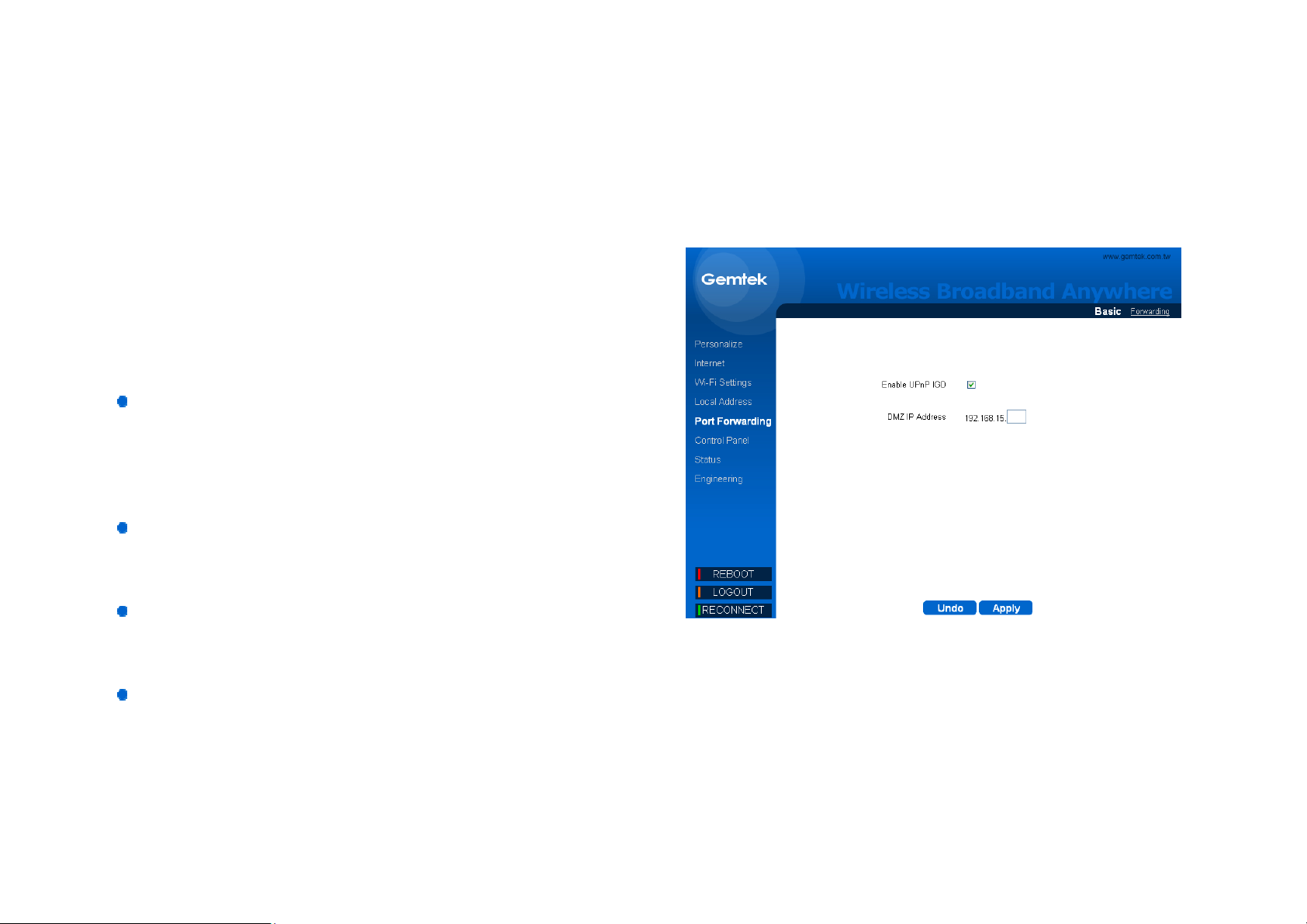

Port Forwarding | Basic............................................................................................................................................................................... 47
Port Forwarding | Forwarding......................................................................................................................................................................48
Control Panel..................................................................................................................................................................................................49
Control Panel | Software............................................................................................................................................................................. 49
Control Panel | Certificate........................................................................................................................................................................... 50
Control Panel | System ...............................................................................................................................................................................51
Control Panel | Power Management............................................................................................................................................................ 52
4
Gemtek 4G Wi-Fi Spot

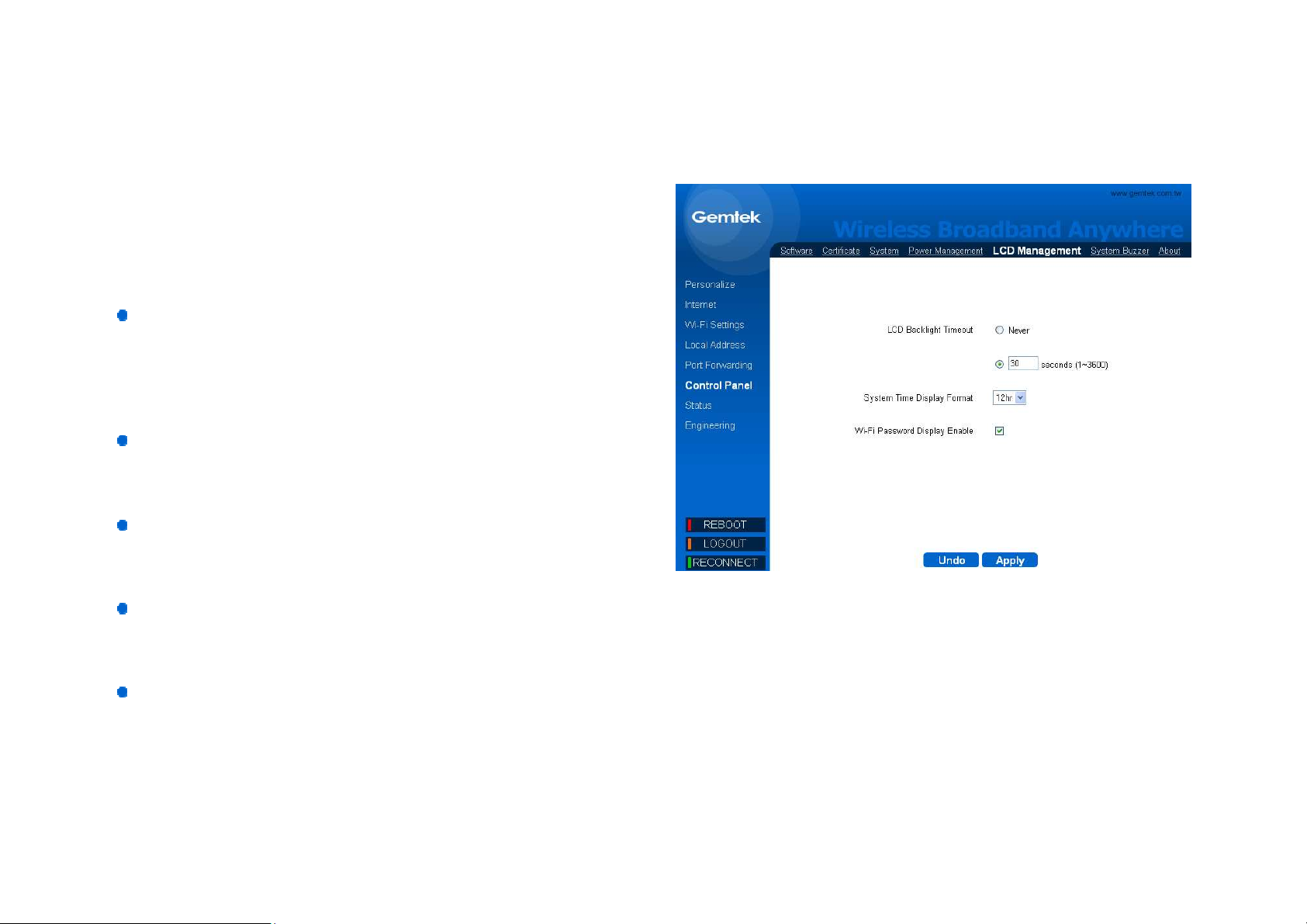

Control Panel | LCD Management............................................................................................................................................................... 53
Control Panel | System Buzzer.................................................................................................................................................................... 54

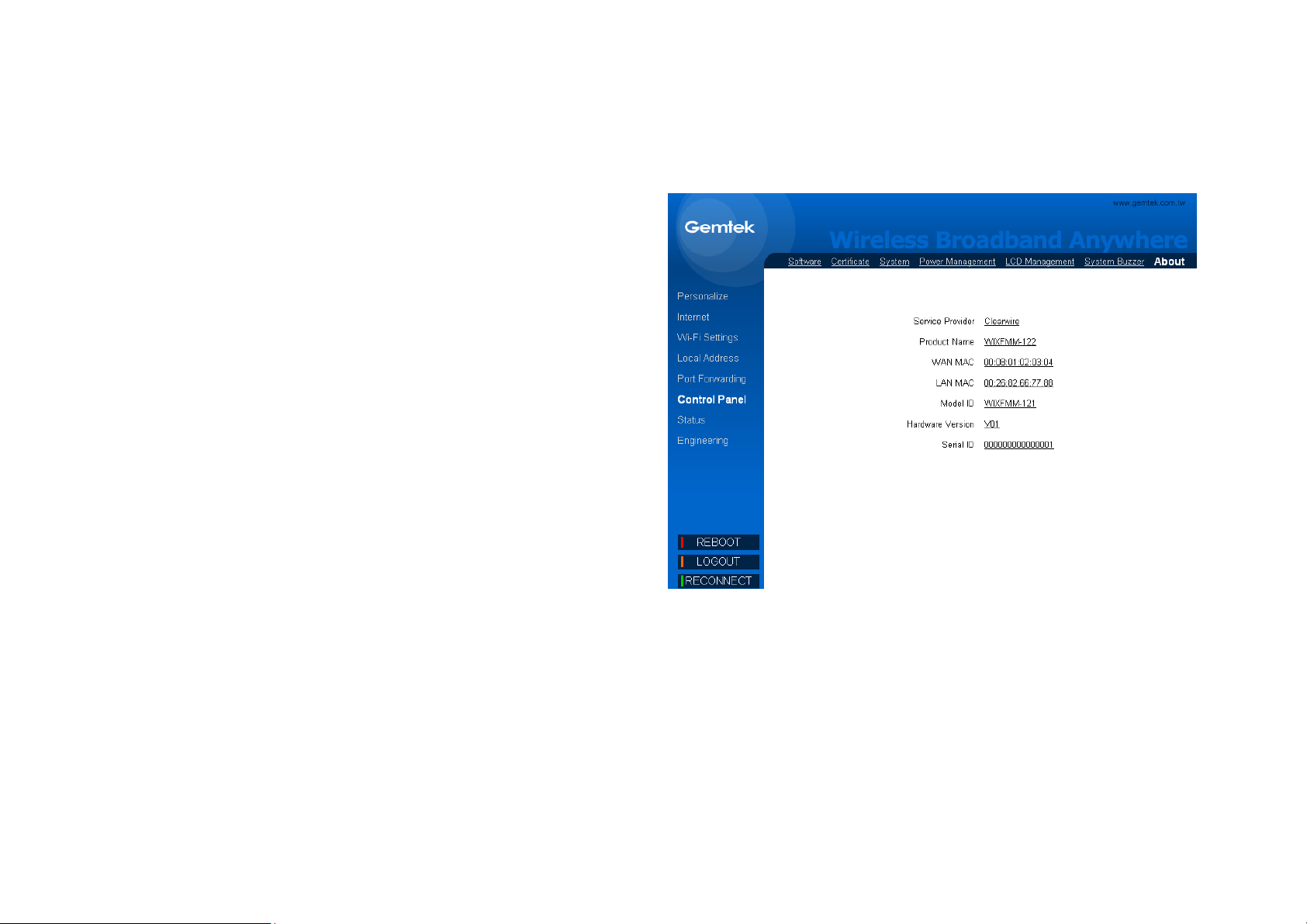

Control Panel | About.................................................................................................................................................................................. 55
Status.............................................................................................................................................................................................................56

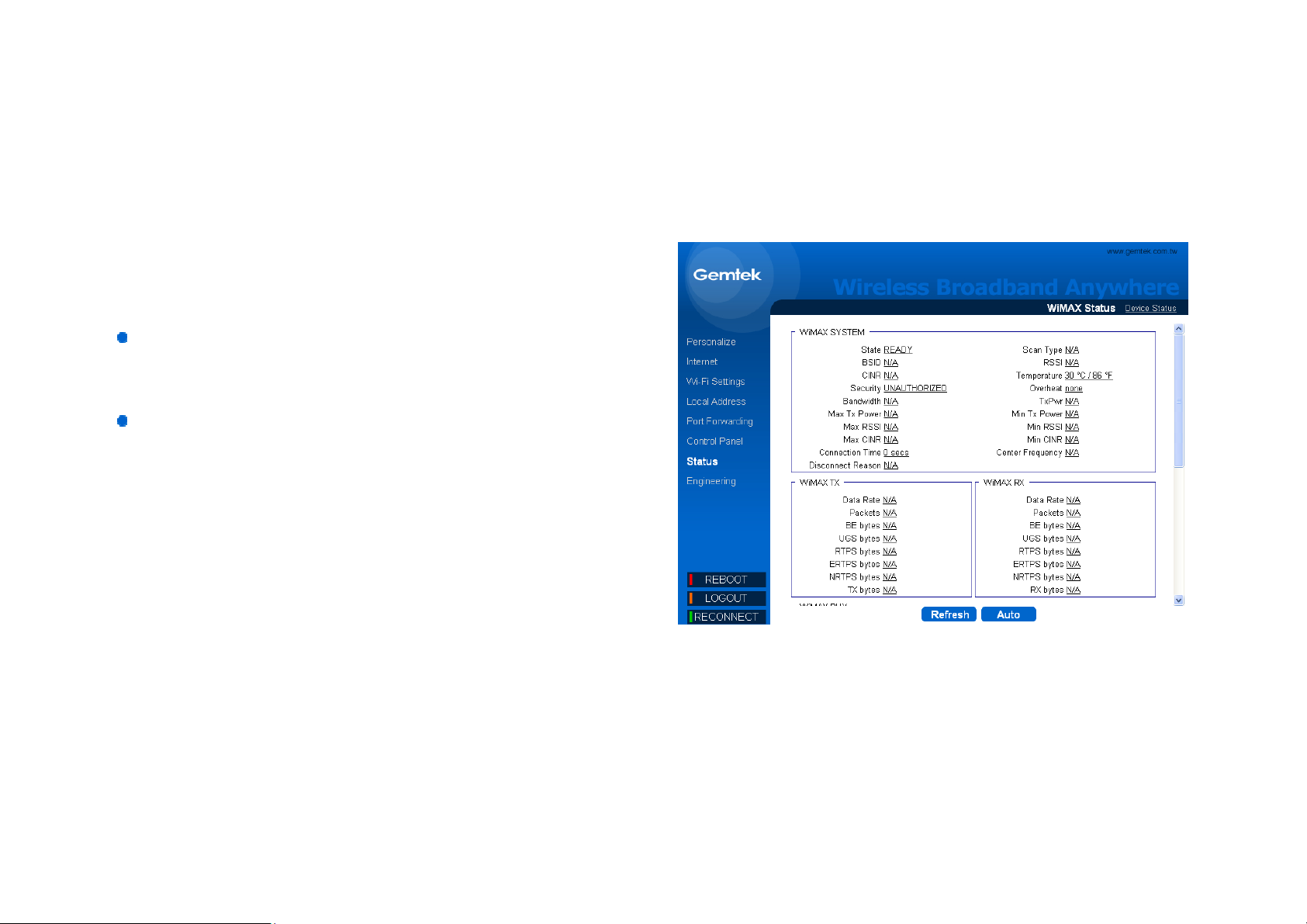

Status| WiMAX Status................................................................................................................................................................................. 56
Status| Device Status.................................................................................................................................................................................. 57
Reboot /Log out/ Reconnect...........................................................................................................................................................................58
Statement
Statement / FCC Statement.........................................................................................................................................................................59
Statement / CE Statement.........................................................................................................................................................................61
5
Gemtek 4G Wi-Fi Spot
About this Manual
About this Manual
About this ManualAbout this Manual
Purpose
Purpose
PurposePurpose
This document provides information and procedures on installation and configuration of WiMAX/Wi-Fi Portable Router. You could
utilize the theoretical information in this guide to setup your device.
Conventions Used in this Document
Conventions Used in this Document
Conventions Used in this DocumentConventions Used in this Document
The following typographic conventions and symbols are used throughout this document:
Very important information. Failure to observe this may result in damage.
Important information that should be observed.
Additional information that may be helpful but which is not required.
6
Gemtek 4G Wi-Fi Spot
bold
Chapter 1
Chapter 1 –––– Introduction
Chapter 1 Chapter 1
Product Overview
Product Overview
Product OverviewProduct Overview
Thank you for choosing WiMAX/Wi-Fi Portable Router. Compliant with 802.16-2005 WiMAX standard, WiMAX/Wi-Fi Portable Router
is a comprehensive device which can connects to WiMAX network and also provides Wi-Fi connectivity for multiple users.
Product Package
Product Package
Product PackageProduct Package
Item Qty
1
Menu commands, buttons and input fields are displayed in bold
Introduction
Introduction Introduction
WiMAX/Wi-Fi Portable Router 1
User Manual
2
Power Adapter 1
3
USB cable 1
4
Battery 1
5
7
1
If any of the items mentioned above are missing or damaged, please contact our customer support immediately.
Connector
Connector and Buttons
ConnectorConnector
and Buttons
and Buttons and Buttons
Gemtek 4G Wi-Fi Spot
8
Gemtek 4G Wi-Fi Spot
1. Power Button: Press and hold the Power button for 3 seconds to
power on or power off the device.
2. View Status: Shortly press the Power button to view the device
status. (Including WiMAX Status, Wi-Fi connection Status and
System Status)
3. WPS Button: Press WPS button to establish wireless connection
without setup the device.
Step1: Press the WPS button on Zoom, and the WPS LED
indicator will start flashing.
Step2: And then press the WPS button on the client you wish to
connect within 2 minutes.
4. Mute: Shortly press the WPS button to mute the buzzer.
9
Gemtek 4G Wi-Fi Spot
5. Reboot/Reset Button: Press and hold the Reboot/Reset button for
less than 5 seconds to reboot the device. Or press and hold the
Reboot/Reset button for more than 5 seconds to reset the device to
factory default.
6. USB Port: This port is to connect your device with a PC or charge
the built-in battery.
10
LCD Display
LCD Display
LCD DisplayLCD Display
Display the WiMAX Signal Strength when the device is connected with WiMAX service.
Gemtek 4G Wi-Fi Spot
WiMAX Status, you can view the device WiMAX connection status by shortly press the power button once.
This icon appears when the system buzzer sound is enabled.
Battery charging, this icon appears when the device is connected with PC by using USB cable.
Display the battery status.
11
Gemtek 4G Wi-Fi Spot
This icon appears when the device is connected with PC through USB cable.
Display the Wi-Fi connectivity which you can know that how many users are currently connected with your device
through Wi-Fi connection. (A device only allows eight Wi-Fi connections)
Display the system time when the device is connected with WiMAX service.
12
Gemtek 4G Wi-Fi Spot
System Startup
Hibernate Mode
Reboot
WiMAX Status
Standby Mode
Power Down
Wi-Fi Connection Status
Low Battery
System Status
Reset Default
13
Chapter
Chapter 2222 –––– In
Chapter Chapter
Install through USB Cable & Connect to Service
Install through USB Cable & Connect to Service
Install through USB Cable & Connect to ServiceInstall through USB Cable & Connect to Service
Please follow the steps below to install the device:
Step1: Connect the device to your PC with a USB cable
provided.
Installation
stallation
In In
stallationstallation
Gemtek 4G Wi-Fi Spot
Step2: Windows will automatically install the device driver after
you plug in the USB cable.
14
Step3: Launching the Windows Network Connections
window by right click on My Network Places and
select Properties. The driver has been installed
successfully if there is a new Local Area Connection
with Device Name, MediaTak WiMAX RNDIS-based
device, is appeared.
Gemtek 4G Wi-Fi Spot
15
Step4: Now you can start browsing the Internet or configure
your device by opening the web browser and entering
the default IP address of the device:
http://192.168.15.1/
(The default password is “admin”.)
Gemtek 4G Wi-Fi Spot
16
Connect to service with Wi
Connect to service with Wi----Fi
Connect to service with WiConnect to service with Wi
Step1: You could connect to the service without installation
through Wi-Fi connection.
Fi
FiFi
Gemtek 4G Wi-Fi Spot
17
Step2: Launching the Windows Wireless Network
Connection, search for the device name (SSID) from
the network list and connect to the device. The default
SSID is “GemtekHotspot”.
Gemtek 4G Wi-Fi Spot
18
Step3: Select Wireless Network Connection Status from the
Windows task bar. The Status would show
“Connected” once the Wi-Fi connection is established.
Gemtek 4G Wi-Fi Spot
19
