GemTek Technology U930804G Users manual

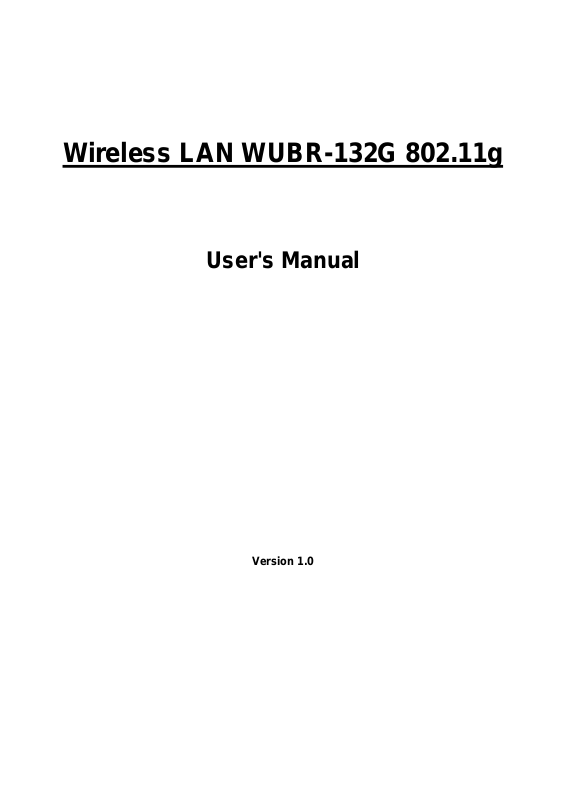

Wireless LAN WUBR-132G 802.11g
User's Manual
Version 1.0
Copyright statement
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form
or by any means, whether electronic, mechanical, photocopying, recording, or otherwise without the
prior writing of the publisher.
April 2004
User’s Guide
1
Contents
1. Introduction __________________________________________________________________ 3
2. Wireless LAN WUBR-132G Basics _____________________________________________ 4
3. Installation for Windows platform_______________________________________________ 5
3.1. Installation Overview ____________________________________________________________6
3.2. Install Procedure for Windows XP________________________________________________7
3.3. Install Procedure for Windows 98/ME/2000 ______________________________________9
4. Configuration Utility __________________________________________________________ 17
4.1 Link Information_________________________________________________ 錯誤! 尚未定義書籤。
User’s Guide
2
1. Introduction
Thank you for purchasing your Wireless LAN WUBR-132G 802.11g Adapter. This Quick Installation
Guide will assist you with the installation procedure.
The package you have received should contain the following items:
• Wireless LAN WUBR-132G 802.11g Adapter
• Quick Installation Guide
• CD containing Wireless LAN WUBR-132G Management utility, drivers and Multi-lingual User’s
Guide
Note: if anything is missing, please contact your vendor
The CD contains drivers and Configuration Utility program that is used for managing the Wireless LAN
WUBR-132G Adapters and establishing the wireless connection with your Local Area Network.
Note: This manual is valid for all Wireless LAN WUBR-132G 11g Series products, such as PC Card,
USB, mini-USB, PCI adapter, mini-PCI…etc.
User’s Guide
3
2. Wireless LAN WUBR-132G Basics
Wireless LAN WUBR-132G (Local Area Networks) systems offer a great number of advantages over a
traditional, wired system. Wireless LAN WUBR-132Gs (WLAN WUBR-132Gs) are more flexible, easier
to setup and manage and often more cost effective than their wired equivalence.
Using radio frequency (RF) technology, WLAN WUBR-132Gs transmit and receive data over the air,
minimizing the need for wired connections. Thus, WLAN WUBR-132Gs combine data connectivity with
user mobility, and, through simplified configuration, enable movable LAN WUBR-132Gs.
With wireless LAN WUBR-132Gs, users can access shared information without looking for a place to
plug in and network managers can set up or augment networks without installing or moving wires.
Wireless LAN WUBR-132Gs offer the following productivity, convenience and cost advantages over
traditional wired networks:
• Mobility - Wireless LAN WUBR-132G systems can provide LAN WUBR-132G users with access to
real-time information anywhere in their organization. This mobility supports productivity and
service opportunities not possible with wired networks.
• Installation Speed and Simplicity - Installing a wireless LAN WUBR-132G system can be fast and
easy and can eliminate the need to pull cable through walls and ceilings.
• Installation Flexibility - Wireless technology allows the network to go where wires cannot go.
• Reduced Cost-of-Ownership - While the initial investment required for wireless LAN WUBR-132G
hardware might be higher than the cost of wired LAN WUBR-132G hardware, overall installation
expenses and life-cycle costs will be significantly lower. Long-term cost benefits are greatest in
dynamic environments requiring frequent moves, adds, and changes.
• Scalability - Wireless LAN WUBR-132G systems can be configured in a variety of topologies to
meet the needs of specific applications and installations. Configurations are easily changed and
range from peer-to-peer to full infrastructure networks, also allow roaming over a broad area.
User’s Guide
4
3. Installation for Windows platform
The following section will assist you in installing wireless LAN WUBR-132G Adapter successfully. You
will first install software (Utility) and then insert / attach the Wireless LAN WUBR-132G Adapter to your
system, and finally set the network properties to accommodate resource sharing and select the type of
wireless network that you wish to install. The Wireless LAN WUBR-132G card can easily be installed
and used, without bothering to connect cables for keeping your computer to use network resources.
User’s Guide
5
3.1. Installation Overview
Here are some steps you will perform in establishing your wireless network connection:
Install the Access Point at first. AP is needed in case of Infrastructure network mode.
Install the software using the Install CD.
Install the Wireless LAN WUBR-132G Card (WIRELESS LAN WUBR-132G 802.11g Adapter).
Install the network protocol(s) required to communicate on your network. Most likely you will need
the TCP/IP protocol.
User’s Guide
6
