GemTek Technology F240WA Users manual

HGW F-240W-A User manual

1

2015.07 v1.0

Outline

 Exterior

 Interface

 Accessory

 HGW LED definition

 Backup

 Statement

2

Exterior

3

Interface

4

USB port : USB 3.0 & 2.0

G.fast/Vplus-VDLS2 interfaces

Foreign eXchange Station

Reset

Power

LAN port

Power in

Accessory

 ONT ＊ 1  RJ-11 Cable 1.8m ＊ 1  RJ-11 Cable 1.5m ＊ 1  RJ-45 Cable 1.5m ＊ 1  Power Adapter ＊ 1

5

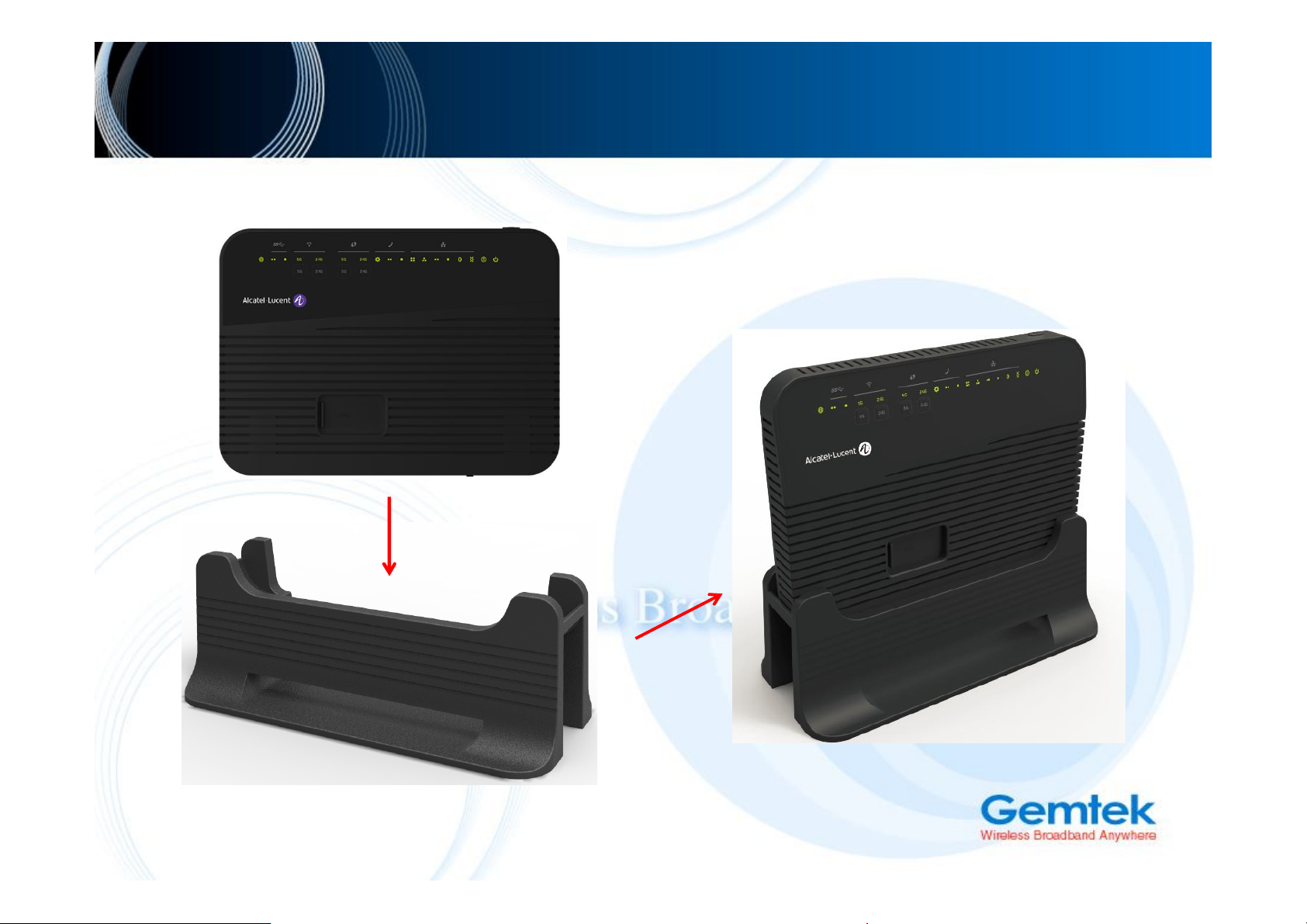

 Power Cable ＊ 1  Pedestal *1

HGW LED definition

LED Color(S) Activity Description

Solid Power on(self test succeeded)

6

Power (TOP)

RPF (TOP)

G.fast/VplusVDLS2 (TOP)

Green

Red

Green Solid reverse power active Amber Solid reverse power in detection mode Off Off reverse power is off

Green

Amber

flash Device POSTING and BOOTING

Off Power Off

 POST fails on startup (example, flash is corrupt). So in Hardware the LED should be

RED by default until the software is running which can then turn it green. Normally

Solid

flash Firmware upgrade ongoing Off System is in normal condition

Solid Provisioned and registered(VDSL2)

flash

Off not provisioned Solid Provisioned and registered(Gfast/Vplus)

flash

Off not provisioned

the ONT should also do a self-test on power-up. If Self-test fails the LED should remain RED

 During operations the ONT fails (Device Malfunction): On regular intervals the ONT

should run a self-test and if it fails the LED should turn RED.

 Flashing at 2 Hz with a 50% duty cycle: DSL carrier detection ongoing;  Flashing at 4 Hz with a 50% duty cycle: Carrier has been detected, DSL training is

ongoing;

 Flashing at 2 Hz with a 50% duty cycle: DSL carrier detection ongoing;  Flashing at 4 Hz with a 50% duty cycle: Carrier has been detected, DSL training is

ongoing;

HGW LED definition

LED Color(S) Activity Description

7

Ethernet

WAN or

LAN(1~5)

(TOP))

FXS/ POTS(1,2) (TOP)

VOIP

(TOP)

WPS 11n

(TOP)

WPS 11ac

(TOP)

Green (10/100M)

Amber (1000M)

Green

Red

Green

Red

Solid Ethernet Link flash Data Transmitting / Receiving Solid Ethernet Link flash Data Transmitting / Receiving

Solid

flash Call in or on talking Off Telephone at POTS ports are all on-hook. Solid VoIP service is built up and can provide service Off VoIP service is not built up or out of service. Solid "Success" status Off WPS disabled Solid "Error" and "Session Overlap" status Off WPS disabled Solid "Success" status Off WPS disabled Solid "Error" and "Session Overlap" status Off WPS disabled

Provides a positive indication that at least one of the POTS lines, provisioned on the respective Service Unit, has a telephone in the off-hook condition.

WLAN

11n

(TOP)

WLAN

11ac

(TOP)

Green

Solid WLAN link up flash WLAN activity

Off WLAN is down or no link connected. Solid WLAN link up

flash WLAN activity Off WLAN is down or no link connected.

HGW LED definition

LED Color(S) Activity Description

Solid A device is conneced to the USB port

USB(1,2) (TOP)

Internet (TOP)

Green

flash Traffic activity on the USB connection Off No device connected to the USB port.

IP connected (the device has a WAN IP address from IPCP/DHCP/Static and Broadband link

Solid

flash The device is in the process of acquiring an IP address (either via PPPoE or DHCP).

Off

is up). If the PPPoE session is dropped due to an idle timeout, the light will remain green if the G.fast link is still present. If the session is dropped for any other reason, the light is turned off.

Broadband physical connection power off, or device in bridged mode with no IP address assigned to the device, or Broadband physical interface connection not present

8

Backup

9

Federal Communication Commission Interference

Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.

10

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Federal Communication Commission Interference

Statement

IMPORTANT NOTE:

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Country Code selection feature to be disabled for products marketed to the US/CANADA

Operation of this device is restricted to indoor use only

11

EU Declaration of Conformity

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:

 EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013

Safety of Information Technology Equipment

 EN 62311: 2008 / Article 3(1)(a) and Article 2 2006/95/EC)

Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz-300 GHz)

 EN 300 328 V1.9.1: 2015-02

Electromagnetic compatibility and Radio spectrum Matters (ERM);Wideband transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques;

Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive

 EN 301 893 V1.7.1: 2012-06

12

Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive

 EN 301 489-1 V1.9.2: 2011

Electromagnetic compatibility and Radio spectrum Matters (ERM); Electro Magnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements

 EN 301 489-17 V2.2.1 2012

Electromagnetic compatibility and Radio spectrum Matters (ERM); Electro Magnetic Compatibility (EMC) standard for radio equipment; Part 17: Specific conditions for Broadband Data Transmission Systems

EU Declaration of Conformity

In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services.

13

Česky [Czech] Dansk [Danish] Deutsch [German]

Eesti [Estonian]

English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the

Español [Spanish] Ελληνική [Greek]

Français [French]

[Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.

essential requirements and other relevant provisions of Directive 1999/5/EC. Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de 1999/5/CE. ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ. Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.

EU Declaration of Conformity

14

Italiano [Italian] Latviski [Latvian] Lietuvių [Lithuanian] Nederlands [Dutch] Malti [Maltese] Magyar [Hungarian] Polski [Polish] Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi

Português [Portuguese] Slovensko [Slovenian] Slovensky [Slovak] Suomi [Finnish]

Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment / iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC. Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.

wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC. [Nome do fabricante] declara que este [tipo de equipamento] está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. [Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES. [Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES. [Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.

EU Declaration of Conformity

15
