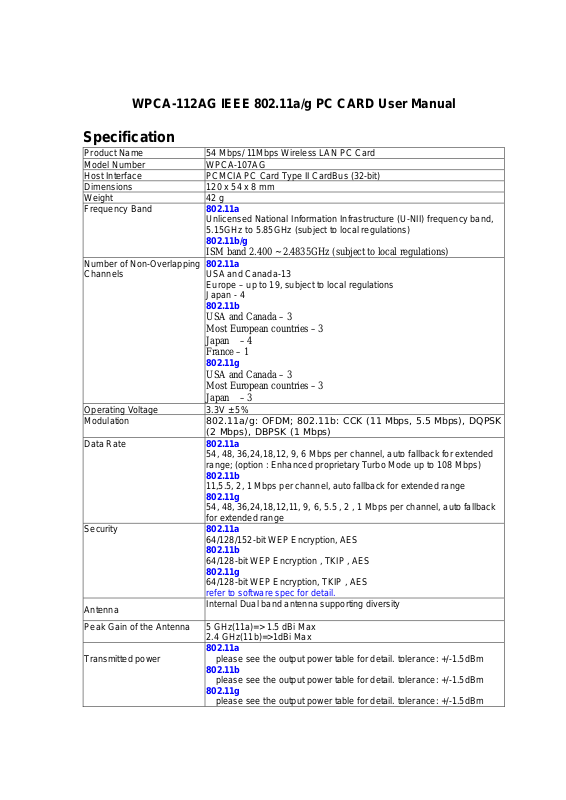

WPCA-112AG IEEE 802.11a/g PC CARD User Manual
Specification
Product Name 54 Mbps/ 11Mbps Wireless LAN PC Card
Model Number WPCA-107AG
Host Interface PCMCIA PC Card Type II CardBus (32-bit)
Dimensions 120 x 54 x 8 mm
Weight 42 g
Frequency Band
Number of Non-Overlapping
Channels
Operating Voltage 3.3V ± 5%
Modulation
Data Rate
Security
Antenna
802.11a
Unlicensed National Information Infrastructure (U-NII) frequency band,
5.15GHz to 5.85GHz (subject to local regulations)
802.11b/g
ISM band 2.400 ~ 2.4835GHz (subject to local regulations)
802.11a
USA and Canada-13
Europe – up to 19, subject to local regulations
Japan - 4
802.11b
USA and Canada – 3
Most European countries – 3
Japan – 4
France – 1
802.11g
USA and Canada – 3
Most European countries – 3
Japan – 3
802.11a/g: OFDM; 802.11b: CCK (11 Mbps, 5.5 Mbps), DQPSK
(2 Mbps), DBPSK (1 Mbps)
802.11a
54, 48, 36,24,18,12, 9, 6 Mbps per channel, auto fallback for extended
range; (option : Enhanced proprietary Turbo Mode up to 108 Mbps)
802.11b
11,5.5, 2, 1 Mbps per channel, auto fallback for extended range
802.11g
54, 48, 36,24,18,12,11, 9, 6, 5.5 , 2 , 1 Mbps per channel, auto fallback
for extended range
802.11a
64/128/152-bit WEP Encryption, AES
802.11b
64/128-bit WEP Encryption , TKIP , AES
802.11g
64/128-bit WEP Encryption, TKIP , AES
refer to software spec for detail.
Internal Dual band antenna supporting diversity
Peak Gain of the Antenna 5 GHz(11a)=> 1.5 dBi Max
2.4 GHz(11b)=>1dBi Max
802.11a
Transmitted power
please see the output power table for detail. tolerance: +/-1.5dBm
802.11b
please see the output power table for detail. tolerance: +/-1.5dBm
802.11g
please see the output power table for detail. tolerance: +/-1.5dBm
802.11a/g
Nominal Temp Range:
- 6Mbps 10-5 BER @ -90dBm, typical
- 9Mbps 10-5 BER @ -89dBm, typical
- 12Mbps 10-5 BER @ -88dBm, typical
- 18Mbps 10-5 BER @ -87dBm, typical
Receive Sensitivity
- 24Mbps 10-5 BER @ -83dBm, typical
- 36Mbps 10-5 BER @ -80dBm, typical
- 48Mbps 10-5 BER @ -74dBm, typical
- 54Mbps 10-5 BER @ -70dBm, typical
802.11b
Typ. –88 dBm @ 11Mbps,+/-2 dBm
Typ. –91 dBm @ 5.5Mbps
Typ. –92 dBm @ 2Mbps
Typ. –93 dBm @ 1Mbps
802.11a
Max.2W
Continue Tx : 560 mA @ 3.3V
Continue RX : 260 mA @3.3V
802.11g
Power consumption
Supplied Driver Windows 98SE/ME/NT4.0/2000/XP
Standards
Max.2W
Continue Tx : 560mA @3.3V
Rx : 260mA @3.3V
802.11b
Continue Tx : 510mA @3.3V
Continue RX : 250 mA @3.3V
IEEE 802.3, IEEE 802.3u, IEEE 802.11a, IEEE 802.11b,
draft standard ,Wi-Fi compliant
Warranty 1 year
Temperature Range 0 ~ 55°C (Operating); -20 ~ 85°C (Storing)
Operating Humidity 10% to 85% Non-Condensing
Storage Humidity 5% to 90% Non-Condensing
Operating Range Open Space: Up to 260 m: Indoor: 100 m
The transmission speed varies in the surrounding environment
Network Protocol TCP/IP, IPX, NDIS4, and NDIS5 ,NDIS 5.1
Management Utility Monitor Internet Access Status via UI
EMC certification
System Requirements Laptop PC containing
TBD
(FCC part 15C/15.247; ETS 300 328-2; UL; IEC60950; EN
301 489-1,17; prEN50371; CE Mark; TELEC)
Æ 32-bit CardBus slot (or Desktop PC with PC Card-PCI adapter)
Æ 64MB memory or greater
Æ 300MHz processor or greater
Microsoft Windows 98 Second Edition/Millennium Edition/2000/NT 4.0
with Service Pack 6,Windows XP
*valid operating channel numbers by FCC
Regulatory domain
The United States U-NII I band
(5.15GHz~5.25GHz)
Band(GHz)
Operating Channel
Numbers
36 5180
40 5200
44 5220
IEEE 802.11g
Channel center
frequencies(MHz)
48 5240
52 5260
The United States
The United States
U-NII II band
(5.25GHz~5.35GHz)
U-NII III band
(5.725GHz~5.825GHz)
56 5280
60 5300
64 5300
149 5745
153 5765
157 5785
161 5805
*valid operating channel numbers by ETSI,HYPERLAN/2
Regulatory domain
ETSI
ETSI
ETSI
5.15GHz~5.25GHz
5.25GHz~5.35GHz
5.500GHz~5.700GHz
Band(GHz)
Operating Channel
Numbers
36 5180
40 5200
44 5220
48 5240
52 5260
56 5280
60 5300
64 5300
100 5500
104 5520
108 5540
112 5560
116 5580
120 5600
124 5620
128 5640
132 5660
136 5680
140 5700
frequencies(MHz)
*valid operating channel numbers by TELEC
Regulatory domain
TELEC
5.15GHz~5.25GHz
Band(GHz)
Operating Channel
Numbers
34 5170
38 5190
42 5210
46 5230
frequencies(MHz)
Output power table [dBm],base mode for 802.11a ,FCC( preliminary DATA)
Channel center
Channel center
CH
5180
MHz
5200
MHz
5220
MHz
5240
MHz
5260
MHz
5280
MHz
5300
MHz
5320
MHz
5745
MHz
5765
MHz
5785
MHz
5805
MHz
6~24 Mbps 17 17 17 17 17 17 17 17 16 16 16 16
36 Mbps 15 15 15 15 15 15 15 15 15 15 15 15
48 Mbps 14 14 14 14 14 14 14 14 14 14 14 14
54 Mbps 13 13 13 13 13 13 13 13 13 13 13 13
Output power table [dBm], turbo mode for 802.11a,FCC( preliminary DATA)
CH 5210 MHz 5250NHz 5290 MHz 5760 MHz remark
12~48 Mbps 17 17 17 16
72 Mbps 15 15 15 15
96 Mbps 14 14 14 14
108Mbps 13 13 13 13
Output power table [dBm],base mode for 802.11a ,ETSI( preliminary DATA)
CH
5180
MHz
5200
MHz
5220
MHz
5240
MHz
5260
MHz
5280
MHz
5300
MHz
5320
MHz
5500~5700
MHz
remark
6~24 Mbps 17 17 17 17 17 17 17 17 17
36 Mbps 15 15 15 15 15 15 15 15 15
48 Mbps 14 14 14 14 14 14 14 14 14
54 Mbps 13 13 13 13 13 13 13 13 13
Output power table [dBm],base mode for 802.11a ,TELEC( preliminary DATA)
Channel 5170 MHz 5190NHz 5210 MHz 5230 MHz
6~24 Mbps
36 Mbps
48 Mbps
54 Mbps
16 17 17 17
15 15 15 15
14 14 14 14
13 13 13 13
Output power table [dBm] in 802.11g, FCC( preliminary DATA)
CH 2412 MHz 2447MHz 2472 MHz remark
6~24 Mbps
16.5 19 16.5
36 Mbps 16 18 16
48 Mbps 16 16 16
54Mbps 15 15 15
Output power table [dBm] in 802.11g, ETSI( preliminary DATA )
CH 2412 MHz 2447MHz 2472 MHz remark
6~24 Mbps
17 17 16.5
36 Mbps 17 17 16.5
48 Mbps 16 16 16
54Mbps 15 15 15
Output power table [dBm] in 802.11g, TELEC( prelimin ary DATA)
CH 2412 MHz 2447MHz 2472 MHz remark
6~24 Mbps
16 16 16
36 Mbps 16 16 16
48 Mbps 16 16 16
54Mbps 15 15 15
Output power table [dBm] in 802.11b,FCC( preliminary DATA)
CH 2412 MHz 2447MHz 2472 MHz remark
1 Mbps
19 19 19
2Mbps 19 19 19
5.5Mbps 19 19 19
11Mbps 19 19 19
Output power table [dBm] in 802.11b,ETSI( preliminary DATA)
CH 2412 MHz 2447MHz 2472 MHz remark
1 Mbps
17 17 17
2Mbps 17 17 17
5.5Mbps 17 17 17
11Mbps 17 17 17
Output power table [dBm] in 802.11b,TELEC( preliminary DATA)
CH 2412 MHz 2447MHz 2472 MHz remark
1 Mbps
16 16 16
2Mbps 16 16 16
5.5Mbps 16 16 16
11Mbps 16 16 16
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential inst allation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor
environment, and the antenna of this device must be integral.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
This device complies with FCC RF Exposure limits set forth for an uncontrolled
environment, under 47 CFR 2.1093 paragraph (d)(2).
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
This equipment has been SAR-evaluated for use in laptops (notebooks) with side slot
configuration.
Maximum average SAR(1g) for 802.11b is 0.845 W/Kg.
Maximum average SAR(1g) for 802.11g is 0.522 W/Kg.
Maximum average SAR(1g) for 802.11a is 0.974 W/Kg.
IC Statement
The device is certified to the requirements of RSS-210 for 2.4 GHz
spread spectrum devices. To prevent radio interference to the licensed
service (i.e. co-channel Mobile Satellite systems) this device is intended to
be operated indoors and away from windows to provide maximum shielding.
Equipment (or its transmit antenna) that is installed outdoors is subject to
licensing.
Because high power radars are allocated as primary users (meaning they
have priority) in 5250-5350 MHz, these radars could cause interference
and/or damage to license exempt LAN devices.
Operation is subject to the following two conditions:
1) This device may not cause interference and
2) This device must accept any interference, including interferen ce that may
cause undesired operation of the device.
