GemTek Technology AP931229AG1 User Manual

54Mb Dual-Band Outdoor AP Gemtek System P-780 & P-781
User’s Guide v1.2
Copyright © 2002-2004 Gemtek Systems Holding BV
www.gemtek-systems.com
Copyright
© 2002-2005 Gemtek Systems Holding BV. This user’s guide and the software described in it are copyrighted with all rights reserved. No part of
this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Gemtek Systems Holding BV.
Notice
Gemtek Systems reserves the right to change specifications without prior notice. While the information in this manual has been compiled with great care, it may not be deemed an
assurance of product characteristics. Gemtek Systems shall be liable only to the degree specified in the terms of sale and delivery.
The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from Gemtek Systems.
Trademarks
The product described in this book is a licensed product of Gemtek Systems Holding BV. Microsoft, Windows 95, Windows 98, Windows Millennium, Windows NT, Windows 2000, Windows
XP, and MS-DOS are registered trademarks of the Microsoft Corporation. Novell is a registered trademark of Novell, Inc. MacOS is a registered trademark of Apple Computer, Inc. Java is a trademark of Sun Microsystems, Inc. Wi-Fi is a registered trademark of Wi-Fi Alliance. All other brand and product names are trademarks or registered trademarks of their respective
holders.
firmware controlled in U.S.A.
Within the 5.15 to 5.25 GHz band (5GHz radio channels 34 to 48) the U-NII devices are restricted to indoor operations to reduce any potential harmful interference to MSS operations.
FCC Warning
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Caution
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
If this device is going to be operated in 5.15 ~ 5.25GHz frequency range, then it is restricted in indoor environment only.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Gemtek Systems declares that P-780 & P-781( FCC ID: FCC ID: MXF-AP931229AG1 is limited in CH1~CH11 for 2.4GHz by specified
MXF-AP931229AG &
Gemtek Systems Page 4 of 60
IC Warning
Note: This User's Guide is for P-781 Use
P-780 is for with two radio cards P-781 is for with one radio card 
Operation is subject to the following two conditions:
This device may not cause interference and  This device must accept any interference, including interference that may cause undesired
operation of the device
This device has been designed to operate with an antenna having a maximum gain of 8 dBi. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The require d antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the EIRP is not more than required for successful communication.
Because high power radars are allocated as primary users (meaning they have priority) in 5250-5350 MHz, these radars could cause interference and/or damage to license exempt LAN devices.
Gemtek Systems Page 5 of 60
P-780 User’s Guide v1.2 February 7, 2005
Contents
Copyright.............................................................................................................................................3
Notice ..................................................................................................................................................3
Trademarks .........................................................................................................................................3
FCC Warning.......................................................................................................................................4
IC Warning ..........................................................................................................................................5
CONTENTS ............................................................................................................................................6
ABOUT THIS GUIDE..............................................................................................................................8
Purpose...............................................................................................................................................8
Prerequisite Skills and Knowledge......................................................................................................8
Conventions Used in this Document...................................................................................................8
Help Us to Improve this Document! ....................................................................................................8
Gemtek Systems Technical Support...................................................................................................8
CHAPTER 1 – INTRODUCTION............................................................................................................9
Product Overview................................................................................................................................9
Features Highlight.............................................................................................................................10
CHAPTER 2 - INSTALLATION............................................................................................................11
The Product Package........................................................................................................................11
Hardware Introduction.......................................................................................................................12
General Overview..........................................................................................................................12
Bottom Cover.................................................................................................................................13
LEDs..............................................................................................................................................13
RF Connectors...............................................................................................................................14
Hardware Installation.........................................................................................................................15
Installing the Access Point.............................................................................................................15
Connect to the Power Source and Local Network.........................................................................16
Software Installation..........................................................................................................................17
Initialization....................................................................................................................................17
Software Introduction: KickStart ....................................................................................................17
Access Your P-780........................................................................................................................17
CHAPTER 3 – APPLICATION MODE .................................................................................................21
AP + Bridge Mode.............................................................................................................................21
AP + AP Mode...................................................................................................................................21
Bridge+ Bridge Mode ........................................................................................................................22
CHAPTER 4 – REFERENCE MANUAL...............................................................................................23
Web Interface....................................................................................................................................23
Status ................................................................................................................................................24
Status | Device Status ...................................................................................................................24
Status | Wireless Status.................................................................................................................24
Network .............................................................................................................................................25
Network | Interface.........................................................................................................................25
Network | RADIUS Server .............................................................................................................27

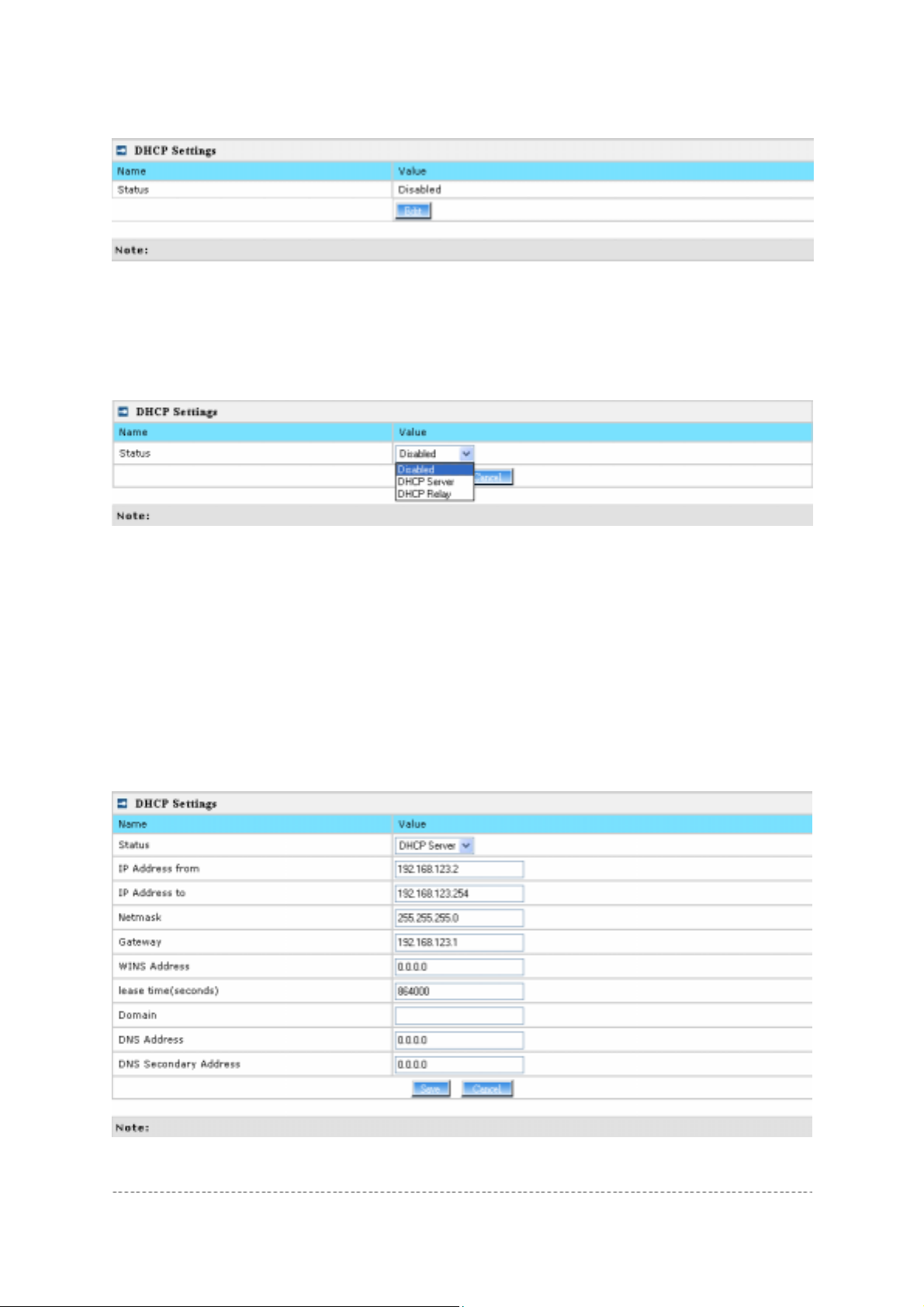

Network | DHCP Settings ..............................................................................................................28
Wireless.............................................................................................................................................33

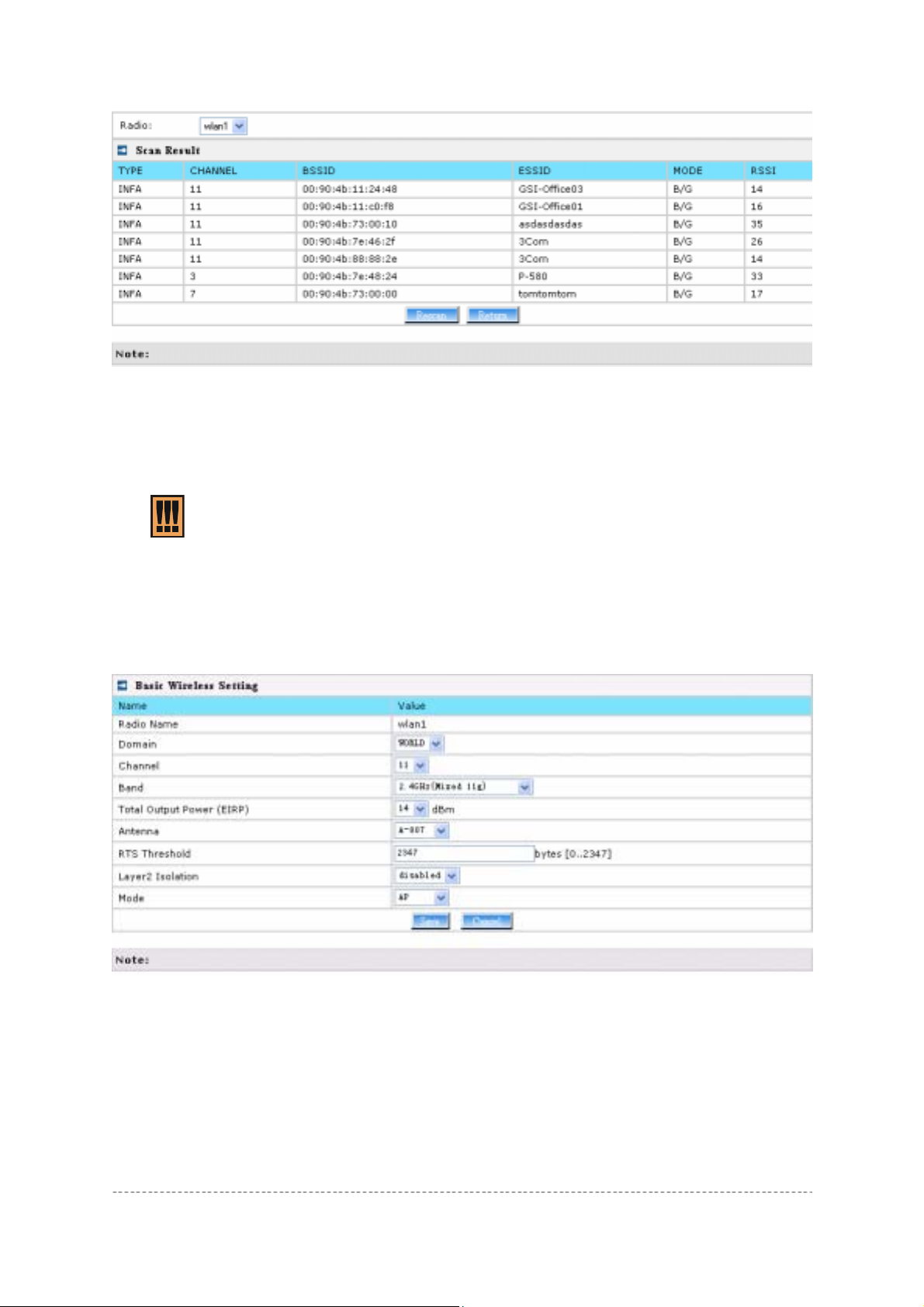

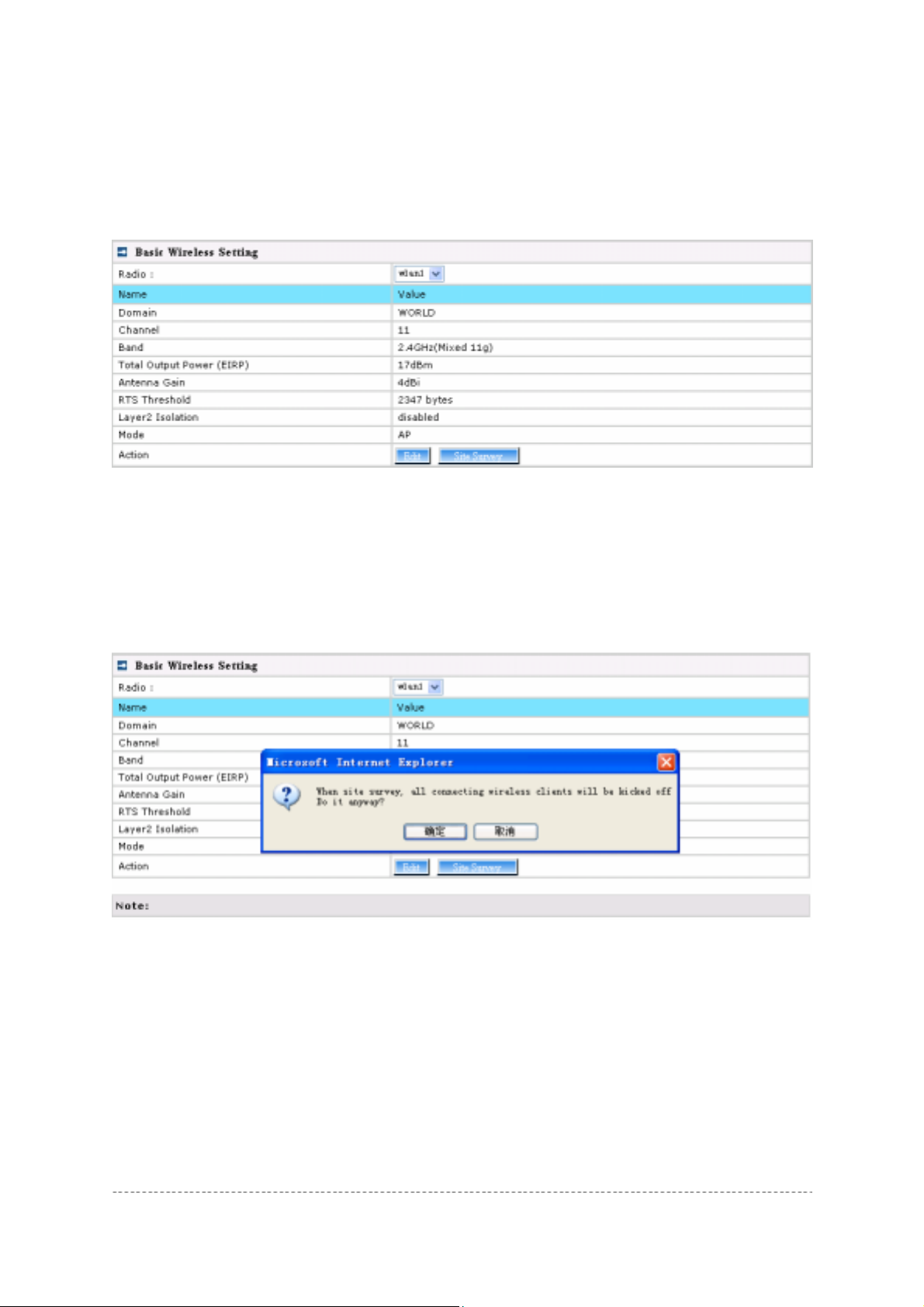

Wireless | Basic .............................................................................................................................33

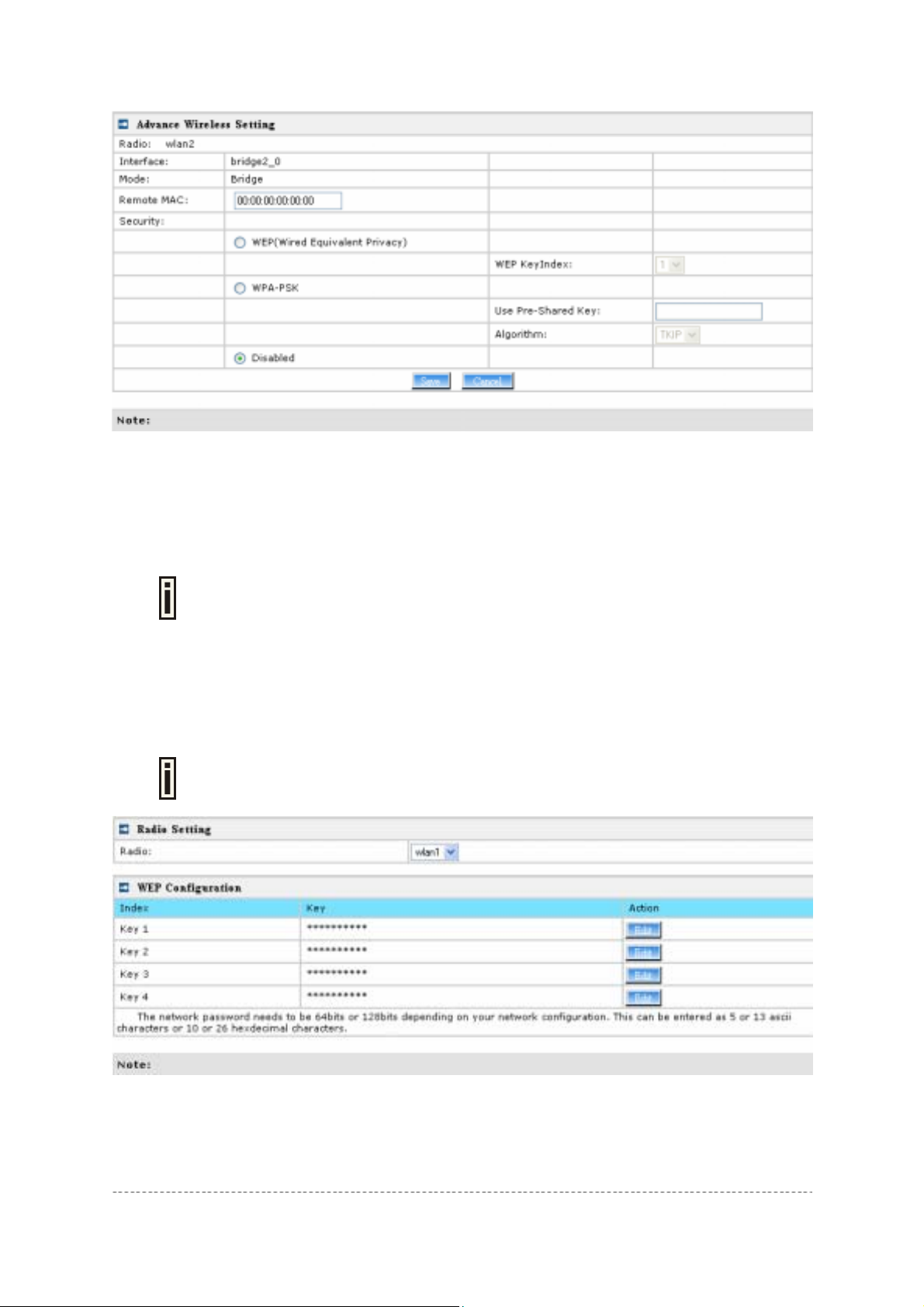

Wireless | Advance........................................................................................................................37
Wireless | WEP..............................................................................................................................41
Wireless | MAC ACL......................................................................................................................42
P-780 User’s Guide v1.2 February 7, 2005
System...............................................................................................................................................45
System | Security...........................................................................................................................45
System | SNMP..............................................................................................................................45
System | Telnet..............................................................................................................................47
System | Configuration ..................................................................................................................47
System | Reset...............................................................................................................................49
System | Upgrade..........................................................................................................................49
APPENDIX............................................................................................................................................51
A) Specification .................................................................................................................................51
B) Factory Defaults for the P-780......................................................................................................53
C) Regulatory Channels/Power .....................................................................................................53
Gemtek Systems Page 7 of 60
P-780 User’s Guide v1.2 February 7, 2005
About this Guide
Purpose
This document provides information and procedures on hardware installation, setup, configuration, and management of the Gemtek Systems high performance 54Mb Dual-Band Outdoor AP P-780.
Prerequisite Skills and Knowledge
To use this document effectively, you should have a working knowledge of Local Area Networking (LAN) concepts and wireless Internet access infrastructures. In addition, you should be familiar with the following:
Hardware installers should have a working knowledge of basic electronics and mechanical
assembly, and should understand related local building codes.
Network administrators should have a solid understanding of software installation proced ures for
network operating systems under Microsoft Windows 95, 98, Millennium, 2000, NT, and Windows XP and general networking operations and troubleshooting knowledge.
Conventions Used in this Document
The following typographic conventions and symbols are used througho ut this document:
Very important information. Failure to observe this may result in damage.
Important information that should be observed.
bold
code
<value>
[value]
Additional information that may be helpful but which is not required.
Menu commands, buttons and input fields are displayed in bold File names, directory names, form names, and system-generated output
such as error messages are displayed in constant-width type Placeholder for certain values, e.g. user inputs Input field format, limitations, and/or restrictions.
Help Us to Improve this Document!
If you should encounter mistakes in this document or want to provide comments to improve the manual please send e-mail directly to:
manuals@gemtek-systems.com
Gemtek Systems Technical Support
If you encounter problems when installing or using this product, please consult the Gemtek Systems website at www.gemtek-systems.com for:
Direct contact to the Gemtek Systems support centers.  Frequently Asked Questions (FAQ).  Download area for the latest software, user documentation and product updates.
P-780 User’s Guide v1.2 February 7, 2005
Chapter 1 – Introduction
Thank you for choosing the Gemtek Systems High Performance Dual-Band Outdoor Access Point P-
780. The Gemtek Systems P-780 operates simultaneously in the 5-GHz and 2.4-GHz frequency bands and
is fully compliant to 802.11b/g and 802.11a standard with its high performance and enhanced security. P-780 is an important part for the Gemtek Systems HotZone solution as 11a/b/g outdoor AP. The two Dual-Band radio (a/g + a/g) that this product provides supplies the furthest in flexibility and makes sure low interference and large coverage. The a+g operation mode and Multiple BSSID that this product provides differentiates it from traditional outdoor AP product.
Product Overview
Flexibility and high performance
The Gemtek Systems P-780 is a high performance outdoor AP for HotZone service. The two Dual­Band radios and AP/Bridge operation mode supply the furthest flexibility for wireless applications:
z Simultaneously supports 802.11a/b/g in one platform z Mix AP and Bridge mode configuration work simultaneously, blanketing last mile with high-speed
bandwidth
z Dual AP configuration for high client density environment z Dual Bridge configuration for wireless repeating and wireless bridging areas
Secure and reliable wireless networking
The Gemtek Systems P-780 supplies multiple methods to protect the wireless network:
z Supports VLAN, up to 16 VLAN ID z IEEE 802.1x/EAP with password, certificates and SIM card z 64bits/128bits static and dynamic WEP key z Supports Wi-Fi Protected Access(WPA) z Layer 2 Isolation for preventing snooping under the same radio z MAC ACL for preventing illegal attacking from Internet
Multiple BSSID
Supports up to16 BSSID, each of BSSID can be configured independently such as using different SSID, security, authentication method, and VLAN ID.
Management Option
You can use the Access Controller management systems through the following interfaces:
 Web-browser interface  Command Line interface (CLI) with optional SSH  Simple Network Management Protocol
with HTTPS
P-780 User’s Guide v1.2 February 7, 2005
P-780 management system pages are organized the same way for the web-browser interface and the CLI. This user manual provides detailed description of each management option.
Features Highlight
Super Brige
 802.11a/b/g compliant  54Mbps raw data rate supporting Up to 20 bridge links supporting  Special radio for Bridge  WPA/PSK over Bridge link
Super AP
Multiple BSSID (up to 16)
SSID per BSSID  Enabled or Disabled Hidden SSID per BSSID  VLAN ID per BSSID  AAA way per BSSID, 802.1x and web login  Co-existence of 802.1x and web login  Security policy per BSSID  WPA passthrough  RADIUS server per BSSID
AAA
RADIUS client supporting 802.1x supporting(EAP/TLS,EAP/TTLS, EAP/PEAP and EAP/SIM)
Security
Static 64/128bits WEP, Dynamic 64/128bits WEP  WPA/TKIP and WPA/AES support  MAC ACL  Access Control (accept rule and deny rule) based on MAC address  Layer 2 Isolation  Hidden SSID
Management
Secure management via HTTPS, CLISH, SNMP  Standard MIB and Gemtek Systems Private MIB  Remote firmware update via WEB UI  Backup/Restore configuration file  DHCP Server
Gemtek Systems Page 10 of 60
P-780 User’s Guide v1.2 February 7, 2005
Chapter 2 - Installation
This chapter provides installation instructions for the hardware and software components of the Access Point P-780. It also includes the procedures for the following tasks:
Hardware Introduction (LEDs, Connectors)  Connecting the Access Point  First Configuration
The Product Package
The product comes with the following:
Dual-Band outdoor Access Point (model: P-780)  Mounting Kit  Screw Bag for Mounting Kit  Waterproof tape  Omni-directional antenna ( A-807) * 2  Installation CD containing:
P-780 User Guide in PDF format  KickStart Utility  Product Firmware  Release Notes  Adobe Acrobat Readers
 Readme  Printed 1 Year Warranty Card  Printed Release Note  Printed Warning Card
If any of these items are missing or damaged, please contact your reseller or Gemtek Systems sales representative.
A-807 antenna is the accessory of P-780 Product. Refer to the Appendix D for A-807 Antenna Spec: D) Approved Antenna
The application example of waterproof tape can be referred to the Appendix E:
E) Waterproof Tape Application Example
Gemtek Systems Page 11 of 60
P-780 User’s Guide v1.2 February 7, 2005
Hardware Introduction
General Overview
Figure 1 – P-780 General View
The front panel of P-780 contains: There are 3 indicator lights (LEDs) that help to describe the state of various networkin g and
connection operations. The Bottom cover of P-780 contains:
Connectors which enable you to make different network connections for the device  Reset button enables you to reboot or reset the device configuration to the factory defaults
Press the Reset button for less than 5 seconds to reboot the device. Press the Reset button for more than 5 seconds to set the device to factory
defaults.
Gemtek Systems Page 12 of 60
P-780 User’s Guide v1.2 February 7, 2005
Bottom Cover
5
1
2
3
Figure 2 –Bottom Cover of the P-780
The Bottom Cover of the P-780 contains:
1. Back Label with Model and Device name. The official device name is 54Mb Dual-Band Outdoor
Access Point, model P-780.
2. MAC address labels of the device. The two labels show the WLAN1 and WLAN2 interface MAC
address of the device.
3. Serial Number label of the device.
4. LAN Port. It is a waterproof RJ45 connector.
5. RESET Button. It is covered by a M5 Screw with a waterproof rubber washer
4
LEDs
The P-780 Access Point has 3 LEDs located on the front panel:
1
2
3
Figure 3 – LEDs of the P-780
Gemtek Systems Page 13 of 60
P-780 User’s Guide v1.2 February 7, 2005
The various states of the LEDs indicate different networking and connection operations as follows:
Item LED Color Status Indication
On P-780 Ethernet Port Link Active 1 LAN Green Blink
On P-780 WLAN1 RF card Active 2 WLAN1 Green Blink
On P-780 WLAN2 RF card Active 3 WLAN2 Green Blink
P-780 Ethernet Port is Transmitting and Receiving data
P-780 WLAN1 RF card is Transmitting and Receiving data
P-780 WLAN2 RF card is Transmitting and Receiving data
RF Connectors
The P-780 has 2 N-type RF connectors on the flank panel:
Figure 4 –RF Connectors
Descriptions of the connectors are given in the following table:
Item Connector Description
1 WLAN1 For WLAN1 RF card connecting to Antenna 2 WLAN2 For WLAN2 RF card connecting to Antenna
Gemtek Systems Page 14 of 60
P-780 User’s Guide v1.2 February 7, 2005
Hardware Installation
Installing the Access Point
Use the following procedure to prepare your network connection to P-780.
Use the enclosed POE and power cord or any others IEEE802.3af Compliant POE
Step 1 Assemble part 1 of the Mount Kit at the back of the bottom cover as shown in the following
Power Source Devices to supply your P-780 Access Point.
figure:
Figure 5 – Assembling the Mounting Kit to the P-780
Step 2 If you are mounting the AP on the wall, first install the bracket 2 of the mounting kit to a suitable position. Assemble the back of the P-780 case to the bracket ubsequently. Step 3 If you are mounting the AP to a mast, first install the bracket 2 and the clip 3 of the
Mounting to a mast. Assemble the back of the P-780 case to the bracket subsequently
Step 4 Assemble the one side of a Ethernet twist cable with the waterproof RJ45 connector .
Gemtek Systems Page 15 of 60
P-780 User’s Guide v1.2 February 7, 2005
Please read the description sheet in Waterproof RJ45 Connector package carefully
Step 5 Insert the the Ethernet twist cable to the LAN port connector on the back of the P-780
Step 6 Connect two RF connectors to the Antennas by Jump RF cable with waterproof N-type
before you do the assembly.
Bottom Cover and screw down the nut.
plug.
Connect to the Power Source and Local Network
Step 1 Connect the Ethernet cable from the P-780 route to a IEEE802.3-2003 compliant Power
source Equipment, Such as E-120 POE HUB,E-820 POE Switch from Gemtek Systems.
Step 2 If you use the E-120 POE HUB, please connect the P-780 LAN port to the
PWR-LAN OUT port of E-120 and connect the E-120 LAN-IN port to the Switch or hub in
the local network.
Figure 6 – Connecting P-780 to Power source and network by PoE HUB
Gemtek Systems Page 16 of 60
P-780 User’s Guide v1.2 February 7, 2005
Software Installation
Initialization
There are two choices for the first web browser connection to your P-780: either enter the P-780's IP address and subnet (default networks settings) into the browser or launch the KickStart utility that is provided with your product CD.
The default network settings for your new access controller are:
LAN port: IP 192.168.2.2 subnet 255.255.255.0
Software Introduction: KickStart
The Gemtek Systems KickStart is a software utility that is included on the Installation CD. The utility automatically detects access points or access controllers installed on your network,
regardless of its host IP address and lets you configure each unit’s IP settings. The feature list for the KickStart utility is listed below:
Scanning your subnet for all connected APs, ACs  Quick access to your AP via HTTPS, telnet, SSH
To install the KickStart utility insert the Installation CD into your CD-ROM drive. Find and install the utility from the product CD into the computer.
If the Installation CD does not start automatically, please run “autorun.exe” manually from the root directory of the installation CD.
Access Your P-780
There are two choices for the first Web browser connection to your P-780:
 Use the Web browser.  Launch the KickStart utility that is provided with your product CD.
If first method is preferred follow these instructions: Step 1 Configure your PC with a static IP address on the 192.168.2.0 subnet with mask
255.255.255.0. Connect the P-780 in to the same physical network as your PC. Open the Web browser and type the default IP address of the P-780:
https://192.168.2.2
Step 2 Enter the P-780 administrator login details to access the Web management.
The default administrator log on settings for all access point interfaces are: User Name: admin Password: admin01
Gemtek Systems Page 17 of 60
P-780 User’s Guide v1.2 February 7, 2005
Step 3 After successful administrator log on you will see the main page of the P-780’s Web
interface:
If second method is prefered follow the instuctions:
Step 1 Install the KickStart utility from the Installation CD. Click Start > Programs >
Gemtek Systems > KickStart to launch the application. If the P-780 device is
connected to your network, the utility will automatically find your P-780:
Gemtek Systems Page 18 of 60
Loading...
+ 37 hidden pages
