GE Monogram B420DR User Manual
ZISW/B420DR – GE Monogram 42" Built-In Side-by-Side Refrigerator
23-7/8"
Behind
Frame
90° Door Swing
4" Min.
to Wall
26-5/8
19"
130° Door Swing
13"
*84" From
Floor to
Top Frame
42"
Frame to Frame
41"
Case Width
*83-1/2"
at
Rear
25-3/8
26-7/8"
including
handle
*Finished Width
6"
5"
Electrical
Area
84-1/2" max
83-1/2" min
Finished
Opening
75" From Floor
to Bottom
of Electrical
Area
24"
5"
5"
3-1/2"
Water Supply
3-1/2"
36" Models 12"
42" Models 18"
48" Models 20"
with Dispenser and Water Filter
Dimensions and Clearances (in inches)
The Installation Space
Space is the first consideration when planning the installation.
The cutout depth must be 24"
The refrigerator will project forward, slightly beyond adjacent
cabinetry, depending on your installation.
The cutout depth beneath a soffit
When installed beneath a soffit, the soffit cannot exceed the
24" installation depth shown. The top case trim overlaps the
bottom of the soffit.
Electrical
A 115V, 60Hz., 15 or 20 amp power supply is required. An
individual properly grounded branch circuit or circuit breaker
is recommended. Install a properly grounded 3-prong electrical
receptacle recessed into the back wall. Electrical must be
located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
Water Line
All models are equipped with an automatic icemaker. The
water line can enter the opening through the floor or back
wall. Route 1/4" O.D. copper tubing or GE QuickConnect
kit between the cold water line and the water connection
location. The copper tubing should be long enough to extend
to the front of the refrigerator. The installation of an easily
accessible shut-off valve in the water line is required.
Specification Revised 3/08
110171
Listed by
Under writers
Labor atories
* Shipping height.
The refrigerator
can be adjusted to
fit into a cutout that
is 83-1/2" min. to
84-1/2" max. height
Note that the top
case trim at the
front is 1/2" higher
and will overlap
upper cabinetry or
soffit. Use leveling
legs and wheels for
a maximum 1" height
adjustment.

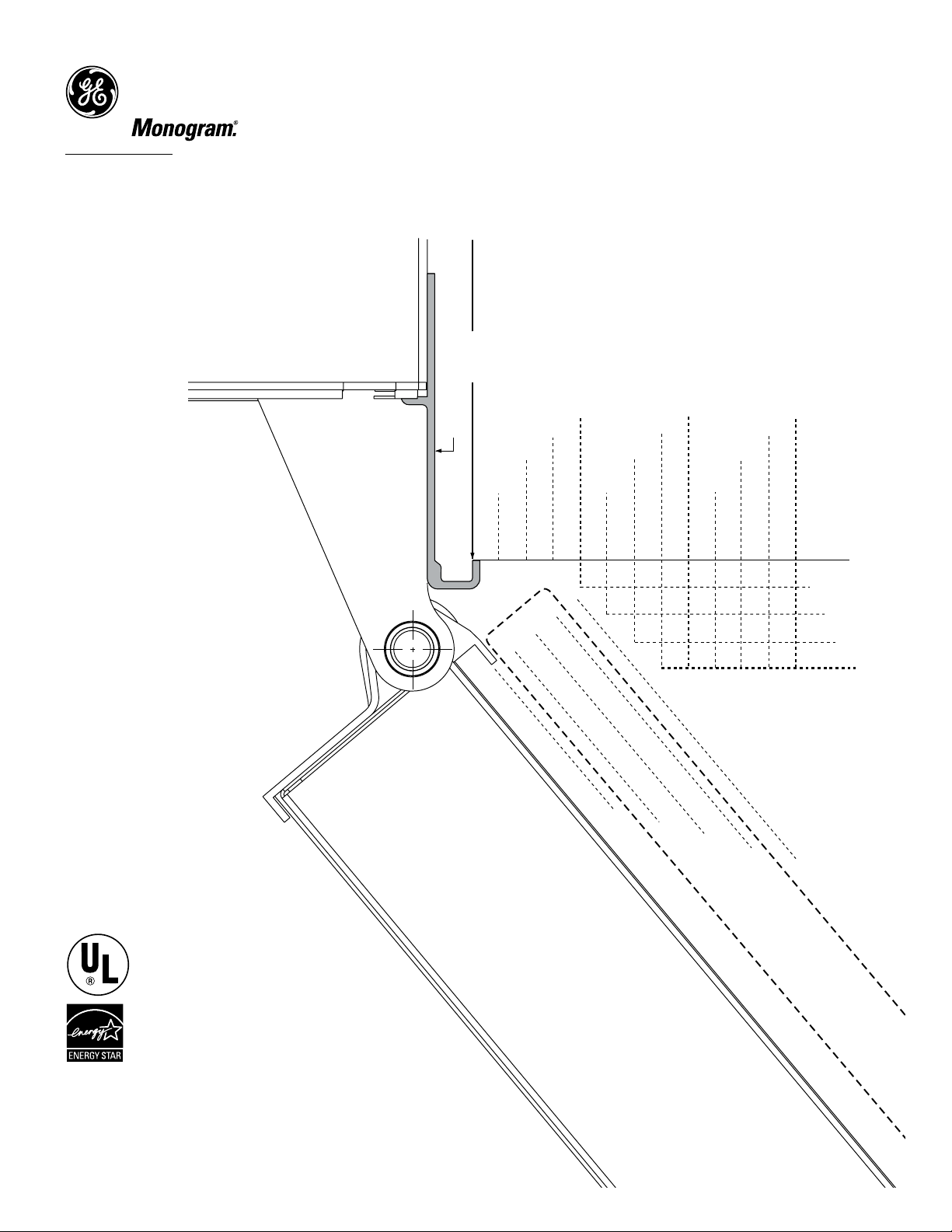

Door Swing Clearances
The installation must allow for clearances to adjacent walls or
cabinets. These refrigerators are equipped with a 2-position
door stop. The factory-set 130° door swing can be adjusted to
90° if clearance to adjacent cabinets or walls is restricted.
Allow minimum clearances for freezer door and fresh food
door for a full 130° door swing and to allow for pan removal.
• 4" minimum clearance is required when door swing is
adjusted to 90°. If the 90° door stop position is used, pan
access is maintained, but pan removal is restricted.
• See door swing illustrations to determine interaction with
adjacent cabinets or countertops.
Installation Information: Before installing, consult
installation instructions packed with product, or online at
Monogram.com, for current dimensional data.
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
ZISW/B420DR – GE Monogram 42" Built-In Side-by-Side Refrigerator
Framed Panel
3/4" Overlay Panel
.10" Thick Spacer Panel
1/4" Thick Backer Panel
*84"
2-9/16"
24"
*3" to 4"
3/16"
1-7/8"
with Dispenser and Water Filter
Customization Basics: Framed or Overlay Panels, Custom Handles and Accessory Kits
Trimmed Refrigerators
ZIS420NRSS, ZISW420DRSS, ZISB420DRSS
Trimmed refrigerators are designed to be customized with decorative
panels. Field-installed custom door and grille panels are required.
Framed Panels
You may install 1/4"-thick custom panels from your cabinet
manufacturer. The decorative panels slide into the factory-installed
trim. Or, order black, white and stainless steel accessory panels
from your Monogram dealer.
Standard supplied handles shown in 1/4" panel position.
Overlay Panels
You may also choose to install custom overlay panels from your
cabinet manufacturer. This design provides a seamless appearance
which integrates smoothly with surrounding cabinetry.
Door Handles
The supplied handles can be adjusted to accommodate both framed
or overlay panels. Custom handles of your choice, supplied by your
cabinet maker, can also be installed. If desired, you may order ZKHSS2
Monogram stainless steel tubular handle kit for overlay panels.
Side Panels
Side panels must be used whenever
the sides of the refrigerator will be
exposed. The 1/4" side panels will
slip into the side case trim. Secure
the panels to the refrigerator with
stick-on hook and loop fastener strips.
Order the side panels from the
cabinet manufacturer.
• Cut a notch in the top front corner
as shown to allow clearance for
corner keys in the front side trim.
*Depending on installation height.
Optional Accessory Kit
ZKHSS2: Tubular Stainless Steel handles designed to fit
3/4" overlay panels.
Accessory Panels
White or black acrylic and stainless steel accessory panels are
available from your Monogram supplier. Panels are cut to size and
ready to install. These panel kits must be ordered separately.
White Black Stainless
Models Acrylic Acrylic Steel
ZISW420D ZPW420D ZPS420D
ZISB420D ZPB420D ZPS420D
ZIS420N ZPW420N ZPB420N ZPS420N
Standard supplied handles shown in 3/4" overlay panel position.
Specification Revised 3/08
110171
As an ENERGY STAR®
Listed by
Under writers
Labor atories
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
guidelines
ZISW/B420DR – GE Monogram 42" Built-In Side-by-Side Refrigerator
Fresh
Food
Freezer
Panel
D
F
G
A
B
Grille Panel
C
Cutout
9-5/8"
Dispenser Cutout
15-3/8"
3/4"
Overlay
Panel
Door
.10"
Spacer
1/4"
Backer
Panel
Spacer Panel
Overlay Panel
Backer Panel
1/4" Backer Panel
3/4" Overlay Panel
Wide
Middle
Rail is
Required
Dispenser
Trim
16-3/4"
10-5/8"
with Dispenser and Water Filter
3/4" Overlay Panel Dimensions
For a more custom appearance, overlay
panels may be installed on trimmed
models. The overlay panel must be
secured to a 1/4"-thick backer panel
which slides into the trim. A spacer
panel 0.10" thick must be placed
between the overlay and backer panels.
.250" + .10" + .750" =
1.100" Total Panel Thickness
Center each panel over the other.
Assemble the panels with glue
and screws. Screws must be
countersunk into the backer panel.
NOTE: Left-to-right offset is
not always equal to
top-to-bottom offset.
Raised Overlay Panel Design
On Dispenser Models
When a raised panel design is to be used, a custom wide middle rail
is required to accept the dispenser trim.
• The middle rail must be wide enough to allow for the dispenser
trim to overlap the opening.
• The middle rail must be 1.100" total thickness to accept the
dispenser trim.
Side View
* Cut the dispenser opening after the backer, spacer and overlay
Important Note: Maximum total panel weight:
• Fresh food door panel – 75 lbs.
• Freezer door panel – 53 lbs.
• Grille panel – 18 lbs.
Specification Revised 3/08
110171
panels have been assembled.
42" Side-by-Side (in inches)
A B C D E
1/4" Backer Panel 39-7/8 9-1/2 68-3/8 14-9/16 24-9/16
.10" Spacer Panel 39 8-5/8 67 13-1/4 23-1/4
3/4" Spacer Panel 40-1/8 9-3/4 68-5/8 14-13/16 24-13/16
Dispenser Cutout Position (in inches)
F G
42" Models 17-15/16 3-1/4
Listed by
Under writers
Labor atories
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
