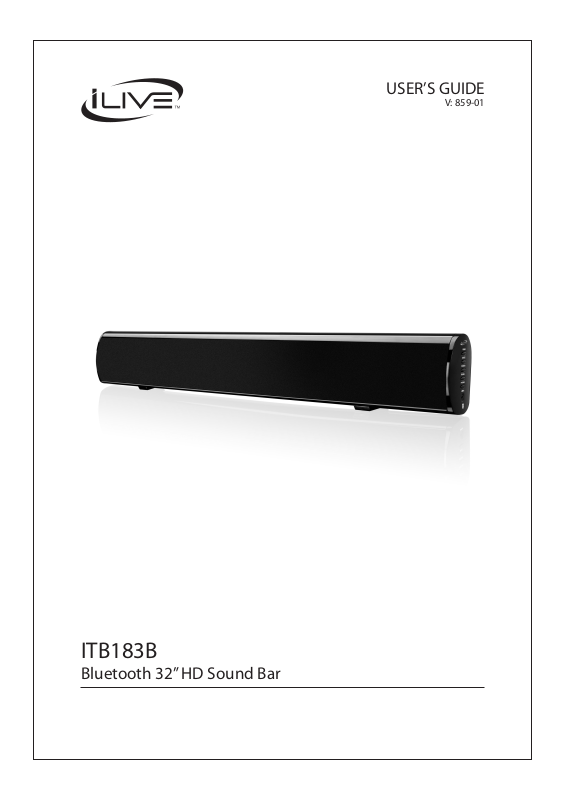

USER’S GUIDE
V: 859-01
ITB183B
Bluetooth 32” HD Sound Bar
Warnings and Precautions
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
WARNING: To reduce the risk of re or electric shock, do
not expose this apparatus to rain or moisture.
AVERTISSEMENT: Pour réduire le risque d’incendie ou de
choc électrique, ne pas exposer cet appareil sous la pluie et
l’humidité.
CAUTION: Use of any controls or adjustments or
performance of procedures other than those herein
specied may result in hazardous radiation exposure.
WARNING: Changes or modications to this unit not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
WARNING: Do not place this unit directly onto furniture
surfaces with any type of soft, porous, or sensitive nish.
As with any rubber compound made with oils, the feet
could cause marks or staining where the feet reside. We
recommend using a protective barrier such as a cloth or a
piece of glass between the unit and the surface to reduce
the risk of damage and/or staining.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
WARNING: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning ash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of
sufcient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
WARNING: Use of this unit near uorescent lighting may
cause interference regarding use of the remote. If the unit is
displaying erratic behavior move away from any uorescent
lighting, as it may be the cause.
CAUTION: Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type.
PRÉCAUTION: Danger d’explosion si les piles sont remplacées
de façon incorrect. Remplacer les piles seulement par le même
type de pile ou l’équivalent.
WARNING: The battery, batteries, and battery pack shall
not be exposed to excessive heat such as sunshine, re, or
the like.
WARNING: Lithium batteries, like all rechargeable batteries
are recyclable and should be recycled or disposed of in
normal household waste. Contact your local government
for disposal or recycling practices in your area. They should
never be incinerated since they might explode.
WARNING: Shock hazard - Do Not Open.
AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR
Mains Plug or Direct plug-in adapter is used as disconnect
device and it should remain readily operable during
intended use. In order to disconnect the apparatus from the
mains completely, the Mains Plug or Direct plug-in adapter
should be disconnected from the mains socket outlet
completely.
La che d’alimentation ou adaptateur de courant est utilisé
comme dispositif de déconnexion et doit rester accessible
pendant l’utilisation. Pour mettre l’appareil hors tension, la
che ou adaptateur de courant doit être débranché de la prise
de courant.
2
Important Safety Instructions
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding - type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety.
When the provided plug does not t into your outlet,
consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the
manufacturer.
12.
Use only with a cart, stand, tripod,
bracket, or table specied by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
WARNING: Do not place this unit directly onto furniture
surfaces with any type of soft, porous, or sensitive nish.
As with any rubber compound made with oils, the feet
could cause marks or staining where the feet reside. We
recommend using a protective barrier such as a cloth or a
piece of glass between the unit and the surface to reduce
the risk of damage and/or staining.
FCC Warnings
WARNING: Changes or modications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Additional Warnings
The apparatus shall not be exposed to dripping or
splashing and that no objects lled with liquids, such as
vases, shall be placed on apparatus.
L’appareil ne doit pas être exposé aux écoulements ou aux
éclaboussures et aucun objet ne contenant de liquide, tel
qu’un vase, ne doit être placé sur l’objet.
Battery shall not be exposed to excessive heat such as
sunshine, re or the like.
Les piles ne doivent pas être exposées à de forte chaleur,
tel qu’à la lumière du soleil, au feu ou autres choses de
semblable.
Caution marking is located at the rear
or bottom of the apparatus.
Attention marquage est situé sur le paneau
arrière ou inférieur de l’unité.
The marking information is located at
the rear or bottom of apparatus.
Le marquage est situé sur le paneau
arrière ou inférieur de l’unité.
This symbol indicates that this product
incorporates double insulation between
hazardous mains voltage and user
accessible parts.
Customer Support: 1-888-999-4215 3
ITB183B
Features
• 32” length
• Supports Bluetooth
• Supports Buetooth v2.1 EDR
• Supports Enhanced Data Rate
(EDR)
• Supports prole A2DP
(Advanced Audio Distribution
Prole)
• Optical digital audio input
• LED power indicator
• Digital volume control
• LED source indicators
• Built-in stereo speakers
• RCA stereo audio inputs
• 3.5mm audio input
• Remote
• Wireless range: 33 feet
• DC power input: requires
an AC/DC power adapter
(included)
Setup
Power Remote
AC power input: requires an AC/DC power adapter
(included)
Requires a CR2025 battery (pre-installed)
Includes
• Remote control: requires a
CR2025 battery (pre-installed)
• RCA stereo audio cable
• Wall-mount hardware and
instructions
• AC/DC power adapter
LED Indicators
Status Indicator
Power O Red Light
Optical Mode Amber Light
Aux In Mode White light
Line In Mode Green Light
Bluetooth Ready Flashing Blue Light
OPEN
PUSH
3V
CR 2025
LITHIUM BATTERY
CR2025
CR 2025
LITHIUM BATTERY
3V
Mounting
We recommend having this bar speaker
professionally mounted.
OPEN
PUSH
Bluetooth Connected Blue Light
4
4+Customer Support: 1-888-999-4215 5
Table of Contents
Warnings and Precautions ............................................................................ 2
Important Safety Instructions ......................................................................... 3
ITB183B. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Features
Setup ................................................................................................ 4
Power
LED Indicators
Remote
Mounting
Includes
Table of Contents ..................................................................................... 5
Introduction ......................................................................................... 6
Audio Inputs ......................................................................................... 8
Using the Stereo RCA Inputs
Using the Optical Input
Line In ............................................................................................... 9
Using the Line In
Bluetooth ...........................................................................................10
Pairing a Bluetooth Device for the First Time
Bluetooth ...........................................................................................11
Playing Audio Wirelessly
Company Information ...............................................................................12
International Support
Contact Information
Warranty
Green Initiative
Introduction
Stereo RCA Audio Inputs
Pairing
Press to begin
pairing with a
Bluetooth device.
Line Input
Optical Input DC Power Input
Power
Press to turn the
unit on or o.
Source
Press to switch
between Optical,
Line In, AUX, and
Bluetooth modes.
PAIRING
Volume
Press to adjust the
volume up or down.
6
6
Power
Press to turn the
unit on or o.
BT
Press to switch to
Bluetooth Mode.
Optical
Press to switch to
Optical mode.
Line
Press to switch to
Line In mode.
Music
Press to switch to the EQ
optimized for music.
Treble
Press to adjust the
treble up or down.
Bass
Press to adjust the
bass up or down
TALK
Mute
Press to mute the volume.
Aux
Press to switch to AUX mode.
Talk
Press to switch to the EQ
optimized for dialogue.
Movie
Press to switch to the EQ
optimized for movie sound.
Volume
Press to adjust the volume.
Customer Support: 1-888-999-4215 7
Audio Inputs
Using the Stereo RCA Inputs
When connecting two products using an RCA
Cable, match the colored ports with the same
colored connection.
Before use, disconnect any cables connected to the
Line In.
1. Connect the RCA Cable to the RCA Stereo Inputs
located on the back of the unit, and to the audio
outputs on the television.
2. Press the Power button to power on the unit.
3. Press the Source button repeatedly to enter Aux
Mode, indicated by a white light.
4. Audio played through the television will now be
heard through the speakers.
Using the Optical Input
You will need: An audio source with an Optical
Audio Output and a Digital Optical Audio Cable
(not included)
1. Connect the Digital Optical Audio Cable to the
optical output on the audio source and to the
Optical Input on the speaker bar.
2. Press the Power button to power the unit on.
3. Press the Source button repeatedly to switch to
SPDIF Mode, indicated by a amber light.
4. Using the native controls on your connected
device, make sure the audio settings are set to
PCM or Optical Audio and are turned On.
5. Audio from the connected audio source will now
be played through the speakers.
8
Line In
Using the Line In
1. Plug one end of a 3.5 mm audio input cable into
the Line In on the unit.
3.5 mm audio input cable not included.
Before use, disconnect any cables connected to the
Stereo RCA Inputs.
2. Plug the other end of the cable into the audio
output/headphone output on an MP3 Player or
other audio source.
3. Press the Power button to power the unit on.
4. Press the Source button repeatedly to enter Line
In Mode, indicated by a green light.
5. Audio played through the connected device will
now be heard through the speakers.
Customer Support: 1-888-999-4215 9
Bluetooth
Pairing a Bluetooth Device for the First Time
1. Power on the unit by pressing the Power button.
2. Press the Source button repeatedly to enter
Bluetooth mode, indicated by a blue light.
3. Press the Pairing button on the side of the unit.
The Pairing Indicator will ash blue quickly.
When pairing, remain within 3 feet of the unit.
4. Using the native controls on your Bluetooth
device, select the “ITB183” in your Bluetooth
settings to pair.
If your device requests a password, enter the default
password “ 0 0 0 0 ”.
Refer to the user’s manual for your specic device
for instructions on pairing and connecting
Bluetooth devices.
5. When successfully paired and connected, a
beep will issue from the unit and the Pairing
Indicator will display a solid blue light.
After initial pairing, the unit will stay paired unless
unpaired manually by the user or erased due to a
reset of the device.
If your device should become unpaired or you nd
it is unable to connect, repeat the above steps.
10
Bluetooth
Playing Audio Wirelessly
1. Follow the instructions for Pairing a Bluetooth
Device.
2. Use the native controls on the connected
Bluetooth Device to select a track.
3. To play, pause or skip the selected track, use
the native controls on the connected Bluetooth
Device.
4. Audio played through the connected Bluetooth
device will now be heard through the speakers.
Customer Support: 1-888-999-4215 11
Company Information
Green InitiativeInternational Support
To download this User’s Guide in English, Spanish,
and French, or to get answers to frequently asked
questions, visit the support section at:
www.iLiveElectronics.com
Para descargar este Manual del Usuario en inglés,
español y francés, o para obtener respuestas a
preguntas frecuentes, visite la sección de apoyo en:
www.iLiveElectronics.com
Pour télécharger ce guide de l’utilisateur en anglais,
espagnol ou français, ou pour obtenir des réponses
à des questions fréquemment posées, consultez la
rubrique d’assistance sur:
www.iLiveElectronics.com
Contact Information
Email Support: prodinfo@dpiinc.com
Email Parts: partsinfo@dpiinc.com
Phone Support: 1-888-999-4215
Website: www.iLiveElectronics.com
Environmental Commitment to ‘Protect for Today
and Sustain for Tomorrow’
On a continual basis DPI, Inc. is making eorts
to sustain the environment and improve the
recyclability of its products and packaging.
Focusing on “protecting for today and sustaining
for tomorrow” DPI, Inc. has committed to reducing
packaging size, increasing the usage of recyclable
plastics, and ensuring that packaging and manuals
are made with up to 85% recycled material. In
addition to material consideration, DPI, Inc. has also
focused on the ner details that positively impact
the environment such as employing the usage of
soy-based inks.
DPI, Inc. also ensures that the factories that produce
the company’s wide variety of consumer electronics
adhere to environmentally friendly air and water
restrictions. This is yet another example that every
step of the way DPI, Inc. is making eorts to lessen
any impact on the environment.
In 2011 DPI, Inc. also began conversations with
Energy Star in order to ensure that the consumer
electronics being produced meet high standards
of energy eciency. The ultimate goal is keeping
energy costs for consumers low while providing
quality, feature-rich products.
Copyright © 2012 Digital Products International (DPI, Inc.) | All other trademarks appearing herein are the property of their respective owners.
Specications are subject to change without notice
Loading...
