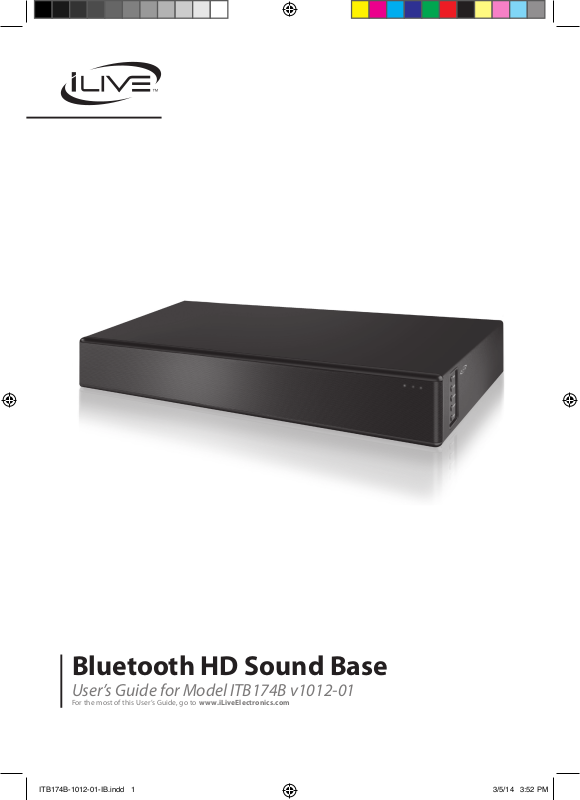

Bluetooth HD Sound Base

User’s Guide for Model ITB174B v1012-01

For the most of this User’s Guide, go to www.iLiveElectronics.com

ITB174B-1012-01-IB.indd 1 3/5/14 3:52 PM

Important Safety Instructions

• Read these Instructions.

• Keep these Instructions.

• Heed all Warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with a dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. e wide blade or the third prong are provided for your safety. When the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

• Only use attachments/accessories specied by the manufacturer.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION

RISQUE D' ÉLECTROCUTION

NE PAS OUVRIR

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering and disassembly are prohibited.

Warning: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing

to qualied service personnel.

Warning: DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The lightning ash with arrowhead symbol,

within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s en-

closure that may be of sufcient magnitude to

constitute a risk of electric shock to persons.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

2

ITB174B-1012-01-IB.indd 2 3/5/14 3:52 PM

Warnings and Precautions

FCC Warnings

Warning: Changes or modications to this unit not expressly

approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Additional Warnings and Precautions

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain, moisture, dripping, or splashing.

Avis: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité.

• CaUTiOn: Use of controls or adjustments or performance of procedures other than those specied may result in hazardous radiation exposure.

• WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

• WARNING: Do not place this unit directly onto furniture surfaces with any type of so, porous, or sensitive nish. As with any rubber compound made with oils, the feet could cause marks or staining where the feet reside. We recommend using a protective barrier such as a cloth or a piece of glass between the unit and the surface to reduce the risk of damage and/or staining.

• WARNING: Use of this unit near uorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any uorescent lighting, as it may be the cause.

• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

AVIS: Danger d’explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l’équivalent.

• WARNING: ere is a danger of explosion if you attempt to charge standard Alkaline batteries in the unit. Only use rechargeable NiMH batteries.

• WARNING: e remote control’s button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste

• WARNING: Lithium batteries, like all rechargeable batteries, are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. ey should never

be incinerated since they might explode.

• WARNING: Shock hazard - Do Not Open.

AVIS: Risque de choc électrique - ne pas ouvrir

• Caution and marking information is located at the rear or bottom of the apparatus.

Attention et de marquage des informations est situé sur le paneau arrière ou inférieur de l’unité.

• Objects lled with liquids, such as vases, shall not be placed on the apparatus.

Objets remplis de liquides, comme des vases, ne doivent pas être placés sur l’appareil.

• Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected form the mains socket outlet completely.

La prise du secteur est utilisé pour déconnecter le système. La prise du secteur ne doit pas être obstruée ou doit être facilement accessible pendant son utilisation. Pour être complètement déconnecté de l’alimentation d’entrée, la prise doit être débranchée du secteur.

• Battery shall not be exposed to excessive heat such as sunshine, re or the like.

Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à la lumière du soleil, au feu ou autres choses de semblable.

• Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.

Gardez les piles neuves et d’occasion à partir des enfants. Si le compartiment de la batterie ne

• pas fermer correctement, cesser d’utiliser le produit et garder loin des enfants.

• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Si vous pensez que les batteries peuvent avoir été avalé ou placé à l’intérieur d’une partie du corps, consulter immédiatement un médecin.

• Do not mix old and new batteries.

Ne pas mélanger vieilles et nouvelles batteries.

• Completely replace all old batteries with new ones.

Remplacer complètement toutes les piles par des neuves.

• Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

Ne mélangez pas des piles alcalines, standard (carbone-zinc) ou rechargeables (Ni-Cd, Ni-MH, etc) batteries.

• Batteries should be recycled or disposed of as per state and local guidelines.

Piles doivent être recyclées ou éliminées selon les directives étatiques et locales.

Customer Support: 1-888-999-4215 3

ITB174B-1012-01-IB.indd 3 3/5/14 3:52 PM

Table of Contents

Unboxing Your HD Soundbar/TV Stand � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �5

Includes Supporting TVs Features and Specications

Setup � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �5

Power Remote Battery Indicator Lights

Orientation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �6

Speaker Rear Inputs Speaker Controls (Left Side) Remote Layout

Audio Inputs � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �8

Using the Stereo RCA Inputs... and the Subwoofer Output Using the Optical Input Using the Line In

Bluetooth � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10

Pairing a Bluetooth Device for the First Time Playing Audio Wirelessly

Learn Feature � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11

What Is the Learn Feature? Why Use the Learn Feature? Using the Learn Feature

Company Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12

Contact Information International Support Green Initiative Warranty

4

ITB174B-1012-01-IB.indd 4 3/5/14 3:52 PM

Unboxing Your HD Soundbar/TV Stand

Includes

• Remote control:

requires a CR2025 battery (pre-installed)

• RCA stereo audio cable

• AC/DC power adaptor

Features and Specications

• Supports Bluetooth v2.1

• Digital volume control

• Remote

• Optical digital audio input

• Subwoofer output

• 3.5mm audio input

• RCA stereo audio inputs

• LED source indicators

Setup

Supporting TVs

The Soundbar/TV Stand is designed to support 20-55" flat panel TVs of all types up to 75 lbs.

• LED power indicator

• Pairing button

• Wireless range: 33 feet

• Built-in stereo speakers

• Metal speaker grill

• Supports up to a 75lbs HDTV

• AC power input:

requires an AC/DC power adapter (included)

Y

TER

CR 2025

3V

LITHIUM BAT

Slide

Out

Power

Plug the small end of the power cord into the DC Input on the back of the speaker, and the large plug into a standard wall outlet.

Remote Battery

Requires a CR2025 battery (pre-installed)

Indicator Lights

STATUS INDICATOR

Power Off Red Light

Line In Mode Green Light

Optical Mode Amber Light

Aux In Mode White Light

Bluetooth Pairing Flashing Blue Light

Bluetooth Connected Blue Light

Customer Support: 1-888-999-4215 5

ITB174B-1012-01-IB.indd 5 3/5/14 3:52 PM

Orientation

Speaker Rear Inputs

Subwoofer Output

Line In

Optical Input

Speaker Controls (Left Side)

Power

Press to turn the unit on or off.

Source

Press to switch between

Optical, Line In, AUX, and

Bluetooth modes.

Volume

Press to adjust the

volume up or down.

Pairing/Learn

Press to begin pairing with a

Bluetooth device.

Stereo RCA Audio

Inputs (AUX IN)

DC Power

Input

6

ITB174B-1012-01-IB.indd 6 3/5/14 3:52 PM

Remote Layout

Power

Press to turn

the unit on or off.

Press to switch

to Bluetooth Mode.

Line

Press to switch

to Line In mode.

Optical

Press to switch

to Optical mode.

AUX

Press to switch

to Aux In mode.

Treble

Press to adjust the

treble up or down.

Bass

Press to adjust the

bass up or down

Volume

Press to adjust

the volume.

Mute Press to mute the volume.

BT

Music

Press to switch to the EQ optimized for music.

Movie

Press to switch to the EQ optimized for movie sound.

Voice

Press to switch to the EQ optimized for dialogue.

Customer Support: 1-888-999-4215 7

ITB174B-1012-01-IB.indd 7 3/5/14 3:52 PM

Audio Inputs

Using the Stereo RCA Inputs...

When connecting two products using an RCA Cable, match the colored ports with the same colored connection.

Before use, disconnect any cables connected to the Line In.

1. Connect the RCA Cable to the RCA Stereo Inputs located on the back of the unit, and to the audio outputs on the television.

2. Press the Power button to power on the unit.

3. Press the Source button repeatedly to enter AUX Mode, indicated by a white light.

4. Audio played through the television will now be heard through the speakers.

and the Subwoofer Output

1. Use an RCA cable to connect an external subwoofer to the Subwoofer Output.

2. When audio is played through any source, the speaker will automatically use the connected subwoofer.

Using the Optical Input

You will need: An audio source with an Optical Audio Output and a Digital Optical Audio Cable (not included)

1. Connect the Digital Optical Audio Cable to the optical output on the audio source and to the Optical Input on the speaker bar.

2. Press the Power button to power the unit on.

3. Press the Source button repeatedly to switch to SPDIF Mode, indicated by a amber light.

4. Using the native controls on your connected device, make sure the audio settings are set to PCM or Optical Audio and are turned On.

5. Audio from the connected audio source will now be played through the speakers.

Important tips for optical audio: Use the correct toslink cable and make sure that it is firmly seated in both source and sound bar sockets.

Optical output is activated on the source (they should see a red light emitting from the toslink socket). It may be labeled SPDIF in the setting menu of the source.

The optical output is set to output PCM and not Dolby Digital.

Using the Line In

3.5 mm audio input cable not included.

Before use, disconnect any cables connected to the Stereo RCA Inputs.

1. Plug one end of a 3.5 mm audio input cable into the Line In on the unit. and plug the other end of the cable into the audio output/headphone output on an MP3 Player or other audio source.

2. Press the Power button to power the unit on.

3. Press the Source button repeatedly to enter Line In Mode, indicated by a green light.

4. Audio played through the connected device will now be heard through the speakers.

8

ITB174B-1012-01-IB.indd 8 3/5/14 3:52 PM

Using the Stereo RCA Inputs - Rear View

Using the Optical Input - Rear View

Using the Line In - Side View

Customer Support: 1-888-999-4215 9

ITB174B-1012-01-IB.indd 9 3/5/14 3:52 PM

Bluetooth

Pairing a Bluetooth Device for the First Time

1. Power on the unit by pressing the Power button.

2. Press the BT button on the remote to switch to Bluetooth Mode., indicated by a blue light.

3. Press the Pairing button on the side of the unit.

The pairing indicator will flash blue quickly. When pairing, remain within 3 feet of the unit.

4. Using the native controls on your Bluetooth device, select the ITB174 in your Bluetooth settings to pair. If your device requests a password, enter the default password 0 0 0 0 .

Refer to the user’s manual for your specific device for instructions on pairing and connecting Bluetooth devices.

5. When successfully paired and connected, a beep will issue from the unit and the Pairing Indicator will display a solid blue light.

After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device. If your device should become unpaired or you find it is unable to connect, repeat the above steps.

Playing Audio Wirelessly

1. After pairing to a bluetooth device, use the native controls on the connected Bluetooth Device to select a track.

2. Play, pause or skip a selected track using the native controls on the connected Bluetooth Device.

3. Audio played through the connected Bluetooth device will now be heard through the speakers.

10

ITB174B-1012-01-IB.indd 10 3/5/14 3:52 PM

Learn Feature

What Is the Learn Feature?

The Learn feature captures remote commands from your television remote, and teaches your bar speaker to operate when these commands are pressed. Power, volume and mute are a few examples of commands that the bar speaker can learn.

Why Use the Learn Feature?

Teaching the bar speaker remote commands will reduce the number of remotes needed, save time searching for remote codes, and improve the ease of operation.

Note: Not all functions of the sound bar will be available through your own remote control, such as bass and treble. Use the included remote for these functions. While ITB174B is able to learn most IR protocols, not all can be programmed.

Using the Learn Feature

1. With the power Off, press the Learn button on the unit. An indicator will flicker red.

2. Press the button you desire to be learned on the included remote. For example: Volume +

3. The red light will continue to flicker, and another indicator will display a blue light.

4. Press the corresponding button on your remote.

5. The red light will continue to flicker, and another indicator will display a green light.

6. Press the Learn button on the unit.

7. The programmed button on your remote will now be able to control your sound bar.

Note: It is necessary to program each button i.e. channel and volume + and - separately.

8. To start over, press and hold the learn key for over 3 seconds. If the sound bar has failed to learn a command, all the LED indicators will display a light for two seconds to signal the learning function has been reset.

Customer Support: 1-888-999-4215 11

ITB174B-1012-01-IB.indd 11 3/5/14 3:52 PM

Gemlink 1736ABT User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
