Teknisk katalog
Gemini
Utdrag
1SEC800010C2101
Low voltage electric
insulating switchboards
Gemini, something
completely different in
switchboards
ABB SACE’s Gemini range is
revolutionizing the market of low
voltage electric insulating
1
switchboards.
The reason for this is that it is
the first switchboard made in
thermoplastic material, to which
the co-injection molding technique gives the same mechanical characteristics as polyester .
This means that it is extremely
sturdy , with its rigid covering and
expanded internal core. Moreover, it contains no fiberglass, a
material that with time rises to
the surface, jeopardizing the
functioning and safety of switchboards made in polyester with
which it is usually mixed.
Gemini switchboards have IP66
degree of protection (IP40 with
the door open and with the appropriate components installed)
and a very high resistance to
chemical and atmospheric
agents. This is the reason why
Gemini guarantees excellent
performances even in particularly severe operating conditions.
Introduction
Characteristics of Gemini switchboards
Gemini switchboards are made with co-injection,
which ABB SACE is the first manufacturer in the
electric field to use as a molding technique. This
process obtains a “sandwich” of two materials with a
compact external covering and an expanded core,
guaranteeing the highest level of mechanical
protection against impacts (IK10) without the need to
add hardening substances.
Polyester is usually mixed with fiberglass, which, with
1SLC805003F0001
wear, rises to the surface and can become a risk factor
for skin burns that may occur during installation and
maintenance and accidental contact.
Moreover, it causes deterioration of the technical
strength and lasting characteristics of the material to
which it is added: Gemini, on the other hand, keeps its
mechanical characteristics in the long term.
The co-injection technique makes the manufacturing
operations themselves safe because the products are
completely finished when they come out of the mold
without any flash or other surface irregularities.
Strong outside and
versatile inside,
Gemini is fit for all
applications
There are as many configurations as there are ABB devices
for low voltage automation and
distribution: moulded-case circuit breakers, modular circuit
breakers, monitoring, control
and signaling devices, wiring
ducts and electrical connection
systems.
All of these components give
the “Gemini system” an enormous range of ad hoc solutions
that are easy to assemble with
the snap-on system.
2 ABB SACE
1SLC805002F0001
Nothing can be compared with
Gemini, even when the switchboards have reached the end of
their life cycle: they are totally
ecologically compatible. The
material used to manufacture
them is 100% recyclable. Polyester, on the other hand, cannot be recovered.
Moreover, to make sure that
correct disposal procedures are
followed, instructions are provided about how to identify
materials and what to do with
the product once it has served
its useful purpose.
Quality and safety
ABB’s Gemini is designed and
built in compliance with reference Standards that define its
constructional and functional
characteristics.
In particular, the IP66 degree
certifies that Gemini is totally
protected against the infiltration
of solid bodies and is resistant
to the penetration of jets of water similar to sea waves.
Absolute protection is provided
by double insulation even in the
event of indirect contact. Rated
uninterrupted current can reach
a threshold of 400 A.
Even in very difficult application
circumstances, Gemini gives
high-level performances, with
resistance to fire and abnormal
heat up to a temperature of
750 °C and a functioning temperature from -25 °C to 100 °C.
Moreover, the material with
which it is manufactured retains
its characteristics for a long time
since it is not subject to corrosion by chemical or atmospheric
agents. Also it does not turn
yellow when exposed to UV
rays.
Introduction
Characteristics of Gemini switchboards
Gemini is made in a thermoplastic material that has
a very low halogen content and is 100% recyclable.
The environmental compatibility of Gemini is an
important objective right from the design phase where
the Life Cycle Assessment (LCA) procedure, defined in
1990 during the Society of Environmental Toxicology
and Chemistry Conference (Vermont, USA), is
followed. Life Cycle Assessment is an objective method
for analyzing the energy and environmental loads
relating to a product, process or activity, carried out
by identifying and quantifying energy, the materials
used and emissions released into the environment.
Divided into four phases, the assessment covers the
entire life cycle of the product, process or activity,
from the extraction and transformation of raw
materials to manufacturing and distribution, and
from usage to recycling and decommissioning.
3 ABB SACE
A switchboard that is not
just one system, but three
Gemini is the result of design
work conducted by ABB with
the direct collaboration of
switchboard manufacturers, installers and designers who considered versatility to be the discriminating element when purchasing a switchboard, equally
as important as sturdiness and
reliability.
Gemini fulfils this requirement by
providing a product that can be
used for three different purposes: in addition to the basic
configuration it also provides the
components necessary for
equipping it as an automation
switchboard or as a distribution
and mixed switchboard.
In all applications, compatibility
with ABB protection, control
and monitoring products means
that a real system of integrated
and complementary functions
can be configured.
Typical examples of some
Gemini applications can be
seen in installations in industrial
production departments and on
board machines, in galvanization plants and varnishing cabins, in petrol stations and carwashing plants, boiler-rooms,
car parks, shopping malls and
in any other environments
where distribution and automation demand specific safety requirements and service continuity .
Gemini also has flexible measurements, with six different box
sizes and internal space to accommodate from 24 to 216 DIN
modules.
To respect safety standards, all
the switchboard’s components
can be fixed to the base plate
or to the box frame without ha-
Introduction
Characteristics of Gemini switchboards
Written in full, its name “Protect IT Multipurpose Box
Gemini” says that no switchboard is more reliable.
Integration of Gemini with other ABB low voltage
protection, monitoring and control products fulfils the
objective of offering the market a complete range of
products and systems.
IT
In particular, Industrial
developed for integrating company activities at all
levels, in which each product is seen as one element of
a single solution. Products and technologies are
grouped into functional suites, each of which
1SLC805007F0001
measures, monitors, optimizes and supports a specific
“block” of activities, interacting in a coordinated manner thanks to the platform
created by ABB (AIP: Aspect Integrator Platform).
Not only are all the certified products interactive, but they also ensure that all the
information needed to operate them is readily available in the latest edition:
technical characteristics, installation, user and maintenance instructions,
environmental certificates and declarations.
More information is given in the section entitled Products and services/IndustrialIT
on the ABB website www.abb.com
ving to use any tools; wiring is
carried out from the front followed by snapping the base
plate or the frame onto the box.
The patented frame is fitted with
the cable duct incorporated in
the uprights.
In its design, Gemini repeats the
shapes and RAL 7035 grey
color of the ArTu switchboards
with which it can be configured
as a main protection switchboard.
aided design programs simulate
all types of application condi-
tions translating virtual checks
into a process to improve the
performances of Gemini so that
it will be able to respond more
accurately to market require-
ments.
Experience and innovation
Gemini has two central aspects.
It is both the result of years of
work in the production of installation material and the expression of the most advanced
technology, from design to distribution.
In the laboratory, computer-
is the solution ABB has
1SLC805006F0001
ABB SACE4
Characteristics
2
grunnenhet
automasjon
distribusjon
tilbehør
PROTECTION
STRENGTH
PERFORMANCE
FLEXIBILITY OF
USE
1
INSTALLATIONFRIENDL Y
QUALITY AND
ENVIRONMENT
IP66 (IEC EN 60529)
Class II insulation
Thermoplastic material moulded in co-injection
Resistance to abnormal heat and fire up to a temperature of 750 °C (IEC EN 60695-2-1)
IK10 (IEC EN 50102) degree of resistance to impacts
Protection against chemical and atmospheric agents (water , saline solutions, acids,
basic agents, mineral oils, UV rays)
Operating temperature -25 °C÷ +100 °C
Rated uninterrupted current up to 400 A
Rated service voltage up to 690 V
6 sizes from 335x400x210 mm to 840x1005x360 mm (WxHxD, external dimensions)
DIN 24 to 216 modules
Snap-on mounting of all components in compliance with safety Standards
Compliance with international reference Standards EN 50298, EN 60670, EN 60439-1
IMQ mark according to Standard EN 50298
100% recyclable
2
Order codes
Basic configurations
In the basic configuration,
Gemini switchboards are composed of boxes in six different
sizes ranging from 335x400x210
mm to 840x1005x360 mm
(WxHxD, external measurements) and with opaque or
transparent doors.
In both versions, the doors are
reversible and clip onto the
hinges without the need to use
tools; the fact that they open at
an angle of more than 180°
means that it is easy to work on
the components installed inside
the switchboard. The seal applied by extrusion along the
sides of the doors guarantees
IP66 degree of protection. Access to the inside of the switchboard is protected by a standard double bit lock that can be
replaced by locks of another
type available in the accessories.
Boxes and doors can be requested either separately or as
combined “box + door” codes,
to make filling out the order form
more flexible.
Inside the packages, the door
is always wrapped separately
and inserted inside a pocket
that protects it from accidental
damage until wiring is completed and the switchboard is
installed.
Hole-cover plugs to guarantee
IP protection and double insulation for wall mounting are also
supplied with the pack together
with the instruction sheet.
No tools are needed for installation. The doors hook onto the hinges with special
hinge pins and are reversible.
Gemini doors open at an angle of
more than 180° giving easy access to
the devices installed inside the
switchboard.
1SLC805013F0001
FOTO NUOVA
1SLC805015F0001
The special structure of the inner perimeter of the box ensures further protection
against the penetration of water. The box is supplied with a spirit level.
1SLC805012F0001
1SLC805008F0001
6ABB
Order codes / el.nummer
Basic configurations
Size Dimensions Modules Codes / el.nummer

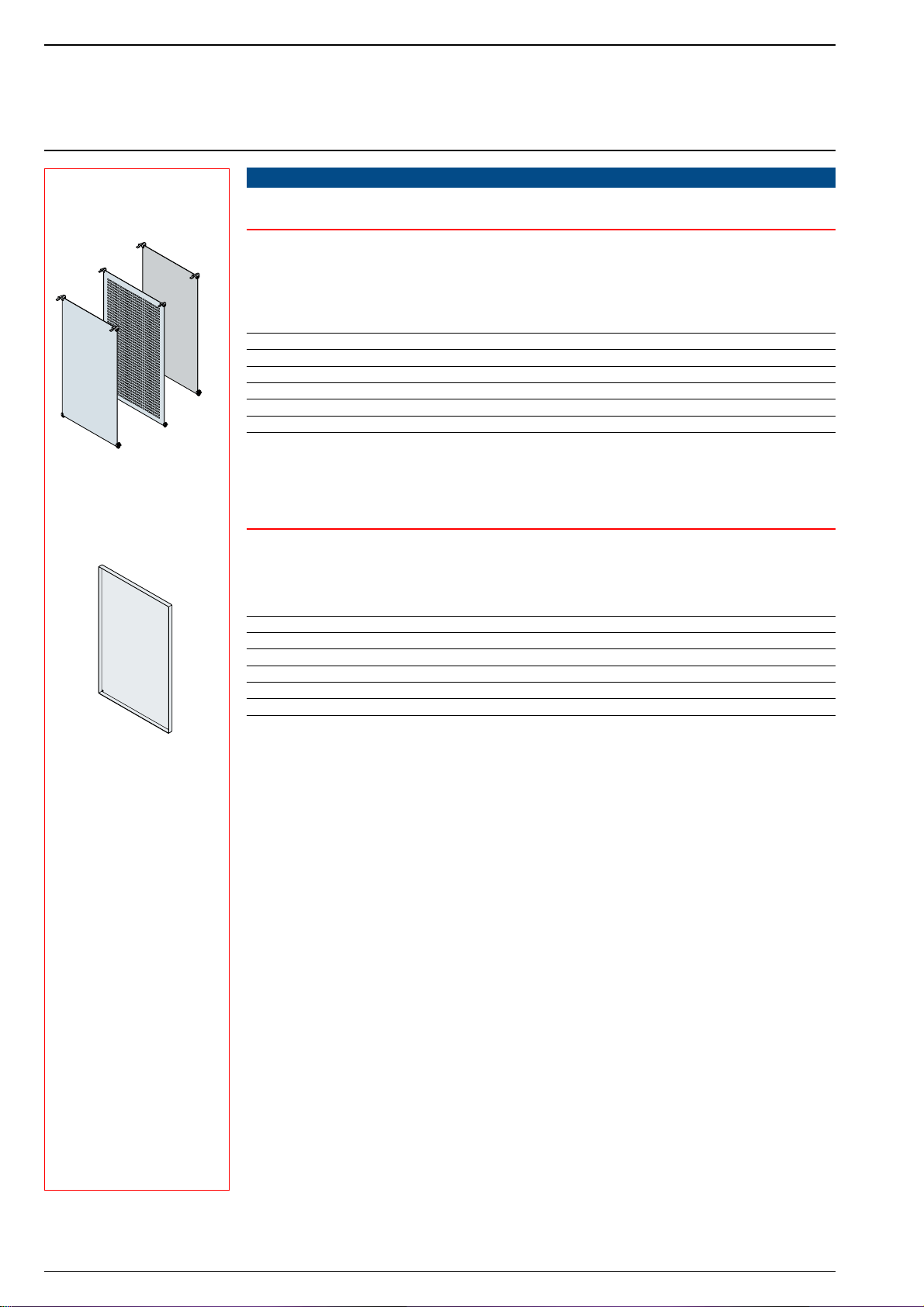

Boxes and doors
• Available in 6 sizes
• Single order code combined with box and transparent and opaque door
• Pack with door dismounted and wrapped separately
• Door designed so that it can be hooked onto hinges at both vertical sides and mounted without the use of tools
• To be mounted to the wall using internal holes or fixing brackets supplied as accessories
• Door opening at an angle of more than 180°
• RAL 7035 grey color
• Doors supplied with 2 standard double bit locks (3 for sizes 5 and 6) that can be replaced with locks for ciphered key or
with square/triangular impression (the standard triplex key is suitable for use with three types of impressions).
External Internal Max no. No. vertical mod. With transparent With opaque
1SLC805031F0001
WxHxD (mm) WxHxD (mm) DIN mod. (H=150 mm) door door
1 335x400x210 250x300x180 24 (12x2) 2 1SL0211A00 / 2444310 1SL0201A00 / 2444304
2 460x550x260 375x450x230 54 (18x3) 3 1SL0212A00 / 2444311 1SL0202A00 / 2444305
3 460x700x260 375x600x230 72 (18x4) 4 1SL0213A00 / 2444312 1SL0203A00 / 2444306
4 590x700x260 500x600x230 96 (24x4) 4 1SL0214A00 / 2444313 1SL0204A00 / 2444307
5 590x855x360 500x750x330 120 (24x5) 5 1SL0215A00 / 2444314 1SL0205A00 / 2444308
6 840x1005x360 750x900x330 216 (36x6) 6 1SL0216A00 / 2444315 1SL0206A00 / 2444309
7 ABB
Order codes / el.nummer
Basic configurations
Size Internal dimensions External dimensions Codes Unit/Pack
Conf./Imb.
Single box
WxHxD (mm) WxHxD (mm)
1 335x400x210 250x300x180 1SL0221A00 1/1
2 460x550x260 375x450x230 1SL0222A00 1/1
3 460x700x260 375x600x230 1SL0223A00 1/1
4 590x700x260 500x600x230 1SL0224A00 1/1
5 590x855x360 500x750x330 1SL0225A00 1/1
6 840x1005x360 750x900x330 1SL0226A00 1/1
Size Box dimensions Codes / el.nummer
Single doors
WxHxD (mm) door door
1 335x400x210 1SL0241A00 / 2444322 1SL0231A00 / 2444316
2 460x550x260 1SL0242A00 / 2444323 1SL0232A00 / 2444317
3 460x700x260 1SL0243A00 / 2444324 1SL0233A00 / 2444318
4 590x700x260 1SL0244A00 / 2444325 1SL0234A00 / 2444319
5 590x855x360 1SL0245A00 / 2444326 1SL0235A00 / 2444320
6 840x1005x360 1SL0246A00 / 2444327 1SL0236A00 / 2444321
1SLC805033F0001
Transparent Opaque
8ABB
grunnenhet
automasjon
distribusjon
tilbehør
2
Order codes
Components for automation applications
Gemini switchboards are designed to be perfectly compatible with ABB components for
low voltage control and monitoring.
For these applications they can
be equipped with modular devices belonging to the System
pro M range, with Tmax
moulded-case circuit-breakers
and control and signaling devices, creating a truly integrated
automation system.
When deciding the Gemini layout for control and monitoring
applications, not only is it possible to select the box and door
in the required size, but you can
also select the base plate in one
of the three versions in the
range.
After wiring with the ducts and
the Fix-O-Rapid device, the
special standard adjustable feet
and hooks must be fitted onto
the base plate, allowing it to be
inserted inside the box at up to
seven different depths and
three further levels of adjustment: no tools need to be used
to carry out these operations.
To finish the job, the inner door
can be mounted (reversible and
in insulating material), guaranteeing IP40 degree of protection
when the switchboard door is
open.
No tools are needed unless the
inner door is equipped with buttons, warning lights, etc.
The fixing hooks and feet supplied in
the standard versions are applied
without having to use tools, making it
possible to install the base plate at
seven different depths inside the
switchboard. They can also be
adjusted at three further positions.
1SLC805015F0001
1SLC805017F0001
Application of the inner door
guarantees IP40 degree of protection
when the switchboard door is open.
1SLC805016F0001
The base plate can be snap-mounted
inside the switchboard.
1SLC805018F0001
1SLC805021F0001
1SLC805009F0001
Example of the configuration of a
switchboard for an automation
application: some ABB control and
protection devices are installed on the
plate. The inner door is fitted with
light-signaling devices.
1SLC805020F0001
10ABB
Order codes / el.nummer
Components for automation applications
Size of the switchboard Code / el.nummer Unit/Pack
Base plates
• Available in three versions in blank or drilled metal and insulating material
• Positioning at 3 different depths for size 1, 4 different depths for sizes 2-3-4 and 7 different depths for sizes 5-6
(adjustments with 30 mm pitch)
• Supplied with feet and hooks adjustable at three further positions (with 7.5 mm pitch)
• Snap-on mounting
In blank metal In drilled metal Insulating material
1 1SL0259A00 / 2444333 1SL0275A00 / 2444345 1SL0267A000 / 2444339 1/6
2 1SL0260A00 / 2444334 1SL0276A00 / 2444346 1SL0268A000 / 2444340 1/6
3 1SL0261A00 / 2444335 1SL0277A00 / 2444347 1SL0269A000 / 2444341 1/4
4 1SL0262A00 / 2444336 1SL0278A00 / 2444348 1SL0270A000 / 2444342 1/4
5 1SL0263A00 / 2444337 1SL0279A00 / 2444349 1SL0271A000 / 2444343 1/4
6 1SL0264A00 / 2444338 1SL0280A00 / 2444350 1SL0272A000 / 2444344 1/2
Inner doors
• Available for size 2 to size 6 boxes
• Made in insulating material
• IP40 degree of protection with door open
• Designed so that door can be hinged onto both vertical sides
• Snap-on mounting and fixing
1SLC805034F0001
1- 2 1SL0252A00 / 2444328 1/4
3 1SL0253A00 / 2444329 1/2
4 1SL0254A00 / 2444330 1/2
5 1SL0255A00 / 2444331 1/2
6 1SL0256A00 / 2444332 1/1
11 ABB
2
Order codes
Components for automation applications
Code Dimensions Weight (kg/m) Unit/Pack-meters
Wiring ducts
• Made in self-extinguishing thermoplastic material (UL 94 V0), resistant to abnormal heat and fire up to 960 °C (IEC 695-2-1)
• RAL 7035 grey color
• Available in version with 8/12 mm and 4/6 mm slots
12
8
6
4
ø7
• Base strip designed to snap onto Fix-O-Rapid
• Available in standard lengths of 2 m
With 8/12 mm With 4/6 mm
slots slots WxH (mm)
05 019 05 119 15x17 0.06 46
05 033 05 133 25x30 0.21 58
05 043 05 143 25x40 0.25 48
05 063 05 163 25x60 0.24 34
05 083 05 183 25x80 0.29 28
05 094 05 194 25x100 0.46 20
05 035 05 135 40x30 0.27 40
05 045 05 145 40x40 0.31 30
05 065 05 165 40x60 0.34 22
05 085 05 185 40x80 0.38 36
05 095 05 195 40x100 0.53 28
05 037 05 137 60x30 0.38 52
05 047 05 147 60x40 0.46 40
05 067 05 167 60x60 0.47 32
05 087 05 187 60x80 0.50 24
05 096 05 196 60x100 0.73 20
05 049 05 149 80x40 0.47 32
05 069 05 169 80x60 0.52 24
05 089 05 189 80x80 0.59 16
05 097 05 197 80x100 0.91 14
05 051 05 151 100x40 0.55 24
05 071 05 171 100x60 0.59 20
05 091 05 191 100x80 0.68 16
05 098 05 198 100x100 1.06 8
05 053 05 153 120x40 0.65 20
05 073 05 173 120x60 0.73 14
05 093 05 193 120x80 0.89 12
05 099 05 199 150x100 1.37 8
C
L
A
C
K
Code Description Unit/Pack-no. pieces
Fix-O-Rapid
Rapid mounting device for attaching wiring ducts to the base plate: it snaps onto the plate after drilling a ø 7 mm hole. Two
Fix-O-Rapid devices are enough for each wiring duct section. Fix-O-Rapid guarantees maximum insulation since it does
not involve the use of any metal component inside the wiring duct.
If the wrong wiring duct is selected, it can be dismounted and a version with the same base and a different height can be
attached to the Fix-O-Rapid.
05 270 Rapid mounting device for wiring duct, W 25 mm 20/600
05 272 Rapid mounting device for wiring duct, W 40 mm 20/600
05 274 Rapid mounting device for wiring duct, W 60 mm 20/600
05 276 Rapid mounting device for wiring duct, W 80 mm 20/240
05 278 Rapid mounting device for wiring duct, W 100 mm 20/240
1SLC805035F0001
05 280 Rapid mounting device for wiring duct, W 120 mm 20/240
05 282 Rapid mounting device for wiring duct, W 150 mm 20/240
12ABB
grunnenhet
automasjon
distribusjon
tilbehør
2
In distribution and mixed applications, the Gemini switchboard
is designed to be fitted with System pro M modular devices
and Tmax moulded-case circuit
breakers.
The frame is the load-bearing
element of the configuration:
DIN rails, partial modular plates
and the special Tmax mounting
and cabling kits are snapped
onto the uprights. All the components can be adjusted to six
different depths with a pitch of
12.5 mm and arranged at
heights with a distance of 75
mm between the rows.
Blank or drilled front panels are
applied to protect the equipment and these can be hinged
onto both sides; the cables are
housed inside the vertical wiring duct integrated in the uprights according to an exclusive
ABB patent.
Wiring is carried out by pulling
out the frame and working from
the front; the ergonomic grip
and the standard feet and snapon hooks supplied make it easy
to insert it inside the switchboard after the job is finished.
Order codes
Components for distribution and mixed applications
1SLC805025F0001
The DIN rail is supplied with special
hooks already in position for attaching
to the uprights.
1SLC805024F0001
The depth at which the DIN rail, the
modular plates, the kit for fixing the
Tmax circuit breakers and the wiring
duct are positioned can be adjusted
with a simple sliding movement.
1SLC805022F0001
The frame can be extracted to make wiring operations easier at the workbench.
1SLC805026F0001
1SLC805010F0001
The blank and drilled panels are hinged onto both sides; the description of the
installed components can be kept in the special compartment protected by a
transparent, hinged flange.
Fixing hooks and feet allow the frame
to be snap-mounted inside the box.
1SLC805064F0001
The upright with the incorporated
wiring duct is an exclusive ABB patent
that rationalizes the path of cables
inside the switchboard.
1SLC805023F0001
1SLC805063F0001
14ABB
Order codes / el.nummer
Components for distribution and mixed applications
Size of the switchboard Code / el.nummer Unit/Pack

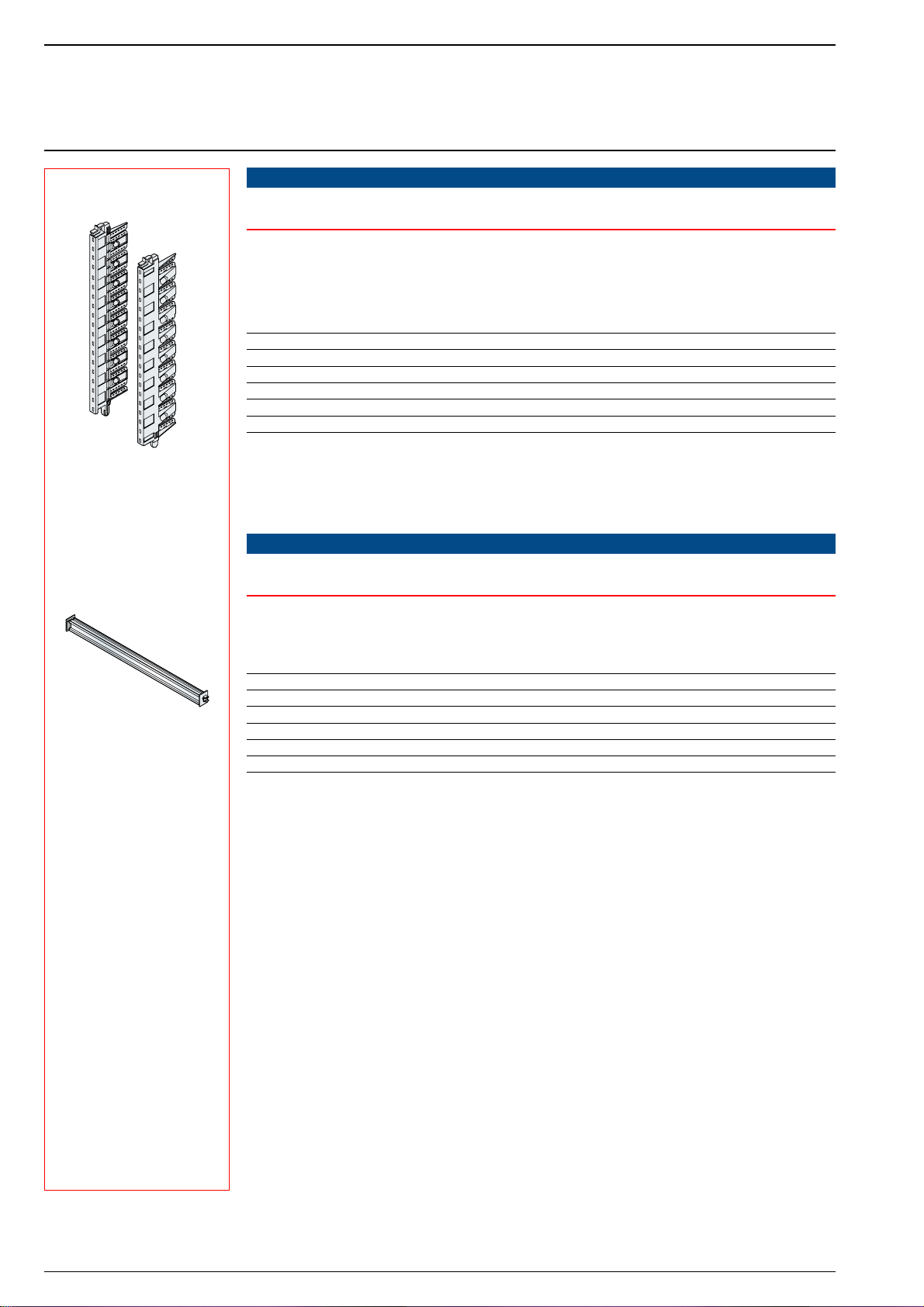

Uprights
• Incorporated vertical wiring duct (ABB patent)
• Snap-on mounting of all components (installation pitch of 75 mm)
• Snap-on insertion into box
• Depth of installed components adjusted at a pitch of 12.5 mm (4 positions for uprights of size 1 and 6 positions for the
remaining ones)
• Ergonomic grip to make it easy to insert and extract
1 1SL0283A00 / 2444351 1/4
2 1SL0284A00 / 2444352 1/4
3 1SL0285A00 / 2444353 1/4
4 1SL0285A00 / 2444353 1/4
5 1SL0286A00 / 2444354 1/2
6 1SL0287A00 / 2444355 1/1
Size of the switchboard Modules per row Code / el.nummer Unit/Pack
DIN rail
• Two-sided version
• Supplied with mounting supports that snap onto uprights
• Depth adjustment on uprights
• Designed so that rapid Unifix L mounting bars can be snapped on
1 12 1SL0290A00 / 2444356 1/10
2 18 1SL0291A00 / 2444357 1/10
1SLC805036F0001
3 18 1SL0291A00 / 2444357 1/10
4 24 1SL0292A00 / 2444358 1/10
5 24 1SL0292A00 / 2444358 1/10
6 36 1SL0293A00 / 2444359 1/10
15 ABB
Order codes / el.nummer
Components for distribution and mixed applications
Size of the switchboard Code / el.nummer Unit/Pack

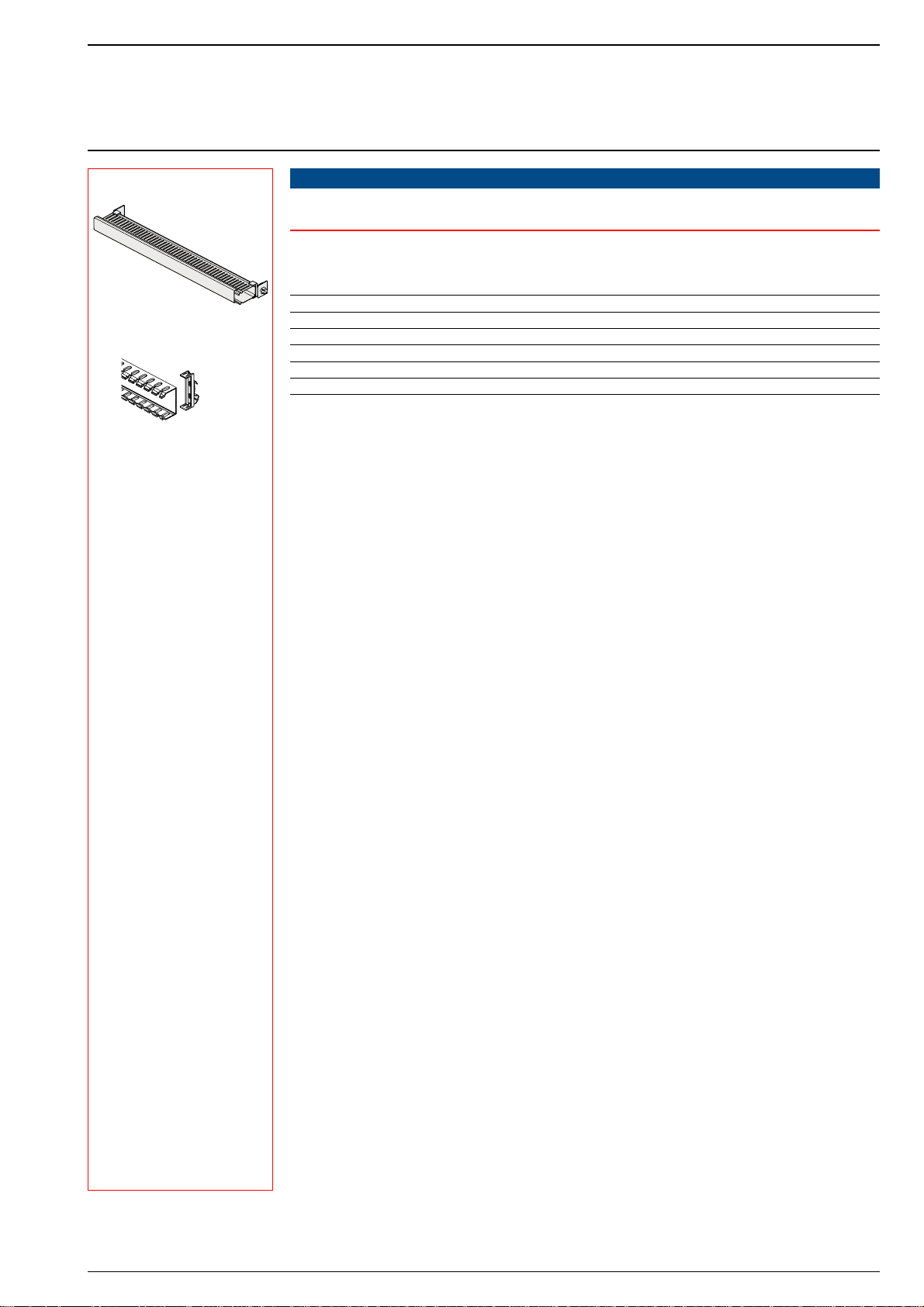

Drilled panels
• Supplied with DIN rail complete with supports to snap onto uprights and adjustable in depth
• Available in 1 module (H 150 mm) and 1+1/2 module (H 225 mm, sizes 2-6) dimensions
• Designed to be hinged onto both vertical sides
• Snap-on mounting onto uprights (in compliance with reference Standards a tool must be used for removing the panel)
• Document pocket for storing descriptions of installed devices
1 module 1 + 1/2 module
1 1SL0307A00 / 2444367 - 1/8
2 1SL0308A00 / 2444368 1SL0313A00 / 2444371 1/8
3 1SL0308A00 / 2444368 1SL0313A00 / 2444371 1/8
4 1SL0309A00 / 2444369 1SL0314A00 / 2444372 1/4
5 1SL0309A00 / 2444369 1SL0314A00 / 2444372 1/4
6 1SL0310A00 / 2444370 1SL0315A00 / 2444373 1/2
Blank panels
• Available in 1/2 module (H 75 mm), 1 module (H 150 mm) and 2 modules (H 300 mm) dimensions
• H 150 mm and H 300 panels designed to be hinged onto both vertical sides
• Snap-on mounting onto uprights (in compliance with reference Standards a tool must be used for removing the panel)
1/2 module
1 1SL0318A00 / 2444374 1/10
2 1SL0319A00 / 2444375 1/10
3 1SL0319A00 / 2444375 1/10
4 1SL0320A00 / 2444376 1/6
5 1SL0320A00 / 2444376 1/6
6 1SL0321A00 / 2444377 1/4
1 module
1 1SL0324A00 / 2444378 1/8
2 1SL0325A00 / 2444379 1/8
3 1SL0325A00 / 2444379 1/8
4 1SL0326A00 / 2444380 1/4
5 1SL0326A00 / 2444380 1/4
6 1SL0327A00 / 2444381 1/4
2 modules
1 1SL0330A00 / 2444382 1/6
2 1SL0331A00 / 2444383 1/6
3 1SL0331A00 / 2444383 1/6
4 1SL0332A00 / 2444384 1/4
5 1SL0332A00 / 2444384 1/4
6 1SL0333A00 / 2444385 1/4
1SLC805037F0001
16ABB
Order codes / el.nummer
Components for distribution and mixed applications
Size of the switchboard Code / el.nummer Unit/Pack
Partial modular plates
• Available in 1 module (H 150 mm) and 2 module (H 300 mm, sizes 2-6) dimensions
• Snap-on mounting onto uprights with depth adjustment
1 module
1 1SL0296A00 / 2444360 1/6
2 1SL0297A00 / 2444361 1/4
3 1SL0297A00 / 2444361 1/4
4 1SL0298A00 / 2444362 1/4
5 1SL0298A00 / 2444362 1/4
6 1SL0299A00 / 2444363 1/2
2 modules
1- 2 1SL0302A00 / 2444364 1/4
3 1SL0302A00 / 2444364 1/4
4 1SL0303A00 / 2444365 1/4
5 1SL0303A00 / 2444365 1/4
6 1SL0304A00 / 2444366 1/2
Kit for installing Tmax moulded-case circuit breakers
• For installing Tmax moulded-case circuit breakers in fixed version with front terminals
• Composed of a plate with special drilled holes and a protection panel with vertical slots that can be hinged on both sides
and snap-on mounted (in compliance with reference Standards a tool must be used for removing the panel)
• Available for sizes 2-6
• Version H 150 with drillings for Tmax T1 3 poles (with and without residual current releaser), Tmax T1 4 poles (with and
without residual current releaser), Tmax T2 3 poles (with and without residual current releaser), Tmax T2 4 poles (without
residual current releaser)
• Version H 300 with drillings for Tmax T2 4 poles (with residual current releaser), Tmax T3 3 poles (with and without
residual current releaser), Tmax T3 4 poles (with and without residual current releaser)
• Snap-on mounting onto uprights with the possibility of adjusting the plate depth
H 150 mm H 300 mm
1--2 1SL0336A00 / 2444386 1SL0370A00 1/4
3 1SL0336A00 / 2444386 1SL0370A00 1/4
4 1SL0337A00 / 2444387 1SL0371A00 1/4
5 1SL0337A00 / 2444387 1SL0371A00 1/4
6 1SL0338A00 / 2444388 1SL0372A00 1/2
1SLC805038F0001
17 ABB
1SLC805039F0001
Order codes
Components for distribution and mixed applications
Size of the switchboard Code Unit/Pack
Wiring kit
• Composed of wiring duct in versions 25x60 mm and 40x60 mm (WxH, 8-12 mm slots) and Fix-O-Rapid
• Snap-on mounting on uprights with depth adjustment
Wiring duct 25x60 mm Wiring duct 40x60 mm
1 1SL0353A00 1SL0360A00 1/4
2 1SL0354A00 1SL0361A00 1/4
3 1SL0354A00 1SL0361A00 1/4
4 1SL0355A00 1SL0362A00 1/4
5 1SL0355A00 1SL0362A00 1/4
6 1SL0356A00 1SL0363A00 1/4
18ABB
grunnenhet
automasjon
distribusjon
tilbehør
2
Order codes
Accessories
Gemini switchboards have the
same accessories for both automation and distribution applications, ensuring maximum versatility and integration of functions.
In particular, the ventilation and
anti-condensation kits make it
even safer for the devices to run,
protecting them from the effects
of heat and humidity while the
wall brackets, pole mounting kit
and pedestal make it easier to
install the switchboards in any
context.
Three different kinds of locks are
supplied for the doors with
which it is possible to replace
the standard double bit model.
The universal drill bit can be
used to open the side branch
connections. Module covers
hide the unused modules of the
DIN rail guaranteeing IP40 pro-
tection when the door is open
in distribution and mixed configurations.
1SLC805028F0001
Gemini wall-mounted installation
using the special mounting brackets.
1SLC805029F0001
1SLC805011F0001
1SLC805027F0001
1SLC805065F0001
The standard locks supplied can be
replaced by the version with ciphered
key and handle or with square or
triangular impression.
1SLC805066F0001
The fact that Gemini switchboards
can also be pole-mounted (see photo
above) or mounted on a special
pedestal (see photo at the side)
makes them suitable for any
application situation.
20ABB
Order codes / el.nummer
Accessories
Code / el.nummer Description Unit/Pack
Locks
• Available in three versions with ciphered key and handle, with triangular and square impressions
1SL0340A00 / 2444390 Lock with Yale type ciphered key and handle 1/10
1SL0341A00 / 2444391 Lock with triangular impression 1/10
1SL0339A00 / 2444389 Lock with square impression 1/10
Mounting elements
• Guarantee optimum wall, pole and floor mounting conditions
1SL0342A00 / 2444392 Horizontal and vertical wall brackets 1/10
1SL0343A00 / 2444393 Pole mounting kit for sizes 1 switchboards 1/4
1SL0344A00 / 2444394 Pole mounting kit for sizes 2-3 switchboards 1/4
1SL0345A00 / 2444395 Pole mounting kit for sizes 4-5 switchboards 1/2
1SL0346A00 / 2444396 Pole mounting kit for size 6 switchboards 1/2
1SL0352A00 / 2444399 Floor mounting pedestal for sizes 1-4 1/1
Ventilation kit
• Composed of plastic grills and filter to ensure switchboard ventilation
• IP42
• The filter must be cleaned periodically
1SLC805040F0001
1SL0350A00 / 2444397 Ventilation kit 1/1
21 ABB
2
1SLC805032F0001
Order codes
Accessories
Code / el.nummer Description Unit/Pack
Anti-condensation kit
• Kit in special material to prevent condensation from forming inside the switchboard: it include
GORETMMEMBRANE VENTING
• Impermeable to water (pressure): 1 bar
• Air flow: 68/h (dp = 70 mbar)
• 1 kit for sizes 1-2, 2 kits for sizes 3-4 and 3 kits for sizes 5-6 are recommended to guarantee adequate dissipation; in any
case the number of kits to be installed depend on the number and type of devices installed inside the switchboard.
1SL0351A00 / 2444398 Anti-condensation kit 1/6
Other accessories
12894 Universal drill bit 1/30
12863 Module covers in RAL 7035 grey, 4 modules 50/600
12851 Plastic spacer for installing modular devices and moulded-case circuit
breakers at the same depth 10/60
22ABB
2
Basic configuration
Order codes
Rapid selection table
Size
1
2
3
4
5
6
No. of
installable
DIN modules
(mod. x row)
24 (12x2)
54 (18x3)
72 (18x4)
96 (24x4)
120 (24x5)
216 (36x6)
No. of
vertical mod.
(H=150 mm)
2
3
4
4
5
6
F
C
External
dimensions
ABC
335
400
550
700
700
855
1005
460
460
590
590
840
210
260
260
260
360
360
A
D
E
B
Internal
dimensions
DEF
250
300
450
600
600
750
900
375
375
500
500
750
180
230
230
230
330
330
Complete switchboard
1SL0211A00
1SL0212A00
1SL0213A00
1SL0214A00
1SL0215A00
1SL0216A00
Opaque doorTrasparent door
1SL0201A00
1SL0202A00
1SL0203A00
1SL0204A00
1SL0205A00
1SL0206A00
Box
1SL0221A00
1SL0222A00
1SL0223A00
1SL0224A00
1SL0225A00
1SL0226A00
Door
1SL0241A00
1SL0242A00
1SL0243A00
1SL0244A00
1SL0245A00
1SL0246A00
OpaqueTransparent
1SL0231A00
1SL0232A00
1SL0233A00
1SL0234A00
1SL0235A00
1SL0236A00
Accessories common to the whole range
Size
1
2
3
4
5
6
Lock with handle
1SL0340A00
Lock with triangular
impression
1SL0341A00
Lock with square impression
1SL0339A00
Installation brackets
1SL0342A00
23 ABB
Pole installation kit
1SL0343A00
1SL0344A00
1SL0344A00
1SL0345A00
1SL0345A00
1SL0346A00
2
Order codes
Rapid selection table
Components for automation
Base plate
Blank
1SL0259A00
1SL0260A00
1SL0261A00
1SL0262A00
1SL0263A00
1SL0264A00
1SL0275A00
1SL0276A00
1SL0277A00
1SL0278A00
1SL0279A00
1SL0280A00
InsulatingDrilled
1SL0267A00
1SL0268A00
1SL0269A00
1SL0270A00
1SL0271A00
1SL0272A00
Inner door
1SL0252A00
1SL0253A00
1SL0254A00
1SL0255A00
1SL0256A00
Components for distribution
Uprights Modular plate
1SL0283A00
1SL0284A00
1SL0285A00
1SL0285A00
1SL0286A00
1SL0287A00
DIN rail
1SL0290A00
1SL0291A00
1SL0291A00
1SL0292A00
1SL0292A00
1SL0293A00
Drilled panel
H=150 mm H=225 mm H=75 mm H=150mm H=300 mm
1SL0307A00
1SL0308A00
1SL0308A00
1SL0309A00
1SL0309A00
1SL0310A00
1SL0313A00
1SL0313A00
1SL0314A00
1SL0314A00
1SL0315A00
-
1SL0318A00
1SL0319A00
1SL0319A00
1SL0320A00
1SL0320A00
1SL0321A00
Blank panel
1SL0324A00
1SL0325A00
1SL0325A00
1SL0326A00
1SL0326A00
1SL0327A00
1SL0330A00
1SL0331A00
1SL0331A00
1SL0332A00
1SL0332A00
1SL0333A00
H=150 mm H=300 mm
1SL0296A00
1SL0297A00
1SL0297A00
1SL0298A00
1SL0298A00
1SL0299A00
1SL0302A00
1SL0302A00
1SL0303A00
1SL0303A00
1SL0304A00
Accessories for distributionAccessories for automation
-
Size
1
2
3
4
5
6
Ventilation
kit
Wiring
ducts
See page 2/9
Fix-O-Rapid
See page 2/9
Anti-condensation
kit
Kit for
Tmax
H=150 mm
1SL0336A00
1SL0336A00
1SL0337A00
1SL0337A00
1SL0338A00
H= 300 mm
1SL0370A00
1SL0370A00
1SL0371A00
1SL0371A00
1SL0372A00
Pedestal
Fix-O-Rapid kit with wiring duct
25x60 mm
1SL0353A00
1SL0354A00
1SL0354A00
1SL0355A00
1SL0355A00
1SL0356A00
Universal drill bit
1SL0360A00
1SL0361A00
1SL0361A00
1SL0362A00
1SL0362A00
1SL0363A00
40x60 mm
Module covers
RAL 7035
12863
Depth
adapter
1SL0350A00
1SL0351A00
1SL0352A00
-
-
12894
12851
1SLC805002F0201
24ABB
3
Technical information
Technical characteristics
Table of Gemini switchboards’ technical characteristics
Size 1 2 3 4 5 6
Gemini with transparent door 1SL0211A00 1SL0212A00 1SL0213A00 1SL0214A00 1SL0215A00 1SL0216A00
Gemini with opaque door 1SL0201A00 1SL0202A00 1SL0203A00 1SL0204A00 1SL0205A00 1SL0206A00
External dimensions WxHxD (mm) 335x400x210 460x550x260 460x700x260 590x700x260 590x855x360 840x1005x360
Internal dimensions WxHxD (mm) 250x300x180 375x450x230 375x600x230 500x600x230 500x750x330 750x900x330
IP degree IP66 IP66 IP66 IP66 IP66 IP66
Double isolation Yes Yes Yes Yes Yes Yes
IK degree 10 10 10 10 10 10
GWT (°C) 750 750 750 750 750 750
Operating temperature -25 °C÷ +100 °C -25 °C ÷ +100 °C -25 °C÷ +100 °C -25 °C÷ +100 °C -25 °C÷ +100 °C -25 °C÷ +100 °C
No. of DIN modules 24 (12x2) 54 (18x3) 72 (18x4) 96 (24x4) 120 (24x5) 216 (36x6)
No. of vertical modules (H=150 mm) 234456
Material Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic
Color Grey RAL7035 Grey RAL7035 Grey RAL7035 Grey RAL7035 Grey RAL7035 Grey RAL7035
Fast wiring system Unifix L Unifix L Unifix L Unifix L Unifix L Unifix L
No. of locks 2222 33
Rated current In ≤ 400 A ≤ 400 A ≤ 400 A ≤ 400 A ≤ 400 A ≤ 400 A
Rated frequency 50-60 Hz 50-60 Hz 50-60 Hz 50-60 Hz 50-60 Hz 50-60 Hz
Maximum dissipation power
STANDARD CEI EN 60439-1
Over-temperature (par. 8.2.1)
- Max. dispersible power with
over-temperature of 25 °C 40 W 65 W 77 W 91 W 133 W 205 W
- Max. dispersible power with
over-temperature of 30 °C 45 W 72 W 85 W 102 W 156 W 248 W
- Max. dispersible power with
over-temperature of 35 °C 52 W 85 W 100 W 121 W 187 W 299 W
- Max. dispersible power with
over-temperature of 40 °C 62 W 100 W 118 W 143 W 221 W 355 W
Impulse withstand (par. 8.2.2)
- Rated service voltage ≤ 690 V ≤ 690 V ≤ 690 V ≤ 690 V ≤ 690 V ≤ 690 V
- Rated insulation voltage ≤ 800 V ≤ 800 V ≤ 800 V ≤ 800 V ≤ 800 V ≤ 800 V
- Rated impulse withstand voltage 8 kV 8 kV 8 kV 8 kV 8 kV 8 kV
Short circuit withstand (par. 8.2.3)
- Rated peak short-circuit current - - - - - -
(1)
(2)
45 W 72 W 85 W 102 W 156 W 248 W
(1)
Maximum dissipation power data was obtained following the indications of Standard CEI 23-49, with a temperature difference of Dt=30 °C.
(2)
Note to paragraph 8.2.1 of Standard CEI EN 60439-1
The table gives the thermal dissipation values of Gemini switchboards when they are wall-mounted. The dispersible power figures (in Watts) vary according to the
overtemperature allowed in the accessible parts of the switchboard and must be compared with the total amount of power dissipated by all the components
installed inside the switchboard taking into due account the factor of contemporaneity.
25ABB
ABB A/S
Automasjonsprodukter
Jacob Borchsgt. 6
3012 Drammen
Tel.: 81520915 - Telefax: 32858010
http://www.abb.no
UNI EN ISO 9001
Due to possible developments of standards as well as of
materials, the characteristics and dimensions specified in
the this document may only be considered binding after
confirmation by ABB.
1SEC800010C2101
Loading...
