OPERATIONS MANUAL
PS-626i
PROFESSIONAL MIXER
Page 1
PS-626i
3
28
19
10
27
26
2
6
7
8
9
11 12
6
7
8
9
6
7
8
9
21
1
16
17
18
20
5
13
23
14
15
24
22
4
25
Page 2
PS-626i
Page 3
INTRODUCTION
6
6
6
6
0
Congratulations on purchasing a Gemini Platinum Series model PS-626i
mixer. This state-of-the-art mixer is backed by a three year warranty,
excluding crossfader and channel slides. Prior to use, we suggest that
you carefully read all the instructions.
FEATURES
•
Cut Feature for Low, Mid and High of each channel
•
3 Stereo channels (3 Phono, 3 Line and 1 Mic)
•
1/4" DJ Mic jack
•
Low, Mid, High and Gain controls on each channel
•
Beat indicators
•
Master, Booth and Record outputs
•
Dual mode display (Left & Right output or Channel 2 and Channel 3)
•
Push button cueing with Cue/Program pan control
CAUTIONS
1. All operating instructions should be read before using this
equipment.
2. To reduce the risk of electrical shock, do not open the unit. There are
NO USER REPLACEABLE PARTS INSIDE. Please refer servicing to a
qualified Gemini Sound Products service technician.
In the USA: if you experience problems with this unit, please
call 1 (732) 969-9000 for Gemini Customer Service.
Do not attempt to return this equipment to your dealer.
3. Do not expose this unit to direct sunlight or to a heat source such as
a radiator or stove.
4. This unit should be cleaned only with a damp cloth. Avoid solvents
or other cleaning detergents.
5. When moving this equipment, it should be placed in its original carton
and packaging. This will reduce the risk of damage during transit.
6. DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
7. DO NOT USE ANY SPRAY CLEANER OR LUBRICANT ON ANY
CONTROLS OR SWITCHES.
CONNECTIONS
1. Before plugging in the power cord, make sure that the VOLTAGE
SELECTOR (30) switch is set to the correct voltage.
NOTE: This product is double insulated and is not intended to be
F
grounded.
2. Make sure that the POWER (1) switch is in the off position. The
POWER LED (2) will be off.
3. The PS-626i is supplied with four (4) sets of output jacks.
•
The 1/4" BALANCED OUTPUT (29) jacks are used to connect to
your main amplifier using standard balanced cables. We recommend
using balanced amp outputs if the cables to your amplifier are 25
feet or more.
•
The MAIN OUTPUT (38) (RCA type) jacks are unbalanced and used
to connect to your main amplifier.
•
The REC OUTPUT (40) (RCA type) jacks can be used to connect the
mixer to the record input of your recorder enabling you to record
your mix.
•
The BOOTH OUTPUT (39) (RCA type) jacks allow you to hook up an
additional amplifier.
5. On the rear panel are 2 stereo PHONO (32, 34) inputs, 2 stereo LINE
(31, 33) inputs and 1 stereo PHONO/LINE (36) input. The PHONO/
LINE (35) switch enables you to set the (36) input to Phono or Line.
The phono inputs will accept only turntables with a magnetic
cartridge. A GROUND (37) screw to ground your turntables is
located on the rear panel. The stereo line inputs will accept any line
level input such as a CD player, a cassette player, etc.
6. Headphones can be plugged into the front panel mounted
HEADPHONE (4) jack.
THE GROUND LIFT SWITCH
epending on your system configuration, applying the ground
sometimes creates a quieter signal path. Sometimes “lifting” the
D
ground eliminates loops and hum to create a quieter signal path.
1. Listen to the system with the unit ON, without music, and with the
ground “applied”. GROUND LIFT SWITCH (41) should be to the left.
2. Turn power OFF before moving the GROUND LIFT SWITCH.
3. Now, “lift” the ground by moving the GROUND LIFT SWITCH to the
right. Turn the power back ON and listen to determine which
position provides a signal free of background noise and hum.
Note: Keep GROUND LIFT in the ground “applied” or left position if
noise level remains the same in either position.
CAUTION: DO NOT TERMINATE THE AC GROUND ON THE POWER
h
CABLE. TERMINATION OF THE AC GROUND CAN BE HAZARDOUS.
OPERA TION
1. POWER ON: Once you have made all the equipment connections to
your mixer, press the POWER SWITCH (1). The power will turn on
and the POWER LED (2) will glow RED.
2. CHANNEL 1: The GAIN (6), HIGH (7), MID (8), and LOW (9).Controls
allows you to fully adjust the selected source. Switch (10) allows
you to select either the mic or the PHONO/LINE (36) input. The
CHANNEL (13) slide controls the output level of this channel.
3. MAIN CHANNEL SECTION: To assign an input source to a channel,
first set the PHONO/LINE (11,12) switches to their appropriate
positions. To make the proper adjustments to your music, set the
GAIN (6), HIGH (7), MID (8) and LOW (9) controls and position the
CHANNEL (14,15) slide.
PLEASE NOTE: There is Low, Mid and High equalization for each
channel with an extremely wide range of adjustment.
SUGGESTION: You can use the Cut Features on each channel to
remove Low, Mid and/or High range to create special effects.
he Crossfader in your unit is removable and, should the need
arise, can easily be replaced by following these instructions.
T
Note: Gemini replacement Crossfaders are available in three
varieties: the RG-45 PRO (RAIL GLIDETM) Dual-Rail Crossfader; the RF45, which has a 45mm travel from side-to-side; and the PSF-45, which
features a special “curve” designed for scratch mixing.
1. Unscrew the outside
FADER PLA TE SCREWS (B).
- Do not touch INSIDE SCREWS (C).
2. Carefully remove old Cross fader and unplug CABLE (D).
3. Plug new Crossfader into
CABLE (D) and place back into mixer.
4. Screw Crossfader to mixer with
F ADER PLA TE SCREWS (B).
2345
2345
2345
2345
234567890123456789
D
Page 4
✦
Your Gemini mixer comes with an
GLIDE) DUAL-RAIL CROSSFADER
Crossfaders have internal dual stainless steel rails that allow the
slider to ride smoothly and accurately from end to end.
4. CROSSFADER SECTION: The CROSSF ADER (25) allows the mixing
of one source into another. The left side of the CROSSFADER (25) is
channel 2 and the right side is channel 3.
5. BEAT INDICATORS: Each side of the CROSSFADER (25) has its own
BEAT INDICATOR (23, 24). They flash at the low frequency peak
level allowing you to match the beats visually. BEAT INDICATOR (23)
will reflect the beat of CH2 and BEAT INDICATOR (24) will do the
same for CH3.
6. OUTPUT CONTROL SECTION: The level of the AMP OUT (38) is
controlled by the MASTER (18) control. The BALANCE (17) control
will allow the Amp Out signal to be balanced between the left and
right speakers. The BOOTH (16) control adjusts the level of the
BOOTH OUTPUT (39).
HINT : BOOTH OUTPUT (39) is used by some DJs to run monitor
speakers in the DJ Booth. You can also use it as a second
ZONE or AMP output.
NOTE: The RECORD OUT (40) has no level control. The level is
set by the channel slides and the gain controls of the selected
channel. Tonal qualities are set by the low, mid and high
controls of that same channel.
7. TALKOVER SECTION: The purpose of the talkover section is to allow
the program playing to be muted so that the mic can be heard above
the music. When the TALKOVER (19) button is pushed, the
TALKOVER INDICATOR (28) will glow and the volume of all sources
except the Mic or whatever is connected to the PHONO/LINE (36)
input are reduced by 16 dB.
8. CUE SECTION: By connecting a set of headphones to the
HEADPHONE (4) jack, you can monitor any or all of the channels.
Select the correct CUE (21) button or buttons and their respective
CUE LED (5) indicators will glow. Use the CUE LEVEL (20) control to
adjust the headphone volume without effecting the overall mix. By
sliding the CUE PGM PAN (22) control to the left you will be able to
monitor the assigned cue signal. Sliding to the right will monitor the
PGM (program) output.
9. DISPLAY: The peak hold, dual function DISPLAY (26) indicates either
the MASTER (38) output left and right levels or the channel 2 and
channel 3 levels. You can choose the option you want by pressing
the DISPLAY (27) button.
NOTE: When the DISPLAY (27) is in the channel 2/channel
3 display mode, by adjusting the individual channel gain
and tone controls, you can increase or decrease the
signal to match the other channel’s signal. The channel
slides and crossfader have no effect on the display
readings.

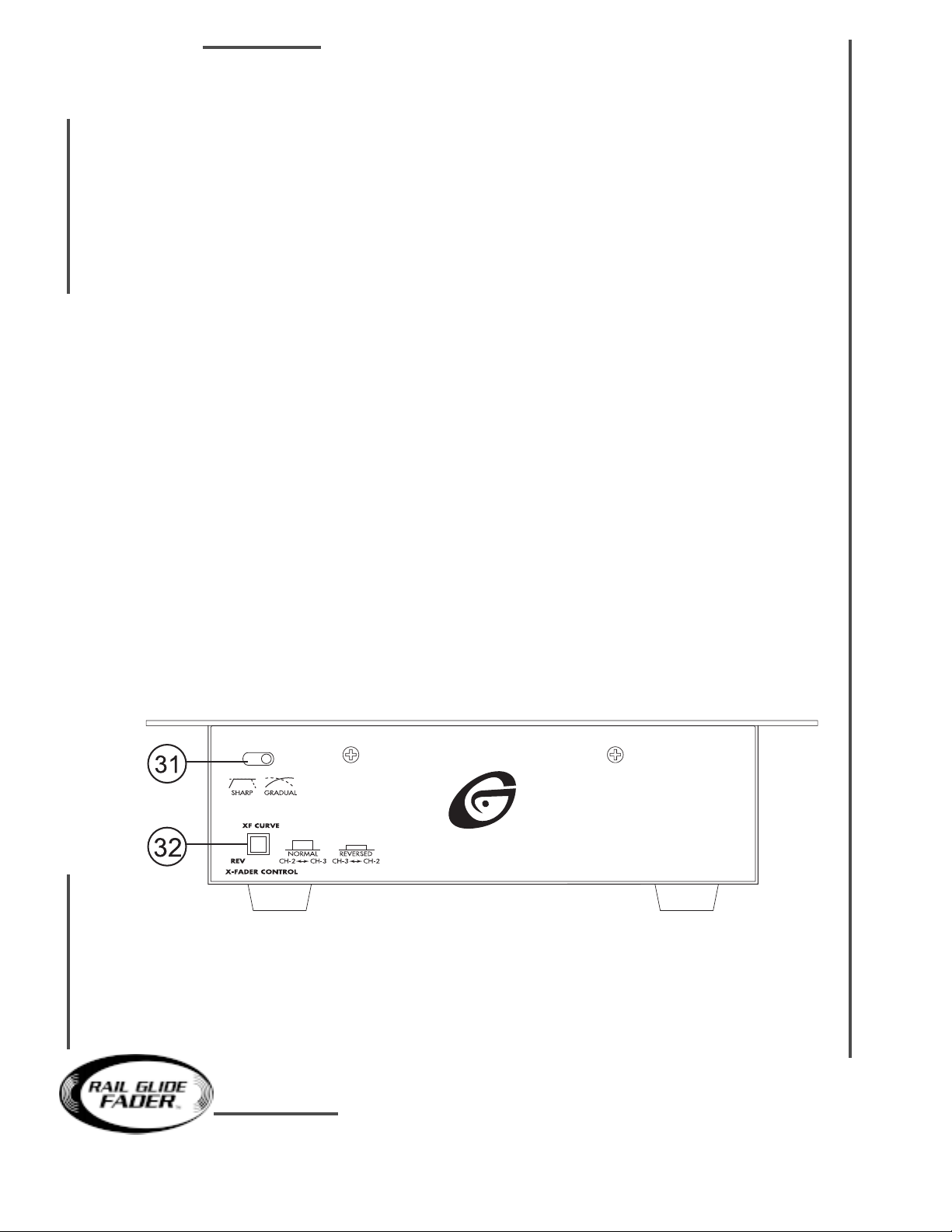

10. The CROSSFADER CURVE SWITCH (31) allows you to adjust the
kind of curve the crossfader has. Move switch to the “sharp” position
to make the curve steep and cutting (perfect for scratching ). Move
switch to the “gradual” position to make the curve gradual and gentle.
The CROSSFADER REVERSE SWITCH (32) allows you to reverse the
crossfader so that CHANNEL 3 is controlled by the left side of the
crossfader and CHANNEL 2 is controlled by the right side of the
crossfader.
NOTE: When the CROSSFADER REVERSE SWITCH (32) is
activated, only the crossfader reverses. The Channel
Slides, Gain, and Tonal Controls do not reverse.
RG-45 PRO (RAIL
. Rail Glide™
SPECIFICA TIONS
INPUTS:
DJ Mic.......................................................1.5mV 2 kΩ unbalanced
Phono @ 1 kHz..........................................................................2 mV 47 kΩ
Line...............................................................................100 mV 27 kΩ
OUTPUTS:
Amp/Booth....................................................................0 dB 775mV 400 Ω
Max...............................................................................24V Peak-to-Peak
Rec..................................................................................225mV 5 kΩ
GENERAL:
Bass .....................................................................+ 12dB/- 32 dB
Mid ..........................................................................+ 12dB/- 32 dB
Treble ..................................................................+ 12dB/- 32 dB
Gain (Mic).......................................................................0 to -40dB
Gain (Chnls 1-3).......................................................................0 to -20dB
Frequency Response............................................20Hz - 20kHz +/- 2dB
Distortion..............................................................................less than 0.02%
S/N Ratio..........................................................................better than 80dB
Talkover Attenuation........................................................................16dB
Power Source...................................................115/230V 50/60Hz 20W
Dimensions................................................254mmW x 305mmD x 1 12mmH
10”W x 12”D x 4 7/16”H
Weight........................................................................................6.5 lbs(3 Kg)
Page 5
In the USA: If you experience problems with this unit,
call 1 (732) 969-9000 for Gemini Customer Service.
Do not attempt to return this equipment to your dealer.
Parts of the design of this product may be protected by worldwide patents.
Information in this manual is subject to change without notice and does not
represent a commitment on the part of the vendor. Gemini Sound Products Corp.
shall not be liable for any loss or damage whatsoever arising from the use of
information or any error contained in this manual.
No part of this manual may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, electrical, mechanical, optical,
chemical, including photocopying and recording, for any purpose without the
express written permission of Gemini Sound Products Corp.
It is recommended that all maintenance and service on this product is performed
by Gemini Sound Products Corp. or its authorized agents.
Gemini Sound Products Corp. will not accept liability for loss or damage caused
by maintenance or repair performed by unauthorized personnel.
Worldwide Headquarters • 8 Germak Drive, Carteret, NJ 07008 • USA
T el: (732) 969-9000 • Fax: (732) 969-9090
France • G.S.L. France • 11, A venue Leon Harmel, Z.I. Antony, 92160 Antony, France
Germany • Gemini Sound Products GmbH • Ottostrasse 6, 85757 Karlsfeld, Germany
UK • Gemini Sound Products • Unit C4 Hazleton Industrial Estate, Waterlooville, UK P08 9JU
Spain • Gemini Sound Products S.A. • Mino, 112, Nave 1, 08223 Terrassa, Barcelona, Spain
© Gemini Sound Products Corp. 2001 All Rights Reserved
Tel: + 33 (0) 1 55 59 04 70 • Fax: + 33 (0) 1 55 59 04 80
Tel: 08131 - 39171-0 • Fax: 08131 - 39171-9
Tel: 087 087 00880 • Fax: 087 087 00990
Tel: 011-34-93-736-34-00 • Fax: 011-34-93-736-34-01
Page 6
Loading...
