Gemini MM-3000 User Manual

MM-3000 Mixer
                    
PROFESSIONELLER 5-KANAL STEREO-MIXER MEZCLADOR ESTEREO DE5CANALESPROFESIONAL MIXER STEREO 5 VOIES PROFESSIONNEL
OPERATIONS MANUAL BEDIEN U N GS H AN D BU CH
MAN UAL DEL OPERADOR MANUEL D’INSTRUCTIONS
MULTI-LANGUAGE INSTRUCTIUONS
English............................................................................................................................................................................................PAGE-2
Deutsch..........................................................................................................................................................................................PAGE-6
Español.........................................................................................................................................................................................PAGE-10
Françias........................................................................................................................................................................................PAGE-14
PLEASE READ BEFORE USING APPLIANCE, IMPORTANT WARNING & SAFETY INSTRUCTIONS!
CAUTION
RISK OF ELECTRICAL SHOCK
DO NOT OPEN!
CAUTION: This product satisfies FCC regulations when shielded cables and connec-
tors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded
ables and connectors for connections.
c The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
The lightening flash with arrowhead symbol, within an equilateral triangle, is in­tended to alert the user to the presence of uninsulated “dangerous voltage” within
he product’s enclosure that may be of sufficient magnitude to constitute a risk of
t electric shock to persons.
READ INSTRUCTIONS: All the safety and operating instructions should be read be-
fore the product is operated.
ETAIN INSTRUCTIONS: The safety and operating instructionsshould be retained for
R
future reference.
HEED WARNINGS: All warnings on the product and in the operating instructions
hould be adhered to.
s
FOLLOW INSTRUCTIONS: All operating and use instructions should be followed. CLEANING: The product should be cleaned only with a polishing cloth or a soft dry
cloth. Never clean with furniture wax, benzine, insecticides or other volatile liquids since they may corrode the cabinet.
ATTACHMENTS: Do not use attachments not recommended by the product manu-
facturer as they may cause hazards.
WATER AND MOISTURE: Do not use this product near water, for example, near a
bathtub, wash bowl, kitchen sink, or laundry tub; in a wetbasement; or near a swim­ming pool; and the like.
ACCESSORIES: Do not place this product on an unstable cart, stand, tripod, bracket,
or table. The product may fall, causing serious injury to a child or adult, and seri­ous damage to the product. Use only with a cart, stand, tripod, bracket, or table rec­ommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.
CART: A product and cart combination should be moved with care. Quick stops, ex-
cessive force, and uneven surfaces may cause the product and cart combination to overturn. See Figure A.
VENTILATION: Slots and openings in the cabinet are provided for ventilation and to
ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
POWER SOURCES: This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of the type of power sup­ply to your home, consult your product dealer or local power company.
LOCATION: The appliance should be installed in a stable location. NON-USE PERIODS: The power cord of the appliance should be unplugged from the
outlet when left unused for a long period of time.
GROUNDING OR POLARIZATION:
• If this product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other), it will fit into the outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try re­versing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
• If this product is equipped with a three-wire grounding type plug, a plug having a third (grounding) pin, it will only fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your elec­trician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug.
POWER-CORD PROTECTION: Power-supply cords should be routed so that they are
not likely to be walked on or pinched by items placed upon or against them, pay­ing particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
OUTDOOR ANTENNA GROUNDING: If an outside antenna or cable system is con-
nected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article
10 of the National Electrical Code, ANSI/NFPA 70, provides information with re-
8 gard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for
he grounding electrode. See Figure B.
t
LIGHTNING: For added protection for this product during a lightening storm, or when
it is left unattended and unused for long periods of time, unplug it from the wall out-
et and disconnect the antenna or cable system. This will prevent damage to the
l product due to lightening and power-line surges.
POWER LINES: An outside antenna system should not be located in the vicinity of
overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme
are should be taken to keep from touching such power lines or circuits as contact
c with them might be fatal.
VERLOADING: Do not overload wall outlets, extension cords, or integral conven-
O
ence receptacles as this can result in a risk of fire or electric shock.
i
OBJECT AND LIQUID ENTRY: Never push objects of any kind into this product
through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
SERVICING: Do not attempt to service this product yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
DAMAGE REQUIRING SERVICE: Unplug this product from the wall outlet and refer
servicing to qualified service personnel under the following conditions:
• When the power-supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the product.
• If the product has been exposed to rain or water.
• If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an im­proper adjustment of other controls may result in damage and will often require ex­tensive work by a qualified technician to restore the product to its normal operation.
• If the product has been dropped or damaged in any way.
• When the product exhibits a distinct change in performance, this indicates a need for service.
REPLACEMENT PARTS: When replacement parts are required, be sure the service
technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
SAFETY CHECK: Upon completion of any service or repairs to this product, ask the
service technician to perform safety checks to determine that the product is in proper operating condition.
WALL OR CEILING MOUNTING: The product should not be mounted to a wall or ceil-
ing.
HEAT: The product should be situated away from heat sources such as radiators, heat
registers, stoves, or other products (including amplifiers) that produce heat
.

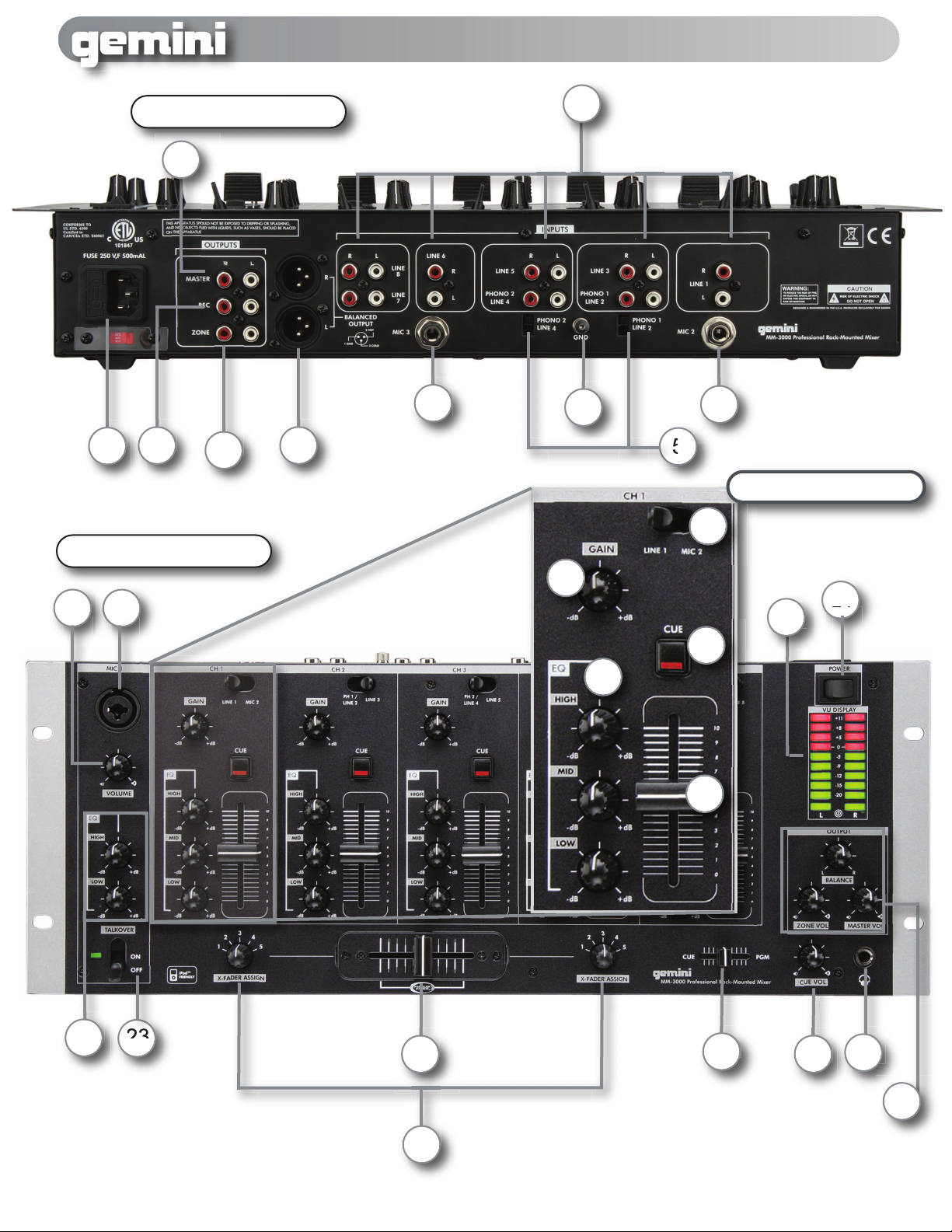

MM-3000
1
TOP PANEL
8
7
REAR PANEL
2
3
24
25
6
7
4
14
7
5
MIXER CHANNEL
10
NOTE: ALL CHANNELS HAVE THE SAME FEATURES
21
20
15
19
11
9
23
12
16
17
18
22

13
MM-3000
INTRODUCTION
Congratulations on your purchase of Gemini MM-3000 19” 5 channel stereo mixer. This-state-of-the-art mixer features the latest technological advances and is backed by a 1 year warranty, excluding the cross fader. The cross fader is backed by a separate 90 day warranty. Prior to use we suggest that you carefully read all the instructions.
FEATURES
- 19” 5 Stereo channel mixer
- 8 line, 2 convertible phono/line, RCA inputs
- Balanced XLR and RCA Master Outputs
- Record and Zone RCA outputs
- 3 band EQ per channel
- Rotary cue volume, w/CUE/PGMfader
- XLR Mic input with EQ and Talkover switch
- Assignable Railglide Crossfader
PRECAUTIONS
1. All instructions should be read before using this equipment.
2. To reduce the risk of electrical shock, do not open the unit. Please refer all servicing needs to a Gemini-qualified service technician.
IN THE USA ~ IF YOU EXPERIENCE PROBLEMS WITH THIS UNIT CALL
GEMINI CUSTOMER SERVICE AT: 1 (732) 346-0061. DO NOT ATTEMPT TO
RETURN THIS EQUIPMENT TO YOUR DEALER
.
3. Do not expose this unit to direct sunlight or a heat source such as a radiator or stove.
4. This unit should be cleaned only with a damp cloth. Avoid sol­vents or other cleaning detergents.
5. When moving this equipment it should be placed in its original carton and packaging. This will reduce the risk of damage during transit.
6. DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
7. DO NOT USE SPRAY CLEANERS OR LUBRICANTS ON CONTROLS, SURFACES OR SWITCHES.
CONNECTIONS
Ensure that the POWER SWITCH is in the OFF position prior to making any connections.
POWER CORD This unit comes with a POWER CORD. Plug in to the rear panel POWER CORD socket before plugging it in to a proper
power source.
The MM-3000 has balanced stereo outputs located on the rear panel:
The MASTER RCA OUTPUT connects the mixer to your main amplifier using standard audio cables with RCA-type connectors.
The RECORD RCA OUTPUT The RECORD output jacks can be used to connect the mixer to the record input of your recording unit, thus enabling you to record your mix with RCA cables.
The ZONE OUTPUT allows you to control a seperate output like the monitor for the DJ BOOTH or a seperate speaker zone.
GROUNDING SCREW
When using (a) turntable(s), you will need to ground the RCA cable(s) by screwing in the grounding fork(s) to the GROUNDING SCREW lo­cated on the rear panel of the MM-3000 mixer.
21
1
25
2
3
24
4
Attach a PHONO (Turntable) ground line to the silver GROUND THUMB
SCREW that is situated at the bottom middle of the rear panel.
CONVERTIBLE PH/LINE INPUTS
The MM-3000 has 2 CONVERTIBLE PHONO/LINE (PH/LN) RCA INPUTS These small switches which are located to the right of the RCA inputs for channels 2 and 3 allow you to choose between a PHONO (Turntable) input or a LINE level (Mp3, CD, Tape player etc..).and require the proper switch­ing. When switched to the PH position you may use any Turntable with a mag­netic cartridge, remember to connect your ground wire (see GROUNDING SCREW) or there may be a system hum
And when the switch is in the LN position you may connect any line level device as described before (Mp3, CD, Tape etc).
NOTE: CONNECTING A LINE LEVEL DEVICE TO A PH INPUT MAY CAUSE THAT MIXER
HANNEL TO OVERLOAD AND OR DISTORT.
C
Now you may plug the RCA’s from your playable medium into each input to be connected to thier respective CHANNELS (CH).
Then when all of your connections have been made turn on the mixer by pressing the POWER SWITCH.
MIC (MICROPHONE) INPUT
The main MIC or Microphone input is located at the top left hand corner of the front of the MM-3000 and will accept any balanced and unbalanced XLR as well a standard 1/4” connector. You can control the gain and even set the low’s and the high’s for the mic (See CONTROLS ) below.
NOTE: THERE ARE ALSO TWO AUX MIC INPUTS ON THE REAR PANEL (SEE MIXER CHAN­NEL BELOW)
HEADPHONE OUTPUT The HEADPHONE OUTPUT located at the bottom right hand corner of the MM-3000 will accept any headphone with a standard 1/4” connector and or
adaptor and will allow you to CUE your music program before you play it, you can adjust the volume and PGM mix of the HEADPHONE (see CON- TROLS) below.
5
7
18
CONTROLS
MICROPHONE CONTROL
Under the microphone input jack are the microphone controls, which con­sist of:
MICROPHONE VOLUME
Which allows you to adjust the volume of the microphone signal.
MICROPHONE EQ
Which allows you to control the low frequency and the high frequency of the microphone signal.
TALKOVER SWITCH
When in the ON position the TALKOVER SWITCH brings the music pro­gram down 20 dB to allowing you to speak over the music.
CUE/PGM FADER The CUE/PGM ROTARY KNOB determines the mix between the chosen CHANNEL CUE BUTTON(s) and the MIAN OUTPUT mix.
CUE VOLUME ROTARY KNOB The CUE VOLUME ROTARY KNOB adjusts your HEADPHONE MONI- TOR OUTPUT’S volume.
HEADPHONE MONITOR OUTPUT
The HEADPHONE MONITOR OUTPUT will accept any standard 1/4” connector and can be used for CUE MONITORING as described above.
VU METER
The MM-3000 has a VU METER that allows you to monitor the decible lev­els of the LEFT and RIGHT MASTER output.
8
9
23
10
17
18
20
6
21

MM-3000
CONTROLS CONTINUED
CROSS FADER
The CROSS FADER allows you to mix evenly from one source to another. On the MM-3000 The CROSS FADER is assignable between all (5) chan­nels. The CROSS FADER on the MM-3000 is also removable and if the need arises can be replaced.The RG-45 (RAILGLIDE CROSS FADER, which has internal dual stainless steel rails that allow the slider to ride smoothly and accurately from end to end can be purchased from your local GEMINI dealer.
CROSSFADER ASSIGN SWITCH
The CROSSFADER ASSIGN SWITCH allows you to assign any of the mixer CHANNELS to the crossfader. The CROSSFADER will then mix smoothly between the two assigned channels. Any channel not assiged to the CROSSFADER will work normally.
NOTE: WHEN USING THE CROSS FADER LIGHTLY GLIDE THE FADER BACK AND FORTH. PRESSING DOWN ON THE CONTROLS CAN BEND CONTACTS AND CAUSE A LOSS OF SOUND.
MASTER OUTPUT SECTION The MASTER OUTPUT SECTION rotary knobs adjust the volume of the MAIN and ZONE output and also the LEFT and RIGHT BALANCE of
those outputs.
MIXER CHANNEL
(NOTE: ALL 5 CHANNELS HAVE THE SAME FEATURES)
CHANNEL INPUT SELECTOR
The CHANNEL INPUT SELECTOR switches allow you to choose which input will be controlled by that channels corresponding volume FADER.
12
) DUAL-RAIL
22
13
10

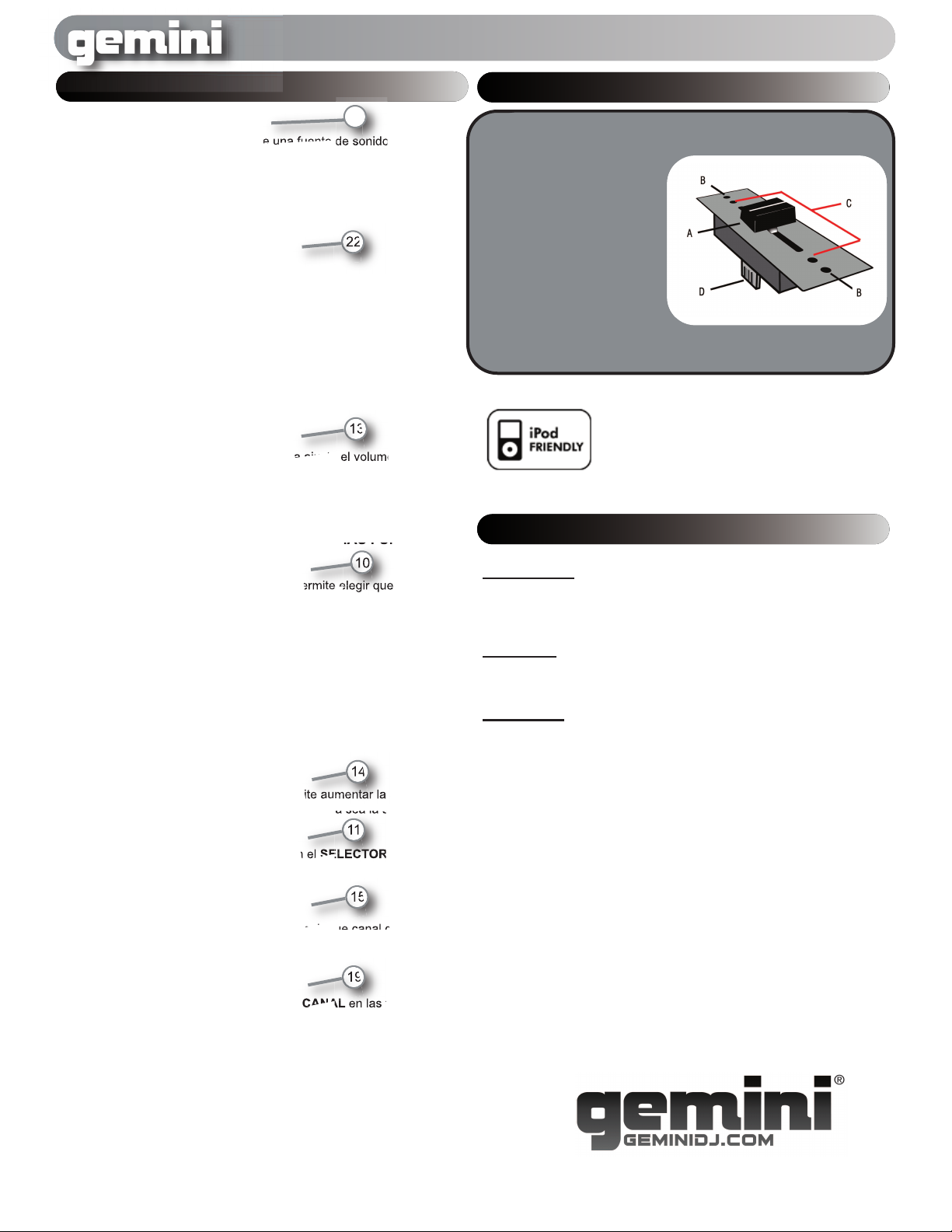

FADER REPLACEMENT
1. UNSCREW THE FADER (B) SCREWS. DO NOT TOUCH INSIDE SCREWS (C) CAREFULLY REMOVE OLD CROSS FADER AND UNPLUG CABLE (D)
2. PLUG IN THE NEW CROSS FADER INTO CABLE (D) AND PLACE BACK INTO MIXER.
3. SCREW THE CROSS FADER TO MIXER WITH THE FADER PLATE SCREWS (B)
4. REPLACE THE FACE OF THE MIXER AND SCREW THE FOUR
SCREWS BACK IN AND REPLACE THE FADER KNOBS.
“Ipod Friendly” Cable: To connect your Ipod or other Digital Media Player, use the included Ipod cable. Connect the 1/8” end of the cable to the headphone or line out jack of your player, and connect the RCA to the line input of your mixer.
SPECIFICATIONS
INPUTS:
Phono.....................................................................................3mV,47 KOhm
Line..................................................................................150 mV, 27 KOhm
MIC......................................................................1.5 mV, 1 KOhm Balanced
For example on CHANNEL (1) the INPUT SELECTOR allows you to choose between LINE 1 in or MIC 2 in, and on CHANNEL (2) The INPUT SELECTOR allows you to choose between PHONO 1/LINE 2 and LINE 3 , and also on CHANNEL (3) the INPUT SELECTOR SWITCH will let you choose between PHONO 2/LINE 4 and LINE 5 then on CHANNEL (4) you may choose between LINE 6 and MIC 3 and on CHANNEL (5) you can choose between LINE 7 and LINE 8 . (see CONVERTIBLE LINE INPUT) for PHONO 1/ LINE 2 and PHONO 2/ LINE 4 switching.
CHANNEL ROTARY GAIN
The CHANNEL ROTARY GAIN allows you to boost the signal of each indi- vidual channel depending on how low or high its input level is
CHANNEL VOLUME FADER After you have chosen which input you will use with the INPUT SELEC- TOR the corresponding CHANNEL FADER will allow you to adjust the vol-
ume for that particular CHANNEL.
14
11
15
CHANNEL CUE BUTTONS
The CHANNEL CUE BUTTONS allow you to individually choose which channel you wish to monitor in your headphones, you can monitor one at a time or any combination of the five.
3 BAND EQUALIZER
The 3 BAND EQUALIZER adjust the tone of each CHANNEL by giving you a choice 3 frequencies (BANDS) to adjust , from LOW, MIDRANGE (MID) and HIGH’s ,you can use the adjustment knobs to higher or lower the 3 seprate frequencies till the sound of the music pro­gram is approppriate for your listening enviroment.
19
OUTPUTS:
Max...................................................................................20V Peak-to Peak
Rec.....................................................................................225 mV, 5 KOhm
GENERAL:
Frequency Response.................................................20Hz - 20KHz +/- 2db
Distortion..........................................................................................< 0.02%
S/N Ratio...........................................................................Better than 85 dB
Headphone impedance..................................................................16 Ohm
Power Source (external)......................................................AC 15V, 500mA
Unit Demensions.....................................................................19” x 3.3” x 7”
..........................................................................(482.6 x 83.82 x 177.8 mm)
Weight................................................................................6.35 lbs (2.88 kg)
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTIFICATION FOR IMPROVEMENT

MULTII-LANGUAGE INSTRUCTIUONS
English............................................................................................................................................................................................PAGE-2
Deutsch..........................................................................................................................................................................................PAGE-6
Español.........................................................................................................................................................................................PAGE-10
Francias........................................................................................................................................................................................PAGE-14
VOR BENUTZUNG DES GERÄTS LESEN. WICHTIGE HINWEISE&SICHERHEITSBESTIMMUNGEN
ACHTUNG
STROMSCHLAGGEFAHR!
NICHT ÖFFNEN!
VORSICHT: Dieses Produkt erfüllt die FCC-Regeln, wenn Sie zum Anschluss abgeschirmte Kabel und
Stecker verwenden, um es mit anderen Geräten zu verbinden. Auch um elektromagnetische Störungen anderer elektrischer Geräte wie Radios oder Fernseher zu vermeiden, benutzen Sie abgeschirmte Kabel und Stecker für die Verbindungen.
as Ausrufezeichen im gleichseitigen Dreieck weißt Sie in der Bedienungsanleitung auf wichtige
D Bedienungsanweisungen und Wartungs-/Serviceanweisungen hin.
Das Blitzsymbol im gleichseitigen Dreieck dient dazu, den Benutzer vor gefährlichen Spannungen an nicht isolierten Stellen im Gehäuse zu warnen, die so groß sind, dass sie eine Gefahr für den Benutzer darstellen.
ANWEISUNGEN LESEN: Lesen Sie alle Sicherheits- und Bedienungsanweisungen, bevor Sie mit
dem Produkt arbeiten.
UFBEWAHRUNGSHINWEIS: Bewahren Sie alle Sicherheits- und Bedienungsanweisungen gut auf.
A WARNHINWEISE: Alle Warnhinweise für das Produkt und die Bedienungsanweisungen müssen
genau eingehalten werden.
NWEISUNGEN BEFOLGEN: Alle Anweisungen zum Betrieb des Produkts sollten befolgt werden.
A REINIGUNG: Das Produkt sollte nur mit einem Polier- oder einem weichen trockenen Tuch gereinigt
erden. Benutzen Sie dazu niemals Möbelwachs, Benzine, Insektenmittel oder andere flüchtige
w Reinigungsmittel, denn Sie könnten zur Korrosion des Gehäuses führen.
ERWEITERUNGEN: Benutzen Sie keine Erweiterungen, die nicht vom Hersteller empfohlen sind, da
sie zu Risiken führen könnten.
WASSER&FEUCHTIGKEIT: Benutzen Sie dieses Produkt nicht in der Nähe von Wasser, z. B. in der
Nähe einer Badewanne, einer Waschschüssel, eines Küchenspülbeckens, eines Waschbeckens, in einem feuchten Keller, in der Nähe eines Schwimmbeckens oder an ähnlichen Orten.
ZUBEHÖR: Stellen Sie das Produkt nicht auf eine wackelige oder labile Unterlage. Das Produkt kön-
nte herunterfallen und dabei Kinder oder Erwachsene verletzen, wie auch selber beschädigt wer­den. Stellen Sie das Produkt nur auf vom Hersteller empfohlene oder verkaufte Unterlagen. Jede Befestigung und Montage des Produkts sollte nach den Anweisungen des Herstellers ausgeführt werden. Nutzen Sie dazu ein vom Hersteller empfohlenes Montageset.
MOBILE UNTERLAGEN: Bewegen Sie eine Kombination aus dem Produkt und einer mobilen Unter-
lage mit Vorsicht. Schnelles Anhalten, zu viel Schub oder unebene Böden können dazu führen, dass sich Produkt und mobile Unterlage überschlagen (siehe Fig. A).
BELÜFTUNG: Schlitze und Öffnungen im Gehäuse sind für die Belüftung vorgesehen. Sie stellen den
zuverlässigen Betrieb des Produkts sicher und schützen es vor Überhitzung. Diese Öffnungen dür­fen nicht verschlossen, blockiert oder bedeckt werden.Stellen Sie deswegen das Produkt niemals auf ein Bett, ein Sofa, einen Teppich oder Stellen mit ähnlicher Oberfläche. Wenn Sie dieses Pro­dukt in einer festen Installation wie z. B. in einem Regal oder einem Rack einbauen, sorgen Sie für ausreichende Belüftung oder sorgen Sie dafür, dass die Bestimmungen des Herstellers genau ein gehalten werden.
STROMANSCHLUSS: Dieses Produkt darf nur mit dem auf dem Gerät angegebenen Strom betrieben
werden. Wenn Sie sich nicht sicher sind, welche Stromart Sie bei sich zu Hause haben, fragen Sie den Verkäufer des Geräts oder Ihren Stromversorger.
AUFSTELLUNGSORT: Stellen Sie das Gerät an einem festen Ort auf. ZEITEN DES NICHTGEBRAUCHS: Ziehen Sie das Stromkabel aus dem Gerät heraus, wenn Sie es
für eine längere Zeit nicht gebrauchen.
ERDUNG ODER POLUNG: Wenn dieses Produkt mit einem gepolten Wechselstromstecker (ein
Stecker mit einem Kontakt mehr als andere Stecker) ausgestattet ist, passt dieser nur in einer bes­timmten Richtung in die Steckdose und ist ein besonderes Sicherheitsmerkmal. Sollten Sie den Stecker nicht komplett in die Steckdose stecken können, versuchen Sie ihn andersherum einzustecken. Sollte der Stecker auch dann noch nicht in die Steckdose passen, beauftragen Sie einen Elektriker, um diese veraltete Steckdose auszutauschen.
Wenn dieses Produkt mit einem geerdeten dreipoligen Stecker ausgestattet ist, hat der Stecker einen dritten (Erdungs-)Kontakt und passt nur in eine Steckdose mit entsprechender Erdung. Auch das ist ein Sicherheitsmerkmal. Sollte der Stecker nicht in die Steckdose passen, beauftragen Sie einen Elektriker, um diese veraltete Steckdose auszutauschen.
SCHUTZ DES STROMKABELS: Stromkabel sollten so verlegt werden, dass man nicht auf sie treten
kann, noch dass sie von darauf stehenden oder gegen sie stoßenden Gegenständen gequetscht werden. Achten Sie besonders auf Kanten, Sicherung, Stecker und Buchsen.
AUSSENANTENNENERDUNG: Wenn Sie eine Außenantenne oder ein Radio-/Fernsehkabelsignal an
das Produkt anschließen, achten Sie darauf, dass die Antenne oder das Kabel geerdet sind, um dafür zu sorgen, dass Überspannungen und elektrostatische Aufladungen nicht auftreten können. Im Artikel 810 des National Electrical Code, ANSI/NFPA 70, finden Sie Informationen über die
richtige Erdung des Antennenmasts und weitere Informationen zu diesem Thema. (Siehe Auch Fig. B).
GEWITTER: Trennen Sie das Produkt während eines Gewitters oder wenn es unbeaufsichtigt ist oder
enn es für eine lange Zeit nicht benutzt wird, durch herausziehen des Stromkabels aus der Netz-
w
ose. Trennen Sie auch die Verbindung zu einer Antenne oder Radio-/Fernsehkabeln. Dadurch
d vermeiden Sie Beschädigungen des Produkts durch Blitze oder Überspannungen.
STROM- UND ÜBERLANDLEITUNGEN: Stellen Sie eineAußenantenne nicht in der Nähe von Über-
andleitungen, elektrischen Licht- oder Stromkreisen oder an Stellen, wo sie in eine solche Leitung
l
allen könnte, auf. Wenn Sie eineAußenantenne aufstellen, achten Sie besonders darauf, dass Sie
f auf keinen Fall irgendwelche Stromleitungen berührt. Das kann zu gefährlichen Auswirkungen führen.
ÜBERLASTUNG: Überlasten Sie keine Steckdosen, Verlängerungskabel oder Sicherungen. Das kann
zu Bränden oder elektrischen Schlägen führen.
EINDRINGEN VON GEGENSTÄNDEN ODER FLÜSSIGKEIT: Führen Sie niemals irgendwelche
Gegenstände durch Öffnungen in das Produkt ein. Sie könnten mit Strom führenden Stellen in Verbindung kommen oder Kurzschlüsse verursachen, die zu Bränden oder elektrischen Schlägen führen können. Gießen Sie niemals irgendwelche Flüssigkeiten auf oder in das Produkt.
ERVICE: Versuchen Sie nicht, das Produkt selber zu reparieren. Durch das Öffnen des Gehäuses
S
oder Entfernen von Schrauben können Sie mit gefährlichen Spannungen oder anderen Risiken in Kontakt kommen. Beauftragen Sie im Reparaturfall nur qualifiziertes Servicepersonal.
WANN SERVICE NÖTIG IST: Unter den folgenden Bedingungen ziehen Sie auf jeden Fall das Stromk-
abel aus der Steckdose und beauftragen Sie für eine Reparatur nur qualifiziertes Servicepersonal:
- Wenn das Stromkabel defekt ist.
- Wenn Flüssigkeit auf oder in das Produkt gelaufen ist oder Gegenstände in das Produkt gefallen sind.
- Wenn das Produkt Regen oder Wasser ausgesetzt war.
- Wenn das Produkt trotz Befolgen der Bedienungsanweisungen nicht normal arbeitet. Stellen Sie dabei das Produkt nur nach den Anweisungen der Bedienungsanleitung ein, andere Einstellungen können das Produkt beschädigen und den aufwändigen Einsatz von Technikern für die Wiederher­stellung erfordern.
- Wenn das Produkt hingefallen oder auf andere Art und Weise beschädigt ist.
- Wenn das Produkt eine eindeutige Veränderung im Betrieb zeigt.
ERSATZTEILE: Wenn Ihr Produkt Ersatzteile benötigt, achten Sie darauf, dass der Servicetechniker
nur vom Hersteller erlaubte Ersatzteile oder Ersatzteile, die die gleichen Eigenschaften wie die originalen Teile aufweisen, einsetzt. Falsche Ersatzteile können zu Bränden, elektrischen Schlägen oder anderen Risiken führen.
SICHERHEITSTEST: Bevor der Service oder eine Reparatur für dieses Produkt beendet sind, beauf-
tragen Sie den Servicetechniker, einen Servicetest durchzuführen, um sicher zu stellen, dass das Produkt einwandfrei funktioniert.
WAND- ODER DECKENMONTAGE: Das Produkt sollte nicht an einer Wand oder der Decke montiert
werden.
HITZE: Stellen Sie das Produkt nicht in die Nähe von Wärmequellen wie Radiatoren, Wärmespeichern,
Öfen oder anderen Produkten (auch Verstärker), die Hitze erzeugen.
Verwerten Sie wieder: Dieses Produkt sollte nicht als Haushaltsmüll entsorgt werden. Entsorgen Sie
das Produkt im Bedarfsfall bei einer zuständigen Entsorgungsstelle, die das Recycling der elek­trischen und elektronischen Bauteile übernimmt. Wenn Sie das Produkt dem gemäß entsorgen, schützen Sie die Umwelt und die menschliche Gesundheit. Bei nicht sachgemäßer Entsorgung gefährden Sie die Umwelt und die menschliche Gesundheit. Das Recycling verschiedener Materi­alien hilft, die Natur und ihre Ressourcen zu schonen. Für nähere Informationen bezüglich der Entsorgung dieses Produkts nehmen Sie Kontakt auf mit Ihrer lokalen Stadtverwaltung, dem zuständigen Entsorgungsunternehmen oder dem Händler, bei dem Sie das Produkt gekauft haben.

MM-3000
1
OBERSEITE
8
7
RÜCKSEITE
2
3
24
25
6
7
4
14
7
5
MIXER Kanal
ICHTIG: Alle Kanäle sind iden-
10
W tisch ausgestattet.
21
20
15
19
11
9
23
12
16
17
18
22
13
MM-3000
EINLEITUNG
Wir gratulieren Ihnen zum Kauf des Gemini MM-3000 19" 5 Kanal Stere­omixers. Dieser State-of-the-art Mixer spiegelt den aktuellen technologis­chen Stand wieder und ist mit einer 1 Jahres Garantie* (mit Ausnahme der Crossfaders) ausgestattet. Für den Crossfader gilt eine separate 90 Tage Garantie. Lesen Sie vor Inbetriebnahme aufmerksam alle Anweisungen.
AUSSTATTUNG
- 19" 5 Kanal Stereo Mixer
- 8 Line-, 2 umschaltbare Phono/Line Cinch Eingänge
- Master-Ausgang mit XLR symmetrisch und Cinch
- Record- und Zone Cinch Ausgang
- 3 Band Equalizer pro Kanal
- Cue Lautstärkeregler & CUE/PGM Fader
- XLR Mikrofoneingang mit Equalizer und Talkover Schalter
- zuweisbarer Railglide Crossfader
VORSICHTSMASSNAHMEN
1. Lesen Sie die Hinweise aufmerksam durch, bevor Sie das Gerät in Betrieb nehmen.
2. Um das Risiko eines elektrischen Schlages zu reduzieren, sollten Sie das Gerät nicht öffnen. Bringen Sie das Gerät im Servicefall immer zu einem von Gemini qualifizierten Techniker.
ITTE SETZEN SIE SICH MIT IHREM G
B
3. Nicht direktem Sonnenschein oder Hitzequellen wie Radiatoren oder Öfen aussetzen.
4. Nur mit einem weichem Tuch reinigen. Keine Lösungsmittel oder chemischen Reinigungsmittel nehmen.
5. Transportieren Sie das Gerät im Originalkarton. So verringern Sie das Risiko eines Transportschadens.
6. NICHT REGEN ODER FEUCHTIGKEIT AUSSETZEN.
7. KEINE SPRÜHREINIGER ODER SCHMIERÖL AN REGLERN, OBERFLÄCHE ODER SCHALTERN NUTZEN.
VORGEHEN IM FALLE EINER BEANSTANDUNG:
EMINI V
ERTRAGSHÄNDLER IN VERBINDUNG.
ANSCHLÜSSE
Stellen Sie sicher, dass sich der EIN/AUS SCHALTER in der Position OFF befindet, bevor Sie mit dem An-
schließen beginnen.
NETZKABEL
Das Gerät wird mit einem Netzkabel geliefert, das Sie zuerst in den rückseitigen AC EINGANG stecken und dann erst in die Steckdose.
Der MM-3000 verfügt über 2 symmetrische Stereoausgänge auf der Rückseite:
Den MASTERAUSGANG (CINCH&XLR) zur Verbindung des Mixers mit Cinch Kabeln mit Ihrem Hauptver­stärker.
Den RECORD AUSGANG (CINCH) zur Verbindung des Mixers mit Cinch Kabeln mit einem Aufnah­megerät.
Der ZONE AUSGANG dient zum Anschluss eines Kontrollmonitors oder für einen separaten Lautsprecherkreis.
MASSEANSCHLUSS
Wenn Sie Plattenspieler verwenden, sollten Sie Cinch Kabel mit zusät­zlichem Masseleiter benützen und die Masseklemme mit dem rück­seitigen MASSEANSCHLUSS verbinden. Verbinden Sie jeden Plattenspieler mit dem MASSEANSCHLUSS, den Sie auf der Rück­seite finden.
1
21
25
2
3
24
4
UMSCHALTBARE PHONO/LINE EINGÄNGE Der MM-3000 verfügt über 2 UMSCHALTBARE PH/LINE Eingänge mit Cinch Buchsen. Rechts neben den Cinch Buchsen von Kanal 2 und 3
befinden sich kleine Schalter, mit denen Sie festlegen, ob der Eingang als PHONO (Plattenspieler) Eingang oder LINE (MP3 Player, CD, Tape, usw. ) Eingang arbeitet. Achten Sie auf die richtige Schalterstellung
In der Position PH können Sie Plattenspieler mit einem Magnetsystem ver­wenden. Denken Sie daran, eine MASSE-Verbindung herzustellen (siehe MASSEANSCHLUSS), da es sonst zu unerwünschtem Brummen kommen kann. In der Position LN können Sie Geräte mit Line Pegel wie MP3 Player, CD Player, Tape o.ä. verwenden.
ICHTIG: SCHLIESSEN SIE KEIN LINE SIGNAL AN EINEN PHONO EINGANG
W AN, UM ÜBERSTEUERUNGEN ODER VERZERRUNGEN ZU VERMEIDEN.
Schließen Sie jetzt mit Cinch Kabeln Ihre Zuspielgeräte an die gewün- schten Eingänge an.
Haben Sie alle Verbindungen vorgenommen, schalten Sie den Mixer mit dem NETZSCHALTER ein.
MIC (MIKROFON) EINGANG
An den MIKROFON Eingang, der sich oben links in der Ecke der Front- platte befindet, können Sie ein Mikrofon anschließen. Sie können neben der Lautstärke auch die Höhen und Bässe regeln (siehe REGLER unten).
KOPFHÖRER AUSGANG An den KOPFHÖRER AUSGANG in der unteren rechten Ecke des MM-3000 können Sie jeden Kopfhörer mit 6,3 mm Klinkenstecker (oder
Adapter) anschließen. Sie können Ihre Musik damit vorhören, bevor Sie es spielen. Regeln Sie auf Wunsch die Lautstärke und den PGM Mix des KOPFHÖRERS (siehe REGLER unten).
7
18
REGLER
MIKROFON REGLER
Unterhalb des Mikrofoneingangs finden Sie die zugehörigen Regler. Dieses sind:
MIKROFON LAUTSTÄRKE
Stellen Sie die gewünschte Lautstärke des Mikrofonsignals ein.
MIKROFON EQ
Ändern Sie die tiefen und hohen Frequenzen des Mikrofonsignals.
TALKOVER SCHALTER
Steht der TALKOVER SCHALTER in der Position ON, wird die Musik um 20 dB gedämpft, sobald man in das Mikrofon spricht.
8
9
23
10
CUE/PGM REGLER Mit dem CUE/PGM Regler bestimmen Sie den Mix zwischen dem mit den CHANNEL CUE TASTEN festgelegten Kanal (Kanälen) und dem Hauptsig-
nal für den Kopfhörerausgang.
CUE VOLUME REGLER Mit dem CUE VOLUME Regler stellen Sie die Lautstärke des Kopfhör- erausgangs ein.
17
18
KOPFHÖRERAUSGANG
An den KOPFHÖRERAUSGANG können Sie einen Kopfhörer mit 6,3 mm Klinkenstecker anschließen. Er kann zum Abhören des CUE genutzt wer­den (siehe oben)
PEGELANZEIGE Der MM-3000 verfügt über eine PEGEL ANZEIGE, um die Pegel von LINKEM und RECHTEM Kanal des MASTERAUSGANGS anzuzeigen.
20

5
6
21
MM-3000
CROSSFADER
CROSSFADER
Mit dem CROSSFADER können Sie zwischen zwei Quellen überblenden. Beim MM-3000 ist der CROSSFADER allen Kanälen zuweisbar. Sie kön­nen den CROSSFADER des MM-3000 bei Bedarf austauschen. Optional ist der RG-45 (RAILGLIDE™) DUAL-RAIL CROSSFADER bei Ihrem Gemini Händler erhältlich, der mit zwei internen Gleitschienen aus rost­freiem Stahl für weiche und akkurate Fahrten optimiert ist.
CROSSFADER ZUWEISUNGSSCHALTER
Mit dem CROSSFADER ZUWEISUNGSSCHALTER legen Sie fest, welche KANÄLE dem CROSSFADER zugewiesen werden. Sie können jeden Kanal auswählen. Der CROSSFADER regelt sanft zwischen den beiden Kanälen. Alle nicht zugewiesenen Kanäle arbeiten weiterhin nor­mal.
WICHTIG: ÜBEN SIE BEI DER BENUTZUNG DES CROSSFADERS KEINEN DRUCK AUS UND BEWEGEN IHN OHNE DRUCK. STARKER DRUCK AUF DIE REGLER KANN KONTAKTE VERBIEGEN UND ZU EINEM VERLUST AN KLANGQUALITÄT FÜHREN.
MASTER AUSGANGSBEREICH
Mit den Reglern des MASTER AUSGANGSBEREICHS legen Sie die Lautstärke des MAIN und ZONE Ausgangs und LINKS&RECHTS BAL-
ANCE dieser Ausgänge fest.
MIXER KANAL
WICHTIG: ALLE 5 KANÄLE SIND IDENTISCH AUSGESTAT­TET)
KANAL EINGANGSWAHLSCHALTER
Mit dem KANAL EINGANGSWAHLSCHALTER legen Sie fest, welcher Eingang dem Kanal zugeordnet und mit dem FADER geregelt wird.
Sie können zum Beispiel auswählen, ob KANAL (1) vom Eingang LINE 1 oder MIC 2 gespeist wird, in KANAL (2) stehen die Eingänge PHONO
1/LINE 2 und LINE 3 zur Wahl, in KANAL (3) sind es die Eingänge PHONO 2/LINE 4 und LINE 6. KANAL (4) bietet die Eingänge LINE 6 und MIC 3, in KANAL (5) sind es die Eingänge LINE 7 und LINE 8.
(siehe UMSCHALTBARE PHONO/LINE EINGÄNGE) für Umschaltung der Eingänge.
KANAL GAIN REGLER
Mit dem KANAL GAIN REGLER stellen Sie die gewünschte Vorver­stärkung des Signals für jeden Kanal individuell ein.
KANALFADER
Nachdem Sie mit dem KANAL EINGANGSWAHL-SCHALTER festgelegt haben, welchen Eingang Sie nutzen wollen, können Sie die Lautstärke mit dem zugehörigen KANALFADER einstellen.
KANAL CUE TASTEN
Mit den KANAL CUE TASTEN legen Sie fest, welchen Kanal Sie im Kopfhörer abhören möchten. Sie können einzelne oder jede Kombination aus allen fünf Kanälen wählen.
3 BAND EQUALIZER
Mit dem 3 BAND EQUALIZER stellen Sie die Klangfarbe jedes KANALS ein. Dazu stehen die 3 Frequenzen (BÄNDER) LOW (Tiefen), MID (Mit- ten) und HIGH (Höhen) zur Verfügung. Mit den Reglern können Sie die jeweiligen Bänder anheben oder absenken und den Klang so Ihren Wün­schen und der räumlichen Umgebung anpassen.
12
22
13
10
14
11
15
19
FADER AUSTAUSCHEN
1. Entfernen Sie die Fader Schrauben (b), nicht jedoch die inneren Schrauben (C). Nehmen sie den alten Crossfader heraus und ziehen das Kabel ab (D).
2. Schließen Sie das Kabel (D) an den neuen Crossfader an und platzieren ihn im Mixer.
3. Befestigen Sie den Crossfader mit den Schrauben (B).
4. Schrauben Sie die Platte wieder auf die untere Hälfte des Mixers.
“iPod Friendly” KABEL: Um einen iPod oder einen anderen Digital Media Player anzuschließen, verbinden Sie den 3,5 mm Klinkenstecker auf der einen Seite des Kabels mit dem Kopfhörer- oder Line Ausgang des Players und die Cinch Stecker des Ka­bels mit einem der Line Eingänge des Mixers.
TECHNISCHE DATEN
EINGÄNGE:
Phono..................................................................3 mV, 47 KOhm
Line.................................................................150 mV, 27 KOhm
MIC…………..........………............1,5 mV, 1 KOhm symmetrisch
AUSGÄNGE:
Max.................................................................20 V Spitze-Spitze
Rec....................................................................225 mV, 5 KOhm
ALLGEMEIN:
Frequenzgang.........................................20 Hz - 20 KHz +/- 2 dB
Verzerrung.....................................................................< 0,02 %
Rauschpannungsabstand..................................besser als 85 dB
Kopfhörer Impedanz........................................................16 Ohm
Stromversorgung...............................................AC 15 V, 500 mA
Abmessungen........................................................19" x 3,3" x 7"
………………………………………..(482,6 x 83,82 x 177,8 mm)
Gewicht.............................................................6,35 lbs (2,88 kg)
TECHNISCHE- UND LAYOUTÄNDERUNGEN OHNE VORANKÜNDIGUNG VOR­BEHALTEN
*ES GELTEN DIE JEWEILIGEN GEWÄHRLEISTUNGSBESTIMMUNGEN DES LANDES, WO DAS GERÄT ERWORBEN WURDE.

MULTII-LANGUAGE INSTRUCTIUONS
English............................................................................................................................................................................................PAGE-2
Deutsch..........................................................................................................................................................................................PAGE-6
Español.........................................................................................................................................................................................PAGE-10
Francias........................................................................................................................................................................................PAGE-14
POR FAVOR LEA ANTES DE UTILIZAR, INSTRUCCIONES IMPORTANTES DE SEGURIDAD
CAUTION
RIESGO DE SHOCK ELECTRICO
- NO ABRIR!
ATENCIÓN: Este producto cumple con la normativa legal si se utilizan cables y
conectores blindados para conectar la unidad a otro equipo. Para evitar interferen­cias electromagnéticas con otros aparatos eléctricos, como radios y televisores,
eben emplearse cables y conectores blindados.
d
Los signos de exclamación dentro de un triángulo que puedan aparecer en la docu­mentación que acompaña a la unidad pretenden alertar al usuario de instrucciones de operación o mantenimiento importantes.
l signo de un rayo dentro de un triángulo pretende alertar al usuario de la presen-
E
ia de "voltaje peligroso" no aislado en el inte-rior de la unidad, que podría ser de su-
c ficiente intensidad como para constituir riesgo de descarga eléctrica.
LEA LAS INSTRUCCIONES: Deben leerse todas las indicaciones de uso y seguri-
ad antes de usar este producto.
d
CONSERVE LAS INSTRUCCIONES: Las instrucciones de uso y seguridad deben
onservarse para referencias futuras.
c
ATIENDAA LAS ADVERTENCIAS: Deben seguirse todas las advertencias sobre este producto que figuran en el manual de instrucciones.
SIGA LAS INSTRUCCIONES: Deben seguirse todas las instrucciones del manual.
LIMPIEZA: Este producto debe limpiarse con una mopa suave o con un paño seco.
Nunca utilice cera para muebles, gasolina, insecticidas u otros líquidos volátiles, ya que podrían corroer la carcasa.
COMPLEMENTOS: No utilice accesorios que no estén recomendados por el fabri-
cante, pues podrían dañar la unidad.
AGUA Y HUMEDAD: No use este producto cerca de medios acuáticos, como una bañera, un cubo de agua, un fregadero o un lavadero; tampoco en un sótano húmedo, ni cerca de una piscina o similar.
ACCESORIOS: No coloque el producto sobre un carrito, soporte, trípode, brazo o mesa. Podría caer y causar graves daños a un niño o adulto, así como a la propia unidad. Úsese sólo con un carrito, soporte, trípode, brazo o mesa recomendado por el fabricante. Al montar la unidad deben seguirse siempre las instrucciones y em­plearse accesorios recomendados por el fabricante.
CARRITO: Si el producto va sobre un carrito, debe moverse el conjunto con cuidado. Detenciones bruscas, una fuerza excesiva o superficies inadecuadas pueden provocar la caída de todo el conjunto. Véase Figura A.
VENTILACIÓN: Las aperturas y ranuras de la carcasa están diseñadas para la ventilación, aseguran un manejo fiable y lo protegen de cualquier sobrecalen­tamiento, por tanto, nunca deben cubrirse ni bloquearse. Estas aperturas no deben taparse colocando el producto sobre un sofá, una cama, una alfombra o superficies similares. Nunca debe colocarse en una estructura prefabricada, como una caja o un rack, a menos que tengan la ventilación adecuada o lo permitan las instrucciones del fabricante.
FUENTES DE ALIMENTACIÓN: Esta unidad debe utilizarse exclusivamente con el tipo de suministro eléctrico indicado en la etiqueta correspondiente. Consúltelo antes de enchufar el producto si no está seguro del tipo de suministro del lugar donde lo va a usar.
UBICACIÓN: Este aparato debe colocarse en una ubicación estable.
PERIODOS SIN USARLO: Si no se va a usar la unidad durante un tiempo prolon-
gado, desenchúfelo de la corriente eléctrica.
TOMA DE TIERRA O POLARIZACIÓN:
- Si este producto lleva una clavija de corriente alterna polarizada (con un pivote más grueso que otro, tipo inglés), sólo entrará en una posición. Es una medida de seguridad. Si no puede introducir la cla-vija en el enchufe, gírela. En ningún caso debe forzarse. Si sigue sin entrar, un electricista debería cambiar el enchufe.
- Si la unidad lleva una clavija con tres pivotes (el tercero corres-ponde a la toma de tierra), sólo entrará en un tipo de enchufe. Se trata de una medida de seguridad. Si el enchufe y la clavija no son compatibles, un electricista deberá cambiar el enchufe. En ningún caso deberá forzarse.
PROTECCIÓN DEL CABLE DE CORRIENTE: Los cables de corriente deben pro-
tegerse para que nadie los pise ni corran el riesgo de pinzarse por elementos colo­cados encima o que los aprisionen. Debe prestarse especial atención al cable, al enchufe, a los extensores de cable y al punto por donde el cable sale de la unidad.
TIERRA DE LA ANTENA EXTERIOR: Si el producto lleva conectada una antena
exterior o sistema de cables, asegúrese de que cuenta con la toma de tierra corre­spondiente, a fin de proteger la unidad de variaciones de voltaje y cargas de electri­cidad estática. Existe documentación oficial acerca de la correcta utilización de la toma de tierra y de las medidas de seguridad pertinentes, conexión de los electrodos de descarga y sus requisitos. Véase Figura B.
RAYOS: Como protección adicional del producto durante una tormenta eléctrica, o
durante periodos prolongados sin usarlo, desenchúfelo de la corriente y desconecte la antena o sistema de cables. De este modo se protegerá el producto de los daños
que pueda producir la caída de un rayo o las fluctuaciones de la red eléctrica.
LÍNEAS ELÉCTRICAS: Nunca debe situarse un sistema de antena cerca de líneas
eléctricas u otros circuitos de corriente. Tampoco debe colocarse en lugares donde
ueda caer sobre dichos circuitos eléctricos. Al instalar un sistema de antenización
p exterior, debe tomarse la extrema precaución de no tocar dichas líneas eléctricas, pues el más mínimo contacto puede ser mortal.
SOBRECARGA: No sobrecargue los enchufes de la pared con ladrones o insta-
ando enchufes múltiples, pues correría el riesgo de electrocución o incendio.
l
NTRADA DE OBJETOS O LÍQUIDOS: Nunca introduzca objetos de ningún tipo
E
en el interior del producto, pues podrían tocar una parte eléctrica y cortocircuitar el aparato, lo que resultaría en un incendio o descarga eléctrica. No verter nunca
ingún líquido sobre el producto.
n
REPARACIÓN: No intente reparar el producto por cuenta propia, ya que abrir o re-
irar la carcasa le expondría a un voltaje peligroso u otros peligros. Diríjase siempre
t a un centro de servicio técnico autorizado.
DAÑOS QUE REQUIEREN REPARACIÓN: Desenchufe el aparato de la corriente
y diríjase a un servicio técnico autorizado si se da alguna de las siguientes situa­ciones:
- El cable de alimentación o la clavija están dañados.
- Se ha vertido líquido o ha caído algún objeto sobre la unidad.
- El aparato se ha expuesto a la lluvia o a salpicaduras.
- La unidad se ha caído al suelo o dañado de algún modo.
- El aparato no funciona con normalidad, ni aun siguiendo las instrucciones. Ajuste sólo los mandos que se indican en las instrucciones, ja que la manipulación inade­cuada de otros controles podría dañar la unidad y requeriría un mayor trabajo de un técnico para restablecer su funcionamiento normal.
- Si el producto muestra anomalías en su funcionamiento, necesita revisión por parte de un servicio técnico autorizado.
RECAMBIOS: Cuando se necesite alguna pieza de recambio, asegúrese de que el
servicio técnico utilice piezas originales autori-zadas o que tengan las mismas carac­terísticas que las originales. Los reemplazos no autorizados pueden causar descargas eléctricas, incendios u otros daños.
COMPROBACIÓN DE SEGURIDAD: Tras la reparación, solicite al técnico que efec-
túe las comprobaciones de seguridad necesarias para determinar que el producto se encuentra en las condiciones adecuadas para su funcionamiento.
MONTAJE EN UNA PARED O TECHO: Este producto nunca debe montarse en una
pared o en el techo.
CALOR: Este producto debe alejarse de fuentes de calor, como radiadores, estufas
u otros aparatos que irradien calor, incluyendo amplificadores.

MM-3000
VISTA TRASERA
2
1
3
VISTA FRONTAL
8
7
24
25
6
7
4
14
7
5
CANAL de MEZCLA
10
NOTA: TODOS LOS CANALES TIENEN LAS MISMAS FUNCIONES
21
20
15
19
11
9
23
12
16
17
18
22

13
MM-3000
INTRODUCCIÓN
Felicidades por la compra de su Gemini MM-3000 mezclador 19" 3 canales estéreo. Este mezclador de diseño incorpora la última tecnología y está amparado por 1 año de garantía, excluyendo el cross fader. El cross fader está cubierto por 90 dias de garantía. Antes de usar le suge­rimos lea detenidamente estas instrucciones.
CARACTERISTICAS
- Mezclador de 19” 5 canales estéreo
- Entradas RCA 8 linea, 2 convertible phono/linea
- Salidas balanceadas XLR y RCA para Master
- Salidas Grabación y Zona por RCA
- 3 bandas EQ por canal
- Volumen rotativo de cue, con fader CUE/PGM
- Entrada Mic XLR con EQ y Talkover
- Crossfader asignable Railglide
PRECAUCIÓNES
1. Las instrucciones deben leerse antes de usar este equipo.
2. Para reducir el riesgo de shock electrico, no abra la unidad. Por favor acuda a un tecnico cualificado de Gemini para cualquier averia.
EN USA ~ SI USTED TIENE PROBLEMAS CON ESTA UNIDAD LLAME AA-
TENCIÓN AL CLIENTE GEMINI EN: 1 (732) 346-0061. NO INTENTE DE-
VOLVER EL EQUIPO A SU DISTRIBUIDOR.
3. No exponga esta unidad a rayos de sol o unidad calorica como radiadores o estufas.
4. Esta unidad debe limpiarse solo con un paño humedo. Evite disolventes u otros productos detergentes.
5. Al trasladar el equipo, utilice la caja original y su embalaje. esto reducirá el riesgo de daños durante el transporte.
6. NO EXPONGA ESTA UNIDAD A LLUVIA O ROCIO.
7. NO USE LIMPIADORES DE SPRAY O LUBRICANTES EN LOS CONTROLES, SUPERFICIES O INTERRUPTORES.
CONEXIONES
21
Asegurese que el interruptor general está en posición OFF antes de hacer conexiones.
CABLE DE ALIMENTACION
Esta unidad trae CABLE DE ALIMENTACION. Conectelo en la trasera y a la toma adecuada de corriente.
El MM-3000 tiene salidas balanceadas en el panel trasero:
SALIDA MASTER RCA
conecta el mezclador al amplificador principal usando cables estandar de conectores RCA.
SALIDA DE GRABACION
La salida de GRABACION puede usarse para conectar el mezclador a una grabadora, permitiendo grabar su mezcla con cables RCA.
SALIDA ZONA permite controlar una salida separada para monitor- izar en la cabina de DJ u otra zona separada.
TORNILLO DE MASA
Si utiliza un giradiscos necesitará hacer una toma de masa para su cable RCA atornillandolo al TORNILLO DE MASA localizado en la trasera de su MM-3000.
1
25
2
3
24
4
Conecte un PHONO (Giradiscos) con linea de masa al TORNILLO DE
TOMA DE MASA plateado en el centro de la parte trasera.
ENTRADAS CONVERTIBLE PH/LINEA El MM-3000 tiene 2 ENTRADAS CONVERTIBLE PHONO/LINEA (PH/LN) POR RCA Los interruptores emplazados a la derecha de las entradas RCA
de canales 2 y 3 permiten elegir entre PHONO (Giradiscos) o LINEA (Mp3, CD, cassette etc..).y deben situarse en su correcta posición.
Cuando están en posición PH puede conectar cualquier giradiscos con cápsula magnética, acordandose de conectar la masa (ver conexión de TOMA DE TIERRA) o podría haber zumbidos
Y cuando está en posición LN puede conectar cualquier unidad de nivel de línea como Mp3, CD, cassette etc).
NOTA: CONECTANDO UN APARATO DE LINEA EN UNA ENTRADA DE PH PUEDE CREAR SOBRECARGA DEL MEZCLADOR Y DISTORSIÓN.
Ahora ya puede conectar los RCA’s de su fuente de sonido en los respec- tivos CANALES (CH).
Cuando todas las conexiones estén hechas, encienda el mezclador con el INTERRUPTOR GENERAL.
MIC (MICRÓFONO)
La entrada de MIC esta alojada en la esquina izquierda superior del frontal del MM-3000 y permite cualquier jack 1/4” no balanceado. Puede controlar la ganancia e incluso graves y agudos de esta entrada. (Vea CONTROLES ).
7
5
18
SALIDA AURICULARES
La salida de Aurticulares situada en la esquina derecha inferior del MM-3000 permite conexión de jack 1/4” y/o adaptador facilitando la pre­escucha del programa antes de lanzarlo, ajustando el volumen y el PGM mix en el auricular (vea CONTROLES).
CONTROLES
CONTROL DE MICROFONO
Bajo la entrada de micrófono jack están los controles de micrófono, que consisten en:
VOLUMEN DE MICRO
Permite ajuster el nivel de volumen del micro.
EQ
Permite controlar el nivel de bajas y altas frecuencias del micrófono.
TALKOVER
Cuando está en posición ON el INTERRUPTOR TALKOVER baja el volu- men de la música en 20 dB dando prioridad de palabra.
CUE/PGM FADER
El CUE/PGM ROTATIVO determina la mezcla entre el CUE DE CANAL(s) y la SALIDA PRINCIPAL.
8
9
23
10
17
CUE VOLUMEN ROTATIVO El CUE VOLUMEN ROTATIVO ajusta la salida de AURICULARES DE MONITOR.
18
SALIDA AURICULARES DE MONITOR
LA SALIDA DE AURCULARES DE MONITOR acepta jack 1/4” y puede usarse para MONITORIZAR EL CUE como se explica aqui.
VU METER
El MM-3000 tiene un VU METER que permite ver los decibelios de salida en MASTER DE IZQUIERDA Y DERECHA.
20

6
21
MM-3000
CONTROLES CONTINUADO
CROSS FADER El CROSS FADER permite mezclar de una fuente de sonido a otra. En el MM-3000 el CROSS FADER es asignable entre todos los canales (5). El CROSS FADER en el MM-3000 es también removible por si necesita
reemplazarse. El CROSSFADER RG-45 (RAILGLIDE que tiene dos guias internas de acero inoxidable y permite un desplaza­miento aún más suave y preciso puede ser adquirido en su distribuidor habitual de GEMINI.
CROSSFADER ASIGNACION La ASIGNACION del CROSSFADER permite asignar uno de los CANALES del mezclador al crossfader. El CROSSFADER entonces
mezclará suavemente entre los canales seleccionados. Los canales no asignados al CROSSFADER funcionan normalmente.
NOTA:Al USAR UN CROSS FADER DESPLACE SUAVEMENTE DE PUNTA A PUNTA. SI PRESIONA HACIA ABAJO LOS CONTROLES PUEDE DOBLAR LOS CONTACTOS Y CAUSAR PERDIDAS DE SONIDO.
SECION DE SALIDA MASTER
La SECCION DE SALIDA MASTER rotativa ajusta el volumen principal y de zona y también el balance de IZQUIERDA y DERECHA de esas sali­das.
CANAL DE MEZCLA
(NOTA: LOS 5 CANALES TIENEN LAS MISMAS FUNCIONES)
SELECTOR ENTRADA DE CANAL
El SELECTOR DE ENTRADA DE CANAL permite elegir que entrada va a ser controlada por este canal FADER.
Por ejemplo el CANAL (1) el SELECTOR DE ENTRADA permite elegir entre LINEA 1 o MIC 2, y en CANAL (2) el SELECTOR DE ENTRADA permite elegir entre PHONO 1/LINEA 2 y LINEA 3 , y también en el
CANAL (3) el SELECTOR DE ENRADA permite elegir entre PHONO 2/LINEA 4 y LINEA 5 por lo que en CANAL (4) puede elegir entre LINEA 6 y MIC 3 y en el CANAL (5) puede elegir entre LINEA 7 y LINEA 8 . (ver CONVERTIBLE LINEA) para PHONO 1/ LINEA 2 y PHONO 2/ LINEA 4 .
GANANCIA ROTATIVA DE CANAL
La GANANCIA ROTATIVA DE CANAL permite aumentar la señal de cada canal individual dependiendo de como de alta obaja sea la señal.
VOLUMEN DE CANAL Despues de elegir que canal va a utilizar con el SELECTOR DE EN- TRADA el correspondiente FADER DE CANAL le permitirá ajustar el vol- umen de ese particular CANAL.
CUA DE CANAL
Los botones de CUE DE CANAL permiten elegir que canal desea monitor­izar a través de sus auriculares, puede elegir desde uno hasta cualquier combinación de los cinco.
3 BANDAS EQ
El EQ de 3 BANDAS ajusta el tono de cada CANAL en las tres frecuen­cias dadas (BANDAS) para ajustar, GRAVES, MEDIOS (MID), y AGU- DOS ,puede usar los ajustges para aumentar o disminuir las tres frecuencias hasta que la audición del programa musical sea la deseada.
12
) DUAL-RAIL,
22
13
10
14
11
15
19
FADER REEMPLAZABLE
1. DESATORNIILLE EL FADER (B) . NO TOQUE LOS TORNILLOS INTERIORES (C) CON CUIDADO SAQUE EL VIEJO CROSS FADER Y DESCONECTE EL CABLE (D)
2. PONGA EL NUEVO CROSS FADER EN EL CABLE (D) Y DEVUELVALO AL MEZ­CLADOR.
3. ATORNILLE EL CROSS FADER CON LOS TORNILLOS DE CARATULA (B)
4. REPONGA LA CARATULA DEL MEZCLADOR CON SUS CUA­TRO TORNILLOS Y COLOQUE LOS BOTONES DE FADER.
Cable “Ipod Friendly”: Para conectar su Ipod u otro reproductor Digital Media, use el cable Ipod incluido. Conecte el jack 1/8” a la toma de auriculares o salida de linea de su reproductor, y conecte los RCA a su mezclador.
ESPECIFICACIONES
ENTRADAS:
Phono.....................................................................................3mV,47 KOhm
Linea................................................................................150 mV, 27 KOhm
MIC......................................................................1.5 mV, 1 KOhm Balanced
SALIDAS:
Max...................................................................................20V Peak-to Peak
Rec.....................................................................................225 mV, 5 KOhm
GENERAL:
Respuesta en frecuencia............................................20Hz - 20KHz +/- 2db
Distorsión.........................................................................................< 0.02%
S/N Ratio...........................................................................Better than 85 dB
iImpedancia auriculares....................................................................16 Ohm
Alimentación (externa).........................................................AC 15V, 500mA
Dimensiones...........................................................................19” x 3.3” x 7”
..........................................................................(482.6 x 83.82 x 177.8 mm)
Peso..................................................................................6.35 lbs (2.88 kg)
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTIFICATION FOR IMPROVEMENT

MULTII-LANGUAGE INSTRUCTIUONS
English............................................................................................................................................................................................PAGE-2
Deutsch..........................................................................................................................................................................................PAGE-6
Español.........................................................................................................................................................................................PAGE-10
Français........................................................................................................................................................................................PAGE-14
AVANT TOUTE UTILISATION DE L'APPAREIL, MERCI DE PRENDRE CONNAISSANCE DES INSTRUCTIONS D'UTILISATION & DE SECURITE!
ATTENTION
RISQUE DE CHOC ÉLECTRIQUE
NE PAS OUVRIR!
ATTENTION: Cet appareil répond aux certifications FCC lorsqu'il est connecté à d'autres appareils à l'aide de cordons blindés. Afin de prévenir tout risque de para­sites électromagnétiques avec un poste radio ou TV, veuillez utiliser des cordons
lindés.
b
Le point d'exclamation situé dans un triangle est destiné à attirer votre attention du­rant l'utilisation de votre appareil ou d'un entretien périodique de ce dernier. Vous en trouverez plusieurs dans le mode d'emploi de l'appareil.
LIRE LES INSTRUCTIONS: Toutes les instructions et consignes d'utilisation doivent être lues avant l'utilisation de l'appareil.
CONSERVEZ LES INSTRUCTIONS: Nous vous recommandons de conserver les instructions et consignes d'utilisation en cas de nécessité ultérieure.
ESPECT DES CONDITIONS D'UTILISATION: Nous vous recommandons de re-
R
specter les instructions d'utilisation. SUIVRE LES INSTRUCTIONS D'UTILISATION: Nous vous recommandons de re-
specter la chronologie des instructions d'utilisation. NETTOYAGE: L'appareil doit être nettoyé avec un chiffon légèrement humide. Ne
pas utiliser de produits chimiques corrosifs & volatiles (cire, essence, insecticide…)
fin de ne pas endommager l'appareil.
a CORDON: Ne pas utiliser de cordons non préconisés par le fabricant afin de ne pas
endommager l'appareil. EAU & HUMIDITE: Ne pas utiliser l'appareil à proximité d'une source d'eau (cuisine,
salle de bain, lavabo…), ni dans un endroit sujet à l'humidité (piscine…). ACCESSOIRES: Ne pas installer cet appareil sur un support ou dans un endroit in-
stable. L'appareil pourrait tomber au risque de blesser une personne et être endom­magé. Veiller à utiliser des accessoires (Pied, support, crochet..) recommandés par le fournisseur ou vendu avec l'appareil. Tout montage ou installation doit respecter les instructions du fabricant et utiliser des accessoires d'installation recommandés par le fabricant.
TRANSPORT SUR CHARIOT: Tout produit installé sur un chariot doit être manipulé avec précaution. Un déplacement brusque ou trop rapide sur une surface non plane pourrait entraîner la chute de l'ensemble et endommager l'appareil. Voir Figure A.
VENTILATION: Les ouvertures et ouïes d'aération situées sur l'appareil permettent une ventilation optimale de ce dernier afin d'éviter toute surchauffe. Ces ouvertures ne doivent jamais être obstruées. Ne pas placer l'appareil sur un support souple risquant de bloquer les ouïes d'aération (Lit, sofa, canapé…). Si l'appareil est intégré dans une installation ou dans un rack, veillez à la ventilation et consultez le fabricant pour toute information complémentaire.
ALIMENTATION: Veillez à respecter la tension d'alimentation située au dos de l'ap­pareil. Si vous n'êtes pas certain de la tension d'utilisation dans votre pays, con­tactez votre revendeur.
EMPLACEMENT: Veillez à installer l'appareil sur un support stable. PERIODE DE NON UTILISATION: Débranchez le cordon d'alimentation de l'ap-
pareil en cas de non utilisation prolongée.
MISE A LA TERRE:
- Si l'appareil est équipé d'une alimentation à courant alternatif (Prise possédant un contact plus large que l'autre), celle-ci se connectera correctement à la prise unique­ment si vous respectez le sens de branchement. Il s'agit là d'une mesure de sécu­rité. Si vous n'arrivez pas à insérer la fiche dans la prise, inversez la fiche. Si vous ne pouvez toujours pas insérer cette dernière, contactez un électricien afin de rem­placer votre prise électrique qui est obsolète. Veillez à respecter cette consigne.
- Si l'appareil est équipé d'une fiche d'alimentation avec terre, veillez à la connecter à une prise électrique équipée d'une connexion à la terre. Il s'agit d'une mesure de sécurité. Si vous ne pouvez insérer la fiche dans la prise électrique, contactez un électricien afin de remplacer votre prise électrique qui est obsolète. Il est important de respecter cette mesure de sécurité.
INSTALLATION DU CORDON D'ALIMENTATION: Les cordons d'alimentation doivent être déroulés et rangés proprement afin d'éviter de se prendre les pieds dedans, en particulier les cordons reliés aux prises électriques.
ANTENNE EXTERIEURE: Si vous reliez votre appareil à une antenne ou un câble extérieur, assurez-vous de la présence d'une connexion à la terre afin d'éviter les surtensions et les décharges d'électricité statique. L'article 810 du National Electrical Code, ANSI/NFPAS 70, précise toutes les informations nécessaires afin d'effectuer correctement le branchement à la terre du pylône ou de la structure porteuse, la connexion du câble à l'antenne de décharge, dimensions des connecteurs de mise à la terre, connexions des électrodes, consignes de mise à la terre des électrodes.
Voir Schéma B. ORAGE/FOUDRE: En cas d'orage et de non utilisation prolongée, débranchez le
cordon d'alimentation, le câble d'antenne et les cordons audio. Ceci afin d'éviter les dégâts occasionnés par la foudre et les surcharges électriques.
LIGNES ELECTRIQUES: Une antenne extérieure ne doit pas être située à proximité immédiate de lignes électriques et/ou d'un transformateur électrique, afin de ne pas tomber dessus en cas de chute. Lors de l'installation d'une antenne extérieure, veillez à éviter tout contact avec des lignes électriques : tout contact peut être fatal.
SURCHARGE: Ne surchargez pas les prises électriques, blocs multiprises & ral­longes en y connectant trop d'appareils. Ceci afin d'éviter tout risque de surcharge électrique ou d'incendie (Surchauffe).
NSERTION D'OBJET & DE LIQUIDE: N'insérez pas d'objets dans les fentes ou ou-
I
vertures de l'appareil afin d'éviter tout risque de choc électrique et d'incendie. Ne ja­mais renverser de liquide sur l'appareil.
SERVICE APRES VENTE: N'essayez pas de réparer cet appareil ; en l'ouvrant ou en le démontant afin d'éviter tout risque de choc électrique. En cas de problème, veuillez prendre contact avec votre revendeur.
ANNE/SITUATION NECESSITANT UN RETOUR EN SAV: Débranchez l'appareil
P
e la prise électrique, remettez le dans son emballage d'origine et contactez votre
d revendeur en tenant compte des situations suivantes :
- Lorsque le cordon d'alimentation est endommagé.
- Si un liquide a été renversé dessus.
- Si l'appareil a été exposé à la pluie.
- Si l'appareil ne fonctionne pas correctement malgré le respect des instructions d'utilisation. Ajustez uniquement les réglages préconisés dans le mode d'emploi, toute manipulation ou réglage non conseillés dans ce dernier peut endommager l'appareil et procurer plus de travail en cas d'intervention SAV afin de remettre l'ap­pareil en état de marche.
PIECES DE RECHANGE: Lorsque vous avez besoin de remplacer des pièces de l'appareil, veillez à utiliser des pièces d'origine ou possédant des caractéristiques identiques. L'utilisation de pièces non autorisées peut endommager l'appareil : sur­chauffe, court-circuit, choc électrique…
CONTROLE DE SECURITE: Avant de récupérer votre appareil, assurez vous que le SAV a effectué tous les contrôles de sécurité nécessaires afin de vous restituer un appareil en état de marche.
INSTALLATION AU PLAFOND OU SUR UN MUR: Ce type d'installation est décon­seillé.
CHALEUR: Veillez à installer l'appareil loin de toute source de chaleur telle que ra­diateur, réchaud ou tout autre appareil produisant de la chaleur.
recyclage: Cet appareil ne doit pas être considéré comme un déchet domestique à usage unique. Vous devez le déposer dans un point de collecte destiné au recy­clage des appareils électroniques et électroménagers. AInsi vous préserverez l'envi­ronnement et éviterez les problêmes de santé publique vis à vis de conséquences négatives; liées à leur dépôt dans un endroit non approprié. Le recyclage contribue à préserver les ressources naturelles. Pour plus d'informations sur les conditions de recyclage de l'appareil, veuillez contacter les autorités de votre pays, les institutions locales ou votre revendeur.

MM-3000
FACE ARRIERE
2
1
3
FACE AVANT
8
7
24
25
6
7
4
14
7
5
VOIE CONSOLE
OTE: TOUTES LES VOIES
N
10
POSSEDENT CES FONCTIONS;
21
20
15
19
11
9
23
12
16
17
18
22

13
MM-3000
INTRODUCTION
Nos félicitations pour l’achat de la console Gemini MM-3000. Cette con­sole de mixage a été conçue grâce aux dernières avancées tech­nologiques et dispose d’une garantie durant 1 an, à l’exception du crossfader dont la garantie est de 90 jours. Avant toute utilisation, merci de lire attentivement les instructions de ce manuel.
CARACTERISTIQUES
- Console 19” 5 voies Stéréo
- 8 lignes, 3 micros, 2 voies commutables PH/LN, connecteurs RCA
- Sortie principale (Master) symétrique XLR & assymétrique RCA
- Sorties Enregistrement & Zone sur connecteurs RCA
- Corrections paramétriques & Gain par voie
- Pré-écoute réglable avec sélection CUE/PGM
- Entrée micro sur prise combo XLR/Jack 6.35mm avec corrections paramétriques & talkover
- Crossfader assignable Rail Glide
MISES EN GARDE
1.Toutes les instructions de fonctionnement doivent être lues avant l’u­tilisation de l’appareil.
2. Afin de réduire le risque de choc électrique, n’ouvrez pas l’appareil. Veuillez soumettre l’entretien et la réparation au Service Après Vente de GCI Technologies France.
3. Ne pas exposer directement cet appareil aux rayons du soleil ou à une source de chaleur, tel qu’un radiateur ou un poêle.
4. Cet appareil doit être exclusivement nettoyé avec un chiffon légère­ment humide. Proscrire solvants et autres détergents.
5. Lors du déplacement du matériel, celui-ci doit être emballé dans son carton d’origine avec ses coquilles de protection en polystyrène. Ceci limitera les risques d’endommagement pendant les transports.
6. NE PAS EXPOSER CET APPAREIL A LA PLUIE OU A L’HUMIDITÉ.
7. N’UTILISEZ PAS DE PRODUIT DE NETTOYAGE OU LUBRIFIANT EN VAPORISATEUR SUR AUCUN DES BOUTONS OU INTERRUP­TEURS.
CONNECTIONS
21
Assurez-vous que le commutateur POWER
SWITCH soit en position OFF avant d’effectuer tout branchement.
CORDON SECTEUR
Cet appareil est livré avec un CORDON SECTEUR. Connectez celui­ci sur l’embase, prévue à cet effet, située en face arrière.
La console MM-3000 possède une sortie stéréo symétrique située en face arrière.
SORTIE MASTER RCA
Permet de relier votre console à votre amplificateur principal à l’aide de cordons RCA.
SORTIE ENREGISTREMENT RCA Permet de connecter votre console à l’entrée de votre enregistreur à l’aide de cordons RCA afin d’enregistrer votre mix.
SORTIE ZONE
Permet de contrôler le niveau de la sortie auxiliaire (RETOUR DJ / Seconde ZONE à sonoriser).
VIS DE MASSE
Lorsque vous utilisez une ou plusieurs platines vinyles, veillez à relier le fil de masse du cordon RCA à la vis GROUNDING SCREW située en bas au milieu de la face arrière de la console MM-3000.
1
25
2
3
24
4
ENTREES COMMUTABLES PHONO/LIGNE
En face arrière de la MM-3000 se trouvent deux entrées ligne RCA commuta- bles PHONO/LIGNE. Un commutateur phono/ligne vous permet de choisir entre Phono (Platine vinyle) et Ligne (MP3, platine cd, magnétophone, etc...). Il se situe à droite des connecteurs RCA, au niveau des entrées 2 et 3. En position PH, Les entrées phono n'acceptent que des platines vinyles équipées de cellules magnétiques ; connectez le fil de masse à la vis prévue à cet effet, ceci afin de supprimer tout bruit parasite lors de l'écoute (Voir VIS DE MASSE). En position LN, vous ne pouvez connecter que des appareils ayant une tension de sortie de niveau ligne, tel que décrit ci-dessus.
NOTE: VOUS RISQUEZ DE SATURER VOTRE CONSOLE ET ECOUTEREZ UN SON DE MAUVAISE QUALITE (DISTORSION) SI VOUS CONNECTEZ UN APPAREIL DE NIVEAU LIGNE SUR UNE ENTREE DE NIVEAU PHONO.
Connectez vos différentes sources aux entrées correspondantes CHANNELS (CH) de la console.
Une fois terminé votre câblage, mettez l'appareil sous tension grâce à l’in­terrupteur POWER SWITCH.
ENTREE MICRO L'entrée microphone MIC, située en haut à gauche de la face avant de la MM-3000, est de type Combo. Celle-ci accepte les connecteurs de type XLR
& Jack 6.35mm. Vous pouvez contrôler le gain et l'égalisation du micro grâce aux réglages dédiés (Voir Chapitre REGLAGES). Vous trouverez en face ar­rière 2 connecteurs Jack 6.35mm (Mic 2 & Mic 3)
SORTIE CASQUE
La sortie casque HEADPHONE OUTPUT est située en bas à droite de la face avant de la MM-3000 et accepte tout type de casque possédant un con­necteur Jack 6.35mm. Cette sortie permet de pré-écouter une source avant de la diffuser. Vous pouvez régler le volume, ainsi que le choix de la source à l'aide des commandes dédiées (Voir Chapitre REGLAGES).
7
18
5
REGLAGES
REGLAGES MICRO
Sous la prise du micro se situent l’ensemble des réglages :
VOLUME MICRO
Permet de régler le niveau du micro.
CORRECTION PARAMETRIQUE MICRO
Permet de régler individuellement le niveau des basses & hautes (Aigues) fréquences du micro.
COMMUTATEUR TALKOVER
Lorsque ce commutateur est situé sur la position ON, le niveau du programme musical sera atténué de 20 dB afin de vous permettre de parler au-dessus de la musique.
POTENTIOMETRE CUE/PGM Le potentiomètre rotatif CUE/PGM permet d’ajuster le mix entre la SOURCE SELECTIONNEE EN PRE-ECOUTE & la SORTIE PRINCIPAL.
VOLUME DU CASQUE (CUE)
Le potentiomètre rotatif CUE VOLUME vous permet d’ajuster le volume de votre casque.
PRISE CASQUE
La PRISE CASQUE accepte tout modèle de casque équipé d’un con­necteur Jack 6.35mm.
VU-METRE
La console MM-3000 possède un VU-METRE vous permettant de visualiser les niveaux GAUCHE & DROIT de la SORTIE PRINCIPALE (MASTER).
8
9
23
10
17
18
20
6
21

MM-3000
REGLAGES(SUITE)
CROSS FADER Le CROSS FADER permet de passer dune source à lautre. Le CROSS FADER de la MM-3000 est assignable entre les 5 voies. Le CROSS FADER
de la MM-3000 est amovible & remplaçable par l’utilisateur. Le RG-45 (RAILGLIDE inoxydable procurant un toucher souple & précis. Cette pièce est disponible auprès de tout revendeur agréé GEMINI.
ASSIGNATION DU CROSSFADER Le commutateur CROSSFADER ASSIGN permet dassigner les VOIES (CHANNELS) au crossfader. Le CROSSFADER permet de mixer les voies assignées entres elles. Chaque voie peut être assignée au CROSSFADER.
NOTE:
DROITE SANS EXERCER DE PRESSIONS INUTILES SUR CELUI-CI. UNE UTILISATION TROP BRUTALE DU CROSS FADER ENTRAÎNE­RAIT DES PROBLÈMES DE CONTACT ELECTRONIQUE PROVO­QUANT DES COUPURES DE SON.
SORTIE PRINCIPAL (MASTER)
Les potentiomètres rotatifs SORTIE PRINCIPALE (MASTER) & ZONE permettent, respectivement, le réglage de volume GAUCHE & DROIT de la SORTIE PRINCIPALE, ainsi que de la SORTIE ZONE.
) DUAL-RAIL CROSS FADER est équipé de rails en acier
VEUILLEZ MANIPULER LE CROSS FADER DE GAUCHE À
FONCTIONS PAR VOIE
(NOTE: LES 5 VOIES POSSEDENT LES MEMES REGLAGES)
SELECTION DU NIVEAU D’ENTREE PAR VOIE
Les commutateurs de SELECTION DU NIVEAU D’ENTREE PAR VOIE permettent de sélectionner la source que vous souhaitez utiliser.
Par exemple sur la VOIE 1 (CHANNEL 1) vous pouvez sélectionner LIGNE
1 ou MIC 2, & sur la VOIE 2 (CHANNEL 2), vous avez le choix entre PHONO 1/LIGNE 2 ou LIGNE 3. Sur la VOIE 3 (CHANNEL 3), le commu-
tateur vous permet de sélectionner PHONO 2/LIGNE 4 ou LIGNE 5 & sur la VOIE 4 (CHANNEL 4) vous pouvez sélectionner LIGNE 6 ou MIC 3. Enfin sur la VOIE 5 (CHANNEL 5) vous avez la possibilité de choisir entre LIGNE
7 & LIGNE 8. Merci de vous reporter au paragraphe ENTREES COM­MUTABLES PHONO/LIGNE pour la commutation PHONO 1/ LIGNE 2 & PHONO 2/ LIGNE 4.
REGLAGE DE GAIN PAR VOIE
Le potentiomètre rotatif CHANNEL ROTARY GAIN permet un réglage pré- cis du niveau d’entrée sur chaque voie en fonction de la source utilisée.
REGLAGE DU VOLUME DE LA VOIE
le potentiomètre linéaire (FADER) permet d’ajuster le volume de la voie.
SELECTION DE LA PRE-ECOUTE
La touche CUE permet d’activer la pré-écoute de la voie via la sortie casque. Celle-ci est cumulable (Pré-écoute possible des 5 voies simultanément).
CORRECTION PARAMETRIQUE 3 BANDES
La CORRECTION PARAMETRIQUE 3 BANDES permet un réglage pré­cis & individuel des 3 fréquences: GRAVE, MEDIUM & AIGU.
12
22
13
10
14
11
15
19
REMPLACEMENT CROSS-FADER
. DEVISSEZ LES VISSES DE LA FACE AVANT SUR LA PARTIE EXTERNE GAUCHE ET
1 DROITE DE LA PLAQUE DU CROSS FADER ET ENLEVEZ LE BOUTON DU
ROSS FADER
C
. DEVISSEZ LES VISSES EXTERNES
2 DE LA PLAQUE DU CROSS FADER (B ET C) ET SOULEVEZ-LE DÉLICATE-
ENT AFIN DE DÉBRANCHER LE
M CABLE
3. BRANCHEZ LE NOUVEAU CROSS
ADER AU CABLE ET REPLACEZ-LE
F À L’INTÉRIEUR DU MIXEUR.
4. REVISSEZ LES VISSES EXTERNES
5. REPOSITONNEZ LA FACE AVANT ET REPLACEZ LES VISSES DE FIXATION
Cordon “Ipod Friendly” Cable: permet de connecter
votre Ipod ou tout autre lecteur numérique. Reliez le Mini jack 3.5mm à la prise casque du lecteur et câblez les connecteurs RCA à l'entrée ligne de votre console.
CARACTERISTIQUES TECHNIQUES
Entrées:
Phono...................................................................................3mV,47 KOhms
Ligne...............................................................................150 mV, 27 KOhms
Micro. ..............;................................................1.5 mV, 1 KOhm symétrique
Sorties:
Max......................................................................................20V Crête/Crête
Enregistrement.................................................................225 mV, 5 KOhms
Caractéristiques générales:
Réponse en fréquences ............................................20Hz - 20KHz +/- 2db
Distorsion.........................................................................................< 0.02%
Rapport Signal/Bruit......................................................................> 85 dB
Impédance du casque....................................................................16 Ohms
Alimentation (Externe).........................................................AC 15V, 500mA
Dimensions.............................................................................19” x 3.3” x 7”
..........................................................................(482.6 x 83.82 x 177.8 mm)
Poids................................................................................6.35 lbs (2.88 Kgs)
LES SPÉCIFICATIONS TECHNIQUES ET LA CONCEPTION PEUVENT ETRE MODIFIEES SANS PREAVI S DANS LE C ADRE D’UN S OUCI CONSTANT D’AMÉLIORATION DU PRODUIT.

EN FRANCE
En cas de panne, merci de contacter votre revendeur. Tout appareil en panne doit y être retourné, accompagné de sa facture d'achat, de son emballage d'origine et d'un descriptif de panne. L'appareil sera expédié au SAV de GCI Technologies France. Tout produit reçu sans fac­ture sera réparé hors garantie. L’appareil sera ensuite ré-expédié au revendeur.
IN GERMANY
Die allgemeinen gesetzlichen Gewährleistungen bleiben von den Herstellergarantien unberührt. Der Garantieanspruch erlischt bei Eingriffen durch den Käufer oder durch Dritte sowie bei unsachgemässer Behandlung. Gewährleistungsansprüche sind auss­chließlich gegenüber Ihrem Fachhändler geltend zu machen.
Save postage and register your product online at www.geminidj.com
and automatically be
registered for great prize giveaways!
If you do not have internet access, fill out the form below and mail to the appropriate ad­dress listed at the right side of this page.
First Name:
Address: (Number and Street)
Initial:
Last Name:
Apt #:
USA
EMINI SOUND PRODUCTS
G
Worldwide Headquarters 1 Mayfield Ave Edison, NJ 08837 USA
el: (732) 346-0061
T Fax: (732) 346-0065
FRANCE
CI TECHNOLOGIES S.A.R.L
G
1, Allee d’Effiat, Parc de l’evénement, 91160 Longjumeau, France
Tél: + 33 1 69 79 97 70 Fax: + 33 1 69 79 97 80
IN THE UNITED KINGDOM
In the event that you need service on your Gemini product under warranty, simply write a letter describing the prob­lem, along with your contact informa­tion. Make sure to enclose a copy of your receipt for proof of warranty infor­mation. A return number is not re­quired. You will be responsible for shipping charges to Gemini UK, and Gemini UK will pay to return the unit to you if it is considered under warranty.
IN SPAIN
En caso de mal funcionamiento de esta unidad, por favor contacte con el Servi­cio de Atención al Cliente en el teléfono 93 436 37 00 que le asesorará sobre el procedimiento correcto para solu­cionarlo. En caso de ser necesario enviar la unidad para su reparación, el Servicio de Atención al Cliente le proveerá de un número de incidencia, así como de la di­rección del Servicio de Asistencia Téc­nica más cercano a su residencia.
City:
ountry:
C
E-mail Address: ___________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
Phone #:
Date of Purchase:
Dealer:
City:
Model Number:
Cut along this line & keep the rest of this page for your records.
Month Day Year
(Example: CDT-05)
WARRANT Y AND REPAIR:
All Gemini products are designed and manufactured to the highest standards in the industry. With proper care and maintenance, your product will pro­vide years of reliable service.
LIMITED WARRANT Y
A. Gemini warrants its products to be free from defects in materials and workman- ship for One (1) year from the original purchase date. Exceptions: Laser assemblies on CD Players, cartridges, and crossfaders are covered for 90 days.
B. This limited warranty does not cover damage or failure caused by abuse, misuse,
abnormal use, faulty installation, improper maintenance or any repairs other than those provided by an authorized Gemini Service Center.
C. There are no obligations of liability on the part of Gemini for consequential dam­ages arising out of or in connection with the use or performance of the product or other indirect damages with respect to loss of property, revenues, of profit, or costs of removal, installation, or reinstallation. All implied warranties for Gemini, including implied warranties for fitness, are limited in duration to One (1) year from the origi­nal date of purchase, unless otherwise mandated by local statutes.
State:
Z
Purchase Price:
Province:
r
o
ostal Code:
ip Code:
Age:
P
r
o
Date of Birth
Month Day Year
$
(EXCLUDING TAX)
Serial Number: (Located on back of most units)
GERMANY
GCI TECHNOLOGIES
iebigstr. 16,
L Haus B – 3. OG, 85757 Karlsfeld
ermany
G Tel: 08131 – 39171 – 0 Fax: 08131 – 39171 – 8
UK
.00
GEMINI SOUND PRODUCTS
Unit C4 Hazleton Industrial Estate, P08 9JU Waterlooville, UK
Tel: 087 087 00880 Fax: 087 087 00990
SPAIN
GEMINI SOUND PRODUCTS S.A.
Rosello, 516, 08026 Barcelona, Spain
Tel: 3493-436 37 00 Fax: 3493-347-6961
RETURN/REPAIR
A. In the U.S.A., please call our helpful Customer Service Representatives at (732)738-9003, and they will be happy to give you a Return Authorization Number (RA#) and the address of an authorized service center closest to you. B. After receiving an RA#, include a copy of the original sales receipt, with defec-
tive product and a description of the defect. Send by insured freight to: Gemini Sound Products Corp, and use the address provided by your customer service repre­sentative. Your RA# must be written on the outside of the package, or process-
ing will be delayed indefinitely! C. Service covered under warranty will be paid for by Gemini and returned to you.
For non-warrantied products, Gemini will repair your unit after payment is received. Repair charges do not include return freight. Freight charges will be added to the re­pair charges.
D. On warranty service, you pay for shipping to Gemini, we pay for return ship­ping within the Continental United States. Alaska, Hawaii, Puerto Rico, Canada, Bahamas, and the Virgin Islands will be charged for freight.
E. Please allow 2-4 weeks for return of your product. Under normal circumstances
your product will spend no more than 10 working days at Gemini. We are not re­sponsible for shipping times.

IN THE USA: IF YOU EXPERIENCE PROBLEMS
WITH THIS UNIT, CALL 1-732-346-0061 FOR GCI TECHNOLOGIES
CUSTOMER SERVICE. DO NOT ATTEMPT
RETURN THIS EQUIPMENT TO YOUR DEALER.
Parts of the design of this product may be protected by worldwide patents. Information in this manual is subject to change without notice and does not represent a commitment on the part of the vendor. GCI Technologies Corp.
shall not be liable for any loss or damage whatsoever arising from the use of
information or any error contained in this manual. No part of this manual may
be reproduced, stored in a retrieval system or transmitted, in any form or by
any means, electronic, electrical, mechanical, optical, chemical, including
photocopying and recording, for any purpose without the express written permission
of GCI Technologies Corp. It is recommended that all maintenance
and service on this product is performed by GCI Technologies Corp. or its
authorized agents. GCI Technologies Corp. will not accept liability for loss or
damage caused by maintenance or repair performed by unauthorized personnel.
Worldwide Headquarters • 1 Mayfield Ave, Edison, NJ 08837 • USA
Tel: (732) 346-0061 • Fax: (732) 346-0065
France • GCI technologies France S.AR.R.L • 1, Allée d’Effiat, Parc de l’evénement, 91160 Longjumeau, France
Tél: + 33 1 69 79 97 70 • Fax: + 33 1 69 79 97 80
Germany • GCI Technologies GmbH • Lerchenstrasse 14 , Haus 3 – 1. Stock , 80995 München, Germany
Tel: 49 (0) 89 319 019 80 • Fax: 08131 - 39171-9
UK • GCI Technologies • 44 The Brambles Enterprise Centre, PO7 7TH Waterlooville, UK
Tel: 087 087 00880 • Fax: 087 087 00990
Spain • GCI Technologies S.A. • Rosello, 516, 08026 Barcelona, Spain,
Tel: 349-3435-0814 • Fax: 3493-347-6961
___________________________________________________
© GCI Technologies Corp. 2007 All Rights Reserved.
Loading...
