Page 1

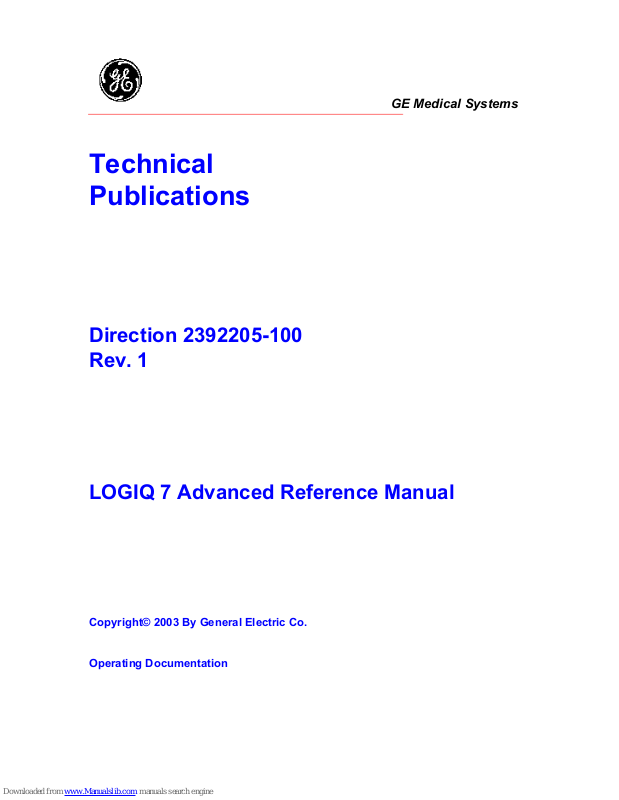

GE Medical Systems
Technical
Publications
Direction 2392205-100
Rev. 1
LOGIQ 7 Advanced Reference Manual
Copyright© 2003 By General Electric Co.
Operating Documentation
Page 2
Regulatory Requirement
This product complies with regulatory requirements of the following European
Directive 93/42/EEC concerning medical devices
This manual is a reference for the LOGIQ 7. It applies to all versions of the SW R3.0.0
and later software for the LOGIQ 7 ultrasound systems.
GE Medical Systems
GE Medical Systems: Telex 3797371
P.O. Box 414, Milwaukee, Wisconsin 53201 U.S.A.
(Asia, Pacific, Latin America, North America)
GE Ultraschall TEL: 49 212.28.02.208
Deutschland GmbH & Co. KG FAX: 49 212.28.02.431
Beethovenstraße 239
Postfach 11 05 60
D-42655 Solingen GERMANY
Page 3
LOGIQ 7 Advanced Reference Manual i-1
Direction 2392205-100 Rev. 1
Revision History
List of Effective Pages
Table i-1: Reason for Change
REV DATE REASON FOR CHANGE
Rev. 0 Sept. 19, 2003 Initial Release
Rev.1 Oct. 22, 2003 Modify Ch1
Table i-2: List of Effective Pages
PAGE NUMBER
REVISION
NUMBER PAGE NUMBER
REVISION
NUMBER
Title Page Rev. 1 2-1 thru 2-10 Rev. 1
Revision History i-1 and i-2 Rev. 1 3-1 thru 3-80 Rev. 1
Table of Contents ii-1 thru ii-2 Rev. 1 Index 1 thru 4 Rev. 1
1-1 thru 1-108 Rev. 1
Please verify that you are using the latest revision of this document.
Information pertaining to this document is maintained on GPC (GE
Medical Systems Global Product Configuration). If you need to know the
latest revision, contact your distributor, local GE Sales Representative or
in the USA call the GE Ultrasound Clinical Answer Center at
1 800 682 5327 or 1 262 524 5698.
Page 4
i-2 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
This page intentionally left blank.
Page 5
Table of Contents
LOGIQ 7 Advanced Reference Manual TOC-1
Direction 2392205-100 Rev. 1
Table of Contents
Chapter 1 Acoustic Output
Bioeffects - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2
Concerns Surrounding the Use of Diagnostic Ultrasound - - - - - - - - - - - - -2
FDA Acoustic Output Data - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3
Maximum output summary - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3
IEC Acoustic Output Tables - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -77
Chapter 2 Measurement Formulas
Measurement Formulas - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2
Formulas–Generic - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -2
Formulas-Urology - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3
Formulas–OB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -4
Formulas–GYN - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -8
Formulas–Vascular - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -10
Chapter 3 OB Tables
OB Tables - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2
ASUM - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -2
Berkowitz - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -8
Brenner - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -9
Campbell - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -9
Eriksen - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -10
Goldstein - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
Hadlock - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
Hansmann - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -18
Hellman - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -26
Hill - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
Hohler - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27
Jeanty - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27
JSUM - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 39
Kurtz - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 43
Mayden - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 44
Mercer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 45
Merz - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 46
Moore - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -56
Nelson - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 56
Osaka - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -57
Paris - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 61
Rempen - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 64
Page 6
TOC-2 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
Robinson - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 69
Tokyo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -69
Tokyo Shinozuka - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 73
Williams - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 79
Yarkoni - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -79
Page 7
LOGIQ 7 Advanced Reference Manual 1-1
Direction 2392205-100 Rev. 1
Chapter 1
Acoustic Output
Provides Acoustic Output information and tables, as
well as possible bioeffects and prudent use.
Page 8
Acoustic Output
1-2 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
Bioeffects
Concerns Surrounding the Use of Diagnostic Ultrasound
During a diagnostic ultrasound examination, high frequency
sound penetrates and interacts with tissue in and around the
area of anatomy to be imaged. Only a small portion of this sound
energy is reflected back to the probe for use in constructing the
image while the remainder is dissipated within the tissue. The
interaction of sound energy with tissue at sufficiently high levels
can produce biological effects (aka bioeffects) of either a
mechanical or thermal nature. Although the generation of
bioeffect is intentional with therapeutic ultrasound, it is generally
undesired in diagnostic applications and may be harmful in
some conditions.
NOTE: The American Institute of Ultrasound in Medicine has published
a document entitled "Medical Ultrasound Safety". This three
part document covers Bioeffects and Biophysics, Prudent Use
and Implementing ALARA.
Ultrasound users should read the AIUM to become more familiar
with Ultrasound safety. A copy of this document is included as
part of the documentation package (Document 2163920-100).
To contact the AIUM concerning their publications:
• In the USA, by telephone at 1-800-638-5352.
• To write them, use the following address:
AIUM
14750 Sweitzer Lane
Suite 100
Laurel, MD, USA 20707-5906
Page 9
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-3
Direction 2392205-100 Rev. 1
FDA Acoustic Output Data
Maximum output summary
The following tables list the typical maimum acoustic output
levels achievalbe with LOGIQ 7 for all probes and operational
modes. It is intended that this is information be useful in making
ALARA decisions and selecting the most appropriate probe for
the application. In accordance with US FDA Guidelines, the
overall maximum acoustic SPTA intensity for LOGIQ 7 is limited
to 720 mW/cm
2
and MI is limited to 1.9. Modes for which TI does
not exceed 0.1 are indicated by <0.1.
Table 1-1 shows all of the probes’ operating modes. The
following pages contain probe acoustic output tables for those
noted in Table 1-1.
Table 1-1: Summary Table
Operating Mode
Transducer Modell
3C 3.5C 3.5CS 5C E8C 8C M7C 7L 10L
B-mode
YES YES YES YES YES <1 YES <1 YES
M-mode
(inc.B-mode)
YES YES YES YES YES <1 YES <1 YES
Color Flow (inc.
B-mode)
YES YES YES YES YES YES YES YES YES
Pulsed Doppler
(inc.B-mode)
YES YES YES YES YES YES YES YES YES
B-Flow n/a n/a
n/a
n/a n/a
n/a
n/a
YES YES
Contrast n/a
YES YES
n/a n/a
n/a
n/a
n/a n/a
CW Doppler n/a n/a
n/a
n/a n/a
n/a
n/a
n/a n/a
Other
(specify)
n/a n/a
n/a
n/a n/a
n/a
n/a
n/a n/a
Page 10
Acoustic Output
1-4 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
Table 1-1 (continued) : Summary Table
Operating Mode
Transducer Model
M12L i12L 3S 10S 6T M3S P2D P6D
B-mode
YES YES YES YES YES <1
n/a n/a
M-mode
(inc.B-mode)
YES YES YES YES YES <1
n/a n/a
Color Flow (inc. B-
mode)
YES YES YES YES YES YES
n/a n/a
Pulsed Doppler
(inc.B-mode)
YES YES YES YES YES YES
n/a n/a
B-Flow
YES
n/a n/a n/a
n/a n/a
n/a n/a
Contrast
n/a
n/a n/a n/a
n/a YES
n/a n/a
CW Doppler
n/a
n/a
YES YES YES YES YES
<1
Other
(specify)
n/a
n/a n/a n/a
n/a n/a
n/a n/a
Page 11
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-5
Direction 2392205-100 Rev. 1
3C
Table 1-1: Transducer Mode: 3C Operating Mode: B-Mode
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
1.5 1.4 - - - 2.7
p
r.3
(MPa)
2.4
W
o
(mW)
144.7 - - 144.7
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
3.3 -
deq(zsp)(cm)
-
f
c
(MHz)
2.6 2.6 - - - 2.6
Dim of A
aprt
X(cm)
1.4
---1.4
Y(cm)
1.0 - - - 1.0
PD (µsec)
1.0
PRF (Hz)
2927.4
pr@PII
max
(MPa)
3.2
deq@PII
max
(cm)
-
Focal
Length
FLX(cm) 3.5 - - 3.5
FL
Y
(cm) 7.0 - - 7.0
I
PA. 3
@MI
max
(W/cm2)
448.9
Frequency (MHz)
T4.0 T4.0 - - - T4.0
Image Depth (cm)
24.0 10.0 - - - 10.0
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 12
Acoustic Output
1-6 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
3C (continued)
Table 1-2: Transducer Mode: 3C Operating Mode: M-Mode (Inc. B-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
1.5 1.4 - < 1 1.6 2.4
p
r.3
(MPa)
2.4
W
o
(mW)
144.7 - 33.5 126.1
min of[W.3(z1, I
TA. 3(z1
)] (mW)
#
z
1
(cm)
#
z
bp
(cm)
#
z
sp
(cm)
3.3 3.3
deq(zsp)(cm)
0.4
f
c
(MHz)
2.6 2.6 - # 2.6 2.6
Dim of A
aprt
X(cm) 1.4 - # 1.4 1.4
Y(cm)
1.0 - # 1.0 1.0
PD (µsec)
1.0
PRF (Hz)
2927.4
pr@PII
max
(MPa)
3.2
deq@PII
max
(cm)
0.4
Focal
Length
FLX(cm) 3.5 - # 3.5
FL
Y
(cm) 7.0 - # 7.0
I
PA. 3
@MI
max
(W/cm2)
448.9
Frequency (MHz)
T4.0 T4.0 - # T4.0 T4.0
Image Depth (cm)
24.0 10.0 - # 24.0 24.0
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 13
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-7
Direction 2392205-100 Rev. 1
3C (continued)
Table 1-3: Transducer Mode: 3C Operating Mode: Color Flow (Inc.M-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
1.6 1.4 1.1 - 3.2 2.4
p
r.3
(MPa)
1.9
W
o
(mW)
144.7 90.3 90.3 153.2
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
3.3 3.3
deq(zsp)(cm)
0.4
f
c
(MHz)
2.6 2.6 2.5 - 2.6 2.6
Dim of A
aprt
X(cm) 1.4 0.9 - 1.4 1.9
Y(cm)
1.0 1.0 - 1.0 1.0
PD (µsec)
1.0
PRF (Hz)
635.2
pr@PII
max
(MPa)
3.3
deq@PII
max
(cm)
0.4
Focal
Length
FLX(cm) 3.5 2.2 - 4.8
FL
Y
(cm) 7.0 7.0 - 7.0
I
PA. 3
@MI
max
(W/cm2)
447.7
Frequency (MHz)
D2.5 D2.5 D2.5 - D2.5 D2.5
Image Depth (cm)
3.5 4.8 2.2 - 3.5 4.8
Vel Scale (kHz)
1.80 4.90 1.23 - 1.07 4.90
Penet
ON ON ON - ON ON
ROI
60° 5° - - - 5°
PS
14 14 - - 16 14
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 14
Acoustic Output
1-8 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
3C (continued)
Table 1-4: Transducer Mode: 3C Operating Mode: Pulsed Doppler (inc. B-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
non-
scanAaprt
Aaprt
>1
Global Maximum: Index Value
1.6 1.4 1.1 - 3.2 2.2
p
r.3
(MPa)
2.5
W
o
(mW)
144.7 90.3 90.3 103.9
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
3.3 2.6
deq(zsp)(cm)
0.5
f
c
(MHz)
2.6 2.6 2.5 - 2.5 2.5
Dim of A
aprt
X(cm) 1.4 0.9 - 0.9 0.9
Y(cm)
1.0 1.0 - 1.0 1.0
PD (µsec)
1.0
PRF (Hz)
1796.0
pr@PII
max
(MPa)
3.3
deq@PII
max
(cm)
0.5
Focal
Length
FLX(cm) 3.5 2.2 - 2.2
FL
Y
(cm) 7.0 7.0 - 7.0
I
PA. 3
@MI
max
(W/cm2)
447.4
Frequency (MHz)
D2.5 T4.0 D2.5 - D2.5 D2.5
Image Depth (cm)
3.5 10.0 2.2 - 2.2 2.2
Vel Scale (kHz)
0.64 - 1.23 - 1.23 1.23
SV
3-6-66
Penet
ON - ON - ON ON
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 15
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-9
Direction 2392205-100 Rev. 1
5C
Table 1-5: Transducer Mode: 5C Operating Mode: B-Mode
Index Label
MI
MI
TIS TIB
TICscan
non-scan
non-
scanAaprt
Aaprt
>1
Global Maximum: Index Value
1.3 1.2 - - - 1.6
p
r.3
(MPa)
2.4
W
o
(mW)
76.9 - -76.9
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
2.9 -
deq(zsp)(cm)
-
f
c
(MHz)
3.5 3.5 - - - 3.5
Dim of A
aprt
X(cm)
1.3
---1.3
Y(cm)
0.9 - - - 0.9
PD (µsec)
0.5
PRF (Hz)
2927.4
pr@PII
max
(MPa)
3.1
deq@PII
max
(cm)
-
Focal
Length
FLX(cm) 4.5 - - 4.5
FL
Y
(cm) 6.0 - - 6.0
I
PA. 3
@MI
max
(W/cm2)
645.8
Frequency (MHz)
4.0 4.0 - - - 4.0
Image Depth (cm)
24.0 15.0 - - - 15.0
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 16
Acoustic Output
1-10 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
5C (continued)
Table 1-6: Transducer Mode: 5C Operating Mode: M-Mode (Inc. B-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
1.3 1.2 < 1 - < 1 1.4
p
r.3
(MPa)
2.4
W
o
(mW)
76.9 # # 66.7
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
2.9 #
deq(zsp)(cm)
#
f
c
(MHz)
3.5 3.5 # - # 3.5
Dim of A
aprt
X(cm) 1.3 # - # 1.3
Y(cm)
0.9 # - # 0.9
PD (µsec)
0.5
PRF (Hz)
2927.4
pr@PII
max
(MPa)
3.1
deq@PII
max
(cm)
#
Focal
Length
FLX(cm) 4.5 # - 4.5
FL
Y
(cm) 6.0 # - 6.0
I
PA. 3
@MI
max
(W/cm2)
645.8
Frequency (MHz)
4.0 4.0 # - # 4.0
Image Depth (cm)
24.0 15.0 # - # 24.0
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 17
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-11
Direction 2392205-100 Rev. 1
5C (continued)
Table 1-7: Transducer Mode: 5C Operating Mode: Color Flow (Inc.M-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
1.8 1.2 - < 1 1.6 1.2
p
r.3
(MPa)
3.2
W
o
(mW)
76.9 - 37.8 51.4
min of[W.3(z1, I
TA. 3(z1
)] (mW)
#
z
1
(cm)
#
z
bp
(cm)
#
z
sp
(cm)
3.3 3.1
deq(zsp)(cm)
0.6
f
c
(MHz)
3.9 3.5 - # 3.9 4.0
Dim of A
aprt
X(cm) 1.3 - # 1.4 0.9
Y(cm)
0.9 - # 0.9 0.9
PD (µsec)
0.6
PRF (Hz)
635.3
pr@PII
max
(MPa)
4.8
deq@PII
max
(cm)
0.6
Focal
Length
FLX(cm) 4.5 - # 2.1
FL
Y
(cm) 6.0 - # 6.0
I
PA. 3
@MI
max
(W/cm2)
460.1
Frequency (MHz)
D4.0 D4.0 - # D4.0 D4.0
Image Depth (cm)
3.3 2.1 - # 3.3 2.1
Vel Scale (kHz)
1.80 8.53 - # 2.13 8.53
Penet
ON ON - # ON ON
ROI
60° 10° - # - 10°
PS
14 14 - # 16 14
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 18
Acoustic Output
1-12 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
5C (continued)
Table 1-8: Transducer Mode: 5C Operating Mode: Pulsed Doppler (inc. B-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
non-
scanAaprt
Aaprt
>1
Global Maximum: Index Value
1.8 1.2 - < 1 1.6 < 1
p
r.3
(MPa)
3.2
W
o
(mW)
76.9 - 37.8 #
min of[W.3(z1, I
TA. 3(z1
)] (mW)
#
z
1
(cm)
#
z
bp
(cm)
#
z
sp
(cm)
3.3 3.4
deq(zsp)(cm)
0.4
f
c
(MHz)
3.9 3.5 - # 4.0 #
Dim of A
aprt
X(cm) 1.3 - # 1.4 #
Y(cm)
0.9 - # 0.9 #
PD (µsec)
0.6
PRF (Hz)
635.3
pr@PII
max
(MPa)
4.8
deq@PII
max
(cm)
0.4
Focal
Length
FLX(cm) 4.5 - # #
FL
Y
(cm) 6.0 - # #
I
PA. 3
@MI
max
(W/cm2)
460.1
Frequency (MHz)
D4.0 4.0 - # D4.0 #
Image Depth (cm)
3.3 15.0 - # 3.3 #
Vel Scale (kHz)
0.64 - - # 0.68 #
SV
1--#3#
Penet
ON - - # ON #
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 19
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-13
Direction 2392205-100 Rev. 1
E8C
Table 1-9: Transducer Mode: E8C Operating Mode: B-Mode
Index Label
MI
MI
TIS TIB
TICscan
non-scan
non-
scanAaprt
Aaprt
>1
Global Maximum: Index Value
1.5<1---<1
p
r.3
(MPa)
3.0
W
o
(mW)
#- -#
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
1.5 -
deq(zsp)(cm)
-
f
c
(MHz)
4.1#---#
Dim of A
aprt
X(cm) #---#
Y(cm)
#---#
PD (µsec)
0.6
PRF (Hz)
5379.2
pr@PII
max
(MPa)
3.7
deq@PII
max
(cm)
-
Focal
Length
FLX(cm) #-- #
FL
Y
(cm) #-- #
I
PA. 3
@MI
max
(W/cm2)
469.8
Frequency (MHz)
6.0#---#
Image Depth (cm)
12.0#---#
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 20
Acoustic Output
1-14 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
E8C (continued)
Table 1-10: Transducer Mode: E8C Operating Mode: M-Mode (Inc. B-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
1.5 <1 <1 - <1 <1
p
r.3
(MPa)
3.0
W
o
(mW)
## ##
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
1.5 #
deq(zsp)(cm)
#
f
c
(MHz)
4.1 # # - # #
Dim of A
aprt
X(cm) ## - ##
Y(cm)
##- ##
PD (µsec)
0.5
PRF (Hz)
5379.2
pr@PII
max
(MPa)
3.7
deq@PII
max
(cm)
#
Focal
Length
FLX(cm) ##- #
FL
Y
(cm) ##- #
I
PA. 3
@MI
max
(W/cm2)
469.8
Frequency (MHz)
6.0 # # - # #
Image Depth (cm)
12.0 # # - # #
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 21
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-15
Direction 2392205-100 Rev. 1
E8C (continued)
Table 1-11: Transducer Mode: E8C Operating Mode: Color Flow (Inc.M-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
1.5 <1 <1 - 2.4 1.6
p
r.3
(MPa)
3.0
W
o
(mW)
## 32.0 40.4
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
1.5 1.7
deq(zsp)(cm)
0.4
f
c
(MHz)
4.1 # # - 4.8 4.8
Dim of A
aprt
X(cm) ##-0.60.6
Y(cm)
##-0.50.5
PD (µsec)
0.5
PRF (Hz)
800.0
pr@PII
max
(MPa)
3.7
deq@PII
max
(cm)
0.4
Focal
Length
FLX(cm) ##- 2.4
FL
Y
(cm) ##- 2.7
I
PA. 3
@MI
max
(W/cm2)
469.8
Frequency (MHz)
D5.0 # # - D5.0 D5.0
Image Depth (cm)
2.4 # # - 2.4 2.4
Vel Scale (kHz)
3.85 # # - 1.92 3.85
Penet
On # # - On On
ROI
130 # # - - 5
PS
14 # # - 16 16
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 22
Acoustic Output
1-16 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
E8C (continued)
Table 1-12: Transducer Mode: E8C Operating Mode: Pulsed Doppler (inc. B-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
non-
scanAaprt
Aaprt
>1
Global Maximum: Index Value
1.5 <1 <1 - 2.4 1.1
p
r.3
(MPa)
3.0
W
o
(mW)
## 32.0 34.1
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
1.5 1.8
deq(zsp)(cm)
0.3
f
c
(MHz)
4.1 # # - 5.0 5.0
Dim of A
aprt
X(cm) ##-1.31.3
Y(cm)
##-0.50.5
PD (µsec)
0.5
PRF (Hz)
5379.2
pr@PII
max
(MPa)
3.7
deq@PII
max
(cm)
0.3
Focal
Length
FLX(cm) ## - 2.4
FL
Y
(cm) ##- 2.7
I
PA. 3
@MI
max
(W/cm2)
469.8
Frequency (MHz)
D5.0 # # - D5.0 D5.0
Image Depth (cm)
2.4 # # - 2.4 2.4
Vel Scale (kHz)
0.64 - # - 1.22 1.22
SV
1-#-22
Penet
ON # # - ON #
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 23
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-17
Direction 2392205-100 Rev. 1
7L
Table 1-13: Transducer Mode: 7L Operating Mode: B-Mode
Index Label
MI
MI TIS TIB TIC
scan non-scan non-
scan
A
aprt
A
aprt
>1
Global Maximum: Index Value 1.7 <1 - - - <1
p
r.3
(MPa) 3.3
Wo(mW) #- -#
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z1(cm) -
zbp(cm) -
zsp(cm) 2.1 -
deq(zsp)(cm) -
fc(MHz) 3.5#---#
Dim of A
aprt
X(cm) #---#
Y(cm)
#---#
PD(
µsec)
0.6
PRF(Hz) 4717.0
pr@PII
max
(MPa) 4.2
deq@PII
max
(cm) -
Focal
Length
FLX(cm) #-- #
FL
Y
(cm) #-- #
I
PA. 3
@MI
max
(W/cm2)
902.5
Frequency (MHz) T6.0 # - - - #
Image Depth (cm) 14.0 # - - - #
Assoc Acoustic Parameter
Other infromation
Operating Control Condition
Page 24
Acoustic Output
1-18 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
7L (continued)
Table 1-14: Transducer Mode: 7L Operating Mode: M-Mode (Inc. B-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
1.7 <1 <1 - <1 <1
p
r.3
(MPa)
3.3
W
o
(mW)
## ##
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
2.1 #
deq(zsp)(cm)
#
f
c
(MHz)
3.5 # # - # #
Dim of A
aprt
X(cm) ## - ##
Y(cm)
##- ##
PD (µsec)
0.6
PRF (Hz)
4717.0
pr@PII
max
(MPa)
4.2
deq@PII
max
(cm)
#
Focal
Length
FLX(cm) ##- #
FL
Y
(cm) ##- #
I
PA. 3
@MI
max
(W/cm2)
902.5
Frequency (MHz)
T6.0 # # - # #
Image Depth (cm)
14.0 # # - # #
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 25
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-19
Direction 2392205-100 Rev. 1
7L (continued)
Table 1-15: Transducer Mode: 7L Operating Mode: Color Flow (Inc.M-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
1.7 1.1 <1 - 2.2 2.1
p
r.3
(MPa)
3.3
W
o
(mW)
58.3 # 38.1 58.3
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
2.1 1.7
deq(zsp)(cm)
0.2
f
c
(MHz)
3.5 4.0 # - 4.0 4.0
Dim of A
aprt
X(cm) 0.6 # - 0.6 0.6
Y(cm)
0.6 # - 0.6 0.6
PD (µsec)
0.6
PRF (Hz)
4717.0
pr@PII
max
(MPa)
4.2
deq@PII
max
(cm)
0.2
Focal
Length
FLX(cm) 2.2 # - 2.2
FL
Y
(cm) 3.0 # - 3.0
I
PA. 3
@MI
max
(W/cm2)
902.5
Frequency (MHz)
D4.0 D4.0 # - D4.0 D4.0
Image Depth (cm)
2.2 2.2 # - 2.2 2.2
Vel Scale (kHz)
1.80 7.69 # - 1.80 7.59
Penet
On On # - On On
ROI
40 5 # - - 5
PS
14 14 # - 16 14
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 26
Acoustic Output
1-20 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
7L (continued)
Table 1-16: Transducer Mode: 7L Operating Mode: Pulsed Doppler (inc. B-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
non-
scanAaprt
Aaprt
>1
Global Maximum: Index Value
1.7 1.3 <1 - 1.9 1.3
p
r.3
(MPa)
3.3
W
o
(mW)
44.3 # 32.3 38.8
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
2.1 2.3
deq(zsp)(cm)
0.3
f
c
(MHz)
3.5 4.0 # - 4.0 4.0
Dim of A
aprt
X(cm) 1.9 # - 0.8 0.9
Y(cm)
0.6 # - 0.6 0.6
PD (µsec)
0.6
PRF (Hz)
4717.0
pr@PII
max
(MPa)
4.2
deq@PII
max
(cm)
0.3
Focal
Length
FLX(cm) 2.2 # - 3.0
FL
Y
(cm) 3.0 # - 3.0
I
PA. 3
@MI
max
(W/cm2)
902.5
Frequency (MHz)
D4.0 BF4.0 # - D4.0 D4.0
Image Depth (cm)
2.2 4.0 # - 3.0 3.0
Vel Scale (kHz) 0.64 - # - 1.60 1.60
SV
1-#-22
Penet
On - # - On On
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 27
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-21
Direction 2392205-100 Rev. 1
7L (continued)
Table 1-17: Transducer Mode: 7L Operating Mode: B-Flow
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.7 1.3 <1 - 2.2 1.2
Assoc Acoustic Parameter
p
r.3
(MPa) 3.3
W
o
(mW) 44.3 # 38.1 39.7
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z
1
(cm) -
z
bp
(cm) -
z
sp
(cm) 2.1 2.3
deq(zsp)(cm) 0.3
f
c
(MHz) 3.5 4.0 # - 4.0 4.0
Dim of A
aprt
X(cm) 1.9 # - 0.8 0.8
Y(cm) 0.6 # - 0.6 0.6
Other information
PD (µsec)
0.6
PRF (Hz) 4717.0
pr@PII
max
(MPa) 4.2
deq@PII
max
(cm) 0.3
Focal
Length
FL
X
(cm)
3.2 # - 3.0
FL
Y
(cm)
3.0 # - 3.0
I
PA. 3
@MI
max
(W/cm2)
902.5
Operating Control Conditions
Frequency (MHz) BF4.0 BF4.0 # - D4.0 #
Image Depth (cm) 14.0 4.0 # - 3.0 #
Velocity Scale (kHz) - - # - 1.60 -
SV - - # - 2 -
Penetration - - # - On -
Page 28
Acoustic Output
1-22 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
10L
Table 1-18: Transducer Model: 10L Operating Mode: B-Mode
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
A
aprt
A
aprt
>1
Global Maximum: Index Value 1.6 <1 - - - 2.2
p
r.3
(MPa) 3.4
Wo(mW) #- -115.1
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z1(cm) -
zbp(cm) -
zsp(cm) 2.3 -
deq(zsp)(cm) -
fc(MHz) 4.5 # - - - 4.6
Dim of A
aprt
X(cm) #- - -2.2
Y(cm)
#- - -0.6
PD(
µsec)
0.4
PRF(Hz) 6807.4
pr@PII
max
(MPa) 5.1
deq@PII
max
(cm) -
Focal
Length
FLX(cm) #- - 2.2
FL
Y
(cm) #- - 2.5
I
PA. 3
@MI
max
(W/cm2)
1357.2
Frequency (MHz) T8.0 # - - - T8.0
Image Depth (cm) 10.0 # - - - 4.0
Assoc Acoustic Parameter
Other infromation
Operating Control Condition
Page 29
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-23
Direction 2392205-100 Rev. 1
10L (continued)
Table 1-19: Transducer Model: 10L Operating Mode: M-Mode (inc. B-Mode)
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
A
aprt
A
aprt
>1
Global Maximum: Index Value 1.7 <1 - <1 <1 2.1
p
r.3
(MPa) 3.8
Wo(mW) #- # 108.0
min of[W
.3(z1
, I
TA. 3(z1
)](mW) #
z1(cm) #
zbp(cm) #
zsp(cm) 2.3 #
deq(zsp)(cm) #
fc(MHz) 4.5 # - # # 2.6
Dim of A
aprt
X(cm) #- # #2.2
Y(cm)
#- # #0.6
PD(
µsec)
0.4
PRF(Hz) 800.0
pr@PII
max
(MPa) 5.3
deq@PII
max
(cm) #
Focal
Length
FLX(cm) #- # 2.2
FL
Y
(cm) #- # 2.5
I
PA. 3
@MI
max
(W/cm2)
1370.9
Frequency (MHz) T8.0 # - # # T8.0
Image Depth (cm) 10.0 # - # # 10.0
Assoc Acoustic Parameter
Other infromation
Operating Control Condition
Page 30
Acoustic Output
1-24 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
10L (continued)
Table 1-20: Transducer Model: 10L Operating Mode: CF-Mode (inc. M-Mode)
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
A
aprt
A
aprt
>1
Global Maximum: Index Value 1.8 5.0 < - 2.3 4.4
p
r.3
(MPa) 3.9
Wo(mW) 172.0 # 32.5 172.0
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z1(cm) -
zbp(cm) -
zsp(cm) 1.9 1.9
deq(zsp)(cm) 0.8
fc(MHz) 4.9 5.1 # - 4.9 5.1
Dim of A
aprt
X(cm) 1.2 # - 0.9 1.2
Y(cm)
0.6 # - 0.6 0.6
PD(
µsec)
0.5
PRF(Hz) 635.2
pr@PII
max
(MPa) 5.3
deq@PII
max
(cm) 0.8
Focal
Length
FLX(cm) 3.0 2.2 - 3.0
FL
Y
(cm) 2.5 2.5 - 2.5
I
PA. 3
@MI
max
(W/cm2)
1183.5
Frequency (MHz) D5.0 D5.0 # - D5.0 D5.0
Image Depth (cm) 1.4 0.6 # - 1.4 0.6
Vel Scale (kHz) 1.80 19.61 # - 1.80 19.61
Penet On On # - On On
ROI (mm) 24.9 5 # - - 5
PS 14 14 # - 16 14
Assoc Acoustic Parameter
Other infromation
Operating Control Condition
Page 31
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-25
Direction 2392205-100 Rev. 1
10L (continued)
Table 1-21: Transducer Model: 10L Operating Mode: PD-Mode (inc. B-Mode)
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
A
aprt
A
aprt
>1
Global Maximum: Index Value 1.8 5.0 <1 - 2.3 1.8
p
r.3
(MPa) 3.9
Wo(mW) 172.0 # 32.5 67.3
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z1(cm) -
zbp(cm) -
zsp(cm) 1.9 2.4
deq(zsp)(cm) 0.3
fc(MHz) 4.9 5.1 # - 5.0 5.1
Dim of A
aprt
X(cm) 1.2 # - 0.9 1.2
Y(cm)
0.6 # - 0.6 0.6
PD(
µsec)
0.5
PRF(Hz) 635.2
pr@PII
max
(MPa) 5.3
deq@PII
max
(cm) 0.3
Focal
Length
FLX(cm) 3.0 # - 3.0
FL
Y
(cm) 2.5 # - 2.5
I
PA. 3
@MI
max
(W/cm2)
1183.5
Frequency (MHz) D5.0 T8.0 # - D5.0 D5.0
Image Depth (cm) 2.8 4.0 # - 2.8 2.8
Vel Scale (kHz) 0.64 - # - 2.60 2.60
Penet On - # - On On
SV 1 - # - 3 3
Assoc Acoustic Parameter
Other infromation
Operating Control Condition
Page 32
Acoustic Output
1-26 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
10L (continued)
Table 1-22: Transducer Mode: 10L Operating Mode: B-Flow
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.6 2.2 <1 - 2.3 4.3
Assoc Acoustic Parameter
p
r.3
(MPa) 3.4
W
o
(mW) 207.2 # 32.5 207.2
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z
1
(cm) -
z
bp
(cm) -
z
sp
(cm) 3.1 2.4
deq(zsp)(cm) 0.3
f
c
(MHz) 4.5 4.5 # - 5.0 4.5
Dim of A
aprt
X(cm) 1.9 # - 0.9 1.9
Y(cm) 0.6 # - 0.6 0.6
Other information
PD (µsec)
1.2
PRF (Hz) 4717.0
pr@PII
max
(MPa) 5.5
deq@PII
max
(cm) 0.3
Focal
Length
FL
X
(cm)
3.8 # - 3.8
FL
Y
(cm)
2.5 # - 2.5
I
PA. 3
@MI
max
(W/cm2)
722.1
Operating Control Conditions
Frequency (MHz) BF6.0 BF6.0 # - D5.0 BF6.0
Image Depth (cm) 14.0 4.0 # - 2.8 14.0
Velocity Scale (kHz) - - # - 2.60 -
SV - - # - 3 -
Penetration - - # - On -
Page 33
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-27
Direction 2392205-100 Rev. 1
3S
Table 1-23: Transducer Mode: 3S Operating Mode: B-Mode
Index Label
MI
MI
TIS TIB
TICscan
non-scan
non-
scanAaprt
Aaprt
>1
Global Maximum: Index Value
1.4 < 1 - - - 1.3
p
r.3
(MPa)
2.0
W
o
(mW)
#- -89.9
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
3.3 -
deq(zsp)(cm)
-
f
c
(MHz)
1.9 # - - - 1.8
Dim of A
aprt
X(cm)
#
---1.8
Y(cm)
#---1.3
PD (µsec)
1.1
PRF (Hz)
2383.2
pr@PII
max
(MPa)
2.4
deq@PII
max
(cm)
-
Focal
Length
FLX(cm) #- - 4.8
FL
Y
(cm) #- - 8.0
I
PA. 3
@MI
max
(W/cm2)
146.4
Frequency (MHz)
T3.6 # - - - T3.6
Image Depth (cm)
30.0 # - - - 10.0
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 34
Acoustic Output
1-28 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
3S (continued)
Table 1-24: Transducer Mode: 3S Operating Mode: M-Mode (Inc. B-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
non-
scanAaprt
Aaprt
>1
Global Maximum: Index Value
1.4 < 1 - < 1 < 1 1.1
p
r.3
(MPa)
2.0
W
o
(mW)
#- # 77.7
min of[W.3(z1, I
TA. 3(z1
)] (mW)
#
z
1
(cm)
#
z
bp
(cm)
#
z
sp
(cm)
3.3 #
deq(zsp)(cm)
#
f
c
(MHz)
1.9 # - # # 1.8
Dim of A
aprt
X(cm) #-##1.8
Y(cm)
#-##1.3
PD (µsec)
1.1
PRF (Hz)
800.0
pr@PII
max
(MPa)
2.4
deq@PII
max
(cm)
#
Focal
Length
FLX(cm) #-# 4.8
FL
Y
(cm) #-# 8.0
I
PA. 3
@MI
max
(W/cm2)
146.4
Frequency (MHz)
T3.6 # - # # T3.6
Image Depth (cm)
30.0 # - # # 30.0
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 35
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-29
Direction 2392205-100 Rev. 1
3S (continued)
Table 1-25: Transducer Mode: 3S Operating Mode: Color Flow (Inc.M-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
1.7 < 1 - < 1 4.3 1.7
p
r.3
(MPa)
2.4
W
o
(mW)
#- 107.5 105.0
min of[W.3(z1, I
TA. 3(z1
)] (mW)
#
z
1
(cm)
#
z
bp
(cm)
#
z
sp
(cm)
2.6 3.0
deq(zsp)(cm)
1.1
f
c
(MHz)
1.9 # - # 2.0 2.0
Dim of A
aprt
X(cm) #-#0.91.4
Y(cm)
#-#1.31.3
PD (µsec)
1.4
PRF (Hz)
1796.0
pr@PII
max
(MPa)
2.8
deq@PII
max
(cm)
1.1
Focal
Length
FLX(cm) #-# 3.5
FL
Y
(cm) #-# 8.0
I
PA. 3
@MI
max
(W/cm2)
382.5
Frequency (MHz)
D2.0 # - # D2.0 D2.0
Image Depth (cm)
2.2 # - # 2.2 3.5
Vel Scale (kHz)
1.80 # - # 1.07 4.73
Penet
OFF # - # OFF OFF
ROI
60° # - # - 10°
PS
14 # - # 16 14
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 36
Acoustic Output
1-30 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
3S (continued)
Table 1-26: Transducer Mode: 3S Operating Mode: Pulsed Doppler (inc. B-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
non-
scanAaprt
Aaprt
>1
Global Maximum: Index Value
1.7 < 1 - < 1 2.1 < 1
p
r.3
(MPa)
2.4
W
o
(mW)
#- 44.9 #
min of[W.3(z1, I
TA. 3(z1
)] (mW)
#
z
1
(cm)
#
z
bp
(cm)
#
z
sp
(cm)
2.6 4.5
deq(zsp)(cm)
0.4
f
c
(MHz)
1.9 # - # 2.0 #
Dim of A
aprt
X(cm) #-#1.8#
Y(cm)
#-#1.3#
PD (µsec)
1.4
PRF (Hz)
1796.0
pr@PII
max
(MPa)
2.8
deq@PII
max
(cm)
0.4
Focal
Length
FLX(cm) #-# #
FL
Y
(cm) #-# #
I
PA. 3
@MI
max
(W/cm2)
382.5
Frequency (MHz)
D2.0 # - # D2.0 #
Image Depth (cm)
2.2 # - # 4.8 #
Vel Scale (kHz)
0.64 # - # 0.64 #
SV
3#-#4#
Penet
OFF # - # OFF #
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 37
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-31
Direction 2392205-100 Rev. 1
3S (continued)
Table 1-27: Transducer Mode: 3S Operating Mode: CW Doppler Mode
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
< 1 - - < 1 4.3 < 1
p
r.3
(MPa)
2.4
W
o
(mW)
#- 107.5 #
min of[W.3(z1, I
TA. 3(z1
)] (mW)
#
z
1
(cm)
#
z
bp
(cm)
#
z
sp
(cm)
2.6 3.0
deq(zsp)(cm)
1.1
f
c
(MHz)
1.9 # - # 2.0 #
Dim of A
aprt
X(cm)
#
-#0.9#
Y(cm)
#-#1.3#
PD (µsec)
1.4
PRF (Hz)
1796.0
pr@PII
max
(MPa)
2.8
deq@PII
max
(cm)
1.1
Focal
Length
FLX(cm) #- # #
FL
Y
(cm) #- # #
I
PA. 3
@MI
max
(W/cm2)
382.5
Frequency (MHz)
T3.6 # - # CW2.0 #
Image Depth (cm)
30.0 # # 3.5 #
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 38
Acoustic Output
1-32 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
10S
Table 1-28: Transducer Mode: 10S Operating Mode: B-Mode
Index Label
MI
MI
TIS TIB
TICscan
non-scan
non-
scanAaprt
Aaprt
>1
Global Maximum: Index Value
1.7 < 1 - - - 1.2
p
r.3
(MPa)
3.6
W
o
(mW)
#- -33.3
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
1.9 -
deq(zsp)(cm)
-
f
c
(MHz)
4.9 # - - - 4.7
Dim of A
aprt
X(cm)
#
---0.9
Y(cm)
#---0.4
PD (µsec)
0.3
PRF (Hz)
5379.2
pr@PII
max
(MPa)
4.8
deq@PII
max
(cm)
-
Focal
Length
FLX(cm) #- - 2.2
FL
Y
(cm) #- - 2.8
I
PA. 3
@MI
max
(W/cm2)
582.8
Frequency (MHz)
8.0 # - - - 8.0
Image Depth (cm)
12.0 # - - - 12.0
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 39
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-33
Direction 2392205-100 Rev. 1
10S (continued)
Table 1-29: Transducer Mode: 10S Operating Mode: M-Mode (Inc. B-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
1.7 < 1 < 1 - < 1 1.0
p
r.3
(MPa)
3.6
W
o
(mW)
## # 28.6
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
1.9 #
deq(zsp)(cm)
#
f
c
(MHz)
4.9 # # - # 4.7
Dim of A
aprt
X(cm) ## - #0.9
Y(cm)
##- #0.4
PD (µsec)
0.3
PRF (Hz)
5379.2
pr@PII
max
(MPa)
4.8
deq@PII
max
(cm)
#
Focal
Length
FLX(cm) ## - 2.2
FL
Y
(cm) ## - 2.8
I
PA. 3
@MI
max
(W/cm2)
582.8
Frequency (MHz)
8.0 # # - # 8.0
Image Depth (cm)
12.0 # # - # 12.0
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 40
Acoustic Output
1-34 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
10S (continued)
Table 1-30: Transducer Mode: 10S Operating Mode: Color Flow (Inc.M-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
1.7 < 1 < 1 - 1.7 < 1
p
r.3
(MPa)
3.6
W
o
(mW)
## 23.3 #
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
1.9 1.5
deq(zsp)(cm)
0.3
f
c
(MHz)
4.9 # # - 5.0 #
Dim of A
aprt
X(cm) ##-0.3#
Y(cm)
##-0.4#
PD (µsec)
0.3
PRF (Hz)
5379.2
pr@PII
max
(MPa)
4.8
deq@PII
max
(cm)
0.3
Focal
Length
FLX(cm) ## - #
FL
Y
(cm) ## - #
I
PA. 3
@MI
max
(W/cm2)
582.8
Frequency (MHz)
D5.0 # # - D5.0 #
Image Depth (cm)
2.2 # # - 2.2 #
Vel Scale (kHz)
1.80 # # - 1.41 #
Penet
ON # # - ON #
ROI
60° # # - - #
PS
14 # # - 16 #
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 41
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-35
Direction 2392205-100 Rev. 1
10S (continued)
Table 1-31: Transducer Mode: 10S Operating Mode: Pulsed Doppler (inc. B-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
non-
scanAaprt
Aaprt
>1
Global Maximum: Index Value
1.7 < 1 < 1 - < 1 < 1
p
r.3
(MPa)
3.6
W
o
(mW)
## ##
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
1.9 #
deq(zsp)(cm)
#
f
c
(MHz)
4.9 # # - # #
Dim of A
aprt
X(cm) ##- ##
Y(cm)
##- ##
PD (µsec)
0.3
PRF (Hz)
5379.2
pr@PII
max
(MPa)
4.8
deq@PII
max
(cm)
#
Focal
Length
FLX(cm) ## - #
FL
Y
(cm) ##- #
I
PA. 3
@MI
max
(W/cm2)
582.8
Frequency (MHz)
D5.0 # # - # #
Image Depth (cm)
2.2 # # - # #
Vel Scale (kHz)
0.64 # # - # #
SV
1##-##
Penet
ON # # - # #
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 42
Acoustic Output
1-36 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
10S (continued)
Table 1-32: Transducer Mode: 10S Operating Mode: CW Doppler Mode
Index Label
MI
MI
TIS TIB
TICscan
non-scan
non-
scanAaprt
Aaprt
>1
Global Maximum: Index Value
1.7 < 1 < 1 - 1.7 < 1
p
r.3
(MPa)
3.6
W
o
(mW)
## 23.3 #
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
1.9 1.5
deq(zsp)(cm)
0.3
f
c
(MHz)
4.9 # # - 5.0 #
Dim of A
aprt
X(cm) ## -0.3#
Y(cm)
##-0.4#
PD (µsec)
0.3
PRF (Hz)
5379.2
pr@PII
max
(MPa)
4.8
deq@PII
max
(cm)
0.3
Focal
Length
FLX(cm) ## - #
FL
Y
(cm) ## - #
I
PA. 3
@MI
max
(W/cm2)
582.8
Frequency (MHz)
8.0 # # - CW5.0 #
Image Depth (cm)
12.0 # # 2.8 #
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 43
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-37
Direction 2392205-100 Rev. 1
M12L
Table 1-33: Transducer Mode: M12L Operating Mode: B-Mode
Index Label
MI
MI
TIS TIB
TICscan
non-scan
non-
scanAaprt
Aaprt
>1
Global Maximum: Index Value
1.4 < 1 - - - 1.8
p
r.3
(MPa)
3.7
W
o
(mW)
#- -24.3
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
0.7 -
deq(zsp)(cm)
-
f
c
(MHz)
6.4 # - - - 5.3
Dim of A
aprt
X(cm) #---0.6
Y(cm)
#---0.2
PD (µsec)
0.3
PRF (Hz)
6131.2
pr@PII
max
(MPa)
4.3
deq@PII
max
(cm)
-
Focal
Length
FLX(cm) #- - 0.8
FL
Y
(cm) #- - 1.5
I
PA. 3
@MI
max
(W/cm2)
476.4
Frequency (MHz)
T10.0 # - - - T10.0
Image Depth (cm)
10.0 # - - - 4.0
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 44
Acoustic Output
1-38 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
M12L (continued)
Table 1-34: Transducer Mode: M12L Operating Mode: M-Mode (Inc. B-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
1.4 < 1 < 1 - < 1 1.6
p
r.3
(MPa)
3.7
W
o
(mW)
## # 20.5
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
0.7 #
deq(zsp)(cm)
#
f
c
(MHz)
6.4 # # - # 5.3
Dim of A
aprt
X(cm) ## - #0.6
Y(cm)
##- #0.2
PD (µsec)
0.3
PRF (Hz)
6131.2
pr@PII
max
(MPa)
4.3
deq@PII
max
(cm)
#
Focal
Length
FLX(cm) ## - 0.8
FL
Y
(cm) ## - 1.5
I
PA. 3
@MI
max
(W/cm2)
476.4
Frequency (MHz)
T10.0 # # - # T10.0
Image Depth (cm)
10.0 # # - # 10.0
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 45
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-39
Direction 2392205-100 Rev. 1
M12L (continued)
Table 1-35: Transducer Mode: M12L Operating Mode: Color Flow (Inc.M-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
1.5 2.1 < 1 - 1.0 5.2
p
r.3
(MPa)
3.7
W
o
(mW)
68.4 # 8.8 68.4
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
0.7 0.7
deq(zsp)(cm)
0.2
f
c
(MHz)
6.5 6.5 # - 5.1 6.5
Dim of A
aprt
X(cm) 0.6 # - 0.6 0.6
Y(cm)
0.2 # - 0.2 0.2
PD (µsec)
0.6
PRF (Hz)
635.2
pr@PII
max
(MPa)
4.3
deq@PII
max
(cm)
0.2
Focal
Length
FLX(cm) 0.8 # - 0.8
FL
Y
(cm) 1.5 # - 1.5
I
PA. 3
@MI
max
(W/cm2)
510.6
Frequency (MHz)
D5.0 D6.6 # - D5.0 D6.6
Image Depth (cm)
0.8 0.8 # - 0.8 0.8
Vel Scale (kHz)
1.80 19.61 # - 19.61 19.61
Penet
ON OFF # - ON OFF
ROI
10mm 10mm # - - 10mm
PS
10 12 # - 16 12
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 46
Acoustic Output
1-40 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
M12L (continued)
Table 1-36: Transducer Mode: M12L Operating Mode: Pulsed Doppler (inc. B-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
non-
scanAaprt
Aaprt
>1
Global Maximum: Index Value 1.5 2.9 <1 - 1.0 1.8
Assoc Acoustic Parameter
p
r.3
(MPa) 3.4
W
o
(mW) 92.1 # 8.8 23.7
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z
1
(cm) -
z
bp
(cm) -
z
sp
(cm) 2.5 0.9
deq(zsp)(cm) 0.2
f
c
(MHz) 5.0 6.5 # - 6.7 6.5
Dim of A
aprt
X(cm) 1.8 # - 0.6 0.6
Y(cm)
0.3 # - 0.2 0.2
Other information
PD (µsec)
1.1
PRF (Hz) 6192.0
pr@PII
max
(MPa) 5.3
deq@PII
max
(cm) 0.2
Focal
Length
FLX(cm) 2.4 # - 0.8
FL
Y
(cm) 2.1 # - 1.5
I
PA. 3
@MI
max
(W/cm2)
370.3
Operating Control Conditions
Frequency (MHz) D6.6 BF6.0 # - D6.6 D6.6
Image Depth (cm) 0.8 3.0 # - 0.8 0.8
Velocity Scale (kHz) 0.64 - # - 0.96 0.96
SV 1 - # - 3 3
Penetration On - # - Off Off
Page 47
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-41
Direction 2392205-100 Rev. 1
M12L (continued)
Table 1-37: Transducer Mode: M12L Operating Mode: B-Flow
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.5 2.9 <1 - 1.0 2.6
Assoc Acoustic Parameter
p
r.3
(MPa) 3.4
W
o
(mW) 92.1 # 8.8 92.1
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z
1
(cm) -
z
bp
(cm) -
z
sp
(cm) 2.5 0.9
deq(zsp)(cm) 0.2
f
c
(MHz) 5.0 6.5 # - 6.7 6.5
Dim of A
aprt
X(cm) 1.8 # - 0.6 1.8
Y(cm) 0.3 # - 0.2 0.3
Other information
PD (µsec)
1.1
PRF (Hz) 6192.0
pr@PII
max
(MPa) 5.3
deq@PII
max
(cm) 0.2
Focal
Length
FL
X
(cm)
2.4 # - 2.4
FL
Y
(cm)
2.1 # - 2.1
I
PA. 3
@MI
max
(W/cm2)
370.3
Operating Control Conditions
Frequency (MHz) BF6.0 BF6.0 # - D6.0 BF6.0
Image Depth (cm) 10.0 3.0 # - 0.8 3.0
Velocity Scale (kHz) - - # - 0.96 -
SV - - # - 3 -
Penetration - - # - Off -
Page 48
Acoustic Output
1-42 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
M7C
Table 1-38: Transducer Mode: M7C Operating Mode: B-Mode
Index Label
MI
MI
TIS TIB
TICscan
non-scan
non-
scanAaprt
Aaprt
>1
Global Maximum: Index Value
1.7 1.6 - - - 2.3
p
r.3
(MPa)
3.4
W
o
(mW)
116 .6 - - 116.6
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
2.2 -
deq(zsp)(cm)
-
f
c
(MHz)
3.3 3.5 - - - 3.5
Dim of A
aprt
X(cm)
1.4
---1.4
Y(cm)
0.9 - - - 0.9
PD (µsec)
0.8
PRF (Hz)
3012.0
pr@PII
max
(MPa)
4.1
deq@PII
max
(cm)
-
Focal
Length
FLX(cm) 2.2 - - 2.2
FL
Y
(cm) 11 .5 - - 11.5
I
PA. 3
@MI
max
(W/cm2)
472.6
Frequency (MHz)
6.0 CE6.0 - - - CE6.0
Image Depth (cm)
24.0 9.0 - - - 9.0
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 49
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-43
Direction 2392205-100 Rev. 1
M7C (continued)
Table 1-39: Transducer Mode: M7C Operating Mode: M-Mode (Inc. B-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
1.7 < 1 - < 1 1.3 1.1
p
r.3
(MPa)
3.4
W
o
(mW)
#- 20.3 75.9
min of[W.3(z1, I
TA. 3(z1
)] (mW)
#
z
1
(cm)
#
z
bp
(cm)
#
z
sp
(cm)
2.2 2.2
deq(zsp)(cm)
0.5
f
c
(MHz)
3.3 # - # 3.3 3.4
Dim of A
aprt
X(cm) #-#1.43.1
Y(cm)
#-#0.90.9
PD (µsec)
0.8
PRF (Hz)
3012.0
pr@PII
max
(MPa)
4.1
deq@PII
max
(cm)
0.5
Focal
Length
FLX(cm) #-# 4.8
FL
Y
(cm) #-# 11.5
I
PA. 3
@MI
max
(W/cm2)
472.6
Frequency (MHz)
6.0 # - # 6.0 6.0
Image Depth (cm)
24.0 # - # 24.0 24.0
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 50
Acoustic Output
1-44 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
M7C (continued)
Table 1-40: Transducer Mode: M7C Operating Mode: Color Flow (Inc.M-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
1.7 1.1 - < 1 2.2 1.2
p
r.3
(MPa)
3.4
W
o
(mW)
78.9 - 54.2 78.9
min of[W.3(z1, I
TA. 3(z1
)] (mW)
#
z
1
(cm)
#
z
bp
(cm)
#
z
sp
(cm)
3.4 3.4
deq(zsp)(cm)
0.3
f
c
(MHz)
3.7 3.9 - # 3.9 3.9
Dim of A
aprt
X(cm) 2.3 - # 2.3 2.3
Y(cm)
0.9 - # 0.9 0.9
PD (µsec)
0.4
PRF (Hz)
635.2
pr@PII
max
(MPa)
5.1
deq@PII
max
(cm)
0.3
Focal
Length
FLX(cm) 3.5 - # 3.5
FL
Y
(cm) 11.5 - # 11. 5
I
PA. 3
@MI
max
(W/cm2)
1425.0
Frequency (MHz)
D4.0 D4.0 - # D4.0 D4.0
Image Depth (cm)
3.5 3.5 - # 3.5 3.5
Vel Scale (kHz)
1.80 7.69 - # 1.23 7.69
Penet
ON ON - # ON ON
ROI
60° 5° - # - 5°
PS
12 12 - # 16 12
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 51
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-45
Direction 2392205-100 Rev. 1
M7C (continued)
Table 1-41: Transducer Mode: M7C Operating Mode: Pulsed Doppler (inc. B-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
non-
scanAaprt
Aaprt
>1
Global Maximum: Index Value
1.7 1.1 - < 1 2.2 < 1
p
r.3
(MPa)
3.4
W
o
(mW)
78.9 - 54.2 #
min of[W.3(z1, I
TA. 3(z1
)] (mW)
#
z
1
(cm)
#
z
bp
(cm)
#
z
sp
(cm)
3.4 3.4
deq(zsp)(cm)
0.4
f
c
(MHz)
3.7 3.9 - # 4.0 #
Dim of A
aprt
X(cm) 2.3 - # 2.3 #
Y(cm)
0.9 - # 0.9 #
PD (µsec)
0.4
PRF (Hz)
635.2
pr@PII
max
(MPa)
5.1
deq@PII
max
(cm)
0.4
Focal
Length
FLX(cm) 3.5 - # #
FL
Y
(cm) 11 .5 - # #
I
PA. 3
@MI
max
(W/cm2)
1425.0
Frequency (MHz)
D4.0 6.0 - # D4.0 #
Image Depth (cm)
3.5 8.0 - # 3.5 #
Vel Scale (kHz)
0.64 - - # 0.70 #
SV
1--#3#
Penet
ON - - # ON #
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 52
Acoustic Output
1-46 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
3.5C
Table 1-42: Transducer Mode: 3.5C Operating Mode: B-Mode
Index Label
MI
MI
TIS TIB
TICscan
non-scan
non-
scanAaprt
Aaprt
>1
Global Maximum: Index Value
1.5 < 1 - - - 2.3
p
r.3
(MPa)
2.4
W
o
(mW)
#- - 216.5
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
3.6 -
deq(zsp)(cm)
-
f
c
(MHz)
2.4 # - - - 2.0
Dim of A
aprt
X(cm) #---3.3
Y(cm)
#---1.3
PD (µsec)
0.7
PRF (Hz)
2383.2
pr@PII
max
(MPa)
3.2
deq@PII
max
(cm)
-
Focal
Length
FLX(cm) #- - 4.8
FL
Y
(cm) #- - 6.6
I
PA. 3
@MI
max
(W/cm2)
288.4
Frequency (MHz)
T5.0 # - - - T4.0
Image Depth (cm)
30.0 # - - - 8.0
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 53
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-47
Direction 2392205-100 Rev. 1
3.5C (continued)
Table 1-43: Transducer Mode: 3.5C Operating Mode: M-Mode (Inc. B-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
1.5 < 1 - < 1 1.0 2.0
p
r.3
(MPa)
2.4
W
o
(mW)
#- 34.8 186.2
min of[W.3(z1, I
TA. 3(z1
)] (mW)
#
z
1
(cm)
#
z
bp
(cm)
#
z
sp
(cm)
3.6 3.6
deq(zsp)(cm)
0.6
f
c
(MHz)
2.4 # - # 2.4 2.0
Dim of A
aprt
X(cm) #-#2.43.3
Y(cm)
#-#1.31.3
PD (µsec)
0.7
PRF (Hz)
2383.2
pr@PII
max
(MPa)
3.2
deq@PII
max
(cm)
0.6
Focal
Length
FLX(cm) #-# 4.8
FL
Y
(cm) #-# 6.6
I
PA. 3
@MI
max
(W/cm2)
288.4
Frequency (MHz)
T5.0 # - # T5.0 T5.0
Image Depth (cm)
30.0 # - # 30.0 30.0
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 54
Acoustic Output
1-48 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
3.5C (continued)
Table 1-44: Transducer Mode: 3.5C Operating Mode: Color Flow (Inc.M-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
1.7 < 1 - < 1 2.1 2.3
p
r.3
(MPa)
1.8
W
o
(mW)
#- 31.5 214.2
min of[W.3(z1, I
TA. 3(z1
)] (mW)
#
z
1
(cm)
#
z
bp
(cm)
#
z
sp
(cm)
5.0 5.0
deq(zsp)(cm)
0.5
f
c
(MHz)
3.1 # - # 3.1 2.0
Dim of A
aprt
X(cm) #-#3.33.3
Y(cm)
#-#1.31.3
PD (µsec)
0.8
PRF (Hz)
635.2
pr@PII
max
(MPa)
4.5
deq@PII
max
(cm)
0.5
Focal
Length
FLX(cm) #-# 4.8
FL
Y
(cm) #-# 6.6
I
PA. 3
@MI
max
(W/cm2)
452.8
Frequency (MHz)
D3.3 # - # D3.3 D2.0
Image Depth (cm)
4.8 # - # 4.8 4.8
Vel Scale (kHz)
1.80 # - # 1.23 7.69
Penet
OFF # - # OFF ON
ROI
70° # - # - 5°
PS
12 # - # 16 12
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 55
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-49
Direction 2392205-100 Rev. 1
3.5C (continued)
Table 1-45: Transducer Mode: 3.5C Operating Mode: Pulsed Doppler (inc. B-Mode)
Index Label
MI
MI
TIS TIB
TICscan
non-scan
non-
scanAaprt
Aaprt
>1
Global Maximum: Index Value
1.7 < 1 - < 1 2.1 < 1
p
r.3
(MPa)
3.0
W
o
(mW)
#- 31.5 #
min of[W.3(z1, I
TA. 3(z1
)] (mW)
#
z
1
(cm)
#
z
bp
(cm)
#
z
sp
(cm)
5.0 3.7
deq(zsp)(cm)
0.3
f
c
(MHz)
3.1 # - # 2.0 #
Dim of A
aprt
X(cm) #-#2.4#
Y(cm)
#-#1.3#
PD (µsec)
0.8
PRF (Hz)
1796.0
pr@PII
max
(MPa)
4.5
deq@PII
max
(cm)
0.3
Focal
Length
FLX(cm) #-# #
FL
Y
(cm) #-# #
I
PA. 3
@MI
max
(W/cm2)
452.3
Frequency (MHz)
D3.3 # - # D2.0 #
Image Depth (cm)
4.8 # - # 3.5 #
Vel Scale (kHz)
0.64 # - # 1.23 #
SV
1#-#4#
Penet
OFF # - # ON #
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 56
Acoustic Output
1-50 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
3.5C (continued)
Table 1-46: Transducer Mode: 3.5C Operating Mode: Contrast
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
1.5 2.0 - - - 1.5
p
r.3
(MPa)
2.7
W
o
(mW)
141.8 - - 141.8
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
3.5 -
deq(zsp)(cm)
-
f
c
(MHz)
3.2 3.2 - - - 3.2
Dim of A
aprt
X(cm) 3.3 - - - 3.3
Y(cm)
1.3 - - - 1.3
PD (µsec)
0.4
PRF (Hz)
2383.2
pr@PII
max
(MPa)
4.1
deq@PII
max
(cm)
-
Focal
Length
FLX(cm) 4.8 - - 4.8
FL
Y
(cm) 6.6 - - 6.6
I
PA. 3
@MI
max
(W/cm2)
337.0
Frequency (MHz)
Con3.0 Con3.0 - - - Con3.0
Image Depth (cm)
30.0 8.0 - - - 8.0
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 57
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-51
Direction 2392205-100 Rev. 1
P2D
Table 1-47: Transducer Mode: P2D Operating Mode: CW Doppler Mode
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
< 1 - < 1 - 2.2 < 1
p
r.3
(MPa)
3.6
W
o
(mW)
## 53.5 #
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
# 2.9
deq(zsp)(cm)
0.9
f
c
(MHz)
###-2.0#
Dim of A
aprt
X(cm)
#
#- -#
Y(cm)
## - -#
PD (µsec)
#
PRF (Hz)
#
pr@PII
max
(MPa)
#
deq@PII
max
(cm)
0.9
Focal
Length
FLX(cm) ## - #
FL
Y
(cm) ## - #
I
PA. 3
@MI
max
(W/cm2)
#
Frequency (MHz)
###-CW2.0#
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 58
Acoustic Output
1-52 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
P6D
Table 1-48: Transducer Mode: P6D Operating Mode: CW Doppler Mode
Index Label
MI
MI
TIS TIB
TICscan
non-scan
nonscanAaprt
Aaprt
>1
Global Maximum: Index Value
< 1 - < 1 - < 1 < 1
p
r.3
(MPa)
#
W
o
(mW)
-# ##
min of[W.3(z1, I
TA. 3(z1
)] (mW)
-
z
1
(cm)
-
z
bp
(cm)
-
z
sp
(cm)
# #
deq(zsp)(cm)
#
f
c
(MHz)
###- ##
Dim of A
aprt
X(cm)
#
#- ##
Y(cm)
## - ##
PD (µsec)
#
PRF (Hz)
#
pr@PII
max
(MPa)
#
deq@PII
max
(cm)
#
Focal
Length
FLX(cm) -#- #
FL
Y
(cm) -#- #
I
PA. 3
@MI
max
(W/cm2)
#
Frequency (MHz)
#-#-##
Assoc Acoustic Paramete
Other infromation
Operating Control
Conditions
Page 59
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-53
Direction 2392205-100 Rev. 1
i12L
Table 1-49: Transducer Model: i12L Operating Mode: B-Mode
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
A
aprt
A
aprt
>1
Global Maximum: Index Value 1.3 2.2 - - - 1.7
p
r.3
(MPa) 3.2
Wo(mW) 74.8 - - 74.8
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z1(cm) -
zbp(cm) -
zsp(cm) 1.4 -
deq(zsp)(cm) -
fc(MHz) 6.3 6.3 - - - 6.3
Dim of A
aprt
X(cm) 1.4 - - - 1.4
Y(cm)
0.7 - - - 0.7
PD(
µsec)
0.2
PRF(Hz) 6257.8
pr@PII
max
(MPa) 4.4
deq@PII
max
(cm) -
Focal
Length
FLX(cm) 1.4 - - 1.4
FL
Y
(cm) 1.3 - - 1.3
I
PA. 3
@MI
max
(W/cm2)
579.4
Frequency (MHz) 6.0 6.0 - - - 6.0
Image Depth (cm) 10.0 4.0 - - - 4.0
Assoc Acoustic Parameter
Other infromation
Operating Control Condition
Page 60
Acoustic Output
1-54 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
i12L (continued)
Table 1-50: Transducer Model: i12L Operating Mode: M-Mode (inc. B-Mode)
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
A
aprt
A
aprt
>1
Global Maximum: Index Value 1.3 2.2 <1 - <1 1.6
p
r.3
(MPa) 3.2
Wo(mW) 74.8 # # 69.8
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z1(cm) -
zbp(cm) -
zsp(cm) 1.4 #
deq(zsp)(cm) #
fc(MHz) 6.3 6.3 # - # 6.3
Dim of A
aprt
X(cm) 1.4 # - # 1.4
Y(cm)
0.7 # - # 0.7
PD(
µsec)
0.2
PRF(Hz) 6257.8
pr@PII
max
(MPa) 4.4
deq@PII
max
(cm) #
Focal
Length
FLX(cm) 1.4 # - 1.4
FL
Y
(cm) 1.3 # - 1.3
I
PA. 3
@MI
max
(W/cm2)
579.4
Frequency (MHz) 6.0 6.0 # - # 6.0
Image Depth (cm) 10.0 4.0 # - # 10.0
Assoc Acoustic Parameter
Other infromation
Operating Control Condition
Page 61
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-55
Direction 2392205-100 Rev. 1
i12L (continued)
Table 1-51: Transducer Model: i12L Operating Mode: CF-Mode (inc. M-Mode)
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
A
aprt
A
aprt
>1
Global Maximum: Index Value 1.4 2.2 1.4 - 2.5 2.7
p
r.3
(MPa) 2.7
Wo(mW) 74.8 56.7 56.7 56.2
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z1(cm) -
zbp(cm) -
zsp(cm) 1.2 1.2
deq(zsp)(cm) 0.2
fc(MHz) 6.5 6.3 6.5 - 6.5 6.8
Dim of A
aprt
X(cm) 1.4 0.6 - 0.6 0.3
Y(cm)
0.7 0.7 - 0.7 0.7
PD(
µsec)
0.4
PRF(Hz) 635.2
pr@PII
max
(MPa) 4.7
deq@PII
max
(cm) 0.2
Focal
Length
FLX(cm) 1.4 1.4 - 0.6
FL
Y
(cm) 1.3 1.3 - 1.3
I
PA. 3
@MI
max
(W/cm2)
1252.9
Frequency (MHz) D6.6 D6.6 D6.6 - D6.6 D6.6
Image Depth (cm) 1.4 0.6 1.4 - 1.4 0.6
Vel Scale (kHz) 1.80 19.61 1.86 - 1.86 19.61
Penet On On On - On On
ROI (mm) 24.9 5 - - - 5
PS 14 14 16 - 16 14
Assoc Acoustic Parameter
Other infromation
Operating Control Condition
Page 62
Acoustic Output
1-56 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
i12L (continued)
Table 1-52: Transducer Model: i12L Operating Mode: PD-Mode (inc. B-Mode)
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
A
aprt
A
aprt
>1
Global Maximum: Index Value 1.4 2.2 1.4 - 2.5 1.9
p
r.3
(MPa) 3.6
Wo(mW) 74.8 56.7 56.7 56.6
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z1(cm) -
zbp(cm) -
zsp(cm) 1.2 1.9
deq(zsp)(cm) 0.4
fc(MHz) 6.5 6.3 5.3 - 5.3 5.3
Dim of A
aprt
X(cm) 1.4 0.9 - 0.9 0.9
Y(cm)
0.7 0.7 - 0.7 0.7
PD(
µsec)
0.4
PRF(Hz) 1796.0
pr@PII
max
(MPa) 4.7
deq@PII
max
(cm) 0.4
Focal
Length
FLX(cm) 1.4 2.2 - 2.2
FL
Y
(cm) 1.3 1.3 - 1.3
I
PA. 3
@MI
max
(W/cm2)
1252.2
Frequency (MHz) D6.6 6.0 D6.6 - D5.0 D5.0
Image Depth (cm) 1.4 4.0 2.2 - 2.2 2.2
Vel Scale (kHz) 0.64 - 6.25 - 6.25 6.25
Penet On - On - On On
SV 1 - 1 - 1 1
Assoc Acoustic Parameter
Other infromation
Operating Control Condition
Page 63
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-57
Direction 2392205-100 Rev. 1
3.5CS
Table 1-53: Transducer Mode: 3.5CS Operating Mode: B-Mode
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.2 <1 - - - 2.6
Assoc Acoustic Parameter
p
r.3
(MPa) 1.9
W
o
(mW) #- - 189.1
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z
1
(cm) -
z
bp
(cm) -
z
sp
(cm) 3.2 -
deq(zsp)(cm) -
f
c
(MHz) 2.5 # - - - 2.0
Dim of A
aprt
X(cm) #- - - 2.0
Y(cm) #- - - 1.3
Other information
PD (µsec)
0.8
PRF (Hz) 2290
pr@PII
max
(MPa) 2.6
deq@PII
max
(cm) -
Focal
Length
FL
X
(cm)
#- - 4.8
FL
Y
(cm)
#- - 6.6
I
PA. 3
@MI
max
(W/cm2)
144.6
Operating Control Conditions
Frequency (MHz) T5.0 # - - - T4.0
Image Depth (cm) 30.0 # 8.0
-- -
Page 64
Acoustic Output
1-58 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
3.5CS (continued)
Table 1-54: Transducer Mode: 3.5CS Operating Mode: M-Mode (inc.B-mode)
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.2 <1 - <1 <1 2.3
Assoc Acoustic Parameter
p
r.3
(MPa) 1.9
W
o
(mW) #- # 164.3
min of[W
.3(z1
, I
TA. 3(z1
)](mW) #
z
1
(cm) #
z
bp
(cm) #
z
sp
(cm) 3.2 #
deq(zsp)(cm) #
f
c
(MHz) 2.5 # - # # 2.0
Dim of A
aprt
X(cm) ###2.0
Y(cm) ###1.3
Other information
PD (µsec)
0.8
PRF (Hz) 2290
pr@PII
max
(MPa) 2.6
deq@PII
max
(cm) #
Focal
Length
FL
X
(cm)
#- # 4.8
FL
Y
(cm)
#- # 6.6
I
PA. 3
@MI
max
(W/cm2)
144.6
Operating Control Conditions
Frequency (MHz) T5.0 # - # # T5.0
Image Depth (cm) 30.0 # - # # 30.0
Page 65
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-59
Direction 2392205-100 Rev. 1
3.5CS (continued)
Table 1-55: Transducer Mode: 3.5CS Operating Mode: Color Flow (inc. M-mode)
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.2 <1 - - 1.6 1.7
Assoc Acoustic Parameter
p
r.3
(MPa) 1.9
W
o
(mW) #- 50.1 119.6
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z
1
(cm) -
z
bp
(cm) -
z
sp
(cm) 3.2 4.3
deq(zsp)(cm) 0.6
f
c
(MHz) 2.5 # - - 3.3 2.0
Dim of A
aprt
X(cm) #- - 2.0 2.0
Y(cm) #- - 1.3 1.3
Other information
PD (µsec)
0.8
PRF (Hz) 2290
pr@PII
max
(MPa) 2.6
deq@PII
max
(cm) 0.6
Focal
Length
FL
X
(cm)
#- - 4.8
FL
Y
(cm)
#- - 6.6
I
PA. 3
@MI
max
(W/cm2)
144.6
Operating Control Conditions
Frequency (MHz) D3.3 # - - D3.3 D2.0
Image Depth (cm) 4.8 # - - 4.8 4.8
Velocity Scale (kHz) 1.80 # - - 1.23 7.69
Penetration Off # - - Off Off
ROI 70deg # - - - 5deg
PS 12 # - - 16 12
Page 66
Acoustic Output
1-60 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
3.5CS (continued)
Table 1-56: Transducer Mode: 3.5CS Operating Mode: Pulsed Doppler (inc. B-mode)
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.2 <1 - <1 1.6 1.3
Assoc Acoustic Parameter
p
r.3
(MPa) 1.9
W
o
(mW) #- 50.1 84.8
min of[W
.3(z1
, I
TA. 3(z1
)](mW) #
z
1
(cm) #
z
bp
(cm) #
z
sp
(cm) 3.2 3.4
deq(zsp)(cm) 0.7
f
c
(MHz) 2.5 # - # 2.0 2.0
Dim of A
aprt
X(cm) #- # 1.4 2.0
Y(cm) #- # 1.3 1.3
Other information
PD (µsec)
0.8
PRF (Hz) 2290
pr@PII
max
(MPa) 2.6
deq@PII
max
(cm) 0.7
Focal
Length
FL
X
(cm)
#- # 4.8
FL
Y
(cm)
#- # 6.6
I
PA. 3
@MI
max
(W/cm2)
144.6
Operating Control COnditions
Frequency (MHz) D3.3 # - # D2.0 D2.0
Image Depth (cm) 4.8 # - # 3.5 3.5
Velocity Scale (kHz)) 0.64 - - # 1.23 1.23
SV 1 - - # 4 4
Penetration Off - - # On On
Page 67
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-61
Direction 2392205-100 Rev. 1
3.5CS (continued)
Table 1-57: Transducer Mode: 3.5CS Operating Mode: CHA
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.5 1.3 - - - 2.4
Assoc Acoustic Parameter
p
r.3
(MPa) 2.2
W
o
(mW) 193.5 - - 193.5
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z
1
(cm) -
z
bp
(cm) -
z
sp
(cm) 4.5 -
deq(zsp)(cm) -
f
c
(MHz) 2.1 2.1 - - - 2.1
Dim of A
aprt
X(cm) 2.5 - - - 2.5
Y(cm) 1.3 - - - 1.3
Other information
PD (µsec)
1.1
PRF (Hz) 2288.9
pr@PII
max
(MPa) 3.2
deq@PII
max
(cm) -
Focal
Length
FL
X
(cm)
5.1 - - 5.1
FL
Y
(cm)
6.6 - - 6.6
I
PA. 3
@MI
max
(W/cm2)
288.3
Operating Control Conditions
Frequency (MHz) Con
3.0
Con
3.0
-- - Con
3.0
Image Depth (cm) 30.0 6.0 - - - 6.0
-
-
-
Page 68
Acoustic Output
1-62 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
8C
Table 1-58: Transducer Mode: 8C Operating Mode: B-Mode
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.3 <1 - - - <1
Assoc Acoustic Parameter
p
r.3
(MPa) 2.6
W
o
(mW) #- -#
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z
1
(cm) -
z
bp
(cm) -
z
sp
(cm) 1.8 -
deq(zsp)(cm) -
f
c
(MHz) 4.2 # - - - #
Dim of A
aprt
X(cm) #- - - #
Y(cm) #- - - #
Other information
PD (µsec)
0.5
PRF (Hz) 5376.3
pr@PII
max
(MPa) 3.4
deq@PII
max
(cm) -
Focal
Length
FL
X
(cm)
#- - #
FL
Y
(cm)
#- - #
I
PA. 3
@MI
max
(W/cm2)
303.2
Operating Controls Conditions
Frequency (MHz) T8.0 # - - - #
Image Depth (cm) 12.0 # #
-- -
Page 69
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-63
Direction 2392205-100 Rev. 1
8C (continued)
Table 1-59: Transducer Mode: 8C Operating Mode: M-mode (inc. B-mode)
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.3 <1 <1 - <1 <1
Assoc Acoustic Parameter
p
r.3
(MPa) 2.6
W
o
(mW) ## ##
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z
1
(cm) -
z
bp
(cm) -
z
sp
(cm) 1.8 #
deq(zsp)(cm) #
f
c
(MHz) 4.2 # # - # #
Dim of A
aprt
X(cm) ##- # #
Y(cm) ##- # #
Other information
PD (µsec)
0.2
PRF (Hz) 7800
pr@PII
max
(MPa) 4.0
deq@PII
max
(cm) #
Focal
Length
FL
X
(cm)
##- #
FL
Y
(cm)
##- #
I
PA. 3
@MI
max
(W/cm2)
303.2
Operating Control Conditions
Frequency (MHz) T8.0 # # - # #
Image Depth (cm) 12.0 # # - # #
Page 70
Acoustic Output
1-64 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
8C (continued)
Table 1-60: Transducer Mode: 8C Operating Mode: Color Flow (inc.M-mode)
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.4 <1 <1 - 1.5 1.3
Assoc Acoustic Parameter
p
r.3
(MPa) 3.1
W
o
(mW) ## 26.7 32.2
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z
1
(cm) -
z
bp
(cm) -
z
sp
(cm) 1.9 1.9
deq(zsp)(cm) 0.4
f
c
(MHz) 4.7 # # - 4.7 4.7
Dim of A
aprt
X(cm) ##- 0.6 0.6
Y(cm) ##- 0.5 0.5
Other information
PD (µsec)
0.6
PRF (Hz) 635.2
pr@PII
max
(MPa) 4.1
deq@PII
max
(cm) 0.4
Focal
Length
FL
X
(cm)
##- 2.4
FL
Y
(cm)
##- 2.7
I
PA. 3
@MI
max
(W/cm2)
399.2
Operating Control Conditions
Frequency (MHz) D5.0 # # - D5.0 D5.0
Image Depth (cm) 2.4 # # 2.4 2.4
Velocity Scale (kHz) 0.64 # # - 1.92 3.84
Penetration Off # # - Off Off
ROI 130deg # # - - 5deg
PS 14 # # - 16 14
Page 71
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-65
Direction 2392205-100 Rev. 1
8C (continued)
Table 1-61: Transducer Mode: 8C Operating Mode: Pulsed Doppler (inc. B-mode)
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.4 <1 <1 - 1.5 1.1
Assoc Acoustic Parameter
p
r.3
(MPa) 3.1
W
o
(mW) ## 26.7 28.1
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z
1
(cm) -
z
bp
(cm) -
z
sp
(cm) 1.9 2.0
deq(zsp)(cm) 0.4
f
c
(MHz) 4.7 # # - 4.9 4.9
Dim of A
aprt
X(cm) ##- 0.6 0.6
Y(cm) ##- 0.5 0.5
Other information
PD (µsec)
0.6
PRF (Hz) 635.2
pr@PII
max
(MPa) 4.1
deq@PII
max
(cm) 0.4
Focal
Length
FL
X
(cm)
##- 2.4
FL
Y
(cm)
##- 2.7
I
PA. 3
@MI
max
(W/cm2)
399.2
Operating Control Conditions
Frequency (MHz) D5.0 # # - D5.0 D5.0
Image Depth (cm) 2.4 # # - 2.4 2.4
Velocity Scale (kHz) 0.64 - # - 1.23 1.23
SV 1 - # - 2 2
Penetration Off - # - Off Off
Page 72
Acoustic Output
1-66 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
6T
Table 1-62: Transducer Mode: 6T Operating Mode: B-Mode
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.4 1.2 - - - 1.2
Assoc Acoustic Parameter
p
r.3
(MPa) 2.7
W
o
(mW) 47.7 - - 47.7
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z
1
(cm) -
z
bp
(cm) -
z
sp
(cm) 1.3 -
deq(zsp)(cm) -
f
c
(MHz) 3.4 3.4 - - - 3.4
Dim of A
aprt
X(cm) 0.8 - - - 0.8
Y(cm) 0.9 - - - 0.9
Other information
PD (µsec)
0.6
PRF (Hz) 3470.0
pr@PII
max
(MPa) 3.2
deq@PII
max
(cm) -
Focal
Length
FL
X
(cm)
3.9 - - 3.9
FL
Y
(cm)
5.6 - - 5.6
I
PA. 3
@MI
max
(W/cm2)
398.1
Operating Control Conditions
Frequency (MHz) T6.0 T6.0 - - - T6.0
Image Depth (cm) 20.0 20.0 - - - 20.0
Page 73
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-67
Direction 2392205-100 Rev. 1
6T (continued)
Table 1-63: Transducer Mode: 6T Operating Mode: M-mode (inc.B-mode)
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.6 1.2 <1 - <1 <1
Assoc Acoustic Parameter
p
r.3
(MPa) 3.0
W
o
(mW) 47.7 # ##
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z
1
(cm) -
z
bp
(cm) -
z
sp
(cm) 1.3 #
deq(zsp)(cm) #
f
c
(MHz) 3.4 3.4 # - # #
Dim of A
aprt
X(cm) 0.8 # - # #
Y(cm) 0.9 # - # #
Other information
PD (µsec)
0.6
PRF (Hz) 800.0
pr@PII
max
(MPa) 3.6
deq@PII
max
(cm) #
Focal
Length
FL
X
(cm)
3.9 # - #
FL
Y
(cm)
5.6 # - #
I
PA. 3
@MI
max
(W/cm2)
490.3
Operating Control Conditions
Frequency (MHz) T6.0 T6.0 # - # #
Image Depth (cm) 20.0 20.0 # - # #
Page 74
Acoustic Output
1-68 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
6T (continued)
Table 1-64: Transducer Mode: 6T Operating Mode: Color Flow (inc. M-mode)
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.7 1.2 1.1 - 4.5 1.2
Assoc Acoustic Parameter
p
r.3
(MPa) 3.4
W
o
(mW) 47.7 58.3 58.3 45.2
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z
1
(cm) -
z
bp
(cm) -
z
sp
(cm) 1.0 1.2
deq(zsp)(cm) 0.8
f
c
(MHz) 3.9 3.4 4.0 - 4.0 3.4
Dim of A
aprt
X(cm) 0.8 0.4 - 0.4 0.8
Y(cm) 0.9 0.9 - 0.9 0.9
Other information
PD (µsec)
0.7
PRF (Hz) 1000.0
pr@PII
max
(MPa) 3.9
deq@PII
max
(cm) 0.8
Focal
Length
FL
X
(cm)
3.9 1.4 - 3.9
FL
Y
(cm)
5.6 5.6 - 5.6
I
PA. 3
@MI
max
(W/cm2)
460.8
Operating Control Conditions
Frequency (MHz) D4.0 D4.0 D4.0 - D4.0 D4.0
Image Depth (cm) 2.2 1.7 2.2 - 2.2 1.7
Velocity Scale (kHz) 1.90 5.30 2.13 - 2.13 5.30
Penetration On On On - On On
ROI MAX Min - - - Min
PS 8 8 16 - 16 8
Page 75
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-69
Direction 2392205-100 Rev. 1
6T (continued)
Table 1-65: Transducer Mode: 6T Operating Mode: Pulsed Doppler (inc. B-mode)
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.7 1.2 <1 - 2.8 1.1
Assoc Acoustic Parameter
p
r.3
(MPa) 3.4
W
o
(mW) 47.7 # 42.7 44.0
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z
1
(cm) -
z
bp
(cm) -
z
sp
(cm) 1.0 1.4
deq(zsp)(cm) 0.4
f
c
(MHz) 3.9 3.4 # - 4.0 4.0
Dim of A
aprt
X(cm) 0.8 # - 0.8 0.8
Y(cm) 0.9 # - 0.9 0.9
Other information
PD (µsec)
0.7
PRF (Hz) 1000.0
pr@PII
max
(MPa) 3.9
deq@PII
max
(cm) 0.4
Focal
Length
FL
X
(cm)
3.9 # - 1.7
FL
Y
(cm)
5.6 # - 5.6
I
PA. 3
@MI
max
(W/cm2)
460.8
Operating Control Conditions
Frequency (MHz) D4.0 T6.0 # - D4.0 D4.0
Image Depth (cm) 1.1 20.0 # - 1.7 1.7
Velocity Scale (kHz) 1.00 - # - 2.10 2.10
SV 1 - # - 2 2
Penetration On - # - On On
Page 76
Acoustic Output
1-70 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
6T (continued)
Table 1-66: Transducer Mode: 6T Operating Mode: CW Doppler
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.7 1.2 1.1 - 4.5 <1
Assoc Acoustic Parameter
p
r.3
(MPa) 3.3
W
o
(mW) 47.7 58.3 58.3 #
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z
1
(cm) -
z
bp
(cm) -
z
sp
(cm) 1.4 1.2
deq(zsp)(cm) 0.8
f
c
(MHz) 3.9 3.4 4.0 - 4.0 #
Dim of A
aprt
X(cm) 0.8 0.4 - 0.4 #
Y(cm) 0.9 0.9 - 0.9 #
Other information
PD (µsec)
0.7
PRF (Hz) 1860.0
pr@PII
max
(MPa) 3.7
deq@PII
max
(cm) 0.8
Focal
Length
FL
X
(cm)
3.9 1.4 - #
FL
Y
(cm)
5.6 5.6 - #
I
PA. 3
@MI
max
(W/cm2)
533.3
Operating Control Conditions
Frequency (MHz) CW4.0 T6.0 CW4.0 - CW4.0 #
Page 77
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-71
Direction 2392205-100 Rev. 1
M3S
Table 1-67: Transducer Mode: M3S Operating Mode: B-Mode
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.7 <1 - - - <1
Assoc Acoustic Parameter
p
r.3
(MPa) 2.3
W
o
(mW) #- -#
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z
1
(cm) -
z
bp
(cm) -
z
sp
(cm) 2.1 -
deq(zsp)(cm) -
f
c
(MHz) 1.9 # - - - #
Dim of A
aprt
X(cm) #- - - #
Y(cm) #- - - #
Other information
PD (µsec)
0.8
PRF (Hz) 2350.0
pr@PII
max
(MPa) 2.4
deq@PII
max
(cm) -
Focal
Length
FL
X
(cm)
#- - #
FL
Y
(cm)
#- - #
I
PA. 3
@MI
max
(W/cm2)
268.2
Operating Control Conditions
Frequency (MHz) T4.0 # - - - #
Image Depth (cm) 19.0 # #
-- -
Page 78
Acoustic Output
1-72 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
M3S (continued)
Table 1-68: Transducer Mode: M3S Operating Mode: M-Mode (inc.B-mode)
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.7 <1 - <1 <1 <1
Assoc Acoustic Parameter
p
r.3
(MPa) 2.3
W
o
(mW) #- ##
min of[W
.3(z1
, I
TA. 3(z1
)](mW) #
z
1
(cm) #
z
bp
(cm) #
z
sp
(cm) 2.1 #
deq(zsp)(cm) #
f
c
(MHz) 1.9 # - # # #
Dim of A
aprt
X(cm) ####
Y(cm) ####
Other information
PD (µsec)
0.8
PRF (Hz) 800.0
pr@PII
max
(MPa) 2.4
deq@PII
max
(cm) #
Focal
Length
FL
X
(cm)
#- # #
FL
Y
(cm)
#- # #
I
PA. 3
@MI
max
(W/cm2)
268.2
Operating Control Conditions
Frequency (MHz) T4.0 # - # # #
Image Depth (cm) 19.0 # - # # #
Page 79
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-73
Direction 2392205-100 Rev. 1
M3S (continued)
Table 1-69: Transducer Mode: M3S Operating Mode: Color Flow (inc. M-mode)
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.7 <1 - - 3.9 1.5
Assoc Acoustic Parameter
p
r.3
(MPa) 2.7
W
o
(mW) #- 86.0 94.7
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z
1
(cm) -
z
bp
(cm) -
z
sp
(cm) 5.0 3.5
deq(zsp)(cm) 0.4
f
c
(MHz) 2.3 # - - 2.0 2.0
Dim of A
aprt
X(cm) #- - 1.1 2.2
Y(cm) #- - 1.3 1.3
Other information
PD (µsec)
0.8
PRF (Hz) 635.2
pr@PII
max
(MPa) 3.8
deq@PII
max
(cm) 0.4
Focal
Length
FL
X
(cm)
#- - 5.8
FL
Y
(cm)
#- - 5.8
I
PA. 3
@MI
max
(W/cm2)
374.3
Operating Control Conditions
Frequency (MHz) D2.0 # - - D2.0 D2.0
Image Depth (cm) 5.8 # - - 5.8 5.8
Velocity Scale (kHz) 2.29 # - - 1.41 4.13
Penetration On # - - On On
ROI 90deg # - - - 10deg
PS 10 # - - 16 10
Page 80
Acoustic Output
1-74 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
M3S (continued)
Table 1-70: Transducer Mode: M3S Operating Mode: Pulsed Doppler (inc. B-mode)
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.7 <1 - <1 3.3 1.5
Assoc Acoustic Parameter
p
r.3
(MPa) 2.7
W
o
(mW) #- 94.7 94.7
min of[W
.3(z1
, I
TA. 3(z1
)](mW) #
z
1
(cm) #
z
bp
(cm) #
z
sp
(cm) 5.0 5.1
deq(zsp)(cm) 0.5
f
c
(MHz) 2.3 # - # 2.5 2.5
Dim of A
aprt
X(cm) #- # 1.5 1.5
Y(cm) #- # 1.3 1.3
Other information
PD (µsec)
0.8
PRF (Hz) 635.2
pr@PII
max
(MPa) 3.8
deq@PII
max
(cm) 0.5
Focal
Length
FL
X
(cm)
#- # 6.1
FL
Y
(cm)
#- # 5.8
I
PA. 3
@MI
max
(W/cm2)
374.3
Operating Control COnditions
Frequency (MHz) D2.5 # - # D2.5 D2.5
Image Depth (cm) 7.4 # - # 6.1 6.1
Velocity Scale (kHz)) 0.64 - - # 1.00 1.00
SV 1 - - # 6 6
Penetration Off - - # Off Off
Page 81
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-75
Direction 2392205-100 Rev. 1
M3S (continued)
Table 1-71: Transducer Mode: M3S Operating Mode: CHA
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.6 <1 - - - 1.5
Assoc Acoustic Parameter
p
r.3
(MPa) 2.3
W
o
(mW) #- - 90.5
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z
1
(cm) -
z
bp
(cm) -
z
sp
(cm) 4.2 -
deq(zsp)(cm) -
f
c
(MHz) 2.0 # - - - 1.9
Dim of A
aprt
X(cm) #- - - 1.4
Y(cm) #- - - 1.3
Other information
PD (µsec)
0.7
PRF (Hz) 2350.0
pr@PII
max
(MPa) 3.0
deq@PII
max
(cm) -
Focal
Length
FL
X
(cm)
#- - 4.5
FL
Y
(cm)
#- - 5.8
I
PA. 3
@MI
max
(W/cm2)
392.9
Operating Control Conditions
Frequency (MHz) CHA
2.0
- - - - CHA
2.0
Image Depth (cm) 30.0 - - - - 14.0
Page 82
Acoustic Output
1-76 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
M3S (continued)
Table 1-72: Transducer Mode: M3S Operating Mode: CW Doppler
Index Label
MI
MI TIS TIB TIC
scan non-scan non-scan
Aaprt Aaprt>1
Global Maximum: Index Value 1.7 <1 <1 - 3.9 <1
Assoc Acoustic Parameter
p
r.3
(MPa) 2.3
W
o
(mW) ## 86.0 #
min of[W
.3(z1
, I
TA. 3(z1
)](mW) -
z
1
(cm) -
z
bp
(cm) -
z
sp
(cm) 2.1 3.5
deq(zsp)(cm) 0.4
f
c
(MHz) 1.9 # # - 2.0 #
Dim of A
aprt
X(cm) ##- 1.1 #
Y(cm) ##- 1.3 #
Other information
PD (µsec)
0.8
PRF (Hz) 2350.0
pr@PII
max
(MPa) 2.4
deq@PII
max
(cm) 0.5
Focal
Length
FL
X
(cm)
##- #
FL
Y
(cm)
##- #
I
PA. 3
@MI
max
(W/cm2)
268.2
Operating Control Conditions
Frequency (MHz) CW2.0 # # - CW2.0 #
Page 83
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-77
Direction 2392205-100 Rev. 1
IEC Acoustic Output Tables
3C
Table 1-73: 3C IEC Acoustic Output Information
Parameter B M B+M D B+D B+rD
Pr_(MPa) 3.22 3.22 3.22 3.42 3.42 3.33
I
spta
(mW/cm2)
801.3 675.1 780.3 847.6 836.0 982.9
I
p
(mm) 34.2 32.7 34.2 26.1 26.1 38.0
w
pb6
• ( || ) (mm)
2.2 2.2 2.2 2.4 2.4 4.1
• ( ⊥ ) (mm)
4.5 5.0 4.5 7.7 7.7 3.8
prr (kHz) - 0.80 0.80 1.23 1.23 4.90
srr (Hz) 569 - 569 - 569 32
Output Beam Dim.
• ( || ) (mm)
10.2 10.2 10.2 10.2 10.2 10.2
• ( ⊥ ) (mm)
13.8 13.8 13.8 9.2 9.2 19.3
F
awf
(MHz) 2.6 2.6 2.6 2.5 2.5 2.6
APF (%)
(Acoustic Power up
Fraction)
n/a n/a n/a n/a n/a n/a
AIF (%)
(Acoustic Initialization
Fraction)
n/a n/a n/a n/a n/a n/a
Maximum Power
(mW)
144.67 33.50 126.14 90.34 103.92 153.16
I
ob
(mW/cm2)
102.78 23.80 89.61 96.27 97.89 79.27
Power-up Mode n/a n/a n/a n/a n/a n/a
Initialization Mode n/a n/a n/a n/a n/a n/a
Acoustic Output
Freeze
yes yes yes yes yes yes
I
tt
(mm) 0.0 0.0 0.0 0.0 0.0 0.0
I
ts
(mm) contact contact contact contact contact contact
Page 84
Acoustic Output
1-78 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
Parameter
B+rD+
D M+cM B+cM
Pr_(MPa) 3.42 3.33 3.33
I
spta
(mW/cm2)
881.4 847.6 824.5
I
p
(mm) 26.1 32.9 32.9
w
pb6
• ( || ) (mm)
2.4 2.2 2.2
• ( ⊥ ) (mm)
7.7 4.9 4.9
prr (kHz) 1.23 1.07 1.07
srr (Hz) 32 - 569
Output Beam Dim.
• ( || ) (mm)
10.2 10.2 10.2
• ( ⊥ ) (mm)
9.2 13.8 13.8
F
awf
(MHz) 2.5 2.6 2.6
APF (%)
(Acoustic Power up
Fraction)
n/a n/a n/a
AIF (%)
(Acoustic Initialization
Fraction)
n/a n/a n/a
Maximum Power
(mW)
106.04 90.34 117.50
I
ob
(mW/cm2)
92.02 96.27 99.52
Power-up Mode n/a n/a n/a
Initialization Mode n/a n/a n/a
Acoustic Output
Freeze
yes yes yes
I
tt
(mm) 0.0 0.0 0.0
I
ts
(mm) contact contact contact
Table 1-73: 3C IEC Acoustic Output Information (Continued)
Page 85
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-79
Direction 2392205-100 Rev. 1
3.5C
Table 1-74: 3.5C IEC Acoustic Output Information
Parameter B M B+M D B+D B+rD
Pr_(MPa) 3.17 3.17 3.17 4.46 4.46 4.52
I
spta
(mW/cm2)
1013.0 269.9 889.1 934.9 954.4 580.3
I
p
(mm) 42.4 36.3 42.4 37.4 37.4 42.0
w
pb6
• ( || ) (mm)
3.4 1.4 3.4 1.8 1.8 3.5
• ( ⊥ ) (mm)
4.1 7.1 4.1 6.7 6.7 4.1
prr (kHz) - 0.80 0.80 1.23 1.23 7.69
srr (Hz) 202 - 202 - 202 34
Output Beam Dim.
• ( || ) (mm)
13.0 13.0 13.0 13.0 13.0 13.0
• ( ⊥ ) (mm)
33.0 24.0 33.0 24.0 24.0 33.0
F
awf
(MHz) 2.0 2.4 2.0 2.0 2.0 2.0
APF (%)
(Acoustic Power up
Fraction)
n/a n/a n/a n/a n/a n/a
AIF (%)
(Acoustic Initialization
Fraction)
n/a n/a n/a n/a n/a n/a
Maximum Power
(mW)
216.47 34.75 186.18 31.50 77.74 214.22
I
ob
(mW/cm2)
50.46 11.14 43.91 10.10 20.19 49.94
Power-up Mode n/a n/a n/a n/a n/a n/a
Initialization Mode n/a n/a n/a n/a n/a n/a
Acoustic Output
Freeze
yes yes yes yes yes yes
I
tt
(mm) 0.0 0.0 0.0 0.0 0.0 0.0
I
ts
(mm) contact contact contact contact contact contact
Page 86
Acoustic Output
1-80 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
Parameter
B+rD+
D M+cM B+cM Contrast
Pr_(MPa) 4.52 4.52 4.52 4.07
I
spta
(mW/cm2)
846.3 934.9 973.9 628.8
I
p
(mm) 37.4 49.5 49.5 44.7
w
pb6
• ( || ) (mm)
1.8 1.2 1.2 2.1
• ( ⊥ ) (mm)
6.7 5.2 5.2 4.9
prr (kHz) 1.23 1.23 1.23 -
srr (Hz) 34 - 202 202
Output Beam Dim.
• ( || ) (mm)
13.0 13.0 13.0 13.0
• ( ⊥ ) (mm)
24.0 33.0 33.0 33.0
F
awf
(MHz) 2.0 3.1 3.1 3.2
APF (%)
(Acoustic Power up
Fraction)
n/a n/a n/a n/a
AIF (%)
(Acoustic Initialization
Fraction)
n/a n/a n/a n/a
Maximum Power
(mW)
77.18 31.50 123.98 141.83
I
ob
(mW/cm2)
20.06 10.10 30.28 33.06
Power-up Mode n/a n/a n/a n/a
Initialization Mode n/a n/a n/a n/a
Acoustic Output
Freeze
yes yes yes yes
I
tt
(mm) 0.0 0.0 0.0 0.0
I
ts
(mm) contact contact contact contact
Table 1-74: 3.5C IEC Acoustic Output Information (Continued)
Page 87
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-81
Direction 2392205-100 Rev. 1
5C
Table 1-75: 5C IEC Acoustic Output Information
Parameter B M B+M D B+D B+rD
Pr_(MPa) 3.14 3.14 3.14 4.78 4.78 4.66
I
spta
(mW/cm2)
385.8 346.5 377.9 1033.7 871.7 400.4
I
p
(mm) 33.8 29.0 33.8 33.7 33.7 32.7
w
pb6
• ( || ) (mm)
3.4 1.6 3.4 1.2 1.2 3.8
• ( ⊥ ) (mm)
3.0 4.0 3.0 4.1 4.1 4.0
prr (kHz) - 0.80 0.80 0.68 0.68 2.45
srr (Hz) 127 - 127 - 127 17
Output Beam Dim.
• ( || ) (mm)
9.0 9.0 9.0 9.0 9.0 9.0
• ( ⊥ ) (mm)
12.8 9.6 12.8 13.6 13.6 13.6
F
awf
(MHz) 3.5 3.5 3.5 4.0 4.0 4.0
APF (%)
(Acoustic Power up
Fraction)
n/a n/a n/a n/a n/a n/a
AIF (%)
(Acoustic Initialization
Fraction)
n/a n/a n/a n/a n/a n/a
Maximum Power
(mW)
76.93 15.53 66.70 37.78 47.57 51.37
I
ob
(mW/cm2)
66.78 17.98 58.65 30.87 39.85 61.22
Power-up Mode n/a n/a n/a n/a n/a n/a
Initialization Mode n/a n/a n/a n/a n/a n/a
Acoustic Output
Freeze
yes yes yes yes yes yes
I
tt
(mm) 0.0 0.0 0.0 0.0 0.0 0.0
I
ts
(mm) contact contact contact contact contact contact
Page 88
Acoustic Output
1-82 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
Parameter
B+rD+
D M+cM B+cM
Pr_(MPa) 4.78 4.66 4.66
I
spta
(mW/cm2)
875.4 1033.7 709.7
I
p
(mm) 33.7 30.8 30.8
w
pb6
• ( || ) (mm)
1.2 1.2 1.2
• ( ⊥ ) (mm)
4.1 4.2 4.2
prr (kHz) 0.68 2.13 2.13
srr (Hz) 17 - 127
Output Beam Dim.
• ( || ) (mm)
9.0 9.0 9.0
• ( ⊥ ) (mm)
13.6 13.6 13.6
F
awf
(MHz) 4.0 3.9 3.9
APF (%)
(Acoustic Power up
Fraction)
n/a n/a n/a
AIF (%)
(Acoustic Initialization
Fraction)
n/a n/a n/a
Maximum Power
(mW)
41.18 37.78 57.36
I
ob
(mW/cm2)
38.45 30.87 48.82
Power-up Mode n/a n/a n/a
Initialization Mode n/a n/a n/a
Acoustic Output
Freeze
yes yes yes
I
tt
(mm) 0.0 0.0 0.0
I
ts
(mm) contact contact contact
Table 1-75: 5C IEC Acoustic Output Information (Continued)
Page 89
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-83
Direction 2392205-100 Rev. 1
7L
Table 1-76: 7L IEC Acoustic Output Information
Parameter B M B+M D B+D B+rD
Pr_(MPa) 4.20 4.20 4.20 3.92 4.20 4.20
I
spta
(mW/cm2)
1149.5 717.5 1077.5 1155.4 1153.9 902.0
I
p
(mm) 21.2 21.2 21.2 23.0 23.0 18.7
w
pb6
• ( || ) (mm)
1.0 1.0 1.0 1.6 1.6 1.7
• ( ⊥ ) (mm)
2.0 2.0 2.0 1.8 1.8 1.9
prr (kHz) - 0.80 0.80 1.60 1.60 7.69
srr (Hz) 290 - 290 - 290 26
Output Beam Dim.
• ( || ) (mm)
6.0 6.0 6.0 6.0 6.0 6.0
• ( ⊥ ) (mm)
11. 0 11. 0 11 .0 7 .7 7 .7 6.2
F
awf
(MHz) 3.5 3.5 3.5 4.0 4.0 4.0
APF (%)
(Acoustic Power up
Fraction)
n/a n/a n/a n/a n/a n/a
AIF (%)
(Acoustic Initialization
Fraction)
n/a n/a n/a n/a n/a n/a
Maximum Power
(mW)
7.71 0.51 6.51 38.14 30.53 58.25
I
ob
(mW/cm2)
11.64 0.76 9.82 82.78 64.99 154.85
Power-up Mode n/a n/a n/a n/a n/a n/a
Initialization Mode n/a n/a n/a n/a n/a n/a
Acoustic Output
Freeze
Yes Yes Ye s Ye s Ye s Yes
I
tt
(mm) 0.0 0.0 0.0 0.0 0.0 0.0
I
ts
(mm) contact contact contact contact contact contact
Page 90
Acoustic Output
1-84 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
Parameter
B+rD+
D M+cM B+cM B-F
Pr_(MPa)
4.20 4.20 4.20 2.58
I
spta
(mW/cm2)
1092.0 1155.4 1152.4 563.8
Ip (mm)
23.0 17.3 21.2 29.2
w
pb6
• ( || ) (mm)
1.6 1.3 1.0 1.4
• (
⊥ ) (mm)
1.8 1.8 2.0 2.4
prr (kHz)
1.60 1.80 1.80 -
srr (Hz)
26 - 290 69
Output Beam Dim.
• ( || ) (mm)
6.0 6.0 6.0 6.0
• (
⊥ ) (mm)
7.7 6.2 11.0 19.2
F
awf
(MHz)
4.0 4.0 3.5 4.0
APF (%)
(Acoustic Power up
Fraction)
n/a n/a n/a n/a
AIF (%)
(Acoustic Initialization
Fraction)
n/a n/a n/a n/a
Maximum Power
(mW)
43.17 38.14 22.93 44.28
Iob (mW/cm2)
100.80 82.78 47.21 38.44
Power-up Mode
n/a n/a n/a n/a
Initialization Mode
n/a n/a n/a n/a
Acoustic Output
Freeze
Yes Yes Yes Yes
Itt (mm)
0.0 0.0 0.0 0.0
Its (mm)
contact contact contact contact
Table 1-76: 7L IEC Acoustic Output Information (Continued)
Page 91
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-85
Direction 2392205-100 Rev. 1
10L
Table 1-77: 10L IEC Acoustic Output Information
Parameter B M B+M D B+D B+rD
Pr_(MPa) 5.07 5.30 5.30 4.82 5.07 5.33
I
spta
(mW/cm2)
832.7 947.2 840.3 1693.9 1478.6 2425.6
I
p
(mm) 22.4 22.7 22.4 24.0 24.0 27.5
w
pb6
• ( || ) (mm)
0.5 0.5 0.5 1.4 1.4 1.0
• ( ⊥ ) (mm)
2.1 2.0 2.1 1.6 1.6 2.1
prr (kHz) - 0.80 0.80 2.60 2.60 1.54
srr (Hz) 487 - 487 - 487 44
Output Beam Dim.
• ( || ) (mm)
6.0 6.0 6.0 6.0 6.0 6.0
• ( ⊥ ) (mm)
21.9 21.9 21.9 9.3 9.3 12.2
F
awf
(MHz) 4.6 4.5 4.6 5.0 5.0 5.1
APF (%)
(Acoustic Power up
Fraction)
n/a n/a n/a n/a n/a n/a
AIF (%)
(Acoustic Initialization
Fraction)
n/a n/a n/a n/a n/a n/a
Maximum Power
(mW)
115.12 8.04 107.98 32.46 53.12 171.98
I
ob
(mW/cm2)
87.43 6.10 82.00 57.88 65.26 229.36
Power-up Mode n/a n/a n/a n/a n/a n/a
Initialization Mode n/a n/a n/a n/a n/a n/a
Acoustic Output
Freeze
Yes Yes Ye s Ye s Ye s Yes
I
tt
(mm) 0.0 0.0 0.0 0.0 0.0 0.0
I
ts
(mm) contact contact contact contact contact contact
Page 92
Acoustic Output
1-86 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
Parameter
B+rD+
D M+cM B+cM B-Flow
Pr_(MPa) 5.33 5.30 5.30 5.54
I
spta
(mW/cm2)
1876.8 1693.9 1263.3 1190.1
I
p
(mm) 24.0 18.8 18.8 18.5
w
pb6
• ( || ) (mm)
1.4 0.9 0.9 9.2
• ( ⊥ ) (mm)
1.6 1.7 1.7 2.0
prr (kHz) 2.60 1.80 1.80 -
srr (Hz) 44 - 487 6
Output Beam Dim.
• ( || ) (mm)
6.0 6.0 6.0 6.0
• ( ⊥ ) (mm)
9.3 8.9 8.9 19.1
F
awf
(MHz) 5.0 4.9 4.9 4.5
APF (%)
(Acoustic Power up
Fraction)
n/a n/a n/a n/a
AIF (%)
(Acoustic Initialization
Fraction)
n/a n/a n/a n/a
Maximum Power
(mW)
67.34 32.64 73.79 207.17
I
ob
(mW/cm2)
100.75 57.88 72.65 180.77
Power-up Mode n/a n/a n/a n/a
Initialization Mode n/a n/a n/a n/a
Acoustic Output
Freeze
Yes Yes Ye s Ye s
I
tt
(mm) 0.0 0.0 0.0 0.0
I
ts
(mm) contact contact contact contact
Table 1-77: 10L IEC Acoustic Output Information (Continued)
Page 93
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-87
Direction 2392205-100 Rev. 1
3S
Table 1-78: 3S IEC Acoustic Output Information
Parameter B M B+M D B+D B+rD
Pr_(MPa) 2.43 2.43 2.43 2.52 2.52 2.82
I
spta
(mW/cm2)
787.7 205.9 704.6 701.2 722.8 857.6
I
p
(mm) 31.8 32.7 31.8 45.2 45.2 32.0
w
pb6
• ( || ) (mm)
4.0 2.3 4.0 2.2 2.2 2.3
• ( ⊥ ) (mm)
3.8 4.6 3.8 3.4 3.4 5.9
prr (kHz) - 0.80 0.80 0.64 0.64 4.73
sr r ( Hz) 11 0 - 11 0 - 110 12
Output Beam Dim.
• ( || ) (mm)
13.0 13.0 13.0 13.0 13.0 13.0
• ( ⊥ ) (mm)
18.5 13.9 18.5 18.5 18.5 13.9
F
awf
(MHz) 1.8 1.9 1.8 2.0 2.0 2.0
APF (%)
(Acoustic Power up
Fraction)
n/a n/a n/a n/a n/a n/a
AIF (%)
(Acoustic Initialization
Fraction)
n/a n/a n/a n/a n/a n/a
Maximum Power
(mW)
89.87 16.57 77.65 44.88 56.13 104.98
I
ob
(mW/cm2)
37.38 9.19 32.68 18.67 23.34 57.02
Power-up Mode n/a n/a n/a n/a n/a n/a
Initialization Mode n/a n/a n/a n/a n/a n/a
Acoustic Output
Freeze
yes yes yes yes yes yes
I
tt
(mm) 0.0 0.0 0.0 0.0 0.0 0.0
I
ts
(mm) contact contact contact contact contact contact
Page 94
Acoustic Output
1-88 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
Parameter
B+rD+
D M+cM B+cM cwD
Pr_(MPa) 2.82 2.82 2.82 0.17
I
spta
(mW/cm2)
740.3 701.2 744.5 684.0
I
p
(mm) 45.2 26.3 31.8 29.8
w
pb6
• ( || ) (mm)
2.2 3.2 4.0 3.9
• ( ⊥ ) (mm)
3.4 7.0 3.8 5.0
prr (kHz) 0.64 1.07 1.07 -
srr (Hz) 12 - 110 -
Output Beam Dim.
• ( || ) (mm)
13.0 13.0 13.0 13.0
• ( ⊥ ) (mm)
18.5 9.2 18.5 9.0
F
awf
(MHz) 2.0 1.9 1.8 2.0
APF (%)
(Acoustic Power up
Fraction)
n/a n/a n/a n/a
AIF (%)
(Acoustic Initialization
Fraction)
n/a n/a n/a n/a
Maximum Power
(mW)
59.91 44.88 67.38 107.45
I
ob
(mW/cm2)
28.25 18.67 28.02 92.26
Power-up Mode n/a n/a n/a n/a
Initialization Mode n/a n/a n/a n/a
Acoustic Output
Freeze
yes yes yes yes
I
tt
(mm) 0.0 0.0 0.0 0.0
I
ts
(mm) contact contact contact contact
Table 1-78: 3S IEC Acoustic Output Information (Continued)
Page 95
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-89
Direction 2392205-100 Rev. 1
10S
Table 1-79: 10S IEC Acoustic Output Information
Parameter B M B+M D B+D B+rD
Pr_(MPa) 4.83 4.83 4.83 4.65 4.83 4.83
I
spta
(mW/cm2)
1213.6 235.4 1050.6 761.0 874.1 1289.5
I
p
(mm) 14.8 18.6 14.8 21.2 21.2 14.7
w
pb6
• ( || ) (mm)
2.7 0.9 2.7 0.9 0.9 0.8
• ( ⊥ ) (mm)
2.0 1.4 2.0 1.4 1.4 2.0
prr (kHz) - 0.80 0.80 0.64 0.64 7.69
srr (Hz) 94 - 94 - 94 19
Output Beam Dim.
• ( || ) (mm)
4.3 4.3 4.3 4.3 4.3 4.3
• ( ⊥ ) (mm)
9.3 9.3 9.3 9.3 9.3 7.0
F
awf
(MHz) 4.7 4.9 4.7 5.0 5.0 5.0
APF (%)
(Acoustic Power up
Fraction)
n/a n/a n/a n/a n/a n/a
AIF (%)
(Acoustic Initialization
Fraction)
n/a n/a n/a n/a n/a n/a
Maximum Power
(mW)
33.29 5.16 28.60 11.74 17.13 13.28
I
ob
(mW/cm2)
83.14 12.87 71.43 29.33 42.78 39.61
Power-up Mode n/a n/a n/a n/a n/a n/a
Initialization Mode n/a n/a n/a n/a n/a n/a
Acoustic Output
Freeze
yes yes yes yes yes yes
I
tt
(mm) 0.0 0.0 0.0 0.0 0.0 0.0
I
ts
(mm) contact contact contact contact contact contact
Page 96
Acoustic Output
1-90 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
Parameter
B+rD+
D M+cM B+cM cwD
Pr_(MPa) 4.83 4.83 4.83 0.16
I
spta
(mW/cm2)
893.1 761.0 987.3 838.2
I
p
(mm) 21.2 19.0 14.8 15.2
w
pb6
• ( || ) (mm)
0.9 0.9 2.7 2.5
• ( ⊥ ) (mm)
1.4 1.4 2.0 3.1
prr (kHz) 0.64 1.41 1.41 -
srr (Hz) 19 - 94 -
Output Beam Dim.
• ( || ) (mm)
4.3 4.3 4.3 4.3
• ( ⊥ ) (mm)
9.3 9.3 9.3 3.0
F
awf
(MHz) 5.0 4.9 4.7 5.0
APF (%)
(Acoustic Power up
Fraction)
n/a n/a n/a n/a
AIF (%)
(Acoustic Initialization
Fraction)
n/a n/a n/a n/a
Maximum Power
(mW)
12.13 11.74 22.52 23.33
I
ob
(mW/cm2)
31.90 29.33 56.23 180.41
Power-up Mode n/a n/a n/a n/a
Initialization Mode n/a n/a n/a n/a
Acoustic Output
Freeze
yes yes yes yes
I
tt
(mm) 0.0 0.0 0.0 0.0
I
ts
(mm) contact contact contact contact
Table 1-79: 10S IEC Acoustic Output Information (Continued)
Page 97
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-91
Direction 2392205-100 Rev. 1
E8C
Table 1-80: E8C IEC Acoustic Output Information
Parameter B M B+M D B+D B+rD
Pr_(MPa) 3.71 3.71 3.71 4.05 4.05 4.06
I
spta
(mW/cm2)
621.0 268.0 562.2 1340.0 1160.3 927.9
I
p
(mm) 12.0 14.7 12.0 18.4 18.4 14.7
w
pb6
• ( || ) (mm)
1.3 0.8 1.3 1.4 1.4 2.2
• ( ⊥ ) (mm)
3.5 3.2 3.5 3.3 3.3 3.4
prr (kHz) - 0.80 0.80 1.23 1.23 3.85
srr (Hz) 1076 - 1076 - 1076 54
Output Beam Dim.
• ( || ) (mm)
5.0 5.0 5.0 5.0 5.0 5.0
• ( ⊥ ) (mm)
12.8 10.8 12.8 12.6 12.6 6.0
F
awf
(MHz) 4.0 4.1 4.0 5.0 5.0 4.8
APF (%)
(Acoustic Power up
Fraction)
n/a n/a n/a n/a n/a n/a
AIF (%)
(Acoustic Initialization
Fraction)
n/a n/a n/a n/a n/a n/a
Maximum Power
(mW)
22.58 3.31 19.37 32.00 29.65 40.41
I
ob
(mW/cm2)
35.29 6.13 30.43 50.80 46.92 132.78
Power-up Mode n/a n/a n/a n/a n/a n/a
Initialization Mode n/a n/a n/a n/a n/a n/a
Acoustic Output
Freeze
yes yes yes yes yes yes
I
tt
(mm) 0.0 0.0 0.0 0.0 0.0 0.0
I
ts
(mm) contact contact contact contact contact contact
Page 98
Acoustic Output
1-92 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
Parameter
B+rD+
D M+cM B+cM
Pr_(MPa) 4.06 4.06 4.06
I
spta
(mW/cm2)
1237.0 1340.0 980.5
I
p
(mm) 18.4 17.2 17.2
w
pb6
• ( || ) (mm)
1.4 1.4 1.4
• ( ⊥ ) (mm)
3.3 3.3 3.3
prr (kHz) 1.23 1.92 1.92
srr (Hz) 54 - 1076
Output Beam Dim.
• ( || ) (mm)
5.0 5.0 5.0
• ( ⊥ ) (mm)
12.6 6.0 6.0
F
awf
(MHz) 5.0 4.8 4.8
APF (%)
(Acoustic Power up
Fraction)
n/a n/a n/a
AIF (%)
(Acoustic Initialization
Fraction)
n/a n/a n/a
Maximum Power
(mW)
34.11 32.00 27.29
I
ob
(mW/cm2)
71.29 50.80 43.04
Power-up Mode n/a n/a n/a
Initialization Mode n/a n/a n/a
Acoustic Output
Freeze
yes yes yes
I
tt
(mm) 0.0 0.0 0.0
I
ts
(mm) contact contact contact
Table 1-80: E8C IEC Acoustic Output Information (Continued)
Page 99
FDA Acoustic Output Data
LOGIQ 7 Advanced Reference Manual 1-93
Direction 2392205-100 Rev. 1
M7C
Table 1-81: M7C IEC Acoustic Output Information
Parameter B M B+M D B+D B+rD
Pr_(MPa) 4.13 4.13 4.13 5.11 5.11 5.10
I
spta
(mW/cm2)
775.7 473.0 742.1 1400.5 1244.3 885.4
I
p
(mm) 29.2 21.7 29.2 34.5 34.5 25.1
w
pb6
• ( || ) (mm)
10.4 1.0 10.4 0.8 0.8 5.4
• ( ⊥ ) (mm)
3.8 8.0 3.8 5.4 5.4 3.1
prr (kHz) - 0.80 0.80 0.70 0.70 7.69
sr r ( Hz) 11 4 - 11 4 - 114 20
Output Beam Dim.
• ( || ) (mm)
9.0 9.0 9.0 9.0 9.0 9.0
• ( ⊥ ) (mm)
31.4 14.3 31.4 23.1 23.1 23.1
F
awf
(MHz) 3.4 3.3 3.4 4.0 4.0 3.9
APF (%)
(Acoustic Power up
Fraction)
n/a n/a n/a n/a n/a n/a
AIF (%)
(Acoustic Initialization
Fraction)
n/a n/a n/a n/a n/a n/a
Maximum Power
(mW)
87.01 20.32 75.90 54.18 62.39 78.89
I
ob
(mW/cm2)
30.84 15.79 28.33 26.06 27.25 36.30
Power-up Mode n/a n/a n/a n/a n/a n/a
Initialization Mode n/a n/a n/a n/a n/a n/a
Acoustic Output
Freeze
yes yes yes yes yes yes
I
tt
(mm) 0.0 0.0 0.0 0.0 0.0 0.0
I
ts
(mm) contact contact contact contact contact contact
Page 100
Acoustic Output
1-94 LOGIQ 7 Advanced Reference Manual
Direction 2392205-100 Rev. 1
Parameter
B+rD+
D M+cM B+cM Coded
Pr_(MPa) 5.11 5.10 5.10 3.81
I
spta
(mW/cm2)
1271.7 1400.5 1088.1 959.6
I
p
(mm) 34.5 34.4 34.4 20.0
w
pb6
• ( || ) (mm)
0.8 0.8 0.8 1.5
• ( ⊥ ) (mm)
5.4 5.5 5.5 3.2
prr (kHz) 0.70 1.23 1.23 -
srr (Hz) 20 - 114 208
Output Beam Dim.
• ( || ) (mm)
9.0 9.0 9.0 9.00
• ( ⊥ ) (mm)
23.1 23.1 23.1 14.3
F
awf
(MHz) 4.0 3.9 3.9 3.5
APF (%)
(Acoustic Power up
Fraction)
n/a n/a n/a n/a
AIF (%)
(Acoustic Initialization
Fraction)
n/a n/a n/a n/a
Maximum Power
(mW)
60.36 54.18 70.60 116.65
I
ob
(mW/cm2)
28.62 26.06 28.45 90.63
Power-up Mode n/a n/a n/a n/a
Initialization Mode n/a n/a n/a n/a
Acoustic Output
Freeze
yes yes yes yes
I
tt
(mm) 0.0 0.0 0.0 0.0
I
ts
(mm) contact contact contact contact
Table 1-81: M7C IEC Acoustic Output Information (Continued)
Loading...
