USER MANUAL
HANDBUCH
HANDLEIDING
MANUEL DESCRIPTIF
РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
КЕРІВНИЦТВО КОРИСТУВАЧА
WIRELESS BROADBAND ROUTER, 300 M
WLAN BREITBAND ROUTER, 300 M
DRAADLOZE BREEDBAND ROUTER, 300M
ROUTEUR SANS FIL, 300M
БЕСПРОВОДНОЙ МАРШРУТИЗАТОР, СКОРОСТЬ ДО 300 МБИТ/С
БЕЗДРОТОВИЙ МАРШРУТИЗАТОР, ШВИДКІСТЬ ДО 300 МБІТ / С
NSW-R4
2
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
NSW-R4 WIRELESS BROADBAND ROUTER, 300M
Features
Wireless 300M router with 4-port 10/100Mbps LAN switch and 802.11n access point
Supports all IEEE802.11b/g/n WiFi standards
Up to 300 Mbps data transfer rate via the wireless 802.11n protocol
Built-in DHCP server automatically assigns and manages all IP addresses within your
LAN
Advanced firewall, 64/128-bit WEP encryption and WPA-PSK, WPA2-PSK security
Supports Wi-Fi Protected Setup ( WPS ) with reset button
Supports MAC/IP filtering and URL blocking (family filter)
Easy to use Web-interface for all router management options
Specifications
Supported standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE
802.3u, CSMA/CA,CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, PPTP
Ports: - LAN: 4 x 10/100M Auto MDI/MDIX RJ45 ports
WAN: 1 x 10/100M Auto MDI/MDIX RJ45 port
Frequency band 2.4 ~ 2.4835GHz
Channels: 1 ~ 11 (US, Canada), 1 ~ 13 (Europe)
Supports Virtual Server and DMZ
Supports DDNS (DynDNS, TZO) and QoS
Data transfer rates: max 300 Mbps (11n), 54 Mbps (11g), 11 Mbps (11b)
Encryption standards: WPS, WPA, WPA2, WPA2/WPA Mixed
Antenna: 2 x 3 Dbi omni-directional antenna
RF power: 20 dBm (max)
Transmission distance: indoors up to 120 m, outdoors up to 360 m (distance is
dependent of environmental conditions, obstructions, walls, ceilings, etc)
Dimensions: 153 x 100 x 30 mm (W x D x H)
Operating temperature: 0 ~ 40 °C
Storage temperature: -40 ~ 70 °C
Operating humidity: 10 ~ 90 % non-condensing;
Storage humidity: 5 ~ 95 % non-condensing
3
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
NSW-R4 WIRELESS BROADBAND ROUTER, 300M
1. Wireless router overview
1.1 Front panel (LED indicators)
SYS (Red): Flickering light indicates a proper connection to the
power supply.
WPS (Green): The LED is flash about two minutes during WPS
working.
WLAN (Green): The LED is flickering during wireless activity.
LAN 1, 2, 3, 4(Green): The Link/Act LED serves two purposes. If the
LED is continuously illuminated, the Router is successfully connected to a
device through the corresponding port. If the LED is flickering, the Router is
actively sending or receiving data over that port.
WAN (Green): The Link/Act LED serves two purposes. If the LED is
continuously illuminated, the Router is successfully connected to a device
through the corresponding port. If the LED is flickering, the Router is actively
sending or receiving data over that port.
4
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
NSW-R4 WIRELESS BROADBAND ROUTER, 300M
1.2 Back panel (sockets description)
WAN: 10/100Mbps RJ45 port. The WAN port is where you will connect
Cable/DSL Modem or other LAN.
LAN (1, 2, 3, 4): 10/100Mbps RJ45 Auto-sensing. These four LAN ports
are where you will connect networked devices, such as PCs, print servers,
remote hard drives, and anything else you want to put on your network. If
you connect this product with the Hub (or Switchboard) correctly, the
Router’s corresponding LED and the Hub’s (or the Switchboard’s) must be
illuminates.
POWER: Power inlet.
RESET (WPS): The Reset Button has two functions, WPS and Factory
Default. When press it less than 2 seconds, it is WPS function and the Reset
LED will flash two minutes, than 6 seconds, the router will restore to factory
default.
5
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
NSW-R4 WIRELESS BROADBAND ROUTER, 300M
2 Hardware Installation
1. Make sure that all devices including your PCs, modem and router are
powered off.
2. Connect your Internet access device such as cable or DSL modem to
the router WAN port using a cat 5e patch cord.
6
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
NSW-R4 WIRELESS BROADBAND ROUTER, 300M
3. Turn all the devices on.
4. Power the router up.
3 Quick Installation Guide
3.1 TCP/IP Settings
Before you can access and configure router, you have to setup your PC
network adapter IP address. Connect your PC to the router LAN port. Follow
the steps below to access the built-in router web-interface (for Windows OS).
Note: The router default IP address is: 192.168.1.1
1. Choose Network connections from the Control Panel.
2. Click with the right mouse button over the Network adapter connected
to the router. Choose properties from the popup menu which would then
appear.
3. Select TCP/IP v.4 from the next window and click Properties
4. Select “Obtain an IP address automatically” and “Obtain DNS server
address automatically” in the IP Address tab.
5. Click OK to complete the install procedure. You might need to restart
your PC to activate these settings.
You can verify that your PC got correct IP address selecting Start Run
cmd and then entering command: ipconfig /all.
7
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
NSW-R4 WIRELESS BROADBAND ROUTER, 300M
8
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
NSW-R4 WIRELESS BROADBAND ROUTER, 300M
3.2 Getting Started
To access the router web-interface, open a web-browser such as Internet
Explorer and enter the IP address of the router (192.168.1.1).
You will be prompted to enter the login and password. The default
Login/Password is: admin/admin
Upon a successful login you will see the status page.
9
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
NSW-R4 WIRELESS BROADBAND ROUTER, 300M
3.3 Setup Wizard
10
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
NSW-R4 WIRELESS BROADBAND ROUTER, 300M
Click on the “Wizard” option to setup your router step by step in a simple
way. There are six steps to follow:
Please follow the steps to complete the router configuration.
11
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
NSW-R4 WIRELESS BROADBAND ROUTER, 300M
Step 1 – Operation Mode Settings
The router supports three operation modes: Gateway, Bridge and
Wireless ISP. Each mode is suitable for different purpose, please choose the
correct mode.
12
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
NSW-R4 WIRELESS BROADBAND ROUTER, 300M
Step 2 – Time Zone Settings
The Time Configuration option allows you to configure, update, and
maintain the correct time for the internal system clock. Daylight Saving can
also be configured to automatically adjust the time when needed.
NTP client update: Check this box to connect to the NTP Server and
synchronize Internet time.
Automatically Adjust Daylight Saving: If you check this box the system
will take the summer time into consideration.
Time Zone Select: Select the Time Zone from the drop-down menu.
NTP Server: Select the NTP Server from the drop-down menu.
13
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
NSW-R4 WIRELESS BROADBAND ROUTER, 300M
Step 3 – LAN Settings
Setup the IP address and network mask for the LAN interface.
Step 4 – WAN Settings
The router supports five access modes for the WAN, please choose the
correct mode according to your Internet Service Provider (ISP).

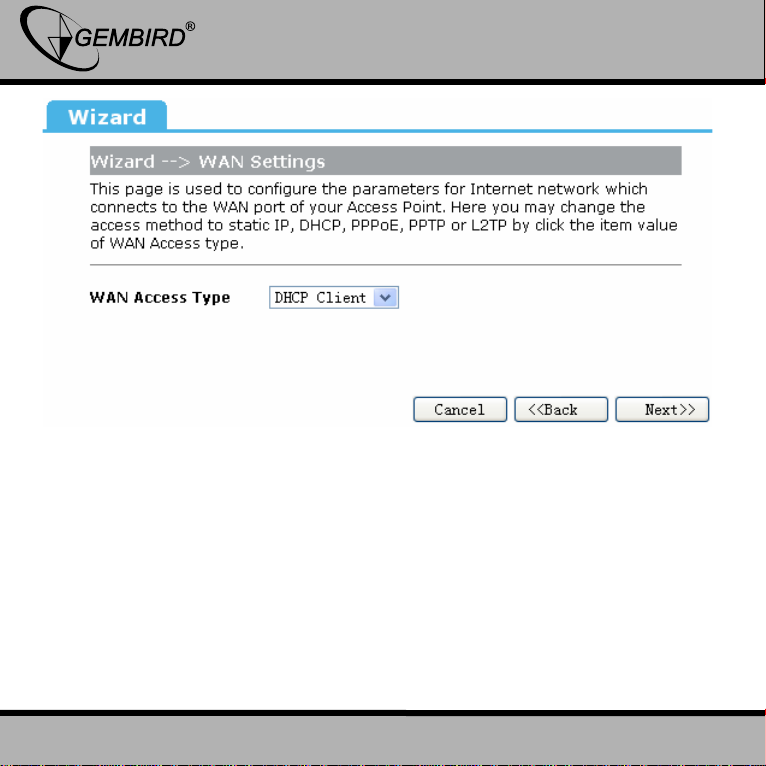

Mode 1: DHCP Client
14
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
NSW-R4 WIRELESS BROADBAND ROUTER, 300M
Select DHCP Client to obtain IP Address automatically from your ISP.
This mode is commonly used for Cable modem services.
Mode 2: Static IP
Select Static IP Address if the IP information is provided to you by your
ISP. You will need to enter the IP address, subnet mask, gateway address,
and DNS address (-es) provided to you by your ISP. Each IP address
entered in the fields must be in the appropriate IP form, which are four octets
separated by a dot (x.x.x.x). The router will not accept the IP address if it is
not in this format.
IP Address: Enter the IP address assigned by your ISP
15
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
NSW-R4 WIRELESS BROADBAND ROUTER, 300M
Subnet Mask: Enter the Subnet Mask assigned by your ISP.
Default Gateway: Enter the Gateway assigned by your ISP.
DNS: The DNS server information will be supplied by your ISP (Internet
Service Provider.)
Mode 3: PPPoE
