Multimedia
keyboard
KB
-

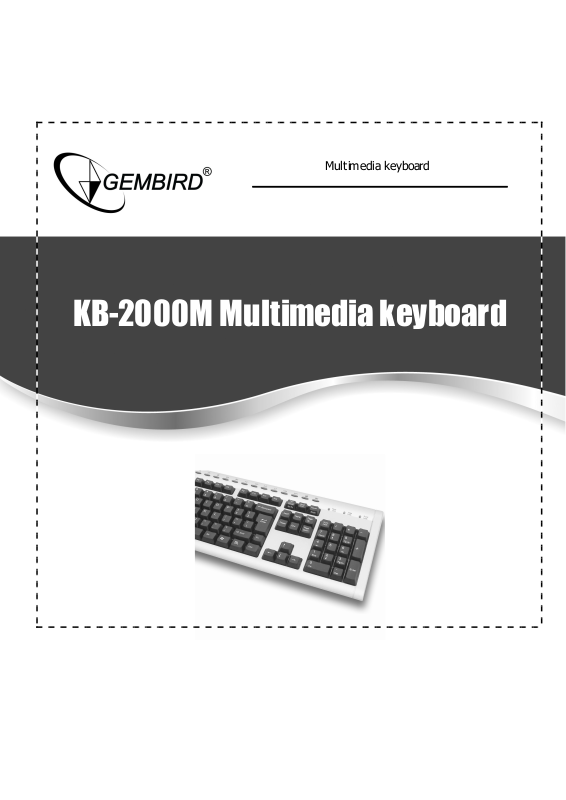

2000M Multimedia keyboard
Page 2 of 9
Illuminated keyboard
Disclaimer
• We spared no efforts to make sure that the information in this manual is correct and
complete. However no liability is accepted for any errors or omissions. Gembird
Electronics reserves the right to change the specifications of the hardware and
software described in this manual without prior notice.
• No part of this manual may be reproduced, transmitted or translated in any language
in any form, by any means, without the prior written permission of Gembird Electronics
Ltd.
• Gembird Electronics makes no warranties for damages resulting from corrupted or lost
data due to a mistaken operation or malfunction of the product, the software, personal
computers or peripheral devices.
Gembird® is a registered trademark of GMB Tech (Holland) bv.
Other names or products not mentioned above may be registered trademarks or trademarks
of their respective owners.
Copyright © 2005 Gembird Electronics Ltd. All rights reserved.
Page 3 of 9
Illuminated keyboard
Introduction
Thank you for buying the Gembird® Multimedia keyboard! This manual will help you install
and use it properly. KB-2000M is a Multimedia keyboard with PS/2 interface with the
following main features:
o 18 hot keys for the Multimedia and Internet functions
o Ergonomic wrist rest
o Specifications:
• Input power: 5±0.25VDC/25mA Max
• Switch activation mechanism: membrane
• Travel distance: 3.5±0.5mm
• Force: 55g±8g
• Return force:>20G
• Dimensions: 460*171*40mm
• Cable length 1.5M
• Weight: 1280g (140g - palm rest)
• Keycaps pull force: >1.5KG
• Life time: 10 million
KB-2000M User manual
Page 4 of 9
Illuminated keyboard
Keyboard installation
• Before installing the Hot Keys 6.12 driver, please check to see if there are any
other keyboard drivers already installed on your system. All other keyboard
drivers must be uninstalled before installing the Hot Keys 6.12 driver.
• Please insert the enclosed CD into the CD drive.
• Click on "My Computer"
• Click on "CD Drive"
• Click on the executable file "Setup.exe"
• Follow the instruction on the screen to complete the installation
Note: After installing the Hot Keys 6.12 driver, you need to restart your computer to enable
the software.
Un-installation
To un-install the Hot Keys 6.12, go to
START/PROGRAM FILE/HOT KEYS
, select "Uninstall"
to remove the Hot Keys 6.12 driver. The system will un-install the Multimedia Keyboard
driver automatically.
Page 5 of 9
Illuminated keyboard
Keyboard hotkeys
The Multimedia keyboard has 18 hotkeys.
BACK : Go back to the previous web page
FORWARD : Go to the next web page
STOP : Stop default web browser from loading or refreshing a web page
REFRESH : Update the contents of the current web page of the default web
browser
SEARCH : Open the "Find "window in the START menu
FAVORITES : Open the "Favorites" group
WEB/HOME : Start your default browser and go immediately to your Home
Web page
MAIL : Start the default E-mail program
PLAY/PAUSE : Play or pause the default media player
STOP : Stops the media
PREVIOUS TRACK : Go to the previous track of the default media
player
NEXT TRACK : Go to the next track of the default media player
MEDIA : Start the music CD player or Microsoft Windows Media Player
Page 6 of 9
Illuminated keyboard
application
VOLUME DOWN : Press and release, or press and hold to decrease the
volume
VOLUME UP : Press and release, or press and hold to increase the
volume
MUTE : Stops all audio. Press again to resume audio
CALCULATOR : Start the "CALCULATOR" program
MY COMPUTER : Open the "My Computer" window
SLEEP : User can put the system into sleep mode, if the PC supports power
manageme nt. If the power management is not enabled, this key will not work
WAKE UP : Exit sleep mode, and return to normal mode
Note: Most hot keys may be re-configured to start other applications or Web pages. Please
refer to "How To Redefine The Hot Keys" for more details.
Page 7 of 9
Illuminated keyboard
How To Redefine The Hot keys
First, you will need to install the Hot Keys 6.12 driver, see the section Keyboard
installation above.
Once installed, you will see a Keyboard icon at the bottom right of your screen. This
icon will appear every time you start the computer.
The Hot Keys are already set up once you have installed the driver. If you want to re-define
the Hot Keys, you have to click on the Keyboard icon at the bottom right of your
screen.
The Keyboard properties window will open. Go to the Hot Keys section. You will see the
following screen with 18 Buttons, just like the buttons on your keyboard.
Page 8 of 9
Illuminated keyboard
Whenever you’d like to re-define the Hot Keys just click on the Button, then go to Custom,
and click on the Select button. Now go to the Browse File and find the executable file you
would like to associate with your Hot Key. When finished, click on the OK button then click
Apply. The Hot Key is now programmed and the keyboard properties' window can be closed.
