IP camera
CAM78IP 300K wireless LAN IP
camera
IP camera
Disclaimer
• We spared no efforts to make sure that the information in this
manual is correct and complete. However no liability is accepted for
any errors or omissions. Gembird Electronics reserves the right to
change the specifications of the hardware and software described in
this manual without prior notice.
• No part of this manual may be reproduced, transmitted or translated
in any language in any form, by any means, without the prior written
permission of Gembird Electronics Ltd.
• Gembird Electronics makes no warranties for damages resulting
from corrupted or lost data due to a mistaken operation or
malfunction of the product, the software, personal computers or
peripheral devices.
Gembird® is a registered trademark of GMB Tech (Holland) bv.
Other names or products not mentioned above may be registered
trademarks or trademarks of their respective owners.
Copyright © 2007 Gembird Electronics Ltd. All rights reserved.
IP camera
Introduction
Thank you for buying the Gembird® 300K wireless LAN IP camera!
This manual will help you install and use it properly.
This Internet Camera sends live video through 10/100Mbps wired
network to a web browser or camera viewer across Internet anywhere in
the world! This compact, self-contained unit lets you keep an eye on your
home, your kids, and your workplace—whatever’s important to you.
How does the Camera do all of this? Unlike standard “web cams”
that require an attached PC, the Internet Camera can connect directly to a
network. The MJPEG video
compression produces a high quality, high-frame rate, 640 x 480 video
streams.
This Internet Camera provides a wide angle lens can let you see
more of view. You ca
pan and tilt by manual or use Auto-Pan-Tilt function by automation.
The included Camera Viewer utility lets you record the video to your
local hard drive,
“live” or on a predetermined schedule.
CAM78IP
Use
r manual
IP camera
Features
• Remote controlled via wireless Ethernet network or via wired
LAN
• Accessible via HTTP protocol, sends recordings by E-mail
(SMTP), supports static IP, DHCP, PPPoE, DDNS, NTP (Network
Time) protocols
• Supports pan/tilt rotation control
• Supports video recording using MJPEG coding
• Supports motion detection function
Specifications
• Resolution: 160x120, 320x240 and 640x480 pixels, 1/4" 24 bit
color CMOS sensor
• Video frame rate: 10fps for 640x480, 20fps for others
• Gain control, exposure, white balance: automatic
• Focal length: 4.8 mm
• Aperture: F=1.8
• Image quality: Lowest, Low, Normal, High, Highest
• Wireless standard: IEEE 802.11b/g
• Supports HTTP, FTP, SMTP, static IP, DHCP, PPPoE, DDNS, NTP
protocols
• LED Indicators: LAN LED (green), WLAN LED (amber), Power
LED (blue)
• AC-DC power adaptor: input 200-240VAC 50/60Hz 0.3A; output
12V 1.0A
• Dimensions of camera: 119x78x50mm
• Net weight of camera: 183g
IP camera
Package contents
• IP camera
• Power adapter
• Camera stand
• LAN patch cord
• User manual
• Software CD
• Antenna
System requirements
• OS system: Windows 98/ME/2000/XP+SP2/Server 2003/Vista
• MS Internet Explorer: v.6.0.29 or above
• CPU: Intel Pentium III 750MHz above or Intel Celeron 1GHz
above
• Memory size: 128MB (256MB recommended)
• DirectX 9.0 or above installed
IP camera
Hardware Installation
LED and Focusing
The Camera head and its focus ring allow you to modify the aim and focus
of the Camera.
To adjust the Camera’s focus, rotate the dark focus ring.
There are four LEDs indicating the camera status and networking status.
Ÿ Power
When the camera is power on, the LED will light and can not be
turned off.
Ÿ LAN
When the Internet Camera is linking to wired network, the LED is
lighting. The LED is flashing when video is transmitted or received
through wired network.
Ÿ WLAN
When the Internet Camera is linking to wireless network, the LED is
lighting. The LED is flashing when video is transmitted or received
through wireless network.
IP camera
Focus
Ring
LED Green: LAN Activity
LED Amber: WLAN Activity
LED Blue: Power On
Wireless SMA Connector
(Wireless Model Only)
IP camera
Camera Ports
The Camera features three ports and a Reset button.
Ÿ Power
The Power port is where you can connect the power adapter.
Ÿ LAN
The LAN port is where you can connect the Ethernet network
cable.
Ÿ WLAN (Antenna Connector)
This round connection is standard Reverse SMA connector where
any antennas with Reverse SMA connector can connect to the
Internet Camera..
Ÿ Reset
1. If problems occur with your Internet Camera,
press the reset button with a pencil tip (for less
than 2 seconds) and the Internet Camera will
re-boot itself, keeping your original
configurations.
2. If problems persist or you experience extreme
problems or you forgot your password, press the
reset button for longer than 5 seconds and the
Internet Camera will reset itself to the factory
IP camera
default settings (warning: your original
configurations will be replaced with the factory
default settings).
Reset Button LAN Port Power Jack
IP camera
Installation Procedure
1. Unpack the Internet Camera package and verify that all the items
listed in the Chapter 2 are provided.
2. Connect the Internet Camera to your network by attached the
network cable from the switch/router to the UTP port of the Internet
Camera.
3. Connect the power adapter to the Internet Camera and plug the
power adapter to power outlet. The Internet Camera will be
powered on. When the Internet Camera is ready, the Ready LED will
light.
4. Make sure that you have installed correct VGA driver and DirectX 9.0
or above.
Note: It is highly recommended to use the power adapter shipped with
the Internet Camera, do NOT use any other power adapter from any
sources.
IP camera
Software Installation
Follow the simple steps below to run the Install Wizard to guide you
quickly through the Installation process. The following installation is
implemented in Windows XP. The installation procedures in Windows
2000/Server 2003 are similar.
1. Insert the CD shipped along with the Internet Camera into your
CD-ROM drive. The “Autorun.exe” program should be executed
automatically. If not, run “Autorun.exe” manually from “Autorun”
folder in the CD.
2. The Install Wizard will show four selections, select the program you
want to install or click “Exit” to install the program later. The
following installation steps are the demonstration of “Install
Administrator Utility & Camera Viewer”.
IP camera
3. The system will start the installation procedures. Click “Next” to
continue installation.
IP camera
4. If you wish to install the software program in an alternate location,
click “Change”; otherwise click “Next” to move on to the next step.
IP camera
5. Click “Install” to start installing the program.
IP camera
6. The system will install the program automatically.
IP camera
7. Click “Finish” to complete the software installation.
IP camera
8. ”Administrator Utility“ will be run automatically after installation. On
the Internet Camera first page, the cameras found in the network
are listed in the left window. Choose the one you want to configure
and click “Setting Wizard” to proceed.
IP camera
“N” means the camera is
new and not configured.
IP camera
9. Please enter the default password “1234” and click “OK” to login to
the IP setup page.
10. Internet Camera is working through the network (TCP/IP Protocol).
The IP address and subnet mask setting must be correct, or you
cannot access to the camera. The wizard program will detect the IP
address status of your network automatically and suggest a free IP
address for the Camera. You can accept the suggested value or
enter the value manually. If you enter the value manually, please be
aware that the “Subnet Mask” must be the same for both the camera
and the PC. Click “Finish” to apply the configuration.
IP camera
11. This wizard will pop up a window to ask you if you want to run the
“Camera Viewer” and see the video of the Camera immediately.
Select “OK” to run “Camera Viewer”.

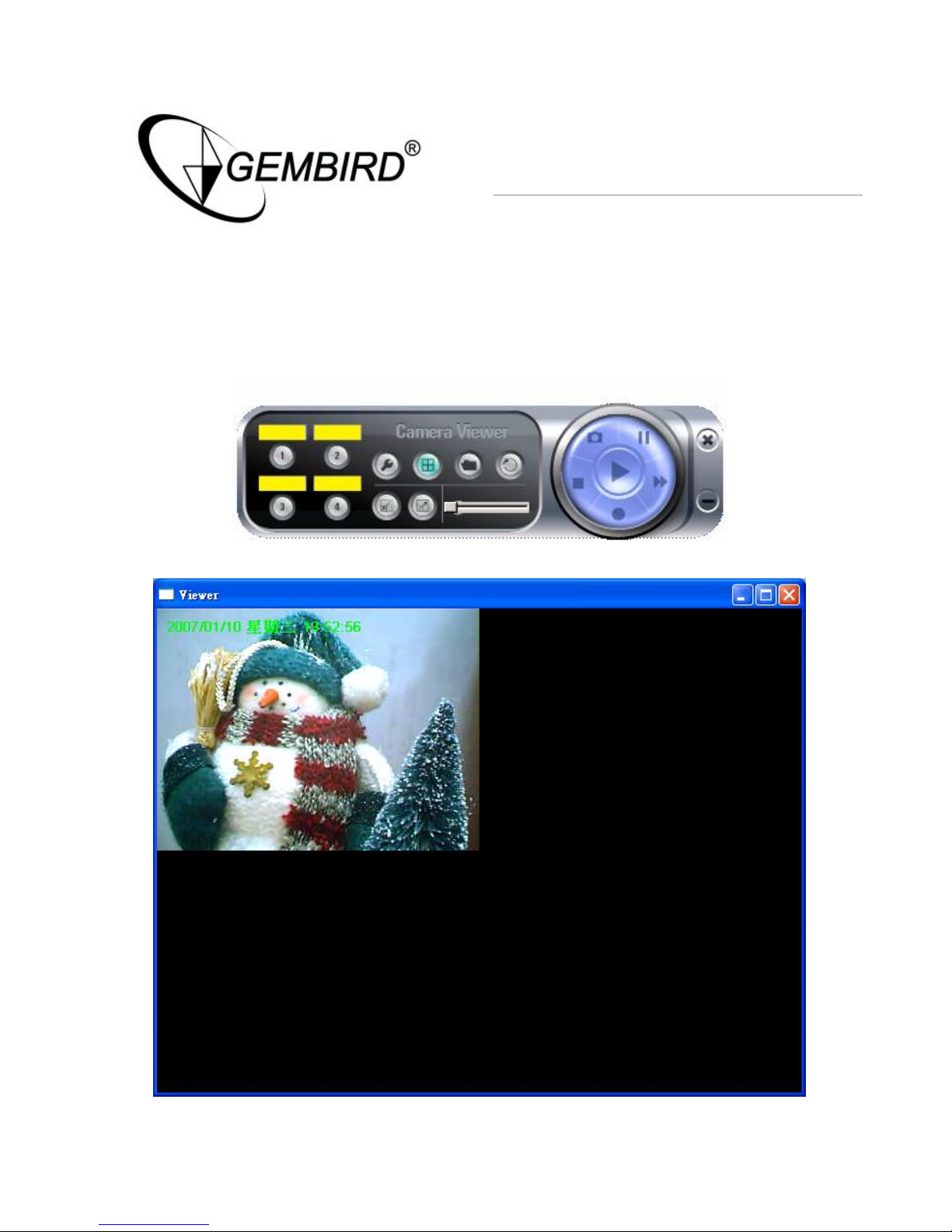

12. The “Camera Viewer” will show the video automatically.
IP camera
Congratulations, you can use the camera through the network to
view the video from now on.
IP camera
Using the Administrator Utility
The Administrator Utility allows users to search and setup the cameras
located within the Intranet or on the Internet. From the utility, users can
view all the information of the selected camera; furthermore, it provides a
setting wizard, which can guide users to add the camera to the network
easily and promptly.
There are two ways to run the Administrator Utility as follows.
1. Click “Start”, select “Programs\IP Camera\Admin Utility” to run the
utility.
2. Double click the “IP Camera Admin” icon to run the utility.
Once the utility is started, it will search all the cameras within the network.
To do more settings, please refer to the description in the following
sections.
IP camera
IP camera
General Setting
LAN
Auto Discover
Click the button will search the camera within the
network.
Camera List
The list shows the camera name and the setup
status of the camera.
IP camera
It means the camera is in the default setting.
It means the camera is configured before.
Internet
Add
Click “Add” will appear a window for you to enter
the IP Address of the camera on the Internet.
Delete Click “Delete” to delete the camera from the list.
Camera List The list shows the camera name an
d the connect
status of the camera.
It means the camera is
disconnected or not in the Internet.
It means the camera is connected.
Information of Camera
Camera Information
It displays all information of the selected camera.
The information include
s Firmware Version,
Network Information, IP Address, UPnP Setting,
DDNS Setting, Resolution and E-mail setting, etc.
Camera Setting
IP camera
Detail Setting
Click “Detail Setting” to do more setting of the
camera such as IP address, Resolution, password
and firmware upgrade, etc.
Setting Wizard
Click “Setting Wizard” to setup the necessary
setting for the camera.
IP camera
Detail Setting
When you click the “Detail Setting”, a screen will pop up for you to enter
the “Administrator Name” and “Password”. The default value is as follows.
Name: “admin”
Password: “1234”
IP camera
If the name and password you enter are correct, you can start to setup
the camera.
IP camera
Network Setting
Network Setting
Internet Camera
Name
The default camera name is “IC1500WG”. It is
recommended to name a meaningful name for the
camera.
IP camera
IP Address
Enter an unused IP Address within the IP address
range used on your LAN. If the IP Address of your
LAN is from the 192.168.2.1 to 192.168.2.254,
you can set an unused IP Address from the
range
for the camera, for example: 192.168.2.250.
Subnet Mask
The Subnet Mask field must match the subnet
setting on your LAN. For example: 255.255.255.0.
Gateway
The Gateway is used to forward frames to
destinations in a different subnet on the Internet.
The Gateway setting must be the same with the
gateway used by the PCs on your LAN.
DNS Server
DNS Server (Domain Name Server) that translates
names to IP addresses. Set the same DNS Server
as the PCs on your LAN.
Network Setting
Video Port T
he Video Port is used to transmit or receive the video
streaming in the network. The default port setting is
IP camera
“4321”. If you want to view the video from the
camera, the port setting should be correct.
Web Port This camera support web connection, the def
ault web
port is 80. Since the web server may use port 80, you
can use a different port for the camera. If you change
the web port from 80 to 8080, you must type
http://192.168.2.3:8080
to connect the camera
through the web browser.
IP camera
Wireless Settings (*Wireless Model Only)
Utility will site survey automatically or you can press “Refresh” button to
survey the AP router manually.
IP camera
After site survey procedure, there will show existing AP SSID.
Then press “Connect” to connect AP router or press “Add to Profile” to
configure the Wireless
WEP and WPA encryption.
IP camera
There are WEP(Open System/Shared Key) ,WPA-PSK,WPA2-PSK and
WPANone encryption settings. You can choose one to match AP router
wireless settings.
After set the profile, Please remove the LAN cable then IP Camera will
connect to AP router automatically.
LED Status Diagram
IP camera
Wired Setting Environment Wireless Setting Environment
You must configure the wireless settings from wired
environment. Then you can remove the wired cable and start
wireless connection.
IP camera

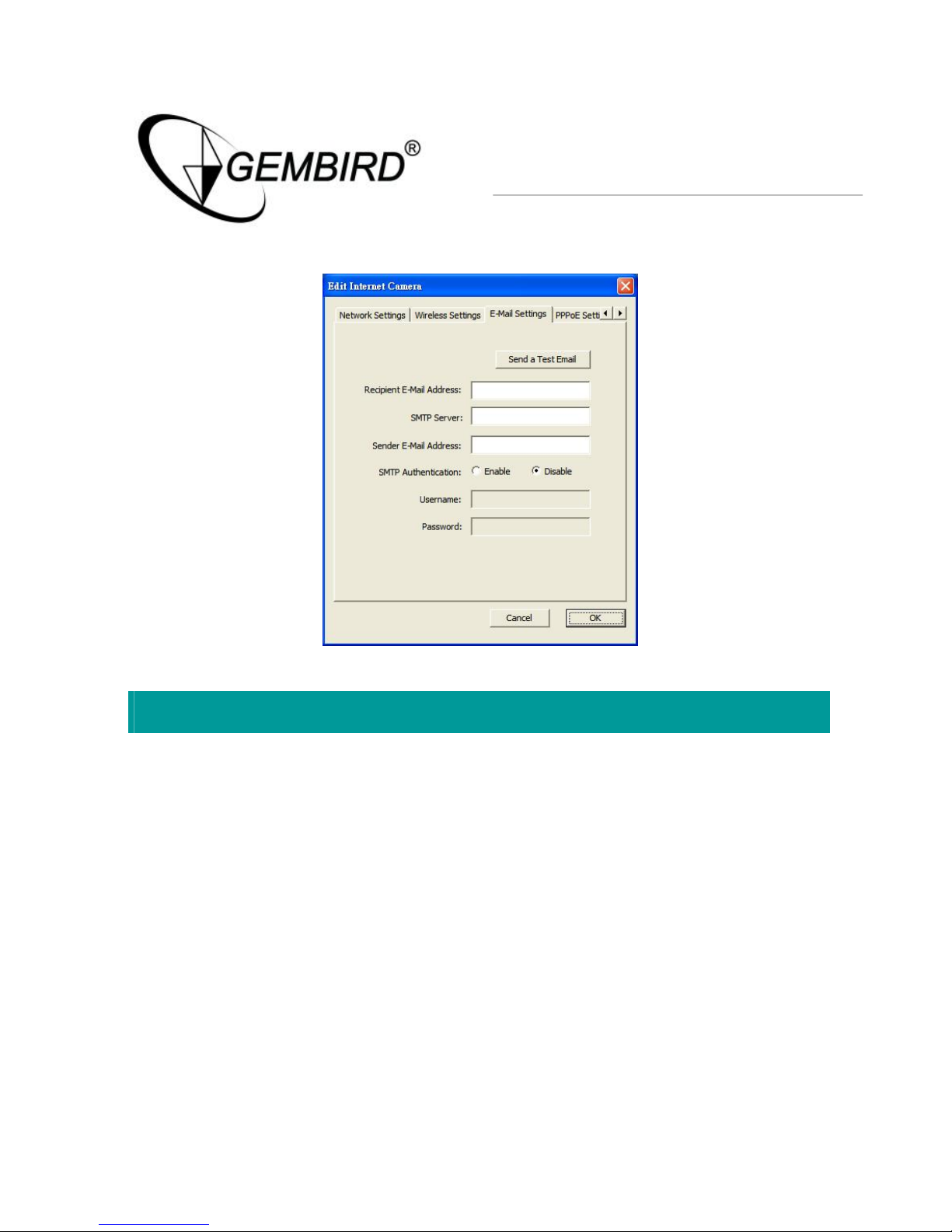

E-Mail Setting
E-Mail Setting
Recipient E-Mail Address
This camera supports “Snap Shot” and “Motion
Detection” functions. You can snapshot a
picture and send the picture by E-
Mail. Enter
the E-Mail Account for receiving the picture.
SMTP Server Enter the SMTP Server for the E-Mail sending.
Sender E-Mail Address Specified the e-mail address of the e-
mail
sender.
IP camera
Authentication Enable or Disable the S
MTP Authentication
function
Username
When Authentication is enabled, input the SMTP
Username.
Password
When Authentication is enabled, input the
password.
Send a Test Email Press this button to send a test e-
mail to your
mailbox. You can use th
is function to test if your
setting is correct.
PPPoE Settings
IP camera
PPPoE Settings
Enable/Disable
If enable the PPPoE function, IP Camera will
use PPPoE for network connection first. The
default value is “Disable”.
Username Enter the Username of PPPoE connection.
Password Enter the Password of PPPoE connection
MTU
A maximum transmission unit (MTU) is the
IP camera
largest size packet or
frame, specified in octets (eight-
bit bytes), that
can be sent in a
packet or frame based network such as the
Internet.
FTP Settings
IP camera
FTP Settings
FTP Server
This camera supports “Motion Detection”
functions. When Motion Detection event
occurred, you can record the pictures to FTP
server. Enter the FTP address for receiving the
pictures.
FTP Port Enter the port of the FTP server.
User Name Specify the user account of ftp server.
Password Specify the Password of your ftp account.
Remote Folder
Specify the folder of the ftp site that you want to
store the video.
Passive Mode If your Camera is unde
r NAT, you usually need to
enable this feature.
IP camera
Date / Time Settings
Date / Time Settings
Set Date/Time
manually
Set the current Date and Time.
NTP Server
Synchronize the Date and Time with NTP
server.
Time Zone Select the time zone that your camera put on.
NTP Server Specify the IP Address of the NTP Server.
IP camera
Resolution
Resolution
Resolution
Select the desired video resolution format. Larger
resolution requires more bandwidth. 640 x 480 is
“VGA” format. 320 x 240 is “QVGA” format. 1
60 x
120 is “QQVGA” format.
IP camera
Advanced Setting
Advanced Setting
UPnP
When the UPnP function is enabled, the camera
can be detected by UPnP compliant system such
as Windows XP. The camera will be displayed in
the Neighborhood of Windows XP, so you can
directly click the camera to view the video
through web browser.
IP camera
DDNS
Many internet connections use a "Dynamic IP
address", where the Internet IP address is
allocated dynamically whenever the Internet
connection is established. Internet users should
kn
ow the IP Address of the camera when they
want to connect to the camera every time. DDNS
is designed to solve this problem, by allowing
users to connect to your LAN using a domain
name, rather than an IP address.
Enable/Disable Enable or disable DDNS function of the camera.
Provider
Several companies provide DDNS service. This
camera supports the service from DynDNS who is
one of the DDNS providers.
Domain Name
The domain name given by DynDNS is
“registername.dyndns.com”. Enter th
e domain
name that you register for the camera from
DynDNS web site.
Account Enter the login name for the DDNS service.
IP camera
Password Enter the password for the DDNS service.
IP camera
Users
Users
Administrator Setting the password of Administrator account
Current Password Enter the current password of the camera.
New Password
Enter the new password you want to use for the
camera.
IP camera
Confirm New Password
Retype the new password to confirm the
setting.
User Setting the user account
and password. Your
camera can support 4 user account.
IP camera
Tools
Tools
Firmware Version Display current firmware version.
Firmware Update
You can upgrade camera’s firmware via this
function. Press this button and select the correct
firmware to upgrade.
Reset to Default
If you want to reset the camera, click this button.
IP camera
The default settings of the camera are as follows.
Camera Name: “IC-XXXXXX”
IP Address: “192.168.2.3”
Subnet Mask: 255.255.255.0
Administrator Name: “admin”
Password: “1234”
Video Port: “4321”
Web Port: “80”
LED Light Off
Press this button can turn off LAN and WLAN LED.
But can not turn off Power LED.
IP camera
About
About
Administrator Utility
Version
Display current Administrator Utility Version.
IP camera
Setting Wizard
When you click the “Setting Wizard”, a screen will pop up for you to enter
the “Administrator Name” and “Password”. The default value is as follows.
Name: “admin”
Password: “1234”
If the name and password you enter are correct, you can start to setup
the camera.
Setting Wizard
IP camera
Internet Camera
Name
The default camera name is “IC-
XXXXXX”. It is
recommended to enter a meaningful name for the
camera.
IP Address
The wizard will auto setup an available IP Address
to the camera. For example: if the IP address of the
network is 192.168.2.x, the wizard will search an
unused IP Address from 192.168.2.1 to
192.168.2.250 and assign the camera an available
IP Address.
You are allowed to enter another IP Address to
change the setting.
Subnet Mask The wizard will auto s
earch the Subnet Mask setting
of the network and set the camera in the same
Subnet Mask.
You can enter another Subnet Mask to change the
setting.
Gateway
The wizard will auto search the Gateway setting of
IP camera
the network and set the camera to use the same
Gateway.
You can enter another Gateway to change the
setting.
Video Port It defines the v
ideo stream port. The default value
is “4321”.
Cancel Click “Cancel” to stop wizard setting.
Finish Click “Finish” to complete the camera setting.
When you finish the camera setting, you can click “Ok” to run the
“Camera Viewer” immediately or click “Cancel” to run the “Camera
Viewer” later.
IP camera
Using the Camera Viewer
The Camera Viewer Utility allows users to view video up to four cameras.
It also allows users to manual/schedule recording video and playback the
video file. The status of camera viewing such as frame rate, video
received, and etc. are also recorded in time.
There are three ways to run the Camera Viewer Utility as follows.
1. Click “Start”, select “Programs\IP Camera\Camera Viewer” to run the
utility.
2. Double click the “IP Camera Viewer” icon to run the utility.
3. Click “Setting Wizard” from Administrator Utility and follow the
instructions in the utility.
IP camera
Panel Introduction
In the beginning when you start the Camera Viewer, you would see a
Control Panel and a four division Viewer window.
IP camera
Camera Buttons
Camera Buttons
Camera
Click one of these four cameras will connect to the
selected camera that you want to view and
c
onfigure. If you want to remove the camera from
the viewer, please right click
the icon and select
“Reset Camera x”. If you want to configure the
camera, please right click
the icon and select
“Configure Camera x”.
IP camera
Camera Status
There is a status bar shown different color to indicate the status of each
Internet Camera.
Camera Status
Yellow It means that there is no camera set to connect.
Blue
It means that the camera is connected and playing
the live video.
Pink It means that the camera is not connected now.
Red It means that the camera is recording.
IP camera
Control Buttons
Control Buttons
Play
The “Play” button is an intelligent play
user-
interface. In the normal display mode and
the Internet Camera is disconnected, clicking on
the
“Play” can make the viewer connect to the
Internet Camera. In the playback mode, clicking
on the “Play” can play the video in the normal
speed.
Stop
The “Stop” button is an intelligent play
user-
interface. In the normal display mode and
the Internet
Camera is connected, clicking on the
“Stop” can make the viewer disconnect the
Close the Camera Viewer
Minimize the Window
Forward
Stop
Snapshot
Record Play
Pause
IP camera
camera. In the playback mode, clicking on the
“Stop” can stop playing the video.
Pause
The “Pause” button provides you a way to pause
the current video display. When the
displaying
video is paused, click on the “Play” again to
resume the video display.
Forward
The “Forward” button to forward the speed of
display when playback the recording file. Click the
button at a time will increase the playing speed
one time.

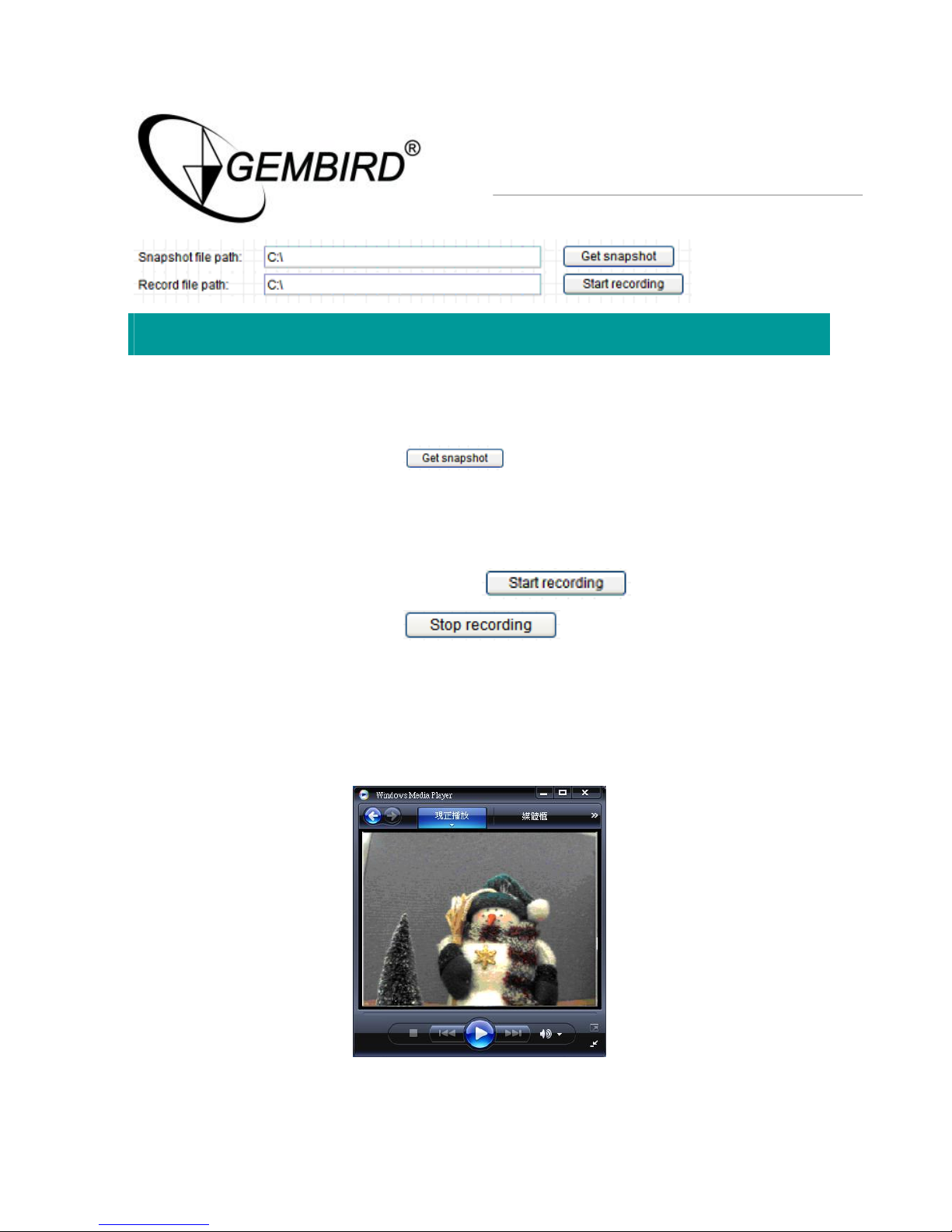

Snapshot
Click “Snapshot” will make the viewer to take a
snapshot of the video and save the picture as a
bitmap file in the hard disk. (You can set the
directory for storing these bitmap files at the
Section 7.8.4)
Record
By clicking “Record” you
can record video
immediately. (You can set the directory for
storing video files at the section 7.8.4)
IP camera

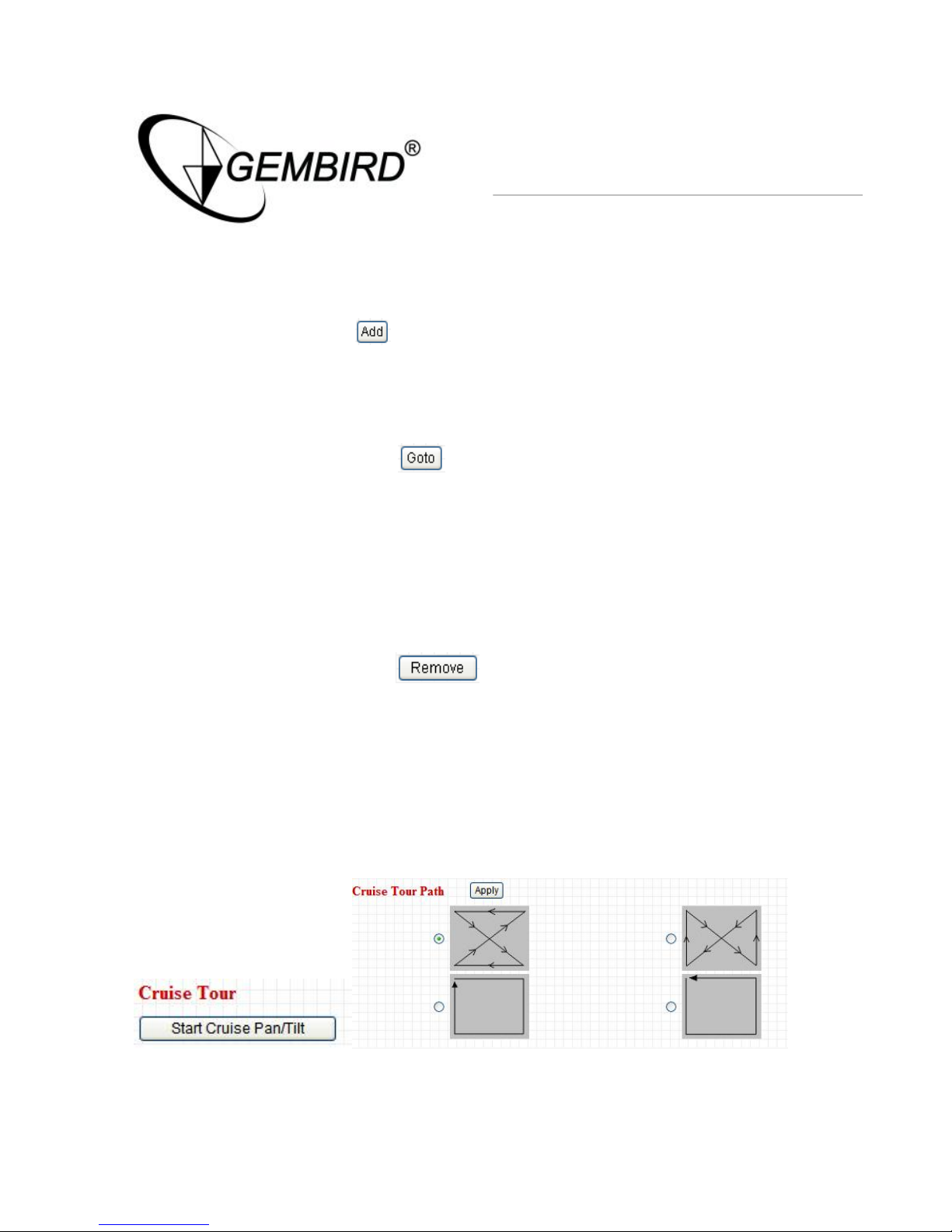

Pan-Tilt Control Panel
When you can see the video image on screen and click on
. The viewer will show only one camera video and
appear the Pan-Tilt control panel.
à
IP camera
PTZ Control Panel
Full View Press
button, you can see full size
image.
à
Zoom Out Press
button, the image will be
Zoom-Out.
à
Zoom In Press
button, the image will be
IP camera
Zoom-IN.
à
Direction Panel
There are 8 directions of control panel. You
can control Left-Right, Up-
Down by this
panel.
Pan / Tilt Speed
You can adjust Pan / Tilt moving speed from
1(Slow) to 5(Fast).
Preset Position
Position Name You can add name to locate position. Lik
e
Windows, Door or other easy words.
Available Position
You can check and see the existing position record
here.
IP camera
Add
After you named the position name, you can press
to store the preset position.
Goto After you select an existing position and
click
, the screen will go to the selection
preset position immediately.
Remove
If you want to remove preset position, you can
select the existing preset position and
click .
*Notice: After you set the preset positions, you must enter Web
Management Page to set Guard Tour function in PTZ menu (See
8.2 PTZ Settings).
IP camera
Cruise Tour
Start Cruise Pan/Tilt
Cruise Tour will follow Cruise Tour Path to start
cruise.
After press ,
the original button
will become .
Stop Cruise Pan/Tilt
Press can s
top Cruise Tour
then the original button will become
.
*Notice: You must enter Web Management Page to set Cruise
Tour Path in PTZ menu.
IP camera
Video Recording
This utility allows you record the video in AVI files. There are two ways of
video recording – Manual Recording and Schedule Recording.
Manual Recording
You can manually record the video stream into an assigned video file.
Click “Record”, then the viewer utility will start to record the video stream.
You can assign the path in the setting dialog.(at
section 7.8.4) Clicking
“Stop” will stop recording.
Note:
Before manual recording, you have to click the camera button to
select the Internet Camera that you want to record first and make sure
that the viewer is successfully connecting to the Internet Camera.
Schedule Recording
You can assign a schedule and let this viewer automatically recording the
video stream. Please refer to Section 7.8 to see how to setup schedule for
the recording. The file name of the recorded video file is the start time of
r
ecording. For example, the file name
“IPCamera_2004-10-8-23-56-
40.avi” means it was recorded at 2004/10/8
23:56:40.
IP camera
Change Resolution
The Internet Camera supports two resolution, 640x480 (VGA) and
320x240 (CIF). You can change the resolution of each Internet Camera by
clicking the resolution button.
Note: Before changing the resolution of the Internet Camera, you have to
select the Internet Camera by clicking the camera button first. If you
change the resolution of an Internet Camera, other clients who are
viewing the same Internet Camera simultaneously will also see the video
with the changed resolution, too.
IP camera
Resolution
VGA
Change the resolution to 640x480 (VGA) mode.
QVGA
Change the resolution to 320x240 (QVGA) mode.
View Four Cameras Simultaneously
Click the four division button can view the 4 cameras
simultaneously in a four-division window.
IP camera
Viewer Utility Setting
Click the “Setting” button , then the setting window of the Internet
Camera will pop up.
Note: When you want to change the settings such as IP Address, Video
Port, etc. in the “Setting” option, you must disconnect the Internet
Camera first by clicking the “Stop”.
IP camera
Setting
Setting
Name
It is not required to fill the camera name for
connecting camera. It is for u
sers to identify the
camera.
IP Address IP address/Domain name of the Internet Camera.
Video Port
The number of service port used by the Internet
Camera.
IP camera
Model
Select “Internet Camera” (This camera only
supports MJPEG).
Username The user name f
or login into the Internet Camera.
By default, the user name is “Admin”.
Password
The password for login into the Internet Camera.
By default, the password is “1234”.
Discover Click “Discover”, then camera auto-
discover
windows will pop up. The wi
ndow will show all the
discovered cameras on LAN environment for you
to select.
IP camera
Recording
You can setup schedule for the recording here. This utility will record the
video stream in the assigned file folder according to the schedule
automatically. The recorded video files are AVI format.
Note:
1. The utility will only start to record the video stream when this utility
is running and is successfully connecting to the Internet camera in
the beginning of the schedule.
2. The schedule setting of one-time or weekly schedule should not
overlap, or the recording will fail.
IP camera
IP camera
One-Time Schedule
Weekly Schedule
Schedule
Cycle Recording
Check this check box to enable cycle recording.
When the Cycle Recording is checked and the
storage usage has already reached
the maximum
reserved storage space, the utility will
automatically delete the oldest recorded video file
and use the space to store the newly recorded
video stream.
One-Time Schedule
You can assign a range of time and the utility will
automatically re
cord the video stream only during
IP camera
the period of time. The default time is 2 minutes
later from the current time.
Weekly Schedule
You can assign the days in a week and the period
of time in a day when you want to record the
video stream. The utility wil
l automatically record
the video stream during the periods of time every
week again and again.
Schedule
New
Click “New” to add a new recording schedule.
Edit
Select an existing schedule in the schedule list and
click “Edit” to edit the schedule.
Delete
Select an existing schedule in the schedule list and
click “Delete” to delete the schedule.
IP camera
Status
You can see the current status information of the connection session
between the utility and the Internet Camera.
Status
Connected It displays
“Yes” when the utility is connecting to
the Internet Camera and displays “No” when the
utility is not connecting to the Internet Camera.
Status
Stream Started At
The beginning time of the current connection
session between the utility and the Internet
Camera.
IP camera
Time Elapsed
The elapsed time of the current connection
session between the utility and the Internet
Camera.
Video Received
The total size (Unit is KByte) of video stream
received during the current connection session
between the utility and the Internet Camera.
Audio Received
The total size (Unit is KByte) of audio stream
received during the current connection session
between the utility and the Internet Camera.
(Reserved)
Frame Rate
The frame rate (frame per second) of the current
v
ideo download speed from the Internet Camera
to the utility.
Data Rate
The data rate (KByte per second) of the current
video download speed from the Internet Camera
to the utility.
IP camera
Number of Frames
The total number of video frames received during
t
he current connection session between the
utility and the Internet Camera.
Number of Users
The total number of users that viewing this
camera currently.
IP camera
General
You can manage storage usage for this Internet Camera here.
General
Snap Shot Directory
This lets you assign the directory where bitmap
files will be stored when you click “Snapshot” to
take pictures. The default folder is where the
software program is installed, for example:
“C:\Program Files\Internet Camera”.
Record Directory This le
ts you assign the directory where the
recorded video files will be stored. The default
folder is where the software program is installed,
IP camera
for example: “C:\Program Files\
Internet
Camera”.
Free Disk Space
The current free disk space of the hard drive
where is assigned to save recording files.
Max Recording Space
You can reserve a disk space to store the
recorded video and snapshot files. If the space is
run out, a message will pop up to remind you.
Used Disk Space The current used disk space for s
aving the
recording file.
Max Video File Size
This let you assign a maximum size of each video
file. The upper bound of this value is 2 GB per
file.
IP camera
About
About
Camera Viewer Utility
Version
Display current Camera Viewer Utility Version.
IP camera
Playback
Click the “Open File” and a “Load File” window will be popped up. Select
the file that you want to play.
The viewer will start to play the selected video file.
IP camera
Playing Control
Play
When the video playback is in Stop state, just
click “Play”
and the viewer will play the video file
from the beginning point. When the video
playback is in Pause state, just click “Play” and
the viewer will play the video file from the current
pause point. When the viewer is playing with fast
speed, just click “Pl
ay” to let the viewer play with
the normal speed.
IP camera
Pause
When the recorded video is playing, you can click
“Pause” to freeze the playback. If you want the
viewer to continue playing from the current pause
point, just click “Play”.
Stop
When the
viewer is playing, you can click “Stop”
to stop the playback. If you want the viewer to
play again, just click “Play” and the viewer will
play the video file from the beginning point.
Playing Control
Forward
If you want the viewer to play the video
file in a
faster speed when the viewer is playing the video
file, just click “Forward” and the viewer will
double the playing speed. If you want the viewer
play with the normal speed when the viewer is
playing with fast speed, just click “Play”.
IP camera
Rotate Video
Rotate function lets you rotate the video frame 180 of degree angle each
time you click the “Rotate” . With this function, you can view the
live video with normal, and 180 degree angles counterclockwise.
IP camera
Web Connection and Setup
You can use the Web browser to connect the camera for viewing or
setting. Open the web browser and enter the IP Address of the camera to
establish a connection. The default IP Address of the camera is
“192.168.2.3”.
When the welcome screen appears, enter the “Admin Name” and
“Password”. The default values are:
Admin Name: “admin”
Password: “1234”
When the camera is connected, the browser will take you to the live video
page. If you are viewing this camera at first time, the following dialog will
appear to install the ActiveX plug in.
IP camera
After installed the ActiveX plug-in, the video image will be shown up in the
web screen directly.
The menu options for the web control screen are as follows.
Camera – View live video and adjust the video format from the menu.
PTZ – Setup the Guard Tour and Cruise Tour from the menu.
LAN – Setup the camera LAN port functions in the menu.
WLAN – Setup the camera WLAN port functions in the menu.
E-Mail & FTP – Setup the E-Mail client and FTP client in the menu.
Motion Detection – Configure the Motion Detection Actions here.
IP camera
System – Setup System utilities and settings in this menu.
Status – Shows the camera information and current status in this page.
Users – This camera support up to 4 user accounts. You can setup them
in this menu.
IP camera
Camera Setting
Camera Setting
Resolution
Select the desired video resolution format.
Larger resolution requires more bandwidth. 640
x 480 is “VGA” format. 320 x 240 is “CIF” format.
The default resolution is CIF format.
Image Quality Adjust this property to control the video quality
Max Frame Rate
Set the video max frame rate. This camera can
support at most 30 frames per second. Set the
IP camera
frame rate higher can get video more smooth.
But will use more bandwidth.
Frequency Adjust this property to fitting light frequency.
Brightness
You can adjust the brightness of the video. If the
video is too dark, you can input the larger
number in this text box. The video will be
brighter. This value can be from 1 to 100.
Pan / Tilt Speed You can a
djust Pan / Tilt moving speed from
1(Slow) to 5(Fast).
Apply
When you finish “AV Server” setting, click this
button to validate the setting values.
PTZ Control Panel
IP camera
Full View Press
button, you can see full size
image.
à
Zoom Out Press
button, the image will be
Zoom-Out.
à
Zoom In Press
button, the image will be
Zoom-IN.
à
IP camera
Direction Panel
There are 8 directions of control panel. You
can control Left-Right, Up-
Down by this
panel.
Preset Position
Position Name
You can add name to locate position. Like
Windows, Door or other easy words.
Available Position
You can check and see the existing position record
here.
Add
After you named the position name, you can press
to store the preset position.
Goto
After you select an existing position and
click
, the screen will go to the selection
IP camera
preset position immediately.
Remove
If you want to remove preset position, you can
select the existing preset position and
click .
*After you set the preset positions, you can use Guard Tour function in
PTZ menu.
Cruise Tour
Start Cruise Pan/Tilt
Cruise Tour will follow Cruise Tour Path to start
cruise.
After press
, the original button
will become .
Stop Cruise Pan/Tilt
Press
can stop Cruise Tour then
the original button will become .
IP camera
Snapshot / Recording
Snapshot file path
You can enter the file path to store the snapshot
picture.
Click to get one picture.
Record File path
You can enter the file path to store the video
image. Click to sta
rt recording.
Click
to stop recording. The video
format is AVI (Content Motion-
JPEG), you can play
the video film by Media Player.
IP camera
PTZ Setting
Guard Tour
Name The name of Guard Tour Name.
Running The status of Guard Tours.
No: Guard tour function is off.
Yes: Guard tour function is on.
Mode There are two modes of Guard Tour.
Sequential: Display preset position image by
order.
Random: Random display preset position image.
Add Press “Add” button to create new Guard Tour.
Edit Press
“Edit” button to modify the existing Guard
Tour.
IP camera
Start / Stop
Press “Start/Stop” button to start or stop Guard
Tour.
Remove
Select existing Guard Tour then press “Remove”
button to remove Guard Tour.
Setup Guard Tour
Name The name of Guard Tour Name.
Available Positions You can choose a preset position for Guard Tour.
View with random
order
If you enable this option, the Guard Tour will be
into random mode.
Add to List
After choose Preset Position, you can press “Add
to list” button to add position into Guard Tour list.
IP camera
Position The Preset Position of Guard Tour
View Time
The duration of display image. The value: 1~9999
seconds.
View Order Guard Tour display order number. The v
alue:
1~99 and must be unique.
Remove Y
ou can press “Remove” button to remove preset
position
Save
After finish Guard Tour settings, remember
pressing “Save” to store all parameters.
Close
After finish settings, you can press “Close” button
to close setting window.
How to create a new Guard Tour?
STEP 1: Create Preset Position
1. Select position and enter Name into “Position Name” field (Ex:
IP camera
Window, Door…)
2. Press “Add” Button to save the preset position.
STEP 2: Create a new Guard Tour
1. Press “Add” button
STEP 3: Setup Guard Tour
1. Enter Guard Tour name into “Name” filed
2. Select Available Positions then press “Add to list” button
IP camera
3. Modify the Guard Tour list
4. You can modify the View Time and View Order or remove which
position
5. After modified all items then press “Save” button to save all
parameters.
6. Press “Close” button to finish Setup Guard Tour”
STEP4: Start Guard Tour
1. Select on Guard Tour list then press “Start/Stop” to active Guard
Tour
2. Click on Camera Item and view the Guard Tour process
IP camera
After 10 seconds
Cruise Tour
Cruise Tour Path
There are four paths of Cruise Tour. That means
device can follow different tour path for cruising.
Apply
After select the Cruise Tour Path, please press
“Apply” button to finish.
Position1 Position2
IP camera
LAN Setting
LAN
Network Type This camera c
an obtain IP via DHCP protocol or
specified static IP Address to it..
IP Address
Enter an unused IP Address within the IP address
range used on your LAN. If the IP Address of your
LAN is from the 192.168.2.0 to 192.168.2.250, you
can set an unused IP A
ddress from the range for the
Loading...
