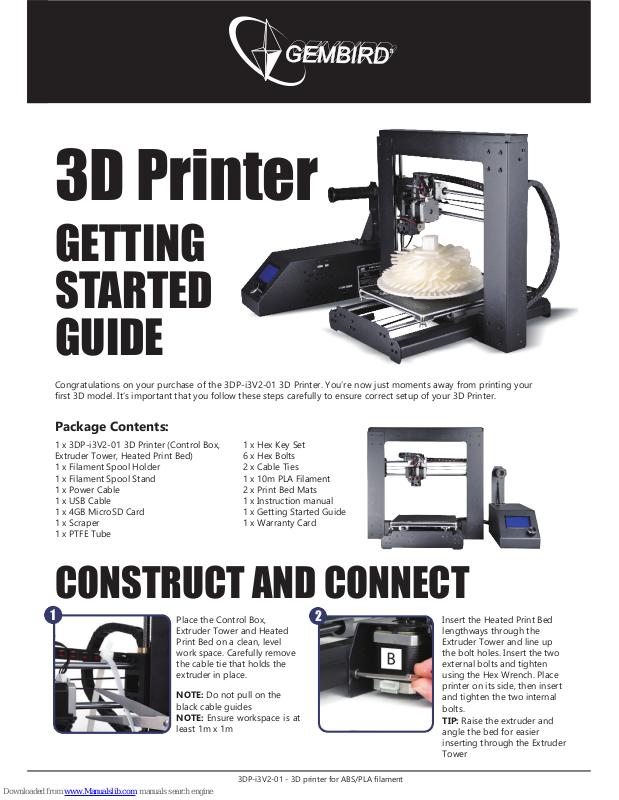

Page 1
3D Printer
GETTING
STARTED
GUIDE
Congratulations on your purchase of the 3DP-i3V2-01 3D Printer. You’re now just moments away from printing your
rst 3D model. It’s important that you follow these steps carefully to ensure correct setup of your 3D Printer.
Package Contents:
1 x 3DP-i3V2-01 3D Printer (Control Box,
Extruder Tower, Heated Print Bed)
1 x Filament Spool Holder
1 x Filament Spool Stand
1 x Power Cable
1 x USB Cable
1 x 4GB MicroSD Card
1 x Scraper
1 x PTFE Tube
1 x Hex Key Set
6 x Hex Bolts
2 x Cable Ties
1 x 10m PLA Filament
2 x Print Bed Mats
1 x Instruction manual
1 x Getting Started Guide
1 x Warranty Card
CONSTRUCT AND CONNECT
Place the Control Box,
Extruder Tower and Heated
Print Bed on a clean, level
work space. Carefully remove
the cable tie that holds the
extruder in place.
NOTE: Do not pull on the
black cable guides
NOTE: Ensure workspace is at
least 1m x 1m
Insert the Heated Print Bed
lengthways through the
Extruder Tower and line up
the bolt holes. Insert the two
external bolts and tighten
using the Hex Wrench. Place
printer on its side, then insert
and tighten the two internal
bolts.
TIP: Raise the extruder and
angle the bed for easier
inserting through the Extruder
Tower
Page 2
3DP-i3V2-01 - 3D printer for ABS/PLA lament
Carefully cut the cable
tie on the left side of the
Heated Print Bed. Then,
on the left side, insert
the long cable connector
marked ‘A’ into the motor
connector of the Extruder
Tower marked ‘A’
On the left side, insert
the short cable connector
marked ‘B’ into the motor
connector of the Extruder
Tower marked ‘B’.
On the right side, insert
the white connector
marked ‘C’ into the motor
connector of the Extruder
Tower marked ‘C’.
On the left side, insert
the black connector
marked ‘D’ into the black
connector of the Extruder
Tower marked ‘D’.
NOTE: Feed all cables under the base, so they do not interfere with Heated Print Bed
Remove the outer plastic
nut from the Filament
Spool Holder; then insert
the threaded end of the
Spool Holder into the
large hole of the Spool
Holder Stand. Tighten
the plastic nuts on each
side to secure the Spool
Holder.
Position the Filament Spool
Holder Stand on top of the
Extruder Tower, then insert
the bolts and tighten with
the Hex Wrench.
With the power switch in
the ‘OFF’ position, insert
the power cable into
the back of the Control
Box and plug the other
end into a mains power
outlet. Turn the 3D
Printer power switch on.
Once initialized, press the
dial to enter the Main
Menu.
Rotate the dial and press
when ‘Position’ is
highlighted.
Rotate the dial and press
‘Z. Pos. Fast’. Turn the dial
clockwise to raise the
extruder so you can access
the Heated Print Bed.
CONSTRUCT AND CONNECT
Page 3
Remove tape from each corner of the Heated Print
Bed. Squeeze each corner of the printing bed, and
tighten each wing nut to reduce the distance between
plates to a minimum. Wipe the top of the Heated Print
Bed with a clean, lint-free cloth to ensure there are no
dust particles or other objects on the surface.
Turn on the 3D Printer. Once initialised, press the dial
to enter the Main Menu, navigate Position > Home
All. The 3D printer extruder nozzle will move to the
‘Home’ position in the front left corner of the Heated
Print Bed. Turn off the 3D printer.
NOTE: Immediately turn off the machine if any of the
motors are jamming or forcing against the frame.
With the printer powered off, rotate the wing nut
under the corner of the Heated Print Bed to raise to
a distance of 0.1mm between nozzle and the surface
of the Heated Print Bed. Test the distance by sliding
an A4 sheet of paper between the extruder nozzle
and the Heated Print Bed. There should be very slight
friction between the paper and the nozzle but the
paper should still slide freely.
Push the extruder to the far right and repeat the
process. Push the Heated Print Bed and adjust the
back corners. Finally, move the extruder and Heated
Print Bed to the centre and test. Check all points
again before proceeding to the next step.
NOTE: Ensure bed movement is not restricted by any
cabling, all cables should be placed under the base
IMPORTANT NOTE: Levelling the bed is an extremely important step. If it is not done correctly every time, your
prints will fail.
LEVELLING THE PRINT BED

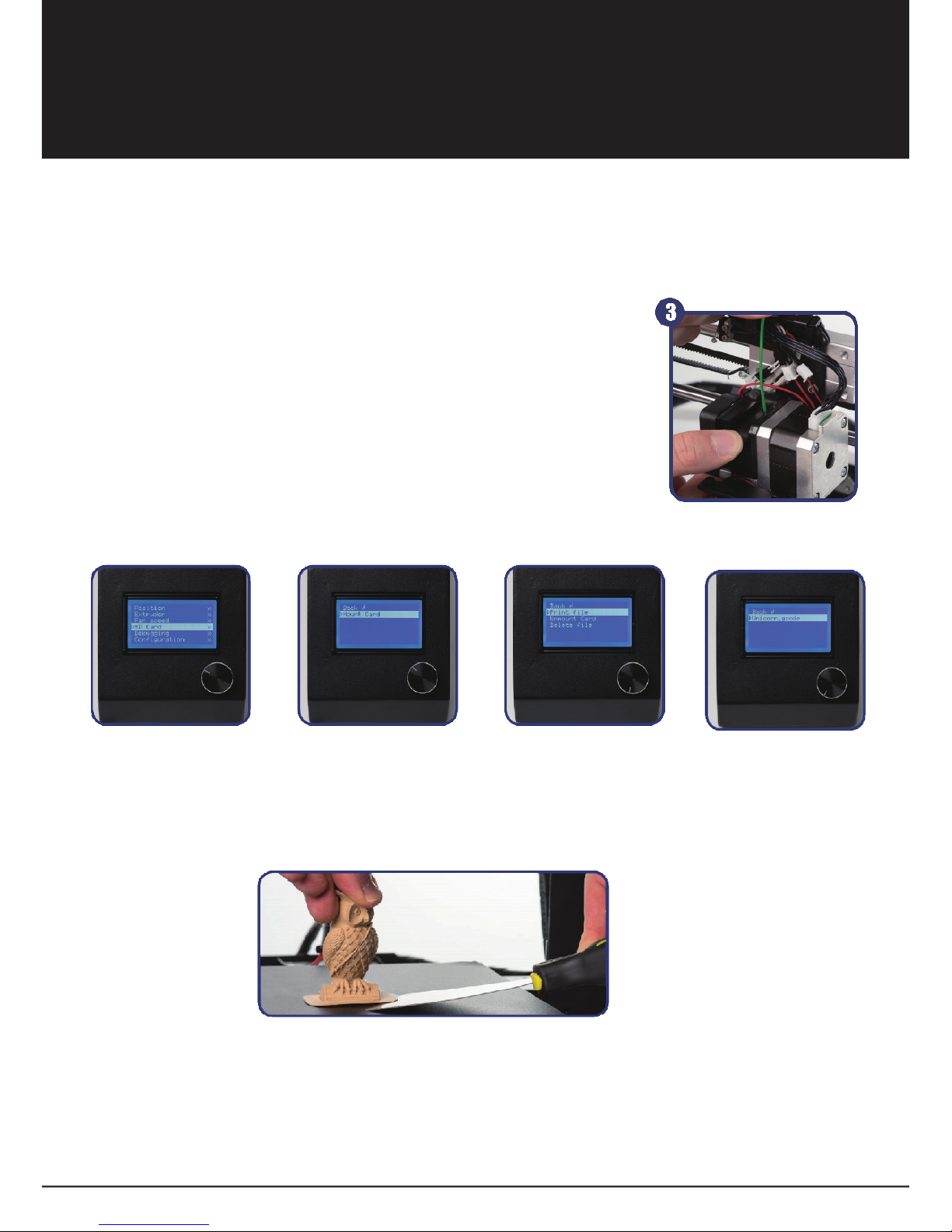

Page 4
3DP-i3V2-01 - 3D printer for ABS/PLA lament
1.
Turn on the 3DP-i3V2-01 3D Printer. Once initiated, press the dial to enter the Main Menu. Navigate to Position > Z Pos.
Fast. Turn the dial to the right to raise the extruder to 30mm. Press the dial to return to the previous menu and select back.
2.
Navigate to Quick Settings > Preheat PLA. Wait a few minutes until the extruder and Heated
Print Bed warm up to the target temperatures.
3.
Insert the end of the lament into the hole on the extruder as shown.
4.
While holding the lament in place with one hand, press the dial to enter the Main
Menu. Navigate to Extruder > Extr. Position and turn the dial clockwise. After a
few centimetres of lament have been extruded, clean the Heated Print Bed and
nozzle using a cloth taking care not to touch the hot surfaces.
5.
Insert the included MicroSD card into the slot on the side of the control box, ensuring metal contacts are facing up. Press
the dial to enter the menu system and select SD Card > Mount Card > Print File. Select one of the pre-loaded les.
6.
Once the extruder and Heated Print Bed reach the target temperature, the printer will automatically return to the
home position and begin printing.
7.
Once your printer has completed printing, the Extruder Nozzle and Heated Print Bed will automatically cool down.
Turn off your 3D printer and carefully remove the 3D printed object using the Scraper and gently lifting the object with
your hand.
WARNING: Always take care when using the Scraper. Never use excessive force or scrape towards your hand. Always keep
the Scraper level as it can damage the print mat.
Congratulations! You have successfully completed your rst 3D print! Please see the manual for further information including
instructions on how to print your own 3D les or visit our website for more ideas and les.
