Cinterion® PLS8-X/PLS8-V
Hardware Interface Overview
Version: 03.009
DocId: PLS8-X_PLS8-V_HIO_v03.009
M2M.GEMALTO.COM
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
2
Page 2 of 40
Document Name:
Version:
Date:
DocId:
Status
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
03.009
2015-08-04
03.009
Confidential / Preliminary
GENERAL NOTE
THE USE OF THE PRODUCT INCLUDING THE SOFTWARE AND DOCUMENTATION (THE "PRODUCT") IS SUBJECT TO THE RELEASE NOTE PROVIDED TOGETHER WITH PRODUCT. IN ANY
EVENT THE PROVISIONS OF THE RELEASE NOTE SHALL PREVAIL. THIS DOCUMENT CONTAINS
INFORMATION ON GEMALTO M2M PRODUCTS. THE SPECIFICATIONS IN THIS DOCUMENT ARE
SUBJECT TO CHANGE AT GEMALTO M2M'S DISCRETION. GEMALTO M2M GMBH GRANTS A NONEXCLUSIVE RIGHT TO USE THE PRODUCT. THE RECIPIENT SHALL NOT TRANSFER, COPY,
MODIFY, TRANSLATE, REVERSE ENGINEER, CREATE DERIVATIVE WORKS; DISASSEMBLE OR
DECOMPILE THE PRODUCT OR OTHERWISE USE THE PRODUCT EXCEPT AS SPECIFICALLY
AUTHORIZED. THE PRODUCT AND THIS DOCUMENT ARE PROVIDED ON AN "AS IS" BASIS ONLY
AND MAY CONTAIN DEFICIENCIES OR INADEQUACIES. TO THE MAXIMUM EXTENT PERMITTED
BY APPLICABLE LAW, GEMALTO M2M GMBH DISCLAIMS ALL WARRANTIES AND LIABILITIES.
THE RECIPIENT UNDERTAKES FOR AN UNLIMITED PERIOD OF TIME TO OBSERVE SECRECY
REGARDING ANY INFORMATION AND DATA PROVIDED TO HIM IN THE CONTEXT OF THE DELIVERY OF THE PRODUCT. THIS GENERAL NOTE SHALL BE GOVERNED AND CONSTRUED
ACCORDING TO GERMAN LAW.
Copyright
Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and communication thereof to others without ex press autho rization are prohib ited. Offenders will be
held liable for payment of damages. All rights created by patent grant or registration of a utility model or
design patent are reserved.
Copyright © 2015, Gemalto M2M GmbH, a Gemalto Company
Trademark Notice
Gemalto, the Gemalto logo, are trademarks and service marks of Gemalto and are registered in certain
countries. Microsoft and Win dows are e ither regis tered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All other register ed trademarks or trademarks mention ed
in this document are property of their respective owners.
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
Contents
40
Page 3 of 40
Contents
0 Document History.......................................................................................................6
1 Introduction.................................................................................................................7
1.1 Supported Products...........................................................................................7
1.2 Related Documents ...........................................................................................7
1.3 Terms and Abbreviations............ ........... .......... ........... ........... ............................7
1.4 Regulatory and Type Approval Information .....................................................10
1.4.1 Directives and Standards....................................................................10
1.4.2 SAR requirements specific to portable mobiles..................................12
1.4.3 SELV Requirements ...........................................................................13
1.4.4 Safety Precautions..............................................................................13
2 Product Concept.......................................................................................................14
2.1 Key Features at a Glance................................................................................14
2.2 PLS8-X/PLS8-V System Overview..................................................................17
3 Application Interface.................................................................................................18
3.1 Operating Modes .............................................................................................19
3.2 Power Supply...................................................................................................20
3.3 USB Interface...................................................................................................21
3.4 Serial Interface ASC0 ......................................................................................22
3.5 UICC/SIM/USIM Interface................................................................................23
3.6 Digital Audio Interface......................................................................................25
3.7 Analog-to-Digital Converter (ADC)...................................................................25
3.8 GPIO Interface.................................................................................................25
4 GNSS Receiver..........................................................................................................26
5 Antenna Interfaces....................................................................................................27
5.1 GSM/UMTS/LTE Antenna Interface.................................................................27
5.1.1 Antenna Installation ............................................................................28
5.2 GNSS Antenna Interface ................................................................................. 29
6 Mechanics..................................................................................................................31
6.1 Mechanical Dimensions of PLS8-X/PLS8-V....................................................31
7 Sample Application...................................................................................................33
8 Reference Approval..................................................................................................35
8.1 Reference Equipment for Type Approval.........................................................35
8.2 Compliance with FCC and IC Rules and Regulations ..................................... 36
9 Appendix....................................................................................................................38
9.1 List of Parts and Accessories...........................................................................38
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
Tables
40
Page 4 of 40
Tables
Table 1: Directives ....................................................................................................... 10
Table 2: Standards of North American type approval.................................................. 10
Table 3: Requirements of quality ................................................................................. 10
Table 4: Standards of the Ministry of Information Industry of the
People’s Republic of China............................................................................ 11
Table 5: Toxic or hazardous substances or elements with defined concentration
limits............................................................................................................... 11
Table 6: Overview of operating modes ........................................................................ 19
Table 7: Signals of the SIM interface (SMT application interface)............................... 23
Table 8: Return loss in the active band........................................................................ 27
Table 9: Antenna gain limits for FCC and IC................................................................ 36
Table 10: List of parts and accessories.......................................................................... 38
Table 11: Molex sales contacts (subject to change)...................................................... 39
Table 12: Hirose sales contacts (subject to change)..................................................... 39
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
Figures
40
Page 5 of 40
Figures
Figure 1: PLS8-X/PLS8-V system overview.................................................................. 17
Figure 2: Decoupling capacitor(s) for BATT+................................................................ 20
Figure 3: USB circuit..................................................................................................... 21
Figure 4: Serial interface ASC0..................................................................................... 22

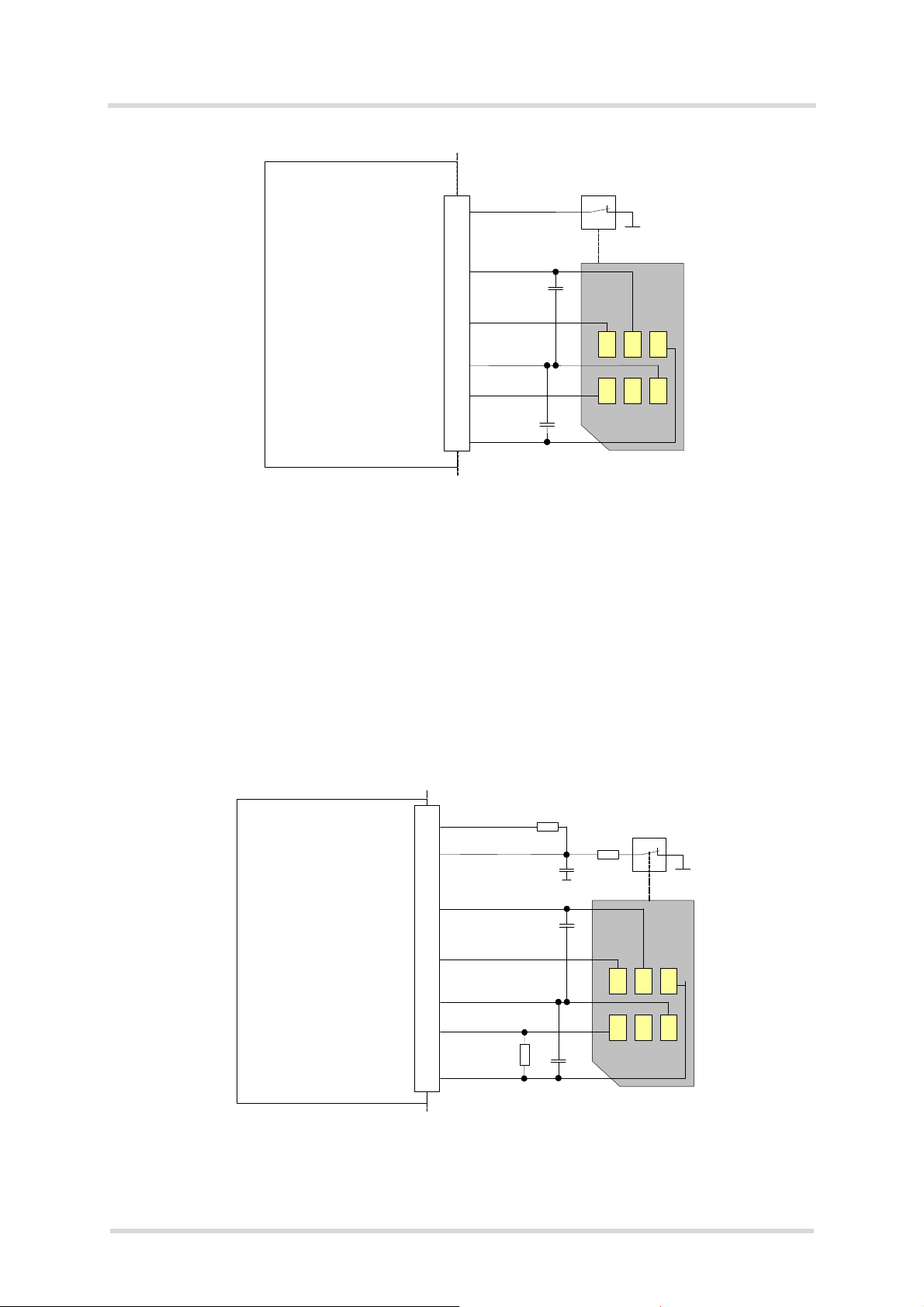

Figure 5: First UICC/SIM/USIM interface...................................................................... 24
Figure 6: Second UICC/SIM/USIM interface................................................................. 24

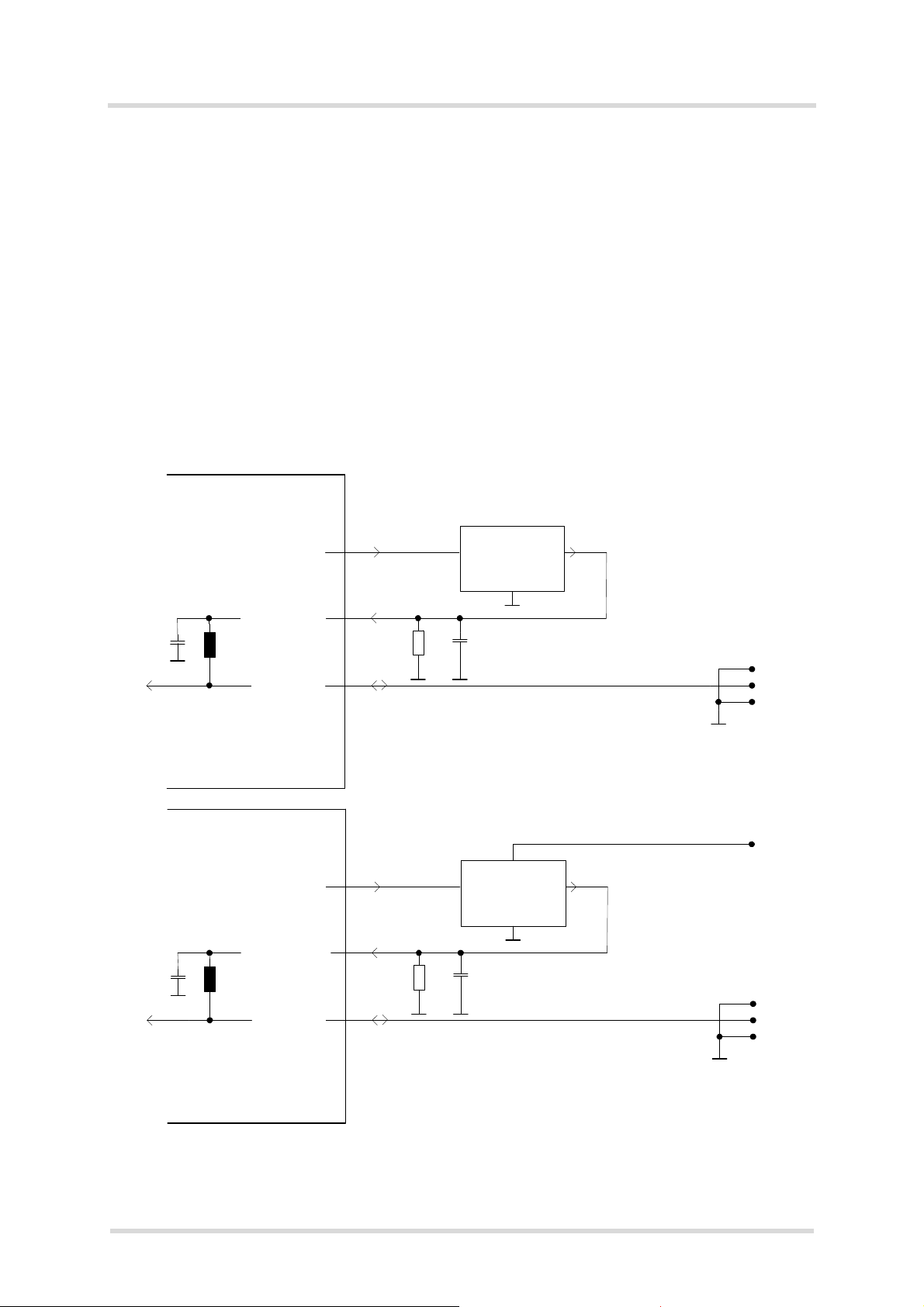

Figure 7: Supply voltage for active GNSS antenna....................................................... 29

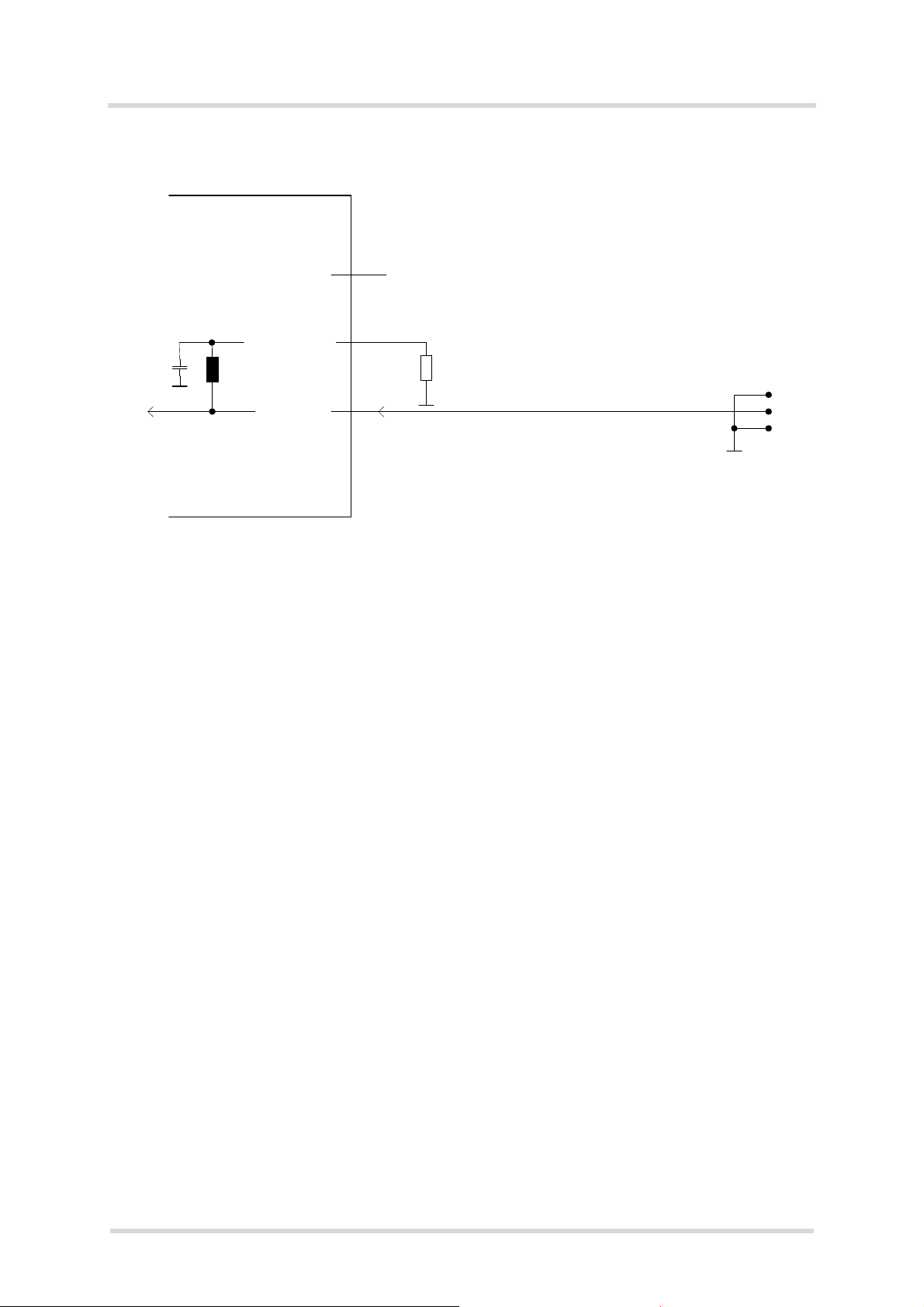

Figure 8: ESD protection for passive GNSS antenna................................................... 30
Figure 9: PLS8-X/PLS8-V – top and bottom view......................................................... 31
Figure 10: Dimensions of PLS8-X/PLS8-V (all dimensions in mm)................................. 32
Figure 11: PLS8-X/PLS8-V sample application............................................................... 34

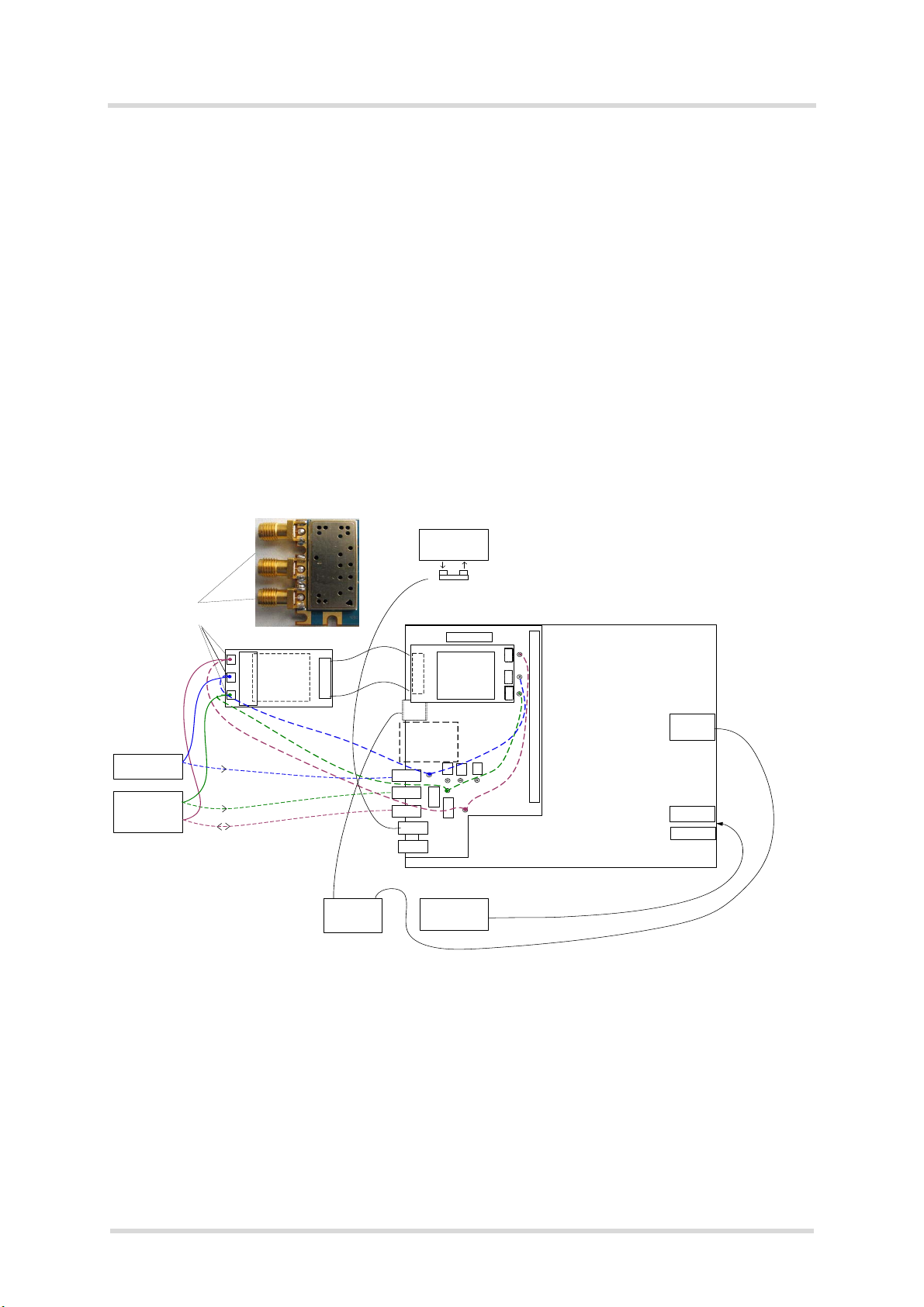

Figure 12: Reference equipment for type approval......................................................... 35
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
0 Document History
6
0 Document History
Page 6 of 40
Preceding document: "Cinterion® PLS8-X/PLS8-V Hardware Interface Overview" v02.510
®
New document: "Cinterion
Chapter What is new
1.4 Removed ECE-R 10 directive from Table 1.
Updated NAPRD version in Table 2.
5.2 Revised ratings for VGNSS in Figure 7.
8.2 Revised maximum antenna gain limits - added Table 9.
New document: "Cinterion
Chapter What is new
-- Initial document setup.
PLS8-X/PLS8-V Hardware Interface Overview" v03.009
®
PLS8-X/PLS8-V Hardware Interface Overview" v02.510
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
1 Introduction
13
Page 7 of 40
1 Introduction
The document1 describes the hardware of the two Cinterion® modules variants PLS8-V and
PLS8-X, designed to connect to a cellular device application and the air interface. It helps you
quickly retrieve interface specifications, electrical and mechanical details and information on
the requirements to be considered for integrating further components.
The product variants differ in their radio access technology support:
• PLS8-X is available for operation in LTE, UMTS and GSM radio networks - for supported
frequency bands please refer to Section 2.1. Connected to this, the module has two separate firmware images on board that can be activated based on the used (U)SIM card.
Employing the module’s two (U)SIM interfaces, it is thus possible to switch between firmware images on the fly - making PLS8-X a multi carrier/provider module.
• PLS8-V in contrast is available for operation in LTE radio networks only - for supported f requency bands please refer to Section 2.1. It has only a single firmware image on board that
can be activated by (U)SIM card - making it a single carrier/provider module.
If not otherwise mentioned, this document applies to both product variants. Where necessary
a note is made to differentiate between the variants.
1.1 Supported Products
This document applies to the following Gemalto M2M products:
•Cinterion
•Cinterion
®
PLS8-V module
®
PLS8-X module
1.2 Related Documents
[1] AT Command Set for your Gemalto M2M product
[2] Release Notes for your Gemalto M2M product
[3] Application Note 48: SMT Module Integration
[4] Universal Serial Bus Specification Revision 2.0, April 27, 2000
1.3 Terms and Abbreviations
Abbreviation Description
ANSI American National Standards Institute
ARP Antenna Reference Point
CE Conformité Européene (European Conformity)
CS Coding Scheme
CS Circuit Switched
CSD Circuit Switched Data
1.
The document is effective only if listed in the appropriate Release Notes as part of the technical
documentation delivered with your Gemalto M2M product.
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
1.3 Terms and Abbreviations
13
Abbreviation Description
DCS Digital Cellular System
DL Download
dnu Do not use
DRX Discontinuous Reception
DSB Development Support Board
DTX Discontinuous Transmission
EDGE Enhanced Data rates for GSM Evolution
EGSM Extended GSM
EMC Electromagnetic Compatibility
ESD Electrostatic Discharge
ETS European Telecommunication Standard
ETSI European Telecommunications Standards Institute
Page 8 of 40
FCC Federal Communications Commission (U.S.)
FDD Frequency Division Duplex
GPRS General Packet Radio Service
GSM Global Standard for Mobile Communications
HiZ High Impedance
HSDPA High Speed Downlink Packet Access
I/O Input/Output
IMEI International Mobile Equipment Identity
ISO International Standards Organization
ITU International Telecommunications Union
kbps kbits per second
LED Light Emitting Diode
LGA Land Grid Array
LTE Long term evolution
MBB Moist ur e ba rr ier bag
Mbps Mbits per second
MCS Modulation and Coding Scheme
MIMO Multiple Input Multiple Output
MLCC Multi Layer Ceramic Capacitor
MO Mobile Originated
MS Mobile Station, also referred to as TE
MSL Moisture Sensitivity Level
MT Mobile Terminated
nc Not connected
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
1.3 Terms and Abbreviations
13
Abbreviation Description
NTC Negative Temperature Coefficient
PCB Printed Circuit Board
PCL Power Control Level
PCS Personal Communication System, also referred to as GSM 1900
PD Pull Down resistor
PDU Protocol Data Unit
PS Packet Switched
PSK Phase Shift Keying
PU Pull Up resistor
QAM Quadrature Amplitude Modulation
R&TTE Radio and Telecommunication Terminal Equipment
RF Radio Frequency
Page 9 of 40
rfu Reserved for future use
ROPR Radio Output Power Reduction
RTC Real Time Clock
Rx Receive Direction
SAR Specific Absorption Rate
SELV Safety Extra Low Voltage
SIM Subscriber Identification Module
SMD Surface Mount Device
SMS Short Message Service
SMT Surface Mount Technology
SRAM Static Random Access Memory
SRB Signalling Radio Bearer
TE Terminal Equipment
TPC Transmit Power Control
TS Technical Specification
Tx Transmit Direction
UL Upload
UMTS Universal Mobile Telecommunications System
URC Unsolicited Result Code
USB Universal Serial Bus
UICC USIM Integrated Circuit Card
USIM UMTS Subscriber Identification Module
WCDMA Wideband Code Division Multiple Access
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
1.4 Regulatory and Type Approval Information
13
Page 10 of 40
1.4 Regulatory and Type Approval Information
1.4.1 Directives and Standards
PLS8-X/PLS8-V has been designed to comply with the directives and standards listed below.
It is the responsibility of the application manufacturer to ensure compliance of the final product
with all provisions of the applicable directives and standards as well as with the technical specifications provided in the "PLS8-X/PLS8-V Hardware Interface Description".
Table 1: Directives
1
2002/95/EC (RoHS 1)
2011/65/EC (RoHS 2)
Table 2: Standards of North American type approval
CFR Title 47 Code of Federal Regulations, Part 22, Part 24 and Part 27; US Equipmen t
OET Bulletin 65
(Edition 97-01)
UL 60 950-1 Product Safety Certification (Safety requirements)
NAPRD.03 V5.23 Overview of PCS Type certification review board Mobile Equipment Type
RSS132, RSS133,
RSS139
Directive of the European Parliament and of the Council of
27 January 2003 (and revised on 8 June 2011) on the
restriction of the use of certain hazardous substances in
electrical and electronic equipment (RoHS)
Authorization FCC
Evaluating Compliance with FCC Guidelines for Human Exposure to Radio-
frequency Electromagnetic Fields
Certification and IMEI control
PCS Type Certification Review board (PTCRB)
Canadian Standard
Table 3: Requirements of quality
IEC 60068 Environmental testing
DIN EN 60529 IP codes
1.
Manufacturers of applications which can be used in the US shall en sure that their applications have a
PTCRB approval. For this purpose they can refer to the PTCRB approval of the respective module.
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
1.4 Regulatory and Type Approval Information
13
Table 4: Standards of the Ministry of Information Industry of the People’s Republic of China
SJ/T 11363-2006 “Requirements for Concentration Limits for Certain Hazardous Substances
in Electronic Information Products” (2006-06).
SJ/T 11364-2006 “Marking for Control of Pollution Caused by Electronic
Information Products” (2006-06).
According to the “Chinese Administration on th e Control of
Pollution caused by Electronic Information Products”
(ACPEIP) the EPUP, i.e., Environmental Protection Use
Period, of this product is 20 years as per the symbol
shown here, unless otherwise marked. The EPUP is valid only as long as
the product is operated within the operating limits described in the Hardware
Interface Description.
Please see Table 5 for an overview of toxic or hazardous substances or elements that might be contained in product parts in concentrations above the
limits defined by SJ/T 11363-2006.
Page 11 of 40
Table 5: Toxic or hazardous substances or elements with defined concentration limits
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
1.4 Regulatory and Type Approval Information
13
Page 12 of 40
1.4.2 SAR requirements specific to portable mobiles
Mobile phones, PDAs or other portable transmitters and receivers incorporating a GSM module
must be in accordance with the guidelines for human exposure to radio frequency energy. This
requires the Specific Absorption Rate (SAR) of portable PLS8-X/ PLS8-V based applications to
be evaluated and approved for compliance with national and/or international regulations.
Since the SAR value varies significantly with the individual product design manufacturers are
advised to submit their product for approval if designed for portable use. For US markets the
relevant directives are mentioned below. It is the responsibility of the manufacturer of the final
product to verify whether or not further standards, recommendations or directives are in force
outside these areas.
Products intended for sale on US markets
ES 59005/ANSI C95.1 Considerations for evaluation of human exposure to electromagnetic
fields (EMFs) from mobile telecommunication equipment (MTE) in the
frequency range 30MHz - 6GHz
IMPORTANT:
Manufacturers of portable applications based on PLS8-X/PLS8-V modules are required to
have their final product certified and apply for their own FCC Grant and Industry Canada Certificate related to the specific portable mobile.
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
1.4 Regulatory and Type Approval Information
13
Page 13 of 40
1.4.3 SELV Requirements
The power supply connected to the PLS8-X/PLS8-V module shall be in compliance with the
SELV requirements defined in EN 60950-1.
1.4.4 Safety Precautions
The following safety precautions must be observed during all phases of the operation, usage,
service or repair of any cellular terminal or mobile incorporating PLS8-X/PLS8-V. Manufacturers of the cellular terminal are advised to convey the following safety information to users and
operating personnel and to incorporate these guidelines into all manuals supplied with the
product. Failure to comply with these precautions violates safety standards of design, manufacture and intended use of the product. Gemalto M2M assumes no liability for customer’s failure to comply with these precautions.
When in a hospital or other health care facility, observe the restrictions on the use of
mobiles. Switch the cellular terminal or mobile off, if instructed to do so by the guidelines posted in sensitive areas. Medical equipment may be sensitive to RF energy.
The operation of cardiac pacemakers, other implanted med ical equipment and hearing
aids can be affected by interference from cellular terminals or mobiles placed close to
the device. If in doubt about potential danger, contact the physician or the manufacturer of the device to verify that the equipment is properly shielded. Pacemaker
patients are advised to keep their hand-held mobile away from the pacemaker, while
it is on.
Switch off the cellular terminal or mobile before boarding an aircraft. Make su re it cannot be switched on inadvertently. The operation of wirele ss appliances in an aircraft is
forbidden to prevent interference with communications systems. Failure to observe
these instructions may lead to the suspension or denial of cellular services to the
offender, legal action, or both.
Do not operate the cellular terminal or mobile in the presence of flammable gases or
fumes. Switch off the cellular terminal when you are near petrol stations, fuel d epots,
chemical plants or where blasting operations are in progress. Oper ation of any electrical equipment in potentially explosive atmospheres can constitute a safety hazard.
Your cellular terminal or mobile receives and transmits radio frequency energy while
switched on. Remember that interference can occur if it is used close to TV sets,
radios, computers or inadequately shielded equipment. Follow any special re gulations
and always switch off the cellular terminal or mobile wherever forbidden, or when you
suspect that it may cause interference or danger.
IMPORTANT!
Cellular terminals or mobiles operate using radio signals an d cellular networks.
Because of this, connection cannot be guaranteed at all times under all conditions.
Therefore, you should never rely solely upon any wireless device for essential communications, for example emergency calls.
Remember, in order to make or receive calls, the cellular terminal or mobile must be
switched on and in a service area with adequate cellular signal strength.
Some networks do not allow for emergency calls if certain network services or phone
features are in use (e.g. lock functions, fixed dialing etc.). You may need to deactivate
those features before you can make an emergency call.
Some networks require that a valid SIM card be properly inserted in the cellu lar terminal or mobile.
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
2 Product Concept
17
2 Product Concept
2.1 Key Features at a Glance
Feature Implementation
General
Frequency bands PLS8-X:
GSM/GPRS/EDGE: Quad band, 850/900/1800/1900MHz
UMTS/HSPA+: Triple band, 850 (BdV) / AWS (BdIV) / 1900MHz (BdII)
LTE: Five band, 700 (Bd13) / 700 (Bd17) / 850 (Bd5) / AWS (Bd4) /
1900MHz (Bd2)
PLS8-V:
LTE: Triple band, 700 (Bd13) / AWS (Bd4) / 1900MHz (Bd2)
GSM class Small MS
Page 14 of 40
Output power (according to
Release 99)
Output power (according to
Release 8)
Power supply 3.3V <
Operating temperature
(board temperature)
Physical Dimensions: 33mm x 29mm x 2.95mm
Class 4 (+33dBm ±2dB) for EGSM850
Class 4 (+33dBm ±2dB) for EGSM900
Class 1 (+30dBm ±2dB) for GSM1800
Class 1 (+30dBm ±2dB) for GSM1900
Class E2 (+27dBm ± 3dB) for GSM 850 8-PSK
Class E2 (+27dBm ± 3dB) for GSM 900 8-PSK
Class E2 (+26dBm +3 /-4dB) for GSM 1800 8-PSK
Class E2 (+26dBm +3 /-4dB) for GSM 1900 8-PSK
Class 3 (+24dBm +1/-3dB) for UMTS 1900,WCDMA FDD BdII
Class 3 (+24dBm +1/-3dB) for UMTS AWS, WCDMA FDD BdIV
Class 3 (+24dBm +1/-3dB) for UMTS 850, WCDMA FDD BdV
Class 3 (+23dBm +-2dB) for LTE 1900, LTE FDD Bd2
Class 3 (+23dBm +-2dB) for LTE AWS, LTE FDD Bd4
Class 3 (+23dBm +-2dB) for LTE 850, LTE FDD Bd5
Class 3 (+23dBm +-2dB) for LTE 700, LTE FDD Bd13
Class 3 (+23dBm +-2dB) for LTE 700, LTE FDD Bd17
V
Normal operation: -30°C to +85°C
Extended operation: -40°C to +95°C
Weight: approx. 4.5g
BATT+
< 4.2V
RoHS All hardware components fully compliant with EU RoHS Directive
LTE features
3GPP Release 9 UE CAT 3 supported
DL 100Mbps, UL 50Mbps
2x2 MIMO in DL direction
HSPA features
3GPP Release 8 UE CAT. 14, 24
DC-HSPA+ – DL 42Mbps
HSUPA – UL 5.76Mbps
Compressed mode (CM) supported according to 3GPP TS25.212
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
2.1 Key Features at a Glance
17
Feature Implementation
UMTS features
3GPP Release 8 PS data rate – 384 kbps DL / 384 kbps UL
GSM / GPRS / EGPRS features
Data transfer GPRS:
• Multislot Class 12
• Mobile Station Class B
• Coding Scheme 1 – 4
EGPRS:
• Multislot Class 12
• EDGE E2 power class for 8 PSK
• Downlink coding schemes – CS 1-4, MCS 1-9
• Uplink coding schemes – CS 1-4, MCS 1-9
• SRB loopback and test mode B
• 8-bit, 11-bit RACH
• 1 phase/2 phase ac ce ss pr oce d ur es
• Link adaptation and IR
• NACC, extended UL TBF
• Mobile Station Class B
Page 15 of 40
SMS Point-to-point MT and MO
Cell broadcast
Text and PDU mode
Software
AT commands Hayes, 3GPP TS 27.007 and 27.005, and proprie tary Gemalto M2M com-
mands
Firmware update Generic update from host application over USB and ASC0
GNSS Features
Protocol NMEA
Modes Standalone GNSS
Assisted GNSS
- Control plane - E911
- User plane - gpsOneXTRA™
General Power saving modes
Power supply for active antenna
Interfaces
Module interface Surface mount device with solderable connection pads (SMT application
interface).
Land grid array (LGA) technology ensures high solder joint reliability and
provides the possibility to use an optional module mounting socket.
For more information on how to integrate SMT modules see also [3]. This
application note comprises chapters on module mounting and application
layout issues as well as on additional SMT application development
equipment.
Antenna 50. GSM/UMTS/LTE main antenna, UMTS/LTE Diversity/MIMO
antenna, (active/passive) GNSS antenna
USB USB 2.0 High Speed (480Mbit/s) device interface
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
2.1 Key Features at a Glance
17
Feature Implementation
Serial interface ASC0:
• 8-wire modem interface with status and control lines, unbalanced,
asynchronous
• Adjustable baud rate of 115,200bps to 921,600bps
• Supports RTS0/CTS0 hardware flow control
UICC interface 2 UICC interfaces (switchable)
Supported chip cards: UICC/SIM/USIM 3V, 1.8V
Audio 1 digital interface (PCM or I
Status Signal line to indicate network connectivity state
2
S)
Page 16 of 40
RING0 Signal line to indicate incoming calls and other types of
Power on/off, Reset
Power on/off Switch-on by hardware signal IGT
Switch-off by AT command (AT^SMSO) or IGT
Automatic switch-off in case of critical temperature or voltage conditions
Reset Orderly shutdown and reset by AT command
Emergency-off Emergency-off by hardware signal EMERG_OFF if IGT is not active
Special Features
Antenna SAIC (Single Antenna Interference Cancellation) / DARP (Downlink
Advanced Receiver Performance)
Rx Diversity (receiver type 3i - 64-QAM) / MIMO
GPIO 10 I/O pins of the application interface programmable as GPIO.
GPIO6 can be configured as low current indicator (LCI).
Programming is done via AT commands.
ADC inputs Analog-to-Digital Converter with three unbalanced analog inputs.
Evaluation kit
URCs
Evaluation module PLS8-X/PLS8-V module soldered onto a dedicated PCB tha t can be con-
nected to an adapter in order to be mounted onto the DSB75.
DSB75 DSB75 Development Support Board designed to test and type approve
Gemalto M2M modules and provide a sample configuration for application engineering. A special adapter is required to connect the PLS8-X/
PLS8-V evaluation module to the DSB75.
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
USB
Serial
ASC0
UICC
Power
supply
IGT,
Emergency Off
SIM
card
Host applic a tio n
On/Off
Module
Applica t ion
GSM/UMTS/LTE
Antenna diversity
Power for application
(VEXT)
Power indication
(PWR_IND)
Modem interface
Digital
audio
PCM or I2S
codec
GSM/UMTS/LTE
12
GNSS
GNSS antenna
GPIO
Power
supply
GNSS active
antenna supply,
current limiter
ADC
Net state/
status
SIM
card
RTC
or
2.2 PLS8-X/PLS8-V System Overview
17
2.2 PLS8-X/PLS8-V System Overview
Page 17 of 40
Figure 1: PLS8-X/PLS8-V system overview
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
3 Application Interface
26
Page 18 of 40
3 Application Interface
PLS8-X/PLS8-V is equipped with an SMT application interface (LGA pads) that connects to the
external application. The host interface incorporates several sub-interfaces described in the following sections:
• Operating modes - see Section 3.1
• Power supply - see Section 3.2
• Serial interface USB - see Section 3.3
• Serial interface ASC0 - Section 3.4
• UICC/SIM/USIM interface - see Section 3.5
• Digital audio interface - see Section 3.6
• ADC interface - Section 3.7
• GPIO interface - Section 3.8
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
3.1 Operating Modes
26
Page 19 of 40
3.1 Operating Modes
The table below briefly summarizes the various operating modes referred to in the following
chapters.
Table 6: Overview of operating modes
Mode Function
Normal
operation
Power
Down
Airplane
mode
GSM / GPRS /
UMTS / HSPA /
LTE SLEEP
GSM / GPRS /
UMTS / HSPA /
LTE IDLE
GPRS DATA GPRS data transfer in progress. Power consumption depends on net-
EGPRS DATA EGPRS data transfer in progress. Power consumption depends on net-
UMTS DATA UMTS data transfer in progress. Power consumption depends on net-
HSPA DATA HSPA data transfer in progress. Power consumption depends on net-
LTE DATA LTE data transfer in progress. Power consumption depends on network
Normal shutdown after sending the AT^SMSO command. Only a voltage regulator is active
for powering the RTC. Software is not active. Interfaces are not accessible. Operating voltage (connected to BATT+) remains applied.
Airplane mode shuts down the radio part of the module , causes th e module to log off from
the GSM/GPRS network and disables all AT commands whose execution r equires a rad io
connection.
Airplane mode can be controlled by AT command (see [1]).
Power saving set automatically when no call is in progress and the USB
connection is detached and no active communication via ASC0. Also,
the GNSS active antenna mode has to be turned off or set to "auto".
Power saving disabled or an USB connection active , but no da ta tra nsfer in progress.
work settings (e.g. power control level), uplink / downlink data rates and
GPRS configuration (e.g. used multislot settings).
work settings (e.g. power control level), uplink / downlink data rates and
EGPRS configuration (e.g. used multislot settings).
work settings (e.g. TPC Pattern) and data transfer rate.
work settings (e.g. TPC Pattern) and data transfer rate.
settings (e.g. TPC Pattern) and data transfer rate.
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
BATT+
2
2
Decoupling capacitors
e.g. 47µF X5R MLCC
4x
GND
BATT+
BATT+_RF
Module
SMT interface
1x
3.2 Power Supply
26
Page 20 of 40
3.2 Power Supply
PLS8-X/PLS8-V needs to be connected to a power supply at the SMT application interface - 4
lines BATT+, and GND. There are two separate voltage domains for BATT+:
• BATT+_RF with 2 lines for the RF power amplifier supply
• BATT+ with 2 lines for the general power management.
The main power supply from an external application has to be a single voltage source and has
to be expanded to two sub paths (star structure). Each voltage domain must be deco upled by
application with low ESR capacitors (
as close as possible to LGA pads. Figure 2 shows a sample circuit for decoupling capacitors
for BATT+.
> 47µF MLCC @ BATT+; > 4x47µF MLCC @ BATT+_RF)
Figure 2: Decoupling capacitor(s) for BATT+
The power supply of PLS8-X/PLS8-V must be able to provide the peak current during the uplink
transmission.
All key functions for supplying power to the device are handled by the power managemen t IC.
It provides the following features:
• Stabilizes the supp ly voltages for the baseband using switching regulators and low drop linear voltage regulators.
• Switches the module's power voltages for the power-up and -down procedures.
• Delivers, across the VEXT line, a regulated voltage for an external application.
• LDO to provide SIM power supply.
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
DP
DN
VREG (3V075)
BATT+
USB_DP
3)
lin. reg.
GND
Module
Detection only
VUSB_IN
2)
USB part
1)
1)
All serial (including RS) and pull-up resistors for data lines are implemented.
USB_DN
3)
3)
If the USB interface is operated in High S peed mode (48 0 MHz), it is recomm end ed to take
special care routing the data lines USB_DP and USB_DN. A p plication layout sho uld in this
case impleme nt a differential impeda nc e of 90 o h ms for proper signal integrity.
R
S
R
S
VBUS
1µF
2)
Since VUSB_IN is used for detection only it is recomm ende d not to add an y further
blocking capacitors on the VUS B_IN line.
Host wakeup
RING0
SMT
Page 21 of 40
3.3 USB Interface
26
3.3 USB Interface
PLS8-X/PLS8-V supports a USB 2.0 High Speed (480Mbps) device interface. The USB interface is primarily intended for use as command and data interface and for downloading firmware.
The USB host is responsible for supplying the VUSB_IN line. This line is for voltage detection
only. The USB part (driver and transceiver) is supplied by means of BATT+. This is because
PLS8-X/PLS8-V is designed as a self-powered device compliant with the “Universal Ser ial Bus
Specification Revision 2.0”
1
.
Figure 3: USB circuit
To properly connect the module's USB interface to the external application, a USB 2.0 compatible connector and cable or hardware design is required. Furthermore, the USB modem driver
distributed with PLS8-X/PLS8-V needs to be installed.
1.
The specification is ready for download on http://www.usb.org/developers/docs/
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
3.4 Serial Interface ASC0
26
Page 22 of 40
3.4 Serial Interface ASC0
PLS8-X/PLS8-V offers an 8-wire unbalanced, asynchronous modem interface ASC0 conforming to ITU-T V.24 protocol DCE signalling. The electrical characteristics do not comply with ITUT V.28. The significant levels are 0V (for low data bit or active state) and 1.8V (for high data bit
or inactive state).
PLS8-X/PLS8-V is designed for use as a DCE. Based on the conventions for DCE-DTE connections it communicates with the customer application (DTE) using the following signals:
• Port TXD @ application sends data to the module’s TXD0 signal line
• Port RXD @ application receives data from the module’s RXD0 signal line
Figure 4: Serial interface ASC0
Features:
• Includes the data lines TXD0 and RXD0, the status lines RTS0 and CTS0 and, in addition,
the modem control lines DTR0, DSR0, DCD0 and RING0.
• The RING0 signal serves to indicate incoming calls and other types of URCs (Unsolicited
Result Code). It can also be used to send pulses to the host application, for example to
wake up the application from power saving state. See [1] for details on h ow to configure the
RING0 line by AT^SCFG.
• Configured for 8 data bits, no parity and 1 stop bit.
• ASC0 can be operated at fixed bit rates from 115,200bps up to 921,600bps.
• Supports RTS0/CTS0 hardware flow control.
• Wake up from SLEEP mode by RTS0 activation.
Note: If the ASC0 serial interface is the application’s only interface, it is suggested to connect
test points on the USB signal lines as a potential tracing possibility.
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
3.5 UICC/SIM/USIM Interface
26
Page 23 of 40
3.5 UICC/SIM/USIM Interface
PLS8-X/PLS8-V has two UICC/SIM/USIM interfaces compatible with the 3GPP 31.102 and
ETSI 102 221. These are wired to the host interface in order to be connected to an external
SIM card holder. Five pads on the SMT application interface are reserved for each of the two
SIM interfaces.
The UICC/SIM/USIM interfaces support 3V and 1.8V SIM cards.
The CCINx signal serves to detect whether a tray (with SIM card) is present in the card holder.
Using the CCINx signal is mandatory for compliance with the GSM 11.11 recommendation if
the mechanical design of the host application allows the user to remove the SIM card during
operation. To take advantage of this feature, an appropriate SIM card detect switch is required
on the card holder. For example, this is true for the model supplied by Molex, which has been
tested to operate with PLS8-X/PLS8-V and is part of the Gemalto M2M reference equipment
submitted for type approval. See Chapter 9 for Molex ordering numbers.
Table 7: Signals of the SIM interface (SMT application interface)
Signal Description
GND Ground connection for SIM interfaces. Optionally a separate SIM ground line using e.g.,
pad N11 may be used to improve EMC.
CCCLK1
CCCLK2
CCVCC1
CCVCC2
CCIO1
CCIO2
CCRS1
CCRS2
CCIN1
CCIN2
Chipcard clock lines for 1
SIM supply voltage lines for 1
Serial data lines for 1
Chipcard reset lines for 1
Input on the baseband processor for detecting a SIM card tray in the holder. If the SIM is
removed during operation the SIM interface is shut down immediately to prevent destruction of the SIM. The CCINx signal is active low.
The CCINx signal is mandatory for applications that allow the user to remove the SIM card
during operation.
The CCINx signal is solely intended for use with a SIM card. It must not be used for any
other purposes. Failure to comply with this requirement may inva lidate the type approval of
PLS8-X/PLS8-V.
st
and 2nd SIM interface.
st
and 2nd SIM interface.
st
and 2nd SIM interface, input and output.
st
and 2nd SIM interface
Note: No guarantee can be given, nor any liability accepted, if loss of data is encountered after
removing the SIM card during operation. Also, no guarantee can be given for properly initializing any SIM card that the user inserts after having removed the SIM card during operation. In
this case, the application must restart PLS8-X/PLS8-V.
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
Module
open: Card removed
closed: Card inserted
CCRST1
CCVCC1
CCIO1
CCCLK1
CCIN1
SIM /
UICC
1n
220n
SMT application interface
GND
Module
Open: Card removed
Closed: Card inserted
CCRST2
CCVCC2
CCIO2
CCCLK2
CCIN2
SIM /
UICC
1nF
220nF
SMT application interface
GND
VEXT
100pF
22k
2k2
10k
3.5 UICC/SIM/USIM Interface
26
Figure 5: First UICC/SIM/USIM interface
Page 24 of 40
The total cable length between the SMT application interface pads on PLS8-X/PLS8-V and the
pads of the external SIM card holder must not exceed 100mm in order to meet the specifications of 3GPP TS 51.010-1 and to satisfy the requirements of EMC compliance.
To avoid possible cross-talk from the CCCLKx signal to the CCIOx signal be careful that both
lines are not placed closely next to each other. A useful approach is using the GND line to
shield the CCIOx line from the CCCLKx line.
Note: Figure 5 shows how to connect a SIM card holder to the first SIM interface . With the second SIM interface some internally integrated components on the SIM circuit will have to be externally integrated as shown for the second SIM interface in Figure 6.
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Figure 6: Second UICC/SIM/USIM interface
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
3.6 Digital Audio Interface
26
Page 25 of 40
3.6 Digital Audio Interface
PLS8-X/PLS8-V supports a digital audio interface that can be employed either as pulse code
modulation interface or as inter IC sound interface. Operation of these interface variants is mutually exclusive, and can be configured by AT command (see [1]). Default setting is pulse code
modulation.
Note: As PLS8-X/PLS8-V is a data only module, the module’s digital audio interface supports
local tones only and is otherwise reserved for future use.
3.7 Analog-to-Digital Converter (ADC)
PLS8-X/PLS8-V provides three unbalanced ADC input lines: ADC1_IN, ADC2_IN and
ADC3_IN. They can be used to measure three independent, externally connected DC volta ges
in the range of 0.3V to 3.075V.
3.8 GPIO Interface
PLS8-X/PLS8-V has 10 GPIOs for external hardware devices. Each GPIO can be configured
for use as input or output. All settings are AT command controlled.
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
4 GNSS Receiver
26
Page 26 of 40
4 GNSS Receiver
PLS8-X/PLS8-V integrates a GNSS receiver that offers the full performance of GPS/
GLONASS technology. The GNSS receiver is able to continuously track all satellites in view,
thus providing accurate satellite position data.
The integrated GNSS receiver supports the NMEA protocol via USB or ASC0 interface. NMEA
is a combined electrical and data specification for communication between various (marine)
electronic devices including GNSS receivers. It has been defined and controlled by the US
based National Marine Electronics Association. For more information on the NMEA Standard
please refer to http://www.nmea.org.
Depending on the receiver’s knowledge of last position, current time and ephemeris data, th e
receiver’s startup time (i.e., TTFF = Time-To-First-Fix) may vary: If the receiver has no knowledge of its last position or time, a startup takes considerably longer than if the receiver has still
knowledge of its last position, time and almanac or has still access to valid ephimeris data and
the precise time.
By default, the GNSS receiver is switched off. It has to be switched on and configured using AT
commands. For more information on how to control the GNSS interface via the AT commands
see [1].
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
5 Antenna Interfaces
30
Page 27 of 40
5 Antenna Interfaces
5.1 GSM/UMTS/LTE Antenna Interface
The PLS8-X/PLS8-V GSM/UMTS/LTE antenna interface comprises a GSM/UMTS/LTE main
antenna as well as a UMTS/LTE Rx diversity/MIMO antenna to improve signal reliability and
quality
total mismatch at the antenna interface without any damage, even when transmitting at maximum RF power.
The external antennas must be matched properly to achieve best performance regarding radiated power, modulation accuracy and harmonic suppression. Matching networks are not included on the PLS8-X/PLS8-V PCB and should be placed in the host application, if the a ntenna
does not have an impedance of 50
Regarding the return loss PLS8-X/PLS8-V provides the following values in the active band:
Table 8: Return loss in the active band
1
. The interface has an impedance of 50. PLS8-X/PLS8-V is capable of sustaining a
.
State of module Return loss of module Recommended return loss of application
Receive >
Transmit not applicable >
Idle <
8dB > 12dB
12dB
5dB not applicable
1.
By delivery default the UMTS/LTE Rx diversity/MIMO antenna is configured as available for the module
since its usage is mandatory for LTE. Please refer to [1] for details on how to configure antenna settings.
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
5.1 GSM/UMTS/LTE Antenna Interface
30
Page 28 of 40
5.1.1 Antenna Installation
The antenna is connected by soldering the antenna pads (ANT_MAIN; ANT_DRX_MIMO) and
their neighboring ground pads directly to the application’s PCB.
The distance between the antenna pads and their neighboring GND pads has been optimized
for best possible impedance. To prevent mismatch, special attention should be paid to these
pads on the application’ PCB.
The wiring of the antenna connection, starting from the antenna p ad to the application’s ante nna should result in a 50
be optimized with regard to the PCB’s layer stack.
To prevent receiver desensitization due to interferences generated by fast transients like high
speed clocks on the external application PCB, it is recommended to realize the antenna connection line using embedded Stripline rather than Micro-Stripline technology.
line impedance. Line width and distance to the GND plane need to
For type approval purposes, the use of a 50
coaxial antenna connector (U.FL-R-SMT) might
be necessary. In this case the U.FL-R-SMT connector should be placed as close as possible
to PLS8-X/PLS8-V‘s antenna pad.
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
Short circuit
protection
(Imax=50mA)
VGNSS
ANT_GNSS
Active
GNSS
antenna
10nH
100nF
To GNSS
receiver
Module
SMT interface
ANT_GNSS_DC
typ 3.05V max. 50mA
Not short circuit protected!
1uF
(Optional)
ESD
protection
10k
Supply with short circuit protection
LDO
VGNSS
ANT_GNSS
Active
GNSS
antenna
10nH
100nF
To GNSS
receiver
Module
SMT interface
ANT_GNSS_DC
1uF
(Optional)
ESD
protection
10k
Enable
External
voltage
Supply with external LDO employed
Page 29 of 40
5.2 GNSS Antenna Interface
30
5.2 GNSS Antenna Interface
In addition to the RF antenna interface PLS8-X/PLS8-V also has a GNSS antenna interface.
The GNSS pad itself is the same as for the RF antenna interface (see Section 5.1.1).
It is possible to connect active or passive GNSS antennas. In either case they must have 50
impedance. The simultaneous operation of GSM and GNSS is implemented.
PLS8-X/PLS8-V provides the supply voltage VGNSS for the GNSS active antenna (3.05V). It
has to be enabled by software when the GNSS receiver becomes active, otherwise VGNSS
should be off (power saving). VGNSS is not short circuit protected. This will have to be provided
for by an external application. The DC voltage should be fed back via ANT_GNSS_DC for coupling into the GNSS antenna path. Figure 7 shows the flexibility in realizing the power supply
for an active GNSS antenna by giving two sample circuits realizing the supply voltage for an
active GNSS antenna - one with short circuit protection and one with an external LDO employed.
Figure 7: Supply voltage for active GNSS antenna
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
VGNSS
ANT_GNSS
Passive
GNSS
antenna
10nH
100nF
To GNSS
receiver
Module
SMT interface
ANT_GNSS_DC
(Optional)
ESD
protection
0R
Not used
Page 30 of 40
5.2 GNSS Antenna Interface
30
Figure 8 shows sample circuits realizing ESD protection for a passive GNSS antenna.
Figure 8: ESD protection for passive GNSS antenna
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
Top view
Bottom view
6 Mechanics
32
Page 31 of 40
6 Mechanics
6.1 Mechanical Dimensions of PLS8-X/PLS8-V
Figure 9 shows a 3D view1 of PLS8-X/PLS8-V and provides an overview of the board's me-
chanical dimensions. For further details see Figure 10.
Length: 33mm
Width: 29mm
Height: 2.95mm
Figure 9: PLS8-X/PLS8-V – top and bottom view
1.
The coloring of the 3D view does not reflect the module’s real color.
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
Internal use;
Not to be soldered
6.1 Mechanical Dimensions of PLS8-X/PLS8-V
32
Page 32 of 40
Figure 10: Dimensions of PLS8-X/PLS8-V (all dimensions in mm)
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
7 Sample Application
34
Page 33 of 40
7 Sample Application
Figure 11 shows a typical example of how to integrate an PLS8-X/PLS8-V module wit h a n a p-
plication.
The PWR_IND line is an open collector that needs an external pull-up resistor which connects
to the voltage supply VCC µC of the microcontroller. Low state of the open collector pulls the
PWR_IND signal low and indicates that the PLS8-X/PLS8-V module is active, high level n otifies
the Power Down mode.
If the module is in Power Down mode avoid current flowing from any other source into the module circuit, for example reverse current from high state external control lines. Therefore, the
controlling application must be designed to prevent reverse flow.
While developing SMT applications it is strongly recommended to provide test points
for certain signals, i.e., lines to and from the module - for debug and/or test purposes.
The SMT application should allow for an easy access to these signals. For details on
how to implement test points see [3].
The EMC measures are best practice recommendations. In fact, an adequate EMC strategy for
an individual application is very much determined by the overall layout and, especially, the position of components.
Some LGA pads are connected to clocks or high speed data streams that might interfere with
the module’s antenna. The RF receiver would then be blocked at certain frequencies (self interference). The external application’s PCB tracks connected to these pads should therefore
be well shielded or kept away from the antenna. This applies especially to the USB and UICC/
SIM interfaces.
Disclaimer:
No warranty, either stated or implied, is provided on the sample schematic diagram shown in
Figure 11 and the information detailed in this section. As functionality and compliance with na-
tional regulations depend to a great amount on the used electronic components and the individual application layout manufacturers are required to ensure adequate design and operating
safeguards for their products using PLS8-X/PLS8-V modules.
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
PLS8x
Current
limiter
<60mA
VGNSS
VDDLP
10µF
7 Sample Application
34
Page 34 of 40
Figure 11: PLS8-X/PLS8-V sample application
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
DSB75
Standard
80 polig Flex
PC
GSM/UMTS /LTE
test equipment
GSM/UMTS/LTE
USB
cable
Power
supply
Power
GND
USB
ANT3
ANT2
ANT1
Audio
Uranus
Audio
DSB75 adapter
SIM card
holder
Evaluation
module
Edge mount SMA connectors
manually soldered to antenna pads
Deta il:
S
M
A
t
o
H
i
r
o
s
e
U
.
F
L
c
a
b
l
e
UMTS/LTE Rx Diversity/
MIMO
Evaluation
module
GNSS
test equipment
COM1
(ASC0 )
Audio
test equipment
Votronic
handset
I
f
u
s
i
n
g
a
n
a
l
o
g
a
u
d
i
o
Page 35 of 40
8 Reference Approval
37
8 Reference Approval
8.1 Reference Equipment for Type Approval
The Gemalto M2M reference setup submitted to type approve PLS8-X/PLS8-V is shown in Fig-
ure 12. The module (i.e., the evaluation module) is connected to t he DSB75 by means of a flex
cable and a special DSB75 adapter. The GSM/UMTS/LTE test equipment is connected via
edge mount SMA connectors soldered to the module’s antenna pads.
For ESD tests and evaluation purposes, it is also possible connect the module to the GSM/
UMTS/LTE test equipment through an SMA-to-Hirose-U.FL antenna cable and the SMA ante nna connectors of the DSB75 adapter.
A further option is to mount the evaluation module directly onto the DSB75 adapter’s 80-pin
board-to-board connector and to connect the test equipment as shown below.
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Figure 12: Reference equipment for type approval
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
8.2 Compliance with FCC and IC Rules and Regulations
37
Page 36 of 40
8.2 Compliance with FCC and IC Rules and Regulations
The Equipment Authorization Certification for the Gemalto M2M modules refere nce application
described in Section 8.1 will be registered under the following identifiers:
•PLS8-X:
FCC Identifier QIPPLS8-X
Industry Canada Certification Number: 7830A-PLS8X
Granted to Gemalto
LS8-V:
•P
FCC Identifier QIPPLS8-V
Industry Canada Certification Number: 7830A-PLS8V
Granted to Gemalto
M2M GmbH
M2M GmbH
Manufacturers of mobile or f
ixed devices incorporating PLS8-X/PLS8-V modules are authorized to use the FCC Grants and Industry Canada Certificates of the PLS8 -X/PLS8-V modules
for their own final products according to the conditions referenced in these documents. In this
case, the FCC label of the module shall be visible from the outside, or the host device shall bear
a second label stating "Contains FCC ID: QIPPLS8-X" or "Contains FCC ID: QIPPLS8-V" and
accordingly “Contains IC: 7830A-PLS8X“ or “Contains IC: 7830A-PLS8V“. The integration is
limited to fixed or mobile categorised host devices, where a separation distance between the
antenna and any person of min. 20cm can be assured during normal operating conditions.
For mobile and fixed operation configurations the antenna gain, including cable loss, must not
exceed the limits listed in the following Table 9 for FCC and IC.
Table 9: Antenna gain limits for FCC and IC
Operating band
Maximum gain in lower operating bands with f< 1GHz
(GSM850, WCDMA BdV, LTE Bd5 / Bd13 / Bd17
Maximum gain in higher operating bands with f=1700MHz
(WCDMA BdIV, LTE Bd4)
Maximum gain in higher operating bands with f=1900MHz
(GSM1900, WCDMA BdII, LTE Band 2)
a.
Please note that the listed frequency bands apply as follows:
PLS8-X: LTE: Bd 2, 4, 5, 13 and 17; WCDMA Bd II, IV and V; GSM 850/1900MHz
PLS8-V: LTE: Bd 2, 4 and 13
a
FCC limit IC limit Unit
3.25 0.16 dBi
5.5 5.5 dBi
2.51 2.51 dBi
IMPORTANT:
Manufacturers of portable applications incorporating PLS8-X/PLS8-V modules ar e required to
have their final product certified and apply for their own FCC Grant and Industry Canada Certificate related to the specific portable mobile. This is mandatory to meet the SAR requirements
for portable mobiles (see Section 1.4 for detail).
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
8.2 Compliance with FCC and IC Rules and Regulations
37
Page 37 of 40
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules and with Industry Canada licence-exempt RSS
standard(s). These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
If Canadian approval is requested for devices incorporating PLS8-X/PLS8-V modules the
above note will have to be provided in the English and French language in the final user documentation. Manufacturers/OEM Integrators must ensure that the final user documentation does
not contain any information on how to install or remove the module from the final product.
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
9 Appendix
39
9 Appendix
9.1 List of Parts and Accessories
Table 10: List of parts and accessories
Description Supplier Ordering information
PLS8-X Gemalto M2M Standard module
Gemalto M2M IMEI:
Packaging unit (ordering) number: L30960-N3 460-A300
Module label number: S30960-S3460-A300-1
Customer IMEI module:
Packaging unit (ordering) number: L30960-N3 465-A300
Module label number: S30960-S3465-A300-1
Page 38 of 40
PLS8-X
Evaluation Module
PLS8-V Gemalto M2M Standard module
PLS8-V
Evaluation Module
DSB75 Support Box Gemalto M2M Ordering number: L36880-N8811-A100
DSB75 adapter for mount-
ing the evaluation module
Votronic handset for
approval purposes
Gemalto M2M Packaging unit (ordering) number: L30960-N3461-A300
Module label number: S30960-S3461-A300
Gemalto M2M IMEI:
Packaging unit (ordering) number: L30960-N3 470-A300
Module label number: S30960-S3470-A300-1
Gemalto M2M Packaging unit (ordering) number: L30960-N3471-A300
Module label number: S30960-S3471-A300
Gemalto M2M Ordering number: L30960-N2301-A100
Votronic /
Gemalto M2M
Gemalto M2M ordering number: L36880-N8301-A107
Votronic ordering number: HH-SI-30.3/V1.1/0
Votronic
Entwicklungs- und Produktionsgesellschaft für elektronische Geräte mbH
Saarbrücker Str. 8
66386 St. Ingbert
Germany
Phone: +49-(0)6 89 4 / 92 55-0
Fax: +49-(0)6 89 4 / 92 55-88
Email: contact@votronic.com
SIM card holder incl. push
button ejector and slide-in
tray
U.FL
antenna connector Hirose or
PLS8-X_PLS8-V_HIO_v03.009 2015-08-04
Molex Ordering numbers: 91228
91236
Sales contacts are listed in Table 11.
Sales contacts are listed in Table 11 and Table 12.
Molex
Confidential / Preliminary
Cinterion® PLS8-X/PLS8-V Hardware Interface Overview
9.1 List of Parts and Accessories
39
Table 11: Molex sales contacts (subject to change)
Page 39 of 40
Molex
For further information please click:
http://www.molex.com
Molex China Distributors
Beijing,
Room 1311, Tower B, COFCO Plaza
No. 8, Jian Guo Men Nei Street, 100005
Beijing
P.R. China
Phone: +86-10-6526-9628
Fax: +86-10-6526-9730
Table 12: Hirose sales contacts (subject to change)
Hirose Ltd.
For further information please click:
http://www.hirose.com
Molex Deutschland GmbH
Otto-Hahn-Str. 1b
69190 Walldorf
Germany
Phone: +49-6227-3091-0
Fax: +49-6227-3091-8100
Email: mxgermany@molex.com
Molex Singapore Pte. Ltd.
110, International Road
Jurong Town,
Singapore 629174
Phone: +65-6-268-6868
Fax: +65-6-265-6044
Hirose Electric (U.S.A.) Inc
2688 Westhills Court
Simi Valley, CA 93065
U.S.A.
Phone: +1-805-522-7958
Fax: +1-805-522-3217
American Headquarters
Lisle, Illinois 60532
U.S.A.
Phone: +1-800-78MOLEX
Fax: +1-630-969-1352
Molex Japan Co. Ltd.
1-5-4 Fukami-Higashi,
Yamato-City,
Kanagawa, 242-8585
Japan
Phone: +81-46-265-2325
Fax: +81-46-265-2365
Hirose Electric Europe B.V.
