Gemalto M2M PLS8 USR4 User Manual

Cinterion® PLS8-US R4
Hardware Interface Overview
Version: 03.915 DocId: PLS8-USR4_HIO_v03.915
M2M.GEMALTO.COM
Cinterion® PLS8-US R4 Hardware Interface Overview
2
Page 2 of 44
Document Name: Version:
Date: DocId: Status
Cinterion® PLS8-US R4 Hardware Interface Overview
03.915 2017-03-27 PLS8-USR4_HIO_v03.915 Confidential / Preliminary
THE USE OF THE PRODUCT INCLUDING THE SOFTWARE AND DOCUMENTATION (THE "PROD­UCT") IS SUBJECT TO THE RELEASE NOTE PROVIDED TOGETHER WITH PRODUCT. IN ANY EVENT THE PROVISIONS OF THE RELEASE NOTE SHALL PREVAIL. THIS DOCUMENT CONTAINS INFORMATION ON GEMALTO M2M PRODUCTS. THE SPECIFICATIONS IN THIS DOCUMENT ARE SUBJECT TO CHANGE AT GEMALTO M2M'S DISCRETION. GEMALTO M2M GMBH GRANTS A NON­EXCLUSIVE RIGHT TO USE THE PRODUCT. THE RECIPIENT SHALL NOT TRANSFER, COPY, MODIFY, TRANSLATE, REVERSE ENGINEER, CREATE DERIVATIVE WORKS; DISASSEMBLE OR DECOMPILE THE PRODUCT OR OTHERWISE USE THE PRODUCT EXCEPT AS SPECIFICALLY AUTHORIZED. THE PRODUCT AND THIS DOCUMENT ARE PROVIDED ON AN "AS IS" BASIS ONLY AND MAY CONTAIN DEFICIENCIES OR INADEQUACIES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, GEMALTO M2M GMBH DISCLAIMS ALL WARRANTIES AND LIABILITIES. THE RECIPIENT UNDERTAKES FOR AN UNLIMITED PERIOD OF TIME TO OBSERVE SECRECY REGARDING ANY INFORMATION AND DATA PROVIDED TO HIM IN THE CONTEXT OF THE DELIV­ERY OF THE PRODUCT. THIS GENERAL NOTE SHALL BE GOVERNED AND CONSTRUED ACCORDING TO GERMAN LAW.
Copyright
Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its con­tents and communication thereof to others without ex press autho rization are prohib ited. Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved.
Copyright © 2017, Gemalto M2M GmbH, a Gemalto Company
Trademark Notice
Gemalto, the Gemalto logo, are trademarks and service marks of Gemalto and are registered in certain countries. Microsoft and Win dows are e ither regis tered trademarks or trademarks of Microsoft Corpora­tion in the United States and/or other countries. All other register ed trademarks or trademarks mention ed in this document are property of their respective owners.
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview

Contents

44
Page 3 of 44
Contents
0 Document History.......................................................................................................6
1 Introduction.................................................................................................................7
1.1 Supported Products...........................................................................................7
1.2 Related Documents ...........................................................................................7
1.3 Terms and Abbreviations............ ........... .......... ........... ........... ............................7
1.4 Regulatory and Type Approval Information .....................................................10
1.4.1 Directives and Standards....................................................................10
1.4.2 SAR requirements specific to portable mobiles..................................13
1.4.3 SELV Requirements ...........................................................................14
1.4.4 Safety Precautions..............................................................................14
2 Product Concept.......................................................................................................15
2.1 Key Features at a Glance................................................................................15
2.2 PLS8-US R4 System Overview .......................................................................18
3 Application Interface.................................................................................................19
3.1 Operating Modes .............................................................................................20
3.2 Power Supply...................................................................................................21
3.3 USB Interface...................................................................................................22
3.4 Serial Interface ASC0 ......................................................................................23
3.5 UICC/SIM/USIM Interface................................................................................24
3.6 Digital Audio Interface......................................................................................26
3.7 Analog-to-Digital Converter (ADC)...................................................................26
3.8 GPIO Interface.................................................................................................26
4 GNSS Receiver..........................................................................................................27
5 Antenna Interfaces....................................................................................................28
5.1 GSM/UMTS/LTE Antenna Interface.................................................................28
5.1.1 Antenna Installation ............................................................................29
5.1.2 RF Line Routing Design......................................................................30
5.1.2.1 Line Arrangement Examples...............................................30
5.1.2.2 Routing Example.................................................................32
5.2 GNSS Antenna Interface ................................................................................. 33
6 Mechanics..................................................................................................................35
6.1 Mechanical Dimensions of PLS8-US R4 .........................................................35
7 Sample Application...................................................................................................37
8 Reference Approval..................................................................................................39
8.1 Reference Equipment for Type Approval.........................................................39
8.2 Compliance with FCC and IC Rules and Regulations ..................................... 40
9 Appendix....................................................................................................................42
9.1 List of Parts and Accessories...........................................................................42
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview

Tables

44
Page 4 of 44
Tables
Table 1: Directives ....................................................................................................... 10
Table 2: Standards of North American type approval.................................................. 10
Table 3: Standards of European type approval............................................................ 10
Table 4: Requirements of quality ................................................................................. 11
Table 5: Standards of the Ministry of Information Industry of the
People’s Republic of China............................................................................ 12
Table 6: Toxic or hazardous substances or elements with defined concentration
limits............................................................................................................... 12
Table 7: Overview of operating modes ........................................................................ 20
Table 8: Signals of the SIM interface (SMT application interface)............................... 24
Table 9: Return loss in the active band........................................................................ 28
Table 10: Antenna gain limits for FCC and IC................................................................ 40
Table 11: List of parts and accessories.......................................................................... 42
Table 12: Molex sales contacts (subject to change)...................................................... 43
Table 13: Hirose sales contacts (subject to change)..................................................... 43
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview

Figures

44
Page 5 of 44
Figures
Figure 1: PLS8-US R4 system overview....................................................................... 18
Figure 2: Decoupling capacitor(s) for BATT+................................................................ 21
Figure 3: USB circuit..................................................................................................... 22
Figure 4: Serial interface ASC0..................................................................................... 23
Figure 5: First UICC/SIM/USIM interface...................................................................... 25
Figure 6: Second UICC/SIM/USIM interface................................................................. 25
Figure 7: Embedded Stripline line arrangement............................................................ 30
Figure 8: Micro-Stripline line arrangement samples...................................................... 31
Figure 9: Routing to application‘s RF connector........................................................... 32
Figure 10: PLS8-US R4 evaluation board layer table..................................................... 32
Figure 11: Supply voltage for active GNSS antenna....................................................... 33
Figure 12: ESD protection for passive GNSS antenna................................................... 34
Figure 13: PLS8-US R4 – top and bottom view .............................................................. 35
Figure 14: Dimensions of PLS8-US R4 (all dimensions in mm)...................................... 36

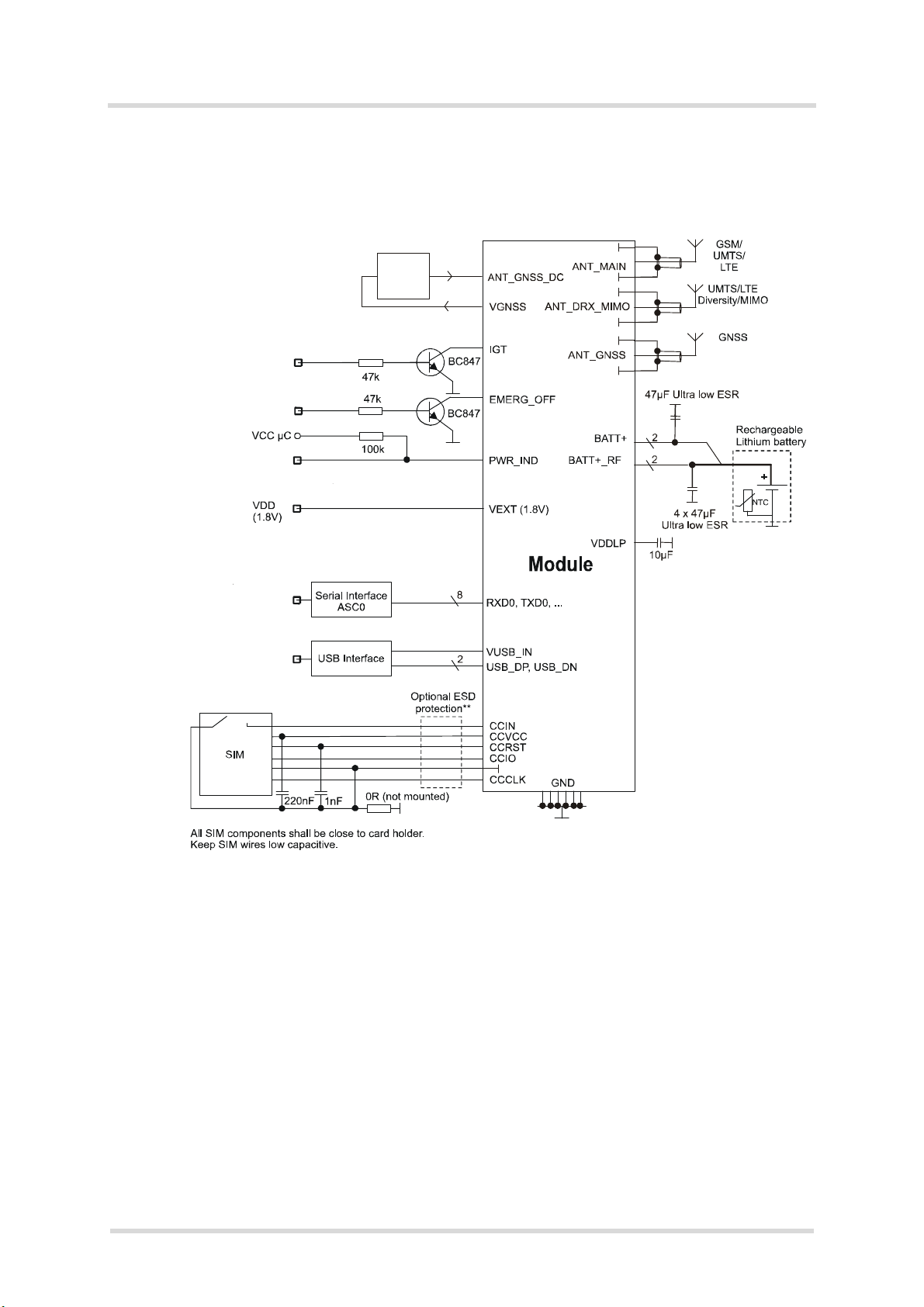

Figure 15: PLS8-US R4 sample application.................................................................... 38
Figure 16: Reference equipment for type approval......................................................... 39
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview

0 Document History

6
0 Document History
New document: "Cinterion® PLS8-US Hardware Interface Overview" v03.915
Chapter What is new
--- Initial document setup.
Page 6 of 44
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview

1 Introduction

14
Page 7 of 44
1 Introduction
The document1 describes the hardware of the Cinterion® PLS8-US R4 module, designed to connect to a cellular device application and the air interface. It helps you quickly retrieve inter­face specifications, electrical and mechanical details and information on the requirements to be considered for integrating further components.

1.1 Supported Products

This document applies to the following Gemalto M2M products:
•Cinterion
®
PLS8-US R4 module

1.2 Related Documents

[1] AT Command Set for your Gemalto M2M product [2] Release Notes for your Gemalto M2M product [3] Application Note 48: SMT Module Integration [4] Universal Serial Bus Specification Revision 2.0, April 27, 2000

1.3 Terms and Abbreviations

Abbreviation Description
AMR Adaptive Multirate ANSI American National Standards Institute ARP Antenna Reference Point BIP Bearer Independent Protocol CE Conformité Européene (European Conformity) CS Coding Scheme CS Circuit Switched CSD Circuit Switched Data CSFB Circuit Switched Fallback DCS Digital Cellular System DL Download dnu Do not use DRX Discontinuous Reception DSB Development Support Board
1.
The document is effective only if listed in the appropriate Release Notes as part of the technical docu ­mentation delivered with your Gemalto M2M product.
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
1.3 Terms and Abbreviations
14
Abbreviation Description
DTX Discontinuous Transmission EDGE Enhanced Data rates for GSM Evolution EFR Enhanced Full Rate EGSM Extended GSM EMC Electromagnetic Compatibility ESD Electrostatic Discharge ETS European Telecommunication Standard ETSI European Telecommunications Standards Institute FCC Federal Communications Commission (U.S.) FDD Frequency Division Duplex FR Full Rate GPRS General Packet Radio Service
Page 8 of 44
GSM Global Standard for Mobile Communications HiZ High Impedance HR Half Rate HSDPA High Speed Downlink Packet Access I/O Input/Output IMEI International Mobile Equipment Identity ISO International Standards Organization ITU International Telecommunications Union kbps kbits per second LED Light Emitting Diode LGA Land Grid Array LTE Long term evolution MBB Mo ist ur e ba rr ier bag Mbps Mbits per second MCS Modulation and Coding Scheme MIMO Multiple Input Multiple Output MLCC Multi Layer Ceramic Capacitor MO Mobile Originated MS Mobile Station, also referred to as TE MSL Moisture Sensitivity Level MT Mo b ile Te rm in at ed nc Not connected NTC Negative Temperature Coefficient PCB Printed Circuit Board
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
1.3 Terms and Abbreviations
14
Abbreviation Description
PCL Power Control Level PCS Personal Communication System, also referred to as GSM 1900 PD Pull Down resistor PDU Protocol Data Unit PS Packet Switched PSK Phase Shift Keying PU Pull Up resistor QAM Quadrature Amplitude Modulation R&TTE Radio and Telecommunication Terminal Equipment RF Radio Frequency rfu Reserved for future use ROPR Radio Output Power Reduction
Page 9 of 44
RTC Real Time Clock Rx Receive Direction SAR Specific Absorption Rate SELV Safety Extra Low Voltage SIM Subscriber Identification Module SMD Surface Mount Device SMS Short Message Service SMT Surface Mount Technology SRAM Static Random Access Memory SRB Signaling Radio Bearer TE Terminal Equipment TPC Transmit Power Control TS Technical Specification Tx Transmit Direction UL Upload UMTS Universal Mobile Telecommunications System URC Unsolicited Res ult Code USB Universal Serial Bus UICC USIM Integrated Circuit Card USIM UMTS Subscriber Identification Module USAT U/SIM Application Toolkit WB-AMR Wideband Adaptive Multirate WCDMA Wideband Code Division Multiple Access
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview

1.4 Regulatory and Type Approval Information

14
Page 10 of 44
1.4 Regulatory and Type Approval Information

1.4.1 Directives and Standards

PLS8-US R4 has been designed to comply with the directives and standards listed below. It is the responsibility of the application manufacturer to ensure compliance of the final product
with all provisions of the applicable directives and standards as well as with the technical spec­ifications provided in the "PLS8-US R4 Hardware Interface Description".
Table 1: Directives
99/05/EC Directive of the European Parliament and of the council of 9 March 1999 on
radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity (in short referred to as R&TTE Direc­tive 1999/5/EC). The product is labeled with the CE conformity mark
1
2002/95/EC (RoHS 1) 2011/65/EC (RoHS 2)
Table 2: Standards of North American type approval
CFR Title 47 Code of Federal Regulations, Part 22, Part 24 and Part 27; US Equipmen t
OET Bulletin 65 (Edition 97-01)
UL 60 950-1 Product Safety Certification (Safety requirements)
NAPRD.03 V5.30 Overview of PCS Type certification review board Mobile Equipment Type
RSS130, RSS132, RSS133, RSS139
Table 3: Standards of European type approval
3GPP TS 51.010-1 Digital cellula r telecommunications system (Release 7); Mobile Station
Directive of the European Parliament and of the Council of 27 January 2003 (and revised on 8 June 2011) on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS)
Authorization FCC Evaluating Compliance with FCC Guidelines for Human Exposure to
Radiofrequency Electromagnetic Fields
Certification and IMEI control PCS Type Certification Review board (PTCRB)
Canadian Standard
(MS) conformance specification;
ETSI EN 301 511 V12.1.1
GCF-CC V3.64 Global Certification Forum - Certification Criteria ETSI EN 301 489-01
V1.9.2
1.
Manufacturers of applications which can be used in the US shall en sure that their applications have a PTCRB approval. For this purpose they can refer to the PTCRB approval of the respective module.
PLS8-USR4_HIO_v03.915 2017-03-27
Global System for Mobile communications (GSM); Harmonized standard for mobile stations in the GSM 900 and DCS 1800 bands covering essential requirements under article 3.2 of the R&TTE directive (1999/5/EC)
Electromagnetic Compatibility and Radio spectrum Matters (ERM); Electro­magnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common Technical Requirements
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
1.4 Regulatory and Type Approval Information
14
Table 3: Standards of European type approval
Page 11 of 44
ETSI EN 301 489-03 V1.6.1
ETSI EN 301 489-07 V1.3.1
EN 300 440-02 V1.4.1 Electromagnetic compatibility and Radio spectrum Matters (ERM); Short
EN 62311:2008 Assessment of electronic and electrical equipment related to human expo-
IEC/EN 60950-1:2006+ A11:2009+A1:2010+ A12:2011+A2:2013
Table 4: Requirements of quality
IEC 60068 Environmental testing DIN EN 60529 IP codes
Electromagnetic Compatibility and Radio spectrum Matters (ERM); Electro­magnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Specific requirements for Short-Range Devices (SRD) operating on frequencies between 9 kHz and 25 GHz
Electromagnetic Compatibility and Radio spectrum Matters (ERM); Electro­magnetic Compatibility (EMC) standard for radio equipment and services; Part 7: Specific conditions for mobile and portable radio and ancillary equip­ment of digital cellular radio telecommunications systems (GSM and DCS)
range devices; Radio equipment to be used in the 1 GHz to 40 GHz fre­quency range; Part 2: Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive
sure restrictions for electromagnetic fields (0 Hz - 300 GHz) Safety of information technology equipment
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
1.4 Regulatory and Type Approval Information
14
Table 5: Standards of the Ministry of Information Industry of the People’s Republic of China
SJ/T 11363-2006 “Requirements for Concentration Limits for Certain Hazardous Substances
in Electronic Information Products” (2006-06).
SJ/T 11364-2006 “Marking for Control of Pollution Caused by Electronic
Information Products” (2006-06). According to the “Chinese Administration on th e Control of
Pollution caused by Electronic Information Products” (ACPEIP) the EPUP, i.e., Environmental Protection Use Period, of this product is 20 years as per the symbol shown here, unless otherwise marked. The EPUP is valid only as long as the product is operated within the operating limits described in the Hardware Interface Description.
Please see Table 6 for an overview of toxic or hazardous substances or ele­ments that might be contained in product parts in concentrations above the limits defined by SJ/T 11363-2006.
Page 12 of 44
Table 6: Toxic or hazardous substances or elements with defined concentration limits
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
1.4 Regulatory and Type Approval Information
14
Page 13 of 44

1.4.2 SAR requirements specific to portable mobiles

Mobile phones, PDAs or other portable transmitters and receivers incorporating a GSM/UMTS/ LTE module must be in accordance with the guidelines for h uman exposure to radio frequency energy. This requires the Specific Absorption Rate (SAR) of portable PLS8-US R4 based ap­plications to be evaluated and approved for compliance with national and/or international reg­ulations.
Since the SAR value varies significantly with the individual product design manufacturers are advised to submit their product for approval if designed for portable use. For US markets the relevant directives are mentioned below. It is the responsibility of the manufacturer of the final product to verify whether or not further standards, recommendations or directives are in force outside these areas.
Products intended for sale on US markets
ES 59005/ANSI C95.1 Considerations for evaluation of human exposure to electromagnetic
fields (EMFs) from mobile telecommunication equipment (MTE) in the frequency range 30MHz - 6GHz
IMPORTANT: Manufacturers of portable applications based on PLS8-US R4 modules are required to have their final product certified and apply for their own FCC Grant and Industry Canada Certificate related to the specific portable mobile.
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
1.4 Regulatory and Type Approval Information
14
Page 14 of 44

1.4.3 SELV Requirements

The power supply connected to the PLS8-US R4 module shall be in compliance with the SELV requirements defined in EN 60950-1.

1.4.4 Safety Precautions

The following safety precautions must be observed during all phases of the operation, usage, service or repair of any cellular terminal or mobile incorporating PLS8-US R4. Manufacturers of the cellular terminal are advised to convey the following safety information to users and op­erating personnel and to incorporate these guidelines into all manuals supplied with the prod­uct. Failure to comply with these precautions violates safety standards of design, manufacture and intended use of the product. Gemalto M2M assumes no liability for customer’s failure to comply with these precautions.
When in a hospital or other health care facility, observe the restrictions on the use of mobiles. Switch the cellular terminal or mobile off, if instructed to do so by the guide­lines posted in sensitive areas. Medical equipment may be sensitive to RF energy.
The operation of cardiac pacemakers, other implanted med ical equipment and hearing aids can be affected by interference from cellular terminals or mobiles placed close to the device. If in doubt about potential danger, contact the physician or the manufac­turer of the device to verify that the equipment is properly shielded. Pacemaker patients are advised to keep their hand-held mobile away from the pacemaker, while it is on.
Switch off the cellular terminal or mobile before boarding an aircraft. Make su re it can­not be switched on inadvertently. The operation of wirele ss appliances in an aircraft is forbidden to prevent interference with communications systems. Failure to observe these instructions may lead to the suspension or denial of cellular services to the offender, legal action, or both.
Do not operate the cellular terminal or mobile in the presence of flammable gases or fumes. Switch off the cellular terminal when you are near petrol stations, fuel d epots, chemical plants or where blasting operations are in progress. Oper ation of any electri­cal equipment in potentially explosive atmospheres can constitute a safety hazard.
Your cellular terminal or mobile receives and transmits radio frequency energy while switched on. Remember that interference can occur if it is used close to TV sets, radios, computers or inadequately shielded equipment. Follow any special re gulations and always switch off the cellular terminal or mobile wherever forbidden, or when you suspect that it may cause interference or danger.
IMPORTANT! Cellular terminals or mobiles operate using radio signals an d cellular networks. Because of this, connection cannot be guaranteed at all times under all conditions. Therefore, you should never rely solely upon any wireless device for essential com­munications, for example emergency calls.
Remember, in order to make or receive calls, the cellular terminal or mobile must be switched on and in a service area with adequate cellular signal strength.
Some networks do not allow for emergency calls if certain network services or phone features are in use (e.g. lock functions, fixed dialing etc.). You may need to deactivate those features before you can make an emergency call.
Some networks require that a valid SIM card be properly inserted in the cellu lar termi­nal or mobile.
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview

2 Product Concept

18
2 Product Concept

2.1 Key Features at a Glance

Feature Implementation
General Frequency bands GSM/GPRS/EDGE: Quad band, 850/900/1800/1900MHz
UMTS/HSPA+: Triple band, 850 (BdV) / AWS (BdIV) / 1900MHz (BdII) LTE: Quad band, 700 (Bd17) / 850 (Bd5) / AWS (Bd4) / 1900MHz (Bd2)
GSM class Small MS
Page 15 of 44
Output power (according to Release 99)
Output power (according to Release 8)
Power supply 3.3V < Operating temperature
(board temperature)
Physical Dimensions: 33mm x 29mm x 2.2mm
RoHS All hardware components fully compliant with EU RoHS Directive
Class 4 (+33dBm ±2dB) for EGSM850 Class 4 (+33dBm ±2dB) for EGSM900 Class 1 (+30dBm ±2dB) for GSM1800 Class 1 (+30dBm ±2dB) for GSM1900 Class E2 (+27dBm ± 3dB) for GSM 850 8-PSK Class E2 (+27dBm ± 3dB) for GSM 900 8-PSK Class E2 (+26dBm +3 /-4dB) for GSM 1800 8-PSK Class E2 (+26dBm +3 /-4dB) for GSM 1900 8-PSK Class 3 (+24dBm +1/-3dB) for UMTS 1900,WCDMA FDD BdII Class 3 (+24dBm +1/-3dB) for UMTS AWS, WCDMA FDD BdIV Class 3 (+24dBm +1/-3dB) for UMTS 850, WCDMA FDD BdV
Class 3 (+23dBm +-2dB) for LTE 1900, LTE FDD Bd2 Class 3 (+23dBm +-2dB) for LTE AWS, LTE FDD Bd4 Class 3 (+23dBm +-2dB) for LTE 850, LTE FDD Bd5 Class 3 (+23dBm +-2dB) for LTE 700, LTE FDD Bd17
V
Normal operation: -30°C to +85°C Extended operation: -40°C to +95°C
Weight: approx. 4.5g
BATT+
< 4.2V
LTE features 3GPP Release 9 UE CAT 3 supported
DL 100Mbps, UL 50Mbps
2x2 MIMO in DL direction HSPA features 3GPP Release 8 UE CAT. 14, 24
DC-HSPA+ – DL 42Mbps
HSUPA – UL 5.76Mbps
Compressed mode (CM) supported according to 3GPP TS25.212 UMTS features 3GPP Release 8 PS data rate – 384 kbps DL / 384 kbps UL
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
2.1 Key Features at a Glance
18
Feature Implementation
GSM / GPRS / EGPRS features Data transfer GPRS:
Multislot Class 12
Mobile Station Class B
Coding Scheme 1 – 4
EGPRS:
Multislot Class 12
EDGE E2 power class for 8 PSK
Downlink coding schemes – CS 1-4, MCS 1-9
Uplink coding schemes – CS 1-4, MCS 1-9
SRB loopback and test mode B
8-bit, 11-bit RACH
1 phase/2 phase access proce d ur es
Link adaptation and IR
NACC, extended UL TBF
Mobile Station Class B
SMS Point-to-point MT and MO
Cell broadcast
Text and PDU mode
Page 16 of 44
Software AT commands Hayes, 3GPP TS 27.007 and 27.005, and proprie tary Gemalto M2M com-
mands Firmware update Generic update from host application over USB and ASC0
U/SIM application toolkit USAT letter c; with BIP Audio Audio speech codecs
GSM: WB-AMR, AMR, EFR, FR, HR
3GPP: WB-AMR, AMR
Speakerphone operation, echo cancellation, noise suppression, 9 ringing
tones
VoLTE support for multiple operators, with CSFB
GNSS Features
Protocol NMEA (for GPS, GLONASS and Galileo related sentences) Modes Standalone GNSS
Assisted GNSS
- Control plane - E911
- User plane - gpsOneXTRA™
General Power saving modes
Power supply for active antenna Interfaces Module interface Surface mount device with solderable connection pads (SMT application
interface).
Land grid array (LGA) technology ensures high solder joint reliability and
provides the possibility to use an optional module mounting socket.
For more information on how to integrate SMT modules see also [3]. This
application note comprises chapters on module mounting and application
layout issues as well as on additional SMT application development
equipment.
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
2.1 Key Features at a Glance
18
Feature Implementation
Antenna 50. GSM/UMTS/LTE main antenna, UMTS/LTE Diversity/MIMO
antenna, (active/passive) GNSS antenna USB USB 2.0 High Speed (480Mbit/s) device interface Serial interface ASC0:
8-wire modem interface with status and control lines, unbalanced, asynchronous
Adjustable baud rates: 115,200bps to 921,600bps
Supports RTS0/CTS0 hardware flow control
UICC interface 2 UICC interfaces (switchable)
Supported chip cards: UICC/SIM/USIM 3V, 1.8V
Audio 1 digital interface (PCM or I
Status Signal line to indicate network connectivity state
2
S)
Page 17 of 44
RING0 Signal line to indicate incoming calls and other types of Power on/off, Reset Power on/off Switch-on by hardware signal IGT
Switch-off by AT command (AT^SMSO) or IGT
Automatic switch-off in case of critical temperature or voltage conditions Reset Orderly shutdown and reset by AT command Emergency-off Emergency-off by hardware signal EMERG_OFF if IGT is not active Special Features Antenna SAIC (Single Antenna Interference Cancellation) / DARP (Downlink
Advanced Receiver Performance)
Rx Diversity (receiver type 3i - 64-QAM) / MIMO
GPIO 10 I/O pins of the application interface programmable as GPIO.
GPIOs can be configured as low current indicator (LCI).
GPIO1 can be configured as dead reckoning synchronization signal.
GPIO2 can be configured as 700MHz antenna switch control signal.
GPIOs can be configured as remote host wakeup lines.
Programming is done via AT commands. ADC inputs Analog-to-Digital Converter with three unbalanced analog inputs. Evaluation kit Evaluation module PLS8-US R4 module soldered onto a dedicated PCB that can be con-
nected to an adapter in order to be mounted onto the DSB75.
URCs
DSB75 DSB75 Development Support Board designed to test and type approve
Gemalto M2M modules and provide a sample configuration for applica-
tion engineering. A special adapter is required to connect the PLS8-US
R4 evaluation module to the DSB75.
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
USB
Serial ASC0
UICC
Power supply
IGT,
Emergency Off
Host applic a tio n
On/Off
Module
Applica t ion
GSM/UMTS/LTE Antenna diversity
Power for application
(VEXT)
Power indication
(PWR_IND)
Modem interface
Digital
audio
PCM or I2S
codec
GSM/UMTS/LTE
12
GNSS
GNSS antenna
GPIO
Power supply
GNSS active
antenna supply,
current limiter
ADC
Net state/
status
SIM
card
SIM card
RTC
or

2.2 PLS8-US R4 System Overview

18
2.2 PLS8-US R4 System Overview
Page 18 of 44
Figure 1: PLS8-US R4 system overview
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview

3 Application Interface

27
Page 19 of 44
3 Application Interface
PLS8-US R4 is equipped with an SMT application interface (LGA pads) that connects to the external application. The host interface incorporates several sub-interfaces described in the fol­lowing sections:
Operating modes - see Section 3.1
Power supply - see Section 3.2
Serial interface USB - see Section 3.3
Serial interface ASC0 - Section 3.4
UICC/SIM/USIM interface - see Section 3.5
Digital audio interface (PCM or I
ADC interface - Section 3.7
GPIO interface - Section 3.8
2
S) - see Section 3.6
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview

3.1 Operating Modes

27
Page 20 of 44
3.1 Operating Modes
The table below briefly summarizes the various operating modes referred to in the following chapters.
Table 7: Overview of operating modes
Mode Function
Normal operation
Power Down
Airplane mode
GSM / GPRS / UMTS / HSPA / LTE SLEEP
GSM / GPRS / UMTS / HSPA / LTE IDLE
GPRS DATA GPRS data transfer in progress. Power consumption depends on net-
EGPRS DATA EGPRS data transfer in progress. Power consumption depends on net-
UMTS DATA UMTS data transfer in progress. Power consumption depends on net-
HSPA DATA HSPA data transfer in progress. Power consumption depends on net-
LTE DATA LTE data transfer in progress. Power consumption depends on network
Normal shutdown after sending the AT^SMSO command. Only a voltage regulator is active for powering the RTC. Software is not active. Interfaces are not accessible. Operating volt­age (connected to BATT+) remains applied.
Airplane mode shuts down the radio part of the module , causes th e module to log off from the GSM/GPRS network and disables all AT commands whose execution r equires a rad io connection. Airplane mode can be controlled by AT command (see [1]).
Power saving set automatically when no call is in progress and the USB connection is detached and no active communication via ASC0. Also, the GNSS active antenna mode has to be turned off or set to "auto".
Power saving disabled or an USB connection active , but no data tra ns­fer in progress.
work settings (e.g. power control level), uplink / downlink data rates and GPRS configuration (e.g. used multislot settings).
work settings (e.g. power control level), uplink / downlink data rates and EGPRS configuration (e.g. used multislot settings).
work settings (e.g. TPC Pattern) and data transfer rate.
work settings (e.g. TPC Pattern) and data transfer rate.
settings (e.g. TPC Pattern) and data transfer rate.
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
BATT+
2 2
Decoupling capacitors
e.g. 47µF X5R MLCC
4x
GND
BATT+
BATT+_RF
Module
SMT interface
1x

3.2 Power Supply

27
Page 21 of 44
3.2 Power Supply
PLS8-US R4 needs to be connected to a power supply at the SMT application interface - 4 lines BATT+, and GND. There are two separate voltage domains for BATT+:
BATT+_RF with 2 lines for the RF power amplifier supply
BATT+ with 2 lines for the general power management. The main power supply from an external application has to be a single voltage source and has
to be expanded to two sub paths (star structure). Each voltage domain must be deco upled by application with low ESR capacitors ( as close as possible to LGA pads. Figure 2 shows a sample circuit for decoupling capacitors for BATT+.
> 47µF MLCC @ BATT+; > 4x47µF MLCC @ BATT+_RF)
Figure 2: Decoupling capacitor(s) for BATT+
The power supply of PLS8-US R4 must be able to provide the peak current during the uplink transmission.
All key functions for supplying power to the device are handled by the power managemen t IC. It provides the following features:
Stabilizes the supply voltages for the baseband using switching regulators and low drop lin- ear voltage regulators.
Switches the module's power voltages for the power-up and -down procedures.
Delivers, across the VEXT line, a regulated voltage for an external application.
LDO to provide SIM power supply.
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
DP DN
VREG (3V075)
BATT+
USB_DP
3)
lin. reg.
GND
Module
Detection only
VUSB_IN
2)
USB part
1)
1)
All serial (including RS) and pull-up resistors for data lines are implemented.
USB_DN
3)
3)
If the USB interface is operated in High S peed mode (48 0 MHz), it is recomm end ed to take special care routing the data lines USB_DP and USB_DN. A p plication layout sho uld in this case impleme nt a differential impeda nc e of 90 o h ms for proper signal integrity.
R
S
R
S
VBUS
1µF
2)
Since VUSB_IN is used for detection only it is recomm ende d not to add an y further blocking capacitors on the VUS B_IN line.
Host wakeup
RING0
SMT
Page 22 of 44

3.3 USB Interface

27
3.3 USB Interface
PLS8-US R4 supports a USB 2.0 High Speed (480Mbps) device interface. The USB interface is primarily intended for use as command and data interface and for downloading firmware.
The USB host is responsible for supplying the VUSB_IN line. This line is for voltage detection only. The USB part (driver and transceiver) is supplied by means of BATT+. This is because PLS8-US R4 is designed as a self-powered device compliant with the “Universal Serial Bus Specification Revision 2.0”
1
.
Figure 3: USB circuit
To properly connect the module's USB interface to the external application, a USB 2.0 compat­ible connector and cable or hardware design is required. Furthermore, the USB modem driver distributed with PLS8-US R4 needs to be installed.
1.
The specification is ready for download on http://www.usb.org/developers/docs/usb20_docs/
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview

3.4 Serial Interface ASC0

27
Page 23 of 44
3.4 Serial Interface ASC0
PLS8-US R4 offers an 8-wire unbalanced, asynchronous modem interface ASC0 conforming to ITU-T V.24 protocol DCE signaling. The electrical characteristics do not comply with ITU-T V.28. The significant levels are 0V (for low data bit or active state) and 1.8V (for high data bit or inactive state).
PLS8-US R4 is designed for use as a DCE. Based on the conventions for DCE-DTE connec­tions it communicates with the customer application (DTE) using the following signals:
Port TXD @ application sends data to the module’s TXD0 signal line
Port RXD @ application receives data from the module’s RXD0 signal line
Figure 4: Serial interface ASC0
Features:
Includes the data lines TXD0 and RXD0, the status lines RTS0 and CTS0 and, in addition, the modem control lines DTR0, DSR0, DCD0 and RING0.
The RING0 signal serves to indicate incoming calls and other types of URCs (Unsolicited Result Code). It can also be configured to send pulses to the host application, for example to remotely wake up the application from power saving state. See [1] for details on how to configure the RING0 line by AT^SCFG.
Configured for 8 data bits, no parity and 1 stop bit.
ASC0 can be operated at fixed bit rates from 115200bps up to 921600bps.
Supports RTS0/CTS0 hardware flow control.
Wake up from SLEEP mode by RTS0 activation.
Note: If the ASC0 serial interface is the application’s only interface, it is suggested to connect test points on the USB signal lines as a potential tracing possibility.
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview

3.5 UICC/SIM/USIM Interface

27
Page 24 of 44
3.5 UICC/SIM/USIM Interface
PLS8-US R4 has two integrated UICC/SIM/USIM interfaces compatible with the 3GPP 31.102 and ETSI 102 221. These are wired to the host interface in order to be connected to an external SIM card holder. Five pads on the SMT application interface are reserved for each of the SIM two interfaces.
The UICC/SIM/USIM interfaces support 3V and 1.8V SIM cards. The CCINx signal serves to detect whether a tray (with SIM card) is present in the card holder.
Using the CCINx signal is mandatory for compliance with the GSM 11.11 recommendation if the mechanical design of the host application allows the user to remove the SIM card during operation. To take advantage of this feature, an appropriate SIM card detect switch is required on the card holder. For example, this is true for the model supplied by Molex, which has been tested to operate with PLS8-US R4 and is part of the Gemalto M2M reference equipment sub­mitted for type approval. See Chapter 9 for Molex ordering numbers.
Table 8: Signals of the SIM interface (SMT application interface)
Signal Description
GND Ground connection for SIM interfaces. Optionally a separate SIM ground line using e.g.,
pad N11 may be used to improve EMC.
CCCLK1 CCCLK2
CCVCC1 CCVCC2
CCIO1 CCIO2
CCRST1 CCRST2
CCIN1 CCIN2
Chipcard clock lines for 1
SIM supply voltage lines for 1
Serial data lines for 1
Chipcard reset lines for 1
Input on the baseband processor for detecting a SIM card tray in the holder. If the SIM is removed during operation the SIM interface is shut down immediately to prevent destruc­tion of the SIM. The CCINx signal is active low. The CCINx signal is mandatory for applications that allow the user to remove the SIM card during operation. The CCINx signal is solely intended for use with a SIM card. It must not be used for any other purposes. Failure to comply with this requirement may inva lidate the type approval of PLS8-US R4.
st
and 2nd SIM interface.
st
and 2nd SIM interface.
st
and 2nd SIM interface, input and output.
st
and 2nd SIM interface.
Note: No guarantee can be given, nor any liability accepted, if loss of data is encountered after removing the SIM card during operation. Also, no guarantee can be given for properly initializ­ing any SIM card that the user inserts after having removed the SIM card during operation. In this case, the application must restart PLS8-US R4.
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
Module
open: Card removed closed: Card inserted
CCRST1
CCVCC1
CCIO1
CCCLK1
CCIN1
SIM / UICC
1nF
220nF
SMT application interface
GND
Module
Open: Card rem o v e d Closed: Card inserted
CCRST2
CCVCC2
CCIO2
CCCLK2
CCIN2
SIM /
UICC
1nF
220nF
SMT application interface
GND
2k2
100pF*
VEXT
22k*
10k
* Should be placed as close as possible to SMT application interface
3.5 UICC/SIM/USIM Interface
27
Figure 5: First UICC/SIM/USIM interface
Page 25 of 44
The total cable length between the SMT application interface pads on PLS8-US R4 and the pads of the external SIM card holder must not exceed 100mm in order to meet the specifica­tions of 3GPP TS 51.010-1 and to satisfy the requirements of EMC compliance.
To avoid possible cross-talk from the CCCLKx signal to the CCIOx signal be careful that both lines are not placed closely next to each other. A useful approach is using the GND line to shield the CCIOx line from the CCCLKx line.
Note: Figure 5 shows how to connect a SIM card holder to the first SIM interface . With the sec­ond SIM interface some internally integrated components on the SIM circuit will have to be ex­ternally integrated as shown for the second SIM interface in Figure 6.
Figure 6: Second UICC/SIM/USIM interface
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview

3.6 Digital Audio Interface

27
Page 26 of 44
3.6 Digital Audio Interface
PLS8-US R4 supports a digital audio interface that can be employed either as pulse code mod­ulation interface or as inter IC sound interface. Operation of these interface variants is mutually exclusive, and can be configured by AT command (see [1]). Default setting is pulse code mo d­ulation.

3.7 Analog-to-Digital Converter (ADC)

PLS8-US R4 provides three unbalanced ADC input lines: ADC1_IN, ADC2_IN and ADC3_IN. They can be used to measure three independent, externally connected DC voltages in the range of 0.3V to 3.075V.

3.8 GPIO Interface

PLS8-US R4 has 10 GPIOs for external hardware devices. Each GPIO can be configured for use as input or output. All settings are AT command controlled.
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview

4 GNSS Receiver

27
Page 27 of 44
4 GNSS Receiver
PLS8-US R4 integrates a GNSS receiver that offers the full performance of GPS/GLONASS/ Galileo technology. The GNSS receiver is able to continuously track all satellites in view, thus providing accurate satellite position data.
The integrated GNSS receiver supports the NMEA protocol via USB or ASC0 interface. NMEA is a combined electrical and data specification for communication between various (marine) electronic devices including GNSS receivers. It has been defined and controlled by the US based National Marine Electronics Association. For more information on the NMEA Standard please refer to http://www.nmea.org.
Depending on the receiver’s knowledge of last position, current time and ephemeris data, th e receiver’s startup time (i.e., TTFF = Time-To-First-Fix) may vary: If the receiver has no knowl­edge of its last position or time, a startup takes considerably longer than if the receiver has still knowledge of its last position, time and almanac or has still access to valid ephemeris data and the precise time.
By default, the GNSS receiver is switched off. It has to be switched on and configured using AT commands. For more information on how to control the GNSS interface via the AT commands see [1].
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview

5 Antenna Interfaces

34
Page 28 of 44
5 Antenna Interfaces

5.1 GSM/UMTS/L TE Antenna Interface

The PLS8-US R4 GSM/UMTS/LTE antenna interface comprises a GSM/UMTS/LTE main an­tenna as well as a UMTS/LTE Rx diversity/MIMO antenna to improve signal reliability and qual-
1
ity
. The interface has an impedance of 50. PLS8-US R4 is capable of sustaining a total mismatch at the antenna interface without any damage, even when transmitting at maximum RF power.
The external antennas must be matched properly to achieve best performance regarding radi­ated power, modulation accuracy and harmonic suppression. Matching networks are not in­cluded on the PLS8-US R4 PCB and should be placed in the host application, if the antenna does not have an impedance of 50
Regarding the return loss PLS8-US R4 provides the following values in the active band:
Table 9: Return loss in the active band
.
State of module Return loss of module Recommended return loss of application
Receive > Transmit not applicable > Idle <
8dB > 12dB
12dB
5dB not applicable
1.
By delivery default the UMTS/LTE Rx diversity/MIMO antenna is configured as available for the module since its usage is mandatory for LTE. Please refer to [1] for details on how to configure antenna settings.
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
5.1 GSM/UMTS/LTE Antenna Interface
34
Page 29 of 44

5.1.1 Antenna Installation

The antenna is connected by soldering the antenna pads (ANT_MAIN; ANT_DRX_MIMO) and their neighboring ground pads directly to the application’s PCB.
The distance between the antenna pads and their neighboring GND pads has been optimized for best possible impedance. To prevent mismatch, special attention should be paid to these pads on the application’ PCB.
The wiring of the antenna connection, starting from the antenna p ad to the application’s ante n­na should result in a 50 be optimized with regard to the PCB’s layer stack.
To prevent receiver desensitization due to interferences generated by fast transients like high speed clocks on the external application PCB, it is recommended to realize the antenna con­nection line using embedded Stripline rather than Micro-Stripline technology. Please see Sec-
tion 5.1.2 for examples of how to design the antenna connection in order to achieve the
required 50
line impedance.
line impedance. Line width and distance to the GND plane need to
For type approval purposes, the use of a 50
coaxial antenna connector (U.FL-R-SMT) might
be necessary. In this case the U.FL-R-SMT connector should be placed as close as possible to PLS8-US R4‘s antenna pad.
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
5.1 GSM/UMTS/LTE Antenna Interface
34
Page 30 of 44

5.1.2 RF Line Routing Design

5.1.2.1 Line Arrangement Examples

Several dedicated tools are available to calculate line arrangements for specific applications and PCB materials - for example from http://www.polarinstruments.com/ (commercial software) or from http://web.awrcorp.com/Usa/Products/Optional-Products/TX-Line/ (free software).
Embedded Stripline
This below figure shows line arrangement examples for embedded stripline.
Figure 7: Embedded Stripline line arrangement
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
5.1 GSM/UMTS/LTE Antenna Interface
34
Micro-Stripline
This section gives two line arrangement examples for micro-stripline.
Page 31 of 44
Figure 8: Micro-Stripline line arrangement samples
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
e.g. ANT_ MAIN
G N D
G N D
Edge of module PCB
Stripline (50 ohms) on top
layer of evaluation board from
antenna pad to module edge
Width = 0.33 mm
E.g., U.FL antenna
connector
50 ohms microstrip line
G N D G N D
Ground connection
Page 32 of 44
5.1 GSM/UMTS/LTE Antenna Interface
34

5.1.2.2 Routing Example

Interface to RF Connector
Figure 9 shows a sample connection of a module‘s antenna pad at the bottom layer of the mod-
ule PCB with an application PCB‘s coaxial antenna connector. Line impedance depends on line width, but also on other PCB characteristics like dielectric, height and layer gap. The sample stripline width of 0.33mm is recommended for an application with a PCB layer stack resembling the one of the PLS8-US R4 evaluation board shown in Figure 10. For different layer stacks the stripline width will have to be adapted accordingly.
PLS8-USR4_HIO_v03.915 2017-03-27
Figure 9: Routing to application‘s RF connector
Figure 10: PLS8-US R4 evaluation board layer table
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
Short circuit
protection
(Imax=50mA)
VGNSS
ANT_GNSS
Active GNSS
antenna
10nH
100nF
To GNSS
receiver
Module
SMT interface
ANT_GNSS_DC
typ 3.05V max. 50mA
Not short circuit protected!
1uF
(Optional)
ESD
protection
10k
Supply with short circuit protection
LDO
VGNSS
ANT_GNSS
Active
GNSS
antenna
10nH
100nF
To GNSS
receiver
Module
SMT interface
ANT_GNSS_DC
1uF
(Optional)
ESD
protection
10k
Enable
External
voltage
Supply with external LDO employed
Page 33 of 44

5.2 GNSS Antenna Interface

34
5.2 GNSS Antenna Interface
In addition to the RF antenna interface PLS8-US R4 also has a GNSS antenna interface. The GNSS pad itself is the same as for the RF antenna interface (see Section 5.1.1).
It is possible to connect active or passive GNSS antennas. In either case they must have 50 impedance. The simultaneous operation of GSM/UMTS/LTE and GNSS is implemented.
PLS8-US R4 provides the supply voltage VGNSS for the GNSS active antenna (3.05V). It has to be enabled by software when the GNSS receiver becomes active, otherwise VGNSS should be off (power saving). VGNSS is not short circuit protected. This will have to be provided for by an external application. The DC voltage should be fed back via ANT_GNSS_DC for coupling into the GNSS antenna path. Figure 11 shows the flexibility in realizing the power supply for an active GNSS antenna by giving two sample circuits realizing the supply voltage for an active GNSS antenna - one with short circuit protection and one with an external LDO employed.
Figure 11: Supply voltage for active GNSS antenna
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
VGNSS
ANT_GNSS
Passive
GNSS
antenna
10nH
100nF
To GNSS
receiver
Module
SMT interface
ANT_GNSS_DC
(Optional)
ESD
protection
0R
Not used
Page 34 of 44
5.2 GNSS Antenna Interface
34
Figure 12 shows sample circuits realizing ESD protection for a passive GNSS antenna.
Figure 12: ESD protection for passive GNSS antenna
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
Top view
Bottom view

6 Mechanics

36
Page 35 of 44
6 Mechanics

6.1 Mechanical Dimensions of PLS8-US R4

Figure 13 shows a 3D view1 of PLS8-US R4 and provides an overview of the board's mechan-
ical dimensions. For further details see Figure 14. Length: 33mm Width: 29mm Height: 2.2mm
Figure 13: PLS8-US R4 – top and bottom view
1.
The coloring of the 3D view does not reflect the module’s real color.
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
Internal use; Not to be soldered
6.1 Mechanical Dimensions of PLS8-US R4
36
Page 36 of 44
Figure 14: Dimensions of PLS8-US R4 (all dimensions in mm)
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview

7 Sample Application

38
Page 37 of 44
7 Sample Application
Figure 15 shows a typical example of how to integrate an PLS8-US R4 module with an appli-
cation. The PWR_IND line is an open collector that needs an external pull-up resistor which connects
to the voltage supply VCC µC of the microcontroller. Low state of the open collector pulls the PWR_IND signal low and indicates that the PLS8-US R4 module is active, high level notifies the Power Down mode.
If the module is in Power Down mode avoid current flowing from any other source into the mod­ule circuit, for example reverse current from high state external control lines. Therefore, the controlling application must be designed to prevent reverse flow.
While developing SMT applications it is strongly recommended to provide test points for certain signals, i.e., lines to and from the module - for debug and/or test purposes. The SMT application should allow for an easy access to these signals. For details on how to implement test points see [3].
The EMC measures are best practice recommendations. In fact, an adequate EMC strategy for an individual application is very much determined by the overall layout and, especially, the po­sition of components.
Some LGA pads are connected to clocks or high speed data streams that might interfere with the module’s antenna. The RF receiver would then be blocked at certain frequencies (self in­terference). The external application’s PCB tracks connected to these pads should therefore be well shielded or kept away from the antenna. This applies especially to the USB and UICC/ SIM interfaces.
Disclaimer: No warranty, either stated or implied, is provided on the sample schematic diagram shown in
Figure 15 and the information detailed in this section. As functionality and compliance with na-
tional regulations depend to a great amount on the used electronic components and the indi­vidual application layout manufacturers are required to ensure adequate design and operating safeguards for their products using PLS8-US R4 modules.
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
ALS3
Current
limiter
<60mA
7 Sample Application
38
Page 38 of 44
Figure 15: PLS8-US R4 sample application
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
DSB75
Standard
80 polig Flex
PC
GSM/UMTS /LTE
test equipment
GSM/UMTS/LTE
USB
cable
Power supply
Power
GND
USB
ANT3
ANT2
ANT1
Audio
Uranus
Audio
DSB75 adapter
SIM card
holder
Evaluation
module
Edge mount SMA connectors
manually soldered to antenna pads
Deta il:
S
M
A
t
o
H
i
r
o
s
e
U
.
F
L
c
a
b
l
e
UMTS/LTE Rx Diversity/
MIMO
Evaluation
module
GNSS
test equipment
COM1
(ASC0 )
Audio
test equipment
Votronic handset
I
f
u
s
i
n
g
a
n
a
l
o
g
a
u
d
i
o
Page 39 of 44

8 Reference Approval

41
8 Reference Approval

8.1 Reference Equipment for Type Approval

The Gemalto M2M reference setup submitted to type approve PLS8-US R4 is shown in Figure
16. The module (i.e., the evaluation module) is connected to the DSB75 by means of a flex ca-
ble and a special DSB75 adapter. The GSM/UMTS/LTE test equipment is connecte d via edge mount SMA connectors soldered to the module’s antenna pads.
For ESD tests and evaluation purposes, it is also possible connect the module to the GSM/ UMTS/LTE test equipment through an SMA-to-Hirose-U.FL antenna cable and the SMA ante n­na connectors of the DSB75 adapter.
A further option is to mount the evaluation module directly onto the DSB75 adapter’s 80-pin board-to-board connector and to connect the test equipment as shown below.
PLS8-USR4_HIO_v03.915 2017-03-27
Figure 16: Reference equipment for type approval
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview

8.2 Compliance with FCC and IC Rules and Regulations

41
Page 40 of 44
8.2 Compliance with FCC and IC Rules and Regulations
The Equipment Authorization Certification for the Gemalto M2M modules refere nce application described in Section 8.1 will be registered under the following identifiers:
•PLS8-US R4:
FCC Identifier QIPPLS8-USR4 Industry Canada Certification Number: 7830A-PLS8USR4 Granted to Gemalto M2M GmbH
Manufacturers of mobile or fixed devices incorporating PLS8-US R4 modules are authorized to use the FCC Grants and Industry Canada Certificates of the PLS8-US R4 modules for their own final products according to the conditions referenced in these documents. In this case, t he FCC label of the module shall be visible from the outside, or the h ost device shall bear a second label stating "Contains FCC ID: QIPPLS8-USR4" and accordingly “Contains IC: 7830A­PLS8USR4“. The integration is limited to fixed or mobile categorized host devices, where a separation distance between the antenna and any person of min. 20cm can be assured during normal operating conditions.
For mobile and fixed operation configurations the antenna gain, including cable loss, must not exceed the limits listed in the following Table 10 for FCC and IC.
Table 10: Antenna gain limits for FCC and IC
Operating band FCC limit IC limit Unit
Maximum gain in lower operating bands with f< 1GHz (GSM850, WCDMA BdV, LTE Bd5 / Bd17
Maximum gain in higher operating bands with f=1700MHz (WCDMA BdIV, LTE Bd4)
Maximum gain in higher operating bands with f=1900MHz (GSM1900, WCDMA BdII, LTE Band 2)
3.25 0.18 dBi
5.5 5.5 dBi
2.51 2.51 dBi
IMPORTANT: Manufacturers of portable applications incorporating PLS8-US R4 modules are required to have their final product certified and apply for their own FCC Grant and Industry Canada Cer­tificate related to the specific portable mobile. This is mandatory to meet the SAR requirements for portable mobiles (see Section 1.4 for detail).
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
8.2 Compliance with FCC and IC Rules and Regulations
41
Page 41 of 44
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). These limits are designed to provide reasonable protection against harmful inter­ference in a residential installation. This equipment generates, uses and can radiate radio fre­quency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003. If Canadian approval is requested for devices incorporating PLS8-US R4 modules the above
note will have to be provided in the English and French language in the final user documenta­tion. Manufacturers/OEM Integrators must ensure that the final user documentation does not contain any information on how to install or remove the module from the final product.
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview

9 Appendix

43
9 Appendix

9.1 List of Parts and Accessories

Table 11: List of parts and accessories
Description Supplier Ordering information
PLS8-US R4 Gemalto M2M Standard module
Gemalto M2M IMEI: Packaging unit (ordering) number: L30960-N3 410-A400 Module label number: S30960-S3410-A400-1
Customer IMEI module: Packaging unit (ordering) number: L30960-N3415-A400 Module label number: S30960-S3415-A400-1
Page 42 of 44
1
1
PLS8-US R4
Gemalto M2M Packaging unit (ordering) number: L30960-N3411-A4 00
Evaluation Module DSB75 Support Box Gemalto M2M Ordering number: L36880-N8811-A100 DSB75 adapter for mount-
Gemalto M2M Ordering number: L30960-N2301-A100
ing the evaluation module Votronic handset for
approval purposes
Votronic / Gemalto M2M
Gemalto M2M ordering number: L36880-N8301-A107 Votronic ordering number: HH-SI-30.3/V1.1/0
Votronic Entwicklungs- und Produktionsgesellschaft für elek­tronische Geräte mbH Saarbrücker Str. 8 66386 St. Ingbert Germany Phone: +49-(0)6 89 4 / 92 55-0 Fax: +49-(0)6 89 4 / 92 55-88 Email: contact@votronic.com
SIM card holder incl. push button ejector and slide-in tray
U.FL
antenna connector Hirose or
Molex Ordering numbers: 91228
91236
Sales contacts are listed in Table 12. Sales contacts are listed in Table 12 and Table 13.
Molex
1.
Note: At the discretion of Gemalto M2M, module label information can either be laser engraved on the module’s shielding or be printed on a label adhered to the module’s shielding.
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
Cinterion® PLS8-US R4 Hardware Interface Overview
9.1 List of Parts and Accessories
43
Table 12: Molex sales contacts (subject to change)
Page 43 of 44
Molex For further information please click:
http://www.molex.com
Molex China Distributors Beijing, Room 1311, Tower B, COFCO Plaza No. 8, Jian Guo Men Nei Street, 100005 Beijing P.R. China Phone: +86-10-6526-9628 Fax: +86-10-6526-9730
Table 13: Hirose sales contacts (subject to change)
Hirose Ltd. For further information please click:
http://www.hirose.com
Molex Deutschland GmbH Otto-Hahn-Str. 1b 69190 Walldorf Germany Phone: +49-6227-3091-0 Fax: +49-6227-3091-8100 Email: mxgermany@molex.com
Molex Singapore Pte. Ltd. 110, International Road Jurong Town, Singapore 629174
Phone: +65-6-268-6868 Fax: +65-6-265-6044
Hirose Electric (U.S.A.) Inc 2688 Westhills Court Simi Valley, CA 93065 U.S.A.
Phone: +1-805-522-7958 Fax: +1-805-522-3217
American Headquarters Lisle, Illinois 60532 U.S.A. Phone: +1-800-78MOLEX Fax: +1-630-969-1352
Molex Japan Co. Ltd. 1-5-4 Fukami-Higashi, Yamato-City, Kanagawa, 242-8585 Japan
Phone: +81-46-265-2325 Fax: +81-46-265-2365
Hirose Electric Europe B.V. German Branch: Herzog-Carl-Strasse 4 73760 Ostfildern Germany
Phone: +49-711-456002-1 Fax: +49-711-456002-299 Email: info@hirose.de
Hirose Electric Europe B.V. UK Branch: First Floor, St. Andrews House, Caldecotte Lake Business Park, Milton Keynes MK7 8LE Great Britain
Phone: +44-1908-369060 Fax: +44-1908-369078
Hirose Electric Co., Ltd. 5-23, Osaki 5 Chome, Shinagawa-Ku Tokyo 141 Japan
Phone: +81-03-3491-9741 Fax: +81-03-3493-2933
Hirose Electric Europe B.V. Hogehillweg 8 1101 CC Amsterdam Z-O Netherlands
Phone: +31-20-6557-460 Fax: +31-20-6557-469
PLS8-USR4_HIO_v03.915 2017-03-27
Confidential / Preliminary
44
