Gemalto M2M BGS5 Users Manual

Cinterion® Java Terminals

Hardware Interface Overview
Version: 01

DocId: EHSxT_BGS5T_HIO_v01

 M2M.GEMALTO.COM

Cinterion® Java Terminals Hardware Interface Overview

2

Page 2 of 41

Document Name:

Version:
Date:
DocId:
Status

Cinterion® Java Terminals Hardware
Interface Overview

01
2014-02-26
EHSxT_BGS5T_HIO_v01
Confidential / Preliminary

GENERAL NOTE

THE USE OF THE PRODUCT INCLUDING THE SOFTWARE AND DOCUMENTATION (THE "PROD­UCT") IS SUBJECT TO THE RELEASE NOTE PROVIDED TOGETHER WITH PRODUCT. IN ANY
EVENT THE PROVISIONS OF THE RELEASE NOTE SHALL PREVAIL. THIS DOCUMENT CONTAINS
INFORMATION ON GEMALTO M2M PRODUCTS. THE SPECIFICATIONS IN THIS DOCUMENT ARE
SUBJECT TO CHANGE AT GEMALTO M2M'S DISCRETION. GEMALTO M2M GMBH GRANTS A NON­EXCLUSIVE RIGHT TO USE THE PRODUCT. THE RECIPIENT SHALL NOT TRANSFER, COPY,
MODIFY, TRANSLATE, REVERSE ENGINEER, CREATE DERIVATIVE WORKS; DISASSEMBLE OR
DECOMPILE THE PRODUCT OR OTHERWISE USE THE PRODUCT EXCEPT AS SPECIFICALLY
AUTHORIZED. THE PRODUCT AND THIS DOCUMENT ARE PROVIDED ON AN "AS IS" BASIS ONLY
AND MAY CONTAIN DEFICIENCIES OR INADEQUACIES. TO THE MAXIMUM EXTENT PERMITTED
BY APPLICABLE LAW, GEMALTO M2M GMBH DISCLAIMS ALL WARRANTIES AND LIABILITIES.
THE RECIPIENT UNDERTAKES FOR AN UNLIMITED PERIOD OF TIME TO OBSERVE SECRECY
REGARDING ANY INFORMATION AND DATA PROVIDED TO HIM IN THE CONTEXT OF THE DELIV­ERY OF THE PRODUCT. THIS GENERAL NOTE SHALL BE GOVERNED AND CONSTRUED
ACCORDING TO GERMAN LAW.

Copyright

Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its con­tents and communication thereof to others without ex press autho rization are prohib ited. Offenders will be
held liable for payment of damages. All rights created by patent grant or registration of a utility model or
design patent are reserved.

Copyright © 2014, Gemalto M2M GmbH, a Gemalto Company

Trademark Notice

Gemalto, the Gemalto logo, are trademarks and service marks of Gemalto and are registered in certain
countries. Microsoft and Win dows are e ither regis tered trademarks or trademarks of Microsoft Corpora­tion in the United States and/or other countries. All other register ed trademarks or trademarks mention ed
in this document are property of their respective owners.

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

Contents

112

Page 3 of 41

Contents

0 Document History...................................................................................................... 6

1 Introduction.................................................................................................................7

1.1 Related Documents ...........................................................................................8

1.2 Terms and Abbreviations...................................................................................8

1.3 Regulatory and Type Approval Information .....................................................10

1.3.1 Directives and Standards....................................................................10

1.3.2 Safety Precautions..............................................................................13

1.4 Product Label...................................................................................................15

2 Product Concept.......................................................................................................16

2.1 Key Features at a Glance................................................................................16

3 Interface Description ................................................................................................19

3.1 Overview..........................................................................................................19

3.2 Block Diagram..................................................................................................20

3.3 Operating Modes .............................................................................................21

3.4 RS-232 Interface..............................................................................................22

3.4.1 9-Pole D-sub Connector .....................................................................22

3.5 USB Interface...................................................................................................23

3.6 Weidmueller GPIO Interface............................................................................23

3.7 Ethernet Interface ............................................................................................ 25

3.8 Power Supply...................................................................................................26

3.8.1 Turn Java Terminals on...................................................................... 27

3.8.2 Reset Java Terminals......................... ................................................27

3.8.3 Turn Java Terminals off...................................................................... 27

3.8.4 Disconnecting power supply............................................................... 28

3.9 Automatic thermal shutdown............................................................................29

3.10 RTC..................................................................................................................29

3.11 SIM Interface....................................................................................................30

3.12 Status LEDs.....................................................................................................31

3.13 RF Antenna Interface.......................................................................................32

4 Mechanics, Mounting and Packaging .....................................................................33

4.1 Mechanical Dimensions...................................................................................33

4.2 Mounting the Java Terminals...........................................................................35

4.3 Packaging........................................................................................................36

5 Full Type Approval....................................................................................................37

5.1 Gemalto M2M Reference Setup ......................................................................37

5.2 Restrictions......................................................................................................38

5.3 CE Conformity..................................................................................................38

5.4 EMC.................................................................................................................38

5.5 Compliance with FCC Rules and Regulations.................................................39

6 List of Parts and Accessories..................................................................................40

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

Tables

4

Page 4 of 41

Tables

Table 1: Cinterion® Java Terminals overview .................................................................7

Table 2: Terms and abbreviations...................................................................................8

Table 3: Directives ........................................................................................................10

Table 4: Standards of North American type approval...................................................10

Table 5: Standards of European type approval.............................................................10

Table 6: Requirements of quality ..................................................................................11

Table 7: Standards of the Ministry of Information Industry of the

People’s Republic of China.............................................................................12

Table 8: Toxic or hazardous substances or elements with defined concentration

limits................................................................................................................12

Table 9: Java Terminals label information.................................................................... 15

Table 10: Overview of operating modes .........................................................................21

Table 11: 9-pole D-sub (female) RS-232........................................................................22

Table 12: Weidmueller pin availability.............................................................................24

Table 13: Female 6-pole Western plug for power supply, ignition, power down............. 26

Table 14: Allowed maximum antenna gain (including cable loss)...................................32

Table 15: List of parts and accessories...........................................................................40

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

Figures

5

Page 5 of 112

Figures

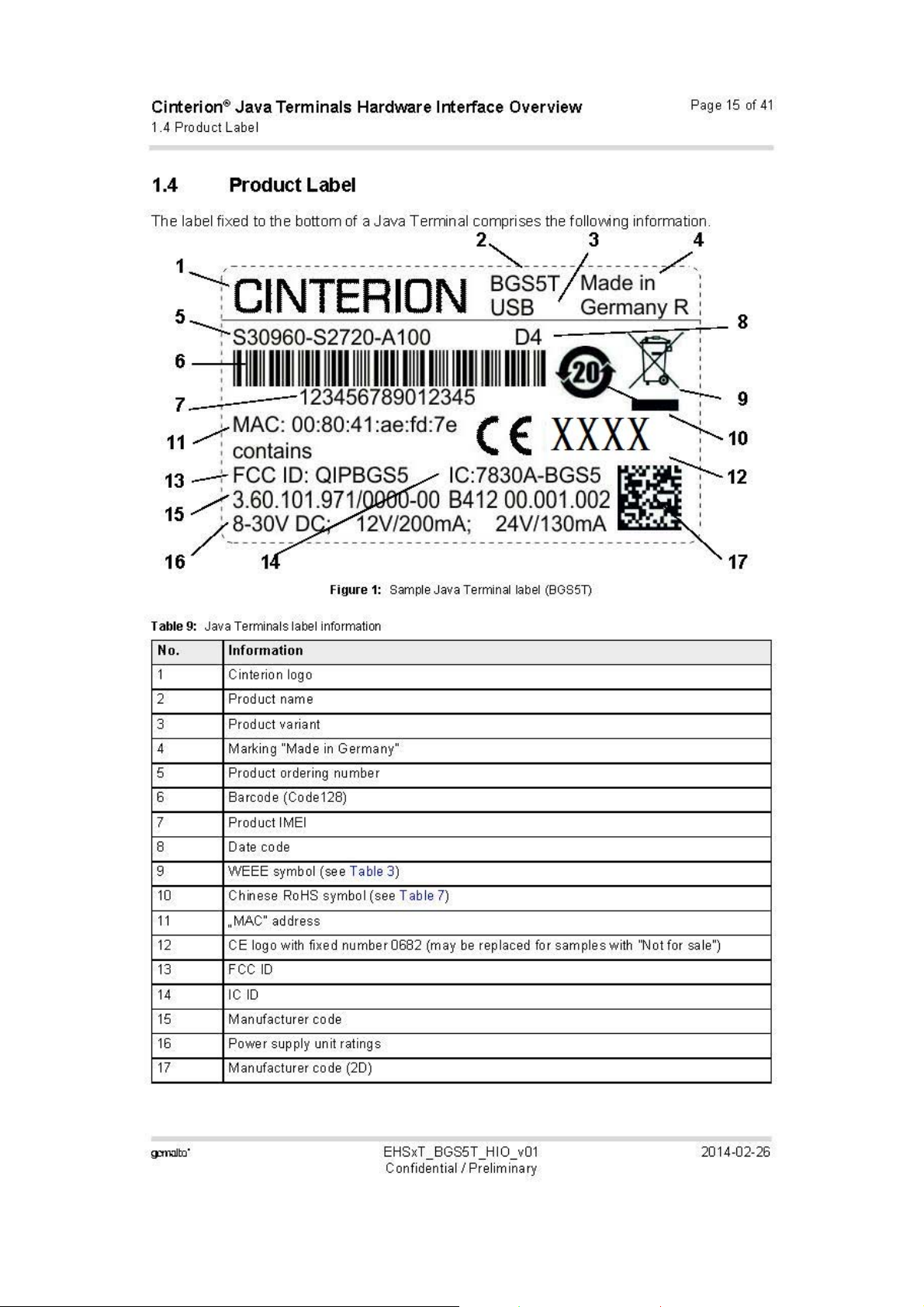

Figure 1: Sample Java Terminal label (BGS5T).............................................................15

Figure 2: Java Terminals 3D view..................................................................................19

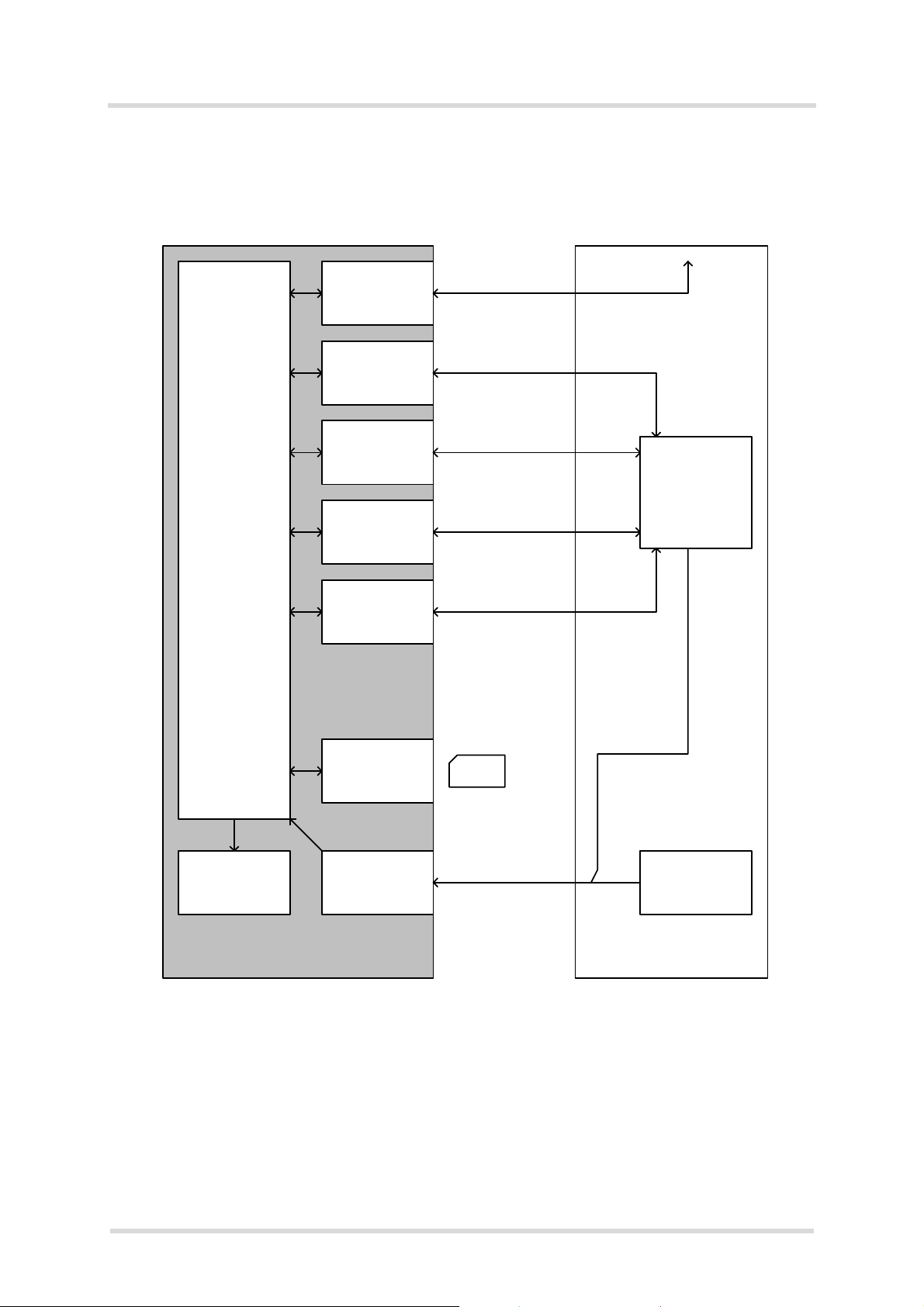

Figure 3: Block diagram .................................................................................................20

Figure 4: Pin assignment RS-232 (D-sub 9-pole female)...............................................22

Figure 5: Weidmueller connectors (8-pin and 12-pin)....................................................23

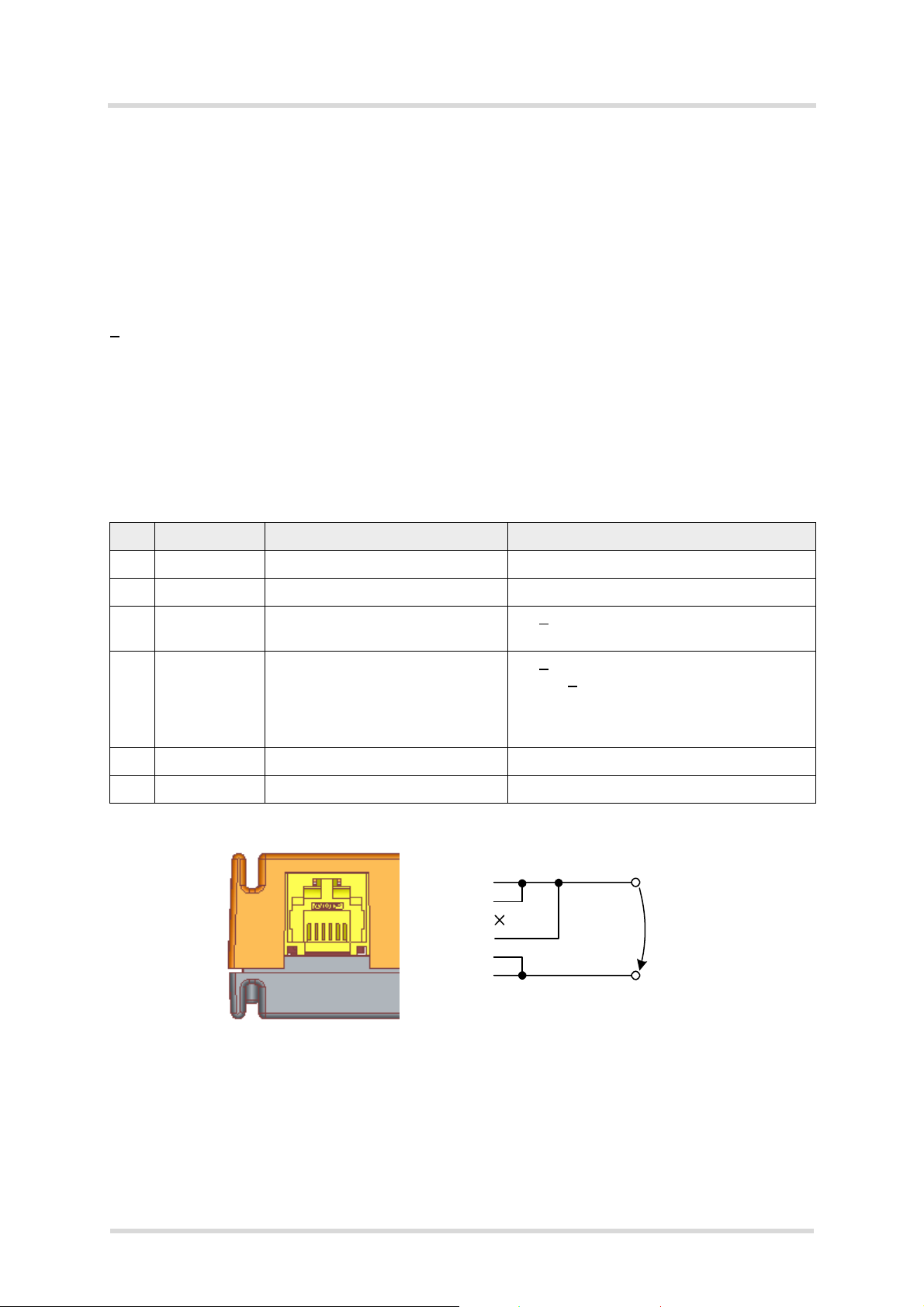

Figure 6: 6-pole Western jack for power supply, ignition, reset, typical connection.......26

Figure 7: SIM interface...................................................................................................30

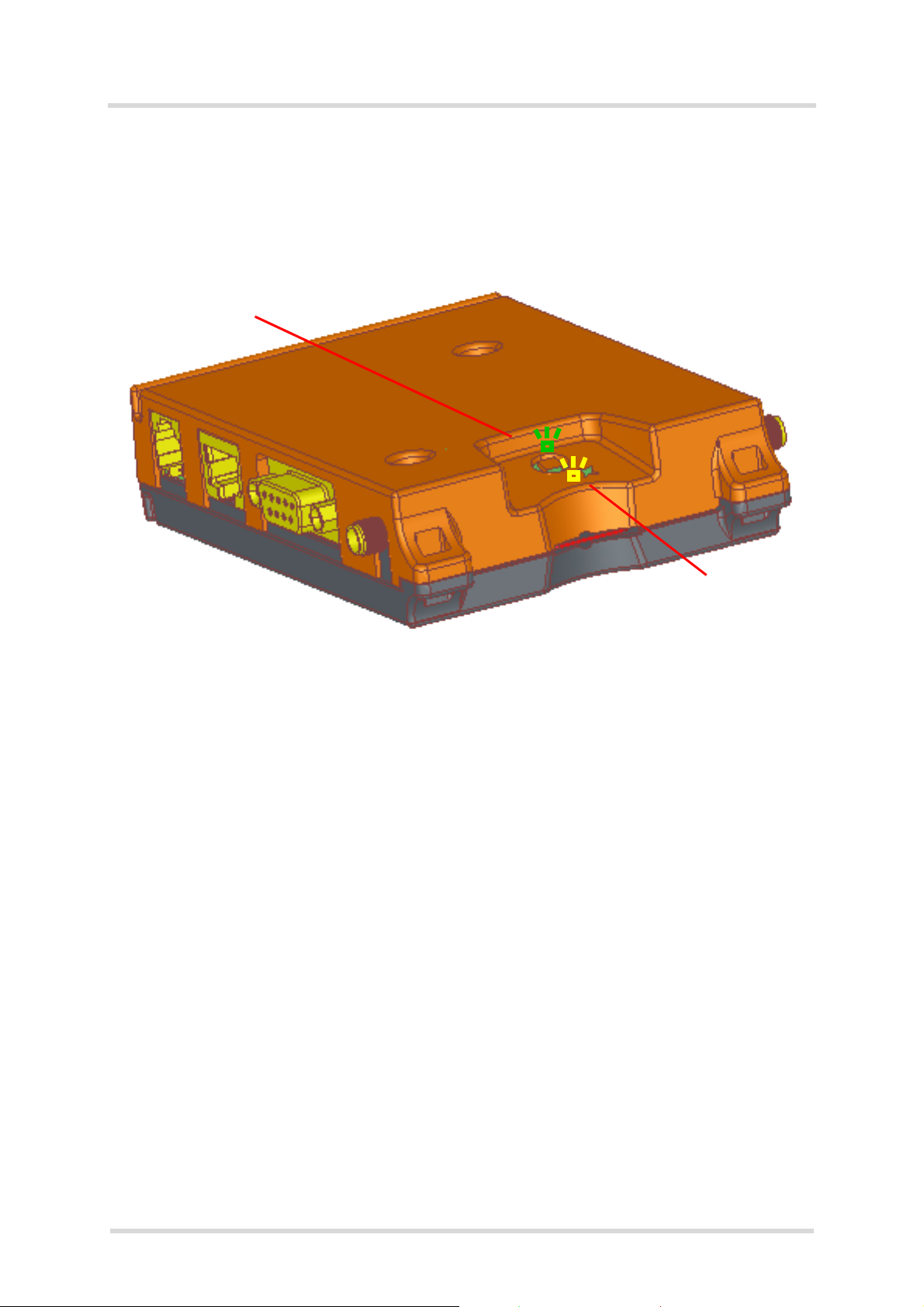

Figure 8: Status LED......................................................................................................31

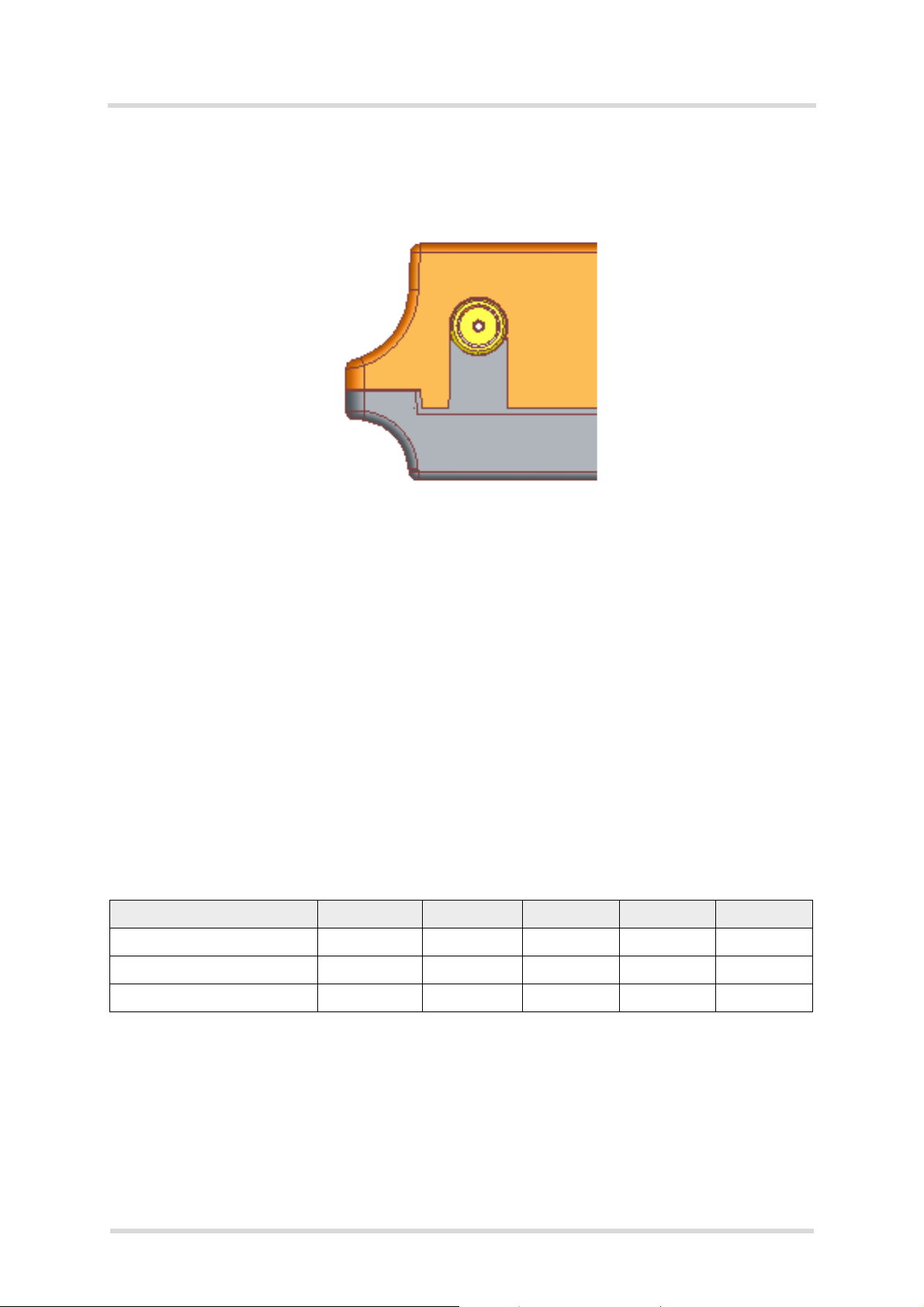

Figure 9: Antenna connector..........................................................................................32

Figure 10: Java Terminals 3D overview...........................................................................33

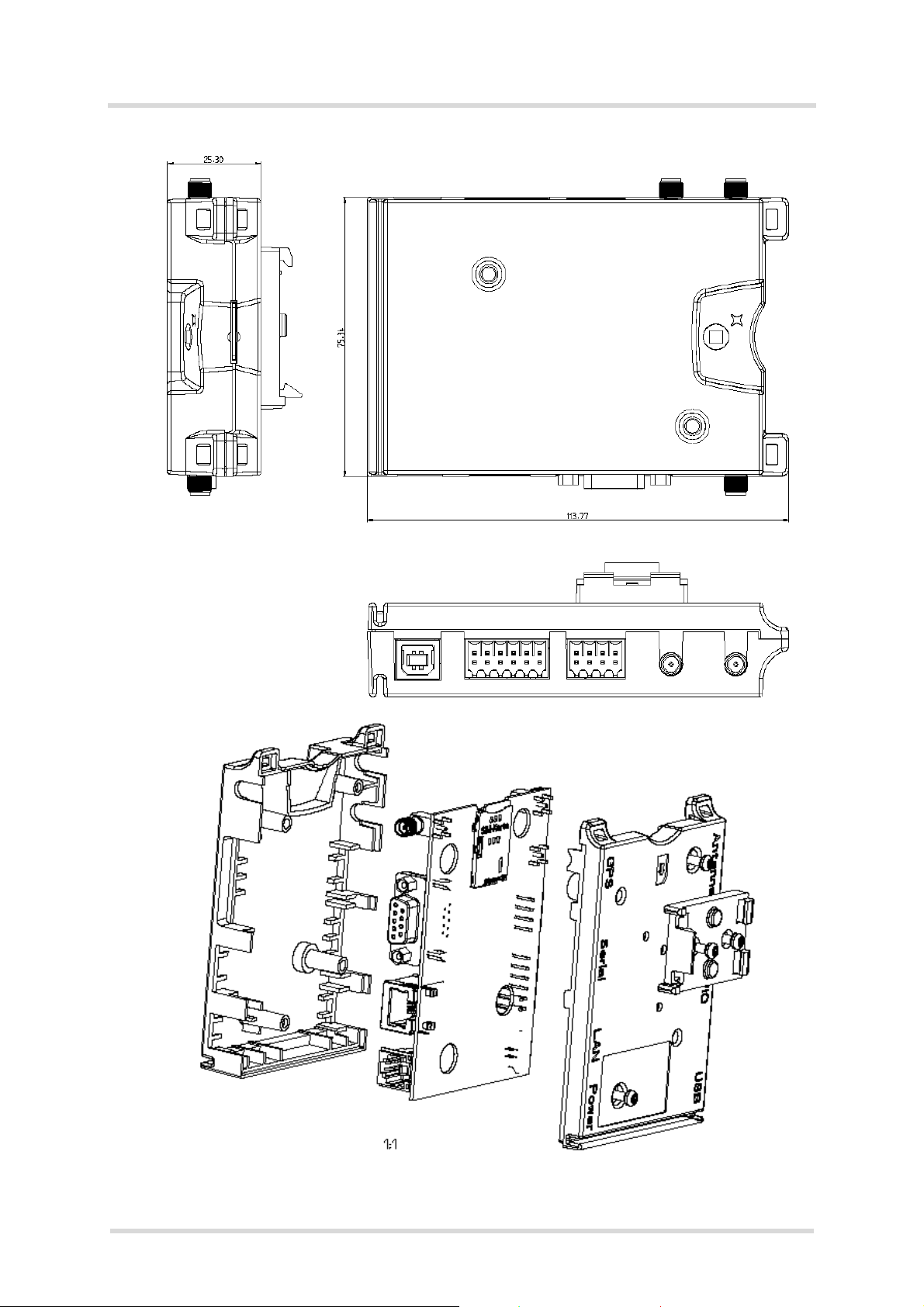

Figure 11: Java Terminals mechanical dimensions .........................................................34

Figure 12: Mounting the Java Terminals..........................................................................35

Figure 13: Reference equipment for approval..................................................................37

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

0 Document History

6

Page 6 of 41

0 Document History

New document: "Cinterion® Java Terminals Hardware Interface Overview" Version 01

Chapter What is new

--- Initial document setup.

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

1 Introduction

15

1 Introduction

Page 7 of 41

This document1 describes the hardware of the Cinterion® Java Terminals. The Java Terminals

®

come in four variants depending on the included Cinterion

module and the available interfac-

es:

• EHS5T contains a Cinterion

®

EHS5-E module and implements a USB 2.0 interface with a
USB-B connector as well as a 6-pole Western jack as plug-in power supply connector. Via
a Weidmüller GPIO connectors it also implements a RS-485 interface including power sup­ply and ignition line.

• EHS6T-USB contains a Cinterion

®

EHS6 module and implements a USB 2.0 interface with
a USB-B connector and also a V.24 / V.28 RS-232 interface with a D-sub 9-pole female
socket as well as a 6-pole Western jack as plug-in power supply connector.

• EHS6T-LAN contains a Cinterion

®

EHS6 module and implements an Ethernet interface
with a RJ45 8-pin connector and also a V.24 / V.28 RS-232 interface with a D-sub 9-pole
female socket as well as a 6-pole Western jack as plug-in power supply connector.

• BGS5T contains a Cinterion

®

BGS5 module and implements a USB 2.0 interface with a
USB-B connector and also a V.24 / V.28 RS-232 interface with a D-sub 9-pole female
socket as well as a 6-pole Western jack as plug-in power supply connector.

Wherever necessary and appropriate this document distinguishes between these four variants.

Table 1 gives a short overview of the available interfaces for the different Java Terminals.

®

Table 1: Cinterion

Java Terminals overview

Module/Interface EHS5T EHS6T-USB EHS6T-LAN BGS5T

Cinterion® module EHS5-E EHS6 EHS6 BGS5

RS-232 (Sub-D) ­USB (USB-B)  - 
Weidmüller connector

(GPIOs, SPI, I
Ethernet (RJ45) - ­Power supply (RJ11)
RF antenna   

2

C, RS-485)

 (no RS-485)  (no RS-485)  (no RS-485 ,

  



no SPI)

 -

The scope of this document includes interface specifications, electrical issues and mechanical
characteristics of Java Terminals. It specifies standards pertaining to wireless applications and
outlines requirements that must be adhered to for successful product design. The Java Termi­nals are compact GSM/UMTS modems for the transfer of data in GSM/UMTS networks. Indus­trial standard interfaces and an integrated SIM card reader allow using the Java Terminals
easily as GSM/GPRS/UMTS terminals.

1. The document is effective only if listed in the appropriate Release Notes as part of the technical
documentation delivered with your Cinterion wireless product.

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

1.1 Related Documents

15

1.1 Related Documents

[1] AT Command Set for your Java Terminal product
[2] Release Notes for your Java Terminal product

To visit the Gemalto M2M GmbH Website please use the following link:

http://m2m.gemalto.com

1.2 Terms and Abbreviations

Table 2: Terms and abbreviations

Abbreviation Description

ARP Antenna Reference Point
ATC AT Command

Page 8 of 41

BTS Base Transceiver Station
CB Cell Broadcast
CODEC Coder-Decoder
DCE Data Circuit terminating Equipment
DSR Data Set Ready
DTR Data Terminal Ready
EFR Enhanced Full Rate
EGSM Enhanced GSM
EMC Electromagnetic Compatibility
ESD Electrostatic Discharge
ETS European Telecommunication Standard
FDMA Frequency Division Multiple Access
G.C.F. GSM Conformity Forum
GSM Global Standard for Mobile Communication
HW Hardware
IC Integrated Circuit
IF Intermediate Frequency
IMEI International Mobile Equipment Identifier
I/O Input/ Output
IGT Ignition
ISO International Standards Organization
ITU International Telecommunications Union
kbps kbits per second
LVD Low voltage Directive

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

1.2 Terms and Abbreviations

15

Table 2: Terms and abbreviations

Abbreviation Description

Mbps Mbits per second
MMI Machine Machine Interface
MO Mobile Originated
MS Mobile Station
MT Mob ile Te rm in at ed
NC Not Connected
NTC Negative Temperature Coefficient
PA Power Amplifier
PCB Printed Circuit Board
PCM Pulse Code Modulation
PCS Personal Communication System
PD Power Down

Page 9 of 41

PDU Protocol Data Unit
R&TTE Radio and Telecommunication Terminal Equipment
RF Radio frequency
RI Ring Indication
RX Receive direction
SIM Subscriber Identification Module
SMS Short Message Service
SW Software
TDD Time Division Duplex
TDMA Time Division Multiple Access
TX Transmit direction
UART Universal Asynchronous Receiver and Transmitter

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

1.3 Regulatory and Type Approval Information

15

Table 5: Standards of European type approval

Page 11 of 41

ETSI EN 301 489-1
V1.9.2

ETSI EN 301 489-7
V1.3.1

ETSI EN 301 489-24
V1.5.1

ETSI EN 301 908-01
V5.2.1

ETSI EN 301 908-02
V5.2.1

EN 62311-2008 Assessment of electronic and electrical equipment related to human expo-

Candidate Harmonized European Standard (Telecom munications serie s)
Electro Magnetic Compatibility and Radio spectrum Matters (ERM); Elec­tro Magnetic Compatibility (EMC) standard for radio equipment and ser­vices; Part 1: Common Technical Requirements

Candidate Harmonized European Standard (Telecom munications serie s)
Electro Magnetic Compatibility and Radio spectrum Matters (ERM); Elec­tro Magnetic Compatibility (EMC) standard for radio equipment and ser­vices; Part 7: Specific conditions for mobile and portable radio and
ancillary equipment of digital cellular radio telecommunications systems
(GSM and DCS)

Electromagnetic Compatibility and Radio spectrum Matters (ERM); Elec­tromagnetic Compatibility (EMC) standard for radio equipment and ser­vices; Part 24: Specific conditions for IMT-2000 CDMA Direct Spread
(UTRA) for Mobile and portable (UE) radio and ancillary equipment

Electromagnetic compatibility and Radio spectrum Matters (ERM); Base
Stations (BS) and User Equipment (UE) for IMT-2000 Third Generation
cellular networks; Part 1: Harmonized EN for IMT-2000, introduction and
common requirements of article 3.2 of the R&T TE Direc tive

Electromagnetic compatibility and Radio spectrum Matters (ERM); Base
Stations (BS) and User Equipment (UE) for IMT-2000 Third Generation
cellular networks; Part 2: Harmonized EN for IMT-2000, CDMA Direct
Spread (UTRA FDD) (UE) covering essential requirements of article 3.2 of
the R&TTE Directive

sure restrictions for electromagnetic fields (0 Hz - 300 GHz)

EN 60950-1 (2006)+
A11:2009+A1:2010+
AC:2011+A12:2011

Table 6: Requirements of quality

IEC 60068 Enviro nm e nt al te stin g
DIN EN 60529 IP codes

Safety of information technology equipment

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

1.3 Regulatory and Type Approval Information

15

Table 7: Standards of the Ministry of Information Industry of the People’s Republic of China

SJ/T 11363-2006 “Requirements for Concentration Limits for Certain Hazardous Sub-

stances in Electronic Information Products” (2006-06).

SJ/T 11364-2006 “Marking for Control of Pollution Caused by Electronic

Information Products” (2006-06).
According to the “Chinese Administration on the Control

of Pollution caused by Electronic Information Products”
(ACPEIP) the EPUP, i.e., Environmental Protection Use
Period, of this product is 20 years as per the symbol
shown here, unless otherwise marked. The EPUP is valid only as long as
the product is operated within the operating limits described in the Hard­ware Interface Description.

Please see Table 1.3.2 for an overview of toxic or hazardous substances
or elements that might be contained in product parts in concentrations
above the limits defined by SJ/T 11363-2006.

Page 12 of 41

Table 8: Toxic or hazardous substances or elements with defined concentration limits

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

1.3 Regulatory and Type Approval Information

15

Page 13 of 41

1.3.2 Safety Precautions

The following safety precautions must be observed during all phases of the operation, usage,
service or repair of any cellular terminal or mobile incorporating Java Terminals. Manufacturers
of the cellular terminal are advised to convey the following safety information to users and op­erating personnel and incorporate these guidelines into all manuals supplied with the product.
Failure to comply with these precautions violates safety standards of design, manufacture and
intended use of the product. Cinterion Wireless Modules GmbH assumes no liability for cus­tomer’s failure to comply with these precautions.

When in hospitals or other health care facilities, observe the restrictions on the use
of mobiles. Switch off the cellular terminal or mobile if to be instructed to do so by
the guidelines posted in sensitive areas. Medical equipment may b e sensitive to RF
energy.

The operation of cardiac pacemakers, other implanted medical equipment and
hearing aids can be affected by interference from cellular terminals or mobiles
placed close to the device. If in doubt about potential danger, conta ct the physician
or the manufacturer of the device to verify that the equipment is properly shielded.
Pacemaker patients are advised to keep their hand-held mobile away from the
pacemaker, while it is on. This personal subgroup always should check the distance
to the mobile.

Switch off the cellular terminal or mobile before boarding an aircraft. Make sure it
cannot be switched on inadvertently. The operation o f wireless appliances in an air­craft is forbidden to prevent interference with communications systems. Failure to
observe these instructions may lead to the suspension or denial of cellular services
to the offender, legal action, or both.

Check the local and actual laws about these themes.
Do not operate the cellular terminal or mobile in the presence of flammable gases

or fumes. Switch off the cellular terminal when you are near petrol stations, fuel
depots, chemical plants or where b las ting ope ratio ns ar e in pr ogre ss. Op erat ion of
any electrical equipment in potentially explosive atmospheres can constitute a
safety hazard.

Your cellular terminal or mobile receives and transmits radio frequency energy wh ile
switched on. Remember that interference can occur if it is used close to TV sets,
radios, computers or inadequately shielded equipment. Follow any special regula­tions and always switch off th e cellular terminal or mobile whereve r forbidden, or
when you suspect that it may cause interference or danger.

Road safety comes first! Do not use a hand-held cellular terminal or mobile while
driving a vehicle unless it is securely mounted in a holder for speakerphone opera­tion. Before making a call with a hand-held terminal or mobile park the vehicle.
Speakerphones must be installed by qualified personnel. Faulty installation or oper­ation can constitute a safety hazard.

Check the actual and local laws about these themes.

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

1.3 Regulatory and Type Approval Information

15

IMPORTANT!
Cellular terminals or mobiles operate using radio signals and cellular networks. In
that case connections cannot be guarante ed at all times under all conditions. There­fore, you should never rely solely upon any wireless device for essential communi­cations, for example emergency calls.

Remember, in order to make calls or receive calls the cellular terminal or mobile
must be switched on in a service area with adequate cellular signal strength.

Some networks do not allow for emergency calls if certain network services or
phone features are in use (e.g. lock functions, fixed dialing etc.). You may need to
deactivate those features before you can make an emergency call.
Some networks require a valid SIM card to be properly inserted in the cellular ter­minal or mobile.

If a power supply unit is used to supply the device it must meet the demands placed
on SELV circuits in accordance with EN60950. The maximum permissible connec­tion length between the device and the supply source should not exceed 3m.

According to the guidelines for human exposure to radio frequency energy, an
antenna connected to the FME jack of the device should be placed at least 20cm
away from human bodies.

Page 14 of 41

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

2 Product Concept

18

2 Product Concept

2.1 Key Features at a Glance

Feature Implementation

General
Incorporates Cinterion

Java module

Frequency bands EHS5T (with EHS5-E module):

®

The Java module handles all signal and data processing within the Java
Terminals. Internal software runs the application interface and the compl ete
GSM/GPRS protocol stack.

GSM/GPRS/EDGE: Dual band GSM 900/1800MHz
UMTS/HSPA+: Dual band UMTS 900/2100MHz

EHS6T-USB (with EHS6 module):

GSM/GPRS/EDGE: Quad band 850/900/1800/1900MHz
UMTS/HSPA+: Five band 800/850/900/1900/2100MHz

EHS6T-LAN (with EHS6 module):

GSM/GPRS/EDGE: Quad band 850/900/1800/1900MHz
UMTS/HSPA+: Five band 800/850/900/1900/2100MHz

BGS5T (with BGS5 module):

Quad band GSM 850/900/1800/1900MHz

Page 16 of 41

GSM class Small MS
Output power (according

to Release 99, V5)
depending on frequency
band supported by mod­ule

Power supply Single supply voltage 8V to 30V
Operating temperature

(EHS5T, EHS6T-USB,
BGS5T only)

Class 4 (+33dBm ±2dB) for EGSM850
Class 4 (+33dBm ±2dB) for EGSM900
Class 1 (+30dBm ±2dB) for GSM1800
Class 1 (+30dBm ±2dB) for GSM1900
Class E2 (+27dBm ± 3dB) for GSM 850 8-PSK
Class E2 (+27dBm ± 3dB) for GSM 900 8-PSK
Class E2 (+26dBm +3 /-4dB) for GSM 1800 8-PSK
Class E2 (+26dBm +3 /-4dB) for GSM 1900 8-PSK
Class 3 (+24dBm +1/-3dB) for UMTS 2100, WCDMA FDD BdI
Class 3 (+24dBm +1/-3dB) for UMTS 1900,WCDMA FDD BdII
Class 3 (+24dBm +1/-3dB) for UMTS 900, WCDMA FDD BdVIII
Class 3 (+24dBm +1/-3dB) for UMTS 850, WCDMA FDD BdV
Class 3 (+24dBm +1/-3dB) for UMTS 800, WCDMA FDD BdVI

The values stated above are maximum limits. According to Release 99, the
maximum output power in a multislot configuration may be lower. The nom­inal reduction of maximum output power varies with the number of uplink
timeslots used and amounts to 3.0dB for 2Tx.

Normal operation: -30°C to +85°C
Extended operation: -40°C to -30°C and +85°C to +90°C

Operating temperature
(EHS6T-LAN only)

Physical Dimensions: 113.5mm x 75mm x 25.5mm

RoHS, WEEE All hardware components are fully compliant with the EU RoHS and WEEE

 EHSxT_BGS5T_HIO_v01 2014-02-26

Normal operation: TBD.
Extended operation: TBD.

(excluding antenna and serial interface connectors)
Weight: 120g (approx.)

Directives

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

2.1 Key Features at a Glance

18

Feature Implementation

HSPA features

Page 17 of 41

3GPP Release 6,7
(EHSxT only)

UMTS features
3GPP Release 4

(EHSxT only)

GSM / GPRS features
Data transfer GPRS:

DL 7.2Mbps, UL 5.7Mbps
HSDPA Cat.8 / HSUPA Cat.6 data rates
Compressed mode (CM) supported according to 3GPP TS25.212

PS data rate – 384 kbps DL / 384 kbps UL
CS data rate – 64 kbps DL / 64 kbps UL

• Multislot Class 12

• Full PBCCH support

• Mobile Station Class B

• Coding Scheme 1 – 4
EGPRS (EHSxT only):

• Multislot Class 12

• EDGE E2 power class for 8 PSK

• Downlink coding schemes – CS 1-4, MCS 1-9

• Uplink coding schemes – CS 1-4, MCS 1-9

• SRB loopback and test mode B

• 8-bit, 11-bit RACH

• PBCCH support

• 1 phase/2 phase access procedures

• Link adaptation and IR

• NACC, extended UL TBF

• Mobile Station Class B
CSD:

• V.110, RLP, non-transparent

• 2.4, 4.8, 9.6, 14.4kbps

• USSD

SMS • Point-to-point MT and MO

• Cell broadcast

• Text and PDU mode

•
Software
AT commands Hayes 3GPP TS 27.007, TS 27.005, Gemalto M2M
Java™ Open Platform Java™ Open Platform with

• Java™ profile IMP-NG & CLDC 1.1 HI

• Secure data transmission via HTTPS/SSL

• Multi-threading programming and multi-application execution

Major benefits: seamless integration into Java applications, ease of pro­gramming, no need for application microcontroller, extremely cost- efficient
hardware and software design – ideal platform for industrial GSM applica­tions.

The memory space available for Java programs is around 8 MB in the flash
file system and around 6MB RAM. Application code and data share the
space in the flash file system and in RAM.

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

2.1 Key Features at a Glance

18

Feature Implementation

SIM Application Toolkit SAT Release 99
TCP/IP stack Protocols: TCP server/client, UDP, HTTP, FTP, SMTP, POP3

Access by AT commands

Firmware update Upgradeable via serial or USB interface

Interfaces
USB interfaces USB 2.0 Slave interface
RS232 RS-232 interface for AT commands and data:

• Supports RTS/CTS hardware handshake

• Supports software XON/XOFF flow control

• Multiplex ability according to GSM 07.10 Multiplexer protocol

• Baud rates from 1200bps to 230400bps

• Autobauding supported

Weidmueller connector 20-pin (8-pin and 12-pin) header with GPIO interface, external power sup-

ply, ADC, SPI, I²C and RS-485 option

Page 18 of 41

Ethernet TBD.
Power connector 6-pole Western connector (f emale) for power supply, igni tion, power do wn

signal
SIM card reader Supported SIM cards: 3V, 1.8V
Antenna Antenna connected via female SMA connector

Power on/off, Reset
Power on DTR line at RS-232 interface, IGT_IN line at power connector
Power off Normal switch-off by AT^SMSO or external On/Off push button

Automatic switch-off in case of critical temperature conditions
Reset Orderly shutdown and reset by AT command

Emergency restart via RST_IN line at power connector

Special features
Real time clock Timer functions via AT commands
Phonebook SIM card and terminal

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

GPS antenna SMA connector

D-sub socket (RS-232 interface)

Western jack

USB connector

20-pin Weidmueller connector

SIM card reader

SIM card reader

(optional, for future use)

RJ45 Ethernet connector

(8-pin and 12-pin)

RF antenna SMA connector

Rx diversity antenna SMA connector

(optional, for future use)

(EHS6T-LAN only)

(not for EHS6T-LAN)

(not for EHS5T)

3 Interface Description

32

Page 19 of 41

3 Interface Description

3.1 Overview

Java Terminals provide the following interfaces for power supply, antenna, SI M card and data
transfer:

• 6-pin Western connector (female) for power supply, ignition, power down signal

• SMA antenna connectors (female) for RF antenna and future Rx diversity or GPS antennas

• SIM card reader

• 9-pin (female) D-sub connector (RS-232 interface)

• 4-pin (female) USB-B connector

• 12-pin and 8-pin Weidmueller GPIO connectors (including RS-485)

• 8-pin (female) RJ45 Ethernet connector

 EHSxT_BGS5T_HIO_v01 2014-02-26

Figure 2: Java Terminals 3D view

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

Java Terminal

Java

module

RS-232

driver

USB

SIM card
interface

Power regulation

RF antenna

interface

LEDs

RF antenna interface

Host

controller

Power supply

External application

Power supply

SIM

card

Antenna

IGT_IN

RST_IN

Weidmueller

GPIO

driver/interface

Ethernet
interface

EHS6T-LAN only

Not for EHS6T-LAN

Not for EHS5T

Page 20 of 41

3.2 Block Diagram

32

3.2 Block Diagram

Figure 3 shows a block diagram of a sample configuration that incorporates a Java Terminal

and typical accessories.

Figure 3: Block diagram

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

3.3 Operating Modes

32

Page 21 of 41

3.3 Operating Modes

The table below briefly summarizes the various operating modes referred to in the following
chapters.

Table 10: Overview of operating modes

Normal operation GSM IDLE Software is active. Once registered to the GSM network

paging with BTS is carried out. The Terminal is ready to
send and receive.

GSM TALK
GSM DATA

GPRS / UMTS / HSPA
IDLE

GPRS DATA GPRS data transfer in progress. Power consumption

EGPRS DATA
(EHSxT only)

UMTS TALK
UMTS DATA
(EHSxT only)

HSPA DATA
(EHSxT only)

Connection between two subscribers is in progress.
Power consumption depends on network coverage indi­vidual settings, such as DTX off/on, FR/EFR/HR, hop­ping sequences, antenna.

Terminal is ready for GPRS data transfer, but no data is
currently sent or received. Power consumption depends
on network settings and GPRS configuration (e.g. mul­tislot settings).

depends on network settings (e.g. power control level),
uplink / downlink data rates, GPRS configuration (e.g.
used multislot settings) and reduction of maximum out­put power.

EGPRS data transfer in progress. Power consumption
depends on network settings (e.g. power control level),
uplink / downlink data rates, EGPRS configuration (e.g.
used multislot settings) and reduction of maximum out­put power.

UMTS data transfer in progress. Power consumption
depends on network settings (e.g. TPC Pattern) an d data
transfer rate.

HSPA data transfer in progress. Power consumption
depends on network settings (e.g. TPC Pattern) an d data
transfer rate.

POWER DOWN Normal shutdown after sending the AT^SMSO command.

The RTC works continuously, but the software is not activ e. Interfaces are not
accessible.

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

12345

6789

3.4 RS-232 Interface

32

Page 22 of 41

3.4 RS-232 Interface

The RS-232 interface is not available for EHS5T. The interface is implemented as a serial asyn­chronous transmitter and receiver conforming to ITU-T V.24 Interchange Circuits DCE. It is
configured for 8 data bits, no parity and 1 stop bit, and can be operated at bit rates from
1200bps to 921kbps. Autobauding supports bit rates from 1.2kbps to 230kbps.

For more information see also Section 3.4.1.

3.4.1 9-Pole D-sub Connector

Via RS-232 interface, the host controller controls the Java Terminals and transports data.

Figure 4: Pin assignment RS-232 (D-sub 9-pole female)

Table 11: 9-pole D-sub (female) RS-232

Pin no. Signal name I/O Function

1 DCD O Data Carrier Detected
2RXD OReceive Data
3 TXD I Transmit Data
4 DTR I Data Terminal Ready

Attention: The ignition of Java Terminals is activated via a rising

edge of high potential (+3 ... +15 V)
5 GND - Ground
6 DSR O Data Set Ready
7 RTS I Request To Send
8 CTS O Clear To Send
9 RING O Ring Indication

Java Terminals are designed for use as a DCE. Based on the conventions for DCE-DTE con­nections it communicates with the customer application (DTE) using the following signals:

• Port TxD @ application sends data to TXD of the Java Terminals

• Port RxD @ application receives data from RXD of the Java Terminals
Hardware handshake using the RTS and CTS signals and XON/XOFF software flow control

are supported.

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

1234 1 2 3 4 5 6

GPIO6 GPIO7 GPIO8 GPIO11 VCCref GND TXD1/

SPI_MISO

RXD1/
SPI_MOSI

CTS1
(RS232)/
A+
(RS485)/
SPI_CS

RTS1
(RS232/
B­(RS485)

5678 7 8 9 10 1112

GPIO12 GPIO13 GPIO14 GPIO15 +5Vout DSR0/

ADC1_IN/
SPI_CLK

I2CDAT I2CCLK GPIO20 GPIO21

3.5 USB Interface

32

Page 23 of 41

In addition, the modem control signals DTR, DSR, DCD and RING are available. The modem
control signal RING (Ring Indication) can be used to indicate, to the cellular device application,
that a call or Unsolicited Result Code (URC) is received. There are different modes of opera­tion, which can be set with AT commands.

Note: The DTR signal will only be polled once per second from the internal firmware of Java
Terminals.

3.5 USB Interface

The USB interface is not available for EHS6T-LAN. The other Java Terminals support a USB

2.0 High Speed (480Mbit/s) device interface that is Full Speed (12Mbit/s) compliant.
The USB interface can be used as command and data interface and for downloading firmware.

It is only available as a slave device and not able to act as a USB host.

3.6 Weidmueller GPIO Interface

The Weidmueller connectors provide access to various module signals including a number of
configurable GPIOs.

 EHSxT_BGS5T_HIO_v01 2014-02-26

Figure 5: Weidmueller connectors (8-pin and 12-pin)

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

3.6 Weidmueller GPIO Interface

32

Page 24 of 41

The following Table 12 shows the availablility of the Weidmueller pins for vario us Java Terminal
variants.

Table 12: Weidmueller pin availability

PIN Signal Comment EHS5T EHS6T-

USB

8-pin connector
1 GPIO6 Configurable via AT command,

also as PWM2 signal

2 GPIO7 Configurable via AT command,

also as PWM1 signal

3 GPIO8 Configurable via AT command,

also as COUNTER signal
4 GPIO11 Configurable via AT command - ­5 GPIO12 Configurable via AT command ­6 GPIO13 Configurable via AT command ­7 GPIO14 Configurable via AT command ­8 GPIO15 Configurable via AT command ­12-pin connector
1 VCCref Input supply for level converter to

specify external power level

(e.g., connect +5Vout for 5V

power level)

  

  

  

­­­-

  

EHS6T­LAN

BGS5T

2GND   
3 TXD1 Configurable via AT command,

also as SPI_MISO signa
4 RXD1 Configurable via AT command,

also as SPI_MOSI signal
5CTS1

or
A+

6RTS1

or
B-

7 +5Vout External power supply up to

8 DSR0 or

ADC1_IN or
SPI_CLK

9 I2CDAT I2C interface 
10 I2CCLK I

11 GPIO20 Configurable via AT command   
12 GPIO21 Configurable via AT command   

Either CTS1 (for RS-232) or

SPI_CS or A+ (for RS-485)

depending on product variant

Either RTS1 (for RS-232) or B-

(for RS-485) depending on prod-

uct variant

100mA, usable as VCCref input

Configurable via AT command   

2

C interface   

 



(no SPI)

  

(no SPI)

A+ CTS1 CTS1 CTS1

(no SPI)

B- RTS1 RTS1 RTS1

  

(no SPI)

 



Please refer to the respective “AT Command Set“ for details on how to configure th e GPIO pins.

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

3.7 Ethernet Interface

32

Page 25 of 41

EHS5T‘s RS-485 interface is based on the TIA/EIA-485 standard defining electrical character­istics of drivers and receivers for use in balanced multidrop communication systems. RS-485
is used in a lot of different fieldbus systems like Profibus, Interbus, Modbus and P-net.

RS-485 uses a shielded twisted pair cable where the shield is used as ground return, and the
inner pairs are used for balanced communication. The two conductors in each pair are called
A and B. RS-485 is usually half-duplex.

Data transmission speed depends on the length of the RS-485 bus cable and may be up to
115kbps.

3.7 Ethernet Interface

TBD.

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

Pin assignmment and typical connection:

1 PLUS
2 PLUS
3 RST_IN
4 IGT_IN
5 GND
6 GND

V

PLUS

DC

6 5 4 3 2 1

3.8 Power Supply

32

3.8 Power Supply

Page 26 of 41

The power supply of the Java Terminals has to be a single voltage source of V

=8V…30V

PLUS

capable of providing a peak current (pulsed 2x577ms at T=4.615ms) of about TBD.A at 12V
during an active transmission. The uplink burst causes strong ripple (drop) on the power lines.
The drop voltage should not exceed 1V, but the absolute min imum volt age during drops must
be >7.6V.

The Java Terminals are protected from supply voltage reversal. An external fast acting fuse
>

0.4A with melting integral I2t (0.15 … 0.25)A2s is necessary to use the Java Terminals at a

12V or 24V unlimited power supply system.
The power supply must be compliant with the EN60950 guidelines. A switching regulator reg-

ulates the input voltage for the internal supply.
When power fails for >1ms, Java Terminals reset or switch off. When power fails for >15s the

RTC will be reset.

Table 13: Female 6-pole Western plug for power supply, ignition, power down

Pin Signal name Use Parameters

1 PLUS Power supply 8V – 30V DC, max. 33V for 1 min
2 PLUS Power supply 8V – 30V DC, max. 33V for 1 min
3 RST_IN Signal for module reset U

4 IGT_IN Ignition U

> 8V for t>10ms resets the terminal.

IH

U

<2V and low level for normal operation.

IL

>8V

IH

Ignition >

8V for more than 200ms switches
the Java Terminals on. Ignition is activated
only by a rising edge. The rise time is
<20ms

5 GND Ground 0V
6 GND Ground 0V

Figure 6: 6-pole Western jack for power supply, ignition, reset, typical connection

Mains adapter: If it fits into the design of your application we recommend the plug-in supply unit
used with the type approved Gemalto M2M reference setup. Ordering information can be found
in Chapter 6. This 12V mains adapter comes with a 6-pole Western plug and provides an inter­nal connection between IGT_IN pin and PLUS pin for auto ignition (power up).

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

3.8 Power Supply

32

Page 27 of 41

3.8.1 Turn Java Terminals on

Java Terminals are turned on by plugging an appropriate power supply unit between PLUS and
GND of the 6-pole Western jack.

While the RST_IN pin (pin 3) is not active (voltage <2V) you can start the Java Terminals by
activating the RS-232 DTR line if in POWER DOWN mode.

The IGT_IN signal (pin 4) may be used to switch on Java Terminals if in POWER DOWN mode.
After startup of the Java Terminals the RS-232 lines are in an undefined state for approx.

900ms. This may cause undefined characters to be transmitted over the RS-232 lines during
this period.

3.8.2 Reset Java Terminals

An easy way to reset the Java Terminals is enterin g the comman d AT+CFUN=x,1. Fo r details
on AT+CFUN please see [1].

As an alternative, you can shut down the Java Terminals as described in Section 3.8.3 and then
restart it as described in Section 3.8.1.

3.8.3 Turn Java Terminals off

Normal shutdown:

• To turn off the Java Terminals use the AT^SMSO command, rather than disconnecting the
mains adapter.
This procedure lets the Java Terminals log off from the network and allows the software to
enter a secure state and save data before disconnecting the power supply. After AT^SMSO
has been entered the Java Terminals returns the following result codes:

^SMSO: MS OFF
OK
^SHUTDOWN

The "^SHUTDOWN" result code indicates that the Java Terminals turns off in less than
1 second. After the shutdown procedure is complete the Java Terminals enters the
POWER DOWN mode. The yellow LED stops flashing (see Section 3.12 for a detailed LED
description). The RTC is still fed from the voltage regulator in the power supply ASIC.
Please note that if there is an auto ignition connection between PLUS and IGT_IN the mod­ule will restart automatically after a normal shutdown.

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

3.8 Power Supply

32

Page 28 of 41

Emergency restart:

• In the event of software hang-ups etc. the Java Terminals can be restarted by applying a
voltage >8V to the RST_IN pin (pin 3) for more than 10ms.
The RST_IN signal restarts the Java Terminals.

Caution: Use the RST_IN pin only when, due to serious problems, the software is not
responding for more than 5 seconds. Pulling the RST_IN pin causes the loss of all informa­tion stored in the volatile memory since power is cut off immediately. Therefore, this proce­dure is intended only for use in case of emergency, e.g. if Java Terminals fails to shut down
properly.

When the Java Terminals enter the Power Down mode, e.g., after you have issued the
AT^SMSO command or activated the RST_IN signal, all RS-232 interface lines are active for
a period of 50ms to max. 3.5s. This may cause undefined characters to be transmitted on the
RS-232 lines which can be ignored.

3.8.4 Disconnecting power supply

Before disconnecting the power supply from the PLUS pin, make sure that the Java Terminals
are in a safe condition. The best way is to wait 1s after the "^SHUTDOWN" result code has
been indicated.

11

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

3.9 Automatic thermal shutdown

32

Page 29 of 41

3.9 Automatic thermal shutdown

An on-board NTC measures the temperature of the built-in BGS2 module. If over- or undertem­perature is detected on the module the Java Terminals automatically shut down to avoid ther­mal damage to the system. Table 17 specifies the ambient temperature threshold for the Java
Terminals.

The automatic shutdown procedure is equivalent to the power-down initiated with the
AT^SMSO command, i.e. Java Terminals log off from the network and the software enters a
secure state avoiding loss of data. In IDLE mode it takes typically one minute to deregister from
the network and to switch off.

Alert messages transmitted before the Java Terminals switch off are implemented as Unsolic­ited Result codes (URCs). For details see the description of AT^SCTM command provided in

[1].

Thermal shutdown will be deferred if a critical temperature limit is exceeded, while an emer­gency call or a call to a predefined phone number is in progress, or during a two minute guard
period after power up. See [1] for details.

3.10 RTC

The internal Real Time Clock (RTC) of the Java Terminals retain the time and date and handle
the alarm (reminder) function. The AT+CCLK command serves to set the time and date, and
AT+CALA specifies a reminder message. See [1] for details.

A dedicated voltage regulator backs up the RTC even in POWER DOWN mode and enables
Java Terminals to keep track of time and date.

However, please note that the Alarm mode described in [1], Section AT+CALA, is not intended
for the Java Terminals. The AT+CALA command can only be used to set a reminder message,
but not to configure the mobile to wake up from POWER DOWN mode into Alarm mode. There­fore, after setting a timer with AT+CALA be sure not to shut down the Java Terminals by
AT^SMSO or RST_IN signal.

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

SIM inserted

3.11 SIM Interface

32

Page 30 of 41

3.11 SIM Interface

The SIM interface is intended for 1.8V and 3V SIM cards in accordance with GSM 11.12 Phase

2. The card holder is a five wire interface according to GSM 11.11. A sixth pin has been added

to detect whether or not a SIM card is inserted.

Figure 7: SIM interface

The SIM - with the circuit side facing upwards - is inserted by gently pushing it into the SIM card
holder until it snaps hold. It is now protected from accidental removal. The SIM can be removed
from the card holder by using a flat object such as a screwdriver to carefully press the inserted
SIM until it snaps out again.

All signals of the SIM interface are protected from electrostatic discharge with spark gaps to
GND and clamp diodes to 1.8V resp. 2.9V and GND.

Removing and inserting the SIM card during operation requires the software to be reinitialized.
Therefore, after reinserting the SIM card it is necessary to restart Java Terminals.

Note: No guarantee can be given, nor any liability accepted, if loss of data is encountered after
removing the SIM card during operation. Also, no guarantee can be given for properly initializ­ing any SIM card that the user inserts after having removed a SIM card during operation. I n this
case, the application must restart the Java Terminals.

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

Green LED

(Power on/off)

Yellow LED
(Network status)

3.12 Status LEDs

32

Page 31 of 41

3.12 Status LEDs

Java Terminals have two LEDs indicating its operating states through the semitransparent cas­ing:

• A green LED indicates whether the Java Terminals are ready to operate.

• A yellow LED indicates the network registration state of the Java Terminals.

The yellow LED is driven by a line of the integrated module that can be configured by using the
AT^SLED command to either light permanently or to flash. For details on the AT command
please refer to [1].

Figure 8: Status LED

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

3.13 RF Antenna Interface

32

Page 32 of 41

3.13 RF Antenna Interface

An external RF antenna is connected via the Java Terminals’s female SMA connector that is
also the antenna reference point (ARP).

Figure 9: Antenna connector

The system impedance is 50. In any case, for good RF performance, the return loss of the
customer application’s antenna should be better than 10dB (VSWR < 2). Java Terminals with­stand a total mismatch at this connector when transmitting with power control level for maxi­mum RF power.

Inside the Java module an inductor to ground provides additional ESD protection to the anten­na connector. To protect the inductor from damage no DC voltage must be applied to the an­tenna circuit.

For the application it is recommended to use an antenna with an SMA (male) connector:
Please note that the terminal should be installed and operated with a minimum distance of

20cm between the antenna connected to the terminal and any human bodies. Also, the trans­mitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The allowed maximum antenna gain (including cable loss) for stand-alone situation is given be­low in Table 14.

Table 14: Allowed maximum antenna gain (including cable loss)

Module 850MHz 900MHz 1800MHz 1900MHz 2100MHz

EHS6T-USB/EHS6-LAN 3.42dBi 4.18dBi 9.64dBi 2.51dBi 15.54dBi
BGS5T 2.15dBi 2.15dBi 2.15dBi 2.15dBi na
EHS5T na 6.10dBi 12.30dBi na 12.30dBi

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

Length: 113.5mm (including fixtures for cable straps)
Width: 75mm (excluding antenna and serial interface connectors)
Height: 25.5mm

Weight: 120g

113.5mm

75mm

25.5mm

4 Mechanics, Mounting and Packaging

36

Page 33 of 41

4 Mechanics, Mounting and Packaging

4.1 Mechanical Dimensions

Figure 10 shows a 3D view of the Java Terminal and provides an overview of the mechanical

dimensions of the board. For further details see Figure 11. To allow for an easier mechanical
implementation into an external application a set of 3D STP data for the Java Terminals is at­tached to this PDF. Please open the Attachments navigation panel to view and save these files.

Figure 10: Java Terminals 3D overview

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

4.1 Mechanical Dimensions

36

Page 34 of 41

Figure 11: Java Terminals mechanical dimensions

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

Catch to mount

Screw holes for

Screw holes

Fixtures for
cable straps

DIN rail holder

C-rail (C30)

BOPLA TSH 35-2

4.2 Mounting the Java Terminals

36

Page 35 of 41

4.2 Mounting the Java Terminals

There are a number of ways to mount the Java Terminals:

• Java Terminals can be attached to a rail installation or other surface using the two provided
screw holes.

• Java Terminals can be fastened to a rack or holding using the two provided fixtures for
cable straps.

• Java Terminals can be slid onto a specific DIN rail made according to DIN EN 60715 - C
section, C30 format. A catch at the terminal’s bottom side will have to be removed to slide
multiple terminals onto a single rail.

• Using a BOPLA TSH 35-2 universal DIN rail holder the Java Terminals can be fitted onto
another special type of DIN rail made according to DIN EN 60715 - Top hat section, 35mm
(e.g., Wago 210-113 steel carrier rail).

The following figure shows the various possibilities provided to mount the Java Terminals.

Figure 12: Mounting the Java Terminals

The various ways to mount the Java Terminals may be combined where appropriate. It is for
example possible to slide the terminal onto a DIN rail and in add ition use cable straps to fasten
it to a holding.

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

4.3 Packaging

36

4.3 Packaging

Java Terminals come in terminal boxes:

• Terminal box size: 191mm x 143mm x 44mm.

Page 36 of 41

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

PC

Power supply

SIM

RS-232

or

USB

Java

Terminal

Antenna

or

50Ohm cable

to the

system simulator

ARP

Page 37 of 41

5 Full Type Approval

39

5 Full Type Approval

5.1 Gemalto M2M Reference Setup

The Gemalto M2M reference setup submitted to type approve Java Terminals consists of the
following components:

• Java Terminals with approved Java module

•PC as MMI

• Power Supply

Figure 13: Reference equipment for approval

For ordering information please refer to Chapter 6.

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

5.2 Restrictions

39

Page 38 of 41

5.2 Restrictions

Later enhancements and modifications beyond the certified configuration require extra approv­als. Each supplementary approval process includes submittal of the technical documentation
as well as testing of the changes made.

• No further approvals are required for customer applications that comply with the approved
Java Terminals configuration.

• Extra approval must be obtained for applications using other accessories than those
included in the approved Java Terminals configuration (power supply, MMI implementation
supported by AT commands).

5.3 CE Conformity

The Java Terminals meet the requirements of the EU directives listed below:

• R&TTE Directive 1999/5/EC

5.4 EMC

The Java Terminals comply with the equipment requirements specified in EN 301489-1, -7 and

-24 are covered by the R&TTE Directive.

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

5.5 Compliance with FCC Rules and Regulations

39

Page 39 of 41

5.5 Compliance with FCC Rules and Regulations

As an integrated product, the Java Terminals EHS6T-USB, EHS6T-LAN and BGS5T are fully
compliant with the grant of the FCC Equipment Authorization issued for the built-in Java mod­ule, and therefore, bears the label “Contains FCC ID QIPEHS6” or “Contains FCC ID
QIPBGS5.

The Equipment Authorization Certification for the Java modules is listed under the following
identifiers:

FCC Idenitifier: QIPEHS6 or QIPBGS5
Industry Canada Certification Number: 7830A-EHS6 or 7830A-BGS5
Granted to Gemalto M2M GmbH

Radiofrequency radiation exposure Information:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled envi­ronment. This equipment should be installed and operated with minimum distance of 20 cm be­tween the radiator and your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.

Note: This terminal equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accor­dance with the instructions, may cause harmful interference to radio communications. Howev­er, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be de­termined by turning the equipment off and on, the user is encouraged to try to correct the inter­ference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications made to this equipment not expressly approved by Cinterion may
void the FCC authorization to operate this equipment.

This device contains UMTS, GSM and GPRS class functions in the 900, 1800 and 2100MHz
bands that are not operational in U.S. Territories. This device is to be used only for mobile and
fixed applications.

Users and installers must be provided with antenna installation instructions and transmitter o p­erating conditions for satisfying RF exposure compliance: For more information on the RF an­tenna interface please refer to Section 3.13 and Section 4.6.

 EHSxT_BGS5T_HIO_v01 2014-02-26

Confidential / Preliminary

Cinterion® Java Terminals Hardware Interface Overview

6 List of Parts and Accessories

40

6 List of Parts and Accessories

Table 15: List of parts and accessories

Description Supplier Ordering information

Java Terminals Gemalto M2M Ordering number

EHS5T: L30960-N2730-A100
EHS6T-USB: L30960-N2740-A100
EHS5T-LAN: L30960-N2750-A100
BGS5T: L30960-N2720-A100

Power supply unit Gemalto M2M Terminal Power Supply

Ordering number: L36880-N8490-A12
UK adapter for Terminal Power Supply

Ordering number: L36880-N8490-A13
US adapter for Terminal Power Supply

Ordering number: L36880-N8490-A14

Page 40 of 41

AU adapter for Terminal Power Supply
Ordering number: L36880-N8490-A15

DIN rail holder - BOPLA TSH 35-2 BOPLA Ordering number: 20035000

BOPLA Gehäuse Systeme GmbH
Borsigstr. 17-25
D-32257 Bünde

Phone: [phone] / 969 - 0
Fax: [phone] / 969 - 100

Email: [e-mail]
Web: http://www.bopla.de

Antenna - SMARTEQ-MiniMAG
Dualband, 0dBd, 2.6m RG174,
SMA (m)

RS-232 cable with 9-pin D-sub
connector (male)

KÖBEL Mobile
Communication

Tecline Ordering number: 300574

Ordering number: 1140.26 with crimped SMA
connector
KÖBEL Mobile Communication
Sesamstrasse 12
D-24632 Lentföhrden

Tecline GmbH
Behrener Straße 8
D-66117 Saarbrücken
Phone: [phone]
Fax: [phone]
Web: http://www.tecline-edv.de/

8-pin and 12-pin header connec­tor (male) for Weidmueller GPIO
interface

 EHSxT_BGS5T_HIO_v01 2014-02-26

Weidmueller Ordering number (12-pin): 1277510000

Ordering number (8-pin): 1277480000
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold

Phone: [phone]
Fax: [phone]

Email: [e-mail]
Web: http://www.weidmueller.com

Confidential / Preliminary

41

About Gemalto

Gemalto (Euronext NL0000400653 GTO) is the world leader in digital security with 2011 annual
revenues of €2 billion and more than 10,000 employees operating out of 74 offices and 14 Research
& Development centers, located in 43 countries.

We are at the heart of the rapidly evolving digital society. Billions of people worldwide increasingly
want the freedom to communicate, travel, shop, bank, entertain and work - anytime, everywhere

- in ways that are enjoyable and safe. Gemalto delivers on their expanding needs for personal
mobile services, payment security, authenticated cloud access, identity and privacy protection,
eHealthcare and eGovernment efficiency, convenient ticketing and dependable machine-to­machine (M2M) applications.

Gemalto develops secure embedded software and secure products which we design and
personalize. Our platforms and services manage these secure products, the confidential data they
contain and the trusted end-user services they enable. Our inovations enable our clients to offer
trusted and convenient digital services to billions of individuals.

Gemalto thrives with the growing nu mb e r of pe o pl e using its solutions to interact with the digital
and wireless world.

For more information please visit

m2m.gemalto.com, www.facebook.com/gemalto, or Follow@gemaltom2m on twitter.

Gemalto M2M GmbH

St.-Martin-Str. 60
81541 Munich
Germany

 M2M.GEMALTO.COM

© Gemalto 2014. All rights reserved. Gemalto, the Gemalto logo, are trademarks and service marks of Gemalto and are registered in certain countries. April 2013

A

Gemalto M2M GmbH  Siemensdamm 50  13629 Berlin  Germany

www.gemalto.com/m2m

Registered Office:
Gemalto M2M GmbH
St.-Martin-Str. 60
81541 Munich
Germany

Managing Directors:
Norbert Muhrer, Sébastien Gallois

Commercial register, Reg. No.:

mtsgericht München, HRB 172715

WEEE-Reg.-Nr. DE 58893809
