AGS2-W

Version: 01.000 DocId: AGS2-W_HIO_v01.000

Hardware Interface Overview

AGS2-W Hardware Interface Overview



Document Name:

Version: Date: DocId: Status

AGS2-W Hardware Interface Overview

01.000 2012-05-16 AGS2-W_HIO_v01.000 Confidential / Preliminary

GENERAL NOTE

THE USE OF THE PRODUCT INCLUDING THE SOFTWARE AND DOCUMENTATION (THE "PRODUCT") IS SUBJECT TO THE RELEASE NOTE PROVIDED TOGETHER WITH PRODUCT. IN ANY EVENT THE PROVISIONS OF THE RELEASE NOTE SHALL PREVAIL. THIS DOCUMENT CONTAINS INFORMATION ON CINTERION PRODUCTS. THE SPECIFICATIONS IN THIS DOCUMENT ARE SUBJECT TO CHANGE AT CINTERION'S DISCRETION. CINTERION WIRELESS MODULES GMBH GRANTS A NON-EXCLUSIVE RIGHT TO USE THE PRODUCT. THE RECIPIENT SHALL NOT TRANSFER, COPY, MODIFY, TRANSLATE, REVERSE ENGINEER, CREATE DERIVATIVE WORKS; DISASSEMBLE OR DECOMPILE THE PRODUCT OR OTHERWISE USE THE PRODUCT EXCEPT AS SPECIFICALLY AUTHORIZED. THE PRODUCT AND THIS DOCUMENT ARE PROVIDED ON AN "AS IS" BASIS ONLY AND MAY CONTAIN DEFICIENCIES OR INADEQUACIES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, CINTERION WIRELESS MODULES GMBH DISCLAIMS ALL WARRANTIES AND LIABILITIES. THE RECIPIENT UNDERTAKES FOR AN UNLIMITED PERIOD OF TIME TO OBSERVE SECRECY REGARDING ANY INFORMATION AND DATA PROVIDED TO HIM IN THE CONTEXT OF THE DELIVERY OF THE PRODUCT. THIS GENERAL NOTE SHALL BE GOVERNED AND CONSTRUED ACCORDING TO GERMAN LAW.

Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and communication thereof to others without ex press autho rization are prohib ited. Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved.

Trademark Notice

Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All other registered trademarks or tr ademarks mentioned in this document are property of their respective owners.

AGS2-W_HIO_v01.000 Page 2 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview



Contents

1 Introduction.................................................................................................................6

1.1 Related Documents ...........................................................................................6

1.2 Terms and Abbreviations...................................................................................6

1.3 Regulatory and Type Approval Information .....................................................10

1.3.1 Directives and Standards....................................................................10

1.3.2 SAR requirements specific to portable mobiles.................................. 13

1.3.3 Safety Precautions..............................................................................14

2 Product Concept.......................................................................................................15

2.1 Key Features at a Glance................................................................................15

2.2 Automotive Feature Overview..........................................................................17

3 Application Interface.................................................................................................18

3.1 Operating Modes .............................................................................................19

4 Antenna Interface......................................................................................................20

5 Electrical, Reliability and Radio Characteristics.................................................... 21

5.1 Absolute Maximum Ratings.............................................................................21

5.2 Operating Temperatures..................................................................................22

5.3 Storage Conditions ..........................................................................................23

5.4 Storage Conditions ..........................................................................................24

5.5 Reliability Characteristics.................................................................................25

5.6 Pad Assignment...............................................................................................26

5.7 Power Supply Ratings......................................................................................28

6 Mechanics, Mounting and Packaging..................................................................... 29

6.1 Mechanical Dimensions of AGS2-W................................................................29

7 Reference Approval..................................................................................................30

7.1 Reference Equipment for Type Approval.........................................................30

7.2 Compliance with FCC and IC Rules and Regulations ..................................... 31

8 Appendix....................................................................................................................32

8.1 List of Parts and Accessories...........................................................................32

AGS2-W_HIO_v01.000 Page 3 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

Tables



Tables

Table 1: Directives ....................................................................................................... 10

Table 2: Standards of North American type approval.................................................. 10

Table 3: Standards of European type approval............................................................ 10

Table 4: Requirements of quality ................................................................................. 11

Table 5: Standards of the Ministry of Information Industry of the

People’s Republic of China............................................................................ 11

Table 6: Toxic or hazardous substances or elements with defined concentration

limits............................................................................................................... 12

Table 7: Overview of operating modes ........................................................................ 19

Table 8: Return loss in the active band........................................................................ 20

Table 9: Absolute maximum ratings............................................................................. 21

Table 10: Board temperature......................................................................................... 22

Table 11: Storage conditions ......................................................................................... 23

Table 12: Storage conditions ......................................................................................... 24

Table 13: Summary of reliability test conditions............................................................. 25

Table 14: Pad assignments............................................................................................ 27

Table 15: Power supply ratings ...................................................................................... 28

Table 16: List of parts and accessories.......................................................................... 32

Table 17: Molex sales contacts (subject to change)...................................................... 33

AGS2-W_HIO_v01.000 Page 4 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

Figures



Figures

Figure 1: Numbering plan for connecting pads (bottom view)....................................... 26

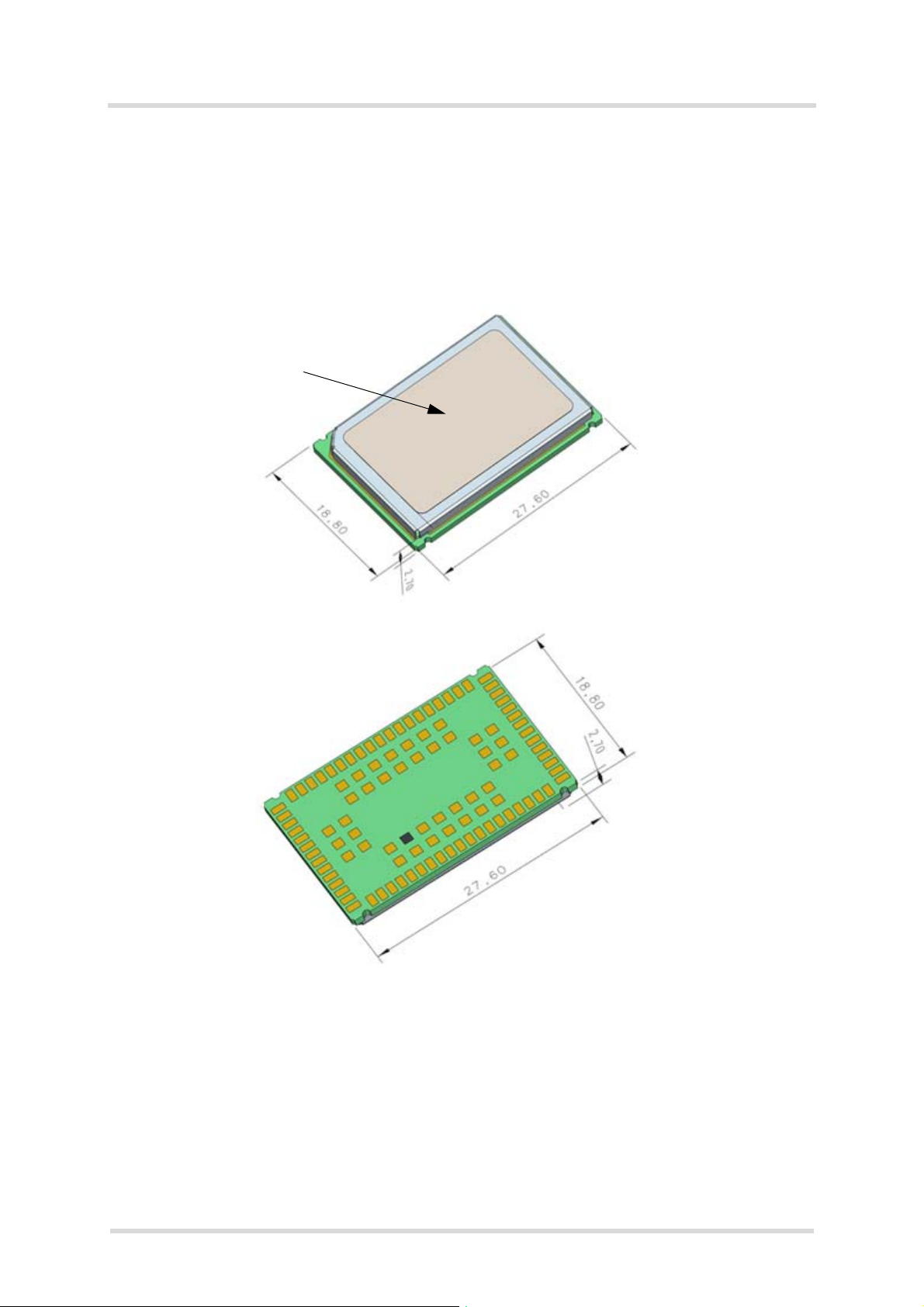

Figure 2: AGS2-W– top and bottom view...................................................................... 29

Figure 3: Reference equipment for Type Approval ....................................................... 30

AGS2-W_HIO_v01.000 Page 5 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

1 Introduction



1 Introduction

This document1 describes the hardware of the Cinterion AGS2-W module that connects to the cellular device application and the air interface. It helps you quickly retrieve interface specifications, electrical and mechanical details and information on the requirements to be considered for integrating further components.

1.1 Related Documents

[1] AGS2-W AT Command Set [2] AGS2-W Release Note [3] AGS2-W MPE calculation - Test report (Maximum Permissible Exposure)

1.2 Terms and Abbreviations

Abbreviation Description

ADC Analog-to-digital converter AGC Automatic Gain Control ANSI American National Standards Institute ARFCN Absolute Radio Frequency Channel Number ARP Antenna Reference Point ASC0/ASC1 Asynchronous Controller. Abbreviations used for first and second serial interface of

AGS2-W B Thermistor Constant BER Bit Error Rate BTS Base Transceiver Station CB or CBM Cell Broadcast Message CE Conformité Européene (European Conformity) CHAP Challenge Handshake Authentication Protocol CPU Central Processing Unit CS Coding Scheme CSD Circuit Switched Data CTS Clear to Send DAC Digital-to-Analog Converter DAI Digital Audio Interface dBm0 Digital level, 3.14dBm0 corresponds to full scale, see ITU G.711, A-law DCE Data Communication Equipment (typically modems, e.g. Cinterion GSM module)

1. The document is effective only if listed in the appropriate Release Notes as part of the technical documentation delivered with your Cinterion product.

AGS2-W_HIO_v01.000 Page 6 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

1.2 Terms and Abbreviations

Abbreviation Description

DCS 1800 Digital Cellular System, also referred to as PCN DRX Discontinuous Reception DSB Development Support Box DSP Digital Signal Processor DSR Data Set Ready DTE Data Terminal Eq uipment (typically computer, termi nal, printer or, for example , GSM

application) DTR Data Terminal Ready DTX Discontinuous Transmission EFR Enhanced Full Rate EGSM Enhanced GSM EIRP Equivalent Isotropic Radiated Power EMC Electromagnetic Compatibility



ERP Effective Radiated Power ESD Electrostatic Discharge ETS European Telecommunication Standard FCC Federal Communications Commission (U.S.) FDMA Frequ ency Division Multiple Access FR Full Rate GASDL Global Automotive Declarable Substance List GMSK Gaussian Minimum Shift Keying GPIO General Purpose Input/Output GPRS General Packet Radio Service GSM Global Standard for Mobile Communications HiZ High Impedance HR Half Rate I/O Input/Output IC Integrated Circuit IMDS International Material Data System IMEI International Mobile Equipment Identity ISO International Standards Organization ITU International Telecommunications Union kbps kbits per second LED Light Emitting Diode Li-Ion/Li+ Lithium-Ion Li battery Rechargeable Lithium Ion or Lithium Polymer battery Mbps Mbits per second MMI Man Machine Interface

AGS2-W_HIO_v01.000 Page 7 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

1.2 Terms and Abbreviations

Abbreviation Description

MO Mobile Originated MS Mobile Station (GSM module), also referred to as TE MSISDN Mobile Station International ISDN number MT Mobile Terminated NTC Ne g at ive T em p er at ur e Coe ff i cient OEM Original Equipment Manufacturer PA Power Amplifier PAP Password Authentication Protocol PBCCH Packet Switched Broadcast Control Channel PCB Printed Circuit Board PCL Power Control Level PCM Pulse Code Modulation PCN Personal Communications Network, also referred to as DCS 1800



PCS Personal Communication System, also referred to as GSM 1900 PDU Protocol Data Unit PPM Parts per million PLL Phase Locked Loop PPP Point-to-point protocol PSK Phase Shift Keying PSU Power Supply Unit PWM Pulse Width Modulation R&TTE Radio and Telecommunication Terminal Equipment RAM Random Access Memory RF Radio Frequency RLS Radio Link Stability RMS Root Mean Square (value) RoHS Restriction of the use of certain hazardous substances in electrical and electronic

equipment. ROM Read-only Memory RTC Real Time Clock RTS Request to Send Rx Receive Direction SAR Specific Absorption Rate SAW Surface Accoustic Wave SELV Safety Extra Low Voltage SIM Subscriber Identification Module SMD Surface Mount Device SMS Shor t Me ss ag e Ser vice

AGS2-W_HIO_v01.000 Page 8 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

1.2 Terms and Abbreviations

Abbreviation Description

SMT Surface Mount Technology SRAM Static Random Access Memory TA Terminal adapter (e.g. GSM module) TDMA Time Division Multiple Access TE Terminal Equipment, also referred to as DTE TLS Transport Layer Security Tx Transmit Direction UART Universal asynchronous receiver-transmitter URC Unsolicited Result Code USSD Unstructured Supplementary Service Data VSWR Voltage Standing Wave Ratio



AGS2-W_HIO_v01.000 Page 9 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

1.3 Regulatory and Type Approval Information



1.3 Regulatory and Type Approval Information

1.3.1 Directives and Standards

AGS2-W is designed to comply with the directives and standards listed below. It is the responsibility of the application manufacturer to ensure compliance of the final product

with all provisions of the applicable directives and standards as well as with the technical specifications provided in the "AGS2-W Hardware Interface Description".

Table 1: Directives

1999/05/EC Directive of the European Parliament and of the council of 9 March 1999

on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity (in short referred to as R&TTE Directive 1999/5/EC). The product is labeled with the CE conformity mark

ECE-R 10 Economic Commission for Europe (ECE) Regulation No. 10: Uniform pro-

visions concerning the approval of vehicles with regard to electro magnetic compatibility

2002/95/EC Directive of the European Parliament and of the Council

of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS)

Table 2: Standards of North American type approval

CFR Title 47 Code of Federal Regulations, Part 22 and Part 24 (Telecommunications,

PCS); US Equipment Authorization FCC

UL 60 950-1 Product Safety Certification (Safety requirements)

NAPRD.03 V5.11 Overview of PCS Type certification review board Mobile Equipment Type

Certification and IMEI control PCS Type Certification Review board (PTCRB)

RSS132 (Issue2) RSS133 (Issue5)

Table 3: Standards of European type approval

3GPP TS 51.010-1 Digital cellular telecommunications system (Phase 2); Mobile Station (MS)

Canadian Standard

conformance specification

ETSI EN 301 511 V9.0.2 Candidate Harmonized European Standard (Telecommunica tions series)

Global System for Mobile communications (GSM); Harmonized standard for mobile stations in the GSM 900 and DCS 1800 bands covering essential requirements under article 3.2 of the R&TTE directive (1999/5/EC) (GSM 13.11 version 7.0.1 Release 1998)

GCF-CC V3.45 Global Certification Forum - Certification Criteria

1. Manufacturers of applications which can be used in the US shall ensure that their applications have a PTCRB approval. For this purpose they can refer to the PTCRB approval of the respective module.

AGS2-W_HIO_v01.000 Page 10 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

1.3 Regulatory and Type Approval Information

Table 3: Standards of European type approval



ETSI EN 301 489-1 V1.8.1

ETSI EN 301 489-7 V1.3.1

EN 60950-1:2006/ A11:2009

Table 4: Requirements of quality

IEC 60068 Environmental testing DIN EN 60529 IP codes VDA Hands-free VDA Specification for Car Hands-free Terminals, Draft, December 2004,

Table 5: Standards of the Ministry of Information Industry of the People’s Republic of China

Candidate Harmonized European Standard (Telecom munications serie s) Electro Magnetic Compatibility and Radio spectrum Matters (ERM); Electro Magnetic Compatibility (EMC) standard for radio equipment and services; Part 7: Specific conditions for mobile and portable radio and ancillary equipment of digital cellular radio telecommunications systems (GSM and DCS)

Safety of information technology equipment

v1.5, double talk performance category 2a

SJ/T 11363-2006 “Requirements for Concentration Limits for Certain Hazardous Sub-

stances in Electronic Information Products” (2006-06).

SJ/T 11364-2006 “Marking for Control of Pollution Caused by Electronic

Information Products” (2006-06). According to the “Chinese Administration on the Control

of Pollution caused by Electronic Information Products” (ACPEIP) the EPUP, i.e., Environmental Protection Use Period, of this product is 20 years as per the symbol shown here, unless otherwise marked. The EPUP is valid only as long as the product is operated within the operating limits described in the Cinterion Wireless Modules Hardware Interface Description.

Please see Table 6 for an overview of toxic or hazardous substances or elements that might be contained in product parts in concentrations above the limits defined by SJ/T 11363-2006.

AGS2-W_HIO_v01.000 Page 11 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

1.3 Regulatory and Type Approval Information

Table 6: Toxic or hazardous substances or elements with defined concentration limits



AGS2-W_HIO_v01.000 Page 12 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

1.3 Regulatory and Type Approval Information



1.3.2 SAR requirements specific to portable mobiles

Mobile phones, PDAs or other portable transmitters and receivers incorporating a GSM module must be in accordance with the guidelines for human exposure to radio frequency energy. This requires the Specific Absorption Rate (SAR) of portable AGS2-W based applications to be evaluated and approved for compliance with national and/or international regulations.

Since the SAR value varies significantly with the individual product design manufacturers are advised to submit their product for approval if designed for portable use. For European and USmarkets the relevant directives are mentioned below. It is the responsibility of the manufacturer of the final product to verify whether or not further standards, recommendations or directives are in force outside these areas.

Products intended for sale on US markets

ES 59005/ANSI C95.1 Considerations for evaluation of human exposure to Electromagnetic

Fields (EMFs) from Mobile Telecommunication Equipment (MTE) in the frequency range 30MHz - 6GHz

Products intended for sale on European markets

EN 50360 Product standard to demonstrate the compliance of mobile phones with

the basic restrictions related to human exposure to electromagnetic fields (300MHz - 3GHz)

IMPORTANT: Manufacturers of portable applications based on AGS2-W modules are required to have their final product certified and apply for their own FCC Grant and Industry Canada Certificate related to the specific portable mobile (see also Section 7.2).

AGS2-W_HIO_v01.000 Page 13 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

1.3 Regulatory and Type Approval Information



1.3.3 Safety Precautions

The following safety precautions must be observed during all phases of the operation, usage, service or repair of any cellular terminal or mobile incorporating AGS2-W. Manufacturers of the cellular terminal are advised to convey the following safety information to users and ope rating personnel and to incorporate these guidelines into all manuals supplied with the product. Failure to comply with these precautions violates safety standards of design, manufacture and intended use of the product. Cinterion Wireless Modules assumes no liability for customer’s failure to comply with these precautions.

When in a hospital or other health care facility, observe the restrictions on the use of mobiles. Switch the cellular terminal or mobile off, if instructed to do so by the guidelines posted in sensitive areas. Medical equipment may be sensitive to RF energy. The operation of cardiac pacemakers, other implanted medical equipment and hearing aids can be affected by interference from cellular terminals or mobiles placed close to the device. If in doubt about potential danger, contact the physician or the manufa cturer of the device to verify that the equipment is properly shielded. Pacemaker patients are advised to keep their hand-held mob ile a way from the pace maker , while it is on.

Switch off the cellular terminal or mobile before boarding an aircraft. Make sure it cannot be switched on inadvertently. The operation of wireless appliances in an aircraft is forbidden to prevent interference with communications systems. Failure to observe these instructions may lead to the suspension or denial of cellular services to the offender, legal action, or both.

Do not operate the cellular terminal or mobile in the presence of flammable gases or fumes. Switch off the cellular terminal when you are near petrol stations, fuel depots, chemical plants or where blasting operations are in progress. Operation of any electrical equipment in potentially explosive atmospheres can constitute a safety hazard.

Your cellular terminal or mobile receives and transmits radio frequency energy while switched on. Remember that interference can occur if it is used close to TV sets, radios, computers or inadequately shielded equipment. Follow any special regulations and always switch off the cellular terminal or mobile wherever forbidd en, or when you suspect that it may cause interference or danger.

Road safety comes first! Do not use a hand-held cellular terminal or mobile when driving a vehicle, unless it is securely mounted in a holder for speakerphone operation. Before making a call with a hand-held terminal or mobile, park the vehicle. Speakerphones must be installed by qualified personnel. Faulty installation or operation can constitute a safety hazard.

IMPORTANT! Cellular terminals or mobiles operate using radio signals and cellular networks. Because of this, connection cannot be guaranteed at all times under all conditions. Therefore, you should never rely solely upon any wireless device for essential communications, for example emergency calls. Remember, in order to make or receive calls, the cellular terminal or mobile must be switched on and in a service area with adequate cellular signal strength. Some networks do not allow for emergency calls if certain network services or phone features are in use (e.g. lock functions, fixed dialing etc.). You may need to deactivate those features before you can make an emergency call. Some networks require that a valid SIM card be properly inserted in the cellular terminal or mobile.

AGS2-W_HIO_v01.000 Page 14 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

2 Product Concept

2.1 Key Features at a Glance

Feature Implementation

General

Frequency bands Quad band: GSM 850/900/1800/1900MHz GSM class Small MS



Output power (according to Release 99, V5)

Power supply 3.3V to 4.5V

Operating temperature (board temperature)

Physical Dimensions: 27.6mm x 18.8mm x 2.7mm

RoHS All hardware components fully compliant with EU RoHS Directive

GSM/GPRS features

Data transfer GPRS:

Class 4 (+33dBm ±2dB) for EGSM850 Class 4 (+33dBm ±2dB) for EGSM900 Class 1 (+30dBm ±2dB) for GSM1800 Class 1 (+30dBm ±2dB) for GSM1900

Normal operation: -30°C to +85°C Extended operation: -40°C to -30°C, +85°C to +90°C

Weight: approx. 3 g

• Multislot Class10

• Full PBCCH support

• Mobile Station Class B

• Coding Scheme 1 – 4 CSD:

• V.110, RLP, non-transparent

• 2.4, 4.8, 9.6, 14.4kbps

•USSD PPP-stack for GPRS data transfer

SMS Point-to-point MT and MO

Cell broadcast Text and PDU mode Storage: SIM card plus 25 SMS locations in mobile equipment Transmission of SMS alternatively over CSD or GPRS. Preferred mode can be user defined.Transmission of SMS over GSM.

Fax Group 3; Class 1

AGS2-W_HIO_v01.000 Page 15 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

2.1 Key Features at a Glance

Feature Implementation

Audio Speech codecs:

• Half rate HR (ETS 06.20)

• Full rate FR (ETS 06.10)

• Enhanced full rate EFR (ETS 06.50/06.60/06.80)

• Adaptive Multi Rate AMR Handsfree operation (VDA), echo cancellation, noise suppression,

7 different ringing tones/melodies

Software

AT commands Hayes 3GPP TS 27.007, TS 27.005, Cinterion

AT commands for RIL compatibility

Microsoft™ compatibility RIL for Pocket PC and Smartphone SIM Application Toolkit SAT Release 99 TCP/IP stack Access by AT commands Firmware update Generic update from host application over ASC0 or ASC1.



Interfaces

Module interface Surface mount device with solderable connection pads (SMT application

interface). Land grid array (LGA) technology ensures high solder joint reliability and

provides the possibility to use an optional module mounting socket.

2 serial interfaces ASC0:

• 8-wire modem interface with status and control lines, unbalanced, asynchronous

• Adjustable baud rates: 1,200bps to 230,400bps

• Autobauding: 1,200bps to 230

• Supports RTS0/C TS0 hardware handshake and software XON/XOFF flow control.

• Multiplex ability according to GSM 07.10 Multiplexer Protocol.

ASC1:

• 4-wire, unbalanced asynchronous interface

• Adjustable baud rates: 1,200bps to 230,400bps

• Supports RTS1/C TS1 hardware handshake and software XON/XOFF flow control

Audio 1 analog interface (with microphone feeding)

1 digital interface (PCM)

,400bps

UICC interface Supported SIM/USIM cards: 3V, 1.8V

External SIM card reader has to be connected via interface conn ector (note that card reader is not part of AGS2-W)

GPIO interface GPIO interface with 6 GPIO lines. The GPIO interface is shared with an I2C

interface, LED signalling and PWM functionality or antenna detection.

Antenna 50

AGS2-W_HIO_v01.000 Page 16 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

2.2 Automotive Feature Overview

Feature Implementation

Power on/off, Reset

Power on/off Switch-on by hardware signal ON

Switch-off by AT command (AT^SMSO) Automatic switch-off in case of critical temperature and voltage conditions.

Reset Orderly shutdown and reset by AT command

Special features

Real time clock Timer functions via AT commands Phonebook SIM and phone TTY/CTM support Integrated CTM modem TLS security Transport layer security eCall EU RLS monitoring Jamming detection



Miscellaneous Prepared for under-fill

Automotive grade service levels Automotive test specification X-ray inspection IMDS compliant GASDL listed No repair E-marking

2.2 Automotive Feature Overview

• Automotive grade mounting

• Voice as per VDA 6.2 / TS16949

• Deferred shut down

• Antenna diagnostics

• EU eCall prepared

• Remote SIM access profile

• Advanced temperature management

• Automotive PPM level

AGS2-W_HIO_v01.000 Page 17 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

3 Application Interface



3 Application Interface

AGS2-W is equipped with an SMT application interface that connects to the external application. The host interface incorporates several sub-interfaces: power supply, SIM interface, serial interface ASC0, serial interface ASC1, analog audio interface, GPIO interface, I and PWM interface (for details see Chapter 2 and Section 5.6). described in the following sec- tions:

C interface

AGS2-W_HIO_v01.000 Page 18 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

3.1 Operating Modes



3.1 Operating Modes

The table below briefly summarizes the various operating modes referred to in the following chapters.

Table 7: Overview of operating modes

Normal operation GSM/GPRS SLEEP Various power save modes set with AT+CFUN command.

Software is active to minimum extent. If the module was registered to the GSM network in IDLE mode, it is register ed and paging with the BTS in SLEEP mode, too. Power saving can be chosen at different levels: The NON-CYCLIC SLEEP mode (AT+CFUN=0) disables the AT interface. The CYCLIC SLEEP modes AT+CFUN=7 and 9 alternatingly activate and deactivate the AT interfaces to allow permanent access to all AT commands.

GSM IDLE Software is active. Once registered to the GSM network,

paging with BTS is carried out. The module is ready to send and receive.

GSM TALK Connection between two subscribers is in progress. Power

consumption depends on network coverage individual settings, such as DTX off/on, FR/EFR/HR, hopping sequences, antenna.

GPRS IDLE Module is ready for GPRS data transfer, but no data is cur-

rently sent or received. Power consumption depends on network settings and GPRS configuration (e.g. multislot settings).

GPRS DATA GPRS data transfer in progress. Power consumption

depends on network settings (e.g. power control level), uplink/downlink data rates, GPRS configuration (e.g. used multislot settings) and reduction of maximum output power.

Power Down Normal shutdown after sending the AT^SMSO command.

Only a voltage regulator is active for powering the RTC. Software is not active. Interfaces are not accessible. Operating voltage (connected to BATT+) remains applied.

Alarm mode Restricted operation launched by RTC alert function while the module is in Power

Down mode. Module will not be registered to GSM network. Limited number of AT commands is accessible.

AGS2-W_HIO_v01.000 Page 19 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

4 Antenna Interface



4 Antenna Interface

The RF interface has an impedance of 50. AGS2-W is capable of sustaining a total mismatch at the antenna lines without any damage, even when transmitting at maximum RF power.

The external antenna must be matched properly to achieve best performance regarding radiated power, modulation accuracy and harmonic suppression. Antenna matching networks are not included on the AGS2-W module and should be placed in the host application if the a ntenna does not have an impendance of 50

Regarding the return loss AGS2-W provides the following values in the active band:

Table 8: Return loss in the active band

State of module Return loss of module Recommended return loss of application

.

Receive > Transmit not applicable >

8dB > 12dB

12dB

AGS2-W_HIO_v01.000 Page 20 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

5 Electrical, Reliability and Radio Characteristics



5 Electrical, Reliability and Radio Characteristics

5.1 Absolute Maximum Ratings

The absolute maximum ratings stated in Table 9 are stress ratings under any conditions. Stresses beyond any of these limits will cause permanent damage to AGS2-W.

Table 9: Absolute maximum ratings

Parameter Min Max Unit

Supply voltage BATT+ -0.3 +6.0 V Voltage at all digital lines in Power Down mode -0.3 +0.3 V Voltage at digital lines 1.8V domain in normal operation -0.3 +2.2 V Voltage at digital lines VDIG domain (1.8V) in normal opera-

tion Voltage at digital lines VDIG domain (2.85V) in normal opera-

tion Voltage at SIM interface, CCVCC 1.8V in normal Operation -0.3 +2.2 V Voltage at SIM interface, CCVCC 2.85V in normal Operation -0.3 +3.3 V Voltage at analog lines in normal operation -0.3 +3.0 V Voltage at analog lines in Power Down mo d e -0.3 +0.3 V VDDLP -0.3 +2.5 V

-0.3 +2.2 V

-0.3 +3.3 V

AGS2-W_HIO_v01.000 Page 21 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

5.2 Operating Temperatures



5.2 Operating Temperatures

Please note that the module’s lifetime, i.e., the MTTF (mean time to failure) may be reduced, if operated outside the extended temperature range. A special URC reports whether the module enters or leaves the extended temperature range (see [1]; AT^SCTM).

Table 10: Board temperature

Parameter Min Typ Max Unit

Normal operation -30 +25 +85 °C Extended operation Automatic shutdown

Temperature measured on AGS2-W board

1. Extended operation allows normal mode speech calls or data transmission for limited time until automatic thermal shutdown takes effect. Within the extended temperature range (outside the normal operating temperature range) the specified electrical characteristics may be in- or decreased.

2. Due to temperature measurement uncertainty, a tolerance of ±3°C on the thresholds may occur.

-40 to -30 +85 to +90 °C

<-40 --- >+90 °C

Note that within the specified operating temperature ranges the board temperature may vary to a great extent depending on operating mode, used frequency band, radio output power and current supply voltage.

When data are transmitted over GPRS the module automatically reverts to a lower Multislot Class if the temperature rises to the limit specified for normal operation and, vice versa, ret u rn s to the higher Multislot Class if the temperature is back to normal.

AGS2-W_HIO_v01.000 Page 22 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

5.3 Storage Conditions



5.3 Storage Conditions

AGS2-W modules, as delivered in tape and reel carriers, must be stored in sealed, moisture barrier anti-static bags. The conditions stated below are only valid for modules in their original packed state in weather protected, non-temperature-controlled storage locations. Normal storage time under these conditions is 12 months maximum.

Table 11: Storage conditions

Type Condition Unit Reference

Air temperature: Low

High

Humidity relative: Low

High

Air pressure: Low

High Movement of surrounding air 1.0 m/s IEC TR 60271-3-1: 1K4 Water: rain, dripping, icing and

frosting Radiation: Solar

Heat Chemically active substances Not

Mechanically active substances Not

Vibration sinusoidal:

Displacement Acceleration Frequency range

Shocks:

Shock spectrum Duration Acceleration

-25 +40

10 90 at 40°C

70 106

Not allowed --- ---

1120 600

recommended

1.5 5 2-9 9-200

semi-sinusoidal 1 50

°C IPC/JEDEC J-STD-033A

IPC/JEDEC J-STD-033A

kPa IEC TR 60271-3-1: 1K4

IEC TR 60271-3-1: 1K4

W/m

mm m/s Hz

ms m/s

ETS 300 019-2-1: T1.2, IEC 60068-2-2 Bb ETS 300 019-2-1: T1.2, IEC 60068-2-2 Bb

IEC TR 60271-3-1: 1C1L

IEC TR 60271-3-1: 1S1

IEC TR 60271-3-1: 1M2

IEC 60068-2-27 Ea

AGS2-W_HIO_v01.000 Page 23 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

5.4 Storage Conditions



5.4 Storage Conditions

Table 12: Storage conditions

Type Condition Unit Reference

Air temperature: Low

High Humidity relative: Low

High

Air pressure: Low

High Movement of surrounding air 1.0 m/s IEC TR 60271-3-1: 1K4 Water: rain, dripping, icing and

frosting Radiation: Solar

Heat Chemically active substances Not

Mechanically active substances Not

Vibration sinusoidal:

Displacement Acceleration Frequency range

Shocks:

Shock spectrum Duration Acceleration

-25 +40

10 90 at 40°C

70 106

Not allowed --- ---

1120 600

recommended

1.5 5 2-9 9-200

semi-sinusoidal 1 50

°C IPC/JEDEC J-STD-033A

IPC/JEDEC J-STD-033A

kPa IEC TR 60271-3-1: 1K4

IEC TR 60271-3-1: 1K4

W/m

mm m/s Hz

ms m/s

ETS 300 019-2-1: T1.2, IEC 60068-2-2 Bb ETS 300 019-2-1: T1.2, IEC 60068-2-2 Bb

IEC TR 60271-3-1: 1C1L

IEC TR 60271-3-1: 1S1

IEC TR 60271-3-1: 1M2

IEC 60068-2-27 Ea

AGS2-W_HIO_v01.000 Page 24 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

5.5 Reliability Characteristics



5.5 Reliability Characteristics

The test conditions stated below are an extract of the complete test specifications.

Table 13: Summary of reliability test conditions

Type of test Conditions Standard

Vibration Frequency range: 10-20Hz; acceleration: 5g

Frequency range: 20-500Hz; acceleration: 20g Duration: 20h per axis; 3 axes

DIN IEC 60068-2-6

Shock half-sinus Acceleration: 500g

Shock duration: 1msec 1 shock per axis 6 positions (± x, y and z)

Dry heat Temperature: +70 ±2°C

Test duration: 16h Humidity in the test chamber: < 50%

Temperature change (shock)

Damp heat cyclic High temperature: +55°C ±2°C

Cold (constant exposure)

1. For reliability tests in the frequency range 20-500Hz the Standard’s acceleration reference value was increased to 20g.

Low temperature: -40°C ±2°C High temperature: +85°C ±2°C Changeover time: < 30s (dual chamber system) Test duration: 1h Number of repetitions: 100

Low temperature: +25°C ±2°C Humidity: 93% ±3% Number of repetitions: 6 Test duration: 12h + 12h

Temperature: -40 ±2°C Test duration: 16h

DIN IEC 60068-2-27

EN 60068-2-2 Bb ETS 300 019-2-7

DIN IEC 60068-2-14 Na ETS 300 019-2-7

DIN IEC 60068-2-30 Db ETS 300 019-2-5

DIN IEC 60068-2-1

AGS2-W_HIO_v01.000 Page 25 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

106

9291

9897969594

9089

85 86

87 88

8483

7978777675

8281

727170696867

105104103102101100

19181716151413121110987654321

343536373839404142434546474849505152

Supply pads: BATT+

Control pads

GND pads

Analog audio pads

ASC0 pads

ASC1 pads

SIM pads

RF antenna pad

Combined GPIO/I2C pads

ADC pad

Supply pads: Other

Digital audio pads (PCM)

Combined GPIO/Control pads (LED, PWM, ANTDET)

Do not use

5.6 Pad Assignment



5.6 Pad Assignment

The SMT application interface on the AGS2-W provides connecting pads to integrate the module into external applications. Figure 1 shows the connecting pads’ numbering plan, the following Table 14 lists the pads’ assignments.

Figure 1: Numbering plan for connecting pads (bottom view)

AGS2-W_HIO_v01.000 Page 26 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

5.6 Pad Assignment

Table 14: Pad assignments

Pad no. Signal name Pad no. Signal name Pad no. Signal name

1 2 EPN 24 3 EPP 25 4 GND 26 5 BATT+ 27 6 7 8 9 10 VDIG 32 11 12 13 14

VMIC 23

GND 28 ADC1 29 ON 30 GND 31

RXD0 33 CTS0 34 TXD0 35 RING0 36

TXDDAI TFSDAI RXDDAI SCLK GPIO10/I2CDAT GPIO9/I2CCLK TXD1 RXD1 RTS1 CTS1 EMERG_RST GND V180 GPIO8/

45 Do not use 46 Do not use 47 Do not use 48 Do not use 49 GND 50 GND 51 GND 52 GND 53 BATT+ 54 GND 55 GND 56 GND 57 GND 58 GND

ANTDET_ON

RTS0

GPIO7/PWM1/

59 RF_OUT

ANTDET_SEL

VDDLP

GPIO6/PWM2/

60 GND

ANT_ACT

17 18 19 20 21 22

CCRST 39 CCIN CCIO CCVCC CCCLK

40 41 42 43

GPIO5/LED FAST_SHTDWN DSR0 DCD0 DTR0

61 GND 62 GND 63 GND 64 AGND 65 MICP

V285 44 Do not use 66 MICN

67-106 GND



1. The pads 67-106 are centrally located and should be connected to Ground except for pad 98 that is only required for factory tests. Pad 98 must not be connected to the external application, but should be left open.

Signal pads that are not used should not be connected to an external application.

AGS2-W_HIO_v01.000 Page 27 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

5.7 Power Supply Ratings

Table 15: Power supply ratings



Parame-

Description Conditions Min Typ Max Unit

ter

BATT+ Supply voltage Voltage must stay within the min/

max values, including voltage drop, ripple and spikes.

Voltage drop during transmit burst

Normal condition, power control level for P

out max

Voltage ripple Normal condition, power control

level for P

out max

@ f<250kHz @ f>250kHz

VDDLP

OFF state supply current

RTC backup

@ BATT+ = 0V @ VDDLP = 2.3V

Power Down mode 45 µA

BATT+

Average supply current

SLEEP mode, GSM1

@ DRX = 2 @ DRX = 5 @ DRX = 9

SLEEP mode, GPRS

@ DRX = 2 @ DRX = 5 @ DRX = 9

IDLE mode

3.3 4.0 4.5 V

400 mV

mVpp

85 25

8.0 µA

2.1

1.5

1.1 mA

2.2

1.5

1.2

8.6 mA

TALK mode GSM

GSM850/EGSM 900 GSM 1800/1900

DATA mode GPRS 1 TX, 4 Rx

GSM 850/EGSM 900 GSM 1800/1900

DATA mode GPRS 2 Tx, 3 Rx

GSM 850/EGSM 900 GSM 1800/1900

Peak supply current (during transmission slot every 4.6ms)

1. Measurements start 3 minutes after the module was switched ON, Averaging times: SLEEP mode - 3 minutes; IDLE mode - 1.5 minutes, Communication tester settings: no neighbour cells, no cell reselection etc.

2. Power control level PCL 5

3. Power control level PCL 0

Power Control Level

GSM 850/EGSM 900 GSM 1800/1900

mA 200 150

180

mA 145

330

mA 260

1.30

0.95

1.35

0.97

AGS2-W_HIO_v01.000 Page 28 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

Product label

Top view

Bottom view

6 Mechanics



6 Mechanics

6.1 Mechanical Dimensions of AGS2-W

Figure 2 shows the top and bottom view of AGS2-W and provides an overview of the board's

mechanical dimensions.

Figure 2: AGS2-W– top and bottom view

AGS2-W_HIO_v01.000 Page 29 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

DSB75 adapter

for module

Antenna

GSM Antenna with 1m

cable

ASC0

Power Supply

GSM / GPRS /UMTS

Base Station

DSB75

Evaluation module

extern connected via

flexible cable and

60to80 pin adapter

Audio Test System

Handset

ASC1

SIM card

SMA

RF reference point on

60to80 pin adapter

Audio

Module

7 Reference Approval



7 Reference Approval

7.1 Reference Equipment for Type Approval

The Cinterion Wireless Modules reference setup submitted to type approve AGS2-W is shown in the following figure:

AGS2-W_HIO_v01.000 Page 30 of 33 2012-05-16 Confidential / Preliminary

Figure 3: Reference equipment for Type Approval

AGS2-W Hardware Interface Overview

7.2 Compliance with FCC and IC Rules and Regulations



7.2 Compliance with FCC and IC Rules and Regulations

The Equipment Authorization Certification for the Cinterion Wireless Modules reference application described in Section 7.1 will be registered under the following identifiers:

FCC Identifier: QIPAGS2 Industry Canada Certification Number: 7830A-AGS2 Granted to Cinterion Wireless Modules GmbH

Manufacturers of mobile or fixed devices incorporating AGS2-W modules are authorized to use the FCC Grants and Industry Canada Certificates of the AGS2-W modules for their own final products according to the conditions referenced in these documents. In this case, an FCC/ IC label of the module shall be visible from the outside, or the host device shall bear a second label stating "Contains FCC ID QIPAGS2", and accordingly “Contains IC 7830A-AGS2“.

The integration is limited to fixed or mobile categorised host devices, where a separation distance between the antenna and any person of min. 20cm can be assured during normal operating conditions. For mobile and fixed operation configurations the antenna gain, including cable loss, must not exceed the limits 7.24 dBi (850 MHz) and 3.30 dBi (1900 MHz). See [3].

IMPORTANT: Manufacturers of portable applications incorporating AGS2-W modules are required to have their final product certified and apply for their own FCC Grant and Industry Canada Certificate related to the specific portable mobile. This is mandatory to meet the SAR requirements for portable mobiles (see Section 1.3.2 for detail).

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turn ing the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to wh ich the rece iver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

The manufacturer is responsible for ensuring that after the module is installed and operational the host continues to be compliant with the Part 15B unintentional radiator requirements.

AGS2-W_HIO_v01.000 Page 31 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

8 Appendix



8 Appendix

8.1 List of Parts and Accessories

Table 16: List of parts and accessories

Description Supplier Ordering information

AGS2-W Cinterion Standard module

Ordering number: TBD.

DSB75 Evaluation Kit Cinterion Ordering number: L36880-N8811-A100 Adapter for mounting the AGS2-

W evaluation module onto the DSB75

Evaluation Module Cinterion Ordering number: TBD.

Votronic Handset VOTRONIC Votronic HH-SI-30.3/V1.1/0

SIM card holder incl. push button ejector and slide-in tray

Cinterion Ordering number: TBD.

VOTRONIC Entwicklungs- und Produktionsgesellschaft für elektronische Geräte mbH Saarbrücker Str. 8 66386 St. Ingbert Germany Phone: +49-(0)6 89 4 / 92 55-0 Fax: +49-(0)6 89 4 / 92 55-88 Email: contact@votronic.com

Molex Ordering numbers: 91228

91236

Sales contacts are listed in Table 17.

AGS2-W_HIO_v01.000 Page 32 of 33 2012-05-16 Confidential / Preliminary

AGS2-W Hardware Interface Overview

8.1 List of Parts and Accessories

Table 17: Molex sales contacts (subject to change)



Molex For further information please click:

http://www.molex.com

Molex China Distributors Beijing, Room 1311, Tower B, COFCO Plaza No. 8, Jian Guo Men Nei Street, 100005 Beijing P.R. China Phone: +86-10-6526-9628 Fax: +86-10-6526-9730

Molex Deutschland GmbH Otto-Hahn-Str. 1b 69190 Walldorf Germany Phone: +49-6227-3091-0 Fax: +49-6227-3091-8100 Email: mxgermany@molex.com

Molex Singapore Pte. Ltd. 110, International Road Jurong Town, Singapore 629174

Phone: +65-6-268-6868 Fax: +65-6-265-6044

American Headquarters Lisle, Illinois 60532 U.S.A. Phone: +1-800-78MOLEX Fax: +1-630-969-1352

Molex Japan Co. Ltd. 1-5-4 Fukami-Higashi, Yamato-City, Kanagawa, 242-8585 Japan

Phone: +81-46-265-2325 Fax: +81-46-265-2365

AGS2-W_HIO_v01.000 Page 33 of 33 2012-05-16 Confidential / Preliminary

Gemalto M2M AGS2 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Tables

Figures

1 Introduction

1.1 Related Documents

1.2 Terms and Abbreviations

1.3 Regulatory and Type Approval Information

1.3.1 Directives and Standards

1.3.2 SAR requirements specific to portable mobiles

1.3.3 Safety Precautions

2 Product Concept

2.1 Key Features at a Glance

2.2 Automotive Feature Overview

3 Application Interface

3.1 Operating Modes

4 Antenna Interface

5 Electrical, Reliability and Radio Characteristics

5.1 Absolute Maximum Ratings

5.2 Operating Temperatures

5.3 Storage Conditions

5.4 Storage Conditions

5.5 Reliability Characteristics

5.6 Pad Assignment

5.7 Power Supply Ratings

6 Mechanics

6.1 Mechanical Dimensions of AGS2-W

7 Reference Approval

7.1 Reference Equipment for Type Approval

7.2 Compliance with FCC and IC Rules and Regulations

8 Appendix

8.1 List of Parts and Accessories
