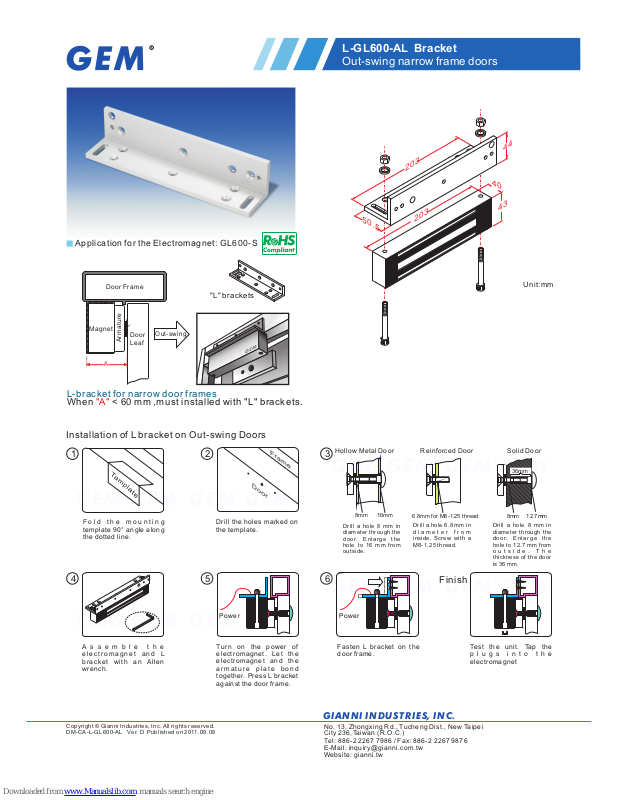

L-GL600-AL Bracket
Out-swing narrow frame doors
Cop yrigh t © Giann i Indus tries , Inc. All r ights r eserv ed.
DM- CA-L- GL600 -AL Ver. D Pu bli shed on 2 011.09 .0 8
Unit :m m
Applica tio n for t he Electro mag net : GL600-S
1
4
2
5
3
6
16mm 8mm
Hollow Metal Door
6.8mm for M8-1.25 thread
Reinforced Door
12.7mm 8mm
Solid Door
36mm
Power Power
Finis h
"L" br ac kets
4
0
5
0
.5
4
3
44
2
0
3
20
3
Insta llation o f L brack et on Out-s wing Doors
A s s e m b l e t h e
e l e ct ro ma gn et a n d L
br acke t w i t h a n Al l e n
wrench.
Turn o n the p owe r of
el ect ro m ag net . Le t t he
el ect rom a gn e t an d t he
a r ma tu re p la te b on d
together. Pr es s L br ac ke t
against the door frame.
Fasten L brack et o n th e
door frame.
Test t he u ni t. Tap the
p l u g s i n t o t h e
electromagnet
Dri ll a hol e 8 mm in
dia meter th rou gh t he
do or. E n la rg e t he
hol e to 16 m m fro m
out side.
Dri ll a hol e 6.8 mm in
d i a m e t e r f r o m
ins ide. Scr ew wit h a
M8- 1.25 th read.
F o l d t h e m o u n t i n g
template 90 ° a ng le al on g
the dotted line.
Dri ll a ho le 8 mm in
dia meter thro ugh t he
d oo r. E nl ar g e t he
hol e to 12 .7 mm f ro m
o u t s i d e . T h e
thi cknes s of the door
is 36 m m.
Drill t he h ol es ma rk ed on
the template.
GI ANNI I N DUST RIES, INC.
Magnet
Armature
Door Frame
Door
Leaf
A
Out-swing
L-bra cket for na rrow door fram es
When < 60 mm ,mu st installed with "L" bra ckets."A"
No. 13, Zhongxing Rd., Tucheng Dist., Ne w Taip ei
City 236,Taiwan (R.O.C.)
Te l: 8 86 -2 2 26 7 79 86 / F ax : 88 6- 2 22 67 9 876
E-Mail: [email protected]
Web si te : gi an ni .t w
