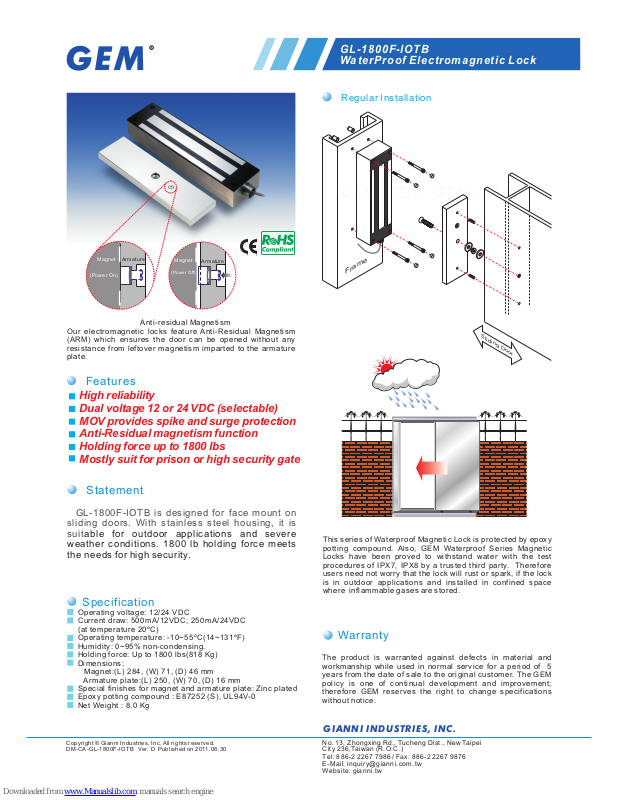

GEM GL-1800F-IOTB Specification Sheet

F

r

a

me

S

lid

in

g

Doo

r

Statement

Specification

GI AN NI INDUSTRI ES, INC.

Cop yrigh t © Giann i Indus tries , Inc. All r ights r eserv ed.
DM- CA-GL -1800 F-IOT B Ver. D Publ ished o n 2011.0 8.30

The product is warranted against defects in material and
workmanship while used in normal service for a period of 5
years fro m the date of s ale to the ori gin al customer. The GEM
policy i s o ne of con tin ual development and improvement;
therefore GEM reserves the right to change specifications
without notice.

Warranty

GL-1800F-IOTB is desi gned for face mount on

sliding doors. With sta inless ste el housing, it is
su itable fo r outdoor applicat ions and severe

weather conditions. 1800 lb holding fo rce me ets
the needs f or high security.

GL- 180 0F- IOTB
Wa terProof E lec tromagneti c L ock

High reliability
Dual voltage 12 or 24 VDC (selectable)
MOV provides spike and surge protection
Anti-Residual magnetism function
Holding force up to 1800 lbs
Mostly suit for prison or high security gate

Features

Mag net

Arm ature

(Po wer On)

Regular I nstallation

Mag net

Arm ature

(Po wer Off)

Operating voltage: 12/24 VDC
Current draw: 500mA/12VDC; 250mA/24VDC
(at temperature 20ºC)
Operating temperature: -10~55ºC(14~131ºF)
Humidity: 0~95% non-condensing.
Holding force: Up to 1800 lbs(818 Kg)
Dimensions:
Magnet:(L) 284, (W) 71, (D) 46 mm
Armature plate:(L) 250, (W) 70, (D) 16 mm
Special finishes for magnet and armature plate: Zinc plated
Epoxy potting compound : E87252 (S), UL94V-0
Net Weight : 8.0 Kg

Anti-residual Magnetism
Our el ect rom agn eti c locks feature Ant i-R esi dua l Magnetism
(ARM) which ensu res t he door can be ope ned without any
resistance fro m l eft ove r m agn eti sm imp art ed to the armature
plate.

This se rie s of Wa ter pro of Magnetic Loc k is ep oxy
potting compound. Also, GEM Waterproof Series Magnetic
Locks hav e been proved to withstand wa ter with t he test
procedures of IPX 7, IPX8 by a t rus ted third party. Therefore
users need not worry that the loc k wi ll r ust or s par k, i f the lock
is in outdoor ap pli cat ion s and i nst all ed in c onf ine d space
where inflammable gases are stored.

protected by

No. 13, Zh ong xing R d., Tu cheng Dis t., New Taipe i
City 236 ,Taiw an (R. O.C .)

Te l: 886 -2 22 67 798 6 / Fax : [phone]

E-Mail : inq uiry @gi anni.co m.tw
Web sit e: gianni .tw
