Page 1
Features
Statement
The product is warranted against defects in material and
workmanship while used in normal service for a period of 1
year fro m t he date of sale t o t he original customer. The GEM
policy i s o ne of con tin ual development and improvement;
therefore GEM reserves the right to change specifications
without notice.
Warranty
Specifications
Uni t: mm

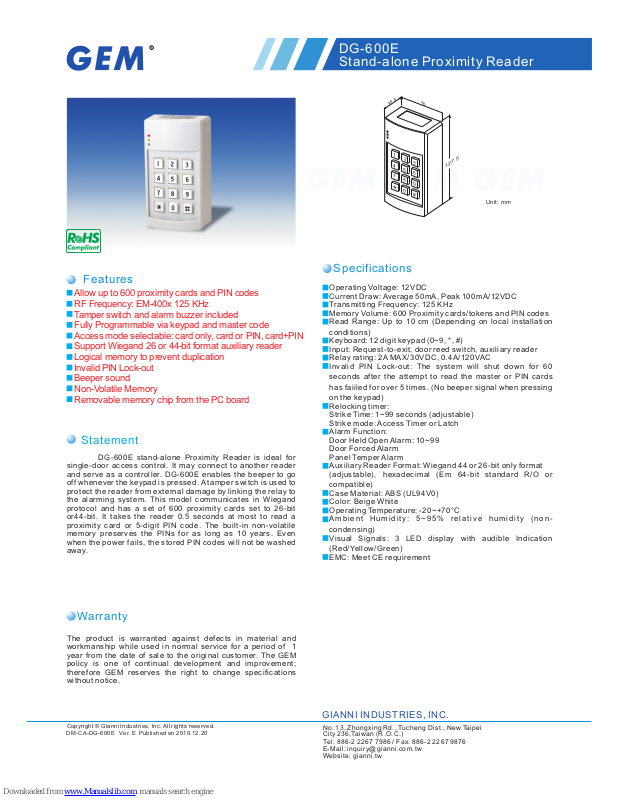

DG-600E
Stand-alone Proximity Reader
35.
5
70
1
27.
5
1
2
3
4
5
6
7
8
9
0
*
#
Allow up to 600 proximity cards and PIN codes
RF Frequency: EM-400x 125 KHz
Tamper switch and alarm buzzer included
Fully Programmable via keypad and master code
Access mode selectable: card only, card or PIN, card+PIN
Support Wiegand 26 or 44-bit format auxiliary reader
Logical memory to prevent duplication
Invalid PIN Lock-out
Beeper sound
Non-Volatile Memory
Removable memory chip from the PC board
DG-600E stan d-a lon e Proximity Re ade r is ideal for
single-door acce ss control. It may co nne ct to another rea der
and serve as a con tro lle r. D G-6 00E enables the beeper to go
off whenever the key pad i s pre sse d. A tamper switch is u sed t o
protect th e reader from ext ern al damage by l ink ing the relay to
the alarming system. Th is model communicates in Wie gan d
protocol an d has a set of 60 0 proximity ca rds set to 26- bit
or44-bit. It takes the re ade r 0.5 seconds at mos t to read a
proximity card or 5-di git PIN cod e. The built-in non- vol ati le
memory preserves th e PINs for as long as 1 0 years. Ev en
when the power fai ls, the sto red PIN codes will not b e wa she d
away.
Operating Voltage: 12VDC
Current Draw: Average 50mA, Peak 100mA/12VDC
Tra nsm itt ing F req uen cy: 1 25 KH z
Memory Volume: 600 Proximity cards/tokens and PIN codes
Read Ra nge : Up to 10 cm (Depending on local installation
conditions)
Keyboard: 12 digit keypad (0~9, *, #)
Input: Request-to-exit, door reed switch, auxiliary reader
Relay rating: 2A MAX/30VDC, 0.4A/120VAC
Invalid PIN Lock-out: Th e system will shut dow n f or 60
seconds af ter the attempt to read the mas ter or PIN cards
has fai ile d for ove r 5 ti mes . (No bee per signal w hen pressing
on the keypad)
Relocking timer:
Strike Time: 1~99 seconds (adjustable)
Strike mode: Access Timer or Latch
Alarm Function:
Door Held Open Alarm: 10~99
Door Forced A larm
Panel Temper Alarm
Auxiliary Reader Format: Wiegand 44 or 26-bit only format
(a dju sta ble), he xad eci mal (Em 64- bit standard R /O or
compatible)
Case Material: A BS (U L94V0)
Color: Beige White
Operating Te mpe rat ure : -20 ~+7 0°C
A mb ie nt H u mid it y : 5~9 5% r e lat iv e h umi di t y (no n-
condensing)
Visua l S ign als: 3 L ED displ ay with aud ibl e Indica tio n
(Red/Yel low /Gr een )
EMC: Meet CE requirement
Cop yrigh t © Giann i Indus tries , Inc. All r ights r eserv ed.
DM- CA-DG -600E Ve r. E Publi shed on 2 010.1 2.20
GIANNI IN DUSTRIES, INC.
No. 13, Zh ong xing R d., Tu cheng Dis t., New Taipe i
City 236 ,Taiw an (R. O.C .)
Tel: 886 -2 22 67 798 6 / Fax : 886-2 226 7 9876
E-Mail : inq uiry @gi anni.co m.tw
Web sit e: gianni .tw
Page 2
Optional Readers
DG-600E
Stand-alone Proximity Reader
Connect ing Diagram
Fail-Safe Lock
St 2 connect to 1-2
electric lock signal of
Push Button
External relay connecting
Auxiliary Reader
(Wiegand Format)
Connect 1-2, C and D contact is N. C.
Connect 2-3, f or N.O.
Connect to 1-2 ;C and A co ntact is N.C.
Connect to 2-3 ; for N.O.
Fail-Secure Lock
St 2 connect to 2-3
*Linear supply recommended
Power supply
(12VDC)
Insert 2-3 position to reset
DG-600E Jp1 le ads to Wiegand 44 b its format
DG-600E Jp1 sh ort-circuit t o Wiegand 26 bits f ormat
GIANNI IN DUSTRIES, INC.
Cop yrigh t © Giann i Indus tries , Inc. All r ights r eserv ed.
DM- CA-DG -600E Ve r. E Publi shed on 2 010.1 2.20
No. 13, Zh ong xing R d., Tu cheng Dis t., New Taipe i City 236,
Taiwa n (R. O.C.)
Tel: 886 -2 22 67 798 6 / Fax : 886-2 226 7 9876
E-Mail : inf o@gi ann i.com.t w
Web sit e: gianni .tw
Door switch contact or the output
to the warning system
714-60
Mifare ® ID Reader
GEMPROX-E
EM 125KHz
GEMPROX-26M
Mifare ® ID Reader
GEMPROX-630EM-KP
EM 125KHz Keypad and
proximity reader
GEMPROX-630EM
EM 125KHz
