Page 1
Mag net
Arm ature
(Po wer Off )
Mag net
Arm ature
(Po wer On)
Anti-resi du al s ta tement
Our electr om ag ne t lo cks feature Anti-Res id ua l Ma gn et ism
(ARM) which ensures the door can be o pe ne d wi th ou t an y
resist an ce from l ef t over ma gnetism im pa rted t o the a rm at ur e
plate
Statement
Features

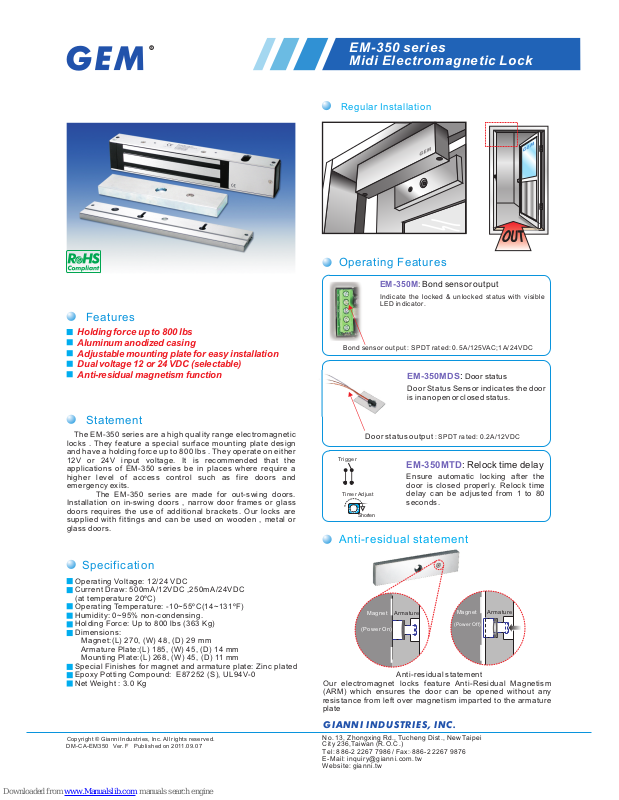

EM-350 series
Midi Electromagnetic Lock
Holding force up to 800 lbs
Aluminum anodized casing
Adjustable mounting plate for easy installation
Dual voltage 12 or 24 VDC (selectable)
Anti-residual magnetism function
Th e E M- 35 0 s er ie s a re a h ig h q ua lity range electrom ag ne ti c
locks . T he y fea tu re a s pecial surface moun ting pl ate d es ign
and ha ve a ho lding f or ce up t o 800 l bs . They o pe rate on either
12V or 24V input volta ge . It i s re co mm en ded that the
applic at io ns of EM -3 50 series be in places whe re re qu ir e a
hi gh er leve l of acce ss co nt rol suc h as fire d oors an d
emerge nc y ex it s.
T he EM -3 50 se ries a re ma de f or ou t- sw ing doors.
Instal la ti on on in- sw in g doors , narrow d oo r frames or glass
doors requ ires t he use o f additional b ra ckets. O ur locks a re
suppli ed wit h fitt ings and can be u se d on woode n , met al or
glass do or s.
Specification
Operat in g Vo lt age: 12/24 VD C
Curren t D ra w: 500mA/12VDC ,2 50 mA /2 4VDC
(at tem pe ra tu re 20ºC)
Operat in g Tempe ra tu re : -10~55ºC(1 4~ 13 1º F)
Humidi ty : 0 ~9 5% non-conde ns in g.
Holdin g F or ce : Up to 800 lbs (3 63 Kg )
Dimens io ns :
Magnet :( L) 27 0, (W) 48, (D) 29 mm
Armatur e P la te :(L) 185, (W) 45 , ( D) 14 mm
Mounti ng Pl at e:(L) 268, (W) 4 5, (D ) 11 mm
Specia l F in is hes for magne t a nd ar ma ture plate: Z in c p la te d
Epoxy P ot ti ng Compound: E8 72 52 (S ), UL94V-0
Net Weight : 3. 0 K g
GI ANNI I NDU STRI ES, I NC.
Cop yrigh t © Giann i Indus tries , Inc. All r ights r eserv ed.
DM- CA-EM 350 Ver. F Pu blish ed on 2011 .0 9.0 7
Regular Installation
Operating Features
EM-350MTD: Relock time delay
Ensure a ut om atic lockin g af te r the
door is clo sed pro pe rly. Rel oc k time
delay can be adju st ed from 1 to 80
second s.
EM-350M: Bond sensor output
Indicat e the lock ed & un lo ck ed status wi th vis ib le
LED indic at or.
Bond sens or o ut pu t : SPDT ra te d: 0 .5A/1 25 VAC ;1A/2 4V DC
: Door status EM-350MDS
Door St atus Sen so r indica te s the doo r
is in an open or clo se d stat us.
Door sta tu s ou tp ut : SPD T ra ted: 0.2A /1 2V DC
Time r Adj ust
Shorten
Tri gge r
Anti-residual statement
No. 13, Zho ng xi ng R d., Tuch en g Di st ., N ew Taip ei
City 236, Taiw an ( R. O.C.)
Te l: 8 86- 2 22 67 7 98 6 / Fa x: 88 6- 2 22 67 9 87 6
E-Mail: i nq ui ry @gianni .c om .t w
Web si te : gi anni.tw
Page 2
Cop yrigh t © Giann i Indus tries , Inc. All r ights r eserv ed.
DM- CA-EM 350 Ver. F Pu blish ed on 2011 .0 9.0 7
EM-350 series
Midi Electromagnetic Lock
GI ANNI I NDU STRI ES, I NC.
Optional Brackets
Bracket installation is acco rdi ng to d oor s win g
direction and door frame type , e. g. na rro w fra me
door , frameless glass door , insw ing d oor , e tc.
U-brac ke t fo r fr ameless glass d oo rs
UBK- 013 for 1 0~12m m glass t hicknes s
L-brac ke t fo r na rrow door frame s
When < 48 mm ,mus t
instal le d wi th " L" brackets.
"A"
48 mm
Mag net
Arm ature
Doo r Frame
Doo r
Lea f
A
Out swing
LZ-bra ck et f or i n-swing doors
LZ-350
L-350
Optional Accessories
Innovative Top Mount Plate for Easy Installation
The 2 extra innovative holes on the top plate are specially
design ed t o hold th e El ectromagnet L oc k in or de r to r educe t he
instal la ti on e ff or t an d enhance safet y.
Mou nt Plat e
Mag net
Fra me
Woo d Fr ame
The ca bl e can p as s through
the inter na l h ol lo w s pa ce of
the top pl at e.
Hollo w sp ace
The mount in g p la te may be
extend ed to the br acket if the
door fra me i s na rr ow.
Mou nt Plat e
Mag net
Fra me
Mou nt Plat e
Mag net
Fra me
L-350 and L Z- 350 b ra ck ets c an ad ju st the gap b et ween th e
Electr om ag ne tic L ock a nd the Ar mature plate. T he sp ecial
curve design e nh anced the aestheti c appearance of E M350 on any d oo r fr am e.
The product is warr an te d agai ns t defects in ma te ri al and
workma ns hi p whil e used in nor ma l s er vice for a pe ri od of 5
year f ro m the d at e of sa le to the or ig in al cust om er. T he GEM
policy is one of co nt in ua l de ve lo pment an d im pr ov ement;
theref or e G EM rese rv es the right to cha ng e s pecificatio ns
withou t no ti ce .
Warranty
No. 13, Zho ng xi ng R d., Tuch en g Di st ., N ew Taip ei
City 236, Taiw an ( R. O.C.)
Te l: 8 86- 2 22 67 7 98 6 / Fa x: 88 6- 2 22 67 9 87 6
E-Mail: i nq ui ry @gianni .c om .t w
Web si te : gi anni.tw
