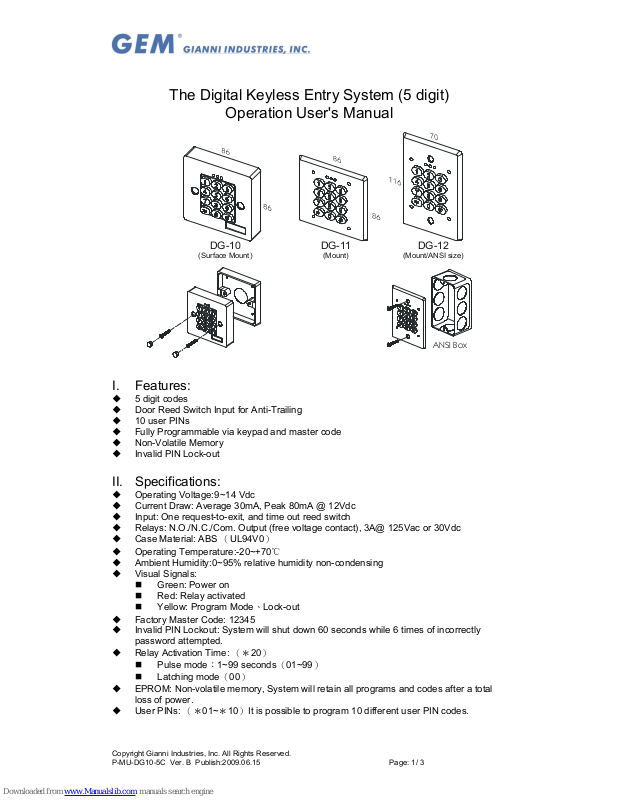

Page 1

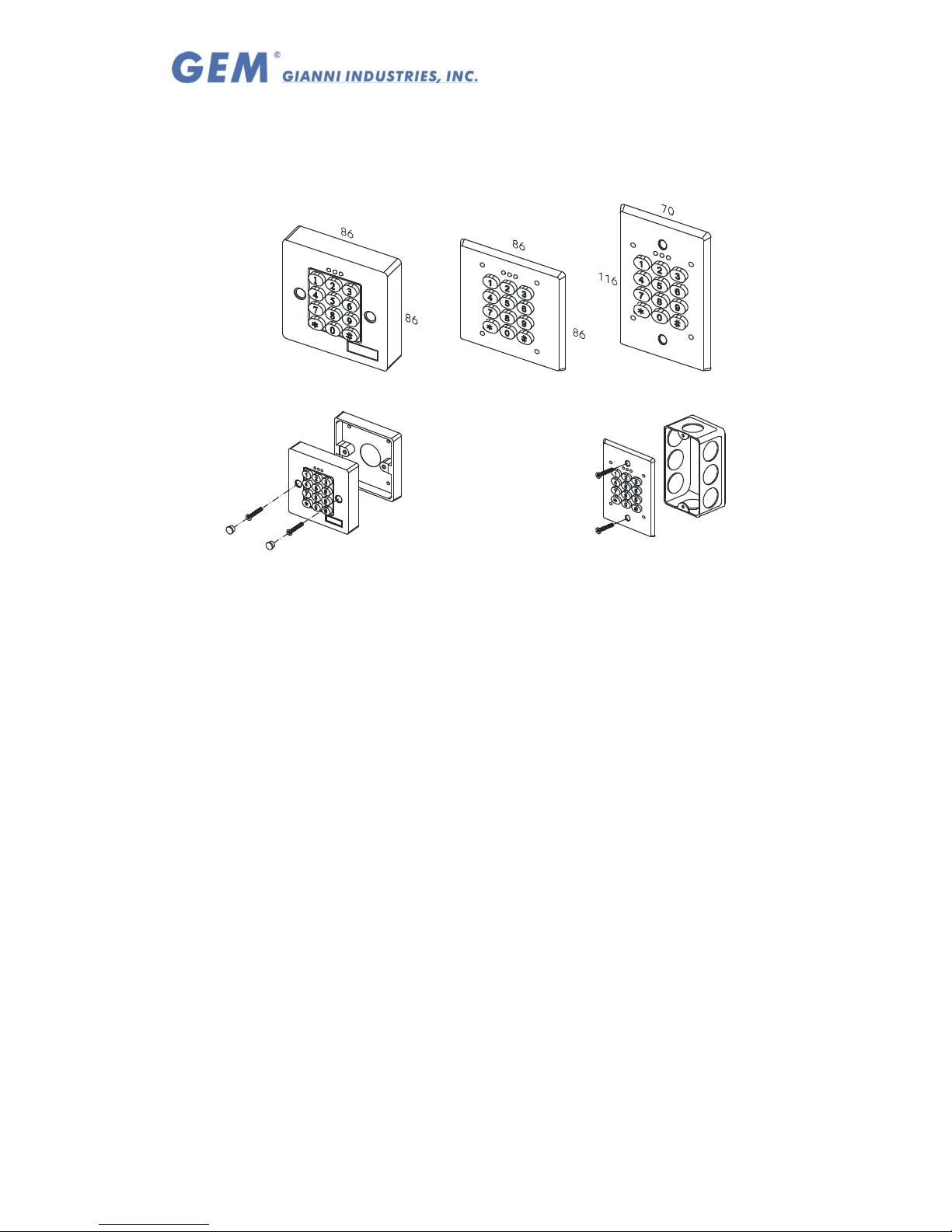

The Digital Keyless Entry System (5 digit)

Operation User's Manual

DG-11

(Mount)

DG-12

(Mount/ANSI size)

DG-10

(Surface Mount)

ANSI Box

I. Features:

 5 digit codes  Door Reed Switch Input for Anti-Trailing  10 user PINs  Fully Programmable via keypad and master code  Non-Volatile Memory  Invalid PIN Lock-out

II. Specifications:

 Operating Voltage: 9~14 Vdc  Current Draw: Average 30mA, Peak 80mA @ 12Vdc  Input: One request-to-exit, and time out reed switch  Relays: N.O./N.C./Com. Output (free voltage contact), 3A@ 125Vac or 30Vdc  Case Material: ABS （UL94V0）

 Operating Temperature:-20~+70℃  Ambient Humidity:0~95% relative humidity non-condensing  Visual Signals:

 Green: Power on  Red: Relay activated  Yellow: Program Mode、Lock-out

 Factory Master Code: 12345  Invalid PIN Lockout: System will shut down 60 seconds while 6 times of incorrectly

password attempted.

 Relay Activation Time: （＊20）

 Pulse mode：1~99 seconds（01~99）  Latching mode（00）

 EPROM: Non-volatile memory, System will retain all programs and codes after a total

loss of power.

 User PINs: （＊01~＊10）It is possible to program 10 different user PIN codes.

Page 2

III. Program Instruction:

 Enter Program Mode:

1. Enter the master code twice (Factory master is 「12345」)

→2 beeps and the Yellow LED will light up. → you are now in the "programming mode".

2. Note: After 60 seconds if you have not entered any codes or data, the system will automatically exit from the programming mode. After 6 wrong attempts at the master code the lockout facility will operate.

 Exiting from the program mode:

1. Press「#」 to exit from the programming mode.

 To Enter a User Code：

Enter the Programming mode

1. Enter the slot position code 「＊01~＊10」 →?????（user code 5 digit）→（beep） →enrolled→ Press # to exit from the programming mode, or program other operating.

2. Note: The codes"00000","12345" or master code are not be used for PIN code.

 To Program Relocking Timer（relay）： Enter the Programming mode

A. Press「＊20」Followed by the number of seconds the relay should open→「05」

=5 seconds（01 ~99 = seconds）→（beep）→enrolled → Press 「#」 to exit from the programming mode, or program other operating.

B. Enter「00」Sets the relay to latching mode.

(Correct code entered opens the relay,

and the relay stays open until the correct code is entered again).

 To Delete a User Code： Enter the Programming mode→ Press the slot position code of your choice to delete

(example "06") →Press「＊06」→「00000」→（beep）→delete→Press「#」 to exit from the programming mode, or programming other operating.

 To Change the Master codes:

Enter the Programming mode, Enter「＊00」Followed by the new 5 digit master code→ （beep）→enrolled→Enter 「#」 to exit from the programming mode, or program other operating.

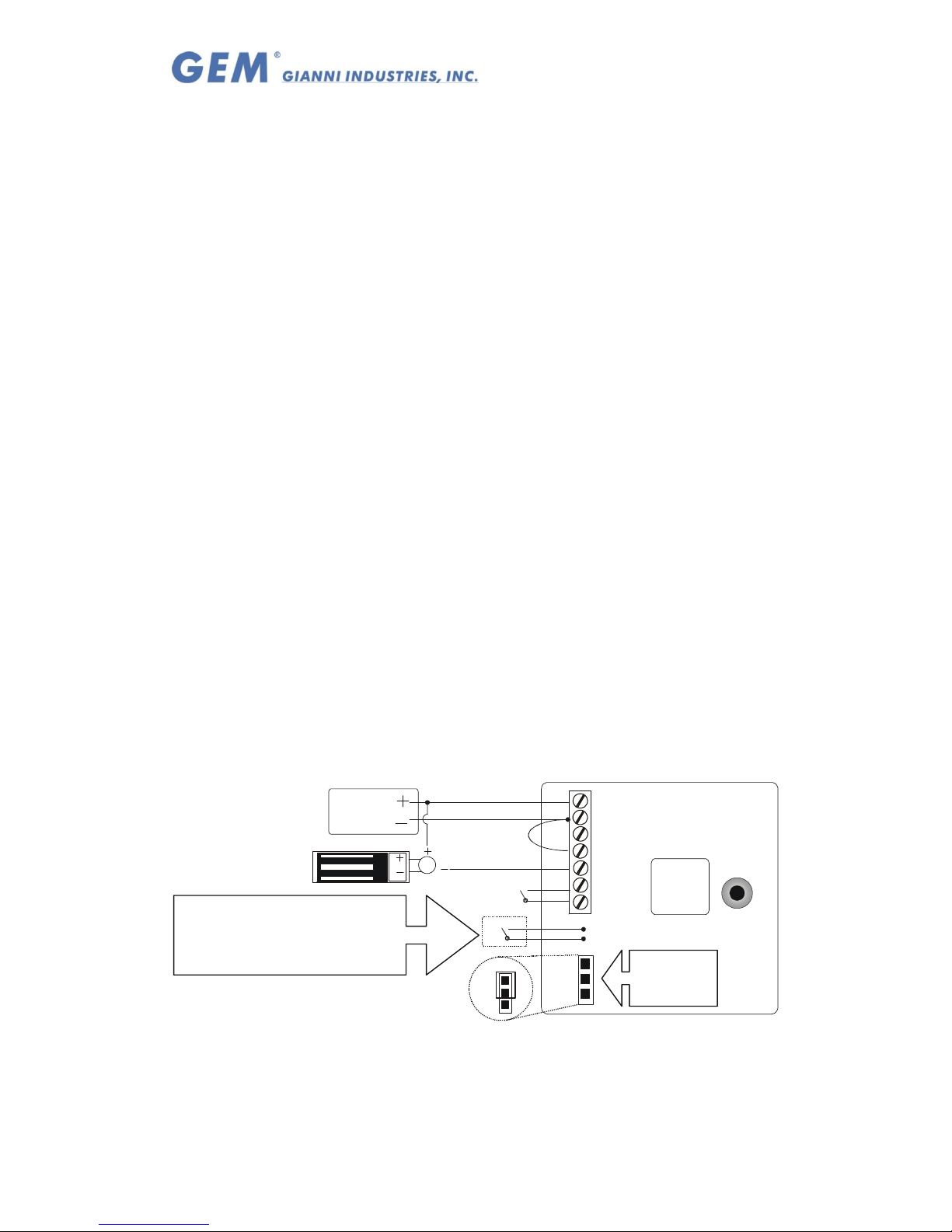

IV. Wiring diagram:

1 2 3

B(White)

P(White)

N.C.(Blue)

Com.(Green)

N.O.(Yellow)

Power in(Red)

1 2 3

12Vdc Power Supply

Push Button

Relay

Buzzer

Master Code

resetting to

Factory Code

"12345"

FAI L-SA FE L OCKIN G

DEVICE

Vari st or

Contact door reed switch (Pink)

This reed switch is used

to reset the re-locking time

to 0 second when the door is moved.

(Using N.O. contact in case of door closed,

changeover to N.C. When door is moved)

Page 3

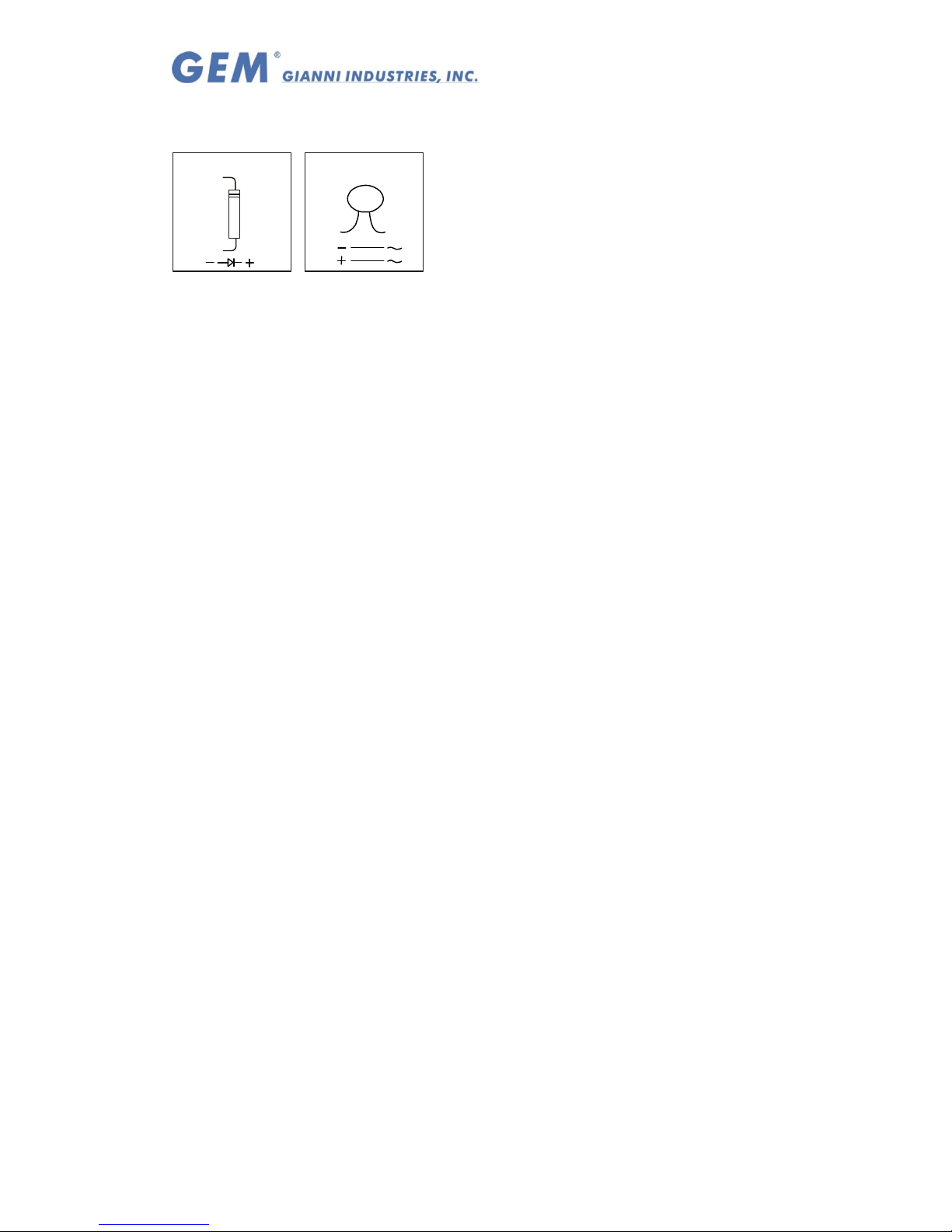

For DC use only For AC/DC

Note:

The door strike must have a vartistor or a diode across the door strike terminals to suppress

he back EMF t of the strike - failure to do so will damage the relay contacts and electronic

improvement , therefore GEM reserves the right to change

pecifications without notice.

components.

Warranty:

The product is warranted against defects in material and workmanship while used in normal service for a period of 1 year from the date of sale to the original customer .GEM policy is o

f continual development and o
