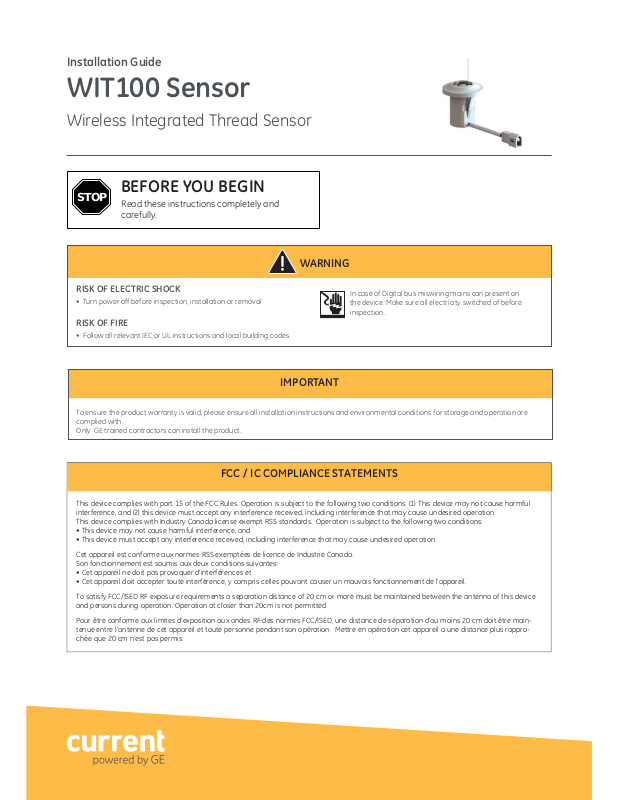

Installation Guide
WIT100 Sensor
Wireless Integrated Thread Sensor
STOP
RISK OF ELECTRIC SHOCK
• Turn power off before inspection, installation or removal
RISK OF FIRE
• Follow all relevant IEC or UL instructions and local building codes
To ensure the product warranty is valid, please ensure all installation instructions and environmental conditions for storage and operation are
complied with.
Only GE trained contractors can install the product.
Read these instructions completely and
carefully.
WARNING
In case of Digital bus miswiring mains can present on
the device. Make sure all electricity switched of before
inspection.
IMPORTANT
FCC / IC COMPLIANCE STATEMENTS
BEFORE YOU BEGIN
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This device complies with Industry Canada license exempt RSS standards. Operation is subject to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation.
Cet appareil est conforme aux normes RSS exemptées de licence de Industrie Canada.
Son fonctionnement est soumis aux deux conditions suivantes:
• Cet appareil ne doit pas provoquer d'interférences et
• Cet appareil doit accepter toute interférence, y compris celles pouvant causer un mauvais fonctionnement de l'appareil.
To satisfy FCC/ISED RF exposure requirements a separation distance of 20 cm or more must be maintained between the antenna of this device
and persons during operation. Operation at closer than 20cm is not permitted
Pour être conforme aux limites d’exposition aux ondes RF des normes FCC/ISED, une distance de séparation d’au moins 20 cm doit être maintenue entre l’antenne de cet appareil et toute personne pendant son opération. Mettre en opération cet appareil a une distance plus rapprochée que 20 cm n’est pas permis.
Product overview
The Wireless Integrated Therad sensor (WIT100) is a small-size,
luminaire-integrated sensor with wireless communication, using
the cutting-edge Thread protocol. This is based on the 802.15.4
standard and guarantees a secure and reliable communication
between the luminaires in the room. Using the WIT100 sensor in
each luminaire provides a state-of-the-art distributed lighting
control based on the built-in motion sensing and daylight
harvesting functionalities. This sensed information is then shared
between all luminaires. The control of the luminaire is carried out
through the DALI 2.0 digital bus between the output of the sensor
additional wiring and auxiliary power supply is required. This
and the wireless communication help minimizing the installation
costs. Besides the automatic operation of the system it is also
possible to adjust preferred dimming levels manually through
Current’s energy-harvesting wireless switches. These switches
do not require wires for communication, but they even use
the mechanical energy of pushing the button to generate the
necessary power for the electronics. The configuration of the
system is done in a very easy way using through Current’s
Bluetooth-based iOS application.
and the control input of the luminaire’s LED driver. The DALI bus
also provides the necessary supply power for the sensor, no any
Techical data
Key functions

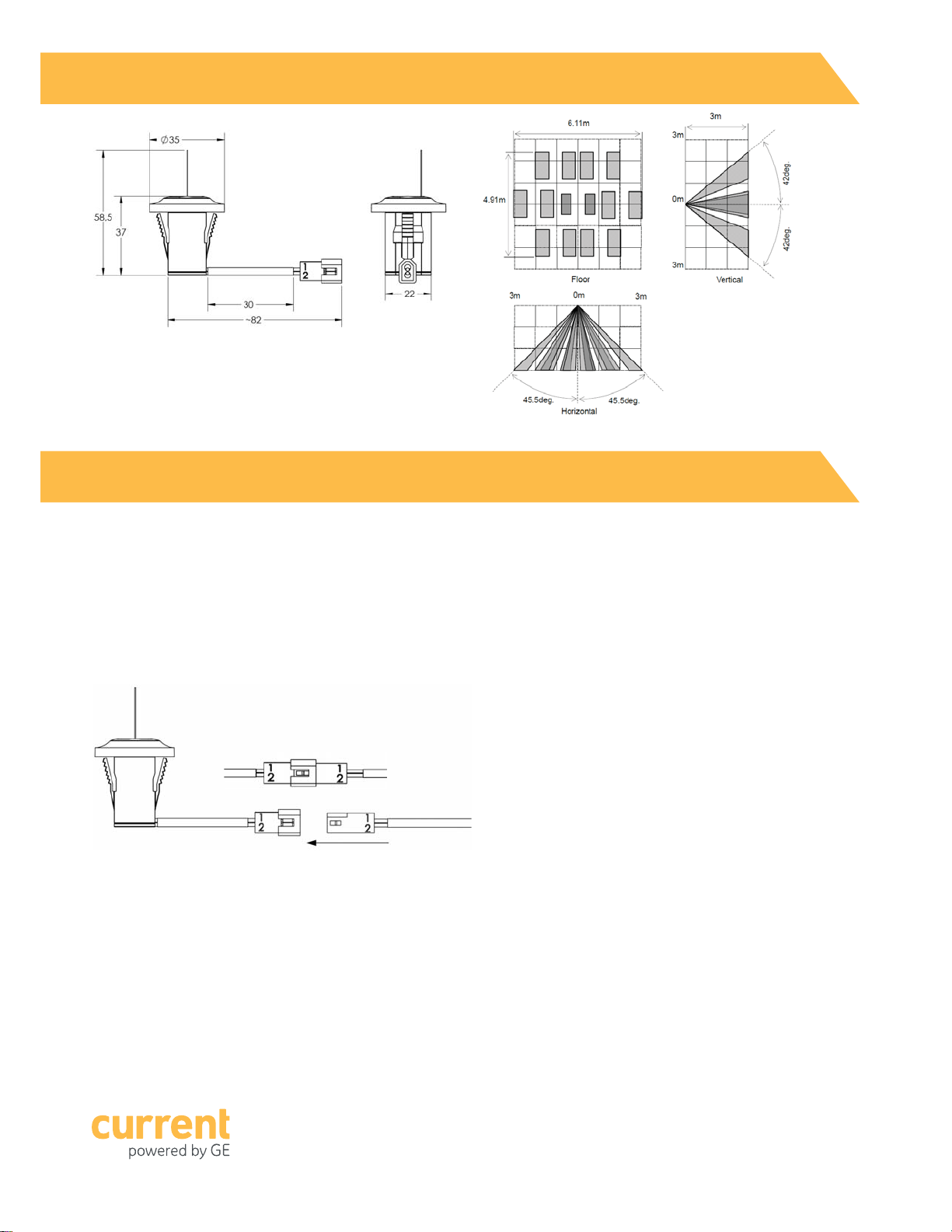

Dimensions 58,5 x D35mm (2,303xD1,378 inch) + connected cable
Weight 15g
Current consumption Max 8mA (without digital communication) @ Max. 20V DC
Sensor type Passsive infrared (PIR) sensor (for motion), light sensor
Operating Environment 0°C to 45°C / IP 20 – Indoor, dry location.
Status indicator Network LED (amber): Network joined; Installation test
Connections Cable connection to the Driver or Interface module.
Mounting Easy screwless installation to a D22mm (0,866 inch) cut hole.
Recomented mounting height 3m
Warranty 5 years
Product Certifications
FCC ID: PUU-WIT100
E486320
IC ID: 10798A-PUUWIT100
Product availability
SKU Description Article No.
TBD
Wireless Integrated Thread Sensor
WIT100
Notes
Purpose of the Control Operating Control
Method of Mounting Control Independently Mounted Control for panel mounting
Type of action and additional features Type 1
Control Pollution Degree 2
Software Class and Structure Class A
Maximum Interconnection cables length 3 m
