Instruction Manual
Rack Power Distribution Unit
ZP Series
Geist Manufacturing 1821 Yolande Ave., Lincoln, NE 68521
800.432.3219 | 402.474.3400 | F: 402.474.4369 | www.geistmfg.com
Contents
Specifications....................................................................................................................3
Overview 3
Environmental 3
Electrical 3
Receptacle Ratings 3
Networking (For Current Monitoring (EM) Meter Units Only) 3
Data Formats (For Current Monitoring (EM) Meter Units Only) 4
EMC Verification 4
Installation .......................................................................................................................5
Instructions 5
Guidelines 5
Mounting...........................................................................................................................6
Optional Local Monitoring ...............................................................................................13
Power Meter 13
Current Meter 13

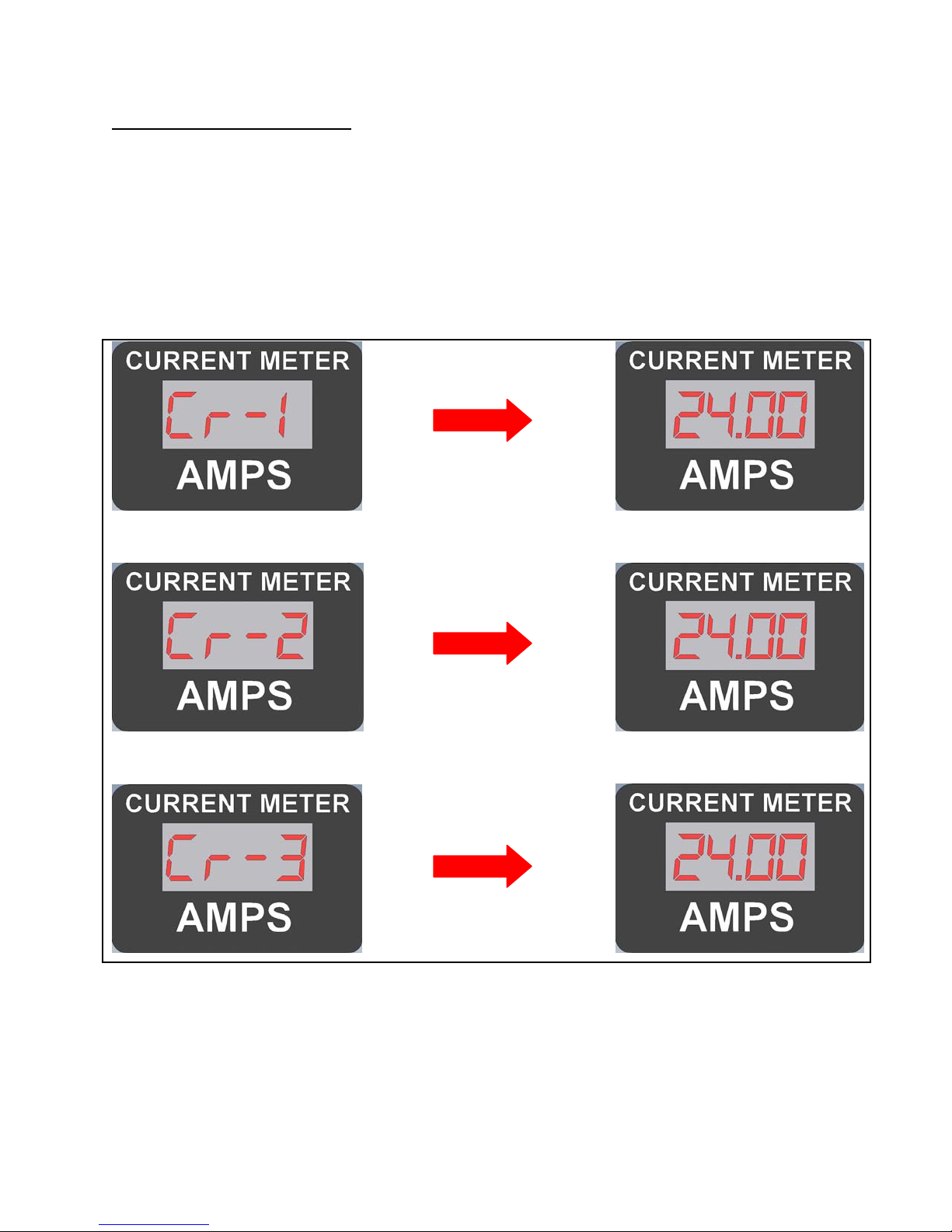

Three Circuit Current Meter 14
Optional Remote Monitoring............................................................................................15
Current Monitoring Meter Overview 15

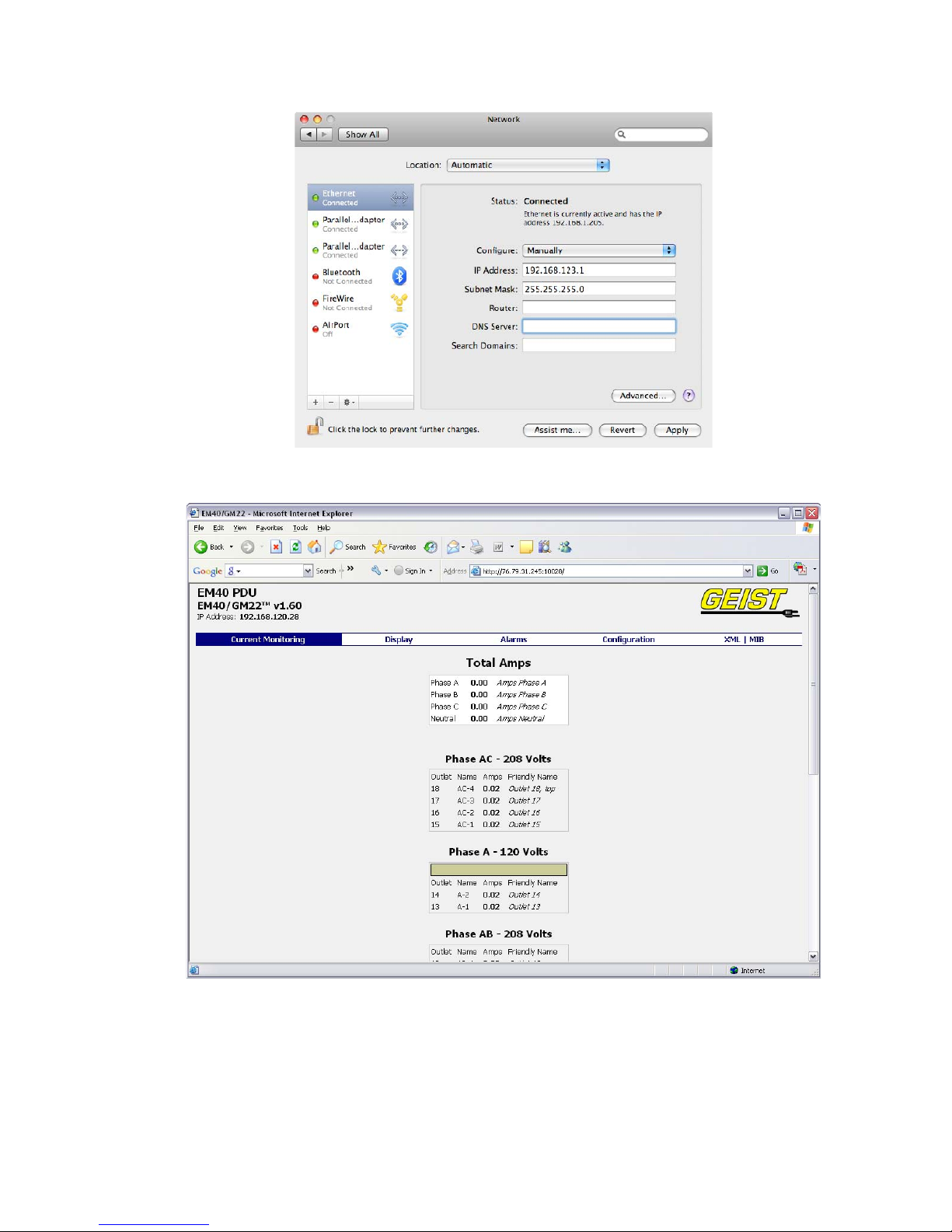

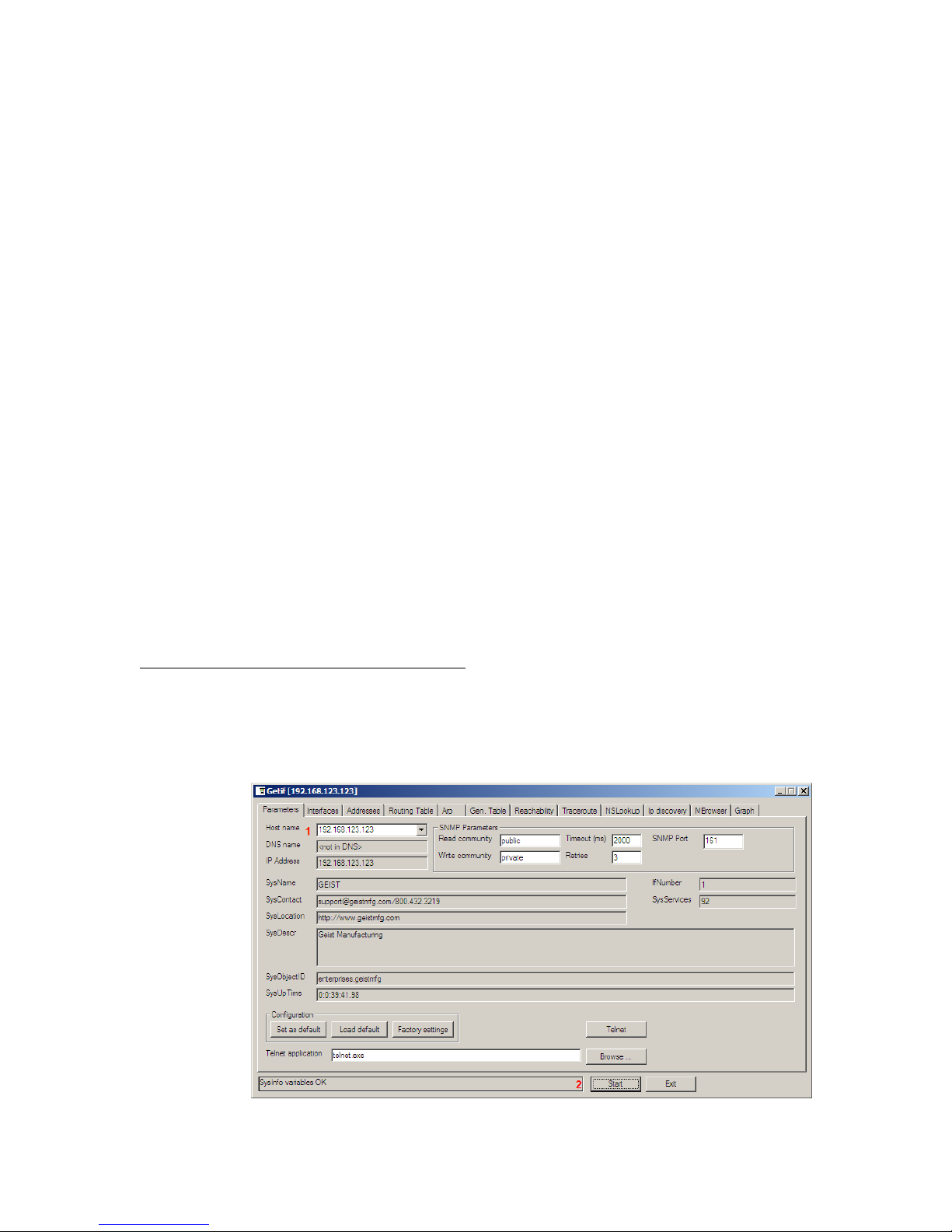

Current Monitoring Meter Instructions 15

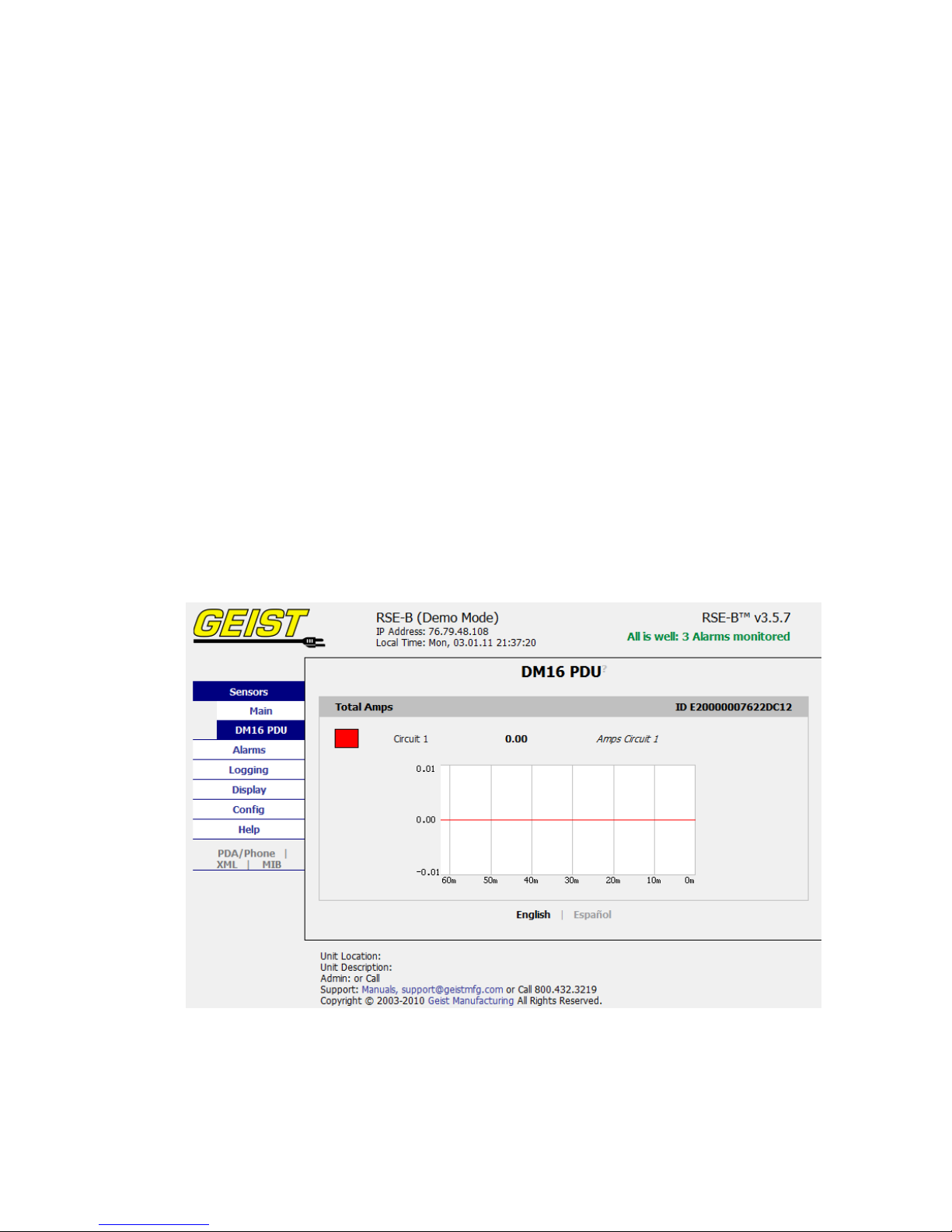

Satellite Current Monitoring Meter Overview 21
Service/Tech Support .....................................................................................................24
Service and Maintenance 24
More Technical Support 24
Table of Figures ..............................................................................................................25
Revision History..............................................................................................................26
GM1099.doc 2 Revision Date 5/20/2010
Specifications
Overview
The ZP Series products are Power Distribution Units (PDU) intended for connection to a 50-120
Amp AC Mains circuit. The PDUs are designed to be powered by either a single phase or a
three phase AC input circuit. Three phase units are configured for a delta input connection. ZP
Series PDUs can optionally be configured with a Geist Current Meter that provides local
monitoring and display of each output circuit current. Alternatively, ZP Series PDUs can be
configured with a Geist Current Monitoring (EM) Meter that provides both local and remote
monitoring of input and output line current.
Environmental
Temperature
Humidity
Elevation
Operating: 10°C (50°F) min 45°C (113°F) max
Storage: -25°C (-13°F) min 65°C (149°F) max
Operating: 5% min 95% max (non-condensing)
Storage: 5% min 95% max (non-condensing)
Operating: 0 m (0 ft) min 2000 m (6561 ft) max
Storage: 0 m (0 ft) min 15240 m (50000 ft) max
Electrical
See nameplate for unit ratings.
Receptacle Ratings
NEMA 5-15R or L5-15R 125 Volts, 15 Amp
NEMA 5-20R or L5-20R 125 Volts, 20 Amp
NEMA 6-20R or L6-20R 250 Volts, 20 Amp
NEMA L15-20R 250 Volts 3~, 20 Amp
NEMA L15-30R 250 Volts 3~, 30 Amp
IEC-320 C13 125/250 Volt, 15 Amp (per Receptacle Bank)
IEC-320 C19 125/250 Volt, 20 Amp
Networking (For Current Monitoring (EM) Meter Units Only)
Protocols
HTTP, ICMP, DHCP, TCP/IP, FTP
Ethernet Link Speed
10 Mbit; half-duplex
GM1099.doc 3 Revision Date: 1/25/2011
Data Formats (For Current Monitoring (EM) Meter Units Only)
HTML, SNMP, XML
EMC Verification
This Class A device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired
operation.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Warning: Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
FCC and Canadian ICES-003 requirements for units with Current Monitoring (EM) Meter: The
ferrite core shipped with the unit must be placed around the Ethernet cable close to the PDU.
GM1099.doc 4 Revision Date: 1/25/2011
Installation
Instructions
1. Using appropriate hardware, mount PDU to rack (see Mounting section for additional
instructions.
2. Connect PDU into de-energized appropriately rated branch circuit with plug or hardwired
connection depending on PDU design
3. Connect devices into PDU’s output receptacles. It is recommended that the devices are
turned off until all devices are connected to PDU
4. Turn on branch circuit to energize PDU.
5. Power on devices. Sequential power up is recommended to avoid high inrush current.
1
.
Guidelines
• If the PDU is installed in a cabinet the ambient temperature of the rack should be no greater
than 45°C.
• Install the PDU such that the amount of airflow required for safe operation of equipment is
not compromised.
• Mount the PDU so that a hazardous condition is not achieved due to uneven mechanical
loading.
• Follow nameplate ratings when connecting equipment to the branch circuit. Take into
consideration the effect that overloading of the circuits might have on over-current
protection and supply wiring.
• The PDU relies on the building installation for protection from over-current conditions. A
certified overcurrent protection device is required in the building installation. The
overcurrent protection device should be sized according to the PDU’s nameplate ratings and
local/national electrical codes.
• Reliable earthing of rack-mount equipment should be maintained. Particular attention
should be given to supply connections other than direct connections to the branch circuit.
The PDU must be connected to an earthed socket-outlet.
• The PDU is intended for Restricted Access Locations only and only qualified service
personnel should install and access the PDU.
• For pluggable equipment, install the PDU so that the input plug or appliance coupler may be
disconnected for service.
• Sequential power-up of devices powered by the PDU is recommended to avoid high inrush
current.
• Caution: Disconnect all power cords before servicing.
• The PDU is intended for use with TN, TT, or IT power supply systems
1
Branch Circuit overcurrent protection should be sized based on the PDU’s nameplate electrical
rating. For cord connected North American units the branch circuit overcurrent protection should
be rated 125% of the nameplate current rating. For cord connected Global units and all
permanently connected units the branch circuit overcurrent protection should be rated for 100% of
the nameplate current rating.
GM1099.doc 5 Revision Date: 1/25/2011

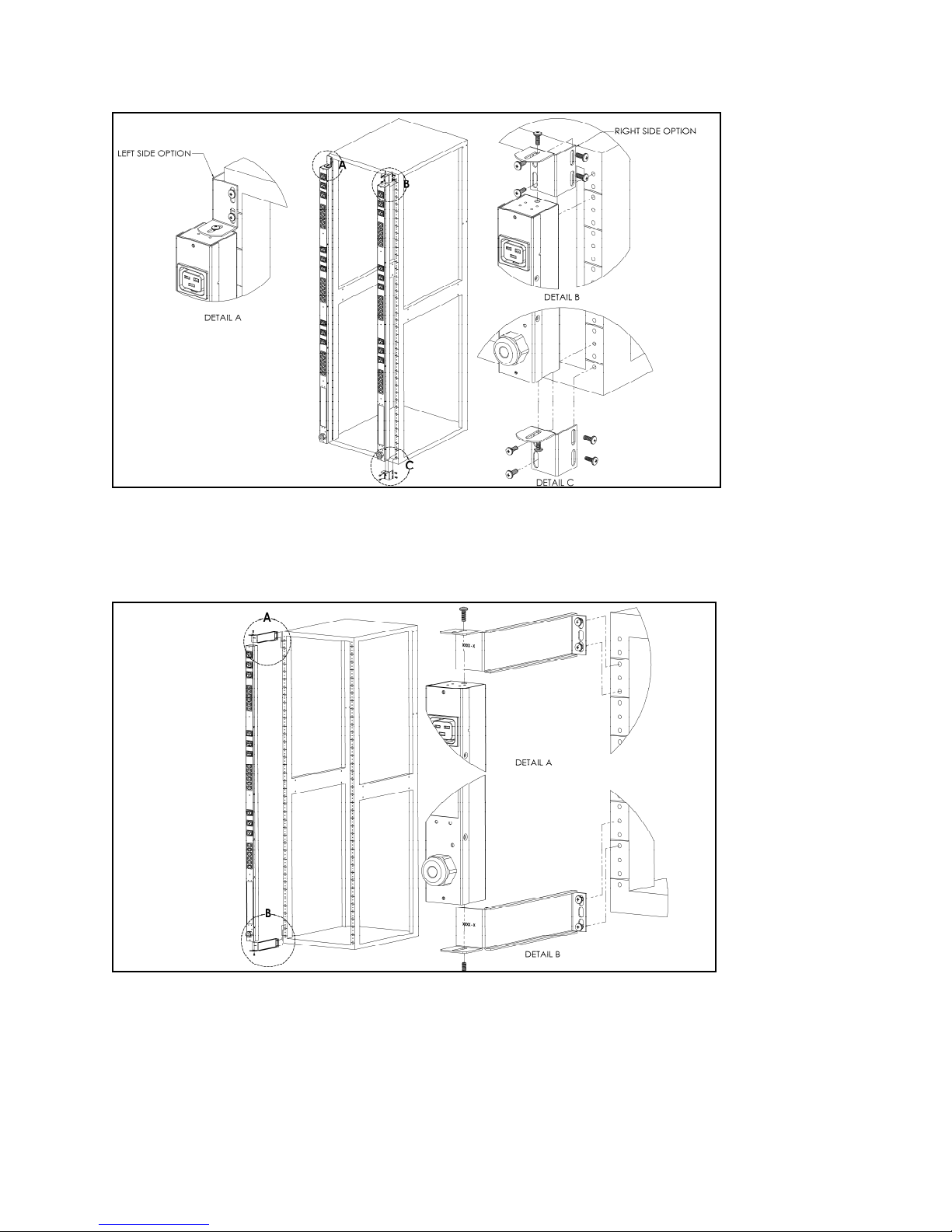

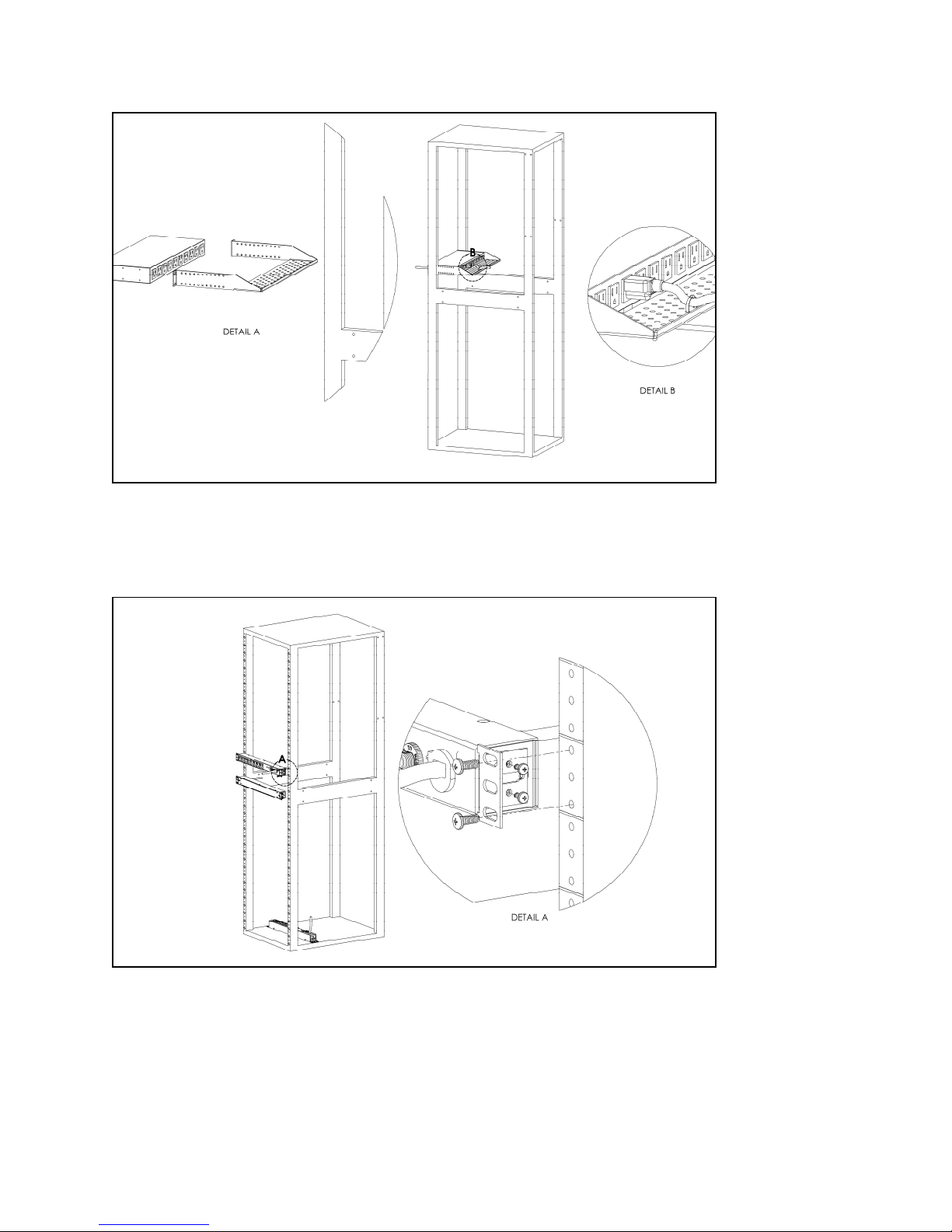

Mounting
Full Length Bracket

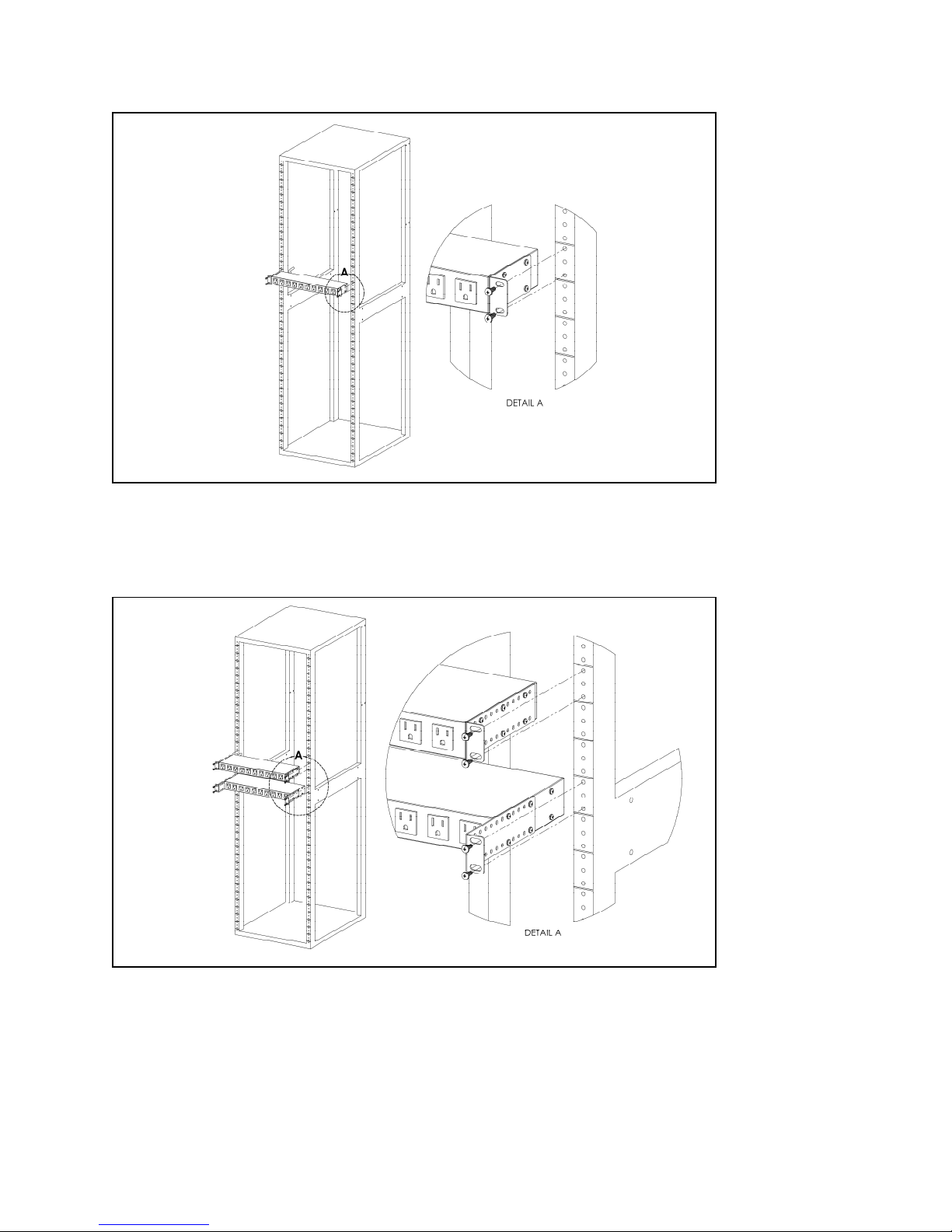

Using the full length bracket, mount PDU to rack as shown
Mini "L" Brackets (SLB-4)
Using the mini “L” brackets, attach PDU to rack as shown
GM1099.doc 6 Revision Date: 1/25/2011
Vertical Extension Brackets (VCB-1)

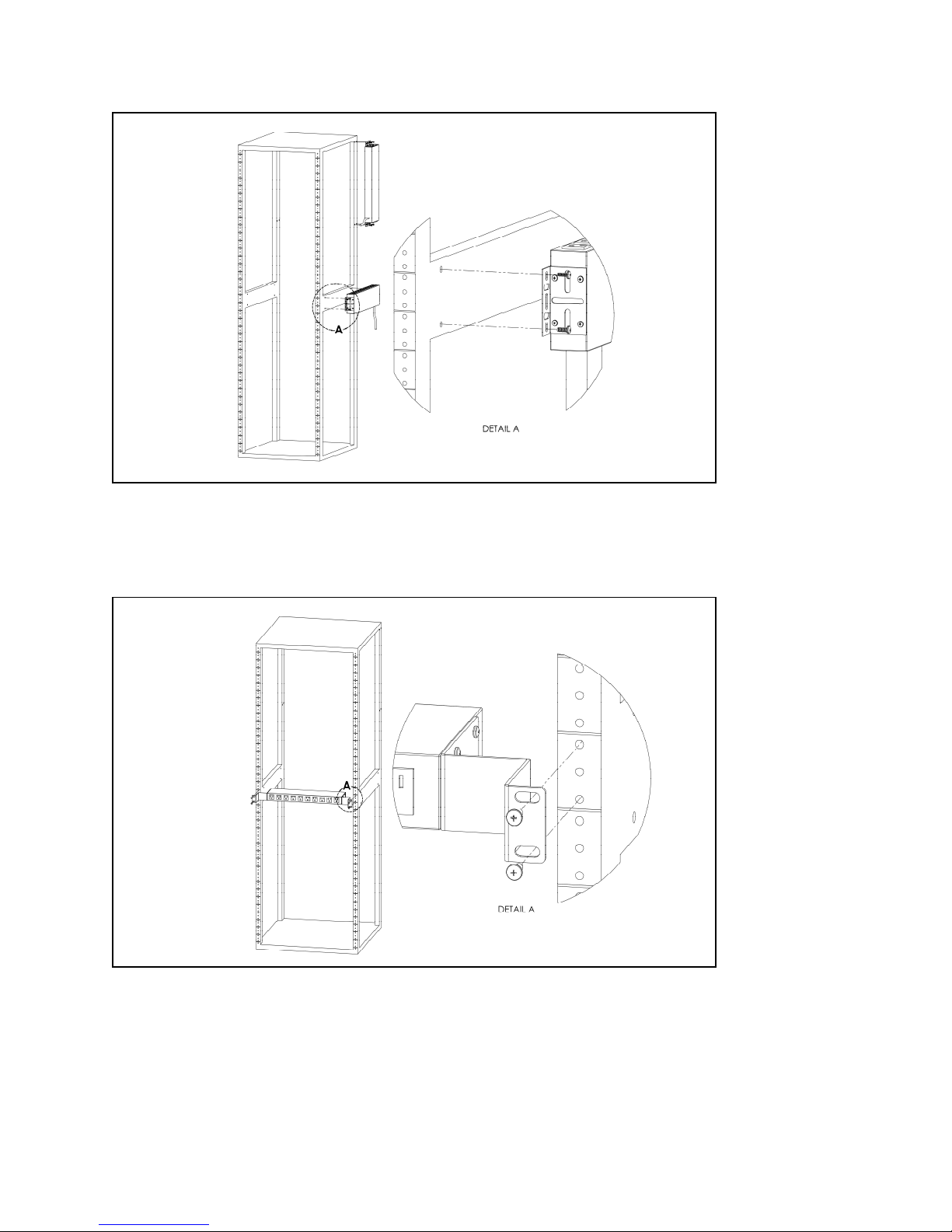

Using the vertical extension brackets, attach PDU to rack as shown
Toolless Mounting Hardware (11621)
Secure toolless mounting buttons to PDU as shown. Use toolless buttons with key-holed slots built
into cabinet or with optional Geist key-holed brackets.
GM1099.doc 7 Revision Date: 1/25/2011
Toolless Full Length Bracket (TLFL)
Using full length toolless bracket and toolless mou nting buttons, attach PDU to rack as shown
Single Side Mount 2 Unit Brackets (TSMX2)
Using single side mount 2 unit brackets and toolless mounting buttons, attach PDU to rack as
shown
GM1099.doc 8 Revision Date: 1/25/2011
