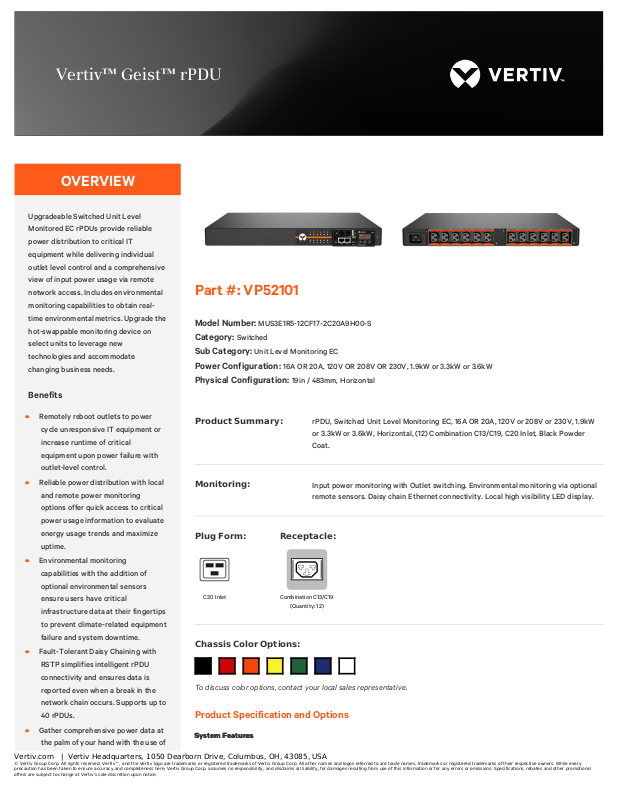

Geist VP52101 Product Data Sheet
Vertiv Geist rPDU™ ™
Model Number:
Category:
Sub Category:
Power Configuration:
Physical Configuration:
Product Summary:
Monitoring:
OVERVIEW
Upgradeable Switched Unit Level
Monitored EC rPDUs provide reliable
power distribution to critical IT
equipment while delivering individual
outlet level control and a comprehensive
view of input power usage via remote
network access. Includes environmental
monitoring capabilities to obtain real-
time environmental metrics. Upgrade the
hot-swappable monitoring device on
select units to leverage new
technologies and accommodate
changing business needs.
Benefits
•• Remotely reboot outlets to power
cycle unresponsive IT equipment or
increase runtime of critical
equipment upon power failure with
outlet-level control.
•• Reliable power distribution with local
and remote power monitoring
options offer quick access to critical
power usage information to evaluate
energy usage trends and maximize
uptime.
•• Environmental monitoring
capabilities with the addition of
optional environmental sensors
ensure users have critical
infrastructure data at their fingertips
to prevent climate-related equipment
failure and system downtime.
•• Fault-Tolerant Daisy Chaining with
RSTP simplifies intelligent rPDU
connectivity and ensures data is
reported even when a break in the
network chain occurs. Supports up to
40 rPDUs.
•• Gather comprehensive power data at
the palm of your hand with the use of
Part #: VP52101
MUS3E1R5-12CF17-2C20A9H00-S
Switched
Unit Level Monitoring EC
16A OR 20A, 120V OR 208V OR 230V, 1.9kW or 3.3kW or 3.6kW
19in / 483mm, Horizontal
rPDU, Switched Unit Level Monitoring EC, 16A OR 20A, 120V or 208V or 230V, 1.9kW
or 3.3kW or 3.6kW, Horizontal, (12) Combination C13/C19, C20 Inlet, Black Powder
Coat.
Input power monitoring with Outlet switching. Environmental monitoring via optional
remote sensors. Daisy chain Ethernet connectivity. Local high visibility LED display.
Plug Form:
C20 Inlet
Receptacle:
Combination C13/C19
(Quantity: 12)
Chassis Color Options:
To discuss color options, contact your local sales representative.
Product Specification and Options
System FeaturesSystem Features
Vertiv.com | Vertiv Headquarters, 1050 Dearborn Drive, Columbus, OH, 43085, USA
© Vertiv Group Corp. All rights reserved. Vertiv™, a nd the Vertiv logo are trademarks or registered trademarks of Vertiv Group Corp. All other names and lo gos referred to are trade names, trademarks or registered trademarks of their respective owners. Wh ile every
precaution has been taken to ensure accuracy and co mpleteness here, Vertiv Group Corp. assumes no responsibility, and disclaims all liability, for damages resu lting from use of this information or for any errors or omissions. Specifications, rebates and other promot ional
offers are subject to change at Vertiv’s sole discretion upon notice.
the Vertiv VLC mobile app.
Monitoring Input power monitoring with Outlet switching. Environmental
monitoring via optional remote sensors. Daisy chain Ethernet
connectivity. Local high visibility LED display.
Input Monitoring Phase (A) Monitoring (kWh, W, VA, PF, V, A)
Power Measurements Compliant with ANSI C12.1 and IEC 6205321 at 1% Accuracy Class Requirements
Remote Power Management Individual Outlet Switching with Optional User Defined Time
Delays and Sequential Power-up
VLC Support Yes
Quantity Of Inputs 1
Voltage 100-240V
Current 16A or 20A
VA per Input (Load Capacity) 1.9kW (120V), 3.3kW (208V), 3.6kW (230V)
Frequency 50/60Hz
Over Current Protection None
Switch No
Scrolling / Rotatable Digital Display Yes
Indicators - LED(s) 12
Power Entry Location Left Rear
Plug Type IEC60320 C20 Power Inlet (cord sold separately)
Receptacle/Socket Type #1 Combination C13/C19
- Quantity on Rear 12
- Circuit Color ID 1 Circuit = Orange
- Style Banks of 6
- Voltage per Receptacle/Socket 100-240V
Network Connection Dual 10/100Mbps Ethernet
Protocols Supported DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP,
SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+
Data Access Formats CSV datalog, JSON API, JSON datalog
USB Support Yes
IP Reset Button Yes
Hard Reboot Button Yes
Serial Connection RS232 via RJ45
Remote Sensor RJ Connection Jacks 1 (Supports up to 16 Sensors)
Maximum Operating Temperature 60C / 140F
Heavy Steel - Powder Coat Finish Black
Configuration 19in / 483mm Horizontal Rackmount
Adjustable Mount Brackets Yes
Product Warranty 5-year limited warranty if registered within 120 days of
purchase, otherwise warranty defaults to 3 years
Certification/Agency Approvals CE Marked
Certification/Agency Approvals Complies with EN 55032 and EN 55024
Certification/Agency Approvals Complies with IEC 60950-1 (CB Certificate Available)
Certification/Agency Approvals FCC Part 15 Class A Conformance
