SwitchAir 2U Network Switch Cooling
®
Effective cool air delivery for front of rack mounted multi
RU switches Universal for side intake switch types
Placing core network switches in an enclosed rack is a preferred
design but it can be a challenge to deal with the heat generated
by the devices. Due to design constraints and equipment density,
intake air is typically at the sides of the switch chassis with heat
exhaust out the rear or opposite side of the switch.
SwitchAir 2U ensures side intake switches are able to receive the
required cool air from outside the rack. SwitchAir delivers air to the
switch via the SwitchAir cold air curtain. SwitchAir 2U works with
switches having side intake with multiple exhaust congurations.

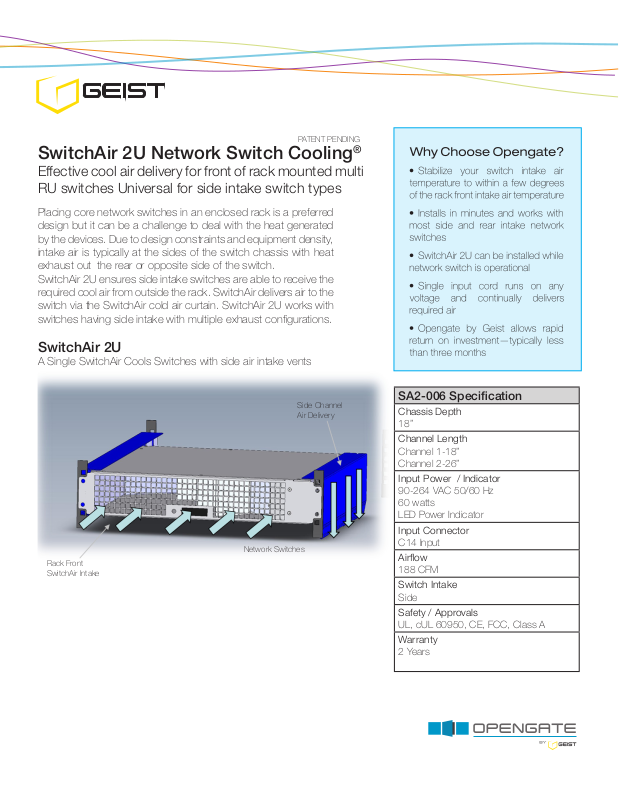

SwitchAir 2U
A Single SwitchAir Cools Switches with side air intake vents
Rack Front
SwitchAir Intake
Side Channel
Air Delivery
Network Switches
SA2-006 Specication
Chassis Depth
18”
Channel Length
Channel 1-18”
Channel 2-26”
Input Power / Indicator
90-264 VAC 50/60 Hz
60 watts
LED Power Indicator
Input Connector
C14 Input
Airow
188 CFM
Switch Intake
Side
Safety / Approvals
UL, cUL 60950, CE, FCC, Class A
Warranty
2 Years
Network Switch Cord Management
STEP 1 Before installing SwitchAir, insure that a full two RU of rack space is open directly
above the device to be cooled. The unit will alternatively mount below the switch in which
case a full two RU of rack space must be open below the switch.
Installing SwitchAir
STEP 2 Install support rail and air channel above or below device in the 2 RU of dedicated rack space.
Rail
Channel
STEP 3 Slide chassis between rail and air channel and attach to
rack used cage nuts and screws. Plug chassis power cord into
power distribution unit. Installation is now complete
Chassis
Rail
