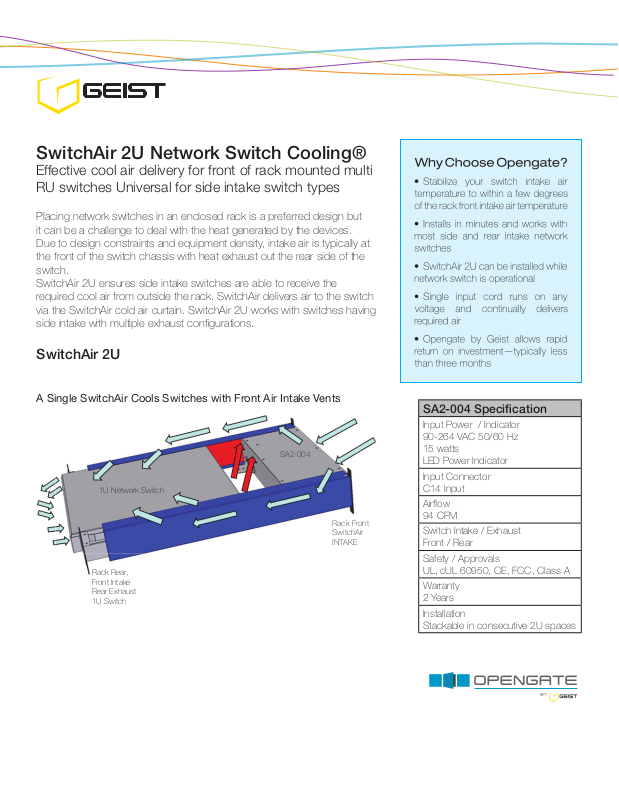

Geist SA2-004 User Manual

SwitchAir 2U Network Switch Cooling®

Effective cool air delivery for front of rack mounted multi
RU switches Universal for side intake switch types

Placing network switches in an enclosed rack is a preferred design but
it can be a challenge to deal with the heat generated by the devices.
Due to design constraints and equipment density, intake air is typically at
the front of the switch chassis with heat exhaust out the rear side of the
switch.
SwitchAir 2U ensures side intake switches are able to receive the
required cool air from outside the rack. SwitchAir delivers air to the switch
via the SwitchAir cold air curtain. SwitchAir 2U works with switches having
side intake with multiple exhaust congurations.

SwitchAir 2U

A Single SwitchAir Cools Switches with Front Air Intake Vents

SA2-004

1U Network Switch

Rack Front
SwitchAir
INTAKE

Rack Rear,
Front Intake
Rear Exhaust
1U Switch

SA2-004 Specication

Input Power / Indicator
90-264 VAC 50/60 Hz
15 watts
LED Power Indicator

Input Connector
C14 Input

Airow
94 CFM

Switch Intake / Exhaust
Front / Rear

Safety / Approvals
UL, cUL 60950, CE, FCC, Class A

Warranty
2 Years

Installation
Stackable in consecutive 2U spaces

Installing SwitchAir

Step 1. The channels attach to the inside of the rack

using cage nuts and screws. The front side channels
use the top and bottom holes for their attachment. The
rear channels are supported by the stabilizing tabs that
attached to the air trunk. When the air trunk is inserted
into place the stabilizing tabs slide into the channels.

Step 2. Insert Air Trunk between channels on top of
network switch. The stabilizing tabs slide into the opening
on each channel. Secure the air trunk to the rack using
cage nuts and screws.

Step 3. Attach Wipers to chassis using provided pan
head screws.

1

2

Air Trunk

Network Switch

3

Chassis

Wiper

Wiper

Step 4. Slide Chassis into channels and attach to rack

4

using customer provided cage nuts and screws.

Air Trunk

Chassis

Geist Americas Geist Europe Geist Asia

Geist DCiM China Hong Kong

800.432.3219 1.877.449.4150 [phone] +86.755.86639505 [phone]
geistglobal.com geistglobal.com geistglobal.com geistglobal.com geistglobal.com

Channel
