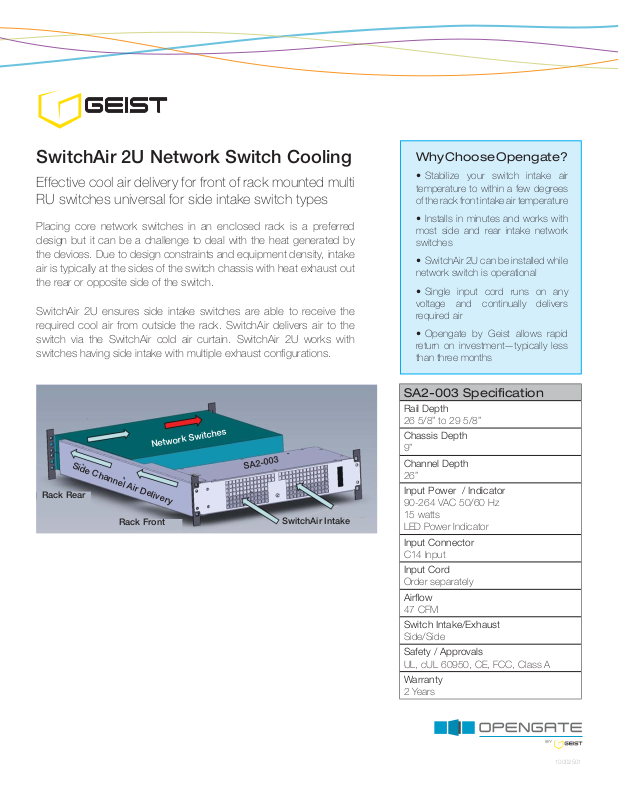

SwitchAir 2U Network Switch Cooling

Effective cool air delivery for front of rack mounted multi
RU switches universal for side intake switch types

Why Choose Opengate?

• Stabilize your switch intake air
temperature to within a few degrees
of the rack front intake air temperature

Placing core network switches in an enclosed rack is a preferred
design but it can be a challenge to deal with the heat generated by
the devices. Due to design constraints and equipment density, intake
air is typically at the sides of the switch chassis with heat exhaust out
the rear or opposite side of the switch.

SwitchAir 2U ensures side intake switches are able to receive the
required cool air from outside the rack. SwitchAir delivers air to the
switch via the SwitchAir cold air curtain. SwitchAir 2U works with
switches having side intake with multiple exhaust con gurations.

Network Switches

Side Channel Air Delivery

Rack Rear

Rack Front

SA2-003

SwitchAir Intake

• Installs in minutes and works with
most side and rear intake network
switches

• SwitchAir 2U can be installed while
network switch is operational

• Single input cord runs on any
voltage and continually delivers
required air

• Opengate by Geist allows rapid
return on investment—typically less
than three months

SA2-003 Speci cation

Rail Depth

26 5/8” to 29 5/8”

Chassis Depth

9”

Channel Depth

26”

Input Power / Indicator

90-264 VAC 50/60 Hz
15 watts
LED Power Indicator

Input Connector

C14 Input

Input Cord

Order separately

Air ow

47 CFM

Switch Intake/Exhaust

Side/Side

Safety / Approvals

UL, cUL 60950, CE, FCC, Class A

Warranty

2 Years

10002501

Installing SwitchAir

Step 1 Install air channel to rack front using customer provided cage nuts and screws. Use the outside

holes on the channel to attach the channel to the rack. The inner holes will be used by the chassis attaching
to the rack. The rear of the channel doesn’t attach to the rack or switch.

Attach The Side Rail Using Customer Provided Cage Nuts and Screws.
Use the Outer Holes on The Channel to Connect to the Rack

Step 2 Attach the wiper to the chassis using two ea. 6-32 1/4 “ pan head screws. The wiper helps
channelize the cool air from the chassis to the switch intake fans.

Attach the wiper using two 6-32 ¼ Panhead Screws

Wiper

Step 3 Slide chassis into channel and attach to the front of the rack using customer provided cage nuts

and screws. Install customer provided power cable to power distribution unit.

Slide Chassis with Wiper into Channel and Fasten to Rack Front Using Cage Nuts
and Screws. Plug Power Cord into Power Distribution Unit. Install Complete

Cage Nuts and Screws

10002501
