Product Technical Information
July 15, 2020
Data shown is for the current revision model #. Ensure your nameplate model # matches.
Model Number:
5KS184XAE6421B
Catalog Number:
V867
Instruction Manual:
GEK-95351
Connection Diagram:
GEM2034E-FIG1
Outline Drawing:
4002B5818PNP5323
Accessory Connection Diagrams
Bearing Thermocouple:
None
Heater:
None
RTD:
None
Thermistor:
None
Thermostat:
None
Winding Thermocouple:
None
Bearing RTD:
None
Table of Contents
Specification
01
Performance Characteristics
02
Outline Drawing
03
Connection Drawing(s)
04
Spare parts
05
Model Number:5KS184XAE6421B
July 15, 2020
Page | 1
Marks:
MODEL NUMBER:
5KS184XAE6421B
Estimated Weight:
101 Lbs
Outline Drawing:
4002B5818PNP5323
Time Rating:
CONT
Connection Diagram:
GEM2034E-FIG1
Enclosure:
TEFC
Instruction Book:
GEK-95351
Encl Construction:
841
Design Code:
18BD1001A
Ambient Max(°C):
40
Type:
KS
Alt Ambient Max(°C):
--
Frame:
L184VP10
Insulation Class:
H
Phases:
3
NEMA Design:
B
Poles:
4
Nominal Efficiency:
89.5 %
Output Power:
5HP 3.7KW
Guaranteed Efficiency:
87.5 %
RPM:
1755
3/4 Load Efficiency:
90.4 %
Voltage:
460
KVA Code:
J
Hertz:
60
Max KVAR:
2.0
Amps - FL:
6.6
Power Factor:
79.5
Service Factor:
1.15
Bearing - DE:
7307
Alt Service Factor:
--
Bearing - ODE:
6206-2ZC3
Enclosure is Totally Enclosed Fan-Cooled
Stamped Nameplate Notes:
VERTICAL-841
PREMIUM EFFICIENT MOTOR
DE BRG 35BT03XP3 ODE BRG 30BC02JP3
SEVERE DUTY
EXCEPTION TO IEEE-STD-841-2009:THRUST BRG ON DE
INVERTER DUTY PER NEMA MG1 PART 31
ALTERNATE RATING FOR PWM CONTROL:
1.0 SF VAR TORQUE RANGE 0-60 HZ
MAX EXPOSED INTERNAL AND EXTERNAL SURFACE
TEMPERATURES UNDER USUAL SERVICE CONDITIONS
AT 1.00 S.F. DO NOT EXCEED 200 DEG C
STAMP NP249A5499AP AS BELOW:
MODEL:5KS184XAE6421B S/N: XXX
EX NA IIC T3 GC CSA.09.2216219
CLASS I, ZONE 2, AEX NA IIC T3
CLASS I, DIV 2, GROUPS A, B, C, D T3
-25C <= TAMB <= 40C
Model Number:5KS184XAE6421B
July 15, 2020
Page | 2
Additional Information:
4P - VP EXTN
C/BOX 55 CU IN-1.00 NPT
PAINTED FRAME ID & SHAFT,
FAN COVER INSIDE & ODE E/S OUTSIDE
ROUTINE AND 5 POINT VIBRATION TESTS INCL IN C/BOX
INPRO SEAL BOTH ENDS
BURNDY SERVIT POST ON FRAME
SHAFT RUNOUT LIMIT .001" TIR
RCF 5000 CPM, STATIC DEFLECTION .0014 INCHES &
CENTER OF GRAVITY 6.5 INCHES
SOLID SHAFT HIGH THRUST
COPPER WASHER UNDER HEADS OF BEARING CAP BOLTS
APPLY TITE-SEAL (A50CD427A) ON BEARING CAP SCREWS, RABBETS,
AND PLUG THREADS
OIL RESISTANT SLEEVING ON LEADS
BEARING LIFE 50000 HOURS AT 848 LB THRUST
BEARING LIFE 26280 HOURS AT 1050 LB THRUST
UTD REPLACEMENT FOR 5KS184XAE6421
Model Number:5KS184XAE6421B
July 15, 2020
Page | 3

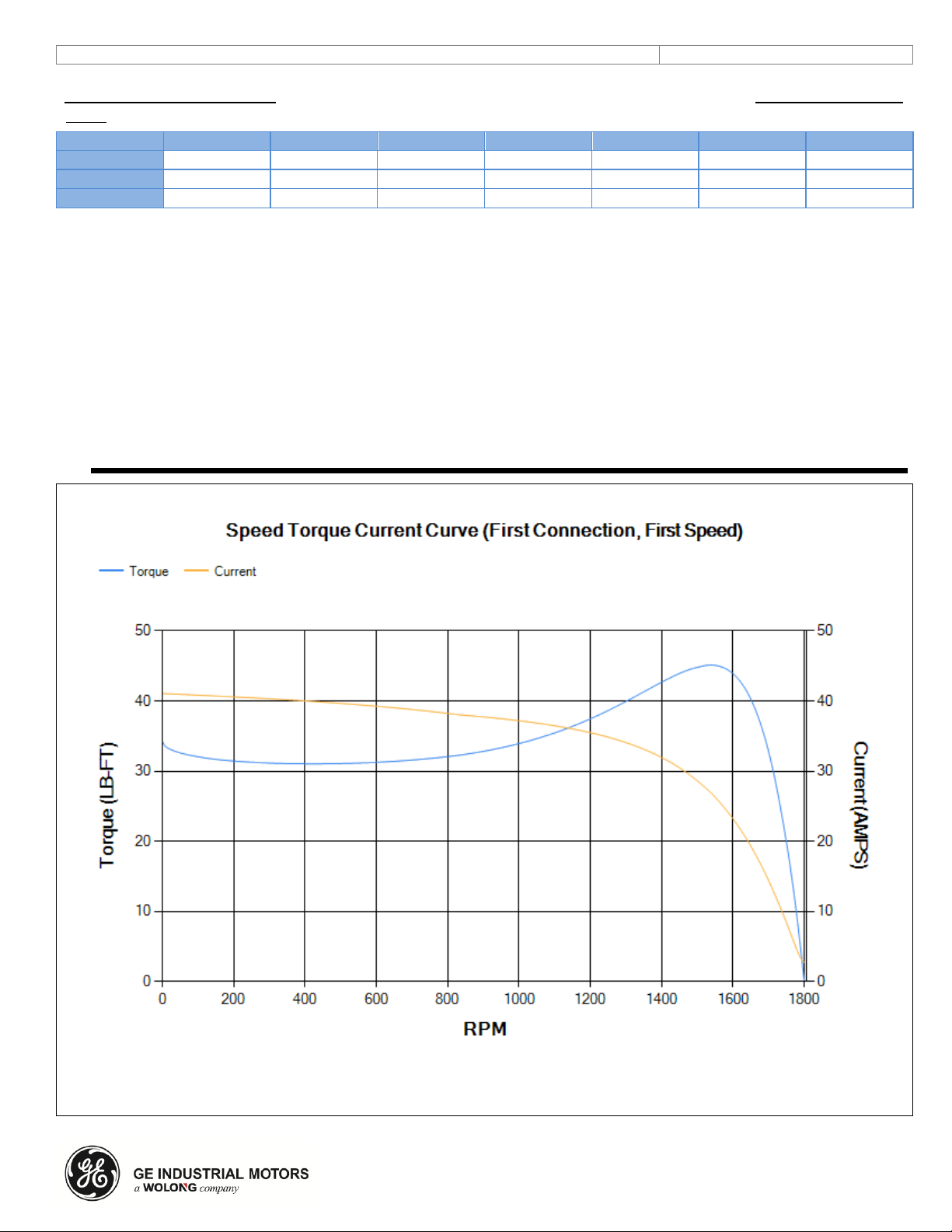

Performance Characteristics
1st Winding 1st Connection
Design: 18BD1001A
Marks:
LOAD %
125.0
115.0
100.0
75.0
50.0
25.0
0.0
% EFF
88.11
88.78
89.8
90.44
90.1
85.97
0.00
% PF
81.57
80.95
80.77
74.19
63.32
41.61
5.78
AMPS
8.14
7.49
6.45
5.23
4.1
3.27
2.75
TORQ(FL)#FT
14.97
TORQ(LR)%FL
228.65
TORQ(BD)%FL
298.64
AMPS(LR)
41.06
PF AT START
0.51
This motor is capable of two cold or one hot start with a maximum connected load inertia of 183 Lb-Ft Sq (7.7 Kg-meter
Sq)at 100% voltage, where the load torque varies with the square of the speed. Acceleration time with maximum inertia
and the above load type is 36 seconds. Safe stall time at 100% voltage is 79 seconds cold, 51 seconds hot. Rotor inertia
is 0.34 Lb-Ft Sq (0.01 Kg-meter Sq).
Open Circuit A-C:
0.236
Short Circuit D-C:
0.008
Short Circuit A-C:
0.012 X/R Ratio:
3.151
Stator Slots:
36 Rotor Slots:
28
Model Number: 5KS184XAE6421B
July 15, 2020
Marks:
Model Number: 5KS184XAE6421B
July 15, 2020
Page | 5
Marks:
Connection Diagram
GEM2034E-FIG1
Model Number: 5KS184XAE6421B
July 15, 2020
Page | 6
End shield Assembly
Part Description
DE Side Part#
ODE Side Part#
End Shield
4004D5261PD1
4004D5281SY1
Bearing
235A2501AN01
235A2502AF01
Slinger/Inproseal
4002B5918CD1
4002B5914AG2
Fan & Fan Cover Assembly
Part Description
Part#
Fan
346L620AP-G01
Fan Cover
4003C5518BN-G01
Conduit & Accessories Box Assembly
Part Description
Part#
Conduit Box
4002B5721PA-G01
Mechanical Accessories
Part Description
Part#
Brake
Tachometer
