Page 1
Product Technical Information
July 17, 2020
Data shown is for the current revision model #. Ensure your nameplate model # matches.
Model Number:
5KS364SAJ108A
Catalog Number:
V4970
Instruction Manual:
GEK-95655
Connection Diagram:
GEM2034E-FIG7
Outline Drawing:
148CB36TLHNBCAA0002
Accessory Connection Diagrams
Bearing Thermocouple:
None
Heater:
3027JE-1C
RTD:
None
Thermistor:
None
Thermostat:
None
Winding Thermocouple:
None
Bearing RTD:
None
Table of Contents
Specification
01
Performance Characteristics
02
Outline Drawing
03
Connection Drawing(s)
04
Spare parts
05
Page 2
Model Number:5KS364SAJ108A
July 17, 2020
Page | 1
Marks:
MODEL NUMBER:
5KS364SAJ108A
Estimated Weight:
980 Lbs
Outline Drawing:
148CB36TLHNBCAA0002
Time Rating:
CONT
Connection Diagram:
GEM2034E-FIG7
Enclosure:
TEFC
Instruction Book:
GEK-95655
Encl Construction:
X$D
Design Code:
36BD0117A
Ambient Max(°C):
40
Type:
KS
Alt Ambient Max(°C):
--
Frame:
L364HP16
Insulation Class:
H
Phases:
3
NEMA Design:
B
Poles:
2
Nominal Efficiency:
94.5 %
Output Power:
60HP 44.4KW
Guaranteed Efficiency:
93.6 %
RPM:
3575
3/4 Load Efficiency:
94.6 %
Voltage:
460
KVA Code:
G
Hertz:
60
Max KVAR:
19.3
Amps - FL:
70.3
Power Factor:
84.5
Service Factor:
1.15
Bearing - DE:
6312C3
Alt Service Factor:
--
Bearing - ODE:
6314ZC3
Enclosure is Totally Enclosed Fan-Cooled
Stamped Nameplate Notes:
HTR LDS HE1-HE2 115V 100W
INVERTER DUTY PER NEMA MG1 PART 31
ALTERNATE RATING FOR PWM CONTROL:1.0SF 40C AMBIENT
VAR TORQUE RANGE 0-60 HZ
SUITABLE FOR 50 HP, 380V, 50 HZ WITH
70.5 AMPS AND 2975 RPM AT 1.00 SF
API 610 12TH EDITION SHAFT DIMENSIONS
Page 3
Model Number:5KS364SAJ108A
July 17, 2020
Page | 2
Additional Information:
2 POLE,VERT SOLID SHAFT NORMAL THRUST
346 CU IN - 3.00" NPT
INPRO SEAL ON UPPER END
OIL RESISTANT SLEEVING ON LEADS
115V HTR LDS TO MAIN CONDUIT BOX
BEARING LIFE 8760 HOURS AT 1250 LB THRUST
BRASS TEE DRAIN
RCF: 3210 CPM AT C/BOX SIDE, 3510 CPM AT
90 DEG FROM C/ BOX SIDE
CG: 12.60 IN FROM P-BASE FACE
Page 4
Model Number:5KS364SAJ108A
July 17, 2020
Page | 3

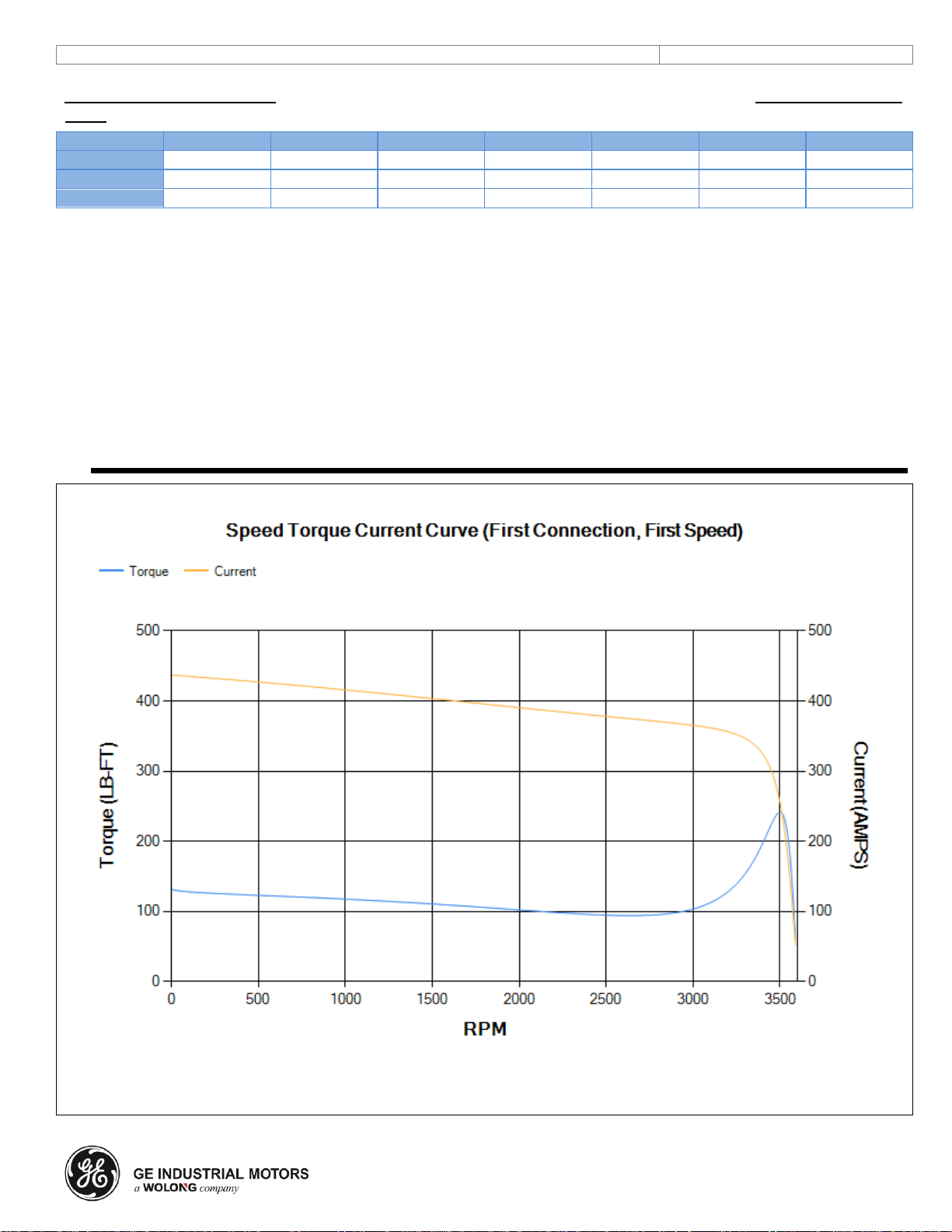

Performance Characteristics
1st Winding 1st Connection
Design: 36BD0117A
Marks:
LOAD %
125.0
115.0
100.0
75.0
50.0
25.0
0.0
% EFF
94.24
94.41
94.79
94.59
93.84
90.34
0.00
% PF
86.22
85.73
84.5
80.34
70.83
48.62
4.71
AMPS
86.39
79.79
69.97
55.42
42.24
31.96
27.02
TORQ(FL)#FT
88.11
TORQ(LR)%FL
149.66
TORQ(BD)%FL
273.86
AMPS(LR)
437.11
PF AT START
0.3
This motor is capable of two cold or one hot start with a maximum connected load inertia of 159 Lb-Ft Sq (6.69 Kg-meter
Sq)at 100% voltage, where the load torque varies with the square of the speed. Acceleration time with maximum inertia
and the above load type is 22 seconds. Safe stall time at 100% voltage is 46 seconds cold, 26 seconds hot. Rotor inertia
is 6.96 Lb-Ft Sq (0.29 Kg-meter Sq).
Open Circuit A-C:
0.95 Short Circuit D-C:
0.023
Short Circuit A-C:
0.055 X/R Ratio:
8.805
Stator Slots:
48 Rotor Slots:
38
Page 5
Model Number: 5KS364SAJ108A
July 17, 2020
Marks:
Page 6
Model Number: 5KS364SAJ108A
July 17, 2020
Page | 5
Marks:

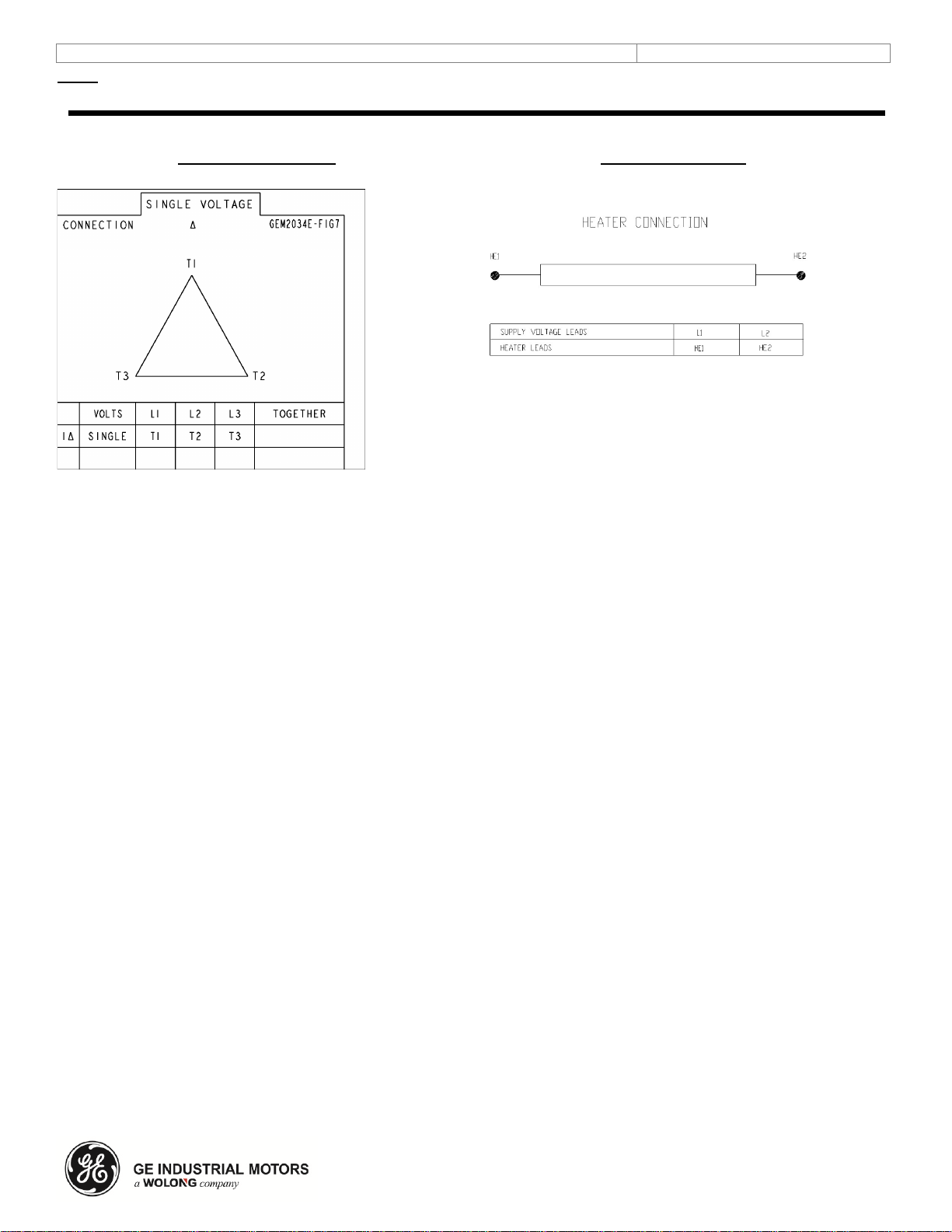

Connection Diagram
Heater Connection
GEM2034E-FIG7
3027JE-1C
Page 7
Model Number: 5KS364SAJ108A
July 17, 2020
Page | 6
End shield Assembly
Part Description
DE Side Part#
ODE Side Part#
End Shield
115E8258BA1
115E4250LK1
Bearing
235A2509AR01
235A2516AC01
Slinger/Inproseal
235A2300FM1
235A4575GS3
Fan & Fan Cover Assembly
Part Description
Part#
Fan
159C6700G02
Fan Cover
128D6810AD1
Conduit & Accessories Box Assembly
Part Description
Part#
Conduit Box
149C4429AA2
Mechanical Accessories
Part Description
Part#
Brake
Tachometer
