Product Technical Information
July 10, 2020
Data shown is for the current revision model #. Ensure your nameplate model # matches.
Model Number:
5KS509SAA133ZGP
Catalog Number:
Q5339
Instruction Manual:
GEI-56128
Connection Diagram:
GEM2034E-FIG20
Outline Drawing:
239C6A00LP
Accessory Connection Diagrams
Bearing Thermocouple:
None
Heater:
3027JE-1

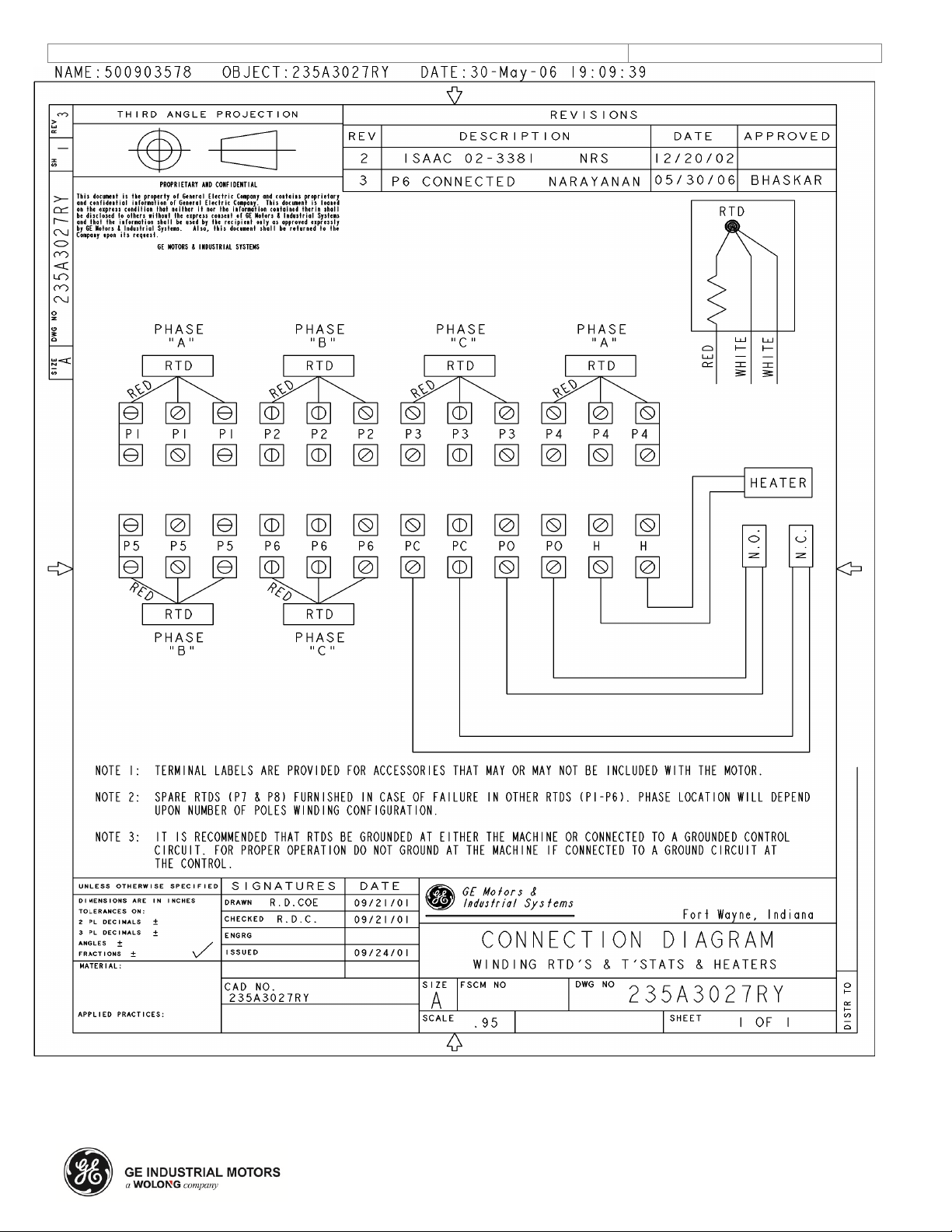

RTD:
235A3027RY
Thermistor:
None
Thermostat:
None
Winding Thermocouple:
None
Bearing RTD:
None
Table of Contents
Specification
01
Performance Characteristics
02
Outline Drawing
03
Connection Drawing(s)
04
Spare parts
05
Model Number:5KS509SAA133ZGP
July 10, 2020
Page | 1
Marks:
MODEL NUMBER:
5KS509SAA133ZGP
Estimated Weight:
4563 Lbs
Outline Drawing:
239C6A00LP
Time Rating:
CONT
Connection Diagram:
GEM2034E-FIG20
Enclosure:
TEFC
Instruction Book:
GEI-56128
Encl Construction:
SD
Design Code:
50BD0233A
Ambient Max(°C):
40
Type:
KS
Alt Ambient Max(°C):
--
Frame:
509LS
Insulation Class:
F
Phases:
3
NEMA Design:
B
Poles:
2
Nominal Efficiency:
95.8 %
Output Power:
300HP 222KW
Guaranteed Efficiency:
95.0 %
RPM:
3565
3/4 Load Efficiency:
95.9 %
Voltage:
460
KVA Code:
G
Hertz:
60
Max KVAR:
42.1
Amps - FL:
313.0
Power Factor:
93.5
Service Factor:
1.15
Bearing - DE:
6315ZC3
Alt Service Factor:
--
Bearing - ODE:
6315ZC3
Enclosure is Totally Enclosed Fan-Cooled
Stamped Nameplate Notes:
TEMP CONT HTR LDS H 115V 200W
ROT CW FACING ODE LEAD/PH SEQUENCE 1-2-3/1-2-3
INVERTER DUTY PER NEMA MG1 PART 31
ALTERNATE RATING FOR PWM CONTROL:1.0SF 40C AMBIENT
VAR TORQUE RANGE 0-60 HZ, CHP 60-63 HZ
MAXIMUM EXPOSED INTERNAL AND EXTERNAL SURFACE
TEMPERATURES DO NOT EXCEED 200C UNDER USUAL
SERVICE CONDITIONS AT 1.0SF
MAXIMUM SPACE HEATER SURFACE TEMPERATURE FOR
NORMAL OPERATION AT RATED CONDITIONS 160C
STAMP NP249A5499AP AS BELOW:
MODEL: 5KS509SAA133ZGP S/N: XXX
EX NA IIC T3 GC CSA.09.2216219
CLASS I, ZONE 2, AEX NA IIC T3
CLASS I, DIV 2, GROUPS A, B, C, D T3
-40 DEG C <= TAMB <= +40 DEG C
Model Number:5KS509SAA133ZGP
July 10, 2020
Page | 2
Additional Information:
2P - LS EXTN - SPLIT LEAD
FOR DIRECT COUPLED LOAD ONLY
CW ROTATION FACING OPPOSITE DRIVE END
1260 CU IN - 2(4.00" NPT)
115V TEMP CONT HTR LDS TO AUX BOX F2 SIDE ODE
SPACE HEATER CAUTION NAMEPLATE
GROUND PAD
F1 MOUNTING
PLASTIC THREADED PLUGS FOR ALL CONDUIT OPENINGS
100 0HM WINDING RTD LEADS TO AUX C/BOX ON F2 SIDE DE
BEARING RTD 100 OHM ON BOTH ENDS
TEFC SD O & G NANCHI/PATILVR 09/15/14
ISAAC # 14-0855 PATILVR 11/04/14
Model Number:5KS509SAA133ZGP
July 10, 2020
Page | 3
Performance Characteristics
1st Winding 1st Connection
Design: 50BD0233A
Marks:
LOAD %
125.0
115.0
100.0
75.0
50.0
25.0
0.0
% EFF
95.36
95.54
95.96
95.92
95.56
93.31
0.00
% PF
93.34
93.46
93.46
92.66
89.5
76.5
7.19
AMPS
394.31
361.59
312.61
236.94
164.14
98.34
58.73
TORQ(FL)#FT
441.91
TORQ(LR)%FL
115.7
TORQ(BD)%FL
303.57
AMPS(LR)
2163.44
PF AT START
0.17
This motor is capable of two cold or one hot start with a maximum connected load inertia of 746 Lb-Ft Sq (31.41 Kg-meter
Sq)at 100% voltage, where the load torque varies with the square of the speed. Acceleration time with maximum inertia
and the above load type is 23 seconds. Safe stall time at 100% voltage is 46 seconds cold, 27 seconds hot. Rotor inertia
is 79.65 Lb-Ft Sq (3.35 Kg-meter Sq).
Open Circuit A-C:
1.428
Short Circuit D-C:
0.047
Short Circuit A-C:
0.041 X/R Ratio:
17.639
Stator Slots:
48 Rotor Slots:
40
Model Number: 5KS509SAA133ZGP
July 10, 2020
Page | 4
Marks:
Model Number: 5KS509SAA133ZGP
July 10, 2020
Page | 5
Marks:
Connection Diagram
Heater Connection
GEM2034E-FIG20
3027JE-1
Model Number: 5KS509SAA133ZGP
July 10, 2020
Page | 6
Model Number: 5KS509SAA133ZGP
July 10, 2020
Page | 7
End shield Assembly
Part Description
DE Side Part#
ODE Side Part#
End Shield
Bearing
Slinger/Inproseal
Fan & Fan Cover Assembly
Part Description
Part#
Fan
Fan Cover
Conduit & Accessories Box Assembly
Part Description
Part#
Conduit Box
Mechanical Accessories
Part Description
Part#
Brake
Tachometer
