Product Technical Information
June 22, 2020
Data shown is for the current revision model #. Ensure your nameplate model # matches.
Model Number:
5KS324SAA208D10
Catalog Number:
M9915
Instruction Manual:
GEI-56128
Connection Diagram:
GEM2034E-FIG7
Outline Drawing:
239C6000AE
Accessory Connection Diagrams
Bearing Thermocouple:
None
Heater:
None
RTD:
None
Thermistor:
None
Thermostat:
None
Winding Thermocouple:
None
Bearing RTD:
None
Table of Contents
Specification
01
Performance Characteristics
02
Outline Drawing
03
Connection Drawing(s)
04
Spare parts
05
Model Number:5KS324SAA208D10
June 22, 2020
Page | 1
Marks:
MODEL NUMBER:
5KS324SAA208D10
Estimated Weight:
670 Lbs
Outline Drawing:
239C6000AE
Time Rating:
CONT
Connection Diagram:
GEM2034E-FIG7
Enclosure:
TEFC
Instruction Book:
GEI-56128
Encl Construction:
X$D
Design Code:
32BD1182A
Ambient Max(°C):
40
Type:
KS
Alt Ambient Max(°C):
65
Frame:
324T
Insulation Class:
H
Phases:
3
NEMA Design:
B
Poles:
4
Nominal Efficiency:
94.1 %
Output Power:
40HP 29.6KW
Guaranteed Efficiency:
93.6 %
RPM:
1780
3/4 Load Efficiency:
94.4 %
Voltage:
460
KVA Code:
G
Hertz:
60
Max KVAR:
15.2
Amps - FL:
49.7
Power Factor:
80.0
Service Factor:
1.15
Bearing - DE:
6312ZC3
Alt Service Factor:
1.00
Bearing - ODE:
6312ZC3
Enclosure is Totally Enclosed Fan-Cooled
Stamped Nameplate Notes:
STAMP NP249A5564P051 AS BELOW:
MODEL:5KS324SAA208D10 S/N: XXX
CSA CERTIFIED CSA09.2216219 FOR EX NA IIC 200 C GC
CL 1 ZONE2 AEX NA IIC 200C;CL 1 DIV2 GRP ABCD 200C
IN -40C <= AMB <= 40C, 1.0 SF ON SINE-WAVE PWR
SURF TEMP 230C AT 1.15SF ON SINE-WAVE PWR
OR 200C VT OR 230C CT OR 200C CHP PWM CONTROL
ALTERNATE RATING FOR PWM CONTROL 1.0SF 40C AMB
VT 0 - 60 HZ, CT 3-60 HZ, CHP 60-90 HZ.
Additional Information:
4P - T EXTN
346 CU IN - 3.00" NPT
OIL RESISTANT SLEEVING ON LEADS
F1 MOUNTING
Model Number:5KS324SAA208D10
June 22, 2020
Page | 2

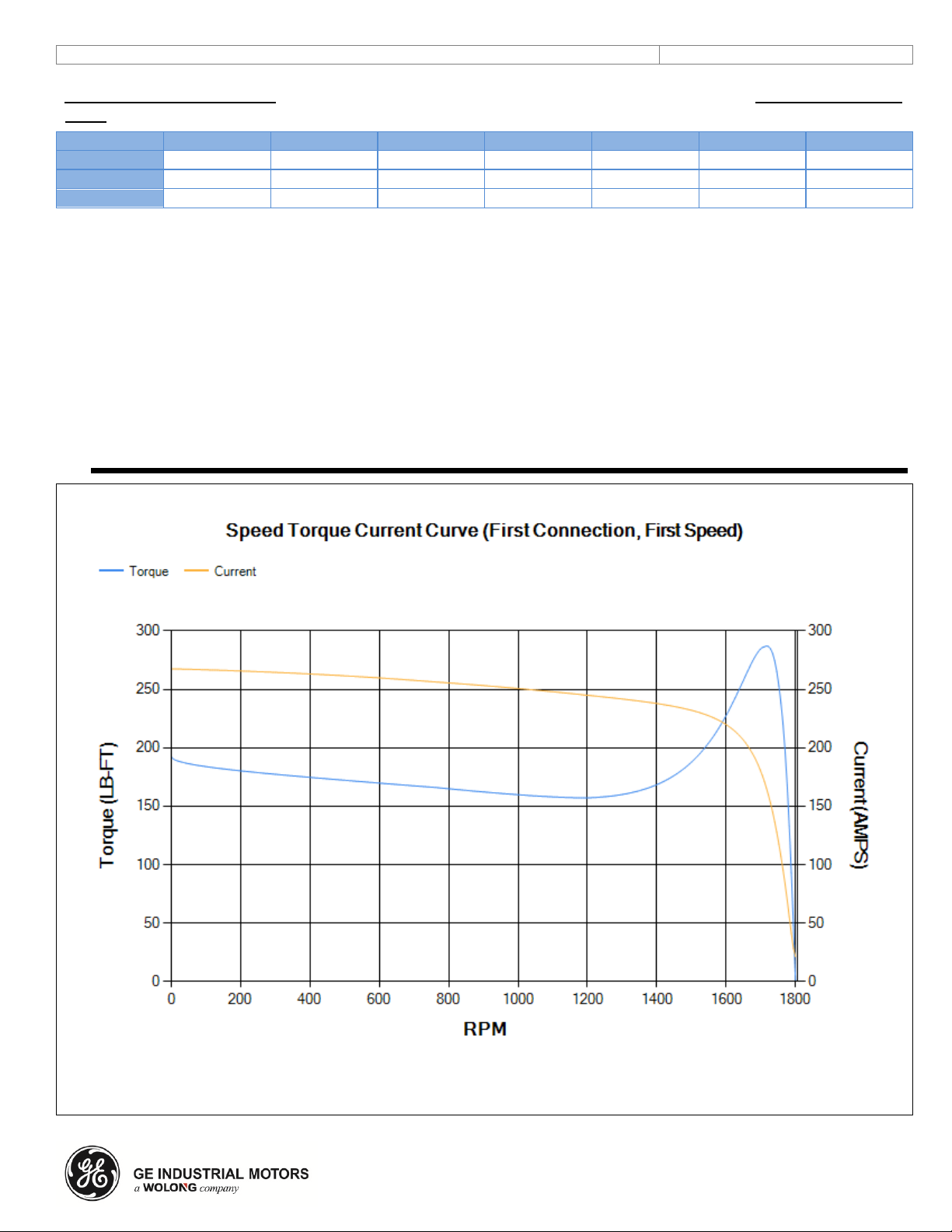

Performance Characteristics
1st Winding 1st Connection
Design: 32BD1182A
Marks:
LOAD %
125.0
115.0
100.0
75.0
50.0
25.0
0.0
% EFF
93.44
93.73
94.29
94.38
93.95
91
0.00
% PF
82.18
81.61
80.15
75.28
64.7
42.44
3.55
AMPS
60.94
56.28
49.43
39.52
30.79
24.24
21.17
TORQ(FL)#FT
118.11
TORQ(LR)%FL
162.85
TORQ(BD)%FL
242.14
AMPS(LR)
267.59
PF AT START
0.33
This motor is capable of two cold or one hot start with a maximum connected load inertia of 952 Lb-Ft Sq (40.08 Kg-meter
Sq)at 100% voltage, where the load torque varies with the square of the speed. Acceleration time with maximum inertia
and the above load type is 40 seconds. Safe stall time at 100% voltage is 88 seconds cold, 47 seconds hot. Rotor inertia
is 6.94 Lb-Ft Sq (0.29 Kg-meter Sq).
Open Circuit A-C:
0.479
Short Circuit D-C:
0.022
Short Circuit A-C:
0.032 X/R Ratio:
8.428
Stator Slots:
48 Rotor Slots:
38
Model Number: 5KS324SAA208D10
June 22, 2020
Marks:
Model Number: 5KS324SAA208D10
June 22, 2020
Page | 4
Marks:
Connection Diagram
GEM2034E-FIG7
Model Number: 5KS324SAA208D10
June 22, 2020
Page | 5
End shield Assembly
Part Description
DE Side Part#
ODE Side Part#
End Shield
115E4200AA1
115E4200LA1
Bearing
235A2509AS01
235A2509AS01
Slinger/Inproseal
149C4399G04
149C4399G04
Fan & Fan Cover Assembly
Part Description
Part#
Fan
159C6900G04
Fan Cover
128D6800AA1
Conduit & Accessories Box Assembly
Part Description
Part#
Conduit Box
149C4429AA2
Mechanical Accessories
Part Description
Part#
Brake
Tachometer
