Product Technical Information
June 24, 2020
Data shown is for the current revision model #. Ensure your nameplate model # matches.
Model Number:
5KS184XAA1022D
Catalog Number:
M9411
Instruction Manual:
GEI-56128
Connection Diagram:
GEM2034E-FIG1
Outline Drawing:
4002B5818PDP5310
Accessory Connection Diagrams
Bearing Thermocouple:
None
Heater:
None
RTD:
None
Thermistor:
None
Thermostat:
None
Winding Thermocouple:
None
Bearing RTD:
None
Table of Contents
Specification
01
Performance Characteristics
02
Outline Drawing
03
Connection Drawing(s)
04
Spare parts
05
Model Number:5KS184XAA1022D
June 24, 2020
Page | 1
Marks:
MODEL NUMBER:
5KS184XAA1022D
Estimated Weight:
101 Lbs
Outline Drawing:
4002B5818PDP5310
Time Rating:
CONT
Connection Diagram:
GEM2034E-FIG1
Enclosure:
TEFC
Instruction Book:
GEI-56128
Encl Construction:
841
Design Code:
18BD0103A
Ambient Max(°C):
40
Type:
KS
Alt Ambient Max(°C):
--
Frame:
184TC
Insulation Class:
H
Phases:
3
NEMA Design:
B
Poles:
2
Nominal Efficiency:
88.5 %
Output Power:
5HP 3.7KW
Guaranteed Efficiency:
87.5 %
RPM:
3530
3/4 Load Efficiency:
89.3 %
Voltage:
460
KVA Code:
J
Hertz:
60
Max KVAR:
1.9
Amps - FL:
6.6
Power Factor:
80.5
Service Factor:
1.15
Bearing - DE:
6307ZC3
Alt Service Factor:
--
Bearing - ODE:
6206ZC3
Enclosure is Totally Enclosed Fan-Cooled
Stamped Nameplate Notes:
IEEE-STD-841-2009
DE BRG 35BC03JP30 ODE BRG 30BC02JP30
STAMP NP249A5564P051 AS BELOW:
MODEL:5KS184XAA1022D S/N: XXX
CSA CERTIFIED CSA09.2216219 FOR EX NA IIC 200 C GC
CL1 ZONE2 AEXNAIIC 200C FOR CL1DIV2 GRP ABCD 200C
IN -25C <= AMB <= 40C, 1.0 SF ON SINE-WAVE PWR
SURF TEMP 200 C AT 1.15 SF ON SINE-WAVE PWR
OR 200 C VT OR 215 C CT OR 200 C CHP PWM CONTROL
ALTERNATE RATING FOR PWM CONTROL 1.0 SF 40 C AMB
VT 0-60 HZ, CT 3-60 HZ, CHP 60-90 HZ.
Model Number:5KS184XAA1022D
June 24, 2020
Page | 2
Additional Information:
2P - T EXTN
C/BOX 55 CU IN-1.00 NPT
"C" FACE AT DE ENDSHIELD ROUND FRAME
VERTICAL MOUNT SHAFT DOWN WITH DRIPCOVER
PAINTED FRAME ID & SHAFT,
FAN COVER INSIDE & ODE E/S OUTSIDE
ROUTINE AND 5 POINT VIBRATION TESTS INCL IN C/BOX
INPRO SEAL BOTH ENDS
BURNDY SERVIT POST ON FRAME
SHAFT RUNOUT LIMIT .001" TIR
COPPER WASHER UNDER HEADS OF BEARING CAP BOLTS
APPLY TITE-SEAL (A50CD427A) ON BEARING CAP SCREWS, RABBETS,
AND PLUG THREADS
OIL RESISTANT SLEEVING ON LEADS
Model Number:5KS184XAA1022D
June 24, 2020
Page | 3
Performance Characteristics
1st Winding 1st Connection
Design: 18BD0103A
Marks:
LOAD %
125.0
115.0
100.0
75.0
50.0
25.0
0.0
% EFF
88.54
88.88
89.44
89.25
87.78
81.41
0.00
% PF
83.05
82.11
83.84
74.24
62.93
41.64
8.89
AMPS
7.96
7.37
6.24
5.3
4.24
3.45
2.67
TORQ(FL)#FT
7.44
TORQ(LR)%FL
213.15
TORQ(BD)%FL
336.72
AMPS(LR)
43.22
PF AT START
0.4
This motor is capable of two cold or one hot start with a maximum connected load inertia of 45 Lb-Ft Sq (1.89 Kg-meter
Sq)at 100% voltage, where the load torque varies with the square of the speed. Acceleration time with maximum inertia
and the above load type is 38 seconds. Safe stall time at 100% voltage is 78 seconds cold, 57 seconds hot. Rotor inertia
is 0.15 Lb-Ft Sq (0.01 Kg-meter Sq).
Open Circuit A-C:
0.299
Short Circuit D-C:
0.01
Short Circuit A-C:
0.017 X/R Ratio:
3.957
Stator Slots:
36 Rotor Slots:
28
Model Number: 5KS184XAA1022D
June 24, 2020
Marks:
Model Number: 5KS184XAA1022D
June 24, 2020
Page | 5
Marks:

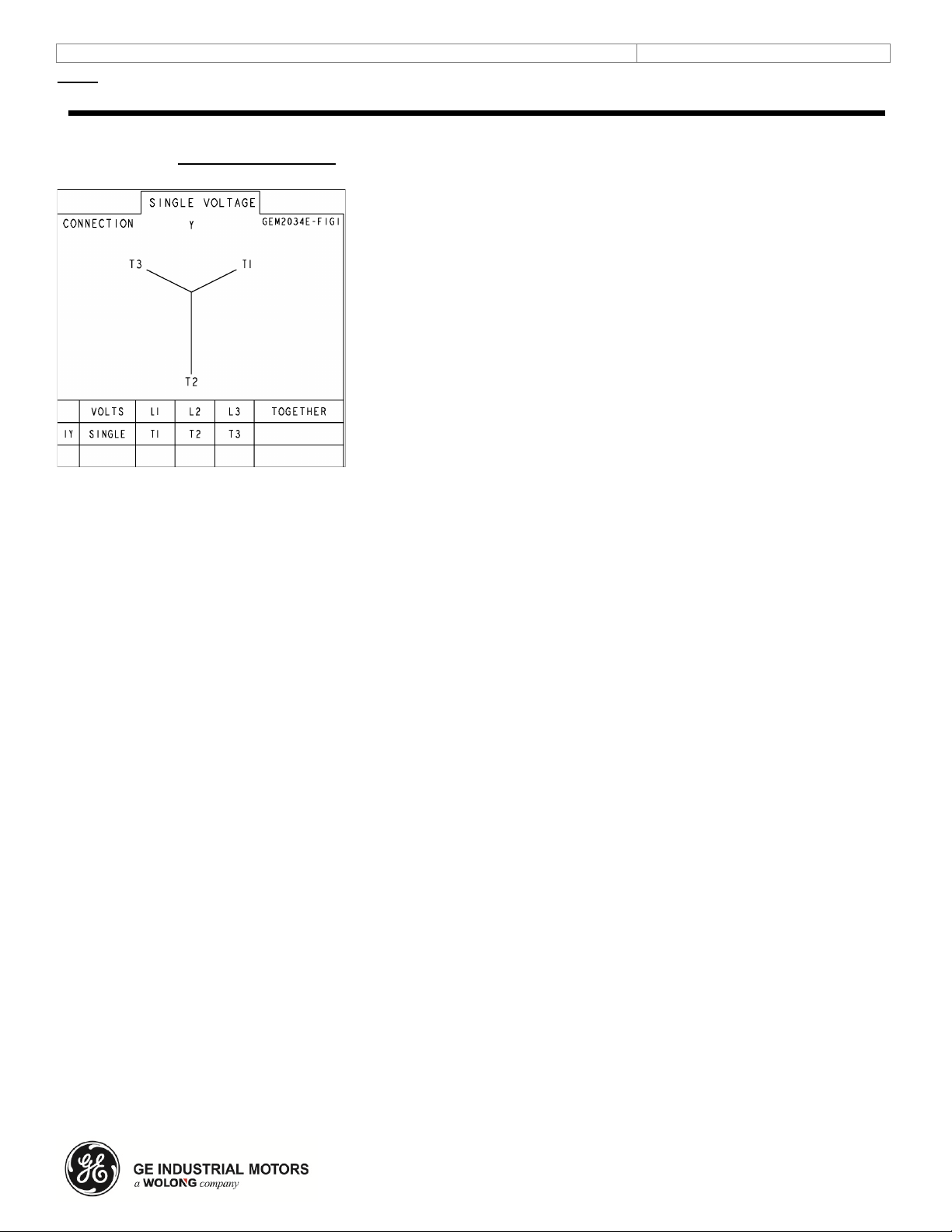

Connection Diagram
GEM2034E-FIG1
Model Number: 5KS184XAA1022D
June 24, 2020
Page | 6
End shield Assembly
Part Description
DE Side Part#
ODE Side Part#
End Shield
4004D5286PE1
4004D5281SG1
Bearing
235A2501AE01
235A2502AM01
Slinger/Inproseal
316A5384AJ1
4002B5914AG2
Fan & Fan Cover Assembly
Part Description
Part#
Fan
4001A5914AM-G01
Fan Cover
4003C5518BN-G01
Conduit & Accessories Box Assembly
Part Description
Part#
Conduit Box
4002B5721PA-G01
Mechanical Accessories
Part Description
Part#
Brake
Tachometer
