Product Technical Information
June 22, 2020
Data shown is for the current revision model #. Ensure your nameplate model # matches.
Model Number:
5KS444SAA308D6
Catalog Number:
M9133
Instruction Manual:
GEI-56128
Connection Diagram:
GEM2034E-FIG7
Outline Drawing:
239C6600AA
Accessory Connection Diagrams
Bearing Thermocouple:
None
Heater:
None
RTD:
None
Thermistor:
None
Thermostat:
None
Winding Thermocouple:
None
Bearing RTD:
None
Table of Contents
Specification
01
Performance Characteristics
02
Outline Drawing
03
Connection Drawing(s)
04
Spare parts
05
Model Number:5KS444SAA308D6
June 22, 2020
Page | 1
Marks:
MODEL NUMBER:
5KS444SAA308D6
Estimated Weight:
1880 Lbs
Outline Drawing:
239C6600AA
Time Rating:
CONT
Connection Diagram:
GEM2034E-FIG7
Enclosure:
TEFC
Instruction Book:
GEI-56128
Encl Construction:
X$D
Design Code:
44BD3081A
Ambient Max(°C):
40
Type:
KS
Alt Ambient Max(°C):
65
Frame:
444T
Insulation Class:
H
Phases:
3
NEMA Design:
B
Poles:
6
Nominal Efficiency:
95.0 %
Output Power:
100HP 74KW
Guaranteed Efficiency:
94.5 %
RPM:
1190
3/4 Load Efficiency:
95.1 %
Voltage:
460
KVA Code:
G
Hertz:
60
Max KVAR:
35.7
Amps - FL:
122.0
Power Factor:
81.0
Service Factor:
1.25
Bearing - DE:
6318ZC3
Alt Service Factor:
1.00
Bearing - ODE:
6318ZC3
Enclosure is Totally Enclosed Fan-Cooled
Stamped Nameplate Notes:
SF AMPS 149.3
STAMP NP249A5564P051 AS BELOW:
MODEL:5KS444SAA308D6 S/N: XXX
CSA CERTIFIED CSA09.2216219 FOR EX NA IIC 200 C GC
CL 1 ZONE2 AEX NA IIC 200C;CL 1 DIV2 GRP ABCD 200C
IN -40C <= AMB <= 40C, 1.0 SF ON SINE-WAVE PWR
SURF TEMP 230C AT 1.25SF ON SINE-WAVE PWR
OR 200C VT OR 230C CT OR 200C CHP PWM CONTROL
ALTERNATE RATING FOR PWM CONTROL 1.0SF 40C AMB
VT 0 - 60 HZ, CT 6-60 HZ, CHP 60-90 HZ.
Additional Information:
6P - T EXTN
700 CU IN - 3.00" NPT
OIL RESISTANT SLEEVING ON LEADS
F1 MOUNTING
Model Number:5KS444SAA308D6
June 22, 2020
Page | 2

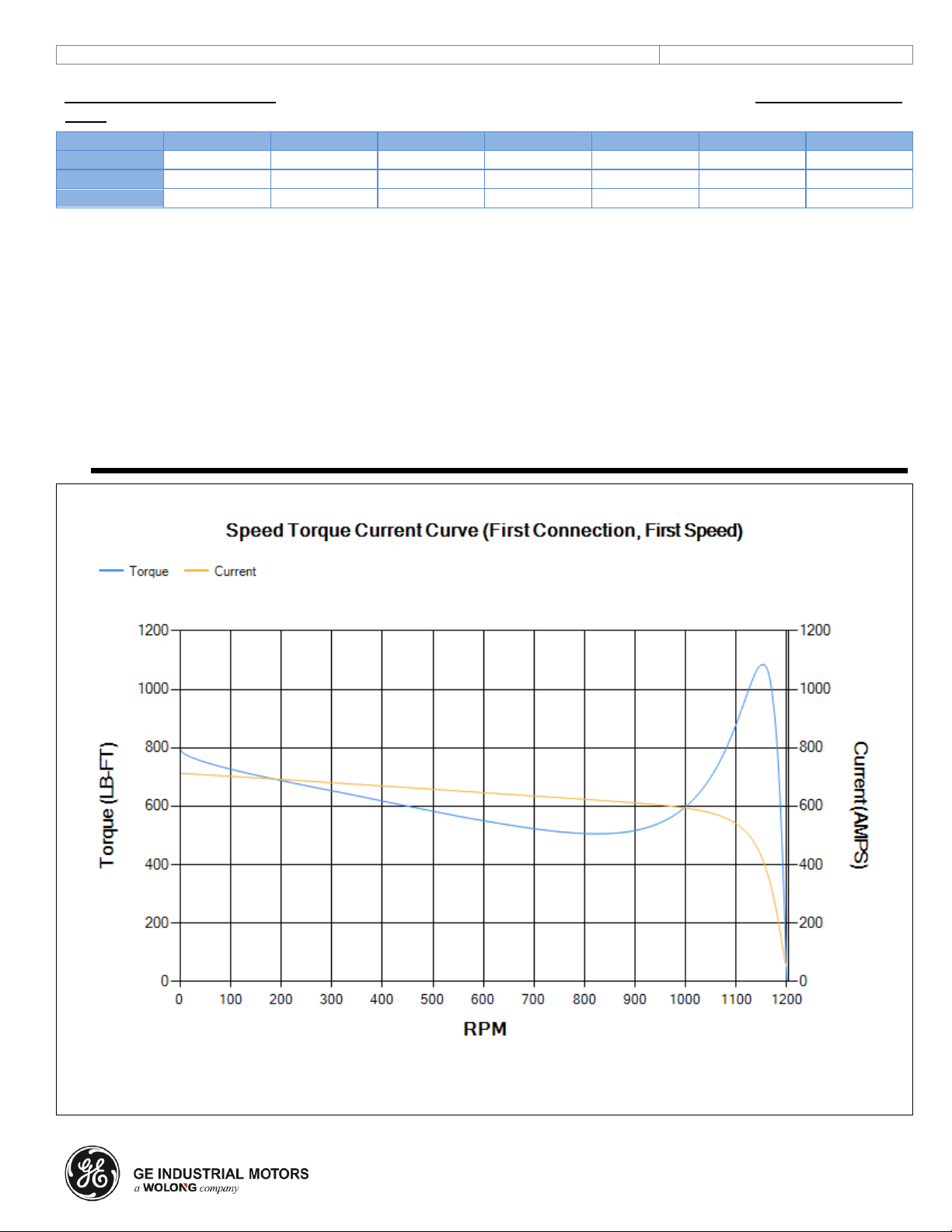

Performance Characteristics
1st Winding 1st Connection
Design: 44BD3081A
Marks:
LOAD %
125.0
115.0
100.0
75.0
50.0
25.0
0.0
% EFF
94.38
94.61
95.09
95.09
94.64
91.92
0.00
% PF
83.04
82.53
81.2
76.65
66.48
44.18
3.53
AMPS
149.29
137.84
121.22
96.31
74.38
57.61
49.89
TORQ(FL)#FT
440.81
TORQ(LR)%FL
180.49
TORQ(BD)%FL
245.76
AMPS(LR)
712.54
PF AT START
0.34
This motor is capable of two cold or one hot start with a maximum connected load inertia of 5269 Lb-Ft Sq (221.82 Kgmeter Sq)at 100% voltage, where the load torque varies with the square of the speed. Acceleration time with maximum
inertia and the above load type is 42 seconds. Safe stall time at 100% voltage is 83 seconds cold, 51 seconds hot. Rotor
inertia is 77.95 Lb-Ft Sq (3.28 Kg-meter Sq).
Open Circuit A-C:
0.821
Short Circuit D-C:
0.025
Short Circuit A-C:
0.052 X/R Ratio:
9.321
Stator Slots:
72 Rotor Slots:
58
Model Number: 5KS444SAA308D6
June 22, 2020
Marks:
Model Number: 5KS444SAA308D6
June 22, 2020
Page | 4
Marks:
Connection Diagram
GEM2034E-FIG7
Model Number: 5KS444SAA308D6
June 22, 2020
Page | 5
End shield Assembly
Part Description
DE Side Part#
ODE Side Part#
End Shield
115E4355AA1
115E4355LM1
Bearing
235A2514AG01
235A2514AG01
Slinger/Inproseal
149C4399G07
149C4399G07
Fan & Fan Cover Assembly
Part Description
Part#
Fan
159C7100G03
Fan Cover
128D6841AA1
Conduit & Accessories Box Assembly
Part Description
Part#
Conduit Box
118D4408AD2
Mechanical Accessories
Part Description
Part#
Brake
Tachometer
