Product Technical Information
June 23, 2020
Data shown is for the current revision model #. Ensure your nameplate model # matches.
Model Number:
5KS449SAA123D9
Catalog Number:
M8960
Instruction Manual:
GEI-56128
Connection Diagram:
GEM2034E-FIG20
Outline Drawing:
239C6800GL
Accessory Connection Diagrams
Bearing Thermocouple:
None
Heater:
None
RTD:
None
Thermistor:
None
Thermostat:
None
Winding Thermocouple:
None
Bearing RTD:
None
Table of Contents
Specification
01
Performance Characteristics
02
Outline Drawing
03
Connection Drawing(s)
04
Spare parts
05
Model Number:5KS449SAA123D9
June 23, 2020
Page | 1
Marks:
MODEL NUMBER:
5KS449SAA123D9
Estimated Weight:
2820 Lbs
Outline Drawing:
239C6800GL
Time Rating:
CONT
Connection Diagram:
GEM2034E-FIG20
Enclosure:
TEFC
Instruction Book:
GEI-56128
Encl Construction:
X$D
Design Code:
49BD0194A
Ambient Max(°C):
40
Type:
KS
Alt Ambient Max(°C):
50
Frame:
449TS
Insulation Class:
H
Phases:
3
NEMA Design:
B
Poles:
2
Nominal Efficiency:
95.8 %
Output Power:
300HP 222KW
Guaranteed Efficiency:
95.4 %
RPM:
3580
3/4 Load Efficiency:
96.3 %
Voltage:
460
KVA Code:
G
Hertz:
60
Max KVAR:
46.6
Amps - FL:
317.0
Power Factor:
92.5
Service Factor:
1.15
Bearing - DE:
6314ZC3S0
Alt Service Factor:
1.00
Bearing - ODE:
6314ZC3S0
Enclosure is Totally Enclosed Fan-Cooled
Stamped Nameplate Notes:
FOR DIRECT COUPLED LOAD ONLY
ROT CW FACING ODE LEAD/PH SEQ 1-2-3/1-2-3
STAMP NP249A5564P051 AS BELOW:
MODEL:5KS449SAA123D9 S/N: XXX
CSA CERTIFIED CSA09.2216219 FOR EX NA IIC 200 C GC
CL 1 ZONE2 AEX NA IIC 200C;CL 1 DIV2 GRP ABCD 200C
IN -40C <= AMB <= 40C, 1.0 SF ON SINE-WAVE PWR
SURF TEMP ---C AT 1.15SF ON SINE-WAVE PWR
OR --- C VT OR --- C CT OR --- C CHP PWM CONTROL
ALTERNATE RATING FOR PWM CONTROL 1.0SF 40C AMB
VT --- HZ, CT --- HZ, CHP --- HZ.
Additional Information:
2P - TS EXTN - SPLIT LEAD
1260 CU IN - 2(4.00" NPT)
C/B GRD PLATE
SLINGER BOTH ENDS
OIL RESISTANT SLEEVING ON LEADS
HEAT STABILIZED BEARINGS
F1 MOUNTING
Model Number:5KS449SAA123D9
June 23, 2020
Page | 2
Performance Characteristics
1st Winding 1st Connection
Design: 49BD0194A
Marks:
LOAD %
125.0
115.0
100.0
75.0
50.0
25.0
0.0
% EFF
95.53
95.74
96.22
96.31
96.17
94.51
0.00
% PF
92.21
92.36
92.34
91.38
87.64
72.89
5.24
AMPS
398.46
365.17
315.98
239.29
166.56
101.89
65.26
TORQ(FL)#FT
440.19
TORQ(LR)%FL
99.02
TORQ(BD)%FL
304.91
AMPS(LR)
2066.21
PF AT START
0.18
This motor is capable of two cold or one hot start with a maximum connected load inertia of 650 Lb-Ft Sq (27.36 Kg-meter
Sq)at 100% voltage, where the load torque varies with the square of the speed. Acceleration time with maximum inertia
and the above load type is 30 seconds. Safe stall time at 100% voltage is 83 seconds cold, 36 seconds hot. Rotor inertia
is 50.39 Lb-Ft Sq (2.12 Kg-meter Sq).
Open Circuit A-C:
2.129
Short Circuit D-C:
0.035
Short Circuit A-C:
0.07 X/R Ratio:
13.314
Stator Slots:
48 Rotor Slots:
38
Model Number: 5KS449SAA123D9
June 23, 2020
Marks:
Model Number: 5KS449SAA123D9
June 23, 2020
Page | 4
Marks:

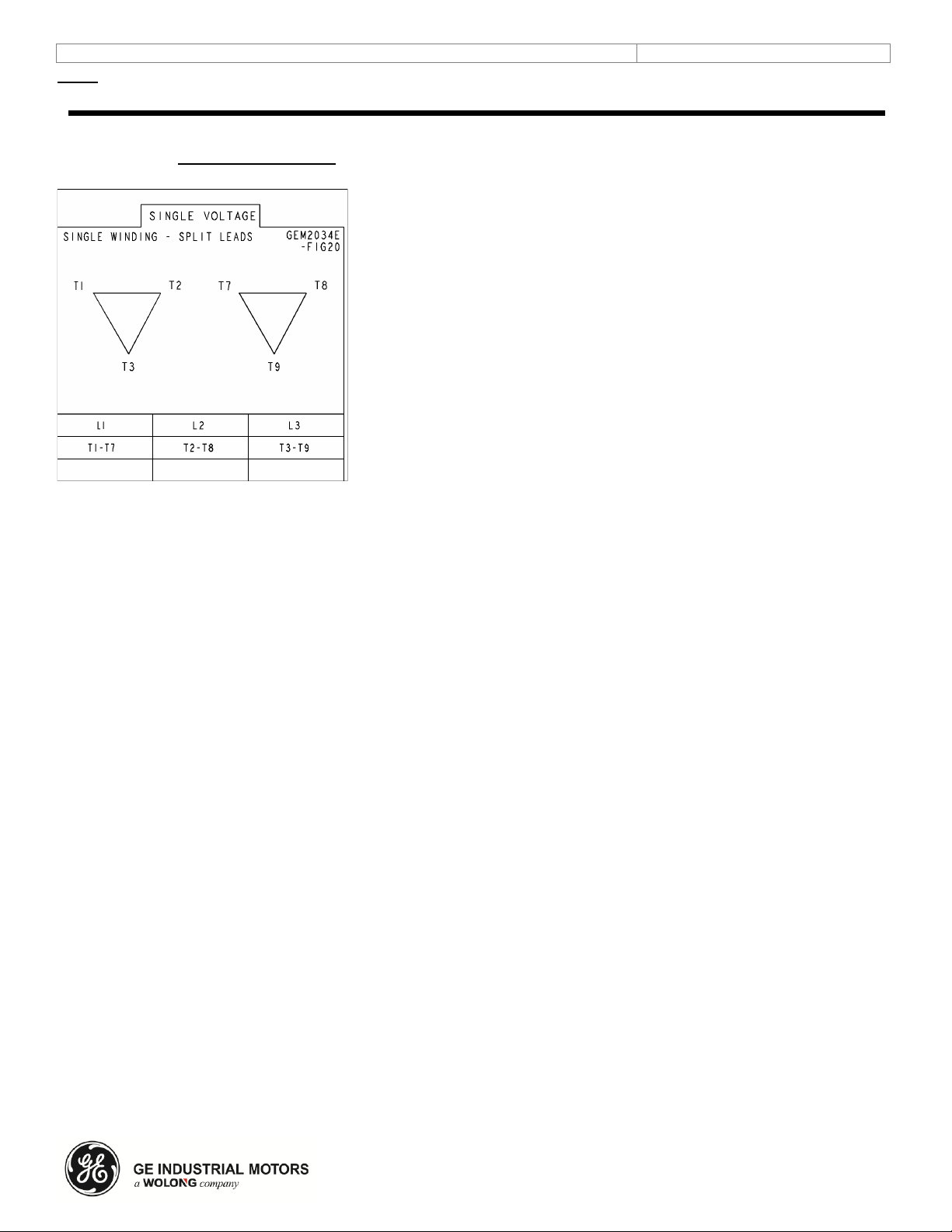

Connection Diagram
GEM2034E-FIG20
Model Number: 5KS449SAA123D9
June 23, 2020
Page | 5
End shield Assembly
Part Description
DE Side Part#
ODE Side Part#
End Shield
115E4354AA1
115E4354LL1
Bearing
235A2516AC02
235A2516AC02
Slinger/Inproseal
149C4399G05
149C4399G05
Fan & Fan Cover Assembly
Part Description
Part#
Fan
149C4261AK1
Fan Cover
128D6841AC1
Conduit & Accessories Box Assembly
Part Description
Part#
Conduit Box
179B9058G03
Mechanical Accessories
Part Description
Part#
Brake
Tachometer
