GE
Product Information Packet
November 9, 2016
Model Number:
5KS449LAA304D
Catalog Number:
M7967
Instruction Manual:
GEI-56128
Connection Diagram:
GEM2034E-FIG7

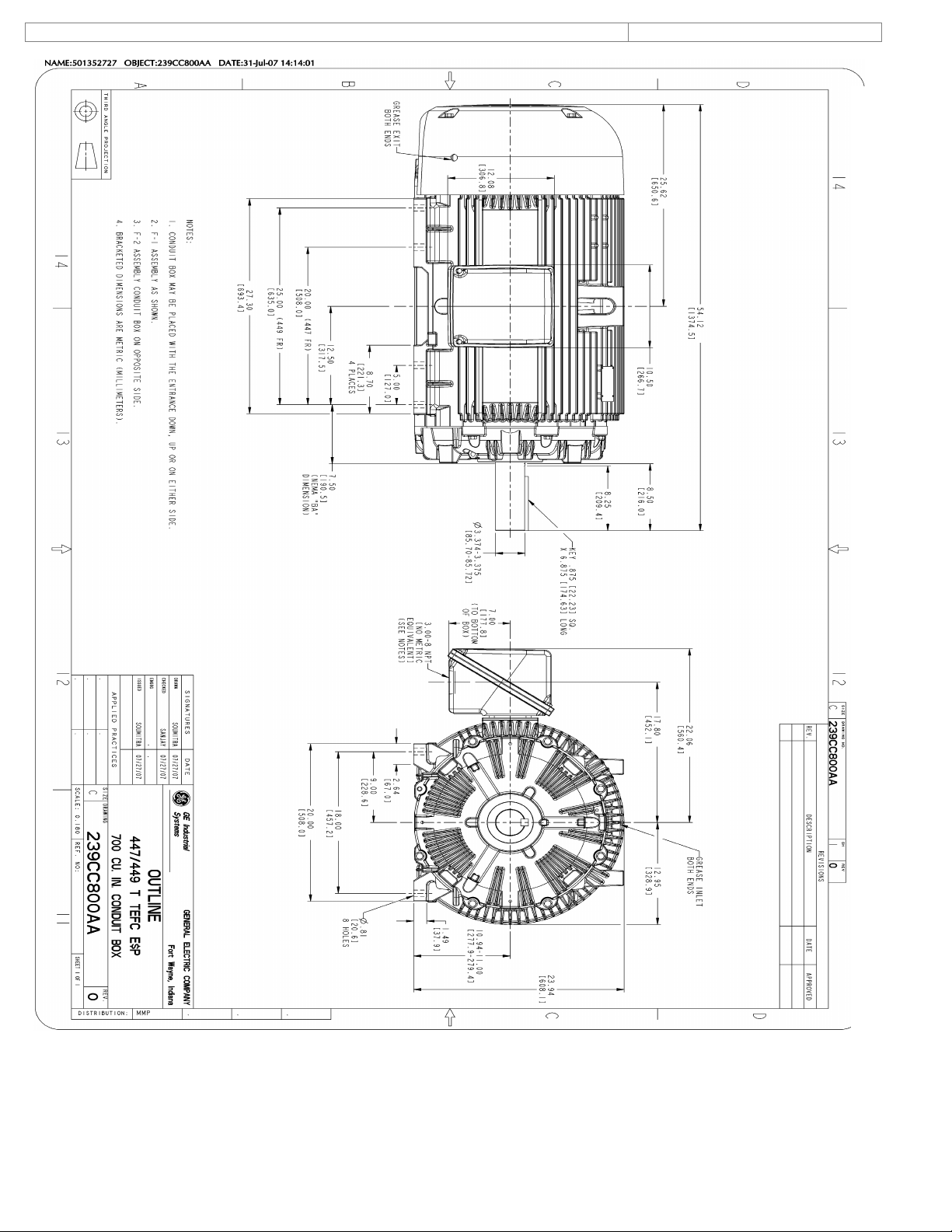

Outline Drawing:
239CC800AA
Accessory Connection Diagrams
Bearing Thermocouple:
None
Heater:
None
RTD:
None
Thermistor:
None
Thermostat:
None
Winding Thermocouple:
None
Bearing RTD:
None
Table of Contents
Specification
01
Performance Characteristics
02
Outline Drawing
03
Connection Drawing(s)
04
Power Conversion
Data shown is for the current revision model #. Ensure your nameplate model # matches.
Model Number:5KS449LAA304D
November 9, 2016
Marks:
MODEL NUMBER:
5KS449LAA304D
Estimated Weight:
2860 Lbs
Outline Drawing:
239CC800AA
Time Rating:
CONT
Connection Diagram:
GEM2034E-FIG7
Enclosure:
TEFC
Instruction Book:
GEI-56128
Encl Construction:
SD
Design Code:
49BD3087B
Ambient Max(°C):
40
Type:
KS
Alt Ambient Max(°C):
--
Frame:
449T
Insulation Class:
F
Phases:
3
NEMA Design:
A
Poles:
6
Nominal Efficiency:
95.8 %
Output Power:
200HP 148KW
Guaranteed Efficiency:
95.0
RPM:
1190
3/4 Load Efficiency:
96.0
Voltage:
575
KVA Code:
H
Hertz:
60
Max KVAR:
59.1
Amps - FL:
184.0
Power Factor:
85.0
Service Factor:
1.15
Bearing - DE:
6318ZC3S0
Alt Service Factor:
--
Bearing - ODE:
6318ZC3S0
Enclosure is Totally Enclosed Fan-Cooled
Stamped Nameplate Notes:
INVERTER DUTY PER NEMA MG1 PART 31
ALTERNATE RATING FOR PWM CONTROL:1.0SF 40C AMBIENT
VAR TORQUE RANGE 0-60 HZ
Additional Information:
6P - T EXTN
700 CU IN - 3.00" NPT
OIL RESISTANT SLEEVING ON LEADS
F1 MOUNTING
VIBRATION LIMIT 0.15 INCH PER SEC
Page | 1
Model Number:5KS449LAA304D
November 9, 2016
Performance Characteristics
1st Winding 1st Connection
Design: 49BD3087B
Marks:
LOAD %
125.0
115.0
100.0
75.0
50.0
25.0
0.0
% EFF
95.17
95.41
95.92
96.04
95.92
94.19
0.00
% PF
86.32
85.95
84.93
81.24
72.32
50.13
2.89
AMPS
227.85
209.99
183.82
143.95
107.93
79.29
65.73
TORQ(FL)#FT
880.94
TORQ(LR)%FL
179.95
TORQ(BD)%FL
303.85
AMPS(LR)
1272.08
PF AT START
0.29
This motor is capable of two cold or one hot start with a maximum connected load inertia of 11685 Lb-Ft Sq (491.94 Kgmeter Sq)at 100% voltage, where the load torque varies with the square of the speed. Acceleration time with maximum
inertia and the above load type is 43 seconds. Safe stall time at 100% voltage is 105 seconds cold, 57 seconds hot.
Rotor inertia is 164.86 Lb-Ft Sq (6.94 Kg-meter Sq).
Open Circuit A-C:
1.07
Short Circuit D-C:
0.025
Short Circuit A-C:
0.05
X/R Ratio:
9.504
Stator Slots:
72
Rotor Slots:
58
Page | 2
Model Number: 5KS449LAA304D
November 9, 2016
Marks:
Model Number: 5KS449LAA304D
November 9, 2016
Marks:

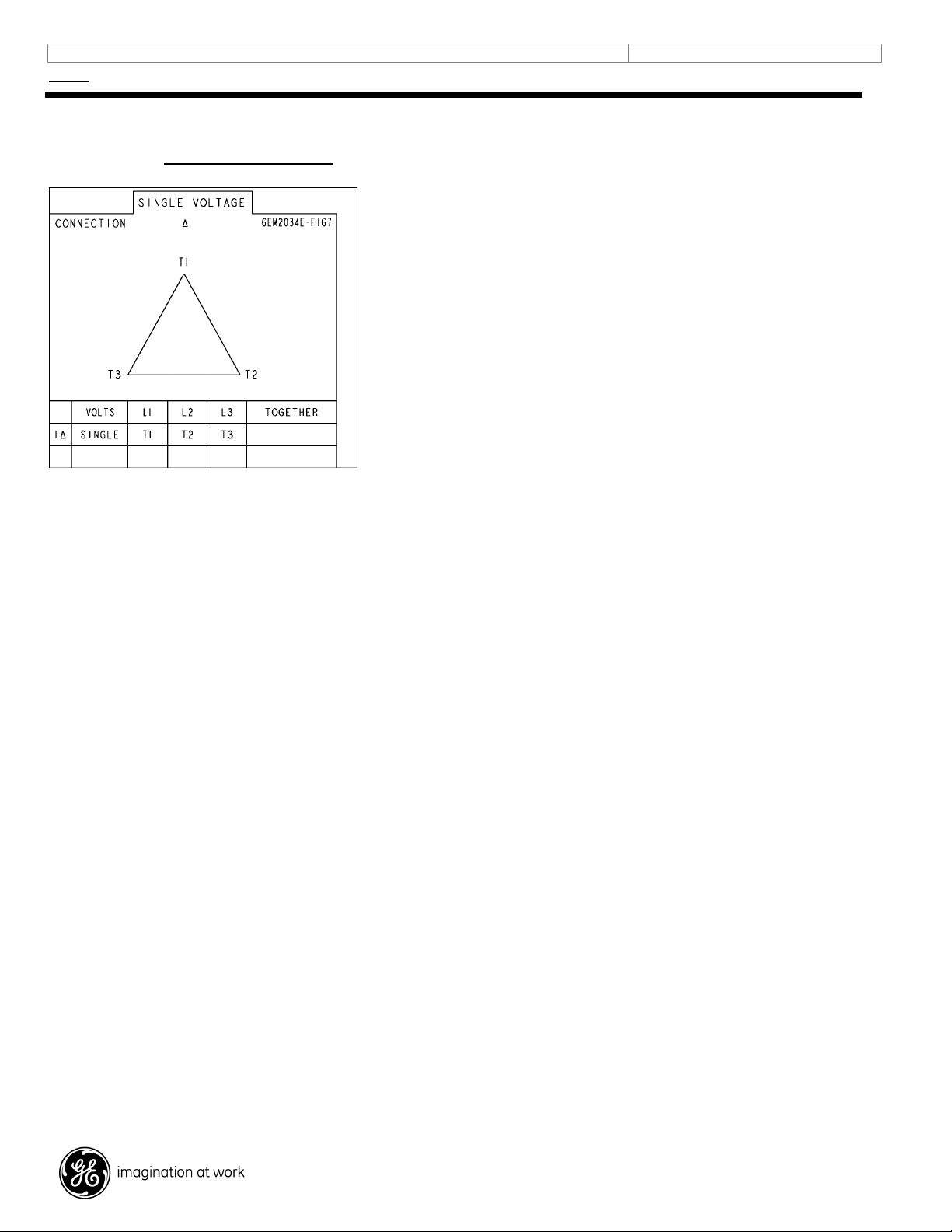

Connection Diagram
GEM2034E-FIG7
Page | 4
