GE
Product Information Packet
November 8, 2016
Model Number:
5KS447LAA304D
Catalog Number:
M7965
Instruction Manual:
GEI-56128
Connection Diagram:
GEM2034E-FIG7
Outline Drawing:
239CC800AA
Accessory Connection Diagrams
Bearing Thermocouple:
None
Heater:
None
RTD:
None
Thermistor:
None
Thermostat:
None
Winding Thermocouple:
None
Bearing RTD:
None
Table of Contents
Specification
01
Performance Characteristics
02
Outline Drawing
03
Connection Drawing(s)
04
Power Conversion
Data shown is for the current revision model #. Ensure your nameplate model # matches.
Model Number:5KS447LAA304D
November 8, 2016
Marks:
MODEL NUMBER:
5KS447LAA304D
Estimated Weight:
2510 Lbs

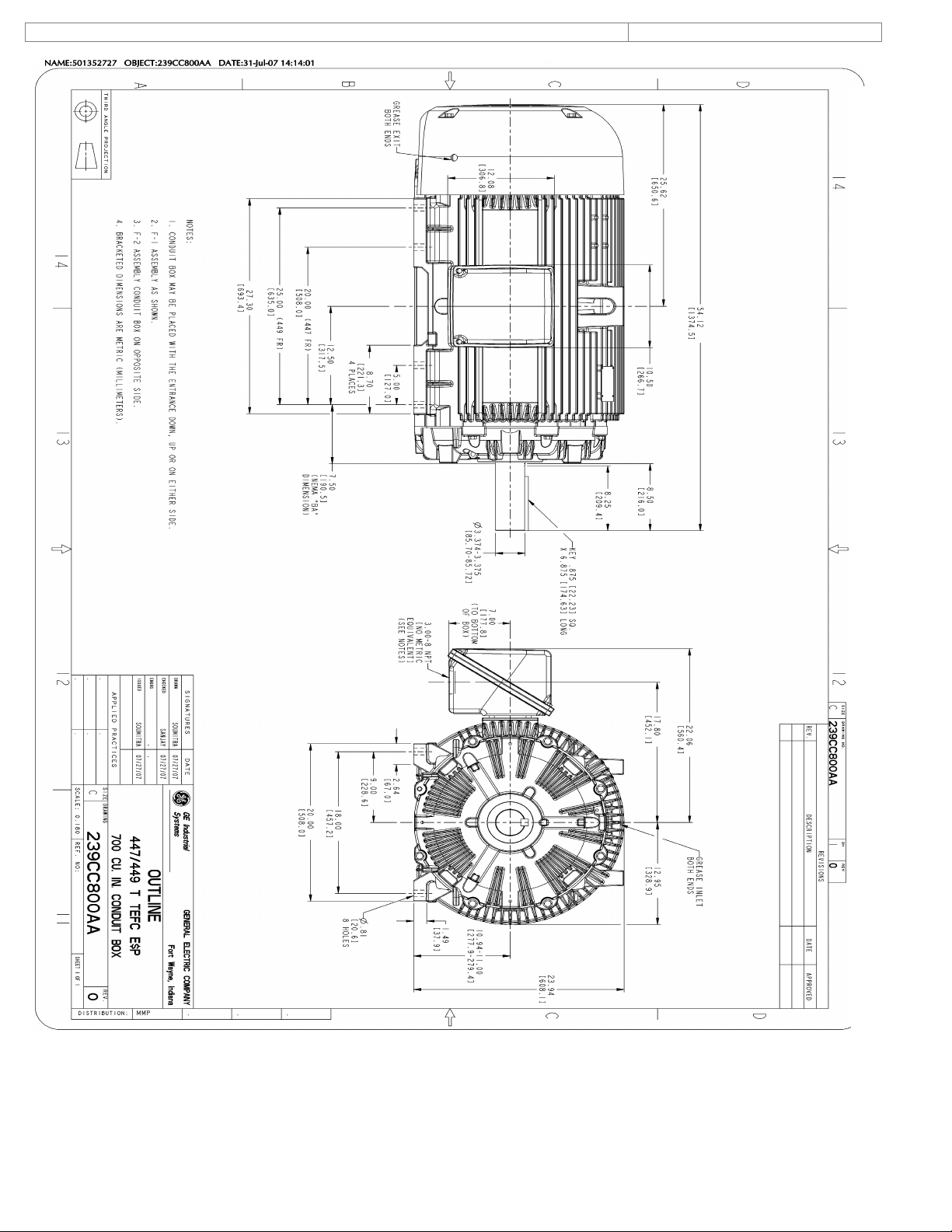

Outline Drawing:
239CC800AA
Time Rating:
CONT
Connection Diagram:
GEM2034E-FIG7
Enclosure:
TEFC
Instruction Book:
GEI-56128
Encl Construction:
SD
Design Code:
49BD3086B
Ambient Max(°C):
40
Type:
KS
Alt Ambient Max(°C):
--
Frame:
447T
Insulation Class:
F
Phases:
3
NEMA Design:
A
Poles:
6
Nominal Efficiency:
95.8 %
Output Power:
150HP 111KW
Guaranteed Efficiency:
95.0
RPM:
1195
3/4 Load Efficiency:
95.7
Voltage:
575
KVA Code:
J
Hertz:
60
Max KVAR:
61.7
Amps - FL:
147.0
Power Factor:
80.0
Service Factor:
1.15
Bearing - DE:
6318ZC3S0
Alt Service Factor:
--
Bearing - ODE:
6318ZC3S0
Enclosure is Totally Enclosed Fan-Cooled
Stamped Nameplate Notes:
INVERTER DUTY PER NEMA MG1 PART 31
ALTERNATE RATING FOR PWM CONTROL:1.0SF 40C AMBIENT
VAR TORQUE RANGE 0-60 HZ
Additional Information:
6P - T EXTN
700 CU IN - 3.00" NPT
OIL RESISTANT SLEEVING ON LEADS
F1 MOUNTING
VIBRATION LIMIT 0.15 INCH PER SEC
Page | 1
Model Number:5KS447LAA304D
November 8, 2016
Performance Characteristics
1st Winding 1st Connection
Design: 49BD3086B
Marks:
LOAD %
125.0
115.0
100.0
75.0
50.0
25.0
0.0
% EFF
95.28
95.44
95.82
95.71
95.22
92.65
0.00
% PF
83.05
82.07
80
74.03
62.28
39.53
2.79
AMPS
177.42
164.89
146.52
118.88
94.7
76.66
68.6
TORQ(FL)#FT
659.84
TORQ(LR)%FL
200.88
TORQ(BD)%FL
361.38
AMPS(LR)
1148.07
PF AT START
0.29
This motor is capable of two cold or one hot start with a maximum connected load inertia of 8756 Lb-Ft Sq (368.63 Kgmeter Sq)at 100% voltage, where the load torque varies with the square of the speed. Acceleration time with maximum
inertia and the above load type is 36 seconds. Safe stall time at 100% voltage is 88 seconds cold, 53 seconds hot. Rotor
inertia is 115.65 Lb-Ft Sq (4.87 Kg-meter Sq).
Open Circuit A-C:
0.95
Short Circuit D-C:
0.023
Short Circuit A-C:
0.052
X/R Ratio:
8.704
Stator Slots:
72
Rotor Slots:
58
Page | 2
Model Number: 5KS447LAA304D
November 8, 2016
Marks:
Model Number: 5KS447LAA304D
November 8, 2016
Marks:
Connection Diagram
GEM2034E-FIG7
Page | 4
