GE
Product Information Packet
November 8, 2016
Model Number:
5KS254STE222A
Catalog Number:
M7745
Instruction Manual:
GEI-M1031
Connection Diagram:
GEM2034E-FIG210
Outline Drawing:
358B6278AA
Accessory Connection Diagrams
Bearing Thermocouple:
None
Heater:
None
RTD:
None
Thermistor:
None
Thermostat:
None
Winding Thermocouple:
None
Bearing RTD:
None
Table of Contents
Specification
01
Performance Characteristics
02
Outline Drawing
03
Connection Drawing(s)
04
Power Conversion
Data shown is for the current revision model #. Ensure your nameplate model # matches.
Model Number:5KS254STE222A
November 8, 2016
Marks:
MODEL NUMBER:
5KS254STE222A
Estimated Weight:
275 Lbs
Outline Drawing:
358B6278AA
Time Rating:
CONT
Connection Diagram:
GEM2034E-FIG210
Enclosure:
TEFC
Instruction Book:
GEI-M1031
Encl Construction:
SD
Design Code:
25AD1014A
Ambient Max(°C):
40
Type:
KS
Alt Ambient Max(°C):
--
Frame:
254TC
Insulation Class:
F
Phases:
3
NEMA Design:
A
Poles:
4
Nominal Efficiency:
92.4 %
Output Power:
15HP 11.1KW
Guaranteed Efficiency:
91.0
RPM:
1765
3/4 Load Efficiency:
93.0
Voltage:
230/460
KVA Code:
H
Hertz:
60
Max KVAR:
4.4
Amps - FL:
36/18
Power Factor:
84.5
Service Factor:
1.15
Bearing - DE:
6310ZZ
Alt Service Factor:
--
Bearing - ODE:
6208ZZ
Enclosure is Totally Enclosed Fan-Cooled
Stamped Nameplate Notes:
USABLE AT 200V @ 15 HP,40.6 AMPS @ 1.0 SF
LRA: 244.2/122.1
50HZ DATA: 10 HP,200/400V,32.2/16.1 AMPS @ 1.15 SF
50HZ DATA: 15 HP,200/400V,41.2/20.6 AMPS @ 1.00 SF
GREASE TYPE: SHELL ALVANIA R3 LITHIUM GREASE
Additional Information:
CONDUIT BOX MATERIAL: CAST IRON
SUITABLE FOR USE IN CLASS I DIVISION 2 LOCATIONS
CLASS I DIVISION 2 GROUPS A,B,C,D T3C
CLASS I ZONE 2 IIC T3C
Page | 1
Model Number:5KS254STE222A
November 8, 2016
Performance Characteristics
1st Winding 1st Connection
Design: 25AD1014A
Marks:
LOAD %
125.0
115.0
100.0
75.0
50.0
25.0
0.0
% EFF
91.7
92.1
92.79
93.02
92.56
89.09
0.00
% PF
85.65
85.42
84.6
81.28
73.03
52.16
6.08
AMPS
22.34
20.52
17.89
13.93
10.38
7.55
6.11
TORQ(FL)#FT
44.57
TORQ(LR)%FL
281.65
TORQ(BD)%FL
266.89
AMPS(LR)
122.3
PF AT START
0.44
This motor is capable of two cold or one hot start with a maximum connected load inertia of 622 Lb-Ft Sq (26.19 Kg-meter
Sq)at 100% voltage, where the load torque varies with the square of the speed. Acceleration time with maximum inertia
and the above load type is 42 seconds. Safe stall time at 100% voltage is 71 seconds cold, 56 seconds hot. Rotor inertia
is 2.02 Lb-Ft Sq (0.09 Kg-meter Sq).
Open Circuit A-C:
0.416
Short Circuit D-C:
0.016
Short Circuit A-C:
0.018
X/R Ratio:
5.974
Stator Slots:
48
Rotor Slots:
40
Page | 2
Model Number: 5KS254STE222A
November 8, 2016
Marks:
Model Number: 5KS254STE222A
November 8, 2016
Marks:

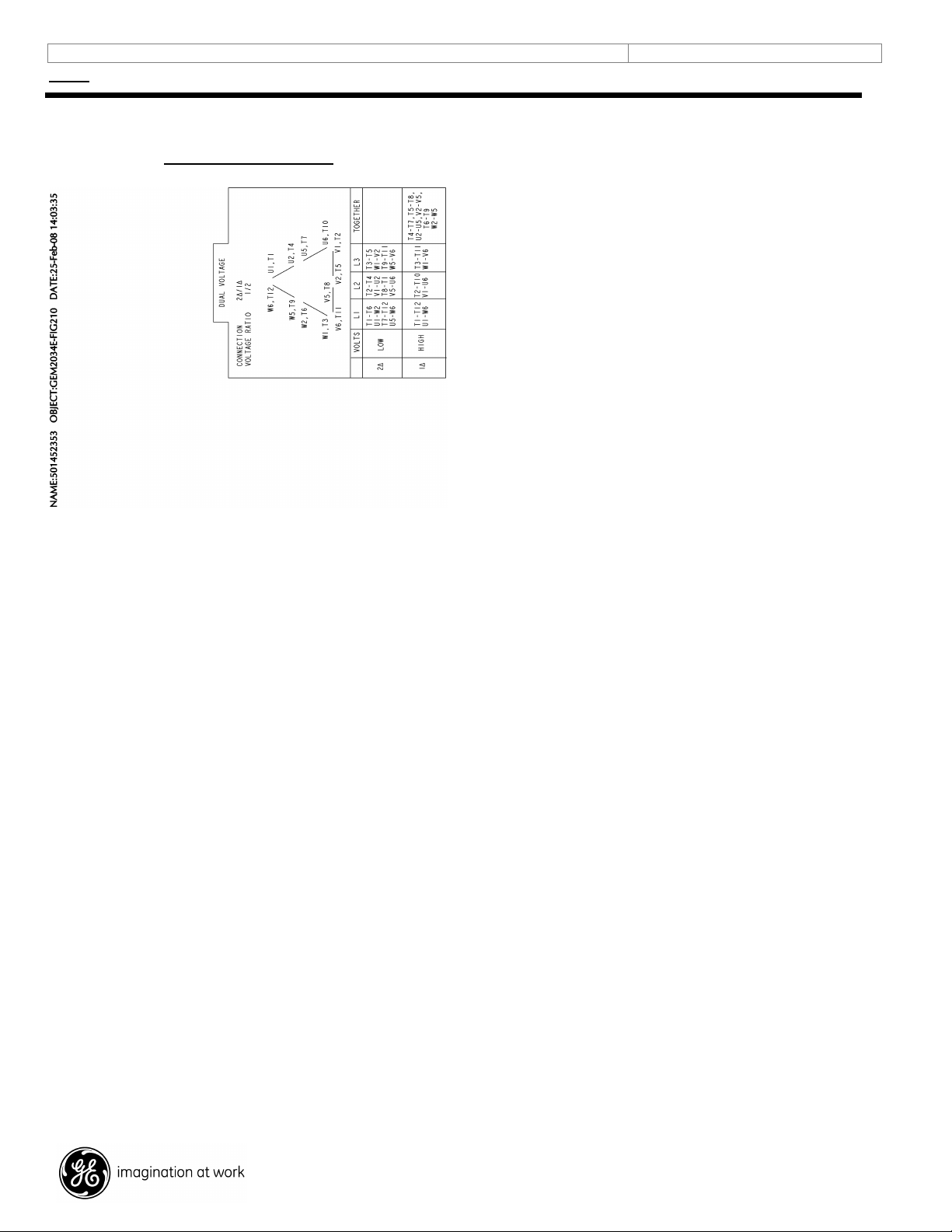

Connection Diagram
GEM2034E-FIG210
Page | 4
