GE
Product Information Packet
November 9, 2016
Model Number:
5KS256STE105A
Catalog Number:
M7708
Instruction Manual:
GEI-M1031
Connection Diagram:
GEM2034E-FIG210
Outline Drawing:
358B6272AB
Accessory Connection Diagrams
Bearing Thermocouple:
None
Heater:
None
RTD:
None
Thermistor:
None
Thermostat:
None
Winding Thermocouple:
None
Bearing RTD:
None
Table of Contents
Specification
01
Performance Characteristics
02
Outline Drawing
03
Connection Drawing(s)
04
Power Conversion
Data shown is for the current revision model #. Ensure your nameplate model # matches.
Model Number:5KS256STE105A
November 9, 2016
Marks:
MODEL NUMBER:
5KS256STE105A
Estimated Weight:
361 Lbs

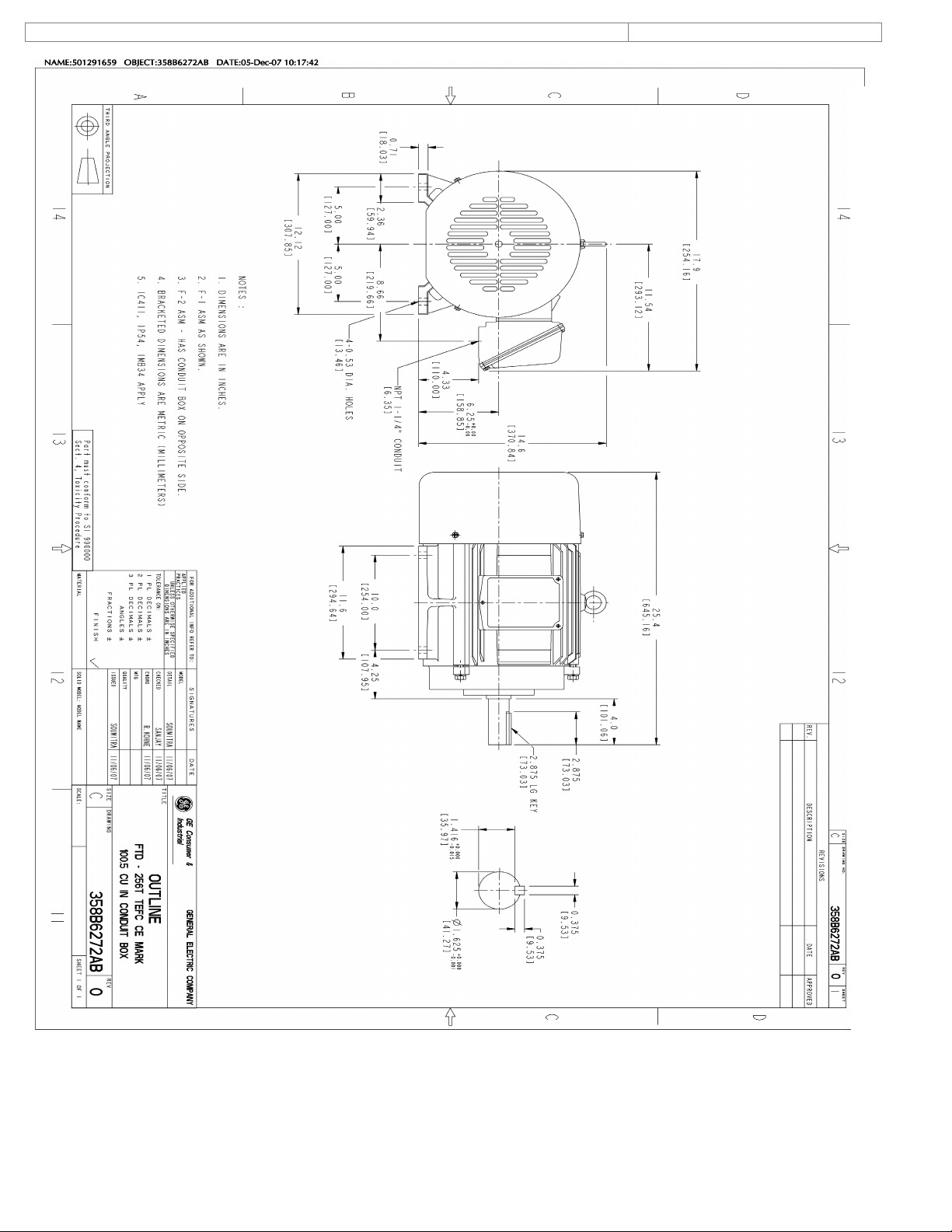

Outline Drawing:
358B6272AB
Time Rating:
CONT
Connection Diagram:
GEM2034E-FIG210
Enclosure:
TEFC
Instruction Book:
GEI-M1031
Encl Construction:
SD
Design Code:
25AD0016A
Ambient Max(°C):
40
Type:
KS
Alt Ambient Max(°C):
--
Frame:
256T
Insulation Class:
F
Phases:
3
NEMA Design:
A
Poles:
2
Nominal Efficiency:
91.0 %
Output Power:
20HP 14.8KW
Guaranteed Efficiency:
89.5
RPM:
3520
3/4 Load Efficiency:
91.0
Voltage:
230/460
KVA Code:
G
Hertz:
60
Max KVAR:
3.6
Amps - FL:
44.4/22.2
Power Factor:
92.5
Service Factor:
1.15
Bearing - DE:
6310ZZ
Alt Service Factor:
--
Bearing - ODE:
6208ZZ
Enclosure is Totally Enclosed Fan-Cooled
Stamped Nameplate Notes:
USABLE AT 200V @ 20 HP,50.8 AMPS @ 1.0 SF
LRA: 305.6/152.8
50HZ DATA: 15 HP,200/400V,44.2/22.1 AMPS @ 1.15 SF
50HZ DATA: 20 HP,200/400V,50.8/25.4 AMPS @ 1.00 SF
GREASE TYPE: SHELL ALVANIA R3 LITHIUM GREASE
Additional Information:
CONDUIT BOX MATERIAL: CAST IRON
SUITABLE FOR USE IN CLASS I DIVISION 2 LOCATIONS
CLASS I DIVISION 2 GROUPS A,B,C,D T3C
CLASS I ZONE 2 IIC T3C
Page | 1
Model Number:5KS256STE105A
November 9, 2016
Performance Characteristics
1st Winding 1st Connection
Design: 25AD0016A
Marks:
LOAD %
125.0
115.0
100.0
75.0
50.0
25.0
0.0
% EFF
89.09
89.63
90.52
91
90.63
86.68
0.00
% PF
93.06
93.05
92.79
91.32
86.83
71.33
12.23
AMPS
28.22
25.81
22.29
16.89
11.89
7.57
5.05
TORQ(FL)#FT
29.84
TORQ(LR)%FL
229.5
TORQ(BD)%FL
265.98
AMPS(LR)
152.76
PF AT START
0.36
This motor is capable of two cold or one hot start with a maximum connected load inertia of 85 Lb-Ft Sq (3.58 Kg-meter
Sq)at 100% voltage, where the load torque varies with the square of the speed. Acceleration time with maximum inertia
and the above load type is 24 seconds. Safe stall time at 100% voltage is 47 seconds cold, 28 seconds hot. Rotor inertia
is 1.27 Lb-Ft Sq (0.05 Kg-meter Sq).
Open Circuit A-C:
0.534
Short Circuit D-C:
0.013
Short Circuit A-C:
0.015
X/R Ratio:
4.931
Stator Slots:
36
Rotor Slots:
44
Page | 2
Model Number: 5KS256STE105A
November 9, 2016
Marks:
Model Number: 5KS256STE105A
November 9, 2016
Marks:
Connection Diagram
GEM2034E-FIG210
Page | 4
