GE
Product Information Packet
November 8, 2016
Model Number:
5KS213STE305A
Catalog Number:
M7543
Instruction Manual:
GEI-M1031
Connection Diagram:
GEM2034E-FIG210
Outline Drawing:
358B6271AA
Accessory Connection Diagrams
Bearing Thermocouple:
None
Heater:
None
RTD:
None
Thermistor:
None
Thermostat:
None
Winding Thermocouple:
None
Bearing RTD:
None
Table of Contents
Specification
01
Performance Characteristics
02
Outline Drawing
03
Connection Drawing(s)
04
Power Conversion
Data shown is for the current revision model #. Ensure your nameplate model # matches.
Model Number:5KS213STE305A
November 8, 2016
Marks:
MODEL NUMBER:
5KS213STE305A
Estimated Weight:
139 Lbs

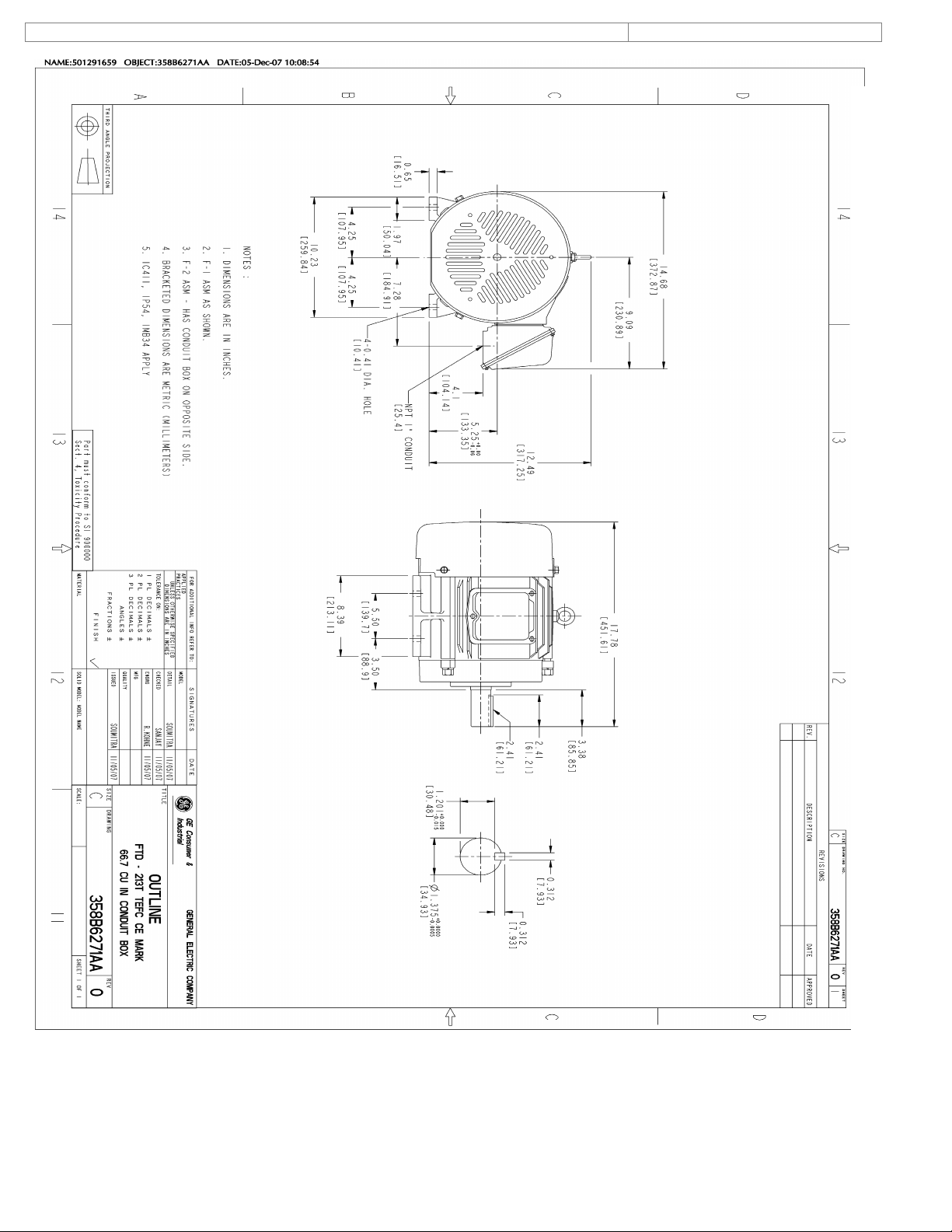

Outline Drawing:
358B6271AA
Time Rating:
CONT
Connection Diagram:
GEM2034E-FIG210
Enclosure:
TEFC
Instruction Book:
GEI-M1031
Encl Construction:
SD
Design Code:
21AD3005A
Ambient Max(°C):
40
Type:
KS
Alt Ambient Max(°C):
--
Frame:
213T
Insulation Class:
F
Phases:
3
NEMA Design:
B
Poles:
6
Nominal Efficiency:
89.5 %
Output Power:
3HP 2.2KW
Guaranteed Efficiency:
87.5
RPM:
1170
3/4 Load Efficiency:
90.0
Voltage:
230/460
KVA Code:
K
Hertz:
60
Max KVAR:
1.5
Amps - FL:
8.2/4.1
Power Factor:
75
Service Factor:
1.15
Bearing - DE:
6308ZZC3
Alt Service Factor:
--
Bearing - ODE:
6208ZZC3
Enclosure is Totally Enclosed Fan-Cooled
Stamped Nameplate Notes:
6 POLE, TEFC,
IP54;IBM3;MASS 63 KG; MIN AMB -15C; MAX ALT 1000M
USABLE AT 200V @ 3.0 HP, 9.0 AMPS @ 1.0 SF
50HZ DATA @ 1.15 SF: 2.0/1.5 HP,
200/400V, 8.2/4. 1 AMPS: 50HZ DATA @ 1.00 SF
3.0/2.2 HP, 200/400V,9.0/4.5 AMPS
GREASE TYPE: SHELL ALVANIA R3 LITHIUM GREASE
Additional Information:
6 POLE, TEFC,
DUAL DIMENSION OUTLINE, IP54
NO. OF MOTOR LEADS: 9
CONDUIT BOX VOLUME (CU IN): 66.7
CONDUIT BOX MATERIAL: CAST IRON
SUITABLE FOR USE IN CLASS I DIVISION 2 LOCATIONS
CLASS I DIVISION 2 GROUPS A,B,C,D T3C
CLASS I ZONE 2 IIC T3C
Page | 1
Model Number:5KS213STE305A
November 8, 2016

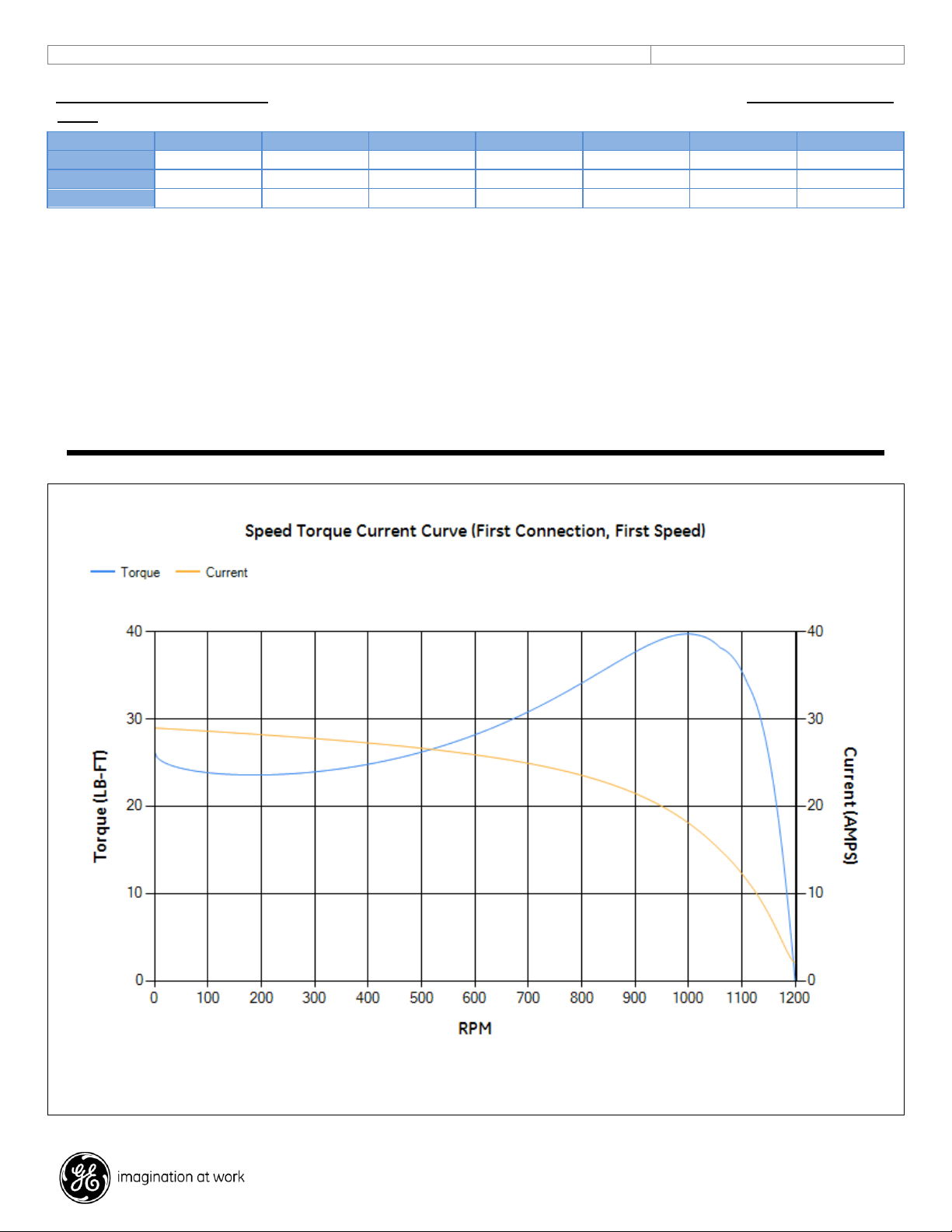

Performance Characteristics
1st Winding 1st Connection
Design: 21AD3005A
Marks:
LOAD %
125.0
115.0
100.0
75.0
50.0
25.0
0.0
% EFF
88.57
89.05
89.81
90
89.08
83.87
0.00
% PF
78.38
77.27
74.94
68.47
56.74
36.33
5.57
AMPS
5.06
4.69
4.17
3.42
2.78
2.3
2.06
TORQ(FL)#FT
13.42
TORQ(LR)%FL
195.38
TORQ(BD)%FL
292.65
AMPS(LR)
28.96
PF AT START
0.35
This motor is capable of two cold or one hot start with a maximum connected load inertia of 350 Lb-Ft Sq (14.74 Kg-meter
Sq)at 100% voltage, where the load torque varies with the square of the speed. Acceleration time with maximum inertia
and the above load type is 54 seconds. Safe stall time at 100% voltage is 129 seconds cold, 88 seconds hot. Rotor
inertia is 0.95 Lb-Ft Sq (0.04 Kg-meter Sq).
Open Circuit A-C:
0.227
Short Circuit D-C:
0.01
Short Circuit A-C:
0.016
X/R Ratio:
3.917
Stator Slots:
54
Rotor Slots:
42
Page | 2
Model Number: 5KS213STE305A
November 8, 2016
Marks:
Model Number: 5KS213STE305A
November 8, 2016
Marks:

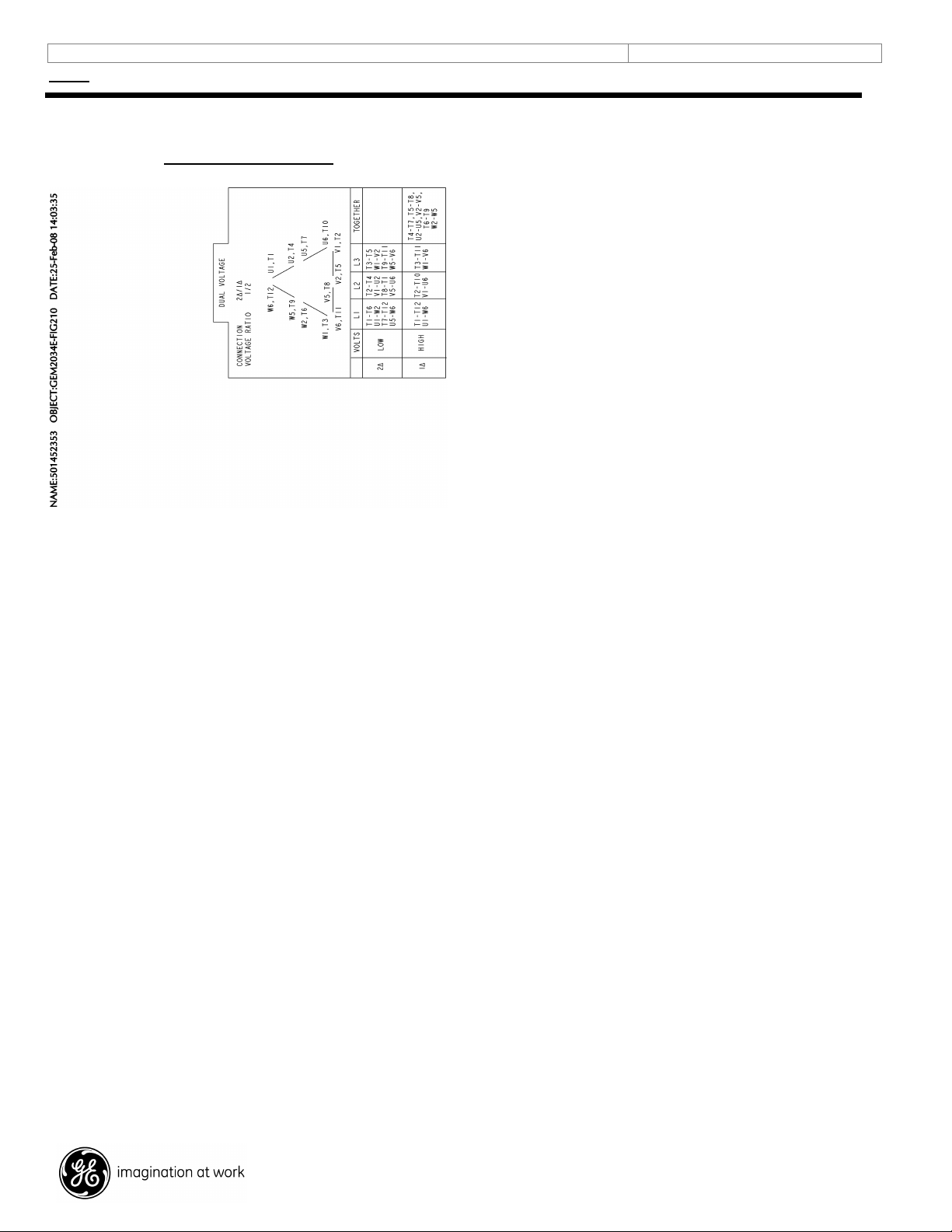

Connection Diagram
GEM2034E-FIG210
Page | 4
