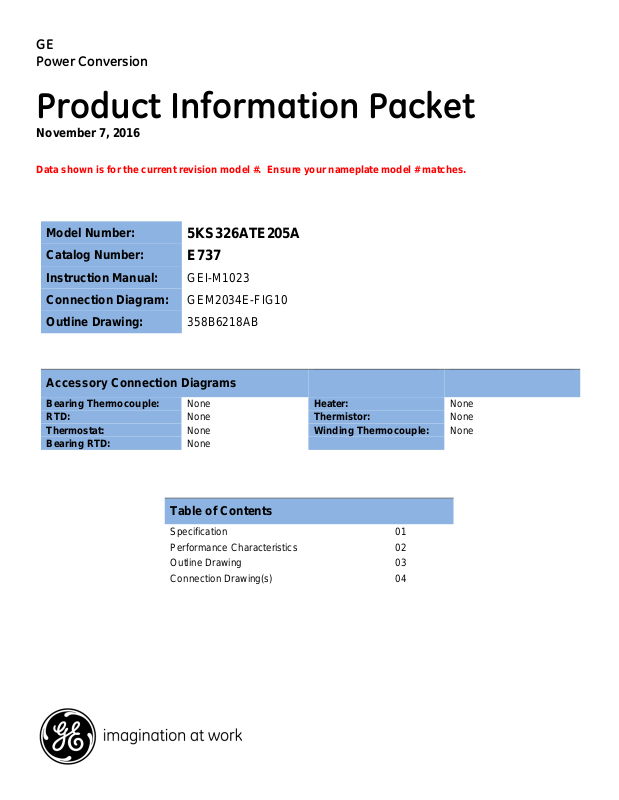

Page 1
GE
Product Information Packet
November 7, 2016
Model Number:
5KS326ATE205A
Catalog Number:
E737
Instruction Manual:
GEI-M1023
Connection Diagram:
GEM2034E-FIG10
Outline Drawing:
358B6218AB
Accessory Connection Diagrams
Bearing Thermocouple:
None
Heater:
None
RTD:
None
Thermistor:
None
Thermostat:
None
Winding Thermocouple:
None
Bearing RTD:
None
Table of Contents
Specification
01
Performance Characteristics
02
Outline Drawing
03
Connection Drawing(s)
04
Power Conversion
Data shown is for the current revision model #. Ensure your nameplate model # matches.
Page 2
Model Number:5KS326ATE205A
November 7, 2016
Marks:
MODEL NUMBER:
5KS326ATE205A
Estimated Weight:
750 Lbs
Outline Drawing:
358B6218AB
Time Rating:
CONT
Connection Diagram:
GEM2034E-FIG10
Enclosure:
DP
Instruction Book:
GEI-M1023
Encl Construction:
OPEN
Design Code:
32AD1006A
Ambient Max(°C):
40
Type:
KS
Alt Ambient Max(°C):
--
Frame:
326T
Insulation Class:
F
Phases:
3
NEMA Design:
A
Poles:
4
Nominal Efficiency:
94.5 %
Output Power:
50HP 37KW
Guaranteed Efficiency:
93.6
RPM:
1780
3/4 Load Efficiency:
94.6
Voltage:
230/460
KVA Code:
H
Hertz:
60
Max KVAR:
16
Amps - FL:
120.8/60.4
Power Factor:
82
Service Factor:
1.15
Bearing - DE:
6312
Alt Service Factor:
--
Bearing - ODE:
6312
Enclosure is Dripproof
Stamped Nameplate Notes:
Additional Information:
4 POLE DP
LRA: 886.8/443.4
NO. OF MOTOR LEADS: 12
CONDUIT BOX VOLUME (IN^3): 253
CONDUIT BOX MTL: STAMPED STEEL
GREASE TYPE: CHEVRON SRI-2 POLYUREA GREASE
USABLE AT 200V @ 50HP, 133 AMPS @ 1.0 SF
50 HZ DATA: 50HP, 200/400V, 140.6/70.3 AMPS AT 1.0SF, 1475 RPM
SOUND POWER: 75.5
DMK, 06/04, DATA UPDATE 11/2004
INVERTER DUTY PER NEMA MG1 PART 31
FOR VARIABLE TORQUE LOADS
Page | 1
Page 3
Model Number:5KS326ATE205A
November 7, 2016
Performance Characteristics
1st Winding 1st Connection
Design: 32AD1006A
Marks:
LOAD %
125.0
115.0
100.0
75.0
50.0
25.0
0.0
% EFF
93.87
94.12
94.6
94.56
93.98
90.8
0.00
% PF
84.85
84.66
83.88
80.6
72.27
51.17
5.09
AMPS
73.44
67.54
58.97
46.05
34.45
25.18
20.57
TORQ(FL)#FT
147.46
TORQ(LR)%FL
215.03
TORQ(BD)%FL
309.15
AMPS(LR)
442.81
PF AT START
0.33
This motor is capable of two cold or one hot start with a maximum connected load inertia of 1345 Lb-Ft Sq (56.62 Kgmeter Sq)at 100% voltage, where the load torque varies with the square of the speed. Acceleration time with maximum
inertia and the above load type is 33 seconds. Safe stall time at 100% voltage is 56 seconds cold, 45 seconds hot. Rotor
inertia is 8.37 Lb-Ft Sq (0.35 Kg-meter Sq).
Open Circuit A-C:
0.674
Short Circuit D-C:
0.023
Short Circuit A-C:
0.029
X/R Ratio:
8.547
Stator Slots:
48
Rotor Slots:
40
Page | 2
Page 4
Model Number: 5KS326ATE205A
November 7, 2016
Marks:
Page 5
Model Number: 5KS326ATE205A
November 7, 2016
Marks:
Connection Diagram
GEM2034E-FIG10
Page | 4
