Page 1
GE
Product Information Packet
November 7, 2016
Model Number:
5KS324ATE204A
Catalog Number:
E7310
Instruction Manual:
GEI-M1023
Connection Diagram:
GEM2034E-FIG7
Outline Drawing:
358B6218AA
Accessory Connection Diagrams
Bearing Thermocouple:
None
Heater:
None
RTD:
None
Thermistor:
None
Thermostat:
None
Winding Thermocouple:
None
Bearing RTD:
None
Table of Contents
Specification
01
Performance Characteristics
02
Outline Drawing
03
Connection Drawing(s)
04
Power Conversion
Data shown is for the current revision model #. Ensure your nameplate model # matches.
Page 2
Model Number:5KS324ATE204A
November 7, 2016
Marks:
MODEL NUMBER:
5KS324ATE204A
Estimated Weight:
550 Lbs
Outline Drawing:
358B6218AA
Time Rating:
CONT
Connection Diagram:
GEM2034E-FIG7
Enclosure:
DP
Instruction Book:
GEI-M1023
Encl Construction:
OPEN
Design Code:
32AD1005B
Ambient Max(°C):
40
Type:
KS
Alt Ambient Max(°C):
--
Frame:
324T
Insulation Class:
F
Phases:
3
NEMA Design:
A
Poles:
4
Nominal Efficiency:
94.1 %
Output Power:
40HP 29.6KW
Guaranteed Efficiency:
93.0
RPM:
1780
3/4 Load Efficiency:
94.3
Voltage:
575
KVA Code:
J
Hertz:
60
Max KVAR:
13.3
Amps - FL:
38.1
Power Factor:
81.5
Service Factor:
1.15
Bearing - DE:
6312
Alt Service Factor:
--
Bearing - ODE:
6212
Enclosure is Dripproof
Stamped Nameplate Notes:
Additional Information:
4 POLE DRIP PROOF
CONDUIT BOX MATERIAL: STAMPED STEEL
CONDUIT BOX VOL: 253 CU IN
NO. OF MOTOR LEADS: 3
NOT USEABLE AT 200 VOLTS
GREASE TYPE:CHEVRON SRI-2 POLYUREA
SOUND POWER DATA: 75.1
INVERTER DUTY PER NEMA MG1 PART 31
FOR VARIABLE TORQUE LOADS
Page | 1
Page 3
Model Number:5KS324ATE204A
November 7, 2016
Performance Characteristics
1st Winding 1st Connection
Design: 32AD1005B
Marks:
LOAD %
125.0
115.0
100.0
75.0
50.0
25.0
0.0
% EFF
93.76
93.98
94.42
94.29
93.56
90
0.00
% PF
84.68
84.42
83.53
80.02
71.4
50.22
5.45
AMPS
47.16
43.42
37.98
29.77
22.42
16.57
13.65
TORQ(FL)#FT
117.93
TORQ(LR)%FL
207.55
TORQ(BD)%FL
310.53
AMPS(LR)
283.65
PF AT START
0.32
This motor is capable of two cold or one hot start with a maximum connected load inertia of 1187 Lb-Ft Sq (49.97 Kgmeter Sq)at 100% voltage, where the load torque varies with the square of the speed. Acceleration time with maximum
inertia and the above load type is 37 seconds. Safe stall time at 100% voltage is 63 seconds cold, 53 seconds hot. Rotor
inertia is 7.11 Lb-Ft Sq (0.3 Kg-meter Sq).
Open Circuit A-C:
0.67
Short Circuit D-C:
0.023
Short Circuit A-C:
0.03
X/R Ratio:
8.553
Stator Slots:
48
Rotor Slots:
40
Page | 2
Page 4
Model Number: 5KS324ATE204A
November 7, 2016
Marks:
Page 5
Model Number: 5KS324ATE204A
November 7, 2016
Marks:

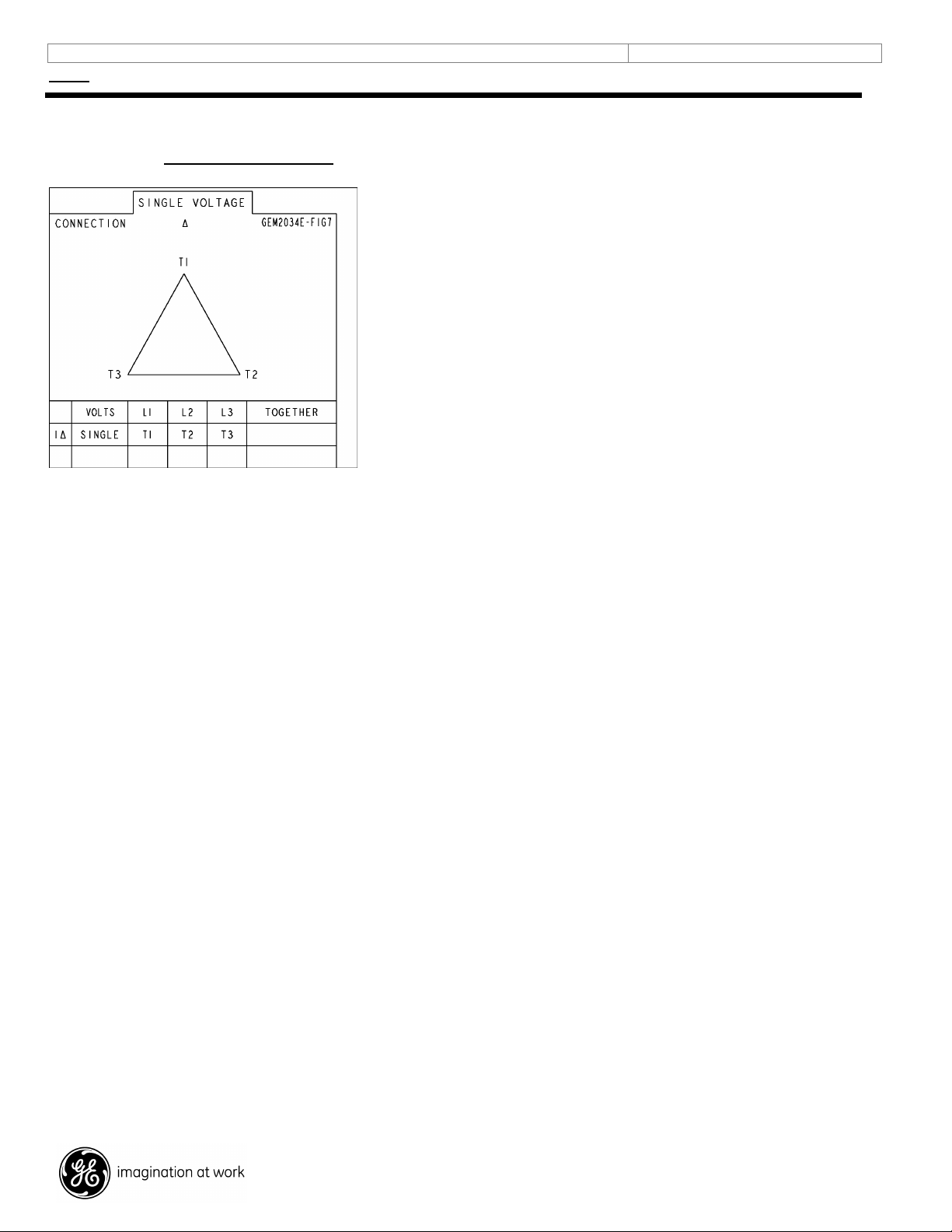

Connection Diagram
GEM2034E-FIG7
Page | 4
