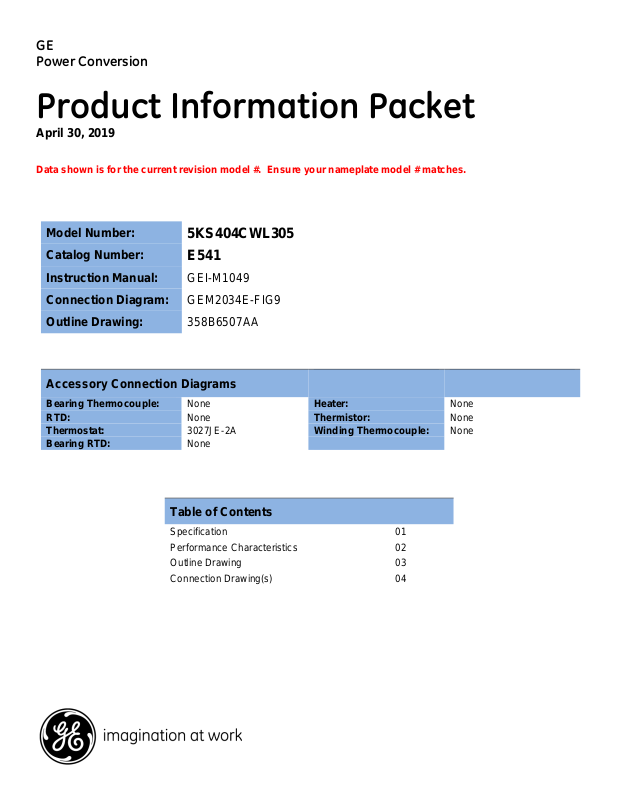

GE
Power Conversion
Product Information Packet
April 30, 2019
Data shown is for the current revision model #. Ensure your nameplate model # matches.
Model Number:
5KS404CWL305
Catalog Number:
E541
Instruction Manual:
GEI-M1049
Connection Diagram:
GEM2034E-FIG9
Outline Drawing:
358B6507AA
Accessory Connection Diagrams
Bearing Thermocouple:
None
Heater:
None
RTD:
None
Thermistor:
None
Thermostat:
3027JE-2A
Winding Thermocouple:
None
Bearing RTD:
None
Table of Contents
Specification
01
Performance Characteristics
02
Outline Drawing
03
Connection Drawing(s)
04
Model Number:5KS404CWL305
April 30, 2019
Page | 1
Marks:
MODEL NUMBER:
5KS404CWL305
Estimated Weight:
1492 Lbs

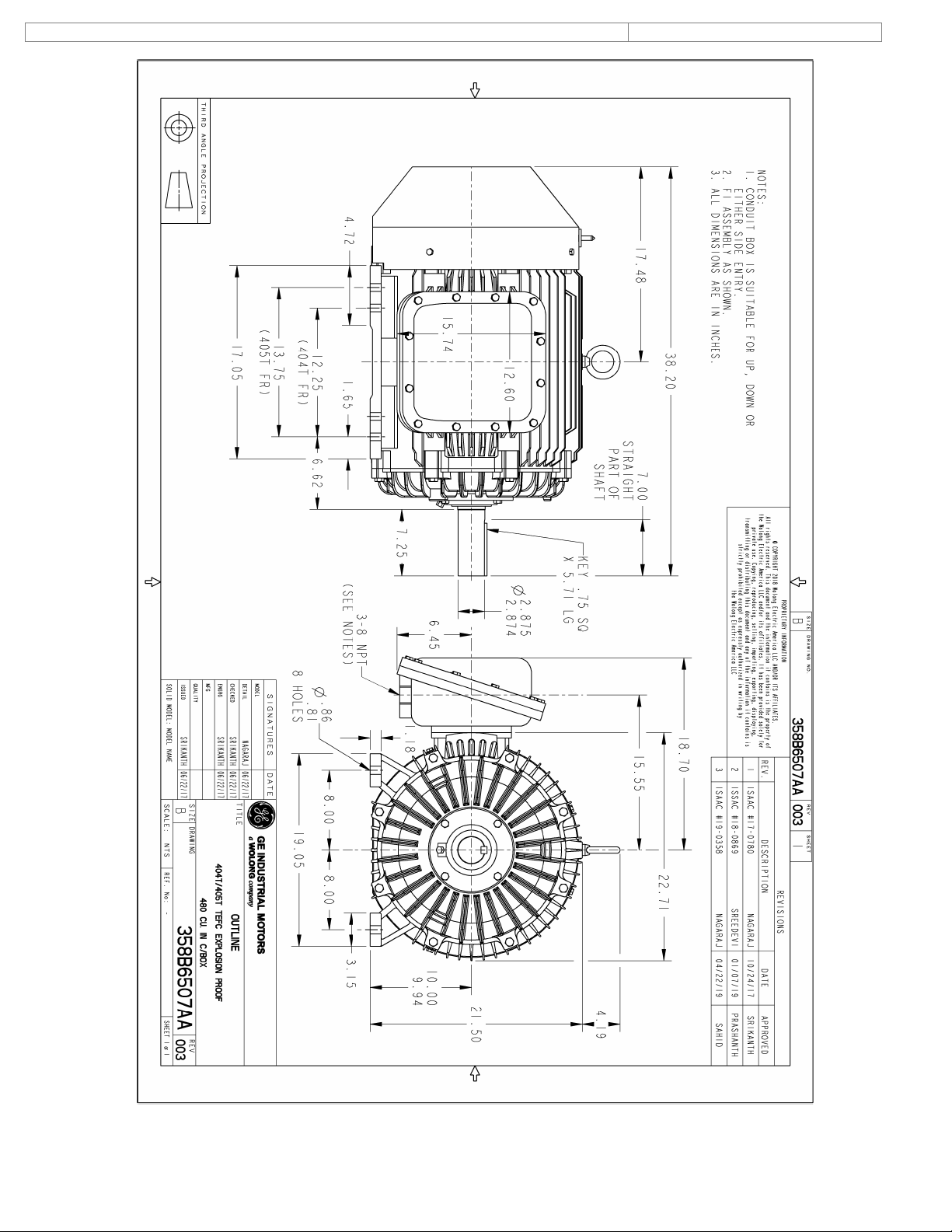

Outline Drawing:
358B6507AA
Time Rating:
CONT
Connection Diagram:
GEM2034E-FIG9
Enclosure:
TEFC
Instruction Book:
GEI-M1049
Encl Construction:
XP
Design Code:
NA
Ambient Max(°C):
40
Type:
KS
Alt Ambient Max(°C):
55
Frame:
404T
Insulation Class:
F
Phases:
3
NEMA Design:
B
Poles:
6
Nominal Efficiency:
94.5 %
Output Power:
60HP 45KW
Guaranteed Efficiency:
93.6 %
RPM:
1195
3/4 Load Efficiency:
94.5 %
Voltage:
230/460
KVA Code:
G
Hertz:
60
Max KVAR:
19.2
Amps - FL:
146.4/73.2
Power Factor:
81.7%
Service Factor:
1.15
Bearing - DE:
6316-C3
Alt Service Factor:
1.0
Bearing - ODE:
6316-C3
Enclosure is Totally Enclosed Fan-Cooled
Stamped Nameplate Notes:
Additional Information:
THERMOSTAT FOR: TRIP 145+/-5 DEG C
THERMOSTAT LEADS: 3 NC TO TERMINATE IN MAIN CB
ROTATION:CCW VIEWED FROM ODE
CLASS /GAS GROUP:CL I GR C and D, CLASS II GR F and G
CBOX SIZE:480 CU INCH
INVERTER DUTY PER NEMA MG1 PART 31
INVERTER RATED PWM 10:1 VARIABLE TORQUE, 5:1 CONSTANT TORQUE, 1.0 SF
UL CERTIFICATION SUITABLE FOR INSTALLATION IN –
- THE UNITED STATES, NIGERIA AND KUWAIT
Model Number:5KS404CWL305
April 30, 2019
Page | 2
Performance Characteristic:
LOAD %
125.0
115.0
100.0
75.0
50.0
25.0
0.0
% EFF
94.38
94.56
94.50
94.50
94.55
92.54
0.00
% PF
86.4
86.8
81.7
79.6
72.2
61.5
21.4
AMPS(460V)
86.6
79.2
73.2
52.1
37.2
24.8
9.9
TORQUE(FL) LB-FT
267.3
TORQUE(LR)%FL
182.0
TORQUE(BD)%FL
248.0
AMPS(LR 460V)
411.2
PF AT START
0.32%
Other Useful Information for Application:
Rotor Inertia: Lb-Ft Sq ((Kg-m Sq):
26.1(1.1)
Max Connected load inertia: Lb-Ft Sq ((Kg-m Sq):
735(30.97)
Load Type:
Square Torque/Speed Characteristic
Voltage:
100%
Number of starts:
2 Cold or 1 Hot
Acceleration Time with maximum inertia (sec):
8.1
Safe stall time (sec): Cold/Hot
110/40
0
50
100
150
200
250
300
350
400
450
500
550
600
650
700
0
50
100
150
200
250
300
350
400
450
500
550
600
650
700
00.20.40.60.81
Torque(lb
-ft)
Current(A)
Slip（pu）
404T, 6P, 60HP/45kW, 460V, 60Hz
Current vs Slip Curve and Torque vs Slip Curve
Current
Torque
Model Number: 5KS404CWL305
April 30, 2019
Marks:
Model Number: 5KS404CWL305
April 30, 2019
Page | 4
Marks:
Connection Diagram
Thermostat Connection
GEM2034E-FIG9
3027JE-2A
