Model Number:
5KS324CWL115
Catalog Number:
E533
Instruction Manual:
GEI-M1049
Connection Diagram:
GEM2034E-FIG9
Outline Drawing:
358B6505AB
Accessory Connection Diagrams
Bearing Thermocouple:
None
Heater:
None
RTD:
None
Thermistor:
None
Thermostat:
3027JE-2A
Winding Thermocouple:
None
Bearing RTD:
None
Table of Contents
Specification
01
Performance Characteristics
02

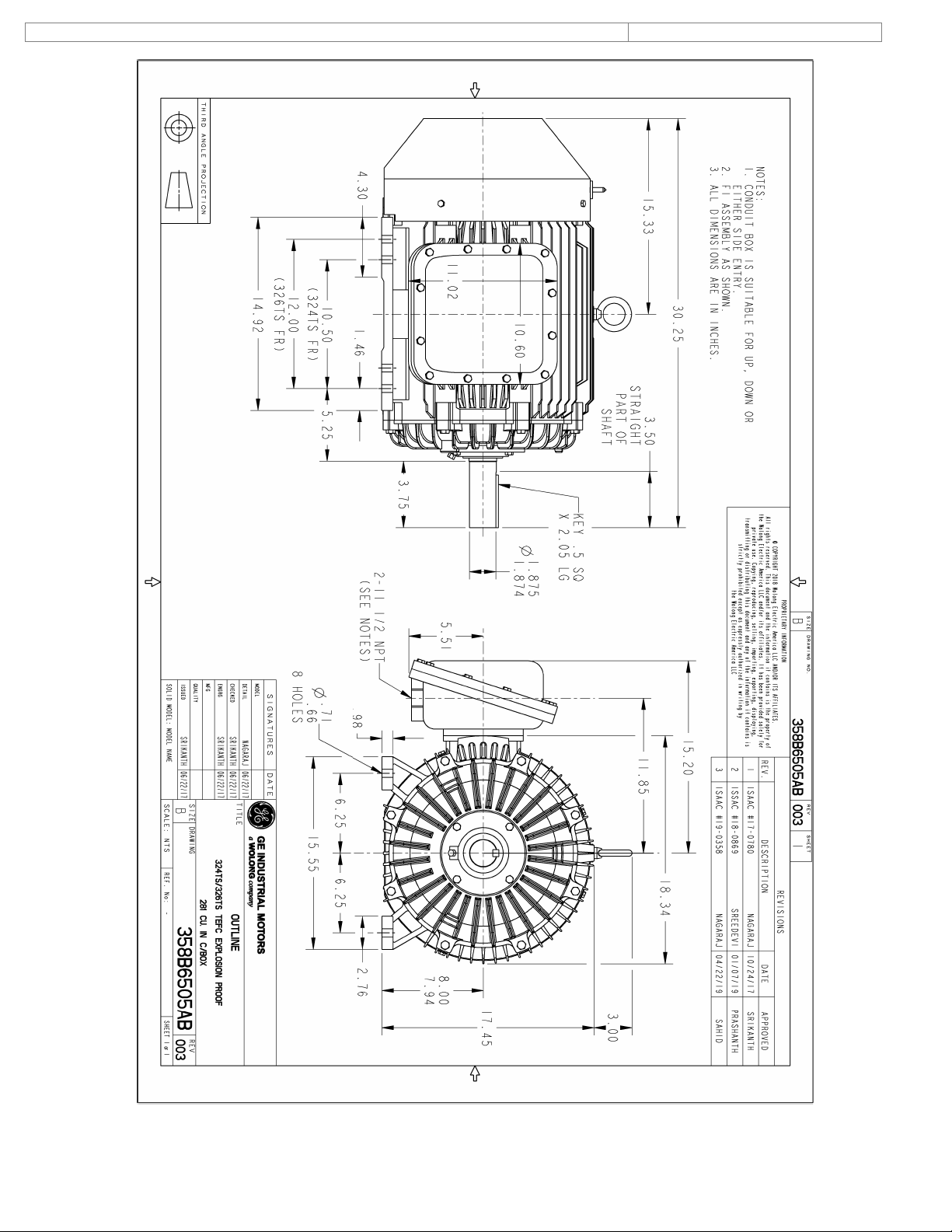

Outline Drawing
03
Connection Drawing(s)
04
Page 2
Model Number:5KS324CWL115
April 30, 2019
Page | 1
Marks:
MODEL NUMBER:
5KS324CWL115
Estimated Weight:
706 Lbs
Outline Drawing:
358B6505AB
Time Rating:
CONT
Connection Diagram:
GEM2034E-FIG9
Enclosure:
TEFC
Instruction Book:
GEI-M1049
Encl Construction:
XP
Design Code:
NA
Ambient Max(°C):
40
Type:
KS
Alt Ambient Max(°C):
55
Frame:
324TS
Insulation Class:
F
Phases:
3
NEMA Design:
B
Poles:
2
Nominal Efficiency:
92.4 %
Output Power:
40HP 30kW
Guaranteed Efficiency:
91.0 %
RPM:
3565
3/4 Load Efficiency:
92.4 %
Voltage:
230/460
KVA Code:
G
Hertz:
60
Max KVAR:
11.2
Amps - FL:
92.6/46.3
Power Factor:
88.1%
Service Factor:
1.15
Bearing - DE:
6312-C3
Alt Service Factor:
1.0
Bearing - ODE:
6312-C3
Enclosure is Totally Enclosed Fan-Cooled
Stamped Nameplate Notes:
Additional Information:
THERMOSTAT FOR: TRIP 145+/-5 DEG C
THERMOSTAT LEADS: 3 NC TO TERMINATE IN MAIN CB
ROTATION:CCW VIEWED FROM ODE
CLASS /GAS GROUP:CL I GR C and D, CLASS II GR F and G
CBOX SIZE:281 CU INCH
INVERTER DUTY PER NEMA MG1 PART 31
INVERTER RATED PWM 10:1 VARIABLE TORQUE, 5:1 CONSTANT TORQUE, 1.0 SF
UL CERTIFICATION SUITABLE FOR INSTALLATION IN –
- THE UNITED STATES, NIGERIA AND KUWAIT
Page 3
Model Number:5KS324CWL115
April 30, 2019
Page | 2

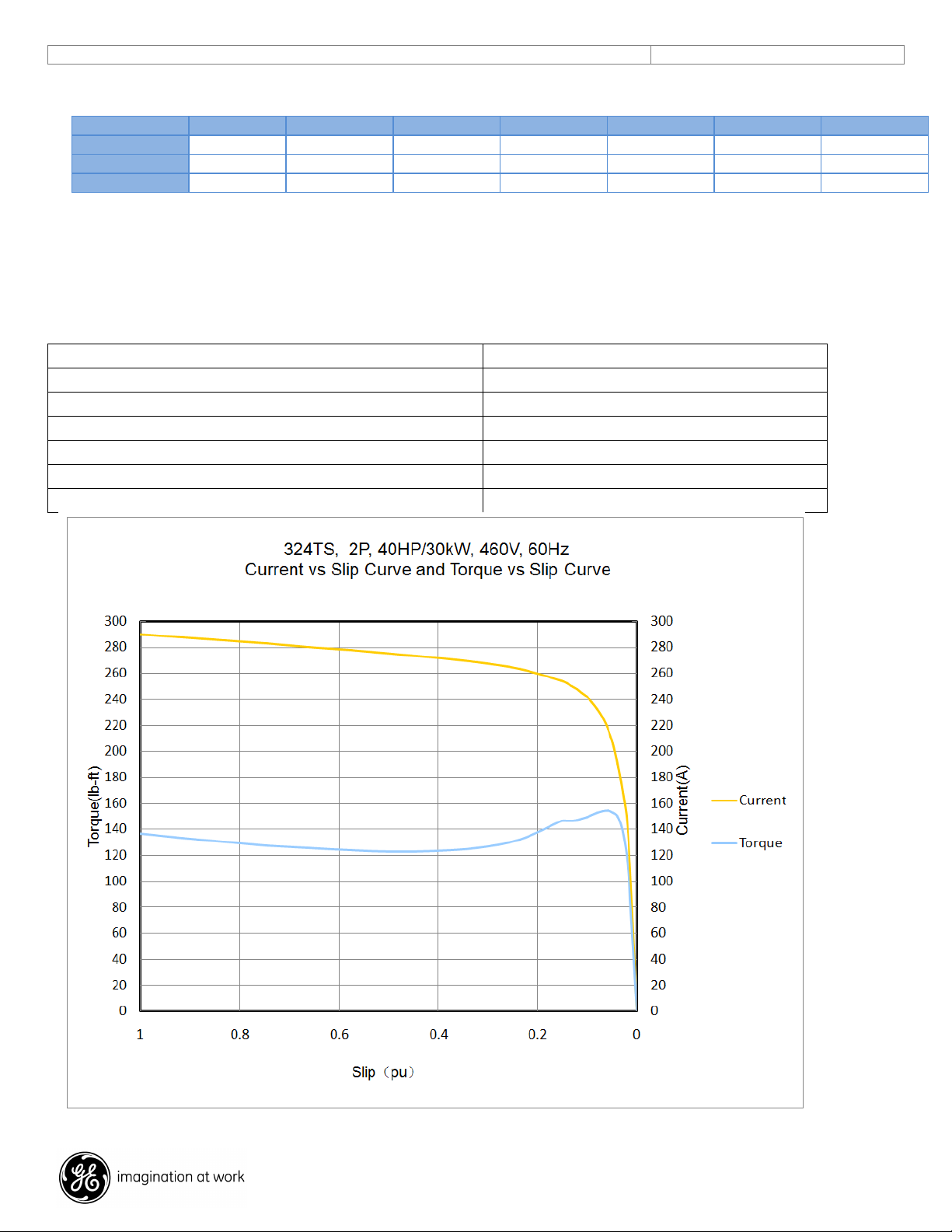

Performance Characteristic:
LOAD %
125.0
115.0
100.0
75.0
50.0
25.0
0.0
% EFF
92.45
92.63
92.40
92.40
92.74
90.90
0.00
% PF
91.23
91.40
88.1
86.00
85.86
69.62
25.77
AMPS(460V)
55.77
51.18
46.3
33.69
23.64
14.90
5.59
TORQUE(FL) LB-FT
59.21
TORQUE(LR)%F
L
231.0
TORQUE(BD)%F
L
259.
0
AMPS(LR 460V)
290.0
PF AT START
0.28%
Other Useful Information for Application:
Rotor Inertia: Lb-Ft2 (Kg-m2):
3.56(0.15)
Max load inertia: Lb-Ft2 (Kg-m2):
40(1.7)
Load Type:
Square Torque/Speed Characteristic
Voltage:
100%
Number of starts per hour:
2 Cold or 1 Hot
Acceleration Time with maximum inertia (sec):
4.7
Safe stall time (sec): Cold/Hot
75/35
Marks:
Page 4
Model Number: 5KS324CWL115
April 30, 2019
Marks:
Page 5
Model Number: 5KS324CWL115
April 30, 2019
Page | 4
Marks:

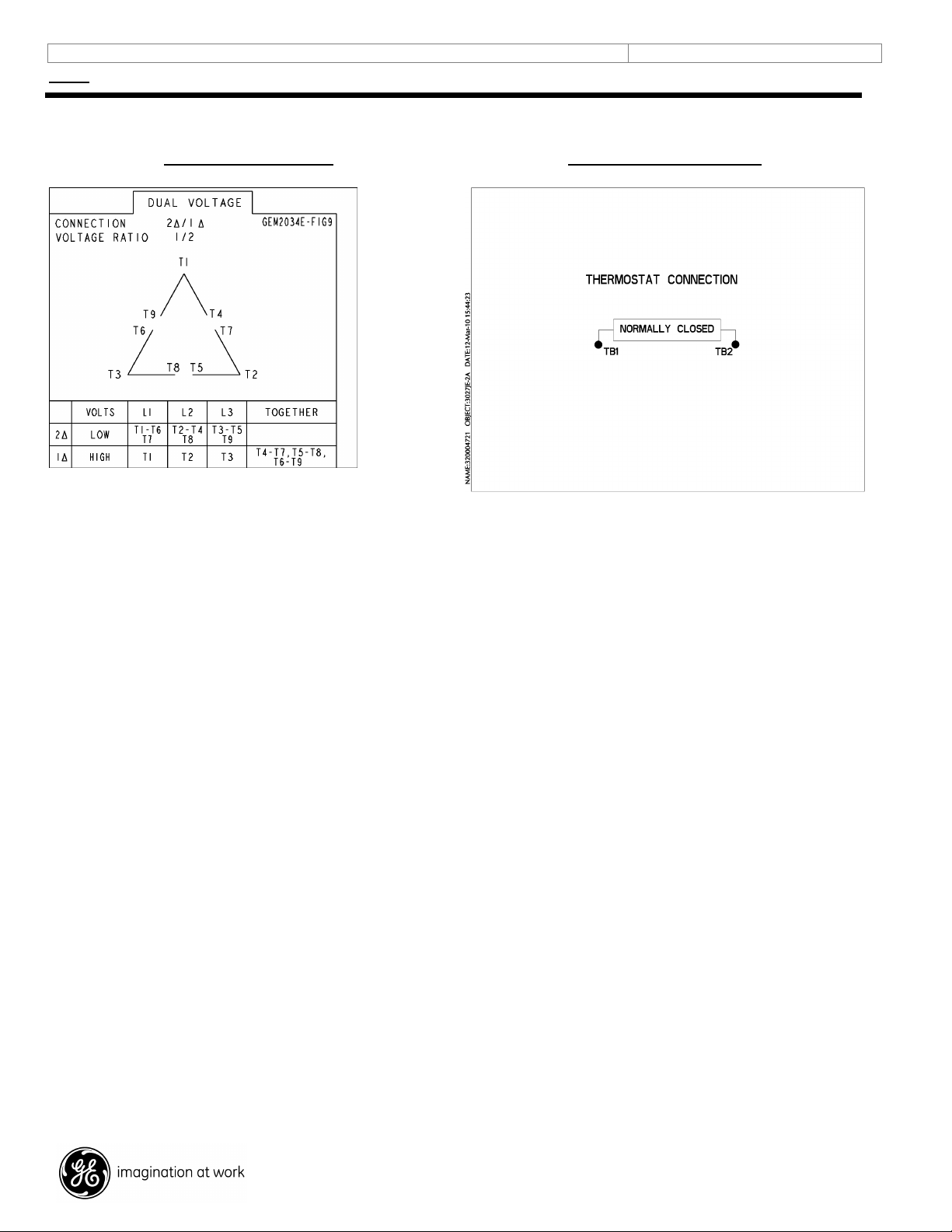

Connection Diagram
Thermostat Connection
GEM2034E-FIG9
3027JE-2A
