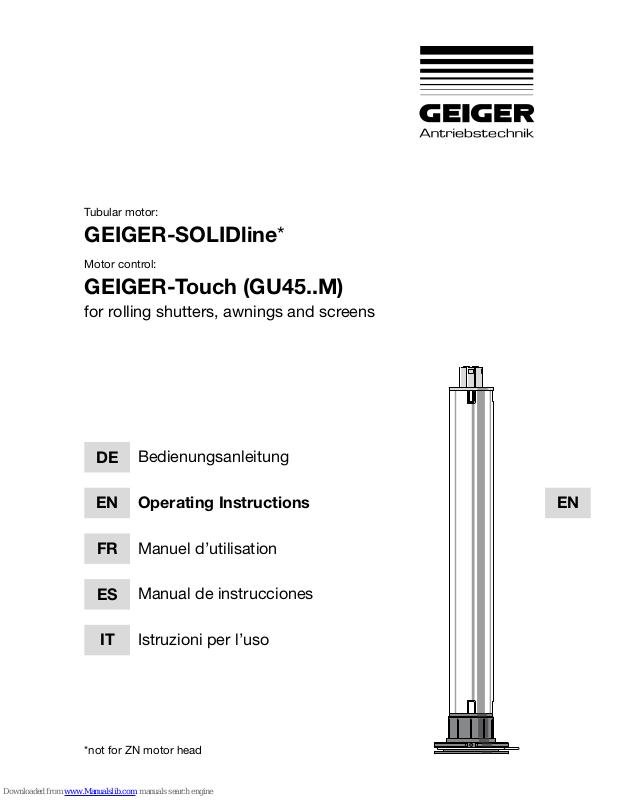

Tubular motor:
GEIGER-SOLIDline*
Motor control:
GEIGER-Touch (GU45..M)
for rolling shutters, awnings and screens
*not for ZN motor head
2
Gerhard Geiger GmbH & Co. KG | 100W0570 1011
en
EN
EN
Index
1. General information .........................................................3
2. Guarantee ..........................................................................3
3. Safety information ............................................................3
4. Intended use .....................................................................4
5. Installation instructions ...................................................5
6. Setting of the end stops ...................................................6
7. Declaration of conformity ................................................7
8. Information for the specialist electrician .......................7
9. Notes on waste disposal .................................................7
10. What to do if… ..................................................................8
Technical data
Technical data of short motor SOLIDline (GU45..)
GU4510 GU4520 GU4530 GU4540
Voltage
230 V~/50 Hz 230 V~/50 Hz 230 V~/50 Hz 230 V~/50 Hz
Current
0,47 A 0,63 A 0,8 A 1,0 A
Cos Phi (cosj)
>0,95 >0,95 >0,95 >0,95
Inrush current (factor)
x 1,2 x 1,2 x 1,2 x 1,2
Power
105 W 140 W 180 W 220 W
Torque
10 Nm 20 Nm 30 Nm 40 Nm
Speed of rotation
16 1/min 16 1/min 16 1/min 16 1/min
Protection type
IP 44 IP 44 IP 44 IP 44
Total length
1)
515,5 mm 545,5 mm 565,5 mm 585,5 mm
Operating type
S2 4 min S2 5 min S2 4 min S2 4 min
Diameter
45 mm 45 mm 45 mm 45 mm
Weight
approx.
1,9 kg
approx.
2,2 kg
approx.
2,4 kg
approx.
2,7 kg
1)
SOLIDline-ZN/-KS: +1 mm / SOLIDline-COM/-SIC + 4,5 mm / SOLIDline-SOC: + 4 mm
Subject to technical modifications
3
www.geiger-antriebstechnik.de
EN
EN
1. General information
Dear customer,
By purchasing a GEIGER tubular motor you have decided on a quality product from
GEIGER.
Thank you very much for your decision and the confidence placed in us.
Before you put this drive into operation please observe the following safety
information. It serves for the prevention of danger and for the avoidance of personal
injury and damage to property.
Please retain this information for future reference.
f Suitable for all rolling shutter systems and screens
f Suitable for all folding arm awnings
f Installation without stops possible
2. Guarantee
In the case of incorrect installation contrary to the operating instructions and/
or constructional modification, the legal and contractual guarantee for property
damage and product liability lapses.
3. Safety information
I
ATTENTION: Important safety information. For personal safety, it is
important to follow these instructions. The instructions should be
kept.
f This appliance is not to be used by persons (including children) whose
physical, sensorial or mental capacities are impaired, or who have no
expe rience or know-how, unless they have been supervised or been given
instructions on the use of the appliance by someone who is responsible for
their safety.
f Children must be supervised to make sure they do not play with the
appliance.
f The installation is to be checked regularly for defective balance, wear and
damage.
f Damaged connecting leads must be replaced by the GEIGER connecting
lead of the same wire type.
f During operation observe the danger zone.
f If people or objects are in the danger zone, do not use the installation.
f Urgently shut down damaged installations until repair.
f Unconditionally shut down the unit during maintenance and cleaning
operations.
f Pinching and shearing sites are to be avoided and to be safeguarded
against.
f When operating the manual actuator with the open sun protection system,
exercise caution as it can fall down quickly if springs expand or are broken.
f Do not operate the device if operations such as, for example, window
4
Gerhard Geiger GmbH & Co. KG | 100W0570 1011
en
EN
EN
cleaning are to be carried out in the vicinity.
f Disconnect the device from the mains power supply if operations such as,
for example, window cleaning are being carried out in the vicinity.
I
ATTENTION: Important safety information. Follow all installation
instructions, as incorrect installation can lead to serious injuries.
f Connection must be carried out by a skilled electrician according to the
regulations in force locally.
f The mains plug of the tubular motor must be accessible after installation.
f On the installation of the tubular motor without mechanical protection of
the driven parts, the tubular motor must be installed at a height of at least
2.5 m above the ground or of another level which provides access to the
drive.
f Before the tubular motor is installed, all leads which are not needed are to
be removed and all equipment which is not needed for actuation is to be
put out of operation.
f If the tubular motor is controlled by a switch or pushbutton, the switch
or pushbutton must be mounted within eyeshot of the tubular motor. The
switch or pushbutton must not be located in the vicinity of moving parts.
The height of installa tion must be at least 1.5 m above the floor.
If the apparatus is equipped without a pin and a socket connector (STAS3K)
in the connecting lead, or other means for disconnecting from the mains
with at least a 3 mm contact opening on each pole, a disconnecting device
of this type must be incorporated into the permanently installed electrical
installation according to the wiring rules.
f Permanently installed control devices must be attached visibly.
f The correct dimensioning of the drive is to be observed.
4. Intended use
The tubular motors of the model range SOLIDline (GU45..M) with the Touch
system are designed exclusively for the operation of rolling shutters, awnings and
screens.
If the tubular motors are used for other applications and/or modifications are
performed to the tubular motors, which have not been discussed with GEIGER
Antriebstechnik, then the manufacturer is not liable for personal injury and/or
damage to property and for consequential damage.
5
www.geiger-antriebstechnik.de
EN
EN
5. Installation instructions
Before fixing, the strength of the masonry or of the subsurface is to be checked.
I
Caution: If the tube is screwed/riveted to the drive, the measure must
be taken from the tube end to the center of the drive and marked on the
tube.
When drilling the winding shaft never drill into the
area of the tubular motor!
When inserting into the shaft, the tubular motor
must not be struck and must not be allowed to fall
into the shaft.
Installation into the rolling shutter:
Fix motor support to available stud bolts or in the
side frame.
Insert motor into the shaft with a suitable adapter
and drive up to the stop of the shaft adapter.
Insert roller capsule on the opposite side.
Put shaft with motor on motor support or on pivo-
ting engine bearer. On the opposite side pull out
roller capsule until bolt fits into ball bearing.
Screw together roller capsule with shaft.
Screw together shaft with tubular carrier.
Fix rolling shutter casing to shaft.
Installation into awnings and screens:
Insert motor with a suitable adapter and drive into
the shaft up to the stop of the shaft adapter.
Fix the motor support on the awning. Fix the motor
together with the shaft on the motor support. The
bearer locks into place.
Depending on the selected motor head,
different fixation systems can be used:
– Place the motor with square insert in the star-
shaped bearer and lock with pin
– Place the motor into the existing engine bearer
and lock
– Place the motor in a compatible engine bearer with clip system and lock with
spring or rotating lever
6
Gerhard Geiger GmbH & Co. KG | 100W0570 1011
en
EN
EN
6. Setting of the end stops
I
WARNING: do not press the setting button when the rolling shutter
has reached the upper or lower end position ; this could damage the
mechanism.
I
WARNING: activate key at least one tube rotation before reaching the
end positions
Note:
f You can begin with the upper or lower end position (Here‘s one example
beginning with the upper end position)
f Setting range: max. 38 rotations between the end positions
f The button pops out during process (and not when changing the direction).
The adjustment is completed after half a rotation after changing direction.
Move the rolling shutter at least 300 mm below the required end position
Press the setting button
Move up the rolling shutter to the required end position
Once the required position is reached, move down the rolling shutter about
3 seconds (one tube rotation). The upper end stop is thus adjusted
Stop the rolling shutter and press again the setting button
Move down the rolling shutter to the required end position
Once the required position is reached, move up the rolling shutter about
5 seconds (one tube rotation). The lower end stop is thus adjusted.
NOTE: If you want to readjust the end position, please move the rolling shutter
in the opposite direction about 5 seconds (one tube rotation) before repeating
the operation.
I
There is no need to first delete the end stops (memorised) if you wish to
modify them.
I
It is possible to adjust an end stop without modifying the other ones.
1.
2.
1.
2.
3.
1.
2.
3.
4.
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
5.
6.
7.
1.
7
www.geiger-antriebstechnik.de
EN
EN
7. Declaration of conformity
We herewith explicitly declare that this product complies with the essential requirements and relevant directives. It is authorised for use in all EC member states and
in Switzerland without any need of prior registration. The Declaration of Conformity
concerning this product is available on our website: www.geiger-antriebstechnik.de.
8. Information for the specialist electrician
H
Caution: Wrong installation and
wrong connection can lead to serious
injuries.
Because of back-voltage of the capacitor, the
parallel connection of the SOLIDline Touch is not
permissible.
Please do not use any installation switch which
allows simultaneous up and down controls.
PVC cables are not suitable for equipment used
outdoors or exposed to prolonged high levels of
UV radiation.
These cables should not be used if they are likely
to touch metal parts that can heat up to temperatures exceeding 100°C.
Connecting cables with plug connectors of the
Hirschmann Company, type STAS 3K or the
Phoenix Mecano Company, type GLS/3+PE may
only be used in connection with the Hirschmann
cable socket STAK 3K.
9. Notes on waste disposal
Recycling of packaging materials
In the interest of environmental protection, please
contact your local government’s recycling or solid
waste management department to learn more
about the services it provides.
Waste disposal of electric and electronic
equipment
Electronic equipment or batteries cannot be discarded along with the normal
household waste. Keep for more information on the recycling and disposal
methods envisaged by the local regulations in your area.
12 3
PE N
L1
N
PE
Electronic /
mechanical
limit stop
blue
brown
black
green/yellow
Mains: 230V / 50Hz
8
Gerhard Geiger GmbH & Co. KG | 100W0570 1011
en
EN
EN
Gerhard Geiger GmbH & Co. KG
Schleifmühle 6
D-74321 Bietigheim-Bissingen
Telephone: +49 (0) 7142 938-0
Telefax: +49 (0) 7142 938-230
www.geiger-antriebstechnik.de
info@geiger-antriebstechnik.de
For technical questions, please call our service team at: +49 (0) 7142 938-300.
They will be happy to assist you.
10. What to do if…
Problem Solution
Motor does not run.
• Motor not plugged in.
Please check the plug connection.
• Check connecting cable for possible
damage.
• Check the mains voltage and allow
the cause of the voltage break down
to be tested by a specialist
electrician.
Instead of in the upwards direction,
motor runs downwards.
• The control leads are interchanged.
Exchange black/brown control leads.
Motor only runs in one
direction.
• Motor in the end position.
Run motor in the opposite direction.
After running several times,
the motor breaks down and
no longer responds.
• The motor became too hot and has
switched off.
Try it again after a cooling time of
about 15 min.
The adjusted end position
is not correct.
• Adjusting knob not pressed properly.
Repeat adjustment process, press
adjusting knob deeply.
• Actuator does not rotate simultaneously.
Push shaft onto tube actuator, repeat
adjustment process.
Loading...
